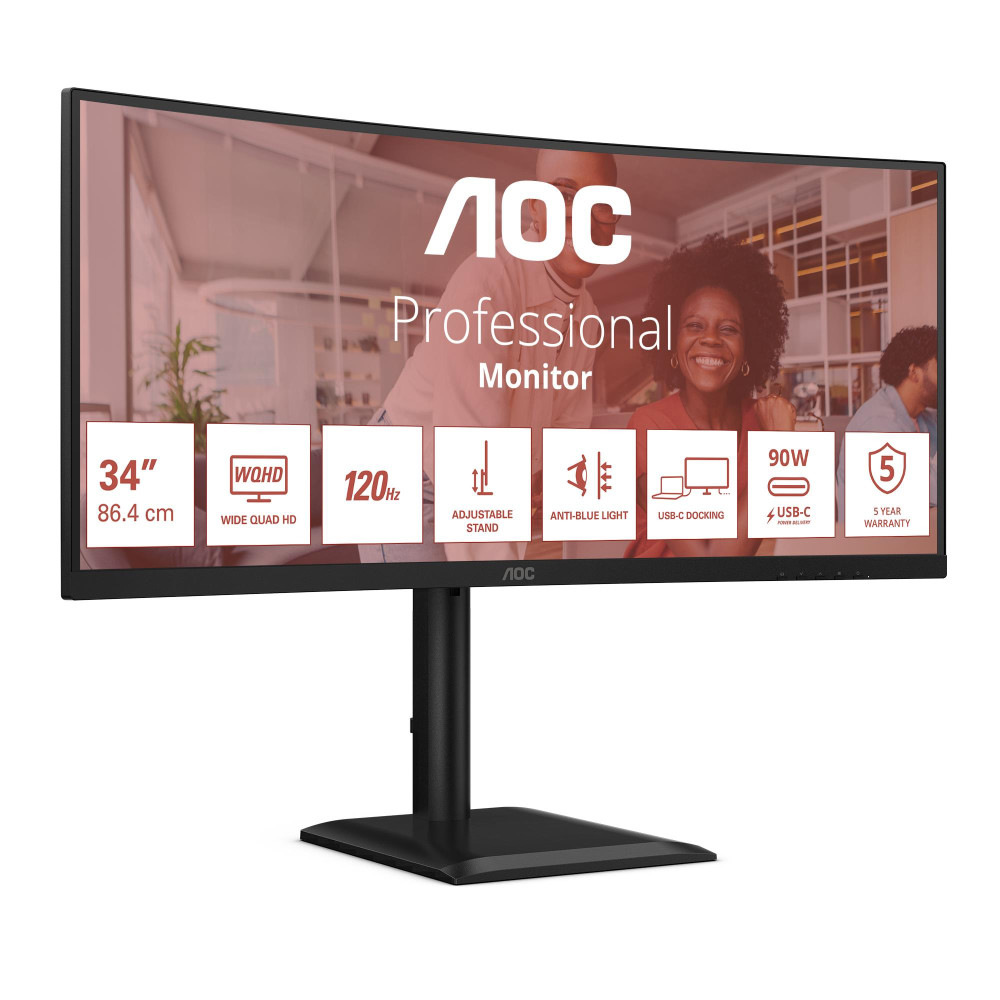

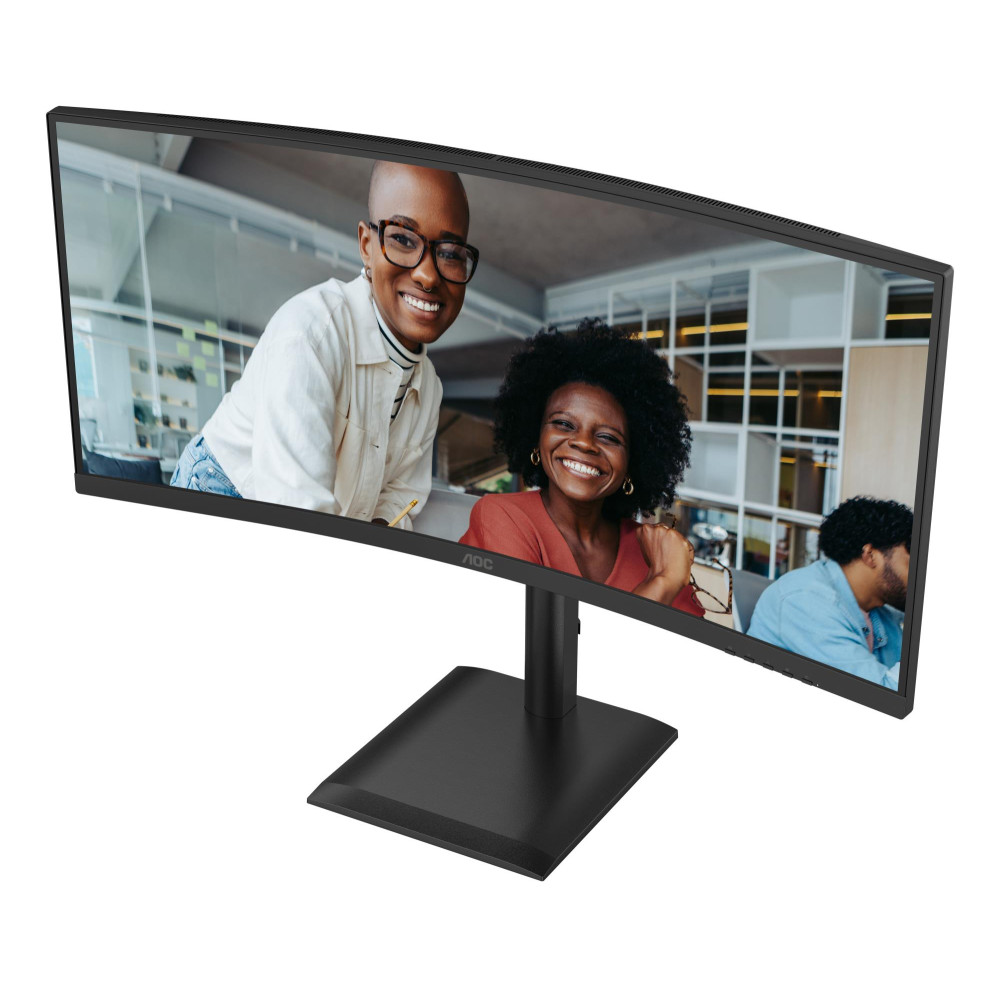

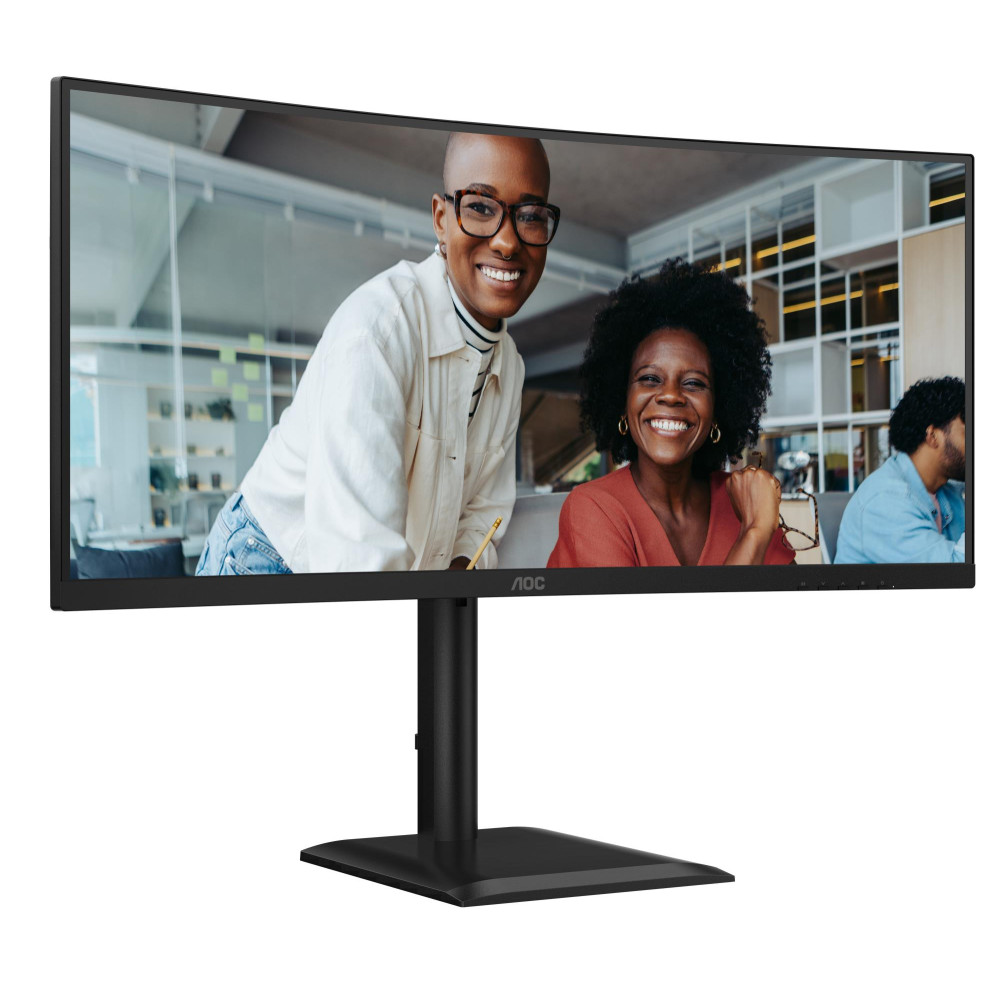

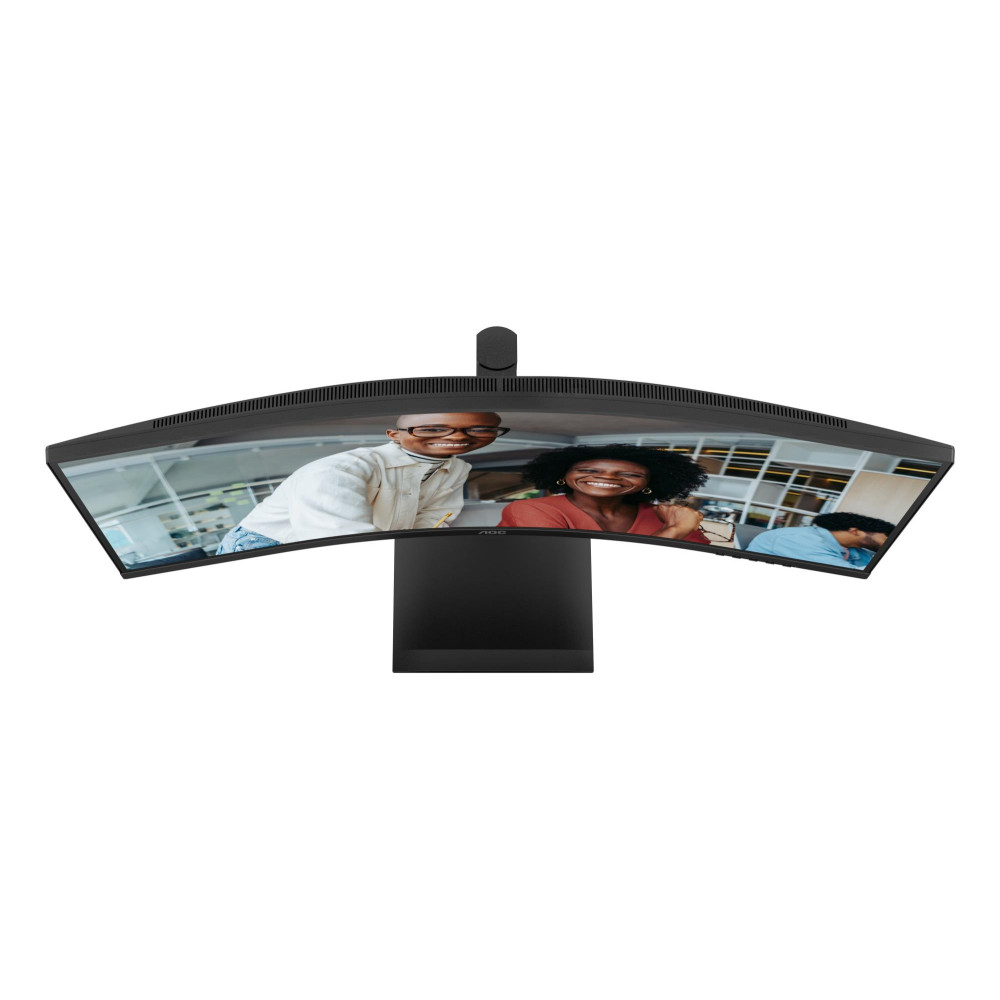

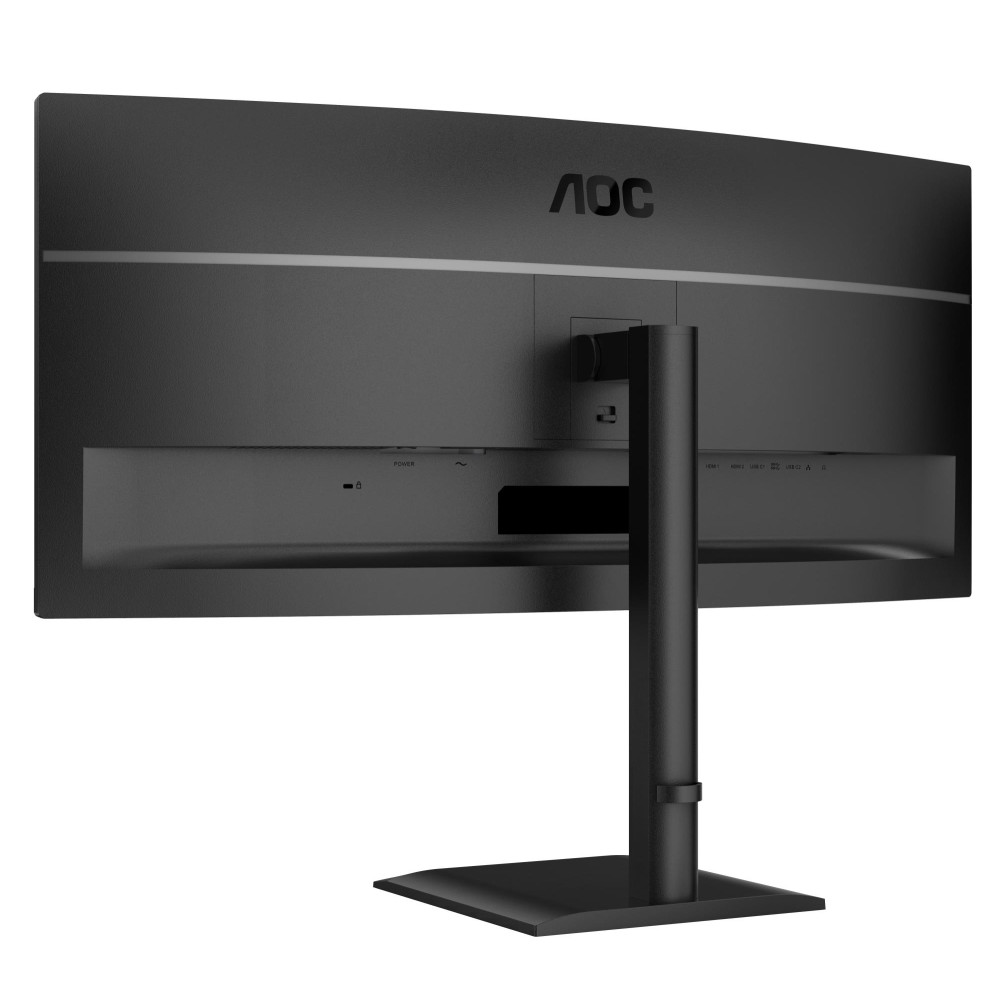

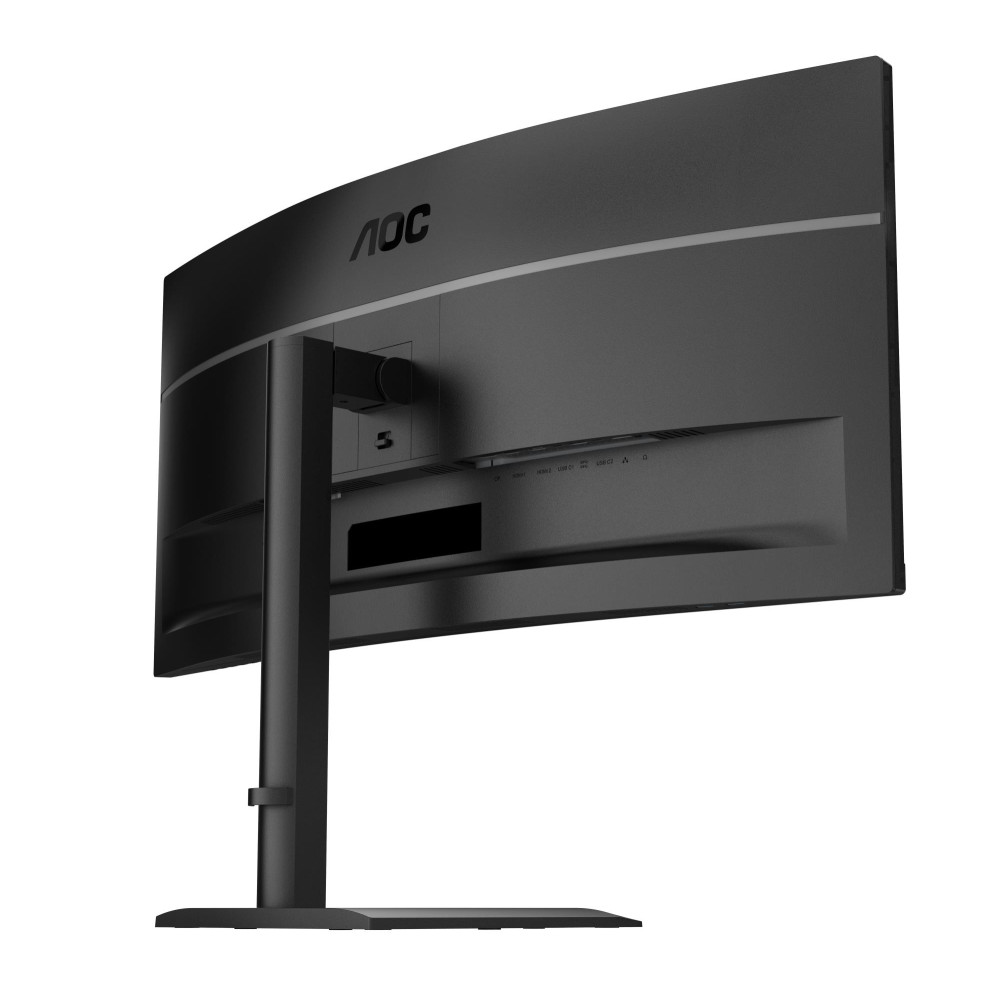

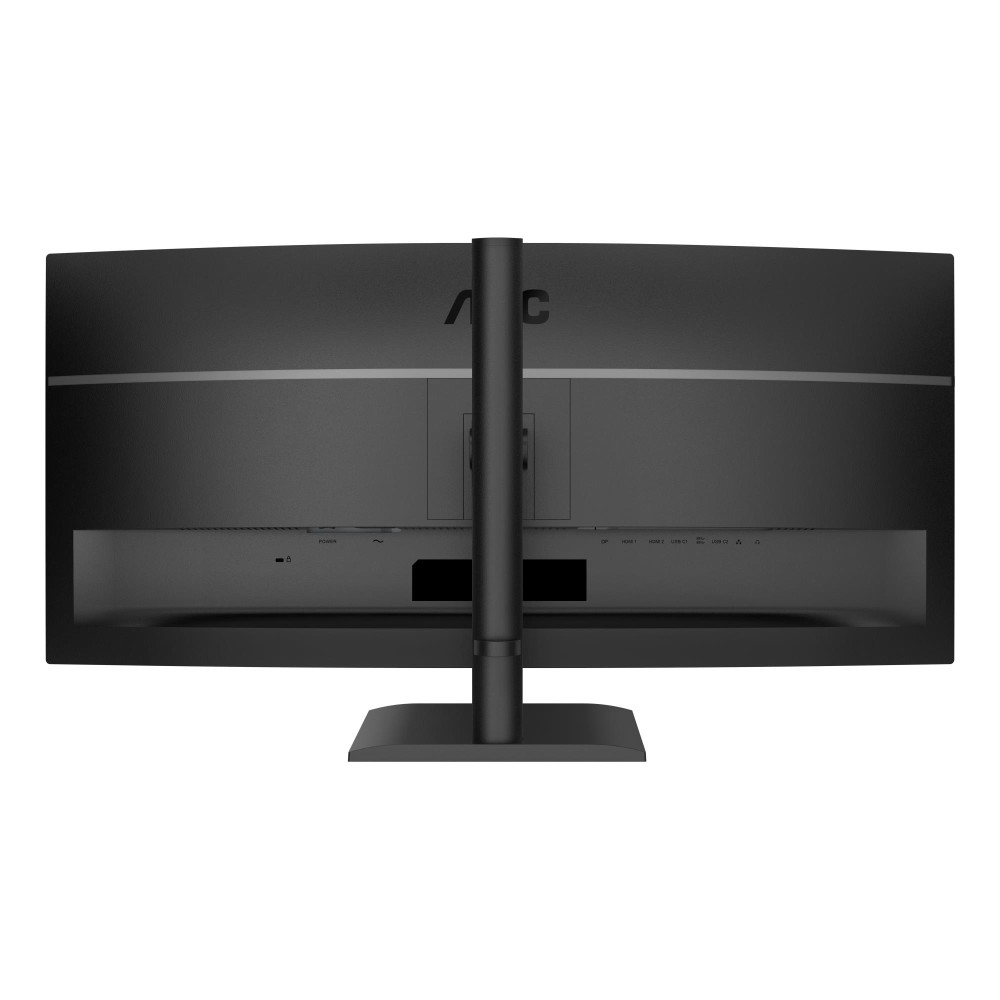

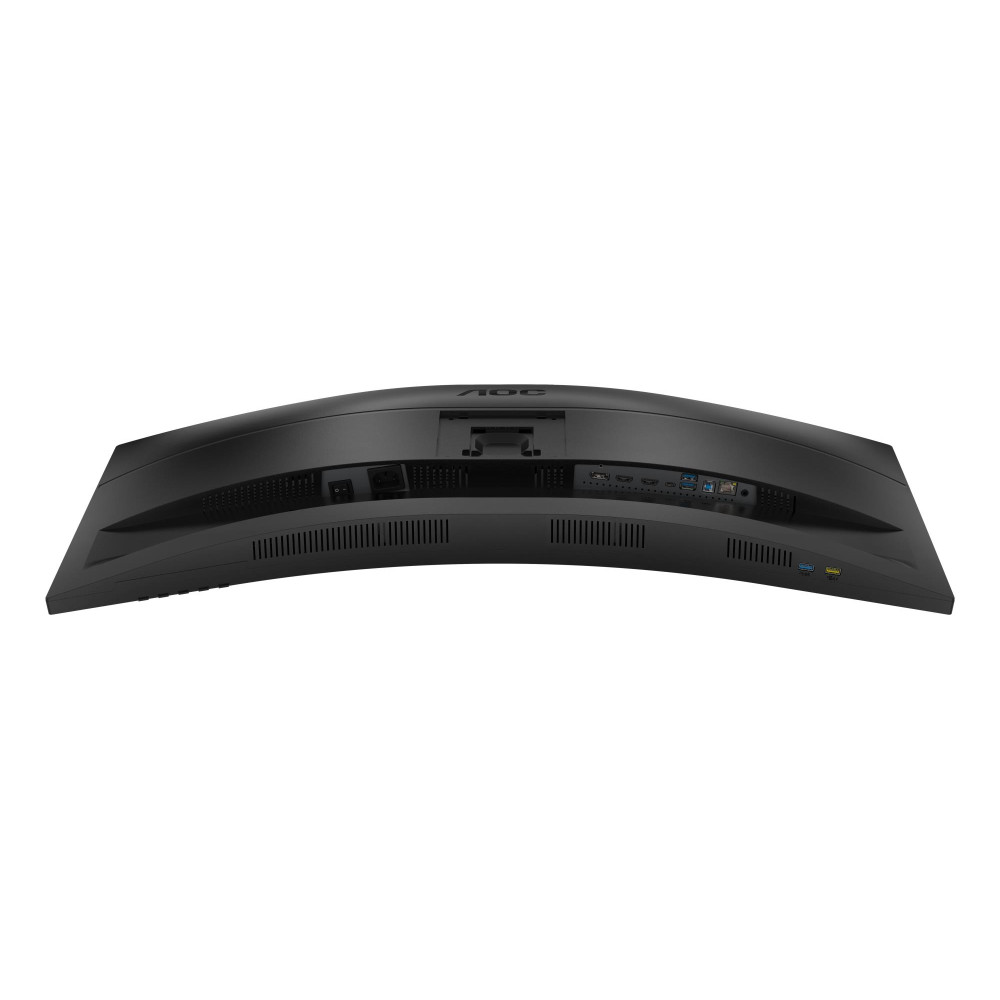

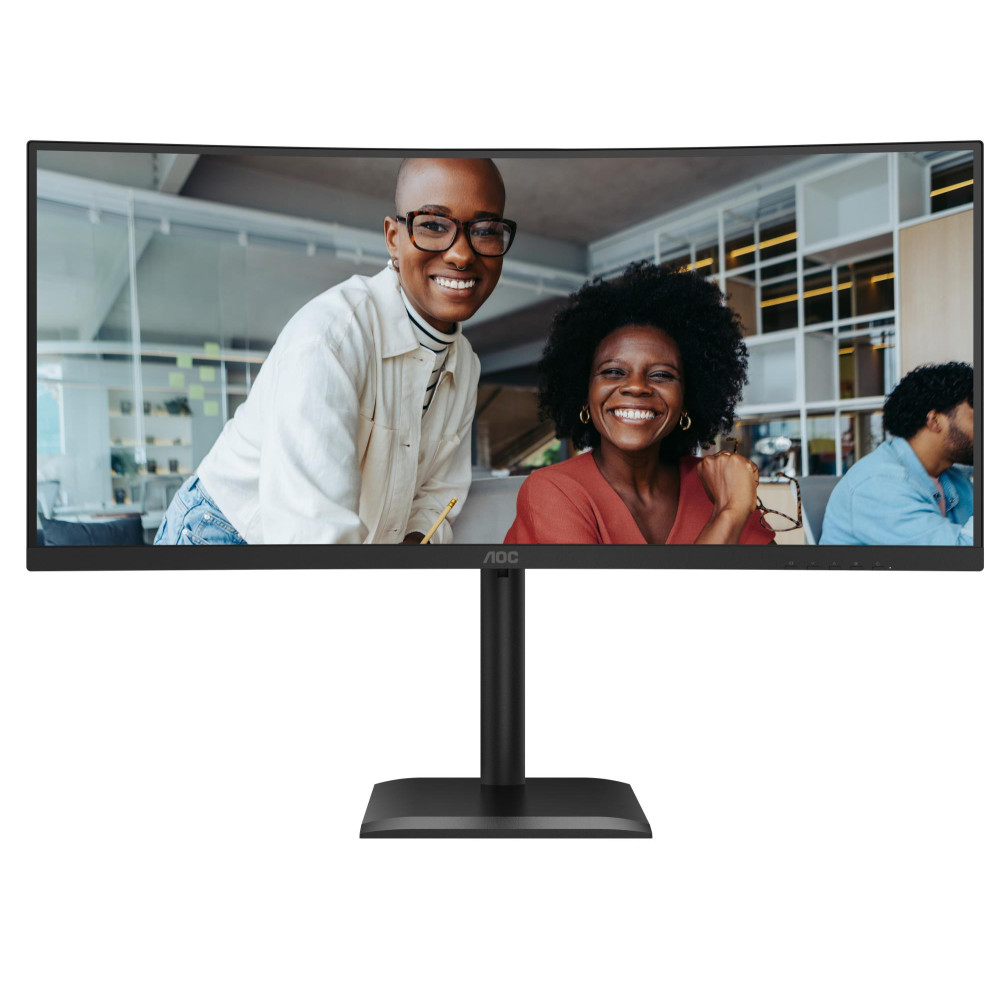

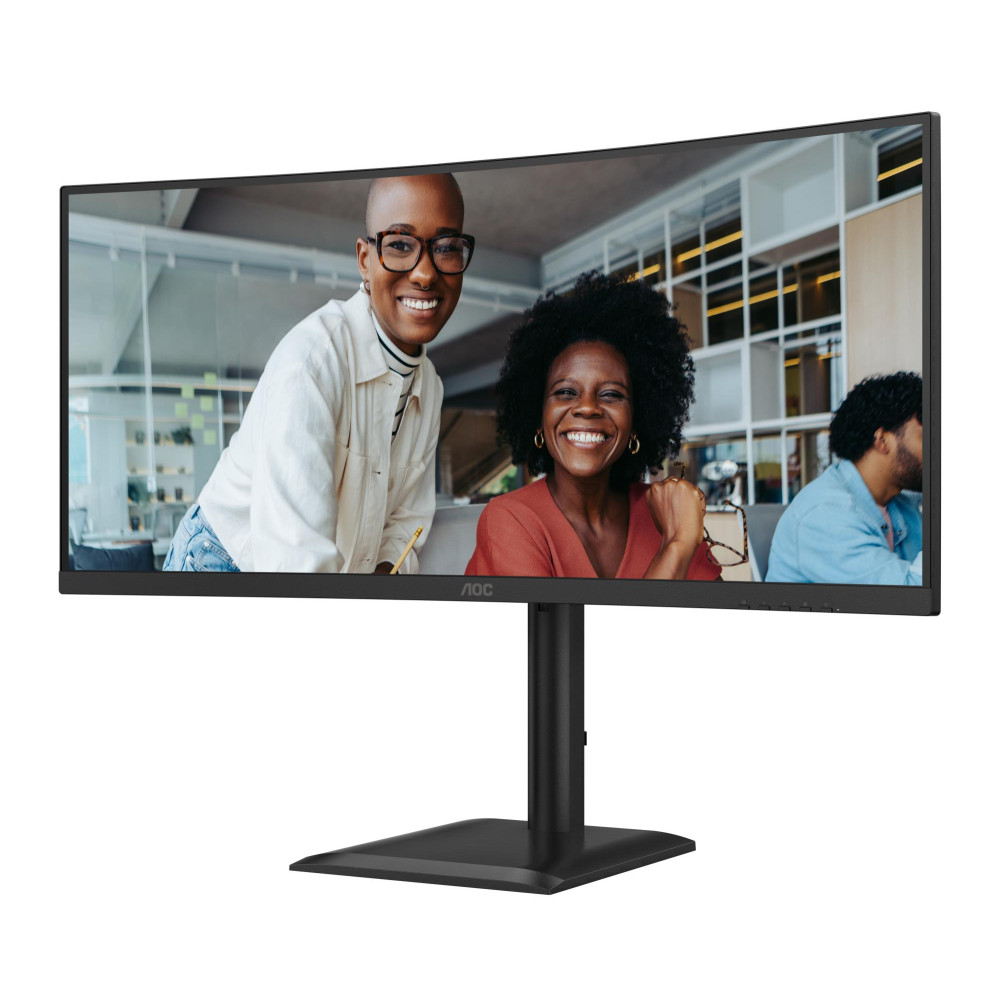

LCD Monitor, AOC, 34 , 3440 x 1440 pixels, UltraWide Quad HD, Native aspect ratio 21:9, LCD, Curved, CU34E4CV
Popular
- Product overview
- Specification
- Reviews (0)
Specifications
Specification
Panel type
VA
Specifikācija
Adjustable height (max)
180
AMD FreeSync refresh rate range
48 - 120
Anti-glare screen
Yes
Bezel thickness type
Frameless
Built-in KVM switch
Yes
Compliance certificates
CE
Data Sheet (Link)
https://eprel.ec.europa.eu/api/product/2405194/fiches?language=EN
Depth (without stand)
101.5
Detachable stand
Yes
Display brightness (typical)
350
DisplayPort cable length
1.8
Doesnt contain
Mercury/PVC/BFR
Energy consumption (HDR) per 1000 hours
46
Energy consumption (SDR) per 1000 hours
25
Energy efficiency class (HDR)
G
Energy efficiency class (SDR)
E
Energy efficiency scale
A to G
EPREL Registration Number
2405194
EPREL Version Number
1
Flicker-free technology
Yes
Frameless design
Yes
Front bezel colour
Black
HDCP version
1.4/2.2
HDMI cable length
1.8
Height (without stand)
365.4
High Dynamic Range (HDR) supported
Yes
High Dynamic Range (HDR) technology
High Dynamic Range 10 (HDR10)
Local dimming
Yes
Long Description
AOC E4 CU34E4CV. Display diagonal: 86.4 cm (34), Display resolution: 3440 x 1440 pixels, HD type: UltraWide Quad HD, Display technology: LCD, Response time: 4 ms, Native aspect ratio: 21:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 2.0 / 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black
Low Blue Light technology
Yes
Market positioning
Office
Number of USB Type-B upstream ports quantity
1
Number of USB Type-C upstream ports quantity
2
Panel mounting interface
100 x 100
Picture-in-Picture
Yes
Product colour
Black
Product Net Weight
9.92
Response time measurement type
GTG (Gray to Gray)
Screen curvature rating
1500R
sRGB coverage (typical)
120.6
Surface hardness
3H
Sustainability certificates
EPEAT Climate +/EPEAT Gold/TCO
Tilt angle range
-5 - 23
Unit Calculated Volume
0.09493
Unit Calculated Weight
14.4
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
90
VESA Adaptive Sync support
Yes
Warranty period
5
Weight (with stand)
9920
Weight (without stand)
7160
Width (without stand)
808.8
Display parameters
Contrast ratio (dynamic)
20000000:1
Contrast ratio (typical)
3500:1
Display diagonal
34
Display diagonal (metric)
86.36
Display number of colours
16.7 million colours
Display technology
LCD
HD type
UltraWide Quad HD
Pixel density
109.68
Response time
4
Screen shape
Curved
Viewing angle, horizontal
178
Viewing angle, vertical
178
Display resolution
3440 x 1440
Touchscreen
No

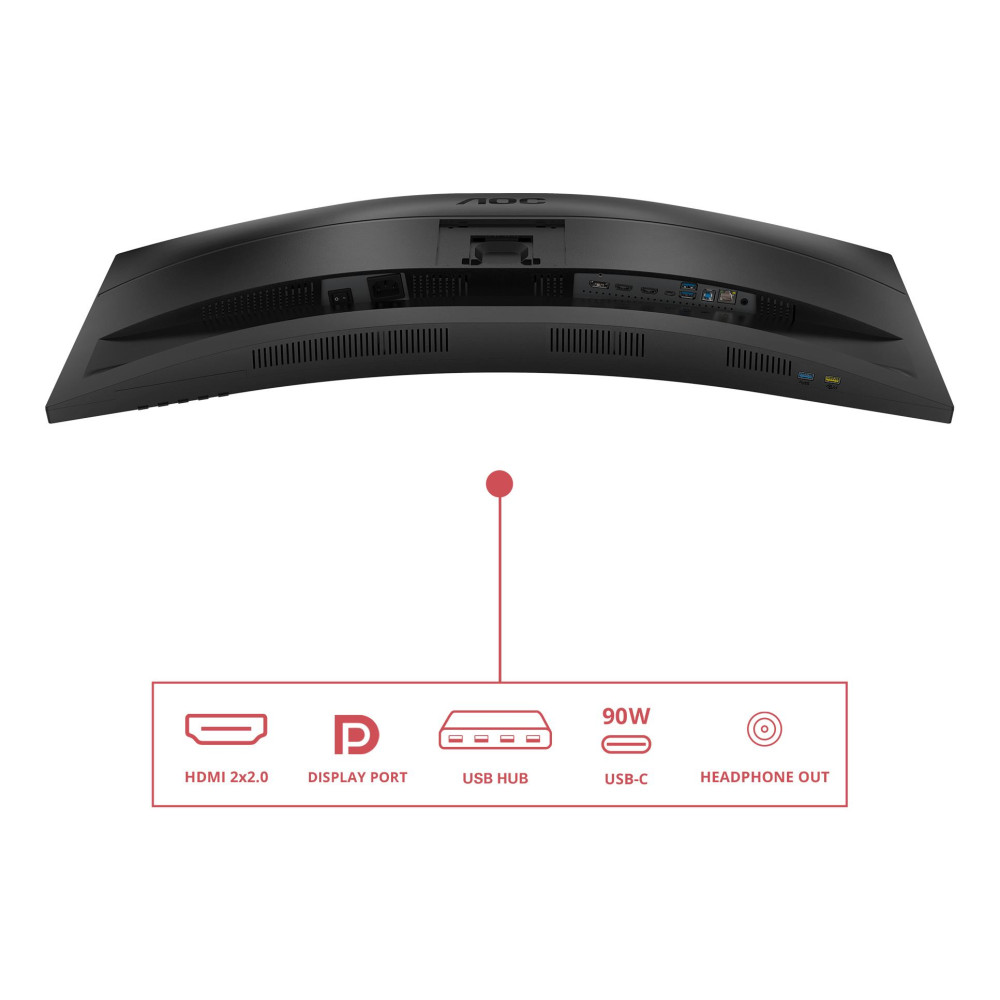

Ports types
Audio output
Yes
Built-in USB hub
Yes
DisplayPort version
1.4
DisplayPorts quantity
1
HDMI
Yes
HDMI ports quantity
2
HDMI version
2.1
Headphone out
Yes
Headphone outputs
1
USB Type-A downstream ports quantity
4
USB upstream port type
USB Type-B/USB Type-C
Connections types
Ethernet LAN
Yes
Specifications
AC input frequency
50/60
AC input voltage
100 - 240
Backlight type
W-LED
Built-in speaker(s)
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington
Cable management
Yes
Cables included
AC/DisplayPort/HDMI/USB Type-C
Certification
WEEE,REACH compliant,RoHs compliant,CB,TUV-GS-Mark,TUV Ergo,EAC,FCC
DDC/CI
Yes
Depth (with stand)
252.2
Digital horizontal frequency
30 - 190
Digital vertical frequency
48 - 120
Energy efficiency class
E
HDCP
Yes
Height (with stand)
581.6
Height adjustment
Yes
Horizontal scan range
30 - 190
Input current
2.5
LED backlight
Yes
Maximum refresh rate
120
Model name
CU34E4CV
Native aspect ratio
21:9
Non-operating altitude
0 - 12192
Number of speakers
2
Operating altitude
0 - 5000
Operating relative humidity (H-H)
10 - 85
Operating temperature (T-T)
0 - 40
Package depth
188
Package height
188
Package weight
13640
Package width
930
Pixel pitch
0.23175 x 0.23175
Plug and Play
Yes
Power consumption (max)
179
Power consumption (off)
0.3
Power consumption (standby)
0.5
Power consumption (typical)
31.7
Power supply type
Internal
RMS rated power
10
Storage relative humidity (H-H)
5 - 93
Storage temperature (T-T)
-25 - 55
Swivel angle range
-180 - 180
Swivelling
Yes
Tilt adjustment
Yes
USB hub version
2.0 / 3.2 Gen 1 (3.1 Gen 1)
Vertical scan range
48 - 120
VESA mounting
Yes
Viewable size, horizontal
797.22
Viewable size, vertical
333.72
Width (with stand)
808.8
