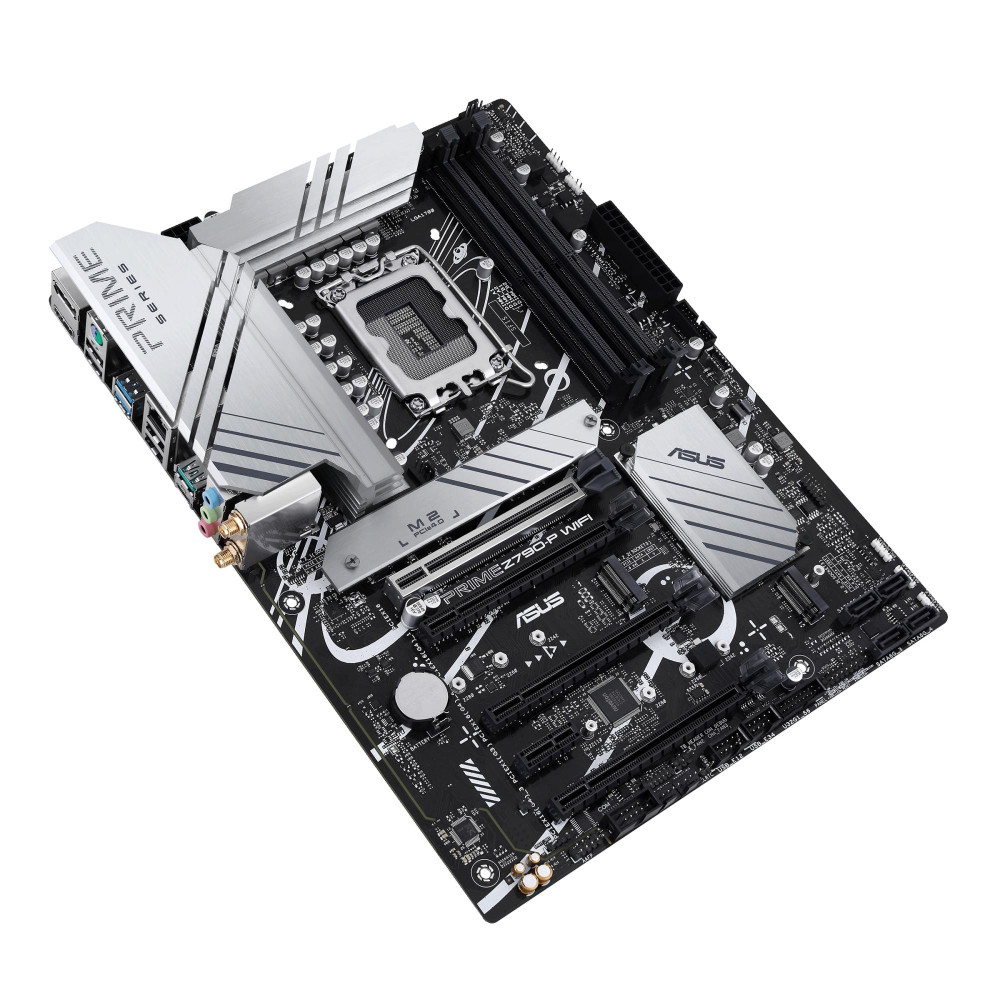

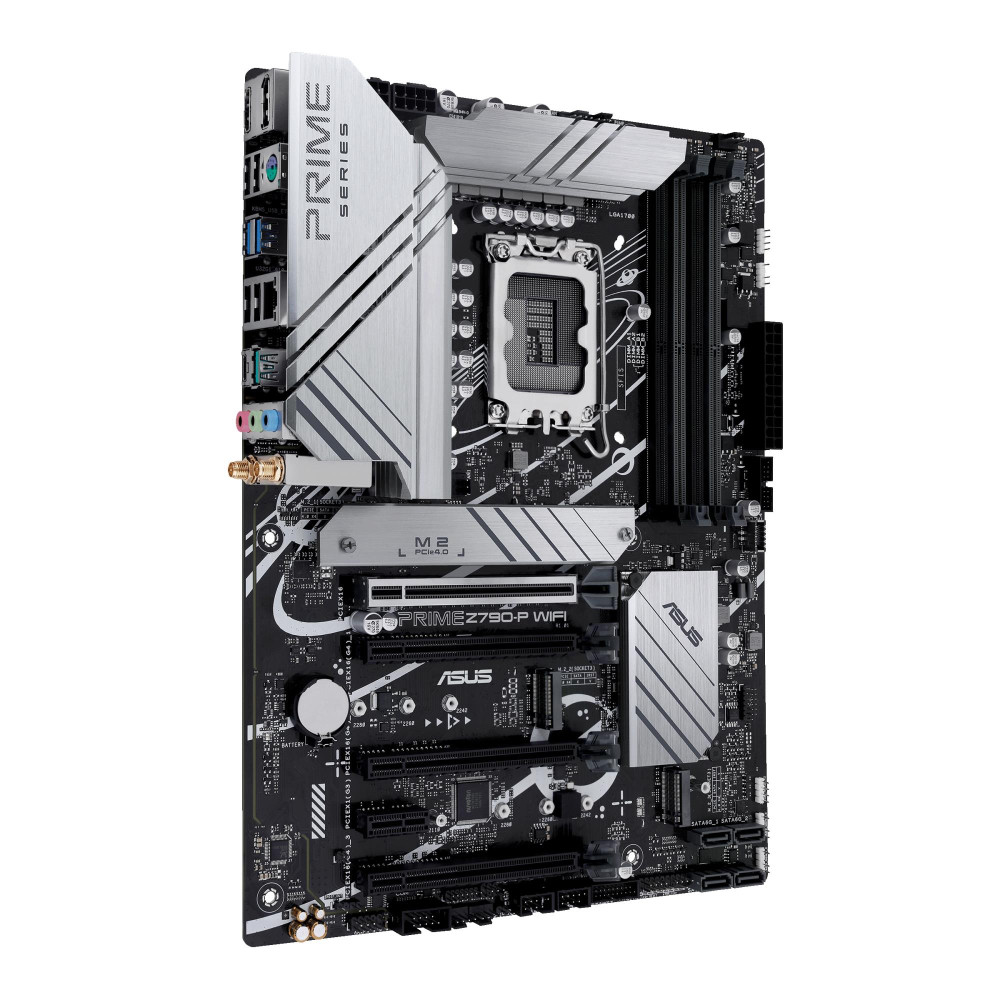

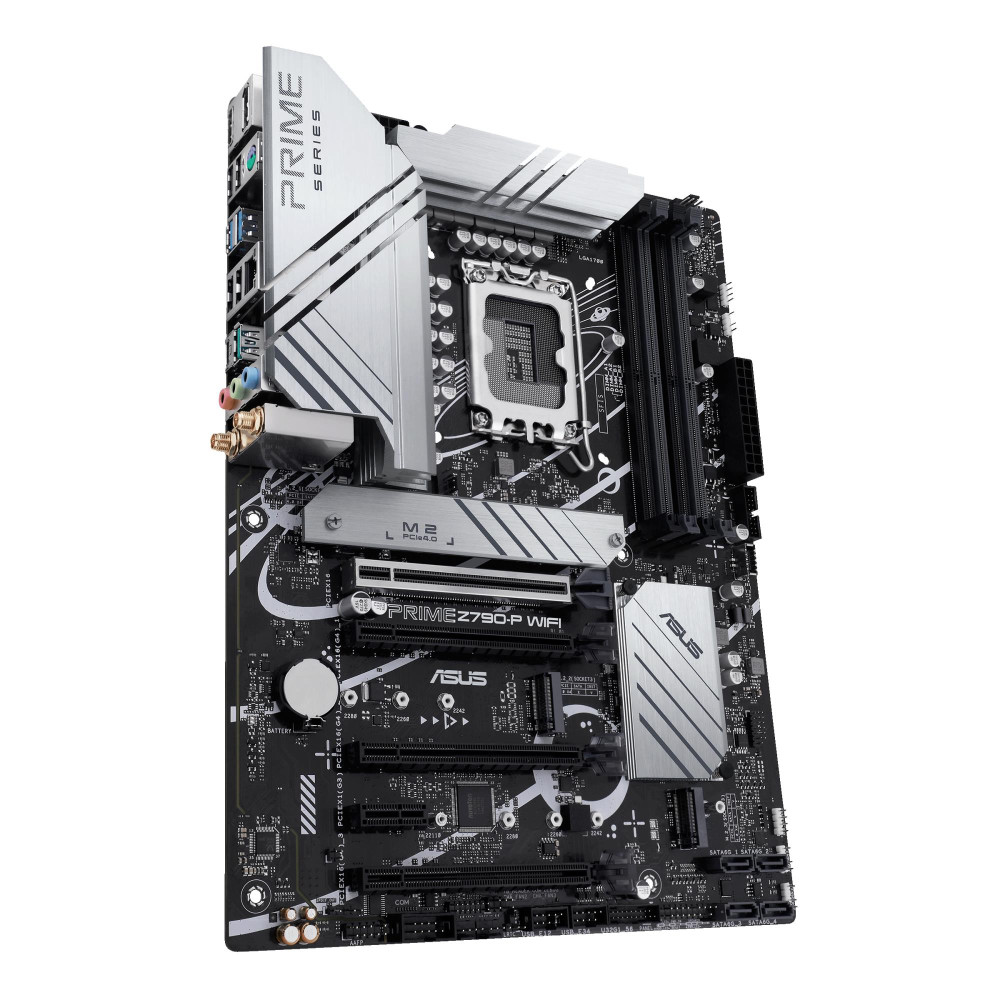

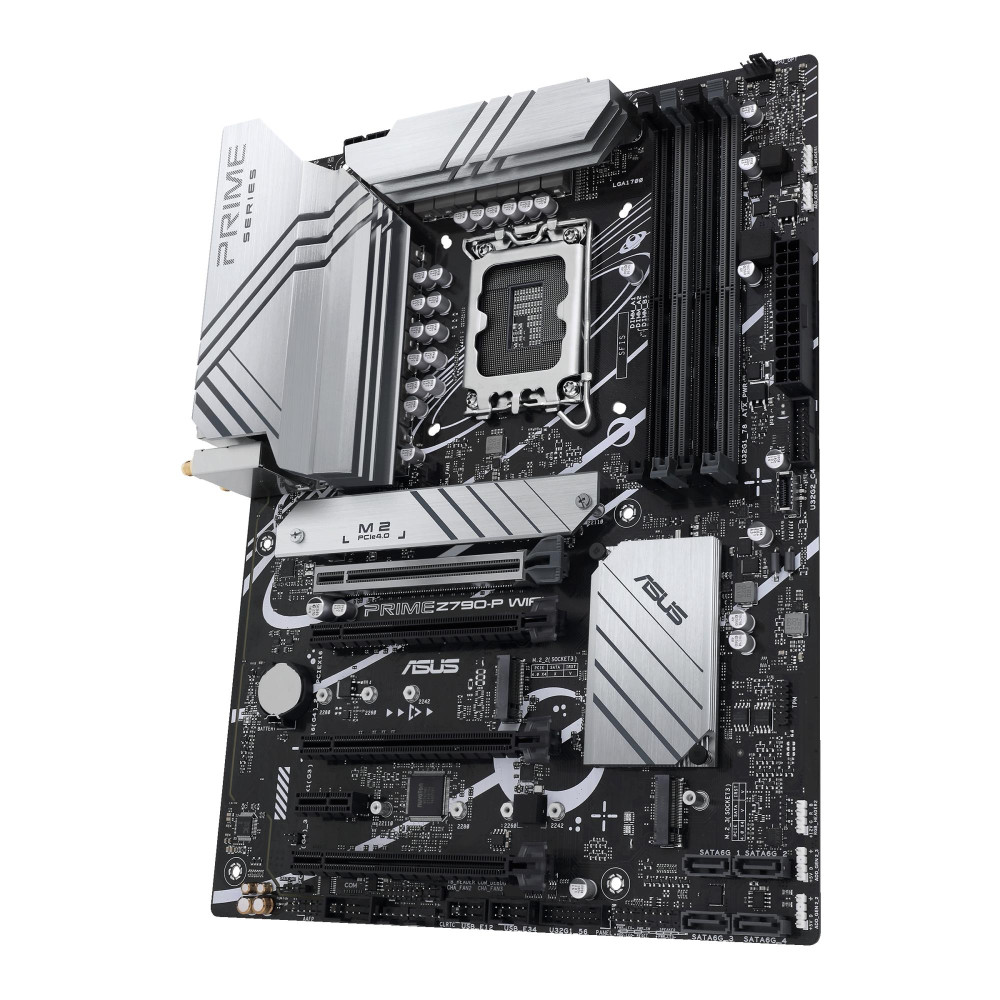

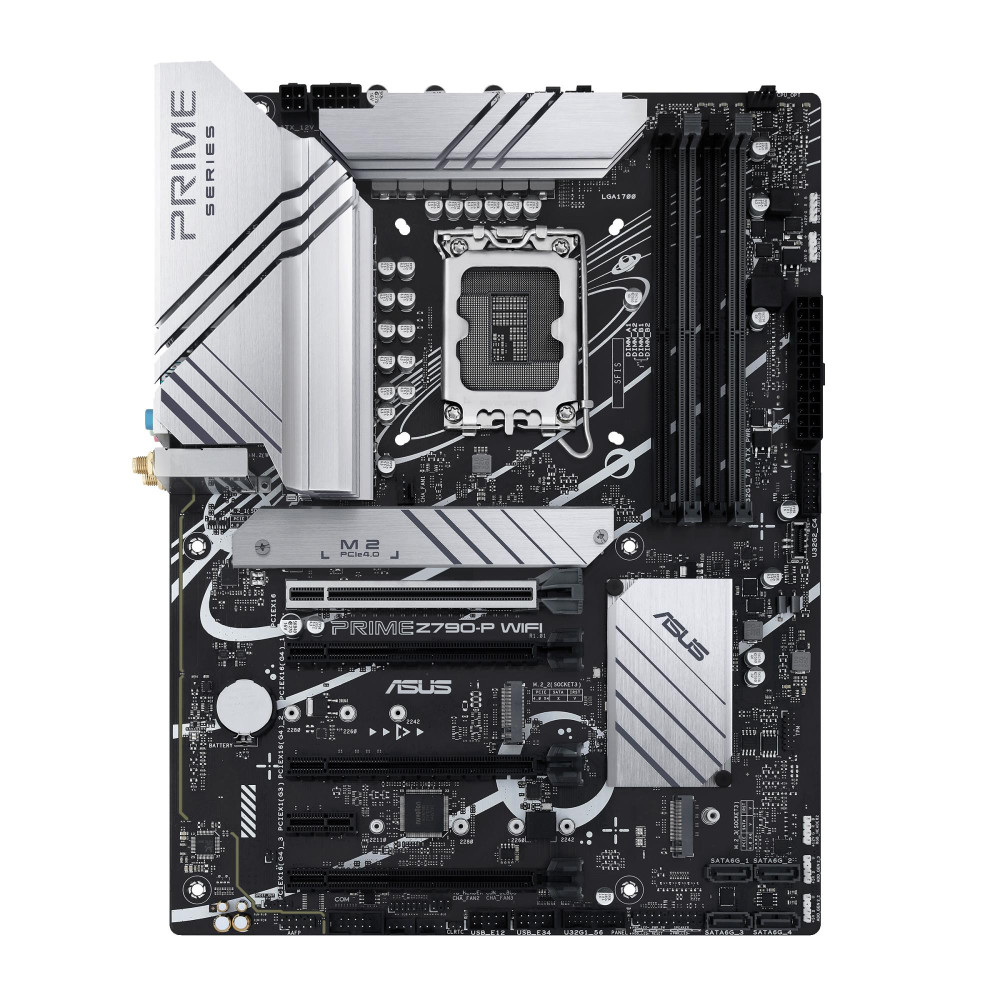

Mainboard, ASUS, Intel Z790, LGA1700, ATX, Memory DDR5, Memory slots 4, 1xPCI-Express 3.0 1x, 3xPCI-Express 4.0 16x, 1xPCI-Express 5.0 16x, 3xM.2, 1xHDMI, 1xDisplayPort, 4xUSB 2.0, 3xUSB 3.2, 1xUSB-C, 1xPS/2, 1xRJ45, 3xAudio port, PRIMEZ790-PWIFI

Populārs

Atsauksmes:

(0)

Nosaukums:

Asus PRIMEZ790-PWIFI

Ražotājs: Asus
Modelis: PRIMEZ790-PWIFI
EAN: 4711081937227
Pieejamība: Nav pieejams

198,54€

Bez PVN: 164,08€

Produktu apskats
Specifikācija
Atsauksmes (0)

Manufacturer page

Atslēgvārdi: Mainboards for Intel CPUs

Specifikācijas

Specifikācija

12V power connector Yes

BIOS memory size 192

Clear CMOS button Yes

CPU fan connector Yes

ECC ?ompatibility Non-ECC

Front panel audio connector Yes

Motherboard chipset family Intel

Number of chassis fan connectors 3

Number of COM connectors 1

Number of M.2 (M) slots 3

Number of SATA III connectors 4

On-board graphics card No

Parallel processing technology support Not supported

PCI Express x1 (Gen 3.x) slots 1

PCI Express x16 (Gen 4.x) slots 3

PCI Express x16 (Gen 5.x) slots 1

Product colour Aluminium/Black

Product Net Weight 1

RGB LED pin header Yes

S/PDIF out connector Yes

Summary ASUS PRIME Z790-P WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

Supported memory clock speed (max) 7200

Thunderbolt headers 1

Top Wi-Fi standard Wi-Fi 6 (802.11ax)

TPM connector Yes

Unit Calculated Volume 0.007994

Unit Calculated Weight 1.85

Units per Shipping Box 5

USB 3.2 Gen 1 (3.1 Gen 1) connectors 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2

USB 3.2 Gen 2 (3.1 Gen 2) connectors 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1

USB 3.2 Gen 2x2 Type-C ports quantity 1

WiFi-AP antenna jack 1

Procesors

Compatible processor series Intel Celeron/Intel Core i3/Intel Core i5/Intel Core i7/Intel Core i9/Intel Pentium Gold

Processor manufacturer Intel

Atmiņa

Atmiņas tips DDR5

Maximum internal memory 128

Memory channels Dual-channel

Memory slots type DIMM

Supported memory clock speeds 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200

Supported memory types DDR5-SDRAM

Unbuffered memory Yes

Atmiņas ierīce

RAID levels 0/1/10/5

RAID support Yes

Supported storage drive interfaces M.2,SATA III

Supported storage drive types HDD & SSD

Porti

DisplayPorts quantity 1

HDMI portu daudzums 1

Headphone outputs 1

Microphone in Yes

USB 2.0 connectors 2

USB 2.0 ports quantity 4

Pieslēgumi

Bluetooth Yes

Bluetooth versija 5.2

Ethernet interface type 2.5 Gigabit Ethernet

Ethernet LAN Yes

Ethernet LAN (RJ-45) porti 1

Wi-Fi Yes

Wi-Fi standards 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)

Specifikācijas

ATX Power connector (24-pin) Yes

Audio output channels 7.1

Augstums 40

BIOS Type UEFI AMI

Component for PC

Drivers included Yes

Dziļums 234

EPS power connector (8-pin) Yes

Form factor ATX

Komplektā kabeļi SATA

Line-in Yes

Mikroshēmu komplekts Z790

Model PRIME Z790-P WIFI

Motherboard chipset Intel Z790

Motherboard form factor ATX

Number of memory slots 4

Package depth 273

Package height 68

Package weight 1682

Package width 338

Peripheral (Molex) power connectors (4-pin) 1

Platums 305

Power source type ATX

PS/2 ports quantity 1

Supported processor sockets LGA 1700

Weight 1031

Windows operating systems supported Windows 10 x64/Windows 11
