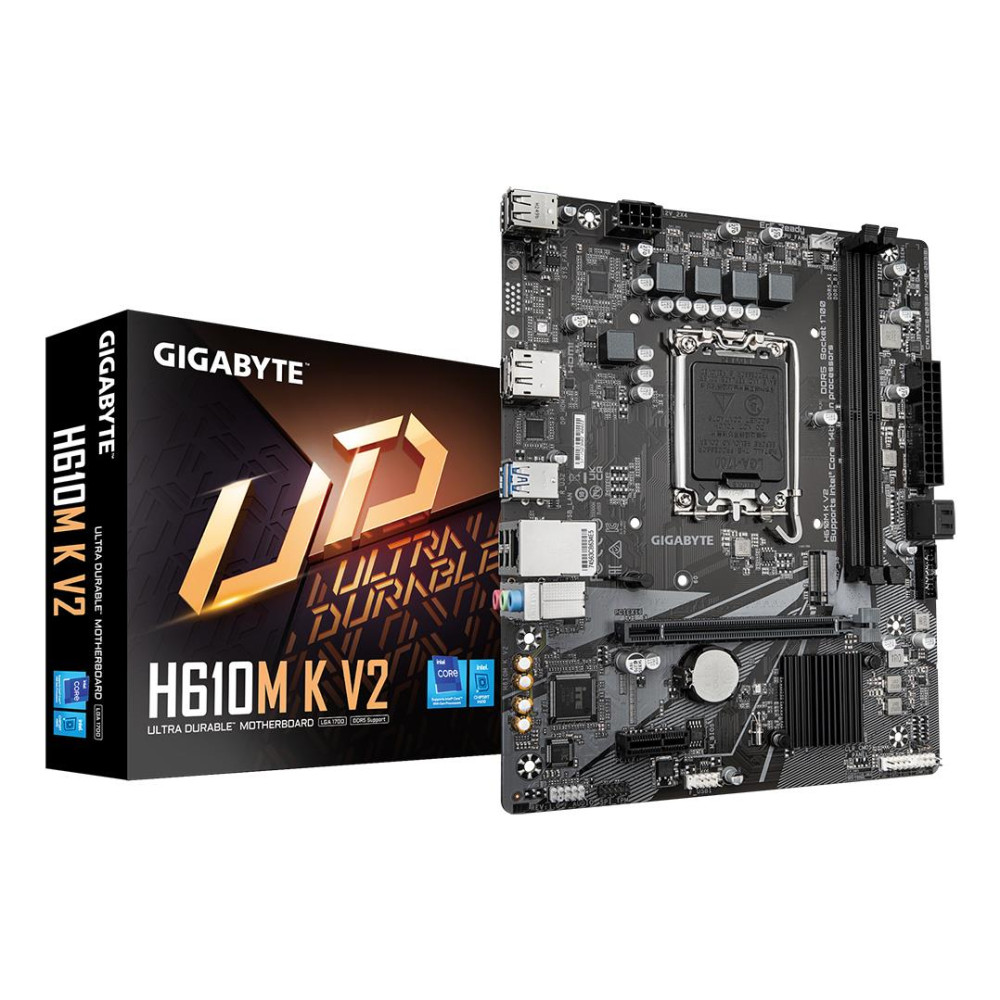

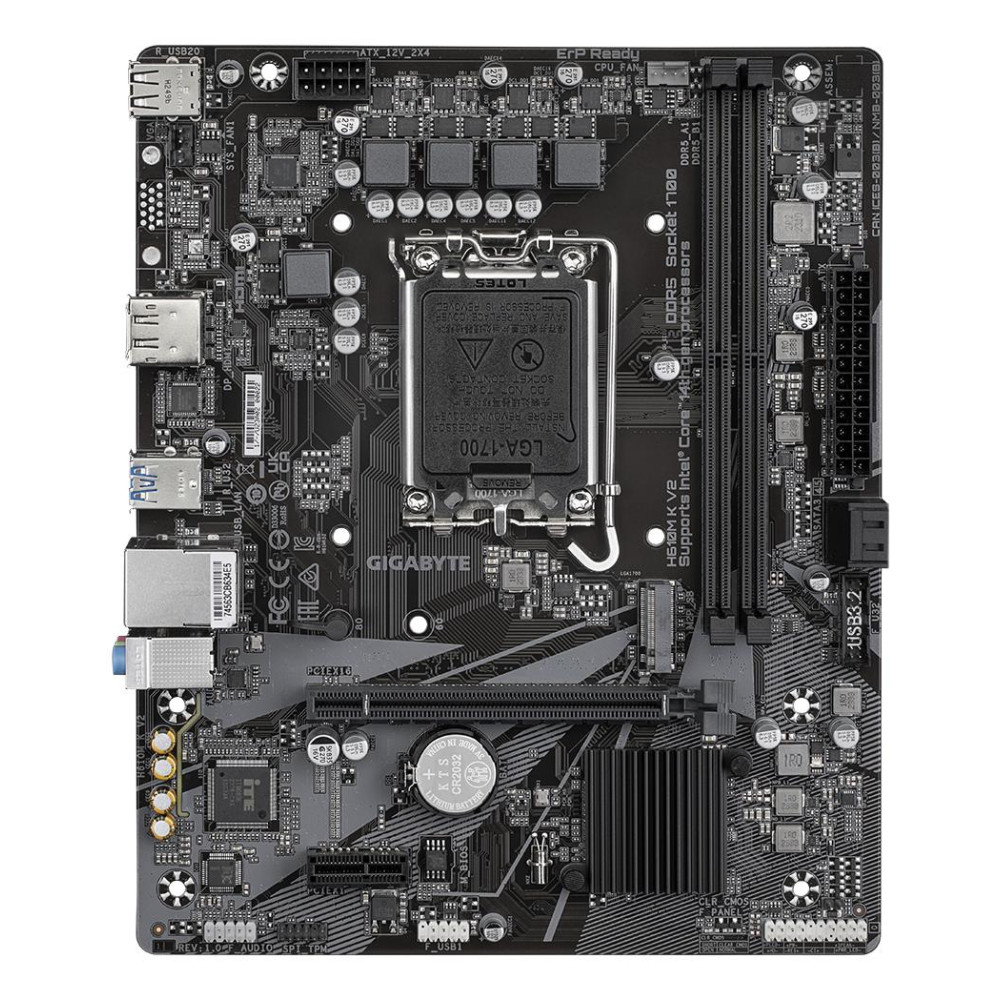

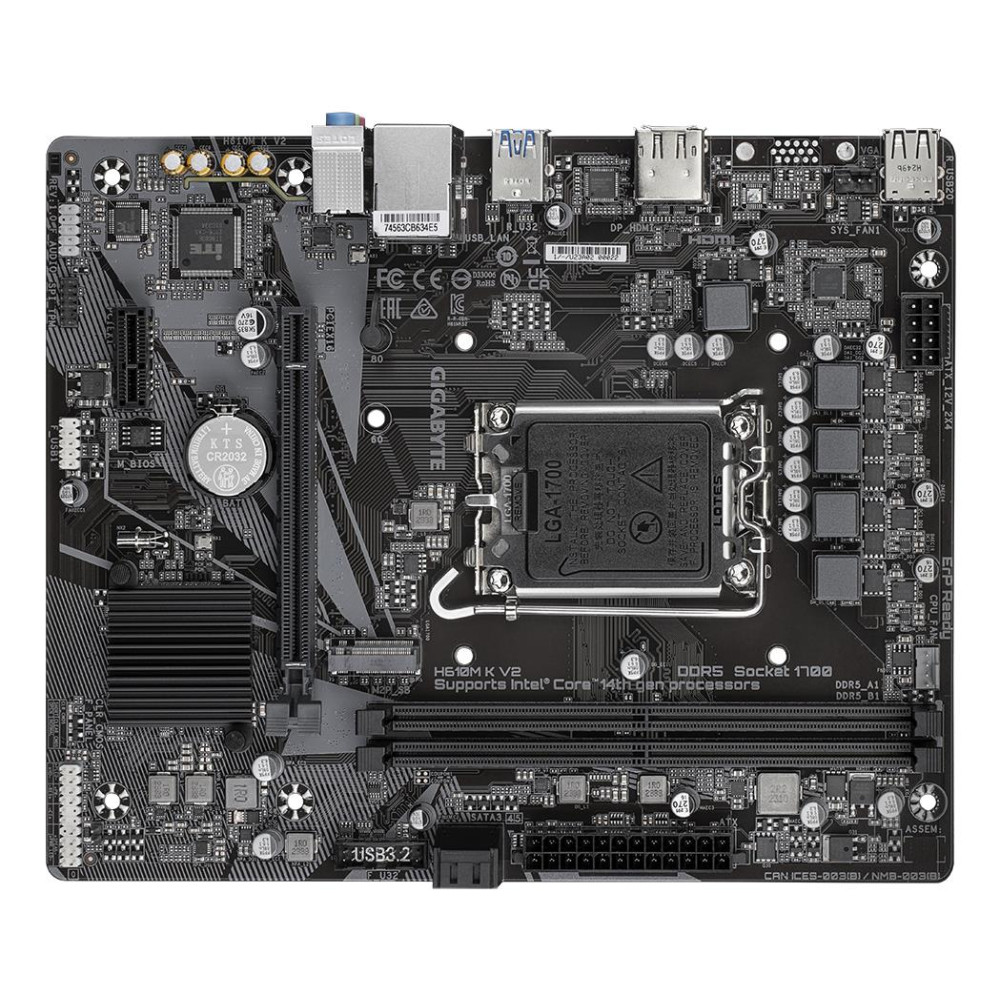

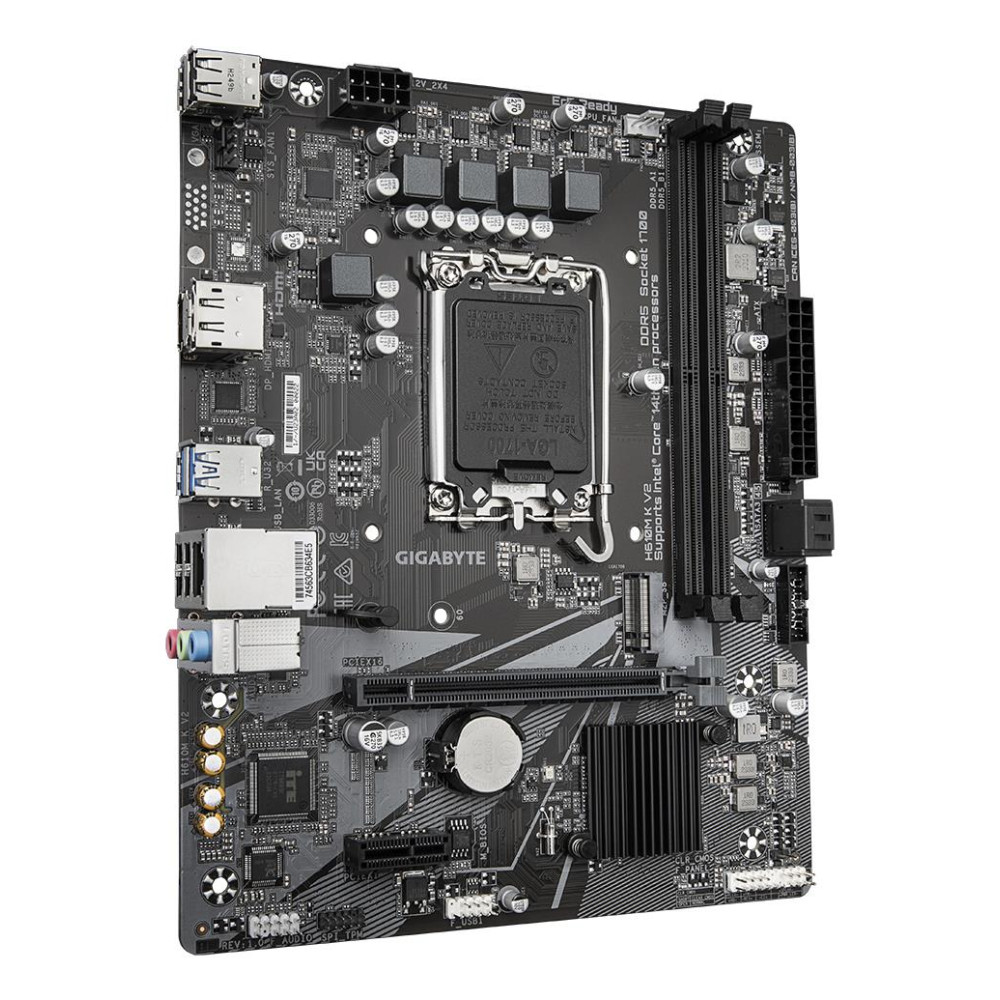

Mainboard, GIGABYTE, Intel H610, LGA1700, Micro-ATX, Memory DDR5, Memory slots 2, 1xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 1xM.2, 1xHDMI, 1xDisplayPort, 4xUSB 2.0, 2xUSB 3.2, 1xPS/2, 1xRJ45, 3xAudio port, H610MKV2
Popular
- Brand: Gigabyte
- Product Code: H610M K V2
- EAN: 4719331860134
- Availability: 30
Name:
Gigabyte H610M K V2
67.64€
Ex Tax: 55.90€
- Product overview
- Specification
- Reviews (0)
Specifications
Specifikācija
1st M.2 highest PCI Express generation
3.0
1st M.2 largest key size
2280
ACPI version
5.0
Audio chip
Realtek ALC897
BIOS memory size
128
Clear CMOS jumper
Yes
CPU fan connector
Yes
Desktop Management Interface (DMI) version
2.7
ECC сompatibility
ECC & Non-ECC
Front panel audio connector
Yes
Front panel connector
Yes
Lithium weight per battery
0.07
Maximum internal memory per slot
64
Motherboard chipset family
Intel
Number of CPU fan connectors
1
Number of EPS power connectors (8-pin)
1
Number of HDDs supported
2
Number of M.2 (M) slots
1
Number of SATA III connectors
2
Parallel processing technology support
Not supported
PC health monitoring
Fan/Temperature/Voltage/Water cooling
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Product colour
Dark brown
Products per shipping (inner) case
1
Screws included
Yes
Summary
GIGABYTE H610M K V2 Motherboard - Intel Core 14th CPUs, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
Supported memory clock speed (max)
5600
System Management BIOS (SMBIOS) version
2.7
TPM connector
Yes
Unit Calculated Volume
0.004194
Unit Calculated Weight
0.715
Units per Shipping Box
10
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Warranty period
3
Processor parameters
Compatible processor series
Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel® Celeron®
Processor manufacturer
Intel
Memory parameters
Maximum internal memory
128
Memory channels
Dual-channel
Memory slots type
DIMM
Memory type
DDR5
Supported memory clock speeds
4400/4800/5200/5600
Supported memory types
DDR5-SDRAM
Unbuffered memory
Yes
Storage parameters
Number of storage drives supported
3
Supported storage drive interfaces
M.2,PCI Express 3.0,SATA III
Supported storage drive types
HDD & SSD

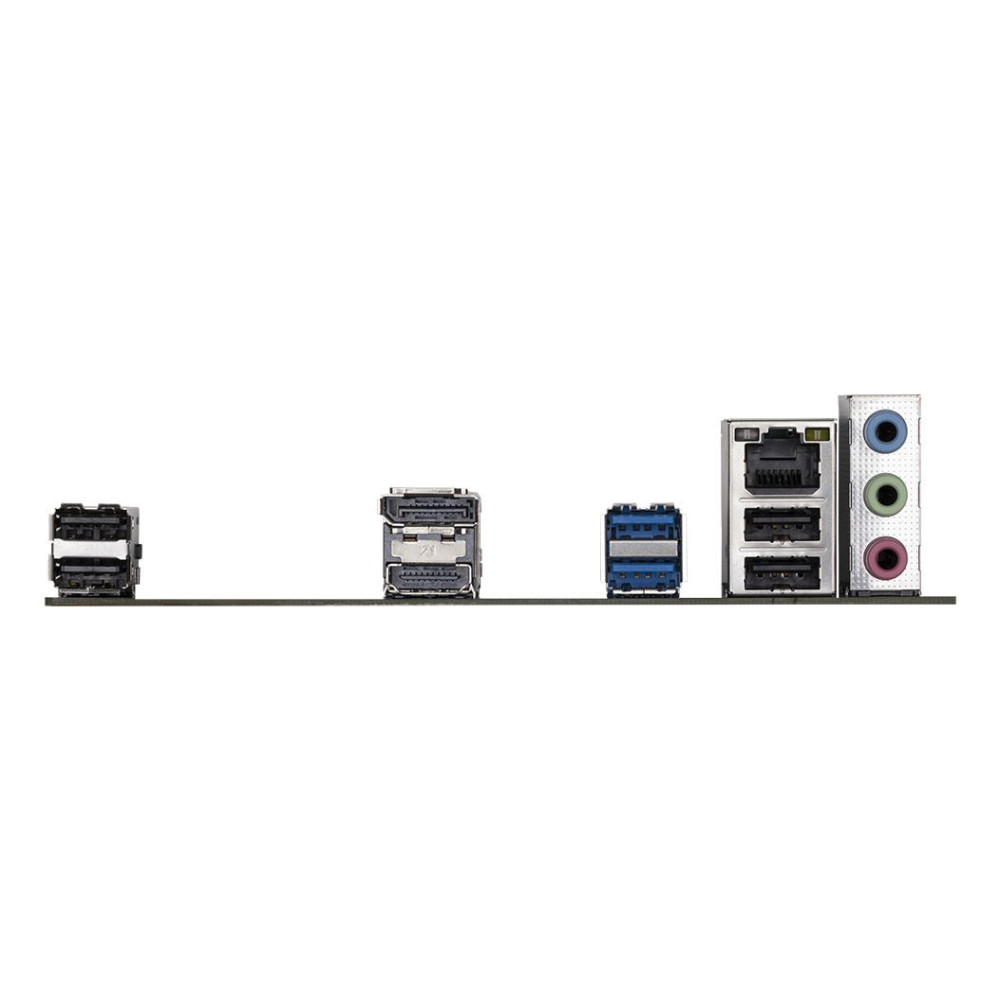

Ports types
DisplayPort version
1.2
DisplayPorts quantity
1
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
1
Microphone in
Yes
USB 2.0 connectors
1
USB 2.0 ports quantity
4
Connections types
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
LAN controller
Realtek RTL8111H
Wi-Fi
No
Battery parameters
Batteries included
Yes
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3
Number of battery cells
1
Specifications
ATX Power connector (24-pin)
Yes
Audio output channels
7.1
BIOS Type
UEFI AMI
Chipset
H610
Component for
PC
Cooling type
Passive
Depth
185
DirectX version
12.0
EPS power connector (8-pin)
Yes
Form factor
mATX
HDCP
Yes
Height
35
Line-in
Yes
Maximum resolution
4096 x 2160
Model
H610M K V2 DDR5
Motherboard chipset
Intel H610
Motherboard form factor
micro ATX
Number of memory slots
2
Package depth
235
Package height
52
Package weight
723
Package width
265
Power source type
ATX
Supported processor sockets
LGA 1700
Weight
650
Width
226
Windows operating systems supported
Windows 10 x64/Windows 11 x64
Reviews (0)
There are no reviews for this product.
