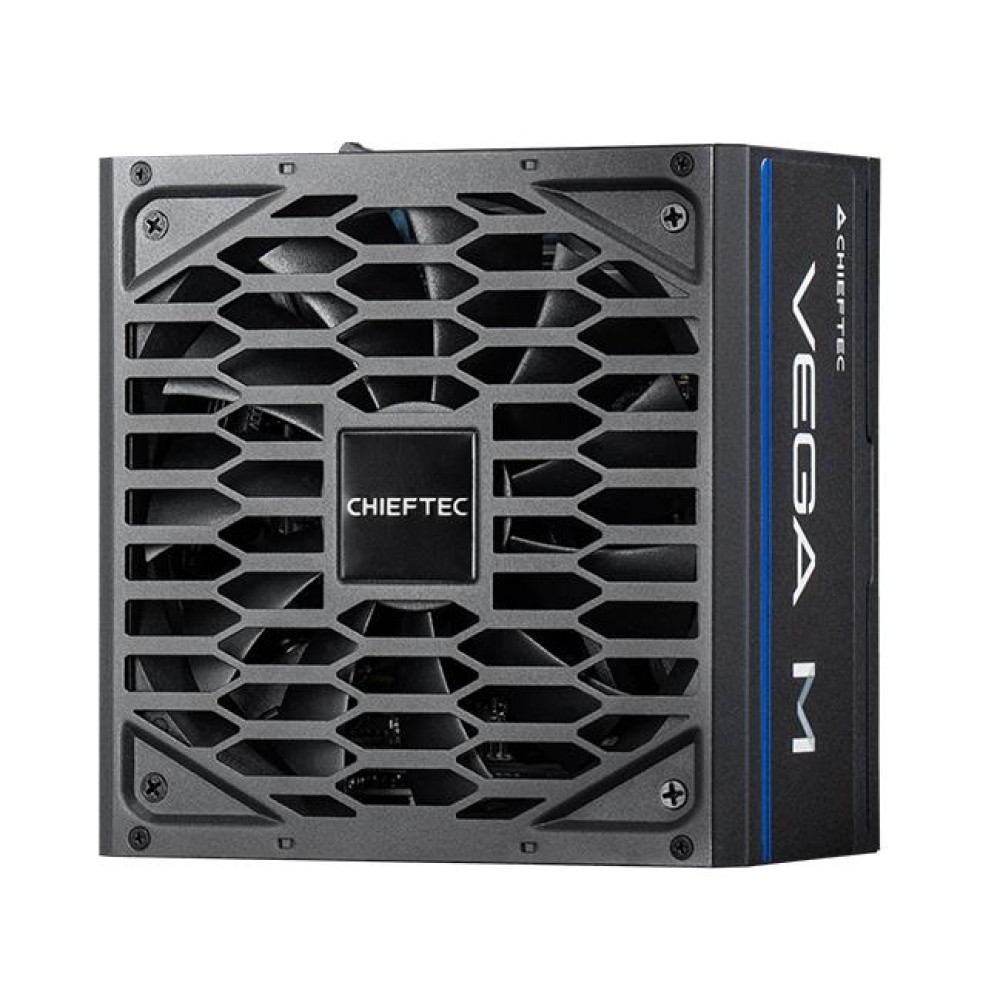

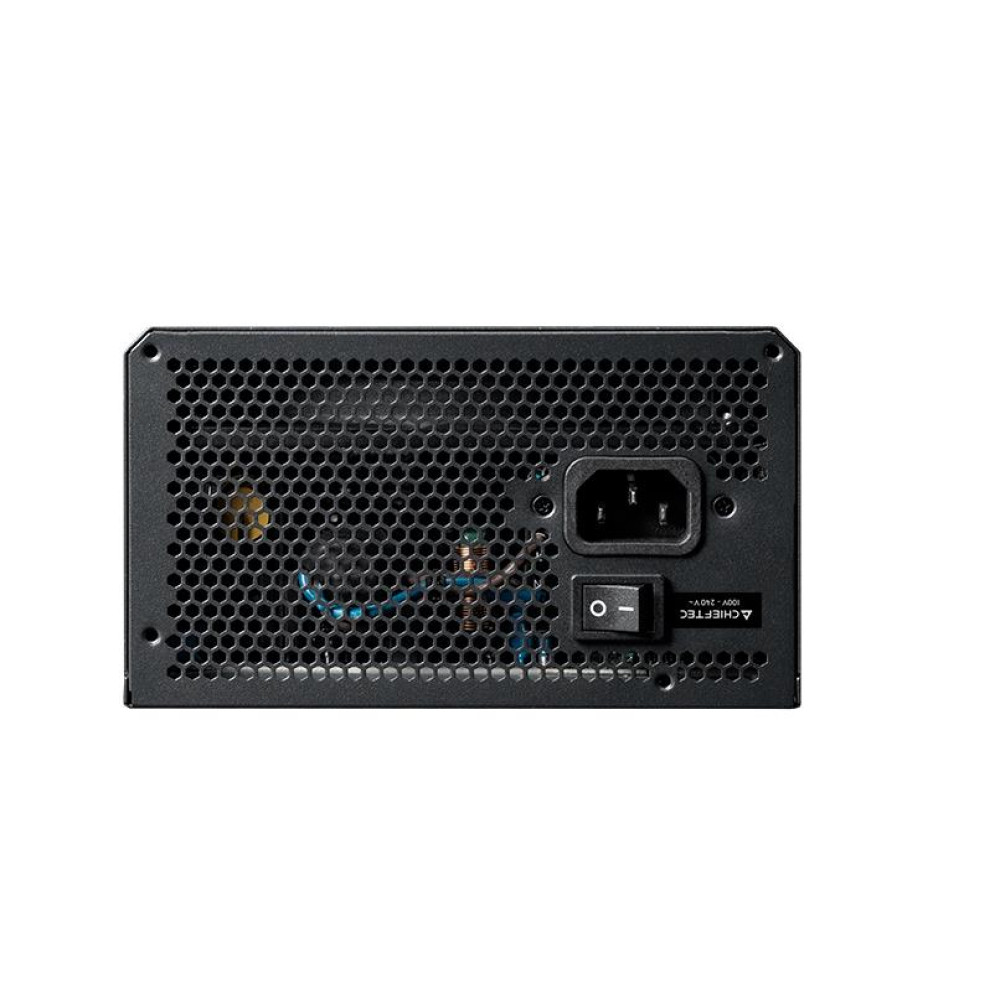

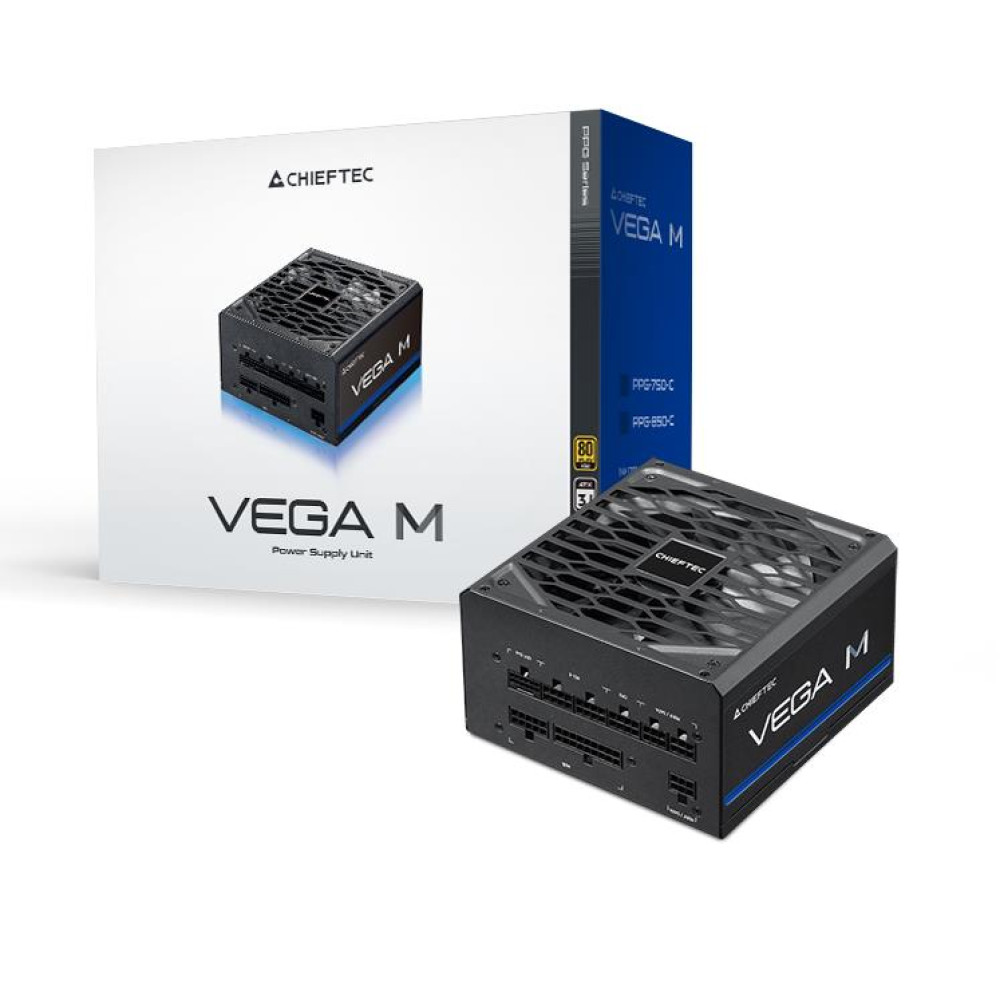

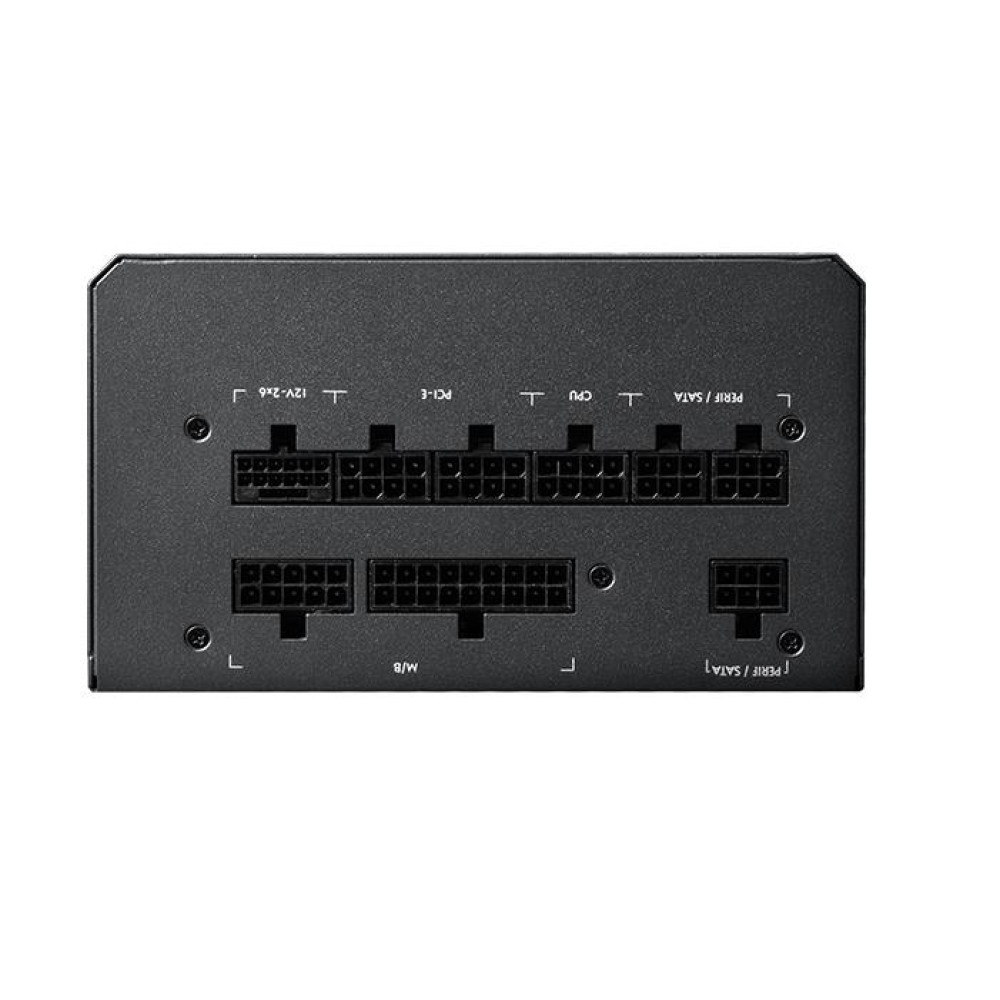

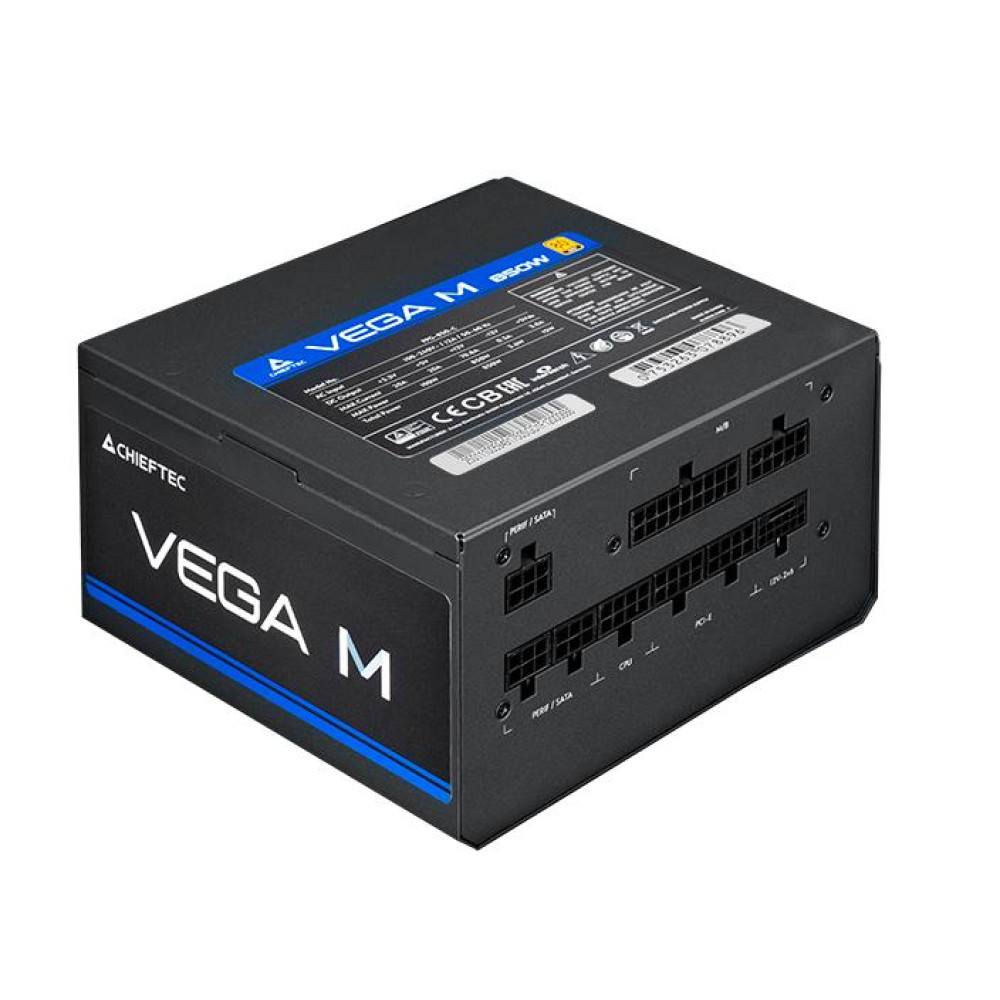

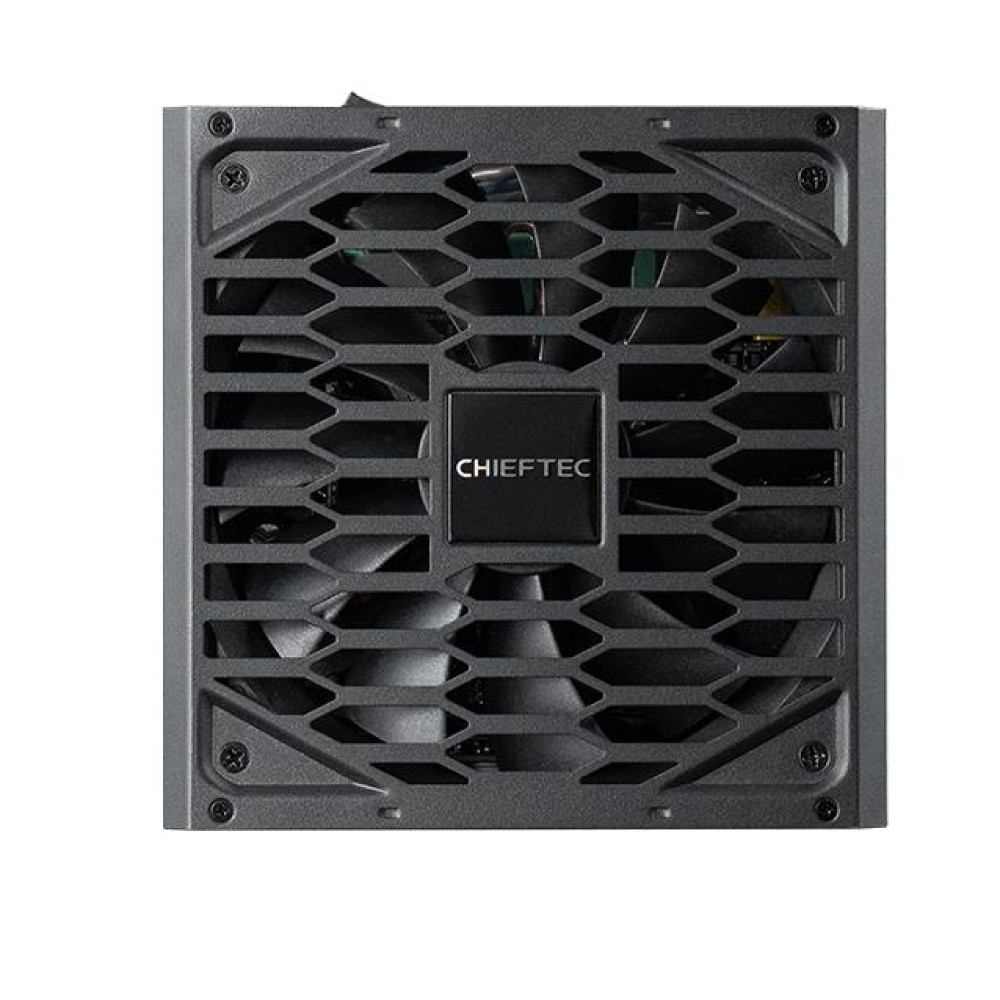

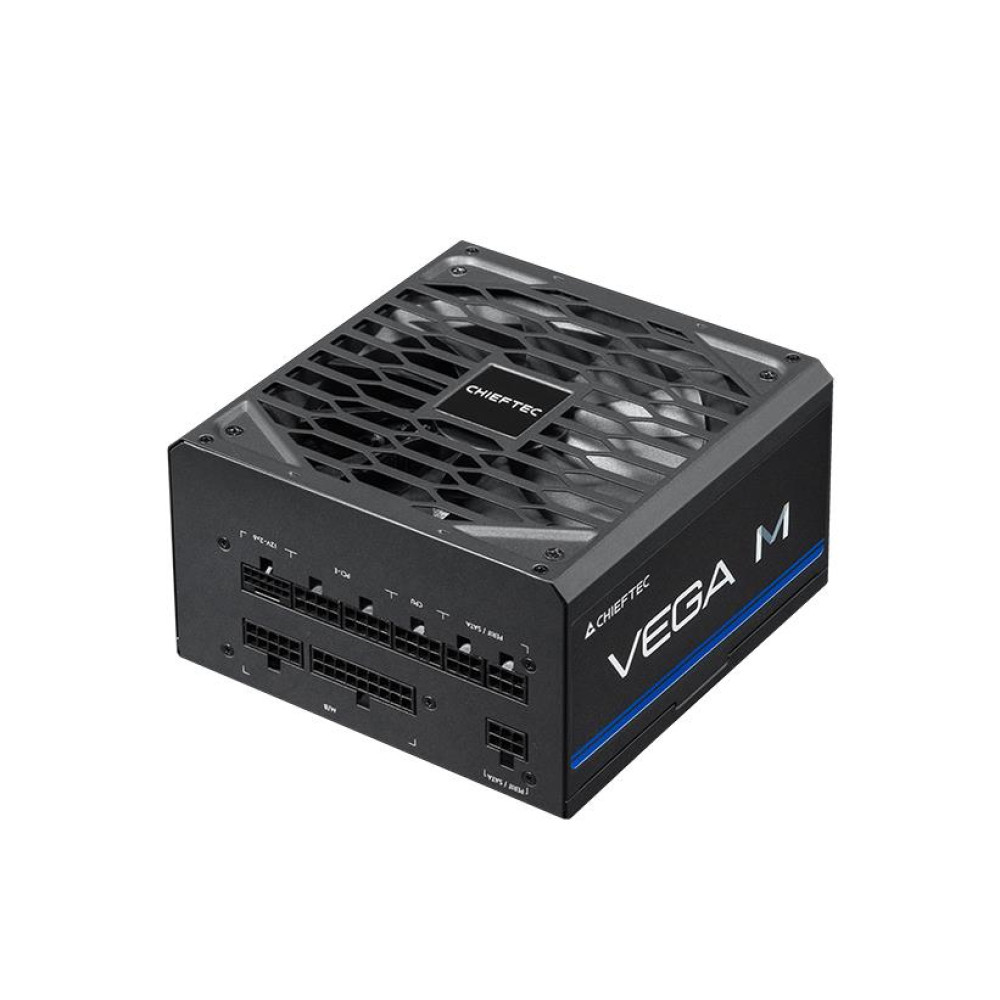

Power Supply, CHIEFTEC, ATX 750W, 750 Watts, Efficiency 80 PLUS GOLD, PFC Active, PPG-750-C
Popular
- Brand: CHIEFTEC
- Product Code: PPG-750-C
- EAN: 251112002462
- Availability: 100
Name:
CHIEFTEC PPG-750-C
76.16€
Ex Tax: 62.94€
- Product overview
- Specification
- Reviews (0)
Specifications
Specifikācija
Cabling type
Fully-Modular
CPU power cable length
650
EPS power connector (4+4 pin)
Yes
Max output current (+12V1)
62.5
Motherboard power cable length
600
PCI Express power connectors (12+4 pin)
1
PCI Express power connectors (12+4 pin) cable length
600
Peripheral (Molex) power cable length
400
Power supply unit (PSU) form factor
ATX
Product colour
Black
Purpose
PC
SATA power cable length
400
Summary
Chieftec Vega PPG-750-C. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Certification: 80PLUS Gold
Unit Calculated Volume
0.00759
Unit Calculated Weight
2.5
Units per Shipping Box
5
Processor parameters
CPU power connector (4+4 pin)
Yes
Storage parameters
Number of SATA power connectors
6
Specifications
80 PLUS certification
80 PLUS Gold
AC input frequency
50/60
AC input voltage
100 - 240
ATX power connector (20+4 pin)
Yes
ATX Power connector (24-pin)
Yes
ATX version
3.1
Bearing technology
FDB
Certification
80PLUS Gold
Combined power (+3.3V)
100
Combined power (+5V)
100
Cooling type
Active
Depth
150
EPS power connector (8-pin)
Yes
Fan diameter
135
Height
85
Illumination
No
Max output current (+3.3V)
20
Max output current (+5V)
20
Max output current (-12V)
0.3
Model name
ATX 750W
Motherboard power connector
20+4 pin ATX
Package weight
2430
PCI Express power connectors (6+2 pin)
4
Peripheral (Molex) power connectors (4-pin)
3
Power Factor Correction (PFC) type
Active
Total power
750
Weight
1960
Width
150
