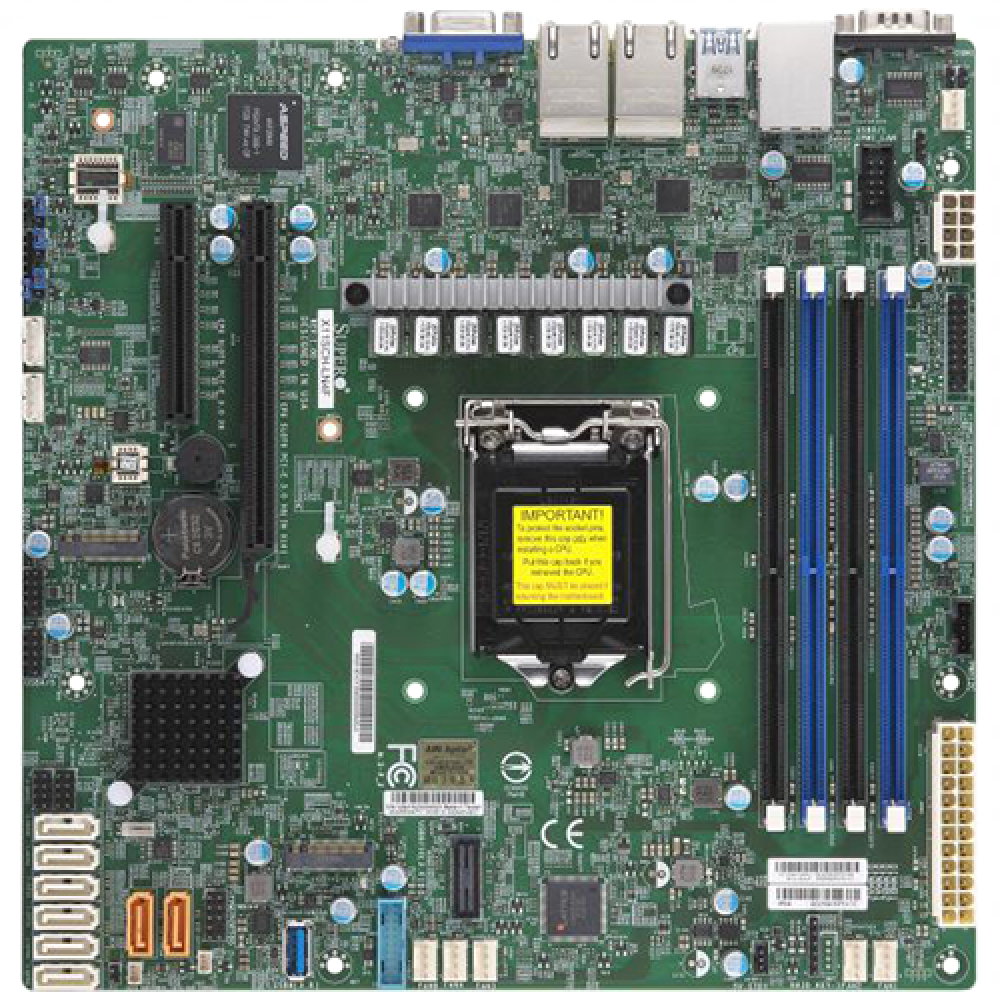

Supermicro mainboard server MBD-X11SCH-LN4F-B Single Socket H4 (LGA 1151), 8 SATA3 (6Gbps); RAID 0, 1, 5, 10; 4x 1GbE LAN with Intel I210-AT; 1 PCI-E 3.0 x8 (in x16) and 1 PCI-E 3.0 x8 slots, 4DIMM slots
Popular
MBD-X11SCH-LN4F-B
MBD-X11SCH-LN4F-B
Reviews:
(0)
    Name:

    SUPERMICRO MBD-X11SCH-LN4F-B

  • Brand: SUPERMICRO
  • Product Code: MBD-X11SCH-LN4F-B
  • Availability: Out Of Stock
198.26€
Ex Tax: 163.85€
  • Product overview
  • Specification
  • Reviews (0)
Supermicro mainboard server MBD-X11SCH-LN4F-B Single Socket H4 (LGA 1151), 8 SATA3 (6Gbps); RAID 0, 1, 5, 10; 4x 1GbE LAN with Intel I210-AT; 1 PCI-E 3.0 x8 (in x16) and 1 PCI-E 3.0 x8 slots, 4DIMM slots

Tags: Main Board Server

Specifications
Specification
Video Controller Integrated yes
Wake up/Sleep RTC (real time clock) Wake up
Processor parameters
CPU Maximum Quantity Supports 1
CPU Socket Standard Socket 1151
Supports Central Processor Unit Intel Celeron , Intel Pentium , Intel Core i3 , Intel Xeon E-2100 Series , Intel Xeon E-2200 Series
Memory parameters
Maximum Installable System Memory Storage Capacity 128 GB
Memory features Unbuffered
Memory form factor DIMM 288-pin
Memory Slot Total Quantity 4
Memory Speed 2133MHz(PC4-17000) , 2400MHz(PC4-19200) , 2666MHz(PC4-21300)
Memory type DDR4 SDRAM
Provides Error Checking Method ECC
Videocard
Video Chipset Aspeed AST2500
Ports types
PCI Express 3.0 x8 2
USB 2.0 2 (USB 2.0 (type A))
USB 3.1 Gen 1 1 (USB 3.1 (type A))
USB 3.1 Gen 2 2 (USB 3.1 (type A))
VGA 1 (15-pin D-sub)
Connections types
Data Link Protocol Supports Gigabit Ethernet/Fast Ethernet/Ethernet
LAN 4 (RJ-45)
LAN Chipset Intel i210
LAN Integrated yes
Specifications
BIOS Features PnP Support , USB Keyboard support , SMBIOS 2.7 Support , PCI 3.0 , ACPI 6.0 Support , 256 Mb Flash ROM , UEFI 2.7
BIOS Type UEFI
Chipset Intel C246
Form factor Micro ATX
Hardware Monitoring Chassis Fan Tachometer , CPU Fan Tachometer , CPU Temperature , CPU Voltage , System Temperature , System Voltage
Height (mm) 243.8 mm
Integrated <b>Storage Controller:</b>, Supports: Level 0, Level 1, Level 10, Level 5, SATA III-600 (8), <b>Storage Controller:</b>, PCI Express 3.0 x4 (1 x M.2 (Key M)), <b>Remote Management Controller:</b>,
Maximum Operating Ambient Temperature 50 °C
Maximum Operating Humidity 90 %
Minimum Operating Ambient Temperature 0 °C
Minimum Operating Humidity 8 %
Pack Weight Brutto (kg) 2 kg
Pack Weight Netto (kg) 0 kg
Package type Box
Packs in Box 1
Pieces in pack 1
Retail Packaging Net Weight Carton 0 kg
Retail Packaging Net Weight Plastic 0 kg
Serial 1
Warranty Products Returnable Yes
Warranty Term (month) 12 mēneši
Warranty validation Criteria Serial Number
Width (mm) 243.8 mm
Reviews (0)

There are no reviews for this product.
