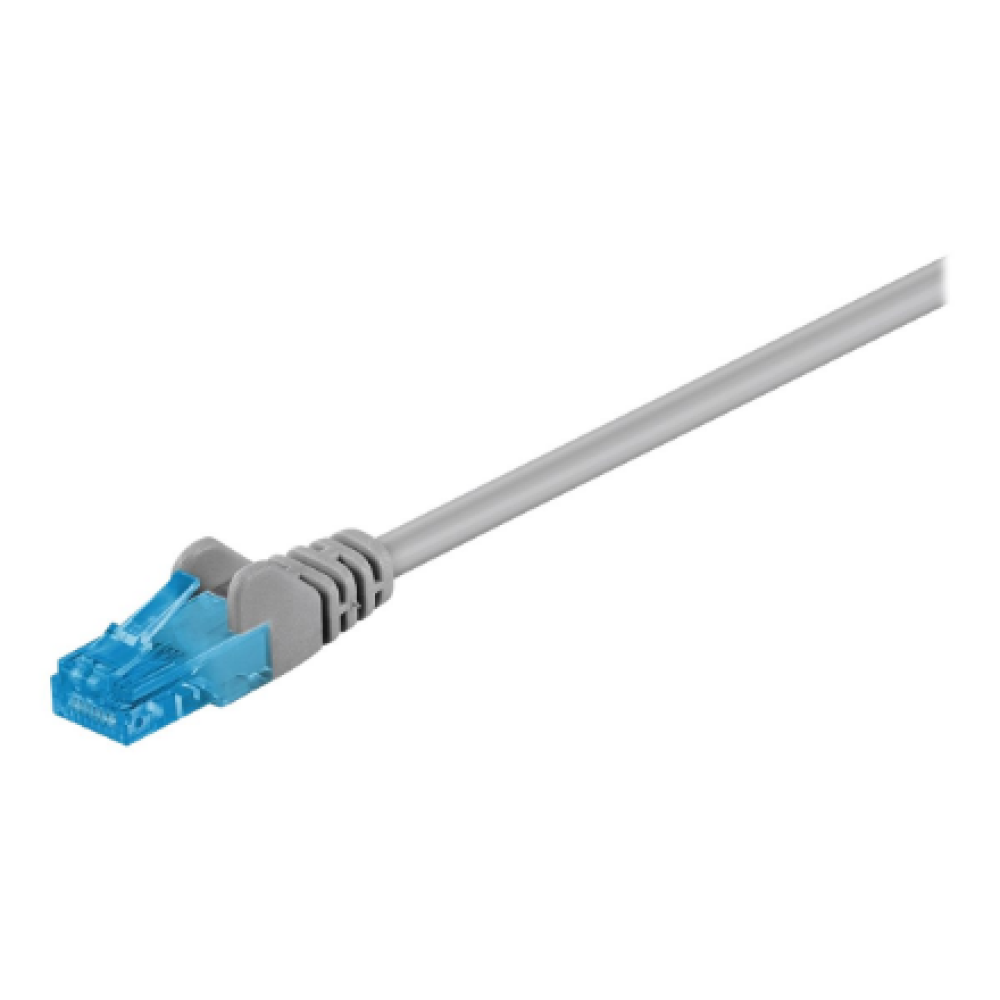

Goobay 55418

• LSZH halogen-free, CU unshielded LAN/network cable to connect network components with 2 x RJ45 connectors Cat 6(A) tested with 50µ gold plated PINs with length indication on the slimline strain relief with latch protection pair-sequence acc. to EIA/TIA 568B Technical specifications Connections Connection, type RJ45 male (8P8C) Connection, contact material gold-plated 50µ Connection 2, type RJ45 male (8P8C) Latch protection both sides Cable Cable type round cable Specification CAT 6a Shielding class U/UTP AWG 26/7 (stranded) Cable sheath diameter (approx.) 5 mm Inner conductor material CU (copper) Material cable sheath LSZH Cable length 0.5 m Kink protection both sides LSZH compliant yes Signal transmission max. bandwidth 500 MHz General Color grey Markings CE, WEEE Operating temperature from -20 °C Operating temperature up to 65 °C
