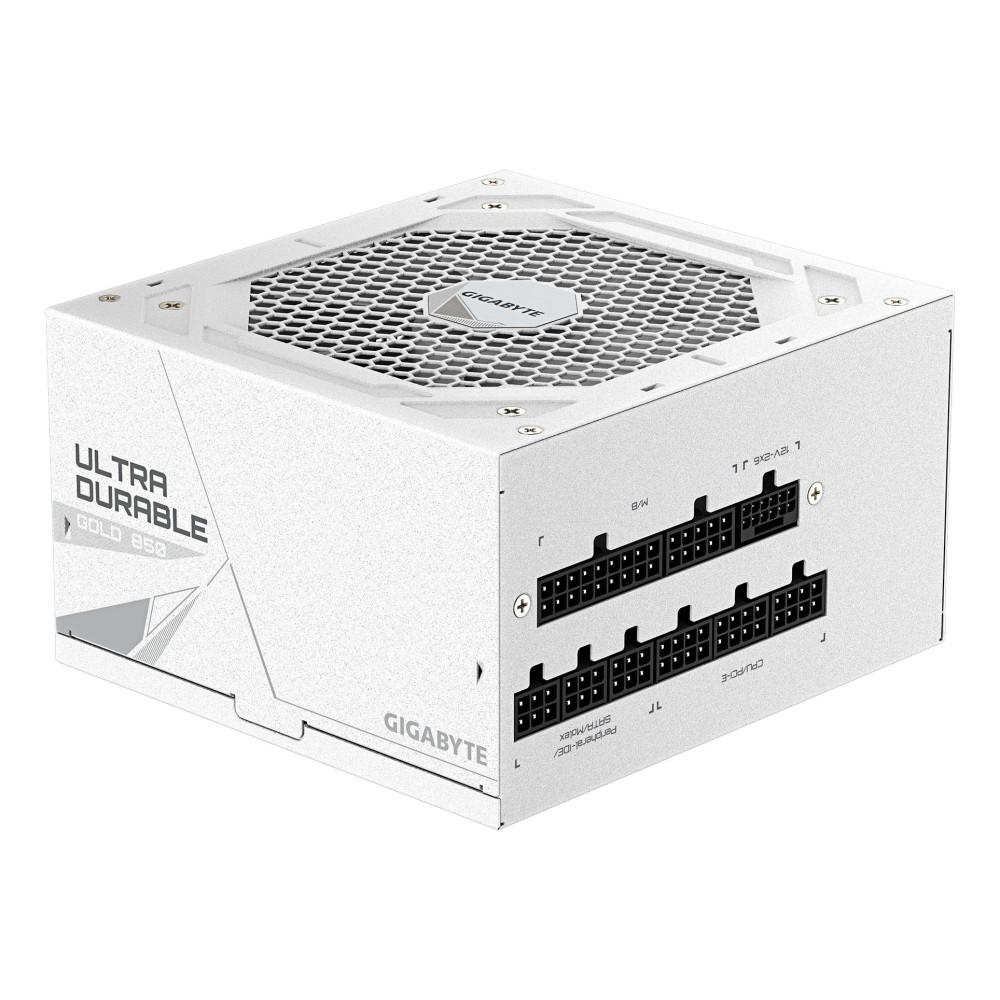

Power Supply, GIGABYTE, UD850GM PG5 ICE?, ATX, PC, 100 - 240 V, 850 W, GP-UD850GMPG5ICE
- Ražotājs: Gigabyte
- Modelis: GP-UD850GM PG5 ICE
- EAN: 4719331556495
- Pieejamība: 50
Nosaukums:
Gigabyte GP-UD850GM PG5 ICE
100,71€
Bez PVN: 83,23€
- Produktu apskats
- Specifikācija
- Atsauksmes (0)
Specifikācijas
Specifikācija
Cabling type
Fully-Modular
CPU power cable length
650
Hold time
16
Motherboard power cable length
610
Number of EPS connectors
2
PCI Express power cable length
600
PCI Express power connectors (12+4 pin)
1
PCI Express power connectors (12+4 pin) cable length
700
Power supply unit (PSU) form factor
ATX
Product colour
White
Purpose
PC
Summary
GIGABYTE UD850GM PG5 V2 ICE Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, UK Plug. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, PCI Express power connectors (12+4 pin) cable length: 700 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Unit Calculated Volume
0.007865
Unit Calculated Weight
2.62
Units per Shipping Box
5
Warranty period
10
Procesors
CPU power connector (4+4 pin)
Yes
Atmiņas ierīce
Number of SATA power connectors
8
Specifikācijas
80 PLUS certification
80 PLUS Gold
AC input frequency
50/60
AC input voltage
100 - 240
ATX version
3.1
Augstums
86
Bearing technology
HYB
Combined power (+12V)
850
Combined power (+3.3V)
105
Combined power (+5V)
105
Combined power (+5Vsb)
15
Combined power (-12V)
3.6
Cooling type
Active
Dziļums
140
Efficiency
90
Fan diameter
120
Floppy drive power connector
1
Input current
12 - 6.5
Max output current (+12V)
70.8
Max output current (+3.3V)
20
Max output current (+5V)
20
Max output current (+5Vsb)
3
Max output current (-12V)
0.3
Mean time between failures (MTBF)
100000
Modeļa nosaukums
UD850GM PG5 ICE
Motherboard power connector
20+4 pin ATX
Number of fans
1
On/off switch
Yes
Package depth
269
Package height
211
Package type
Box
Package weight
2560
Package width
618
PCI Express connector
Yes
PCI Express power connectors (6+2 pin)
4
Peripheral (Molex) power connectors (4-pin)
3
Platums
150
Power factor
0.9
Power Factor Correction (PFC) type
Active
Power protection features
Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Total power
850
Weight
2400
