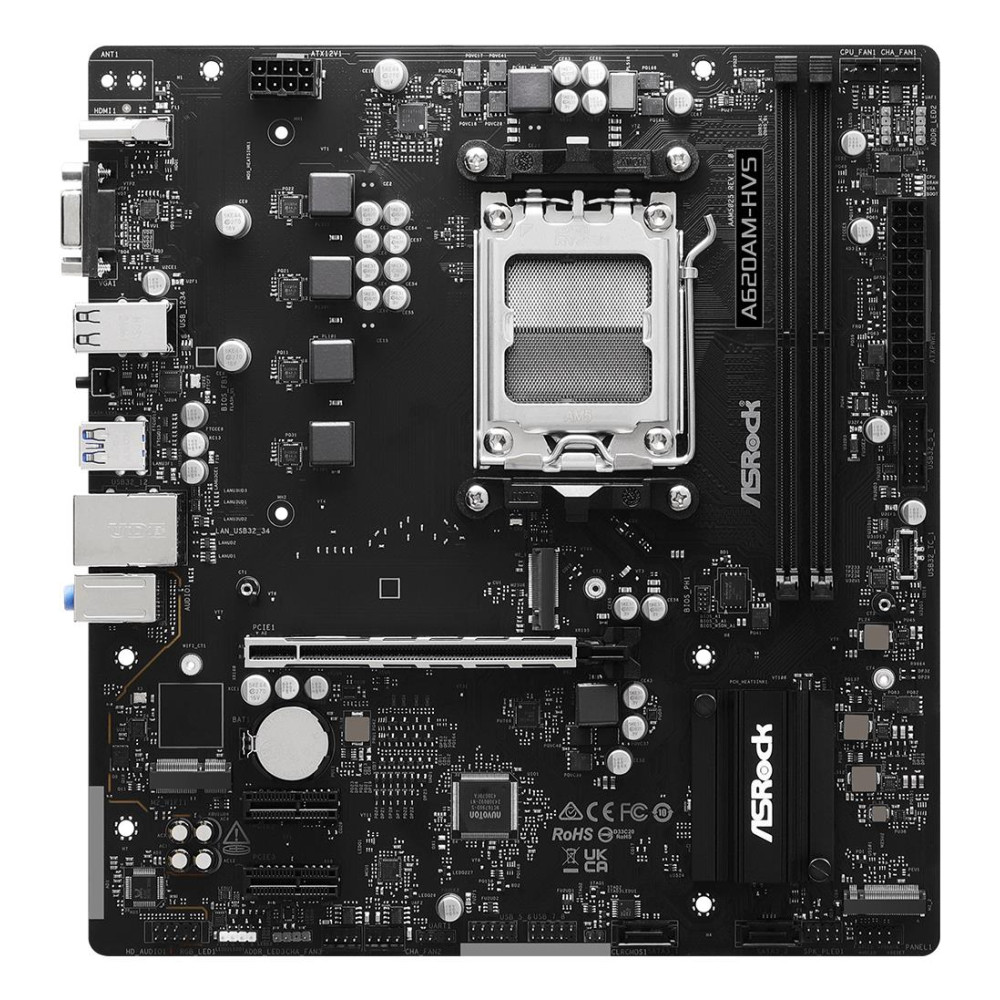

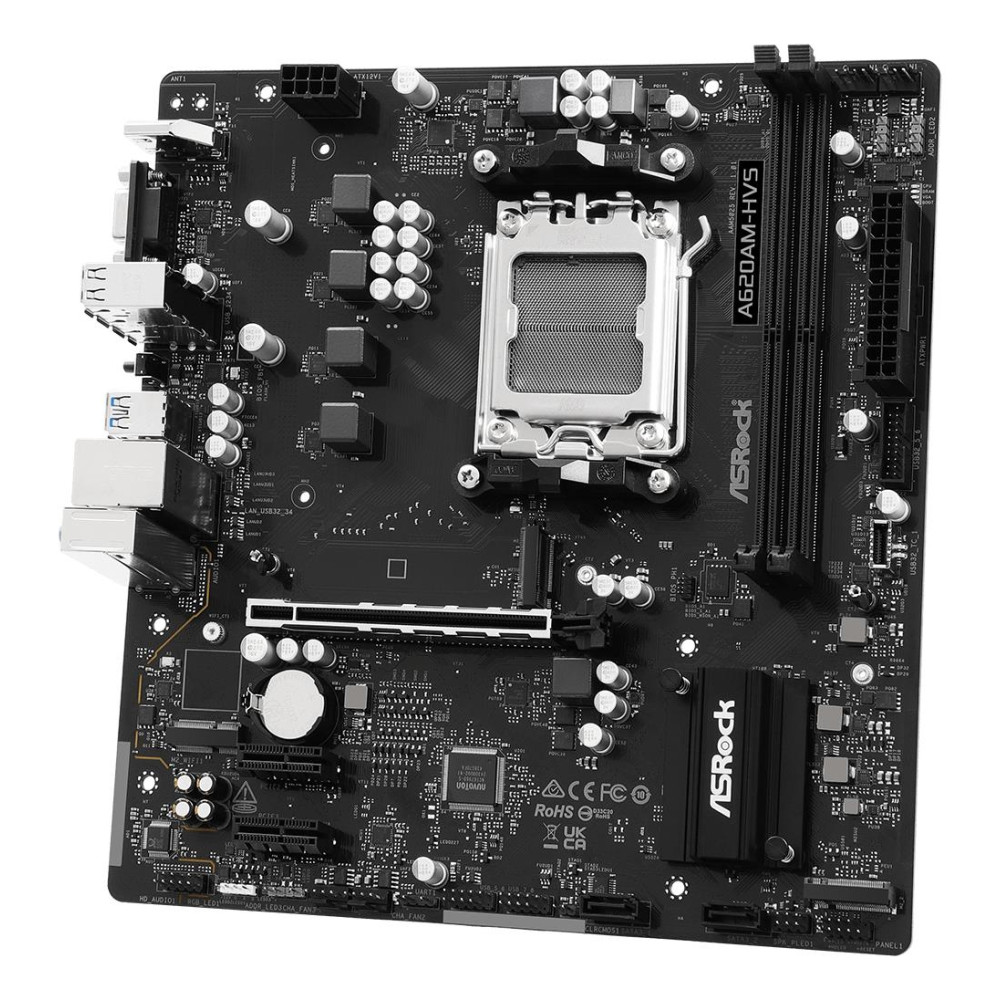

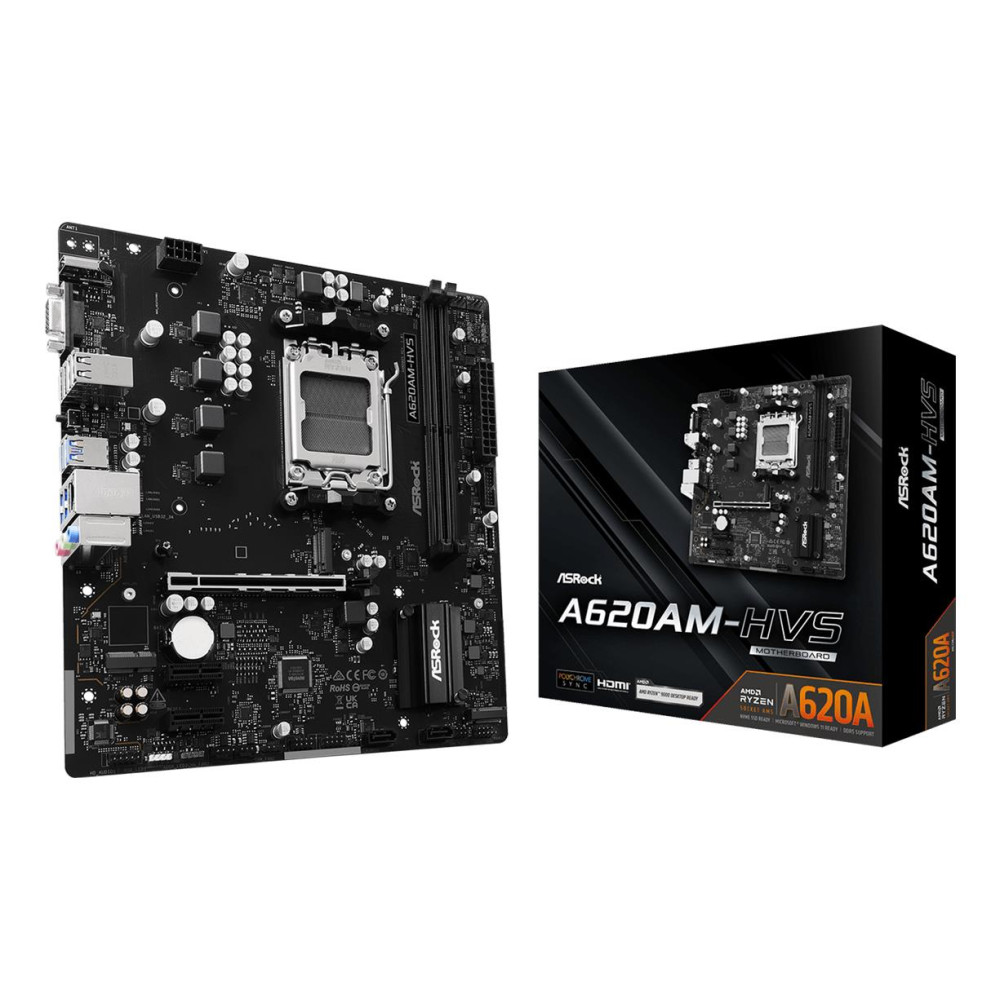

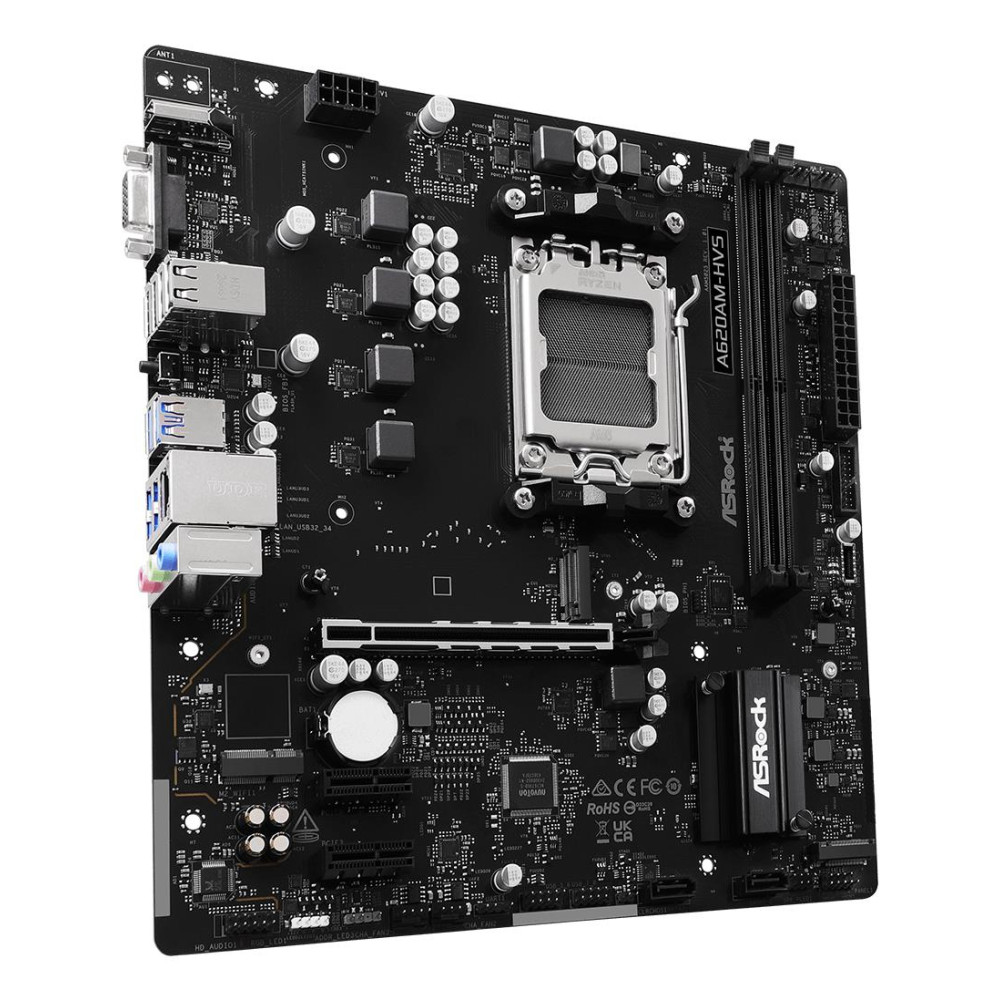

Mainboard, ASROCK, AMD A620A, micro ATX, RAM DDR5-SDRAM, 2xSlots, A620AM-HVS
- Ražotājs: ASROCK
- Modelis: A620AM-HVS
- EAN: 4711581490802
- Pieejamība: 50
Nosaukums:
ASROCK A620AM-HVS
82,38€
Bez PVN: 68,08€
- Produktu apskats
- Specifikācija
- Atsauksmes (0)
Specifikācijas
Specifikācija
12V power connector
Yes
1st M.2 highest PCI Express generation
4.0
1st M.2 largest key size
2280
Audio chip
Realtek ALC897
BIOS memory size
256
Compliance certificates
CE/Federal Communications Commission (FCC)
CPU fan connector
Yes
ECC сompatibility
Non-ECC
Front panel audio connector
Yes
HDCP version
2.3
High Dynamic Range (HDR) supported
Yes
Motherboard chipset family
AMD
Number of chassis fan connectors
3
Number of CPU fan connectors
1
Number of M.2 (M) slots
1
Number of RGB LED pin headers
1
Number of SATA III connectors
2
Parallel processing technology support
Not supported
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
Product colour
Black
RGB LED pin header
Yes
Screws included
Yes
Summary
Asrock A620AM-HVS. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 3.0, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 3840 x 2160 pixels. USB connector type: USB Type-A
Supported memory clock speed (max)
6800
Unit Calculated Volume
0.005632
Unit Calculated Weight
1.111
Units per Shipping Box
10
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Procesors
Compatible processor series
AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Procesoru ligzda
AM5
Processor manufacturer
AMD
Atmiņa
Atmiņas tips
DDR5
Maximum internal memory
128
Memory channels
Dual-channel
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Unbuffered memory
Yes
Atmiņas ierīce
Number of storage drives supported
4
RAID levels
0/1/10
RAID support
Yes
Supported storage drive interfaces
PCI Express 3.0,PCI Express 4.0,SATA III
Supported storage drive types
HDD & SSD

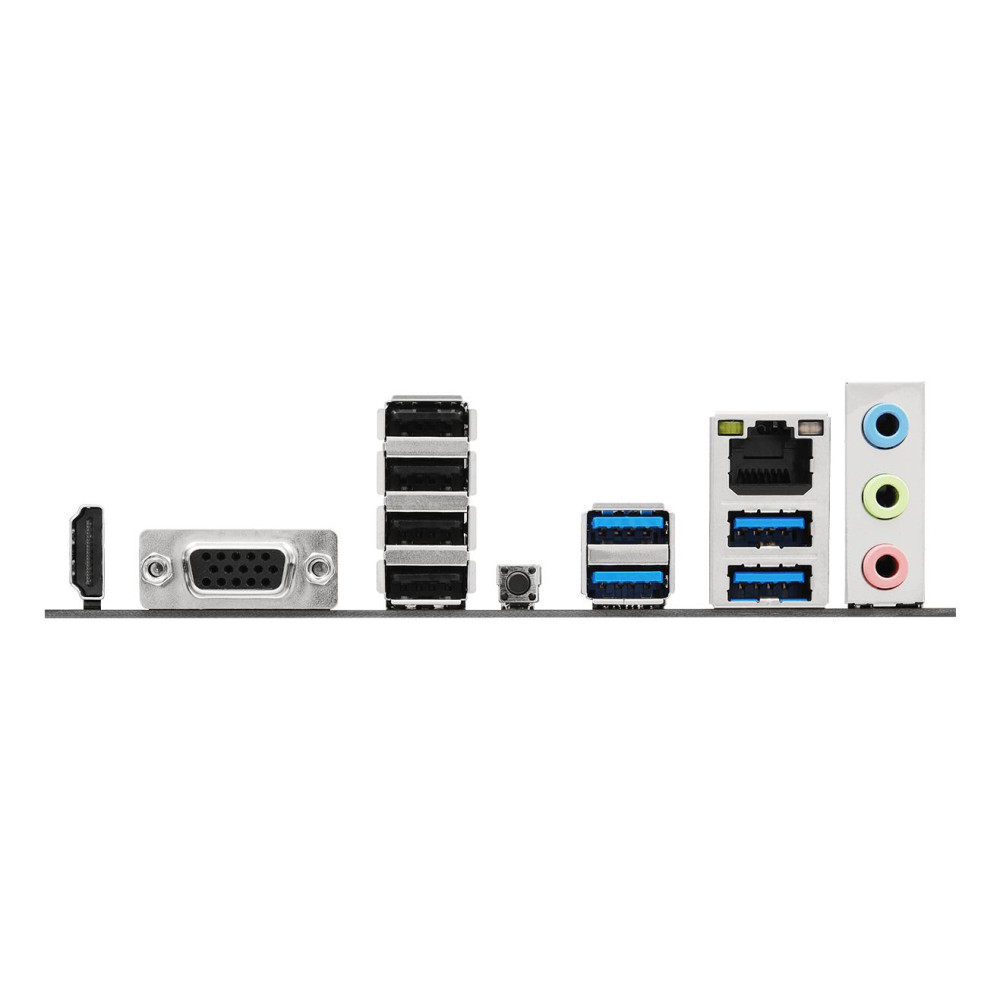

Porti
HDMI portu daudzums
1
HDMI version
2.1
Headphone outputs
3
Microphone in
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
4
USB connector type
USB Type-A
VGA (D-Sub) portu daudzums
1
Pieslēgumi
Ethernet interface type
Fast Ethernet/Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) porti
1
LAN controller
Realtek RTL8111H
Wi-Fi
No
Specifikācijas
ATX Power connector (24-pin)
Yes
Audio output channels
7.1
BIOS Type
UEFI AMI
Component for
PC
Dziļums
229
Form factor
mATX
HDCP
Yes
Komplektā kabeļi
SATA
Line-in
Yes
Maximum resolution
3840 x 2160
Mikroshēmu komplekts
A620
Model
A620AM-HVS
Motherboard chipset
AMD A620A
Motherboard form factor
micro ATX
Number of memory slots
2
Platums
244
Supported processor sockets
Socket AM5
Windows operating systems supported
Windows 10 x64/Windows 11 x64
