    Nosaukums:

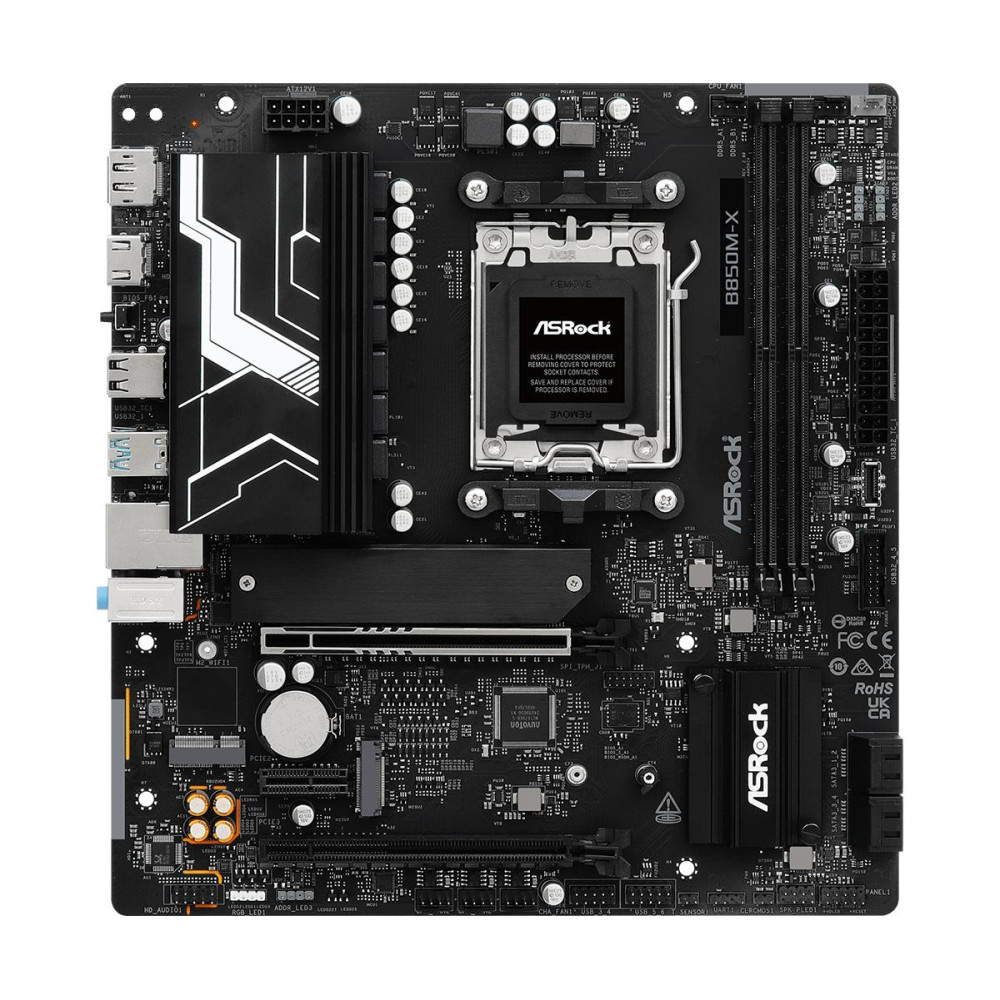

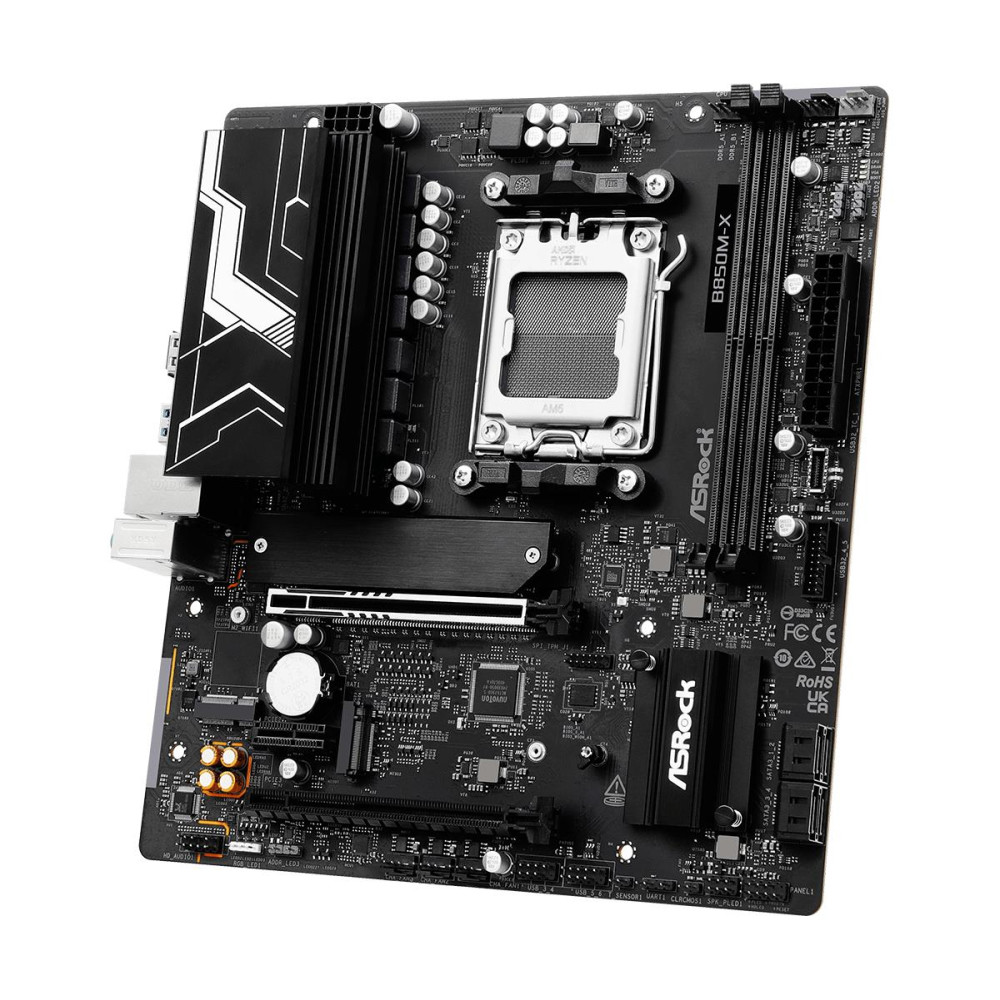

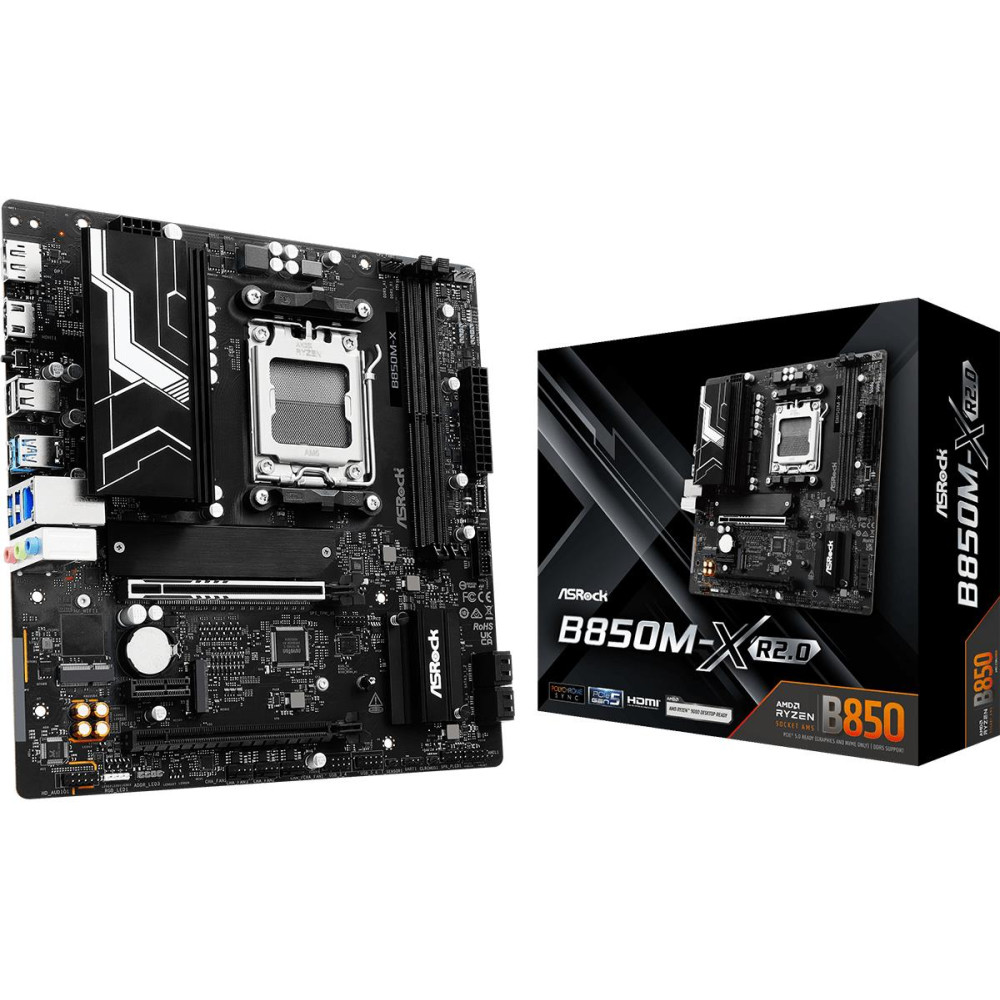

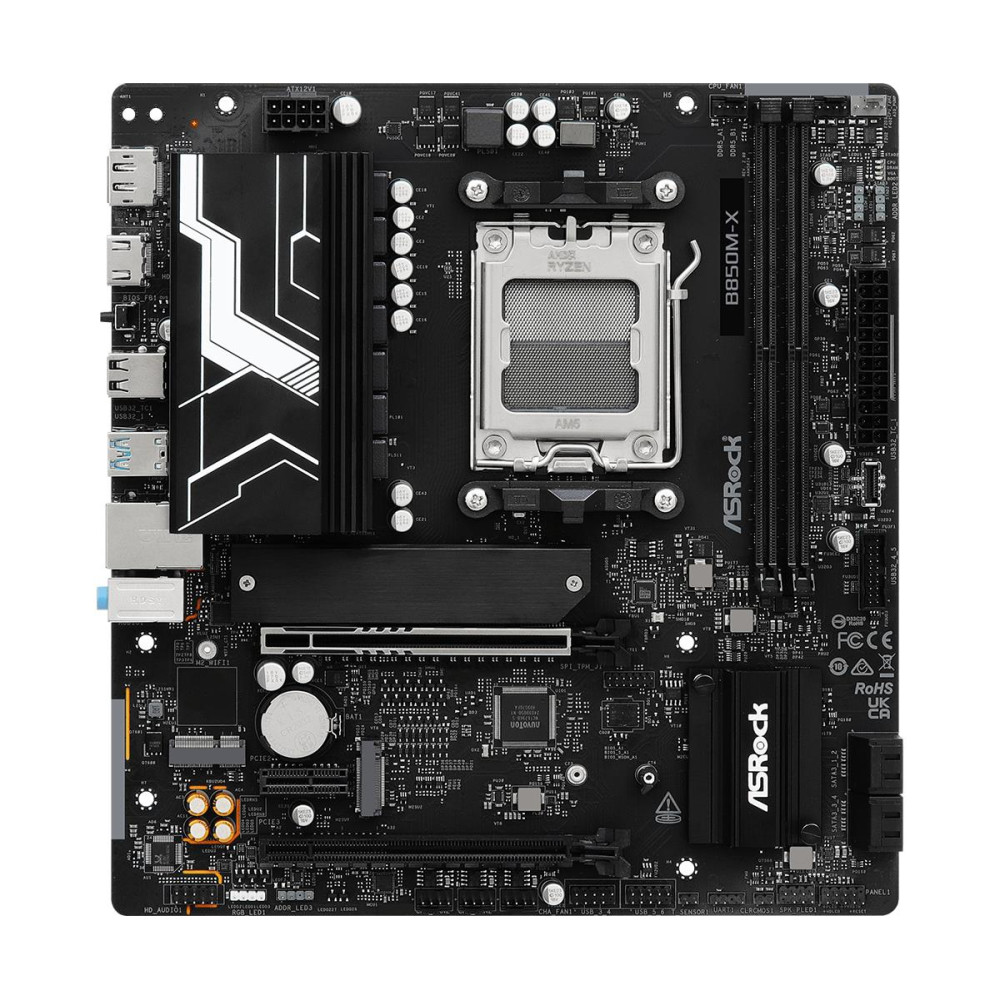

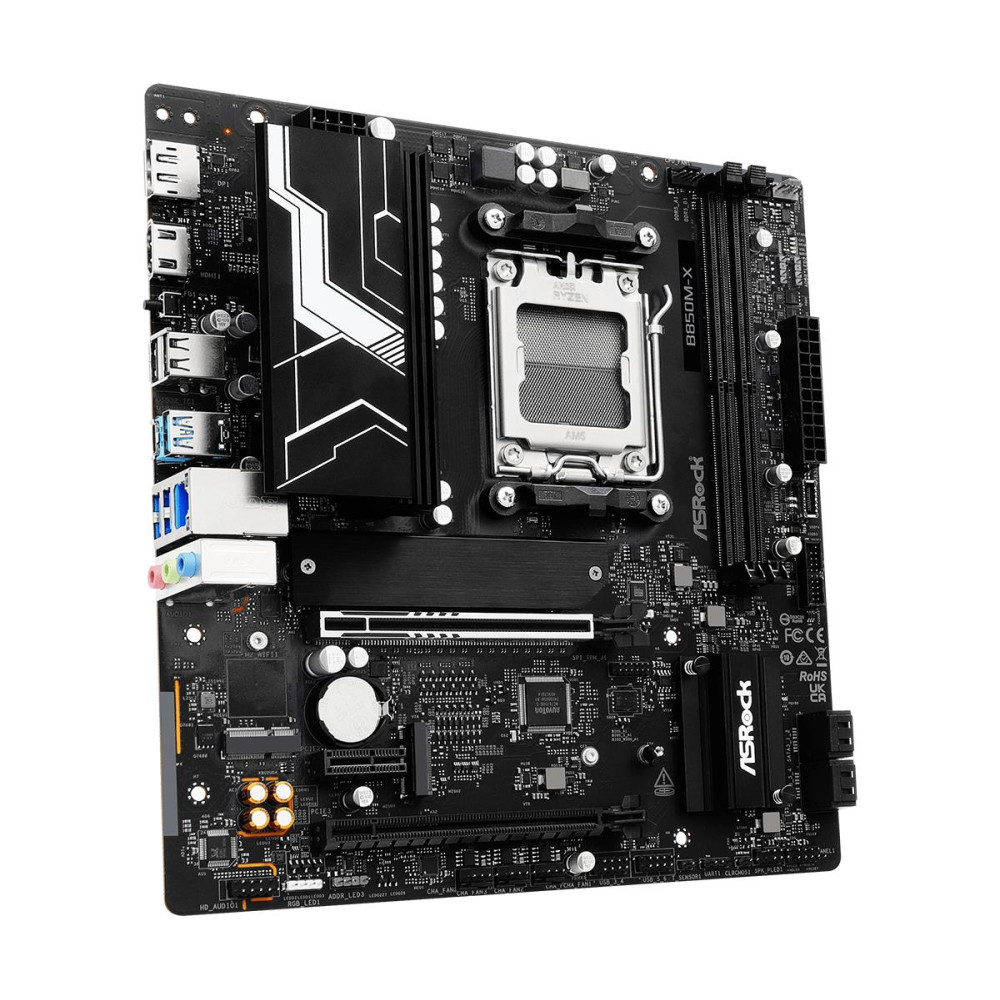

    ASROCK B850M-X R2.0

  • Ražotājs: ASROCK
  • Modelis: B850M-X R2.0
  • EAN: 4711581490758
  • Pieejamība: 25
116,18€
Bez PVN: 96,02€
  • Produktu apskats
  • Specifikācija
  • Atsauksmes (0)

Atslēgvārdi: Mainboards for AMD CPUs

Specifikācijas
Specifikācija
BIOS memory size 256
CPU fan connector Yes
ECC сompatibility ECC & Non-ECC
Front panel audio connector Yes
Motherboard chipset family AMD
Number of CPU fan connectors 2
Number of EPS power connectors (8-pin) 1
Number of M.2 (M) slots 1
Number of SATA III connectors 4
PCI Express x1 (Gen 4.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
RGB LED pin header Yes
Summary Asrock B850M-X R2.0. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
TPM connector Yes
Unit Calculated Volume 0.00553
Unit Calculated Weight 1.29
Units per Shipping Box 10
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
Procesors
Compatible processor series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Procesoru ligzda AM5
Processor manufacturer AMD
Atmiņa
Atmiņas tips DDR5
Maximum internal memory 128
Memory channels Dual-channel
Memory slots type DIMM
Supported memory types DDR5-SDRAM
Unbuffered memory Yes
Atmiņas ierīce
Supported storage drive interfaces M.2,SATA III

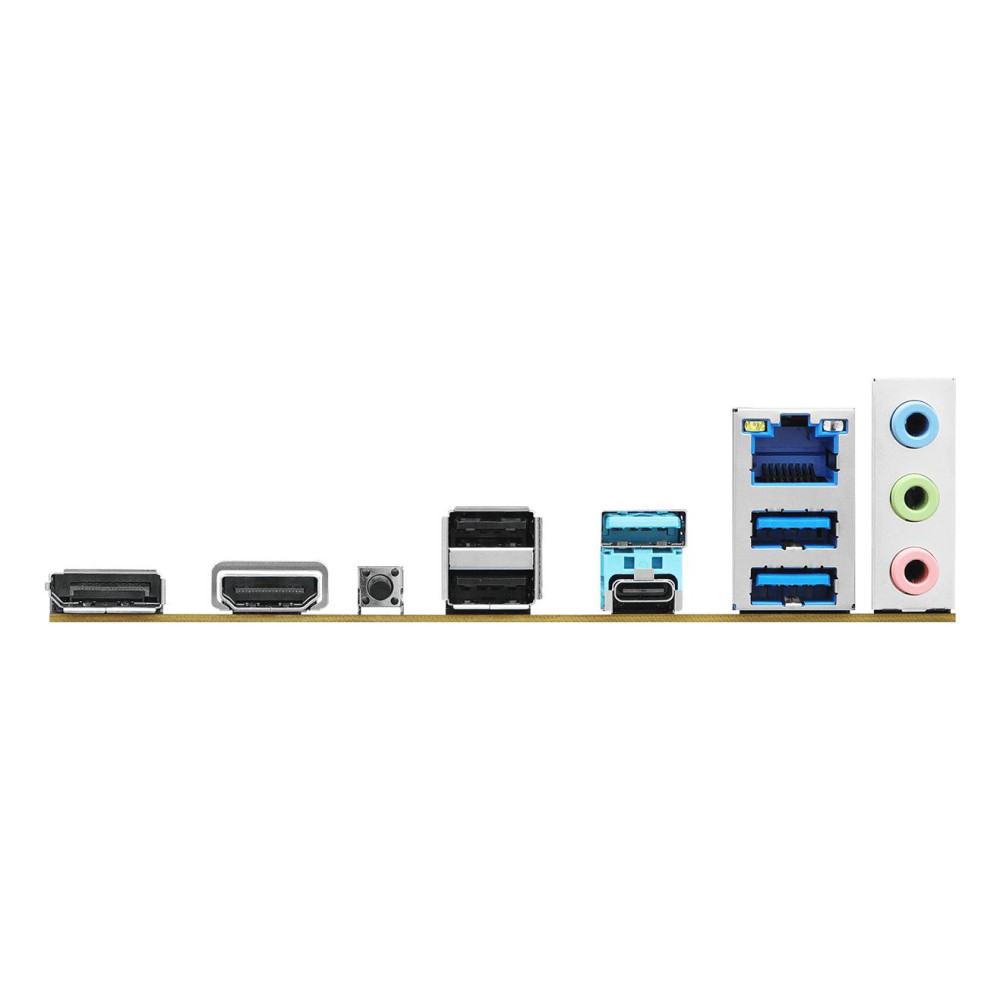

Porti
DisplayPort version 1.4
DisplayPorts quantity 1
HDMI portu daudzums 1
USB 2.0 connectors 2
USB 2.0 ports quantity 2
Pieslēgumi
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Ethernet LAN (RJ-45) porti 1
LAN controller Dragon RTL8125BG
Wi-Fi No
Specifikācijas
ATX Power connector (24-pin) Yes
Audio output channels 7.1
BIOS Type UEFI AMI
Component for PC
Dziļums 226
EPS power connector (8-pin) Yes
Form factor mATX
Mikroshēmu komplekts B850
Model B850M-X R2.0
Motherboard chipset AMD B850
Motherboard form factor micro ATX
Number of memory slots 2
Platums 244
Windows operating systems supported Windows 10 x64/Windows 11 x64
Atsauksmes (0)

Šai precei atsauksmju nav.
