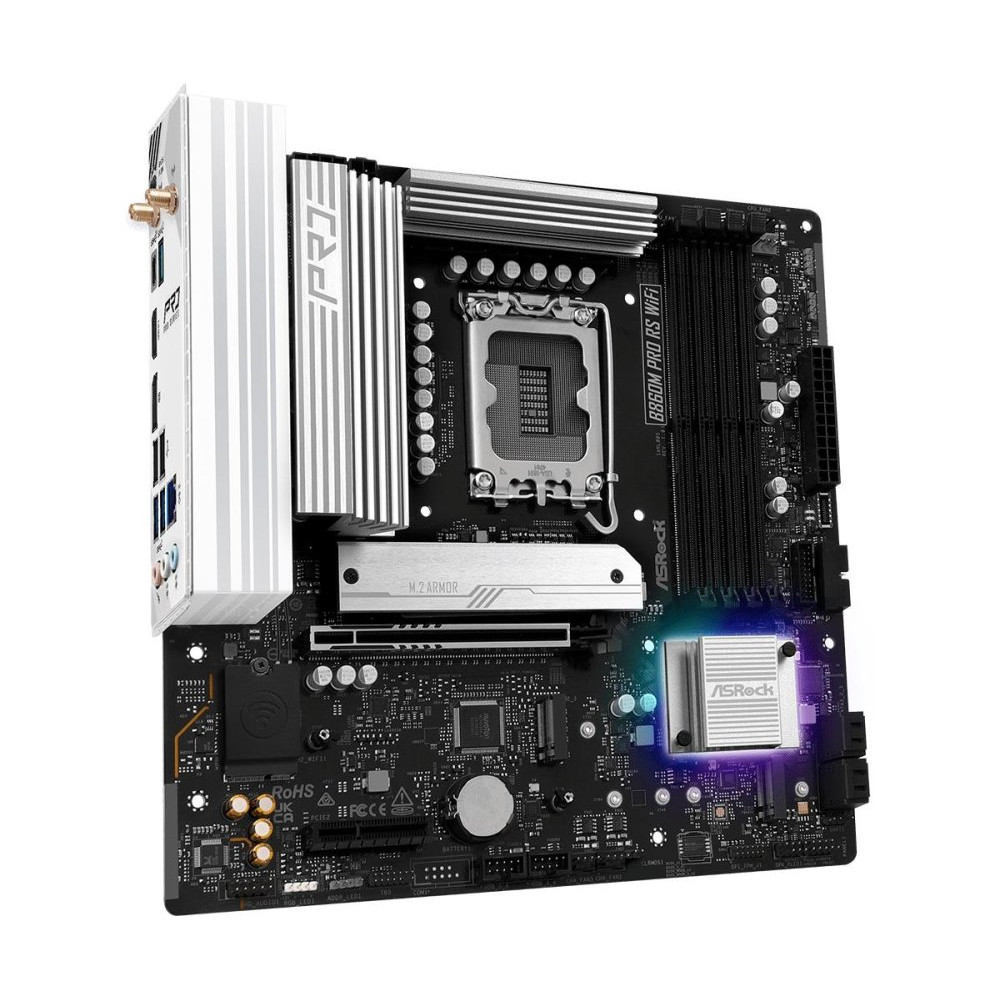

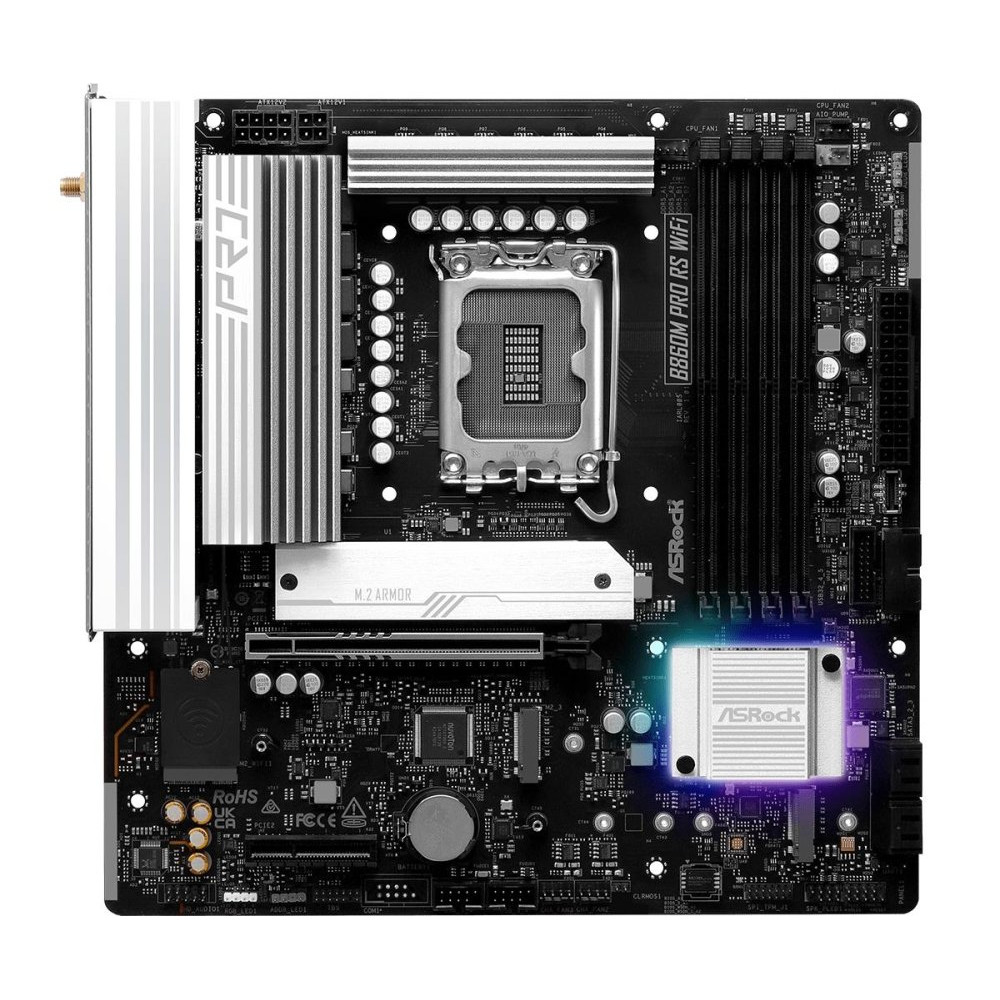

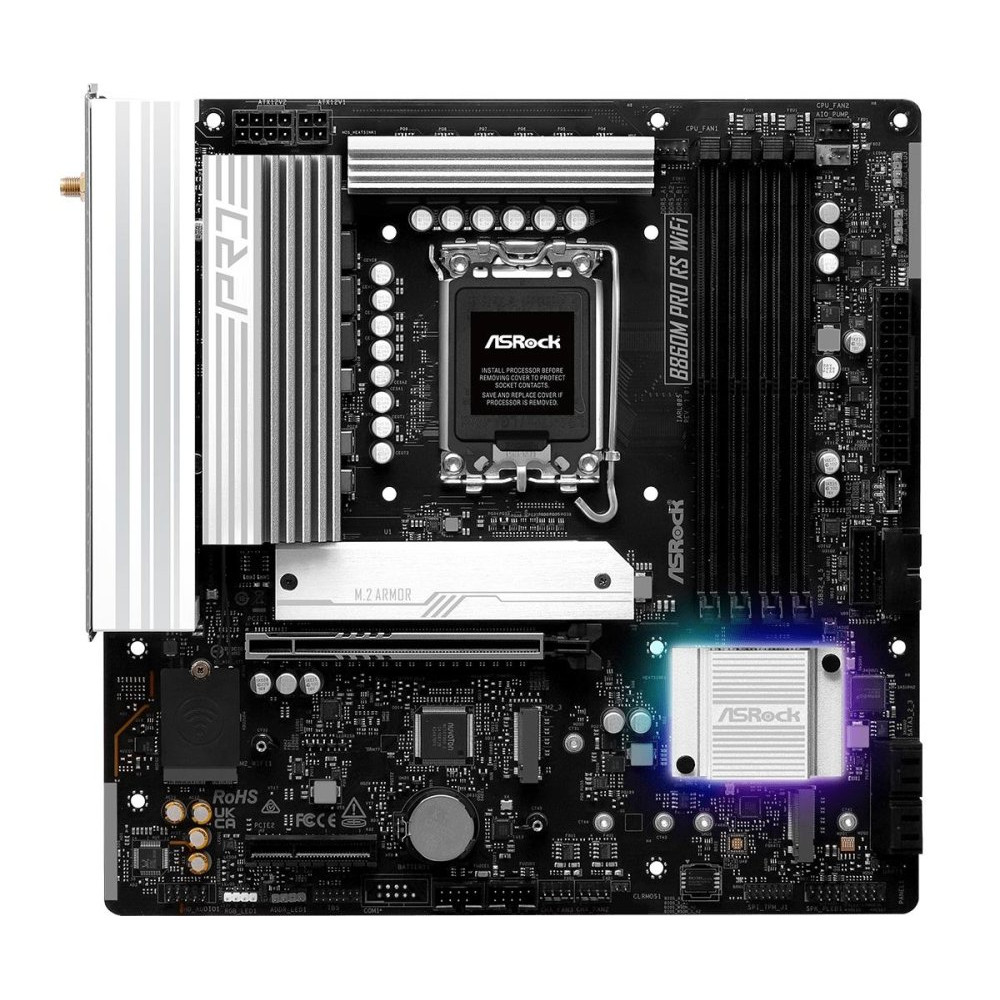

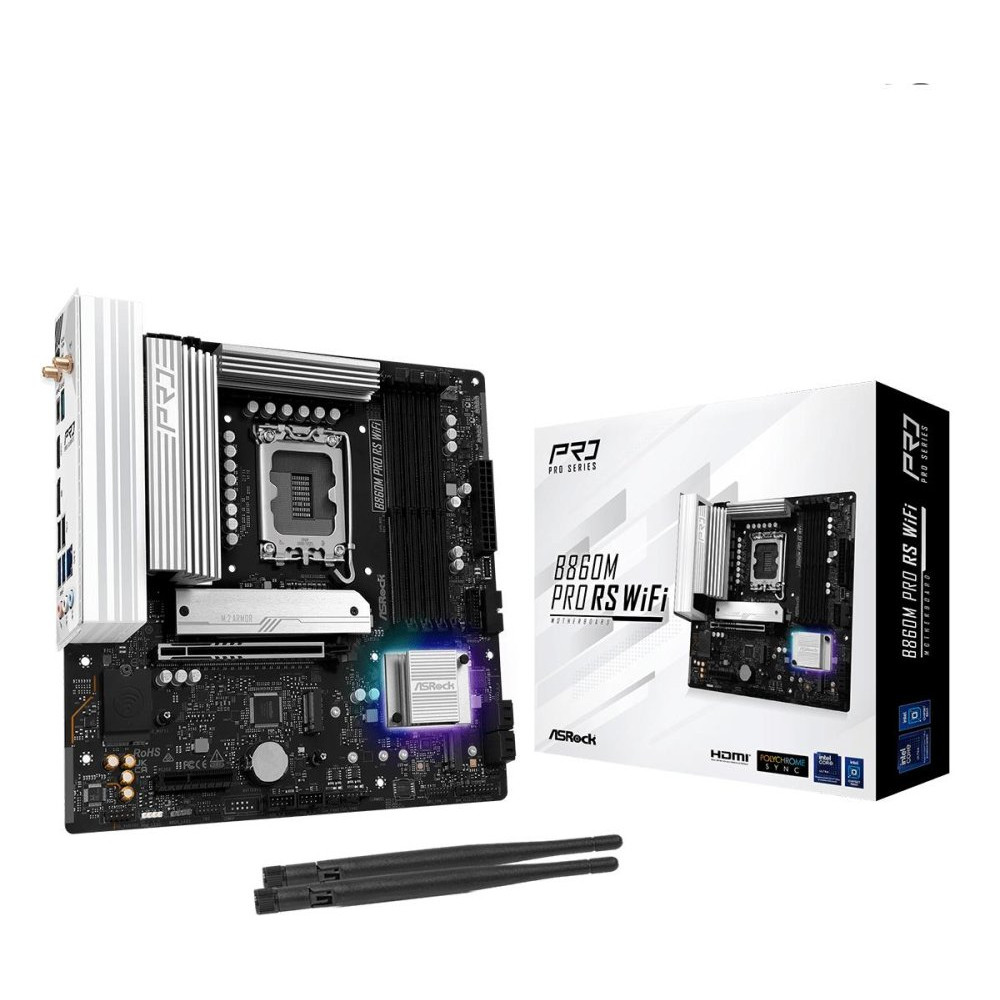

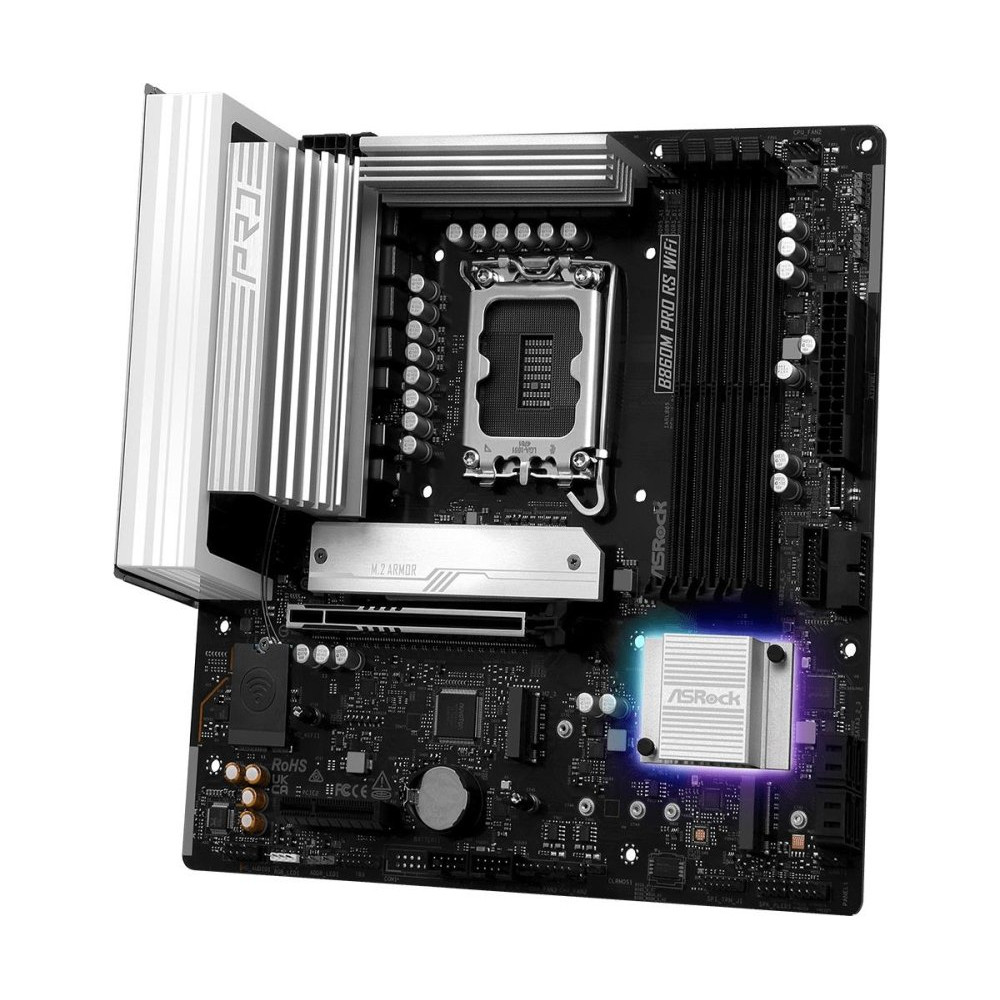

Mainboard, ASROCK, Intel B860, LGA 1851 (Socket V1), micro ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 3xNumber of M.2 (M) slots, B860MPRORSWIFI
Populārs
Mainboard, ASROCK, Intel B860, LGA 1851 (Socket V1), micro ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 3xNumber of M.2 (M) slots, B860MPRORSWIFI
Mainboard, ASROCK, Intel B860, LGA 1851 (Socket V1), micro ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 3xNumber of M.2 (M) slots, B860MPRORSWIFI
Mainboard, ASROCK, Intel B860, LGA 1851 (Socket V1), micro ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 3xNumber of M.2 (M) slots, B860MPRORSWIFI
Mainboard, ASROCK, Intel B860, LGA 1851 (Socket V1), micro ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 3xNumber of M.2 (M) slots, B860MPRORSWIFI
Mainboard, ASROCK, Intel B860, LGA 1851 (Socket V1), micro ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 3xNumber of M.2 (M) slots, B860MPRORSWIFI
Mainboard, ASROCK, Intel B860, LGA 1851 (Socket V1), micro ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 3xNumber of M.2 (M) slots, B860MPRORSWIFI
Atsauksmes:
(0)
    Nosaukums:

    ASROCK B860M PRO RS WIFI

  • Ražotājs: ASROCK
  • Modelis: B860M PRO RS WIFI
  • EAN: 4711581490284
  • Pieejamība: 5
143,24€
Bez PVN: 118,38€
  • Produktu apskats
  • Specifikācija
  • Atsauksmes (0)

Atslēgvārdi: Mainboards for Intel CPUs

Specifikācijas
Galvenie parametri
Formas faktors mATX
Procesora ražotājs Intel
Operatīvās atmiņas tips DDR5
Mikroshēmojums B860
Procesora ligzda LGA1851
Atmiņas sloti 4
Maksimālā atmiņa 256 GB
M.2 sloti 3
SATA porti 4
Wi-Fi modulis Jā
LAN ātrums 2.5 Gbit/s
Specification
Name MB B860 S1851 MATX/B860M PRO RS WIFI ASROCK
Specifikācija
Antenna included Yes
Audio chip Realtek ALC897
BIOS memory size 256
CPU fan connector Yes
ECC сompatibility Non-ECC
Front panel audio connector Yes
Motherboard chipset family Intel
Number of chassis fan connectors 3
Number of CPU fan connectors 2
Number of M.2 (M) slots 3
Number of SATA III connectors 4
PCI Express x16 (Gen 5.x) slots 1
PCI Express x4 (Gen 1.x) slots 1
Product Net Weight 1
RGB LED pin header Yes
Summary Asrock B860M Pro RS WiFi. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Supported memory clock speed (max) 8666
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
TPM connector Yes
Unit Calculated Volume 0.005406
Unit Depth 30
Unit Height 27
Unit Width 6
Units per Shipping Box 10
USB 3.2 Gen 1 (3.1 Gen 1) connectors 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 3.2 Gen 2x2 Type-C ports quantity 1
Procesors
Compatible processor series Intel Core Ultra (Series 2)
Procesoru ligzda LGA 1851 (Socket V1)
Processor manufacturer Intel
Atmiņa
Maximum internal memory 256
Memory channels Dual-channel
Memory slots type DIMM
Supported memory types DDR5-SDRAM
Unbuffered memory Yes
Atmiņas ierīce
Number of storage drives supported 7
RAID levels 0/1/10/5
RAID support Yes
Supported storage drive interfaces M.2,SATA III
Supported storage drive types HDD & SSD

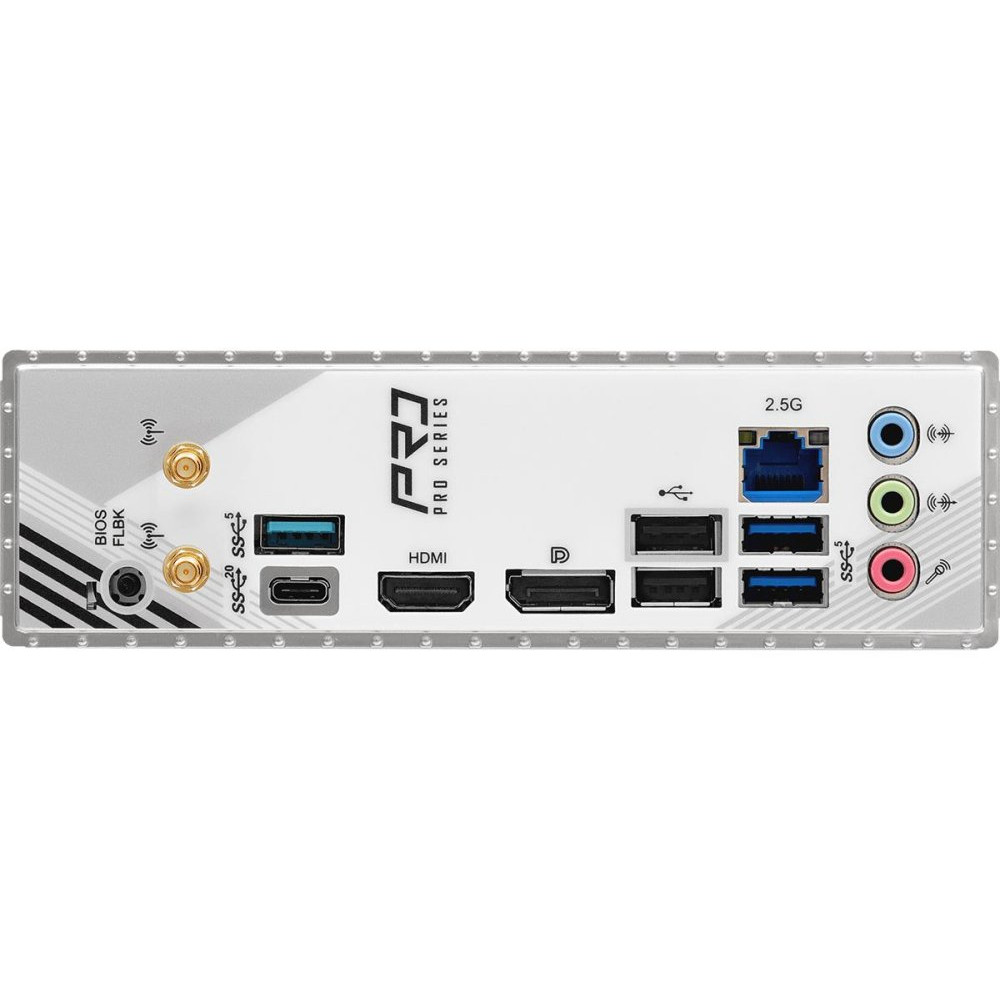

Porti
DisplayPort version 1.4
DisplayPorts quantity 1
HDMI portu daudzums 1
Microphone in Yes
USB 2.0 connectors 2
USB 2.0 ports quantity 2
Pieslēgumi
Bluetooth Yes
Bluetooth versija 5.3
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Ethernet LAN (RJ-45) porti 1
LAN controller Dragon RTL8125BG
Wi-Fi Yes
Wi-Fi standards 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
Specifikācijas
ATX Power connector (24-pin) Yes
Audio output channels 7.1
BIOS Type UEFI AMI
Component for PC
Dziļums 244
EPS power connector (8-pin) Yes
HDCP Yes
Komplektā kabeļi SATA
Line-in Yes
Motherboard chipset Intel B860
Motherboard form factor micro ATX
Number of memory slots 4
Peripheral (Molex) power connectors (4-pin) 1
Platums 244
Windows operating systems supported Windows 11 x64
