Mainboard, ASUS, AMD B550, SAM4, Micro-ATX, Memory DDR4, Memory slots 2, 1xPCI-Express 3.0 1x, 1xPCI-Express 3.0 16x, 1xPCI-Express 4.0 16x, 1xM.2, 1xHDMI, 1xDisplayPort, 1xAudio-In, 1xAudio-Out, 1xMicrophone, 2xUSB 2.0, 4xUSB 3.2, 1xPS/2, 1xRJ45, PRIMEB5

Populārs

Atsauksmes:

(0)

Nosaukums:

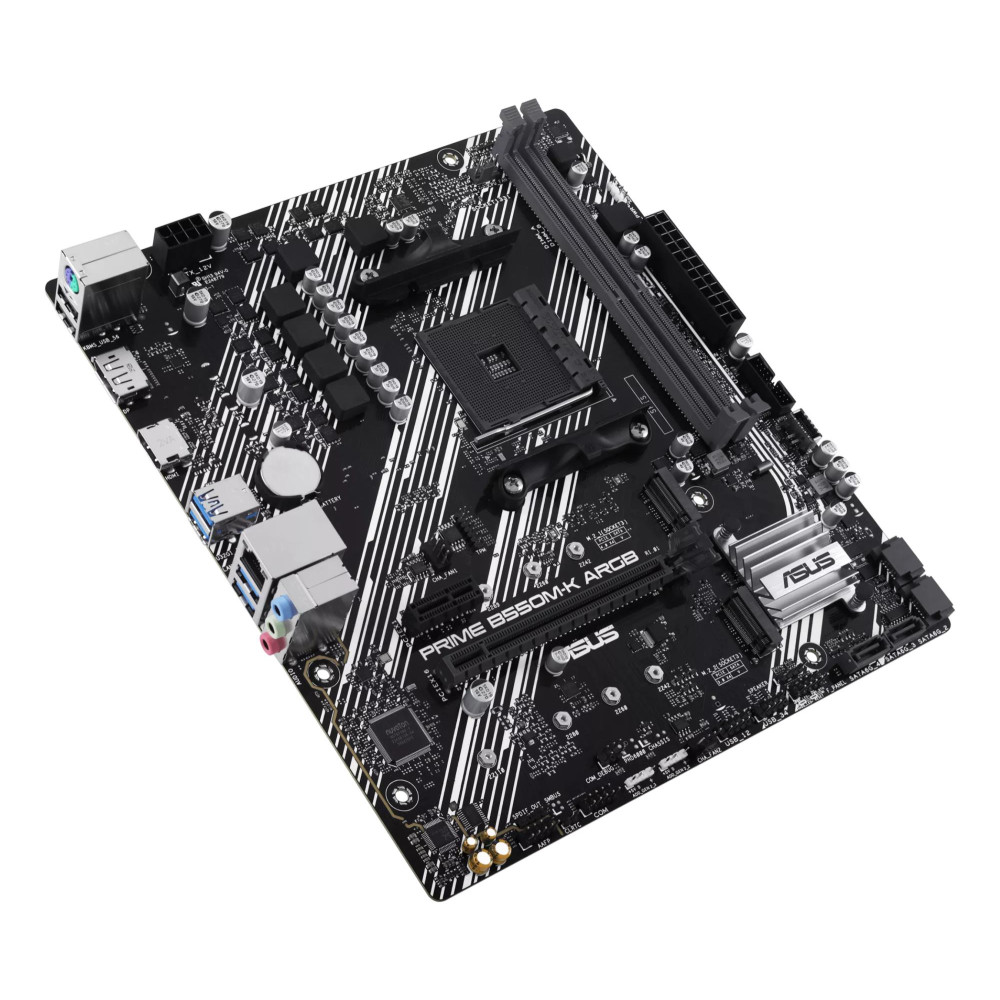

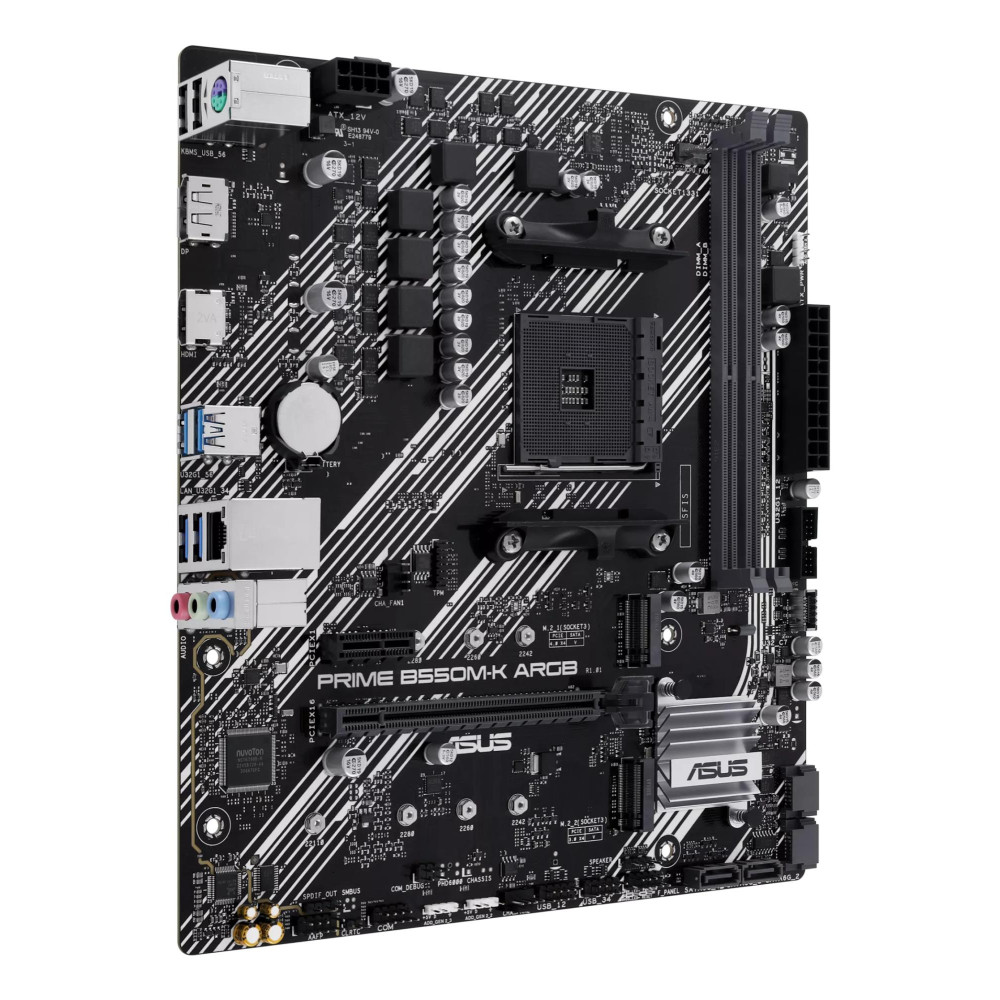

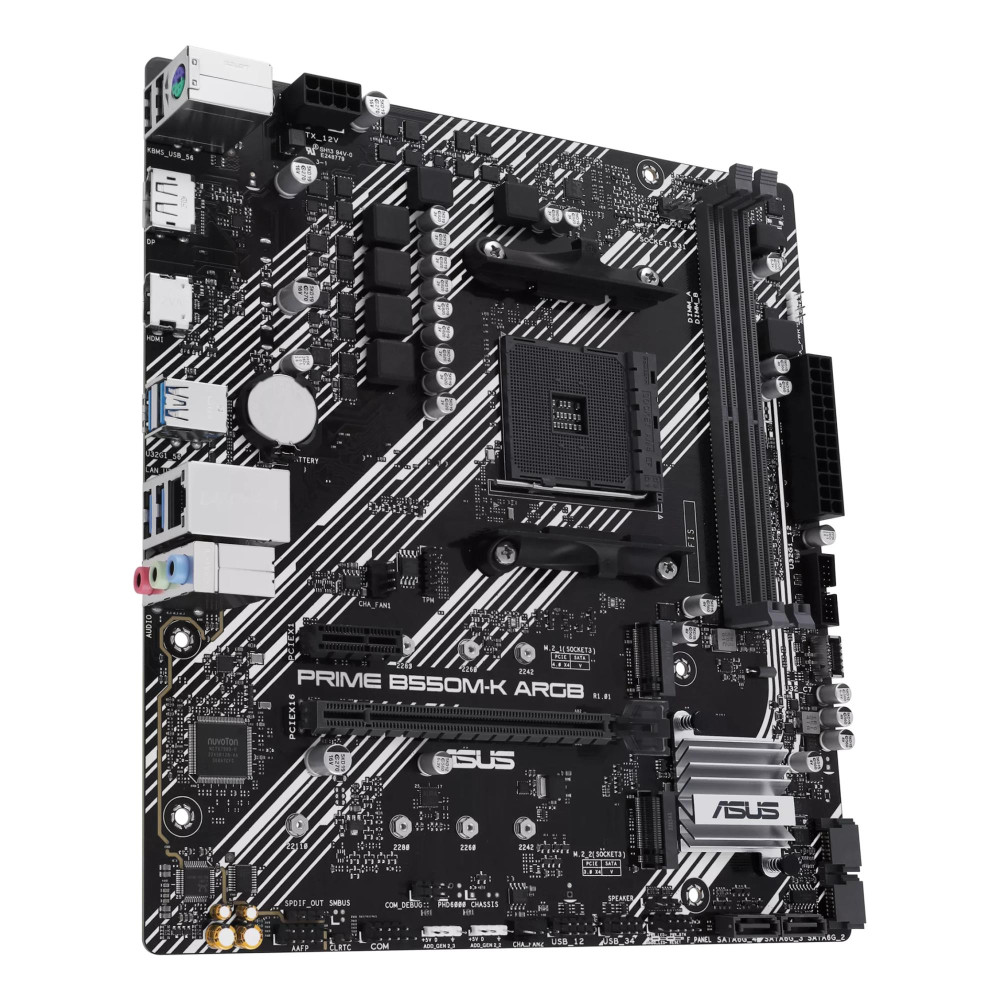

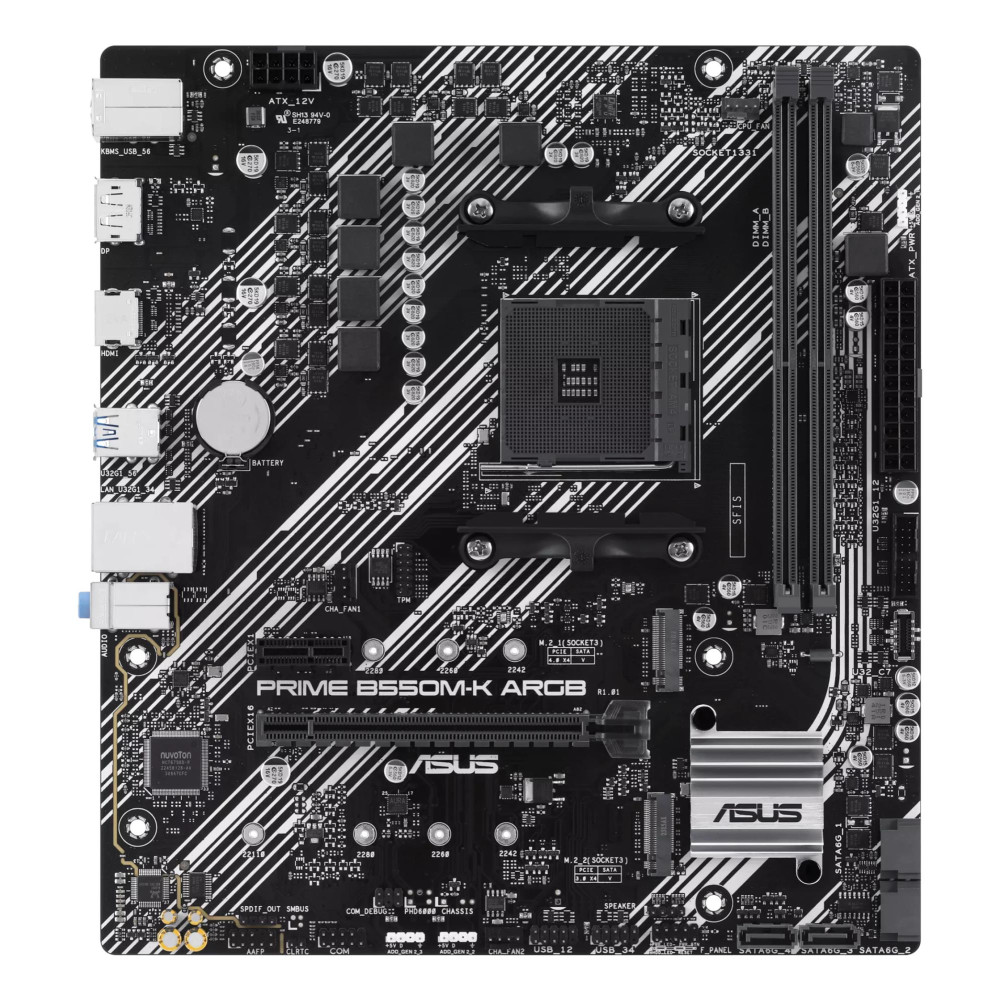

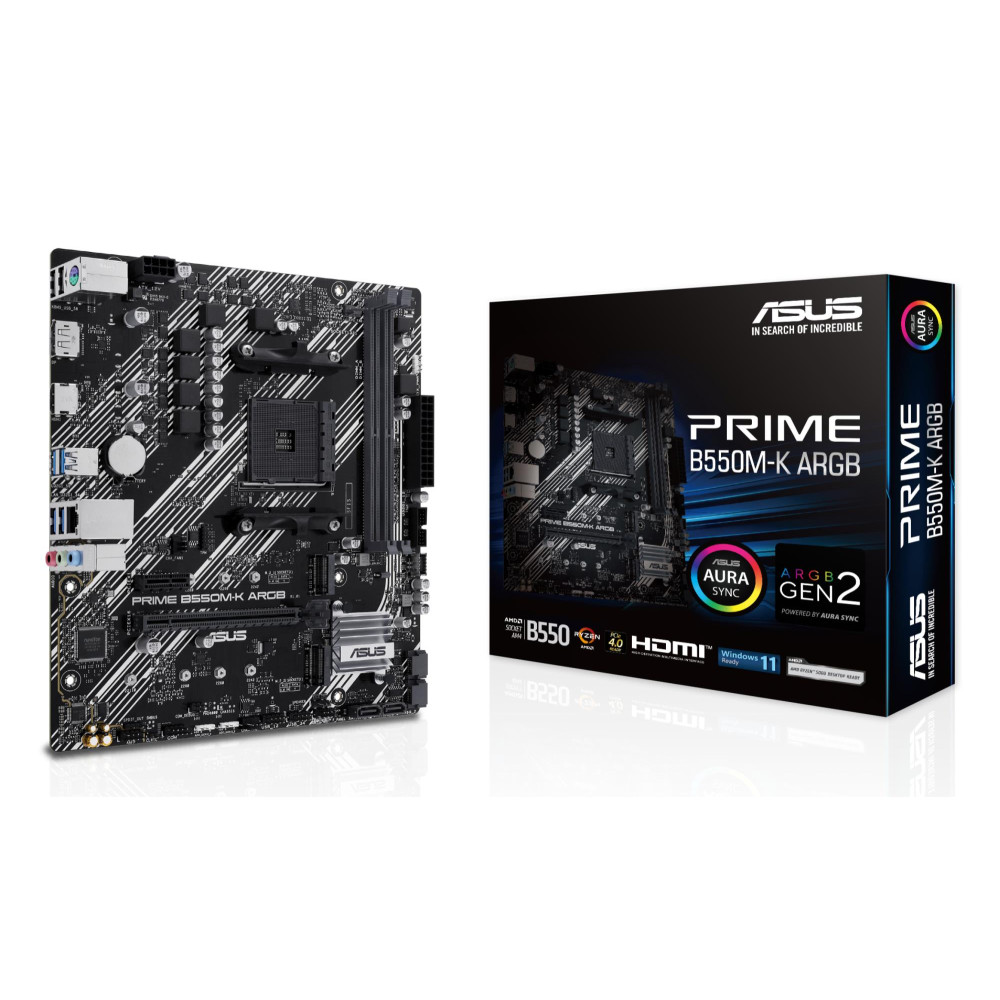

Asus PRIMEB550M-KARGB

Ražotājs: Asus
Modelis: PRIMEB550M-KARGB
EAN: 4711387316030
Pieejamība: 4

89,31€

Bez PVN: 73,81€

Daudzums:

Produktu apskats
Specifikācija
Atsauksmes (0)

Manufacturer page

Atslēgvārdi: Mainboards for AMD CPUs

Specifikācijas

Specifikācija

12V power connector Yes

BIOS memory size 128

Clear CMOS jumper Yes

CPU fan connector Yes

Front panel audio connector Yes

Front panel connector Yes

Motherboard chipset family AMD

Number of chassis fan connectors 2

Number of COM connectors 1

Number of M.2 (M) slots 2

Number of SATA III connectors 4

PCI Express x1 (Gen 3.x) slots 1

PCI Express x16 (Gen 3.x) slots 1

PCI Express x16 (Gen 4.x) slots 1

Product Net Weight 0.7

RGB LED pin header Yes

S/PDIF out connector Yes

Summary ASUS PRIME B550M-K ARGB. Processor manufacturer: AMD, Processor socket: Socket AM4. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD

TPM connector Yes

Unit Calculated Volume 0.004547

Units per Shipping Box 10

USB 3.2 Gen 1 (3.1 Gen 1) connectors 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4

Procesors

Procesoru ligzda AM4

Processor manufacturer AMD

Atmiņa

Atmiņas tips DDR4

Maximum internal memory 64

Memory channels Dual-channel

Memory slots type DIMM

Supported memory clock speeds 2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/3866/4000/4133/4200/4266/4333/4400/4466/4600/4866/5100

Supported memory types DDR4-SDRAM

Unbuffered memory Yes

Atmiņas ierīce

RAID levels 0/1/10

RAID support Yes

Supported storage drive interfaces M.2

Supported storage drive types HDD & SSD

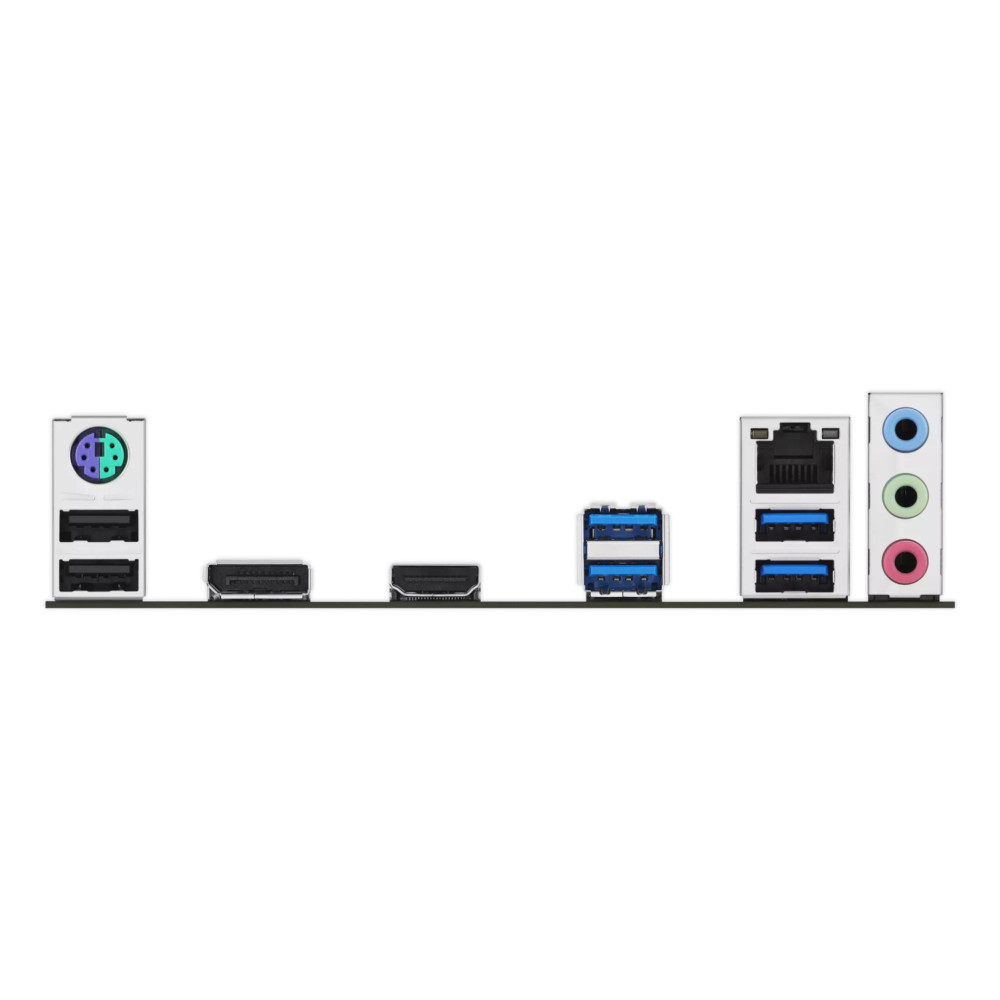

Porti

DisplayPort version 1.4

DisplayPorts quantity 1

HDMI portu daudzums 1

HDMI version 2.1

Headphone outputs 1

Microphone in Yes

USB 2.0 connectors 2

USB 2.0 ports quantity 2

Pieslēgumi

Ethernet interface type Gigabit Ethernet

Ethernet LAN Yes

Ethernet LAN (RJ-45) porti 1

Specifikācijas

ATX Power connector (24-pin) Yes

Audio output channels 7.1

Augstums 36.5

BIOS Type EFI AMI

Component for PC

Dziļums 221

Form factor mATX

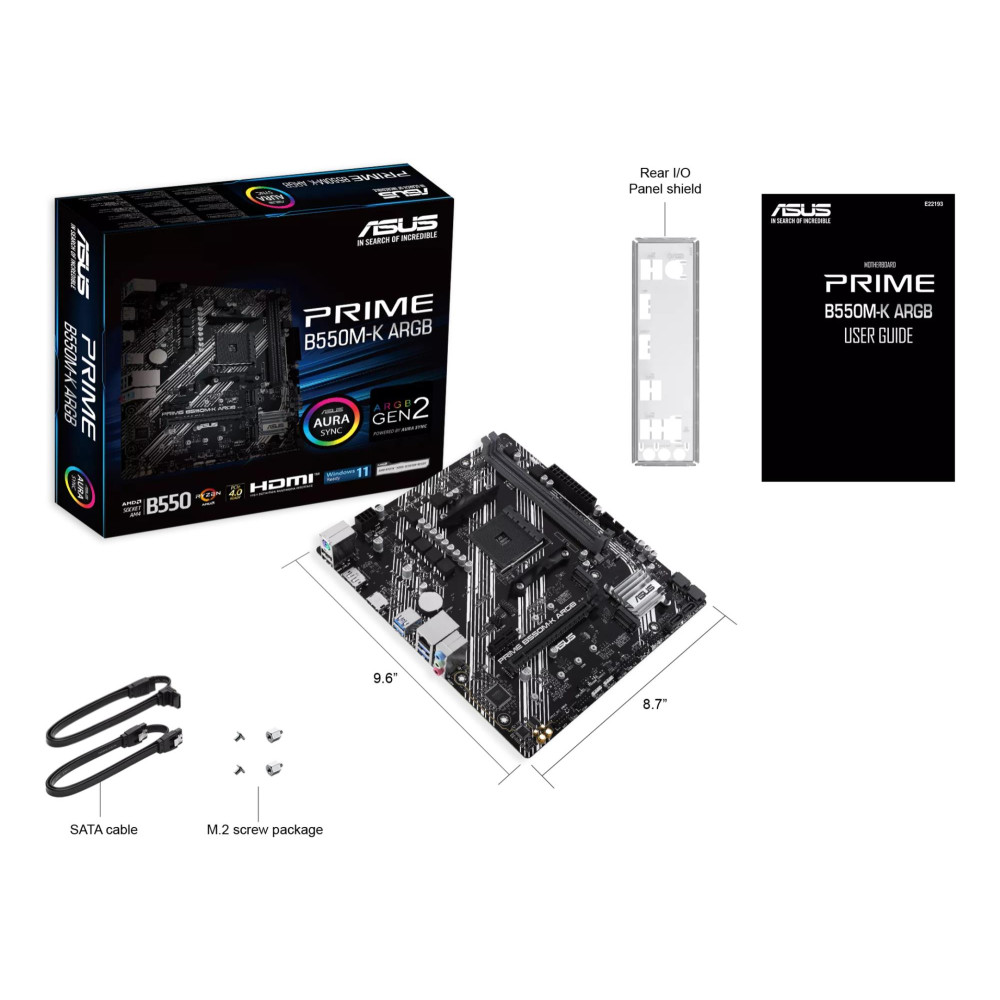

Komplektā kabeļi SATA

Line-in Yes

Mikroshēmu komplekts B550

Model PRIME B550M-K ARGB

Motherboard chipset AMD B550

Motherboard form factor micro ATX

Number of memory slots 2

Package depth 270

Package height 515

Package weight 960

Package width 260

Parameter Level 3

Platums 244

PS/2 ports quantity 1

Wake-on-LAN ready Yes

Weight 460

Windows operating systems supported Windows 10 x64/Windows 11
