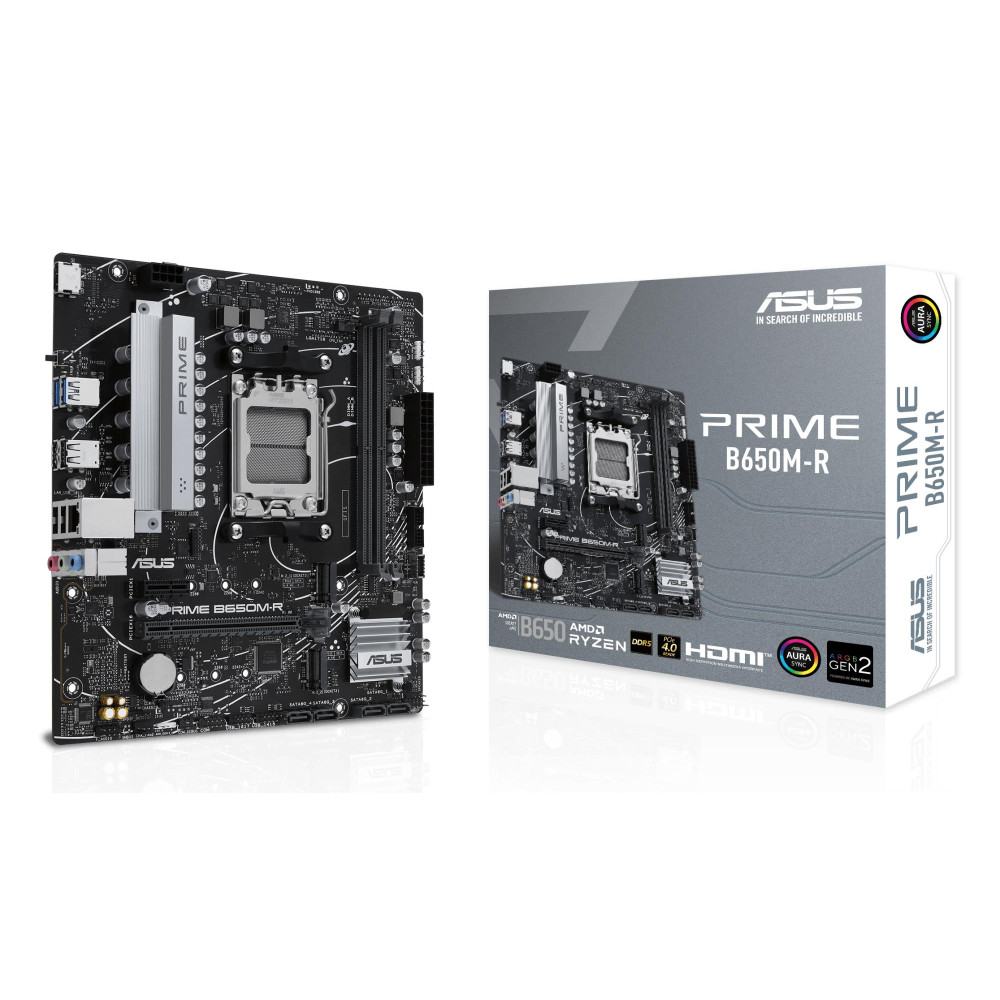

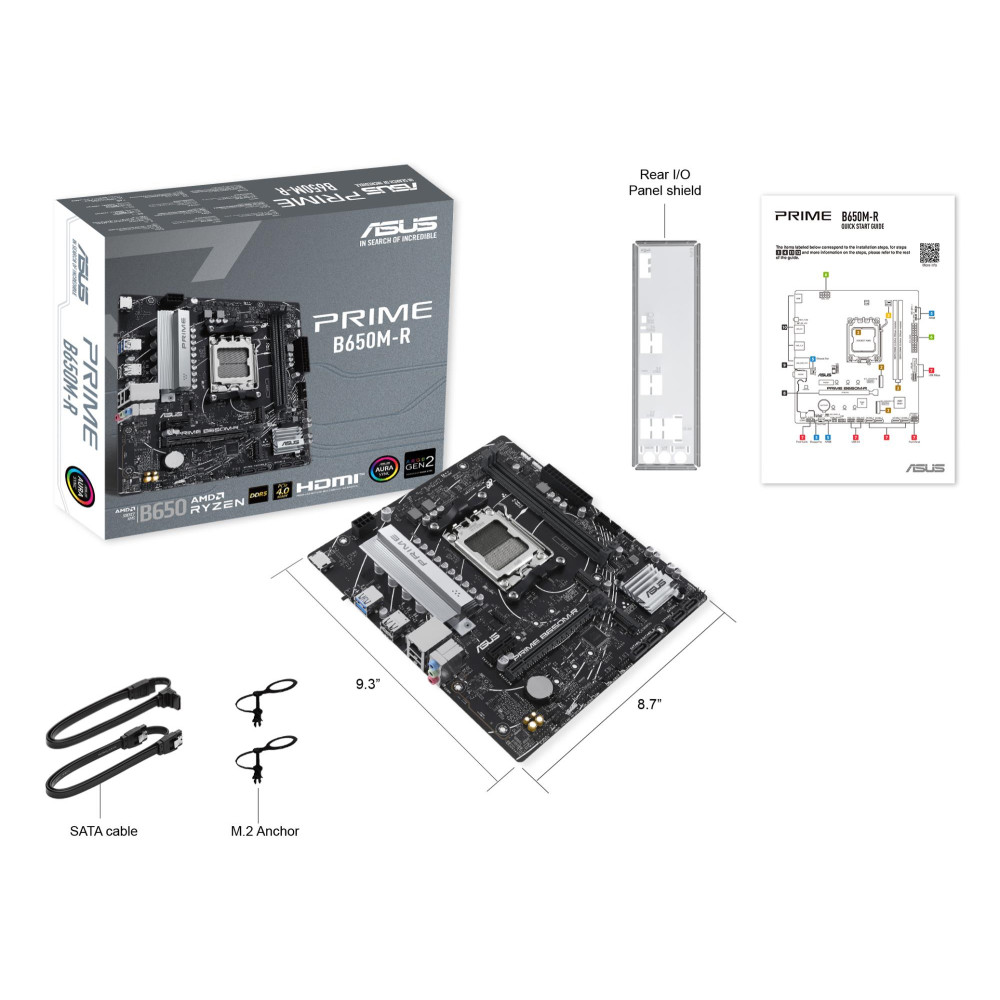

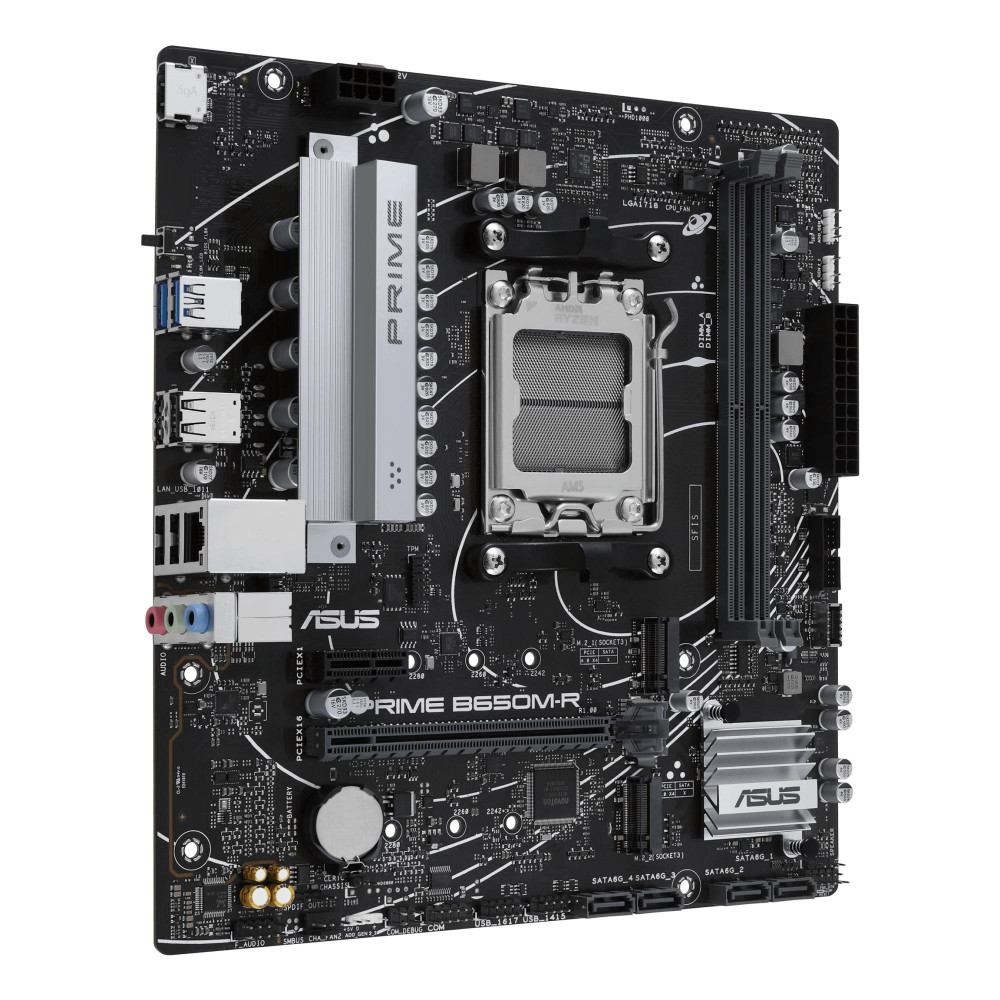

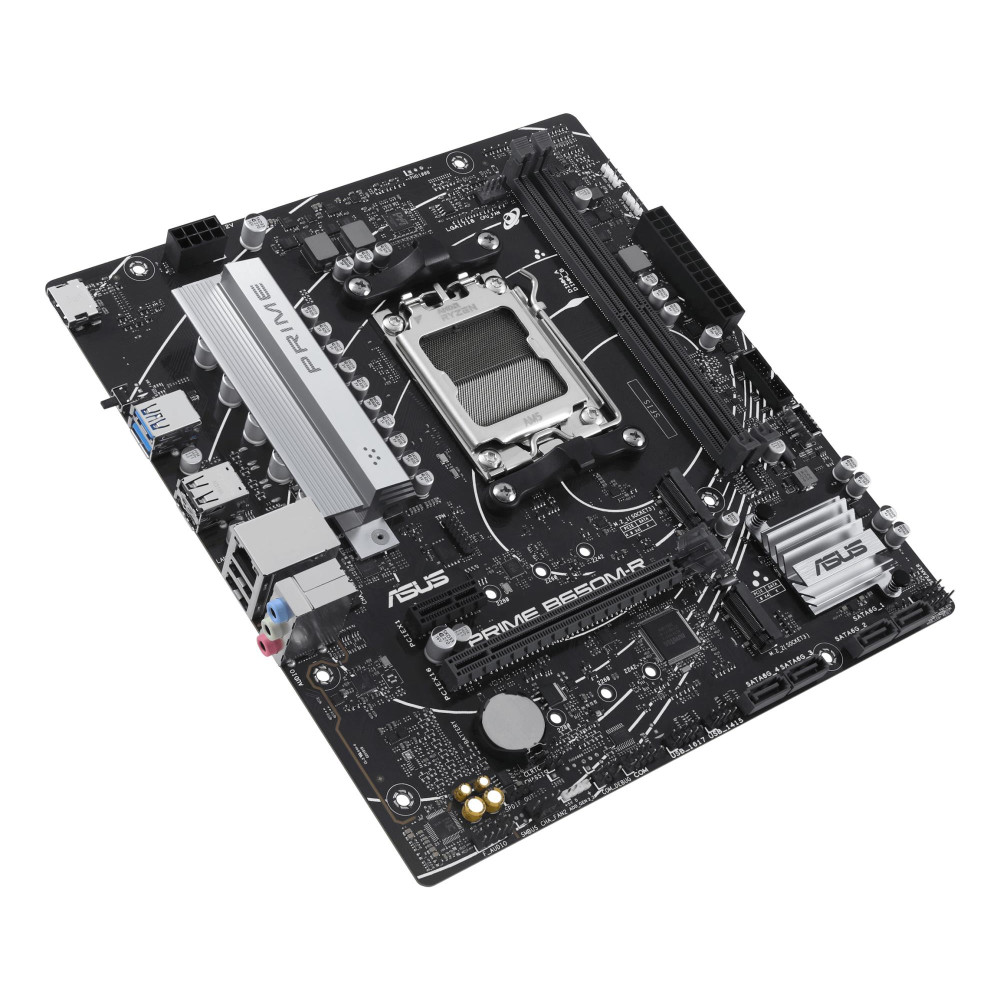

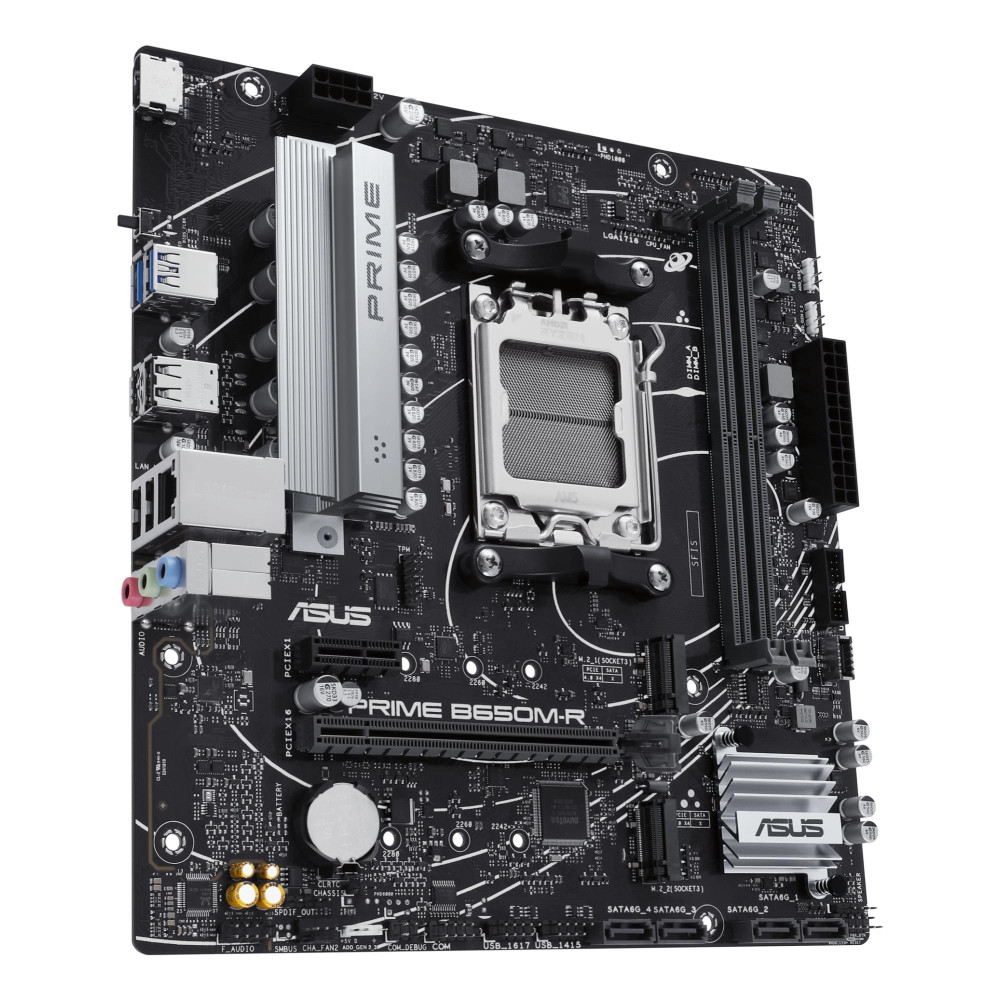

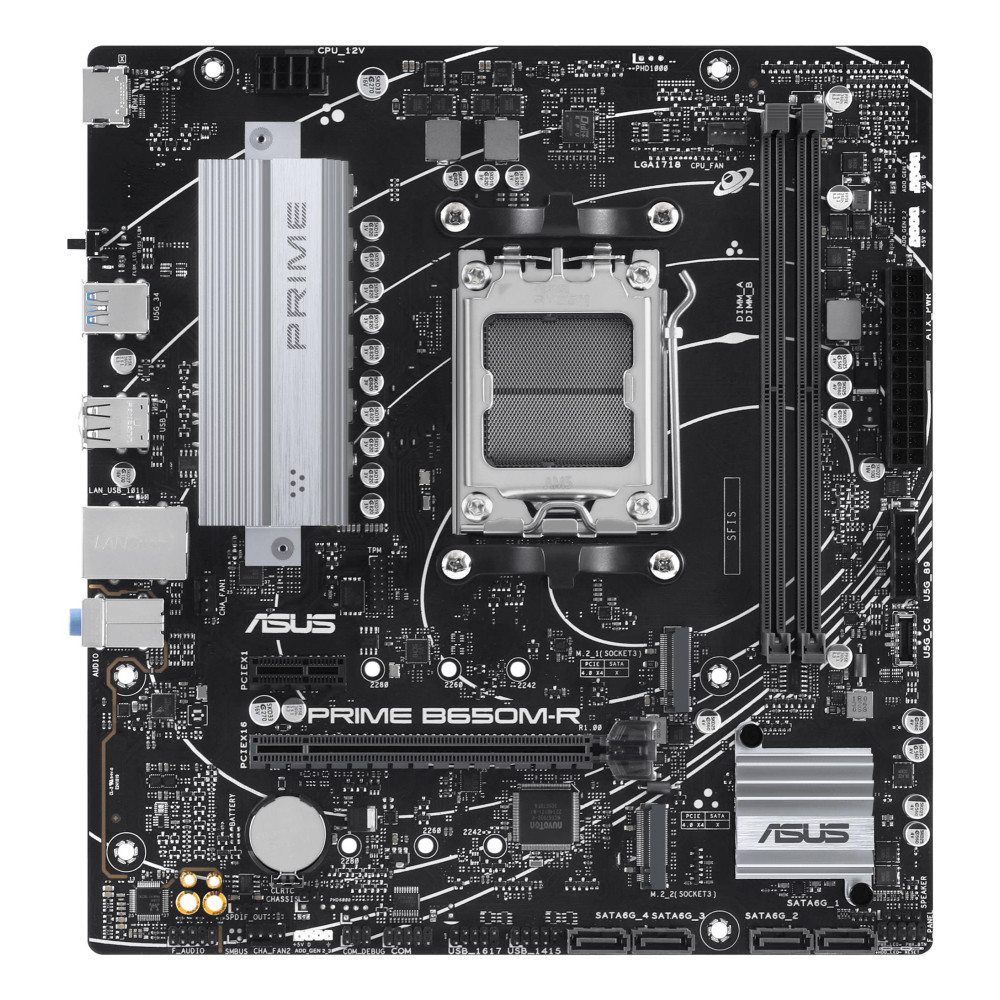

Mainboard, ASUS, AMD B650, SAM5, Micro-ATX, Memory DDR5, Memory slots 2, 1xPCI-Express 4.0 1x, 2xPCI-Express 4.0 16x, 2xM.2, 1xHDMI, 4xUSB 2.0, 2xUSB 3.2, 1xRJ45, 3xAudio port, PRIMEB650M-R

Populārs

Atsauksmes:

(0)

Nosaukums:

Asus PRIMEB650M-R

Ražotājs: Asus
Modelis: PRIMEB650M-R
EAN: 4711387429761
Pieejamība: 50

107,16€

Bez PVN: 88,56€

Daudzums:

Produktu apskats
Specifikācija
Atsauksmes (0)

Manufacturer page

Atslēgvārdi: Mainboards for AMD CPUs

Specifikācijas

Specifikācija

12V power connector Yes

Back-to-BIOS button Yes

BIOS memory size 256

CPU fan connector Yes

ECC сompatibility Non-ECC

Front panel audio connector Yes

Motherboard chipset family AMD

Number of chassis fan connectors 2

Number of COM connectors 1

Number of HDDs supported 4

Number of M.2 (M) slots 2

Number of SATA III connectors 4

Parallel processing technology support Not supported

PCI Express x1 (Gen 4.x) slots 1

PCI Express x16 (Gen 4.x) slots 1

Product colour Black

RGB LED pin header Yes

S/PDIF out connector Yes

Summary ASUS PRIME B650M-R. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD

Supported memory clock speed (max) 7200

TPM connector Yes

Unit Calculated Volume 0.004547

Unit Calculated Weight 1.08

Units per Shipping Box 10

USB 3.2 Gen 1 (3.1 Gen 1) connectors 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2

Procesors

Compatible processor series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series

Procesoru ligzda AM5

Processor manufacturer AMD

Atmiņa

Atmiņas tips DDR5

Maximum internal memory 96

Memory channels Dual-channel

Memory slots type DIMM

Supported memory clock speeds 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200

Supported memory types DDR5-SDRAM

Unbuffered memory Yes

Atmiņas ierīce

Number of storage drives supported 6

RAID levels 0/1/10

RAID support Yes

Supported storage drive interfaces M.2,SATA III

Supported storage drive types HDD & SSD

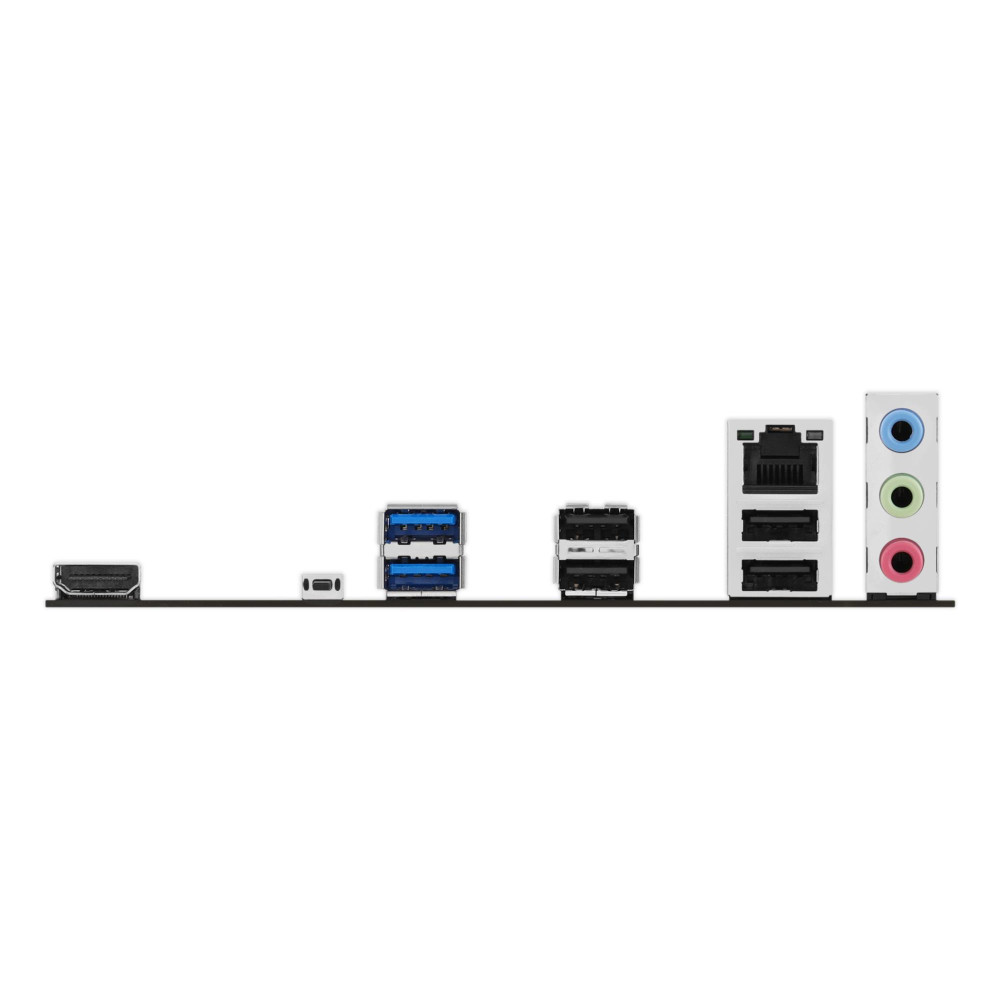

Porti

HDMI portu daudzums 1

Headphone outputs 1

USB 2.0 connectors 2

USB 2.0 ports quantity 4

Pieslēgumi

Ethernet interface type 2.5 Gigabit Ethernet

Ethernet LAN Yes

Ethernet LAN (RJ-45) porti 1

Wi-Fi No

Specifikācijas

ATX Power connector (24-pin) Yes

Audio output channels 7.1

BIOS Type UEFI AMI

Component for PC

Cooling type Passive

Dziļums 221

EPS power connector (8-pin) Yes

Form factor mATX

Komplektā kabeļi SATA

Line-in Yes

Mikroshēmu komplekts B650

Model PRIME B650M-R

Motherboard chipset AMD B650

Motherboard form factor micro ATX

Number of memory slots 2

Package depth 270

Package height 51.5

Package weight 855

Package width 260

Platums 236

Power source type ATX

Supported processor sockets Socket AM5

User guide Yes

Windows operating systems supported Windows 10/Windows 11
