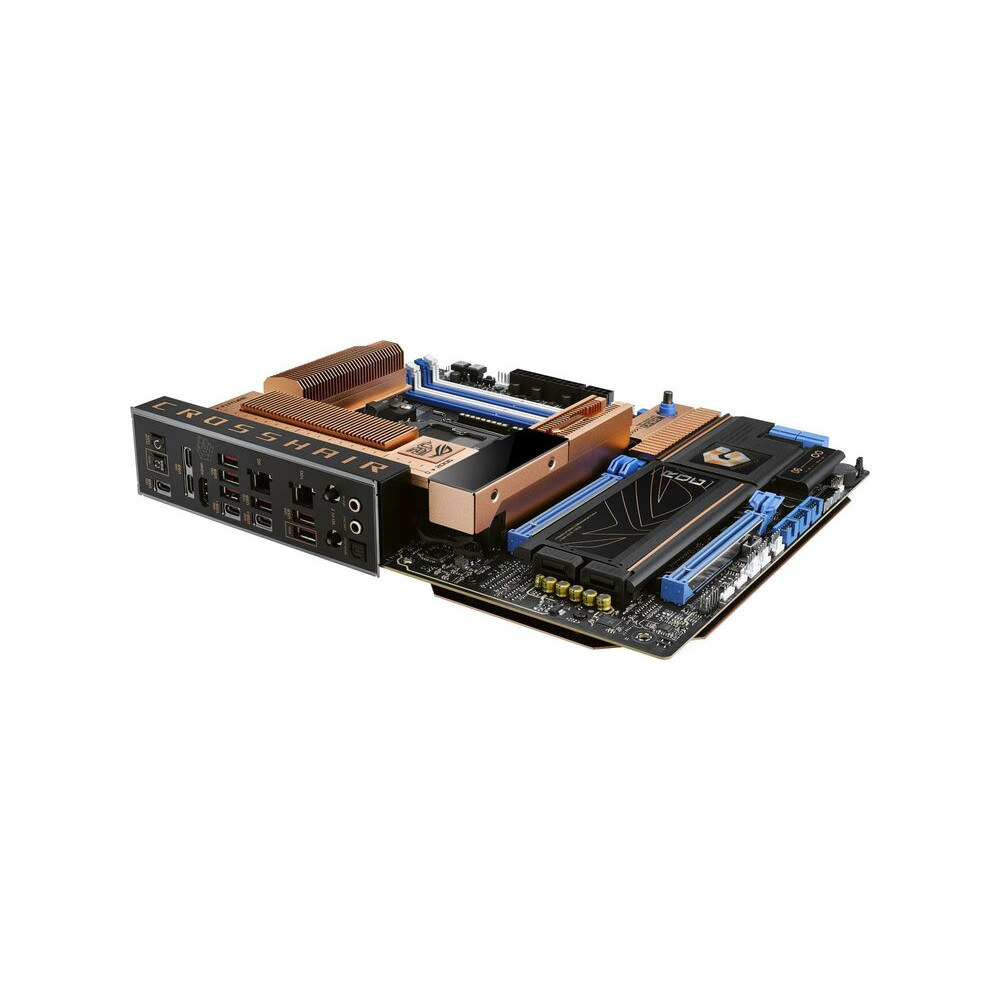

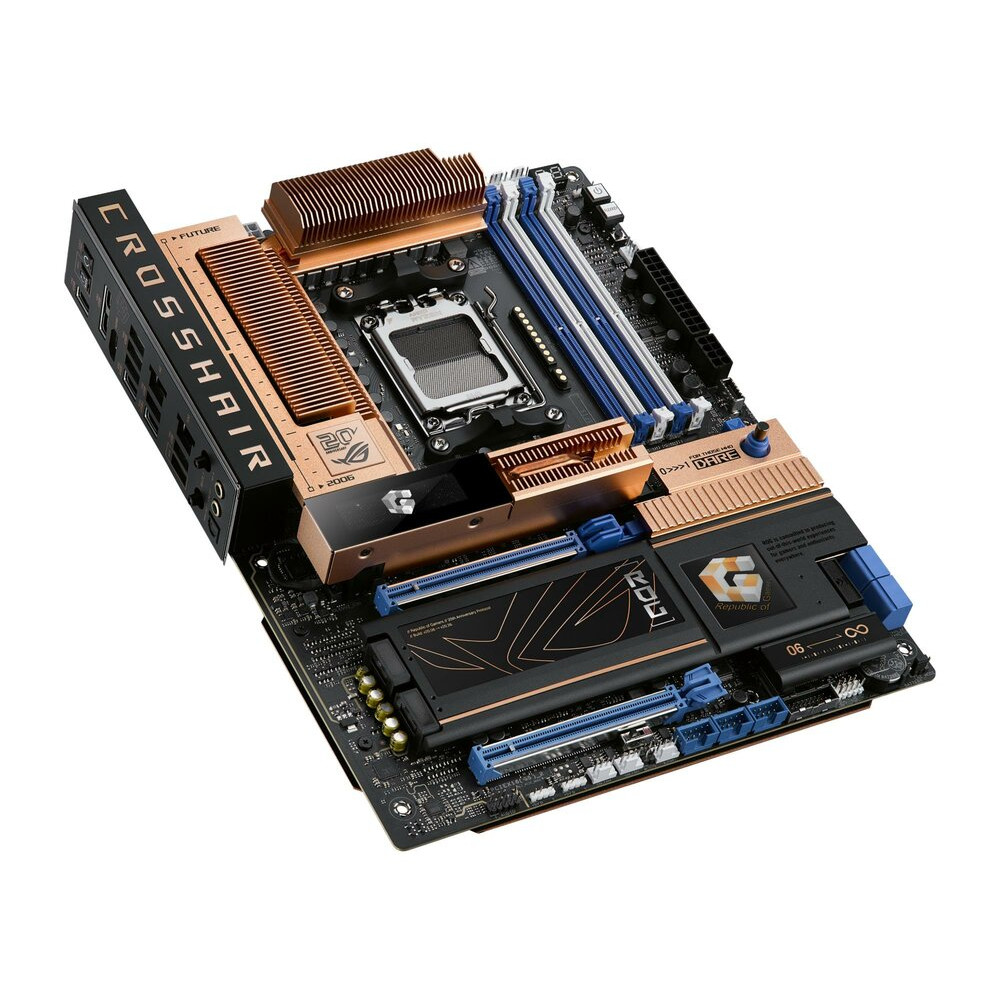

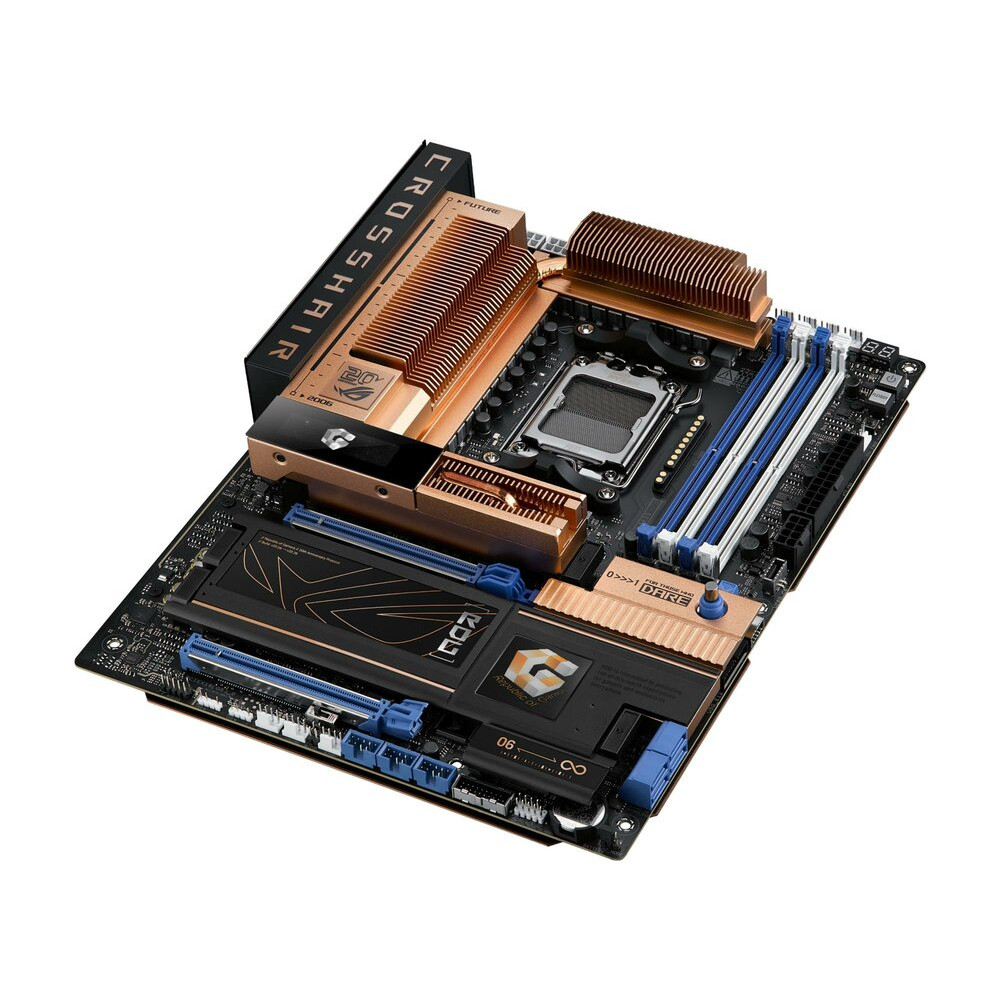

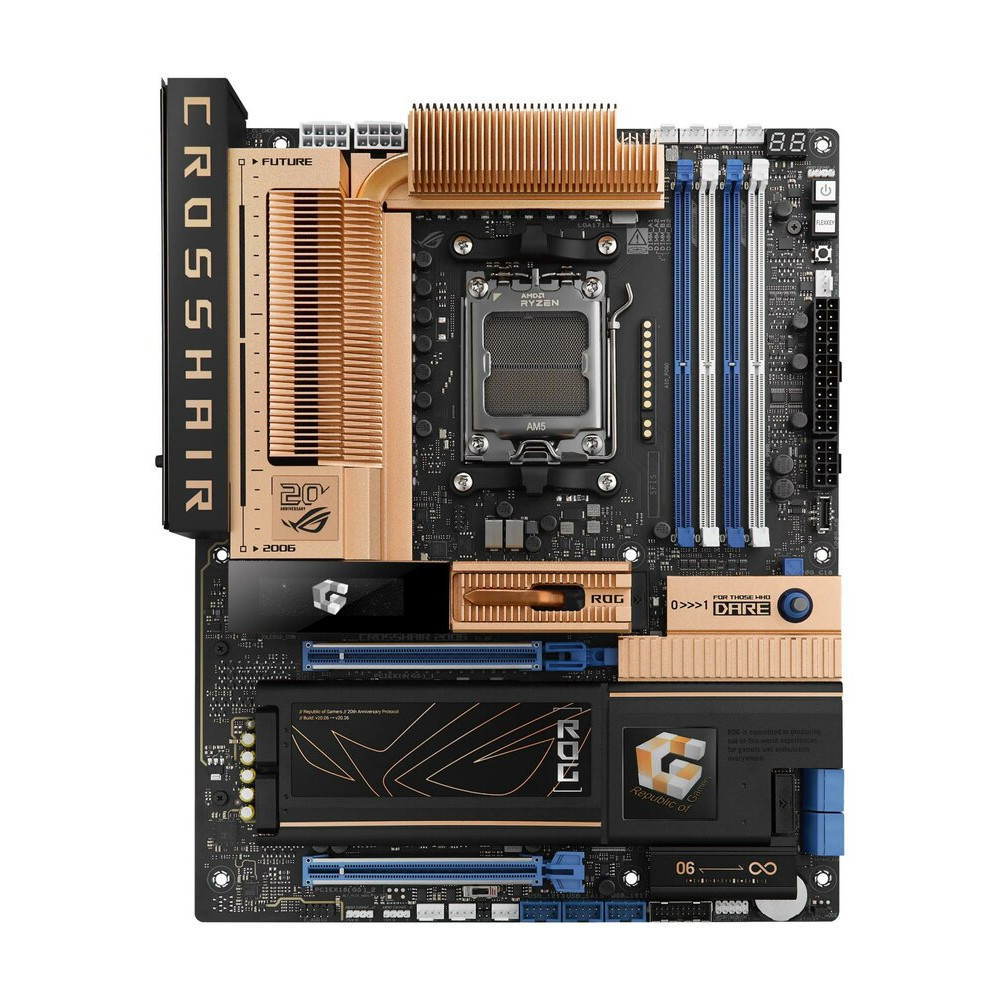

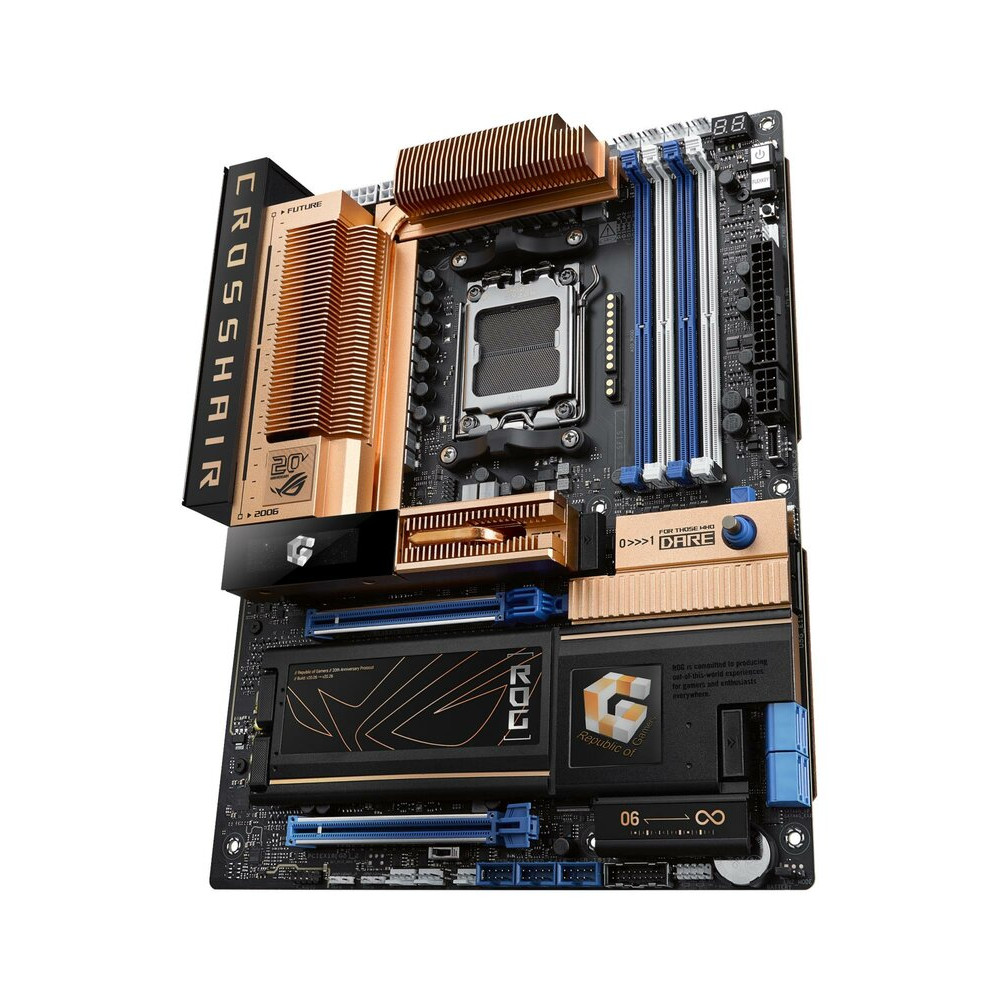

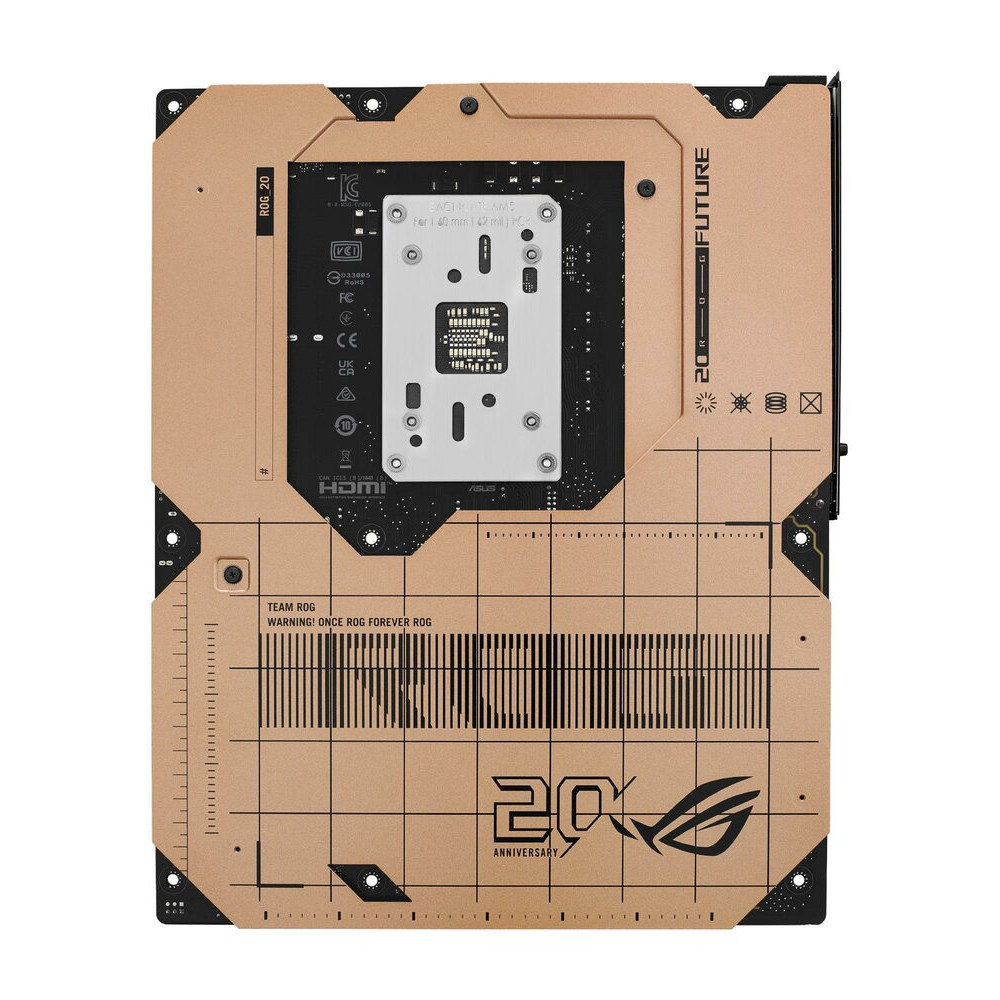

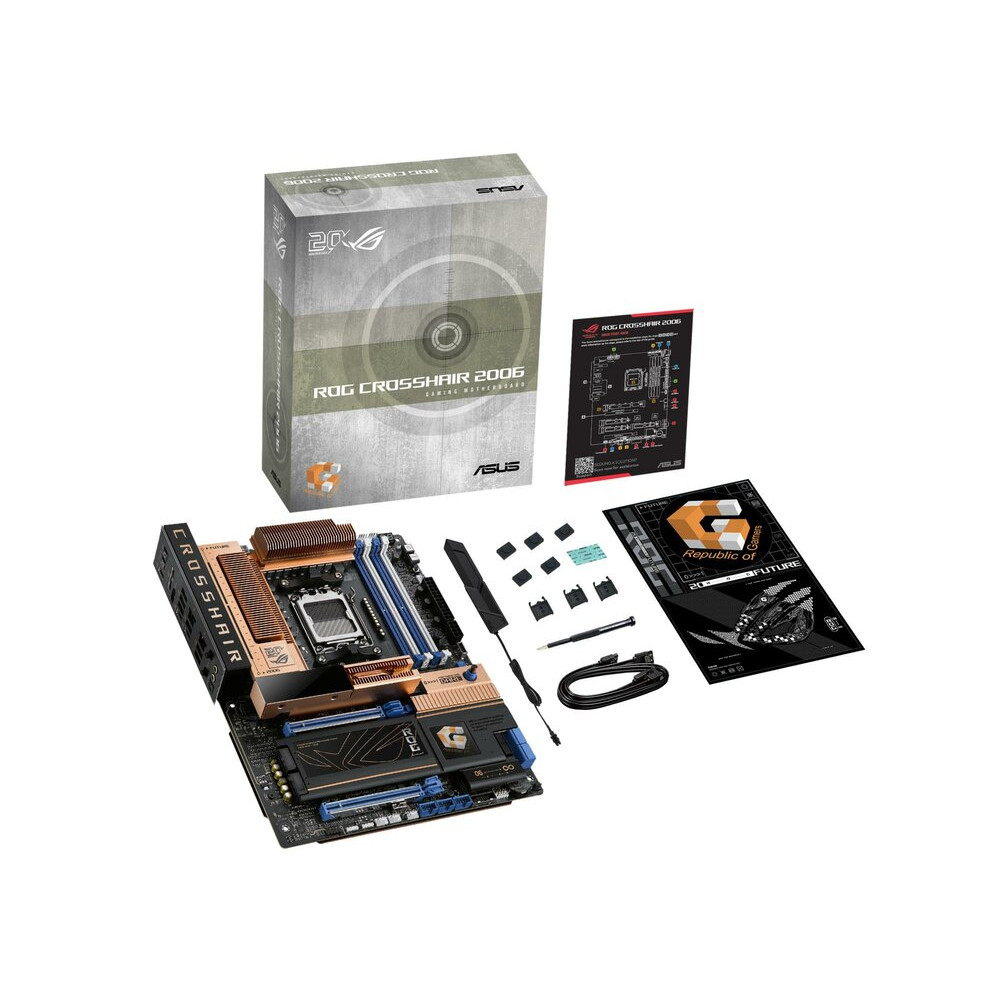

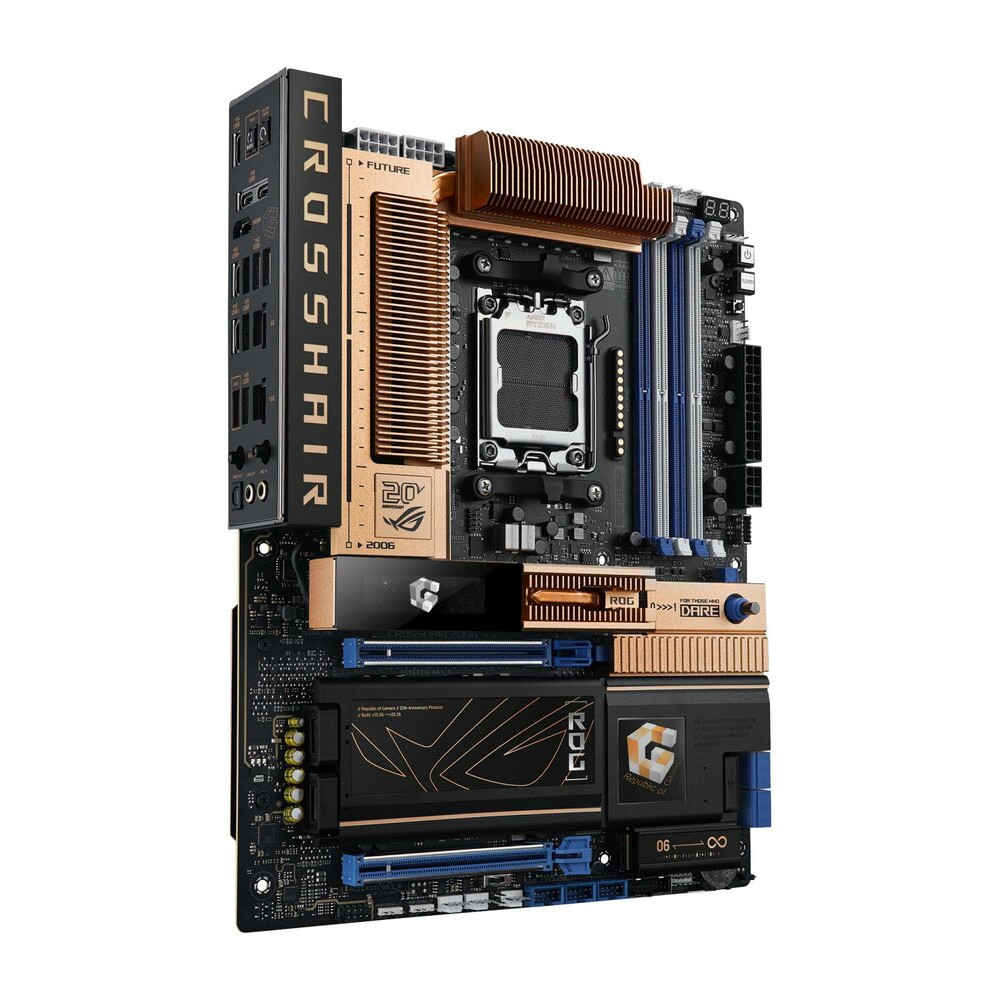

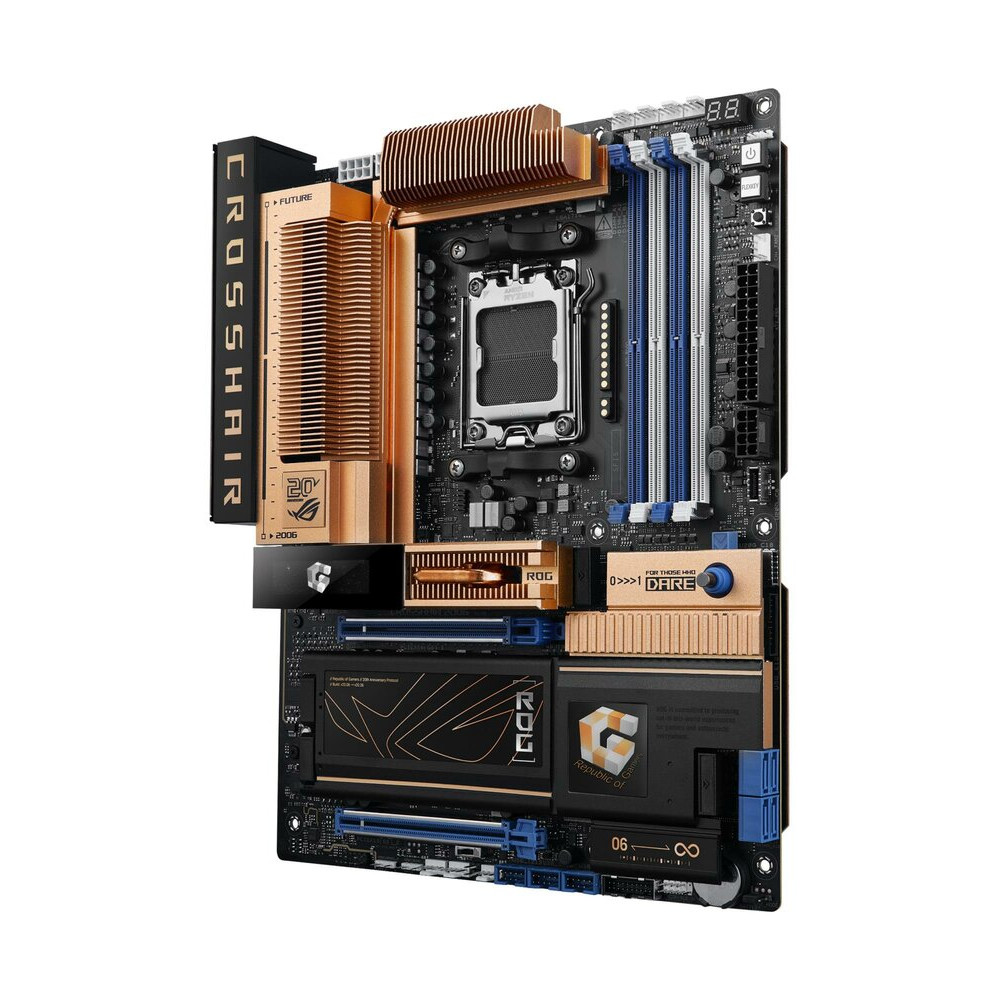

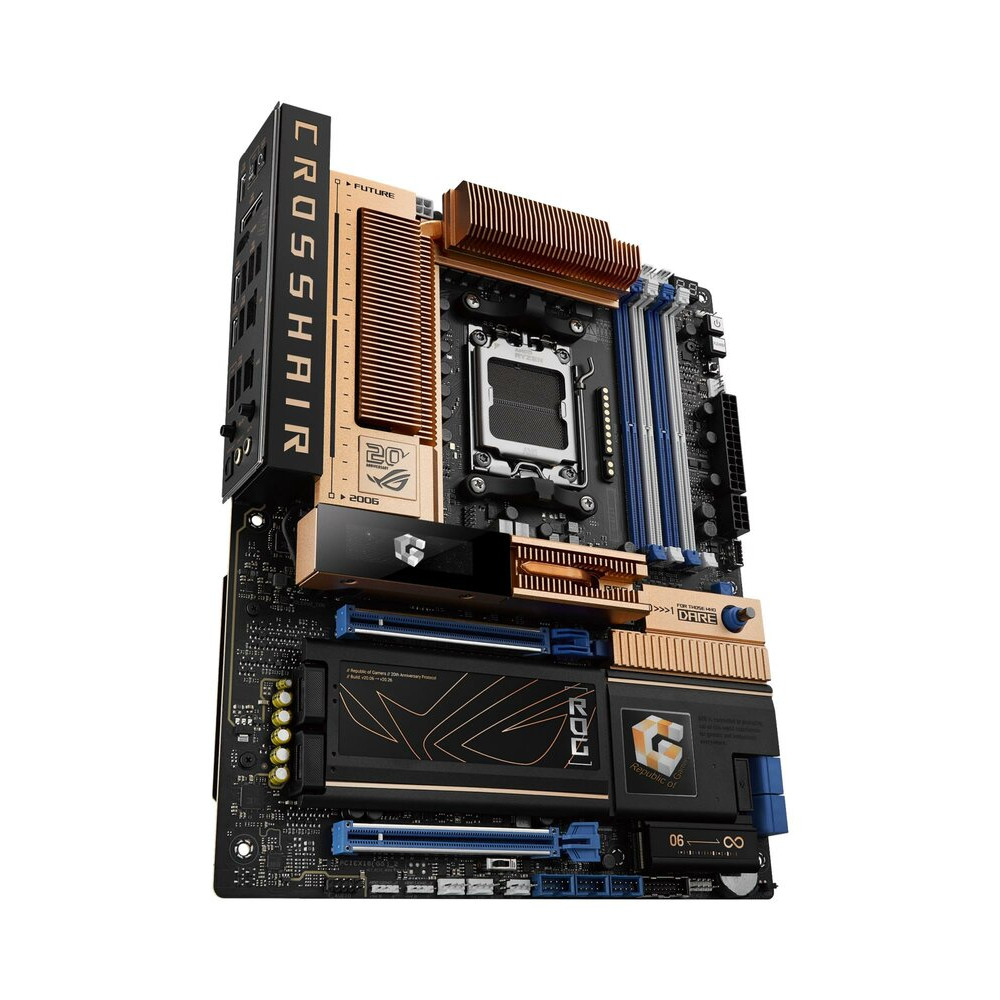

Mainboard, ASUS, AMD X870E, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 5xNumber of M.2 (M) slots, ROGCROSSHAIR2006
Populārs
Pēdējais
Mainboard, ASUS, AMD X870E, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 5xNumber of M.2 (M) slots, ROGCROSSHAIR2006
Mainboard, ASUS, AMD X870E, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 5xNumber of M.2 (M) slots, ROGCROSSHAIR2006
Mainboard, ASUS, AMD X870E, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 5xNumber of M.2 (M) slots, ROGCROSSHAIR2006
Mainboard, ASUS, AMD X870E, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 5xNumber of M.2 (M) slots, ROGCROSSHAIR2006
Mainboard, ASUS, AMD X870E, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 5xNumber of M.2 (M) slots, ROGCROSSHAIR2006
Mainboard, ASUS, AMD X870E, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 5xNumber of M.2 (M) slots, ROGCROSSHAIR2006
Mainboard, ASUS, AMD X870E, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 5xNumber of M.2 (M) slots, ROGCROSSHAIR2006
Mainboard, ASUS, AMD X870E, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 5xNumber of M.2 (M) slots, ROGCROSSHAIR2006
Mainboard, ASUS, AMD X870E, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 5xNumber of M.2 (M) slots, ROGCROSSHAIR2006
Mainboard, ASUS, AMD X870E, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 5xNumber of M.2 (M) slots, ROGCROSSHAIR2006
Mainboard, ASUS, AMD X870E, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 5xNumber of M.2 (M) slots, ROGCROSSHAIR2006
Mainboard, ASUS, AMD X870E, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 5xNumber of M.2 (M) slots, ROGCROSSHAIR2006
Mainboard, ASUS, AMD X870E, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 5xNumber of M.2 (M) slots, ROGCROSSHAIR2006
Atsauksmes:
(0)
    Nosaukums:

    Asus 90MB1PP0-M0EAY0

  • Ražotājs: Asus
  • Modelis: 90MB1PP0-M0EAY0
  • EAN: 4711636595704
  • Pieejamība: 2
818,12€
Bez PVN: 676,13€
  • Produktu apskats
  • Specifikācija
  • Atsauksmes (0)

Atslēgvārdi: Mainboards for AMD CPUs

Specifikācijas
Galvenie parametri
Formas faktors ATX
Procesora ražotājs AMD
Operatīvās atmiņas tips DDR5
Mikroshēmojums X870E
Procesora ligzda AM5
Atmiņas sloti 4
Maksimālā atmiņa 256 GB
M.2 sloti 5
SATA porti 4
Wi-Fi modulis Jā
LAN ātrums 10 Gbit/s
Specification
Name MB AMD X870E SAM5 ATX/ROG CROSSHAIR 2006 ASUS
Specifikācija
12V power connector Yes
1st M.2 highest PCI Express generation 5.0
1st M.2 largest key size 22110
2nd M.2 highest PCI Express generation 5.0
2nd M.2 largest key size 2280
3rd M.2 highest PCI Express generation 4.0
3rd M.2 largest key size 2280
4th M.2 highest PCI Express generation 4.0
4th M.2 largest key size 2280
5th M.2 highest PCI Express generation 4.0
5th M.2 largest key size 2230

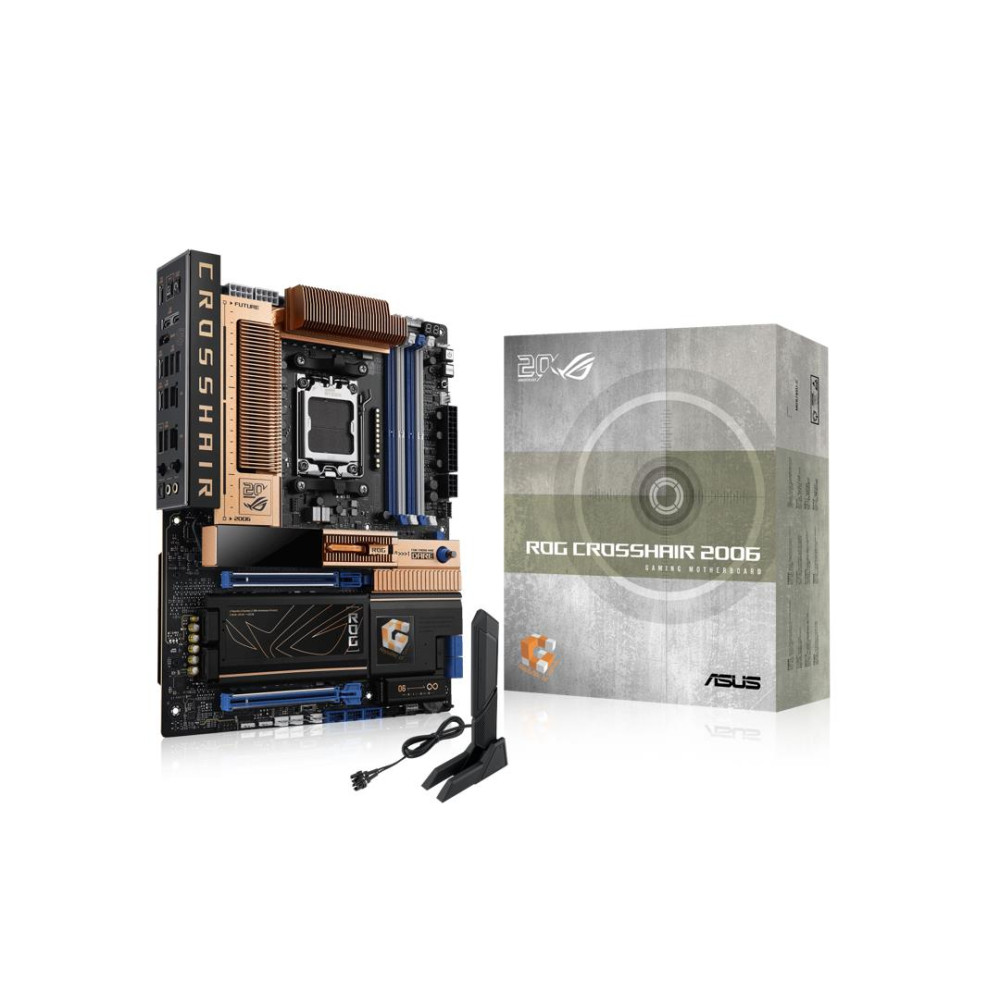

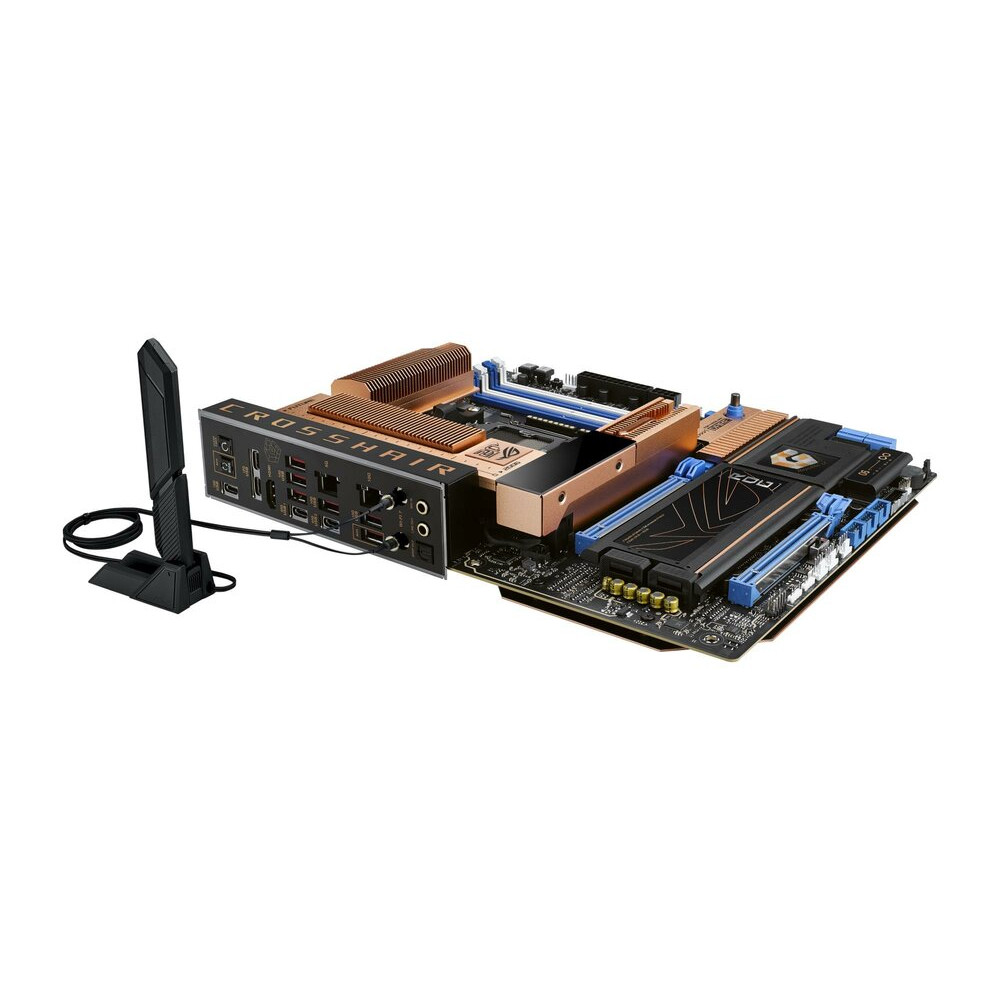

Antenna included Yes
Audio chip Realtek ALC4082
BIOS memory size 512
CPU fan connector Yes
ECC сompatibility ECC & Non-ECC
Front panel audio connector Yes
Front panel connector Yes
Motherboard chipset family AMD
Number of chassis fan connectors 4
Number of HDDs supported 4
Number of M.2 (M) slots 5
Number of RGB LED pin headers 3
Number of SATA III connectors 4
Number of temperature sensor headers 1
Parallel processing technology support Not supported
PCI Express x1 (Gen 3.x) slots 1
PCI Express x16 (Gen 4.x) slots 2
PCI Express x16 (Gen 5.x) slots 2
Product colour Black/Gold
Product Net Weight 4
RGB LED pin header Yes
S/PDIF out port Yes
Screws included Yes
Summary ASUS ROG CROSSHAIR 2006. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, 10 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Unit Calculated Volume 0.04025
Unit Depth 33.5
Unit Height 41
Unit Width 13.5
Units per Shipping Box 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 3
USB 3.2 Gen 2x2 connectors 2
USB4 Gen 3x2 ports quantity 2
WiFi-AP antenna jack 1
WLAN controller model MediaTek MT7927
Procesors
Compatible processor series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Procesoru ligzda Socket AM5
Processor manufacturer AMD
Atmiņa
Maximum internal memory 256
Memory channels Dual-channel
Memory slots type DIMM
Supported memory types DDR5-SDRAM
Unbuffered memory Yes
Atmiņas ierīce
Number of storage drives supported 9
RAID levels 0/1/10/5
RAID support Yes
Supported storage drive interfaces M.2,SATA III
Supported storage drive types HDD & SSD

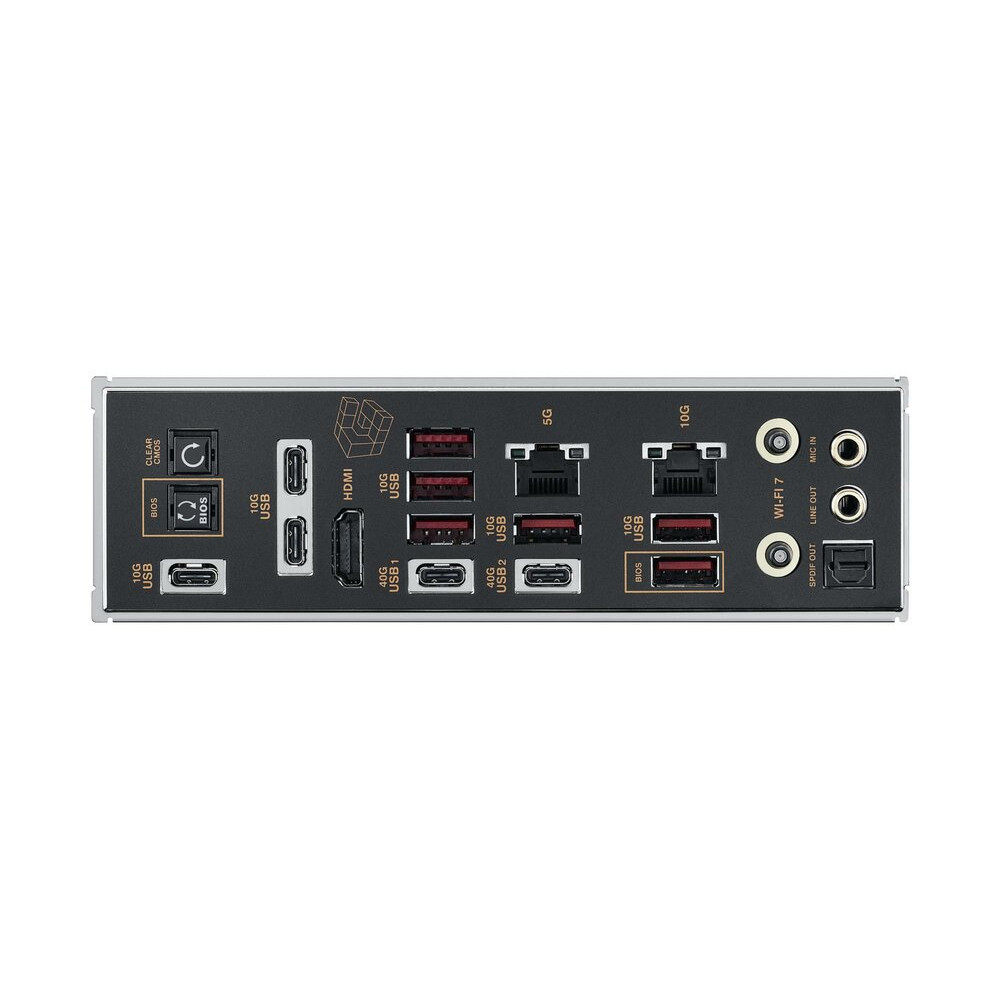

Porti
HDMI portu daudzums 1
USB 2.0 connectors 3
Pieslēgumi
Bluetooth Yes
Bluetooth versija 5.4
Ethernet interface type 10 Gigabit Ethernet/5 Gigabit Ethernet
Ethernet LAN Yes
Ethernet LAN (RJ-45) porti 2
Wi-Fi Yes
Wi-Fi standards Wi-Fi 7 (802.11be)
Specifikācijas
ATX Power connector (24-pin) Yes
Audio output channels 7.1
Augstums 50
BIOS Type UEFI AMI
Component for PC
Dziļums 244
EPS power connector (8-pin) Yes
Komplektā kabeļi SATA
Motherboard chipset AMD X870E
Motherboard form factor ATX
Number of memory slots 4
Package depth 312
Package height 108
Package weight 5572
Package width 370
Platums 305
Power source type ATX
Supported processor sockets Socket AM5
Weight 2506
Windows operating systems supported Windows 11
