    Nosaukums:

    Asus TUFGAMINGB760-PLUSWIFI

  • Ražotājs: Asus
  • Modelis: TUFGAMINGB760-PLUSWIFI
  • EAN: 4711387095119
  • Pieejamība: 23
157,68€
Bez PVN: 130,31€
  • Produktu apskats
  • Specifikācija
  • Atsauksmes (0)

Atslēgvārdi: Mainboards for Intel CPUs

Specifikācijas
Specifikācija
12V power connector Yes
BIOS memory size 128
CPU fan connector Yes
ECC сompatibility Non-ECC
Front panel audio connector Yes
Front panel connector Yes
Maximum number of SMP processors 1
Motherboard chipset family Intel
Number of chassis fan connectors 3
Number of COM connectors 1
Number of HDDs supported 4
Number of M.2 (M) slots 3
Number of SATA III connectors 4
On-board graphics card No
Parallel processing technology support Not supported
PCI Express x1 (Gen 3.x) slots 2
PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
Product colour Black
RGB LED pin header Yes
S/PDIF out connector Yes
Summary ASUS TUF Gaming B760-Plus WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
Supported memory clock speed (max) 5066
Thunderbolt headers 1
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
TPM connector Yes
Unit Calculated Volume 0.00817
Unit Calculated Weight 1.97
Units per Shipping Box 5
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
USB 3.2 Gen 2x2 Type-C ports quantity 1
Procesors
Compatible processor series Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7
Processor manufacturer Intel
Atmiņa
Atmiņas tips DDR5
Maximum internal memory 128
Memory channels Dual-channel
Memory slots type DIMM
Supported memory types DDR5-SDRAM
Unbuffered memory Yes
Atmiņas ierīce
Number of storage drives supported 7
RAID levels 0/1/10/5
RAID support Yes
Supported storage drive interfaces M.2,PCI Express 3.0,PCI Express 5.0,SATA III
Supported storage drive types HDD & SSD

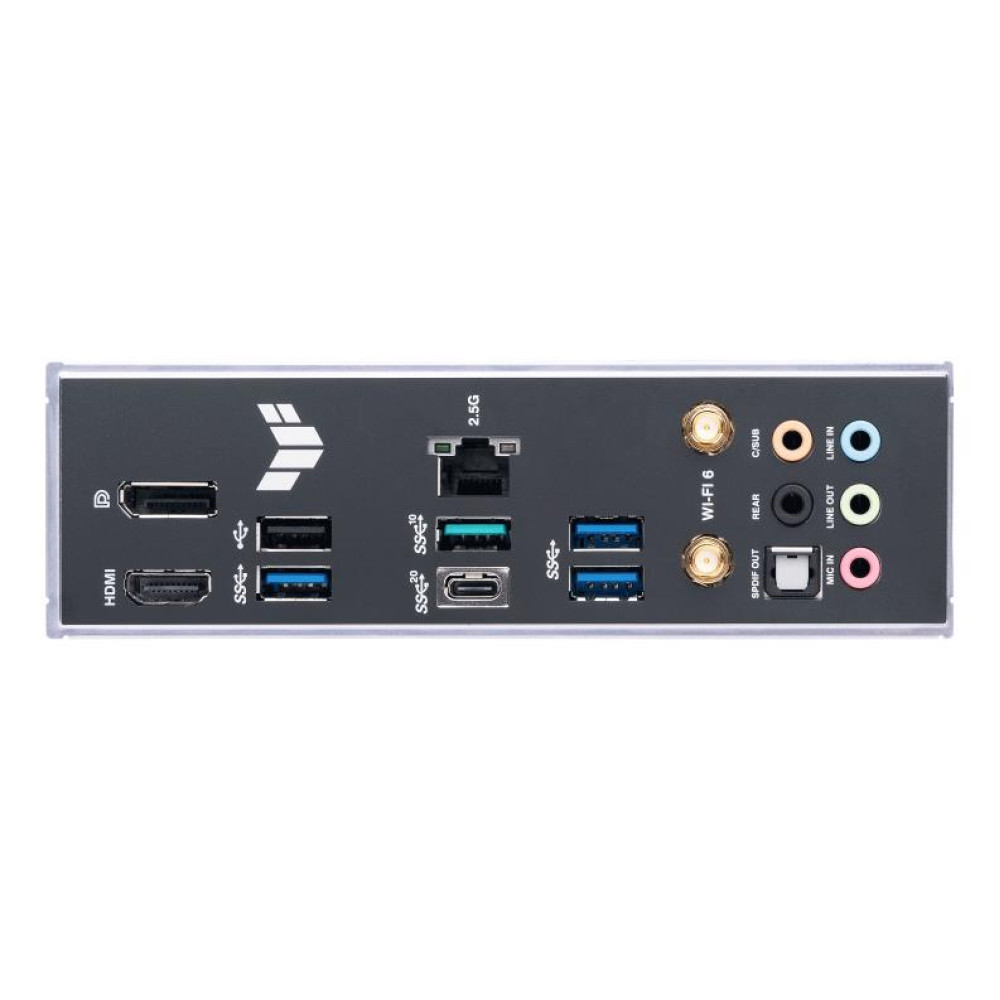

Porti
DisplayPort version 1.4
DisplayPorts quantity 1
HDMI portu daudzums 1
HDMI version 2.1
Headphone outputs 1
USB 2.0 connectors 2
USB 2.0 ports quantity 2
VGA (D-Sub) portu daudzums 1
Pieslēgumi
Bluetooth Yes
Bluetooth versija 5.2
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Ethernet LAN (RJ-45) porti 1
Wi-Fi Yes
Wi-Fi standards 802.11a/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)
Specifikācijas
ATX Power connector (24-pin) Yes
Audio output channels 7.1
BIOS Type UEFI AMI
Component for PC
Cooling type Passive
Dziļums 244
EPS power connector (8-pin) Yes
Form factor ATX
Komplektā kabeļi SATA
Line-in Yes
Mikroshēmu komplekts B760
Model TUF GAMING B760-PLUS WIFI
Motherboard chipset Intel B760
Motherboard form factor ATX
Number of memory slots 4
Package depth 266
Package height 53
Package weight 1160
Package width 328
PCI slots 4
Peripheral (Molex) power connectors (4-pin) 1
Platums 305
Power source type ATX
Supported processor sockets LGA 1700
Windows operating systems supported Windows 10/Windows 11
