Mainboard, ASUS, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5, Memory slots 4, PRIMEB860M-A-CSM

Populārs

Pēdējais

Mainboard, ASUS, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5, Memory slots 4, PRIMEB860M-A-CSM

Atsauksmes:

(0)

Nosaukums:

Asus PRIME B860M-A-CSM

Ražotājs: Asus
Modelis: PRIME B860M-A-CSM
EAN: 4711387819869
Pieejamība: 1

179,66€

Bez PVN: 148,48€

Daudzums:

Produktu apskats
Specifikācija
Atsauksmes (0)

Manufacturer page

Atslēgvārdi: Mainboards for Intel CPUs

Specifikācijas

Galvenie parametri

Formas faktors mATX

Procesora ražotājs Intel

Operatīvās atmiņas tips DDR5

Mikroshēmojums B860

Procesora ligzda LGA1851

Atmiņas sloti 4

Maksimālā atmiņa 256 GB

M.2 sloti 2

SATA porti 4

Wi-Fi modulis Nē

LAN ātrums 2.5 Gbit/s

Specification

Name MB B860 S1851 MATX/PRIME B860M-A-CSM ASUS

Specifikācija

12V power connector Yes

BIOS memory size 256

Chassis intrusion connector Yes

CPU fan connector Yes

ECC сompatibility Non-ECC

Front panel audio connector Yes

Motherboard chipset family Intel

Number of chassis fan connectors 3

Number of COM connectors 1

Number of CPU fan connectors 1

Number of HDDs supported 4

Number of SATA III connectors 4

Parallel processing technology support Not supported

PCI Express x1 (Gen 4.x) slots 1

PCI Express x16 (Gen 4.x) slots 1

Product colour Multicolour

Product Net Weight 1

S/PDIF out connector Yes

Summary ASUS PRIME B860M-A-CSM. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Supported memory clock speed (max) 8666

Thunderbolt headers 1

TPM connector Yes

Unit Calculated Volume 0.006102

Unit Depth 28

Unit Height 7

Unit Width 27.5

Units per Shipping Box 10

USB 3.2 Gen 1 (3.1 Gen 1) connectors 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2

USB 3.2 Gen 2 (3.1 Gen 2) connectors 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1

USB 3.2 Gen 2x2 Type-C ports quantity 1

Procesors

Compatible processor series Intel Core Ultra (Series 2)

Procesoru ligzda LGA 1851 (Socket V1)

Processor manufacturer Intel

Atmiņa

Maximum internal memory 256

Memory channels Dual-channel

Memory slots type DIMM

Supported memory types DDR5-SDRAM

Unbuffered memory Yes

Atmiņas ierīce

Number of storage drives supported 6

RAID levels 0/1/10/5

RAID support Yes

Supported storage drive interfaces M.2,SATA III

Supported storage drive types HDD & SSD

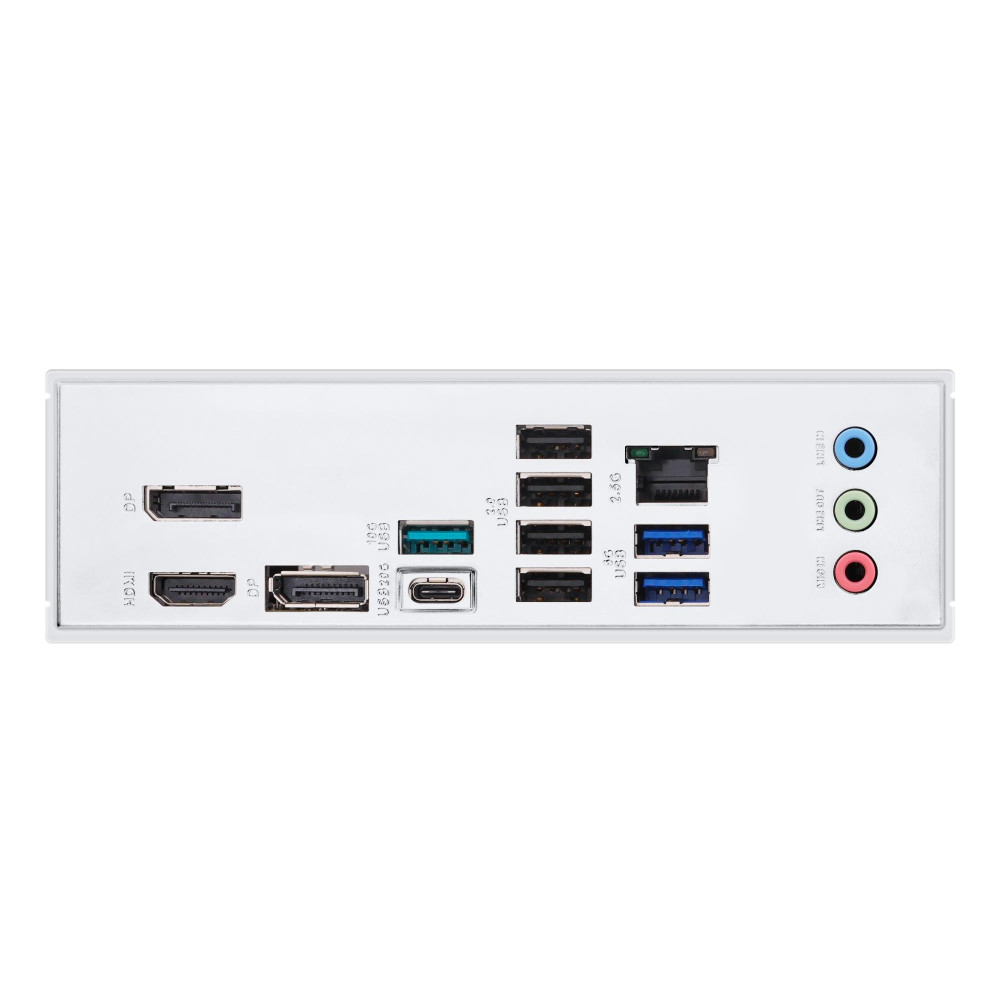

Porti

DisplayPorts quantity 2

HDMI portu daudzums 1

Microphone in Yes

USB 2.0 connectors 1

USB 2.0 ports quantity 4

Pieslēgumi

Ethernet interface type 2.5 Gigabit Ethernet

Ethernet LAN Yes

Ethernet LAN (RJ-45) porti 1

Wi-Fi No

Specifikācijas

ATX Power connector (24-pin) Yes

Audio output channels 7.1

Augstums 50

BIOS Type UEFI AMI

Component for PC

Dziļums 244

EPS power connector (8-pin) Yes

Line-in Yes

Model PRIME B860M-A-CSM

Motherboard chipset Intel B860

Motherboard form factor micro ATX

Number of memory slots 4

Package depth 275

Package height 67.5

Package weight 1360

Package width 275

Platums 244

Weight 815

Windows operating systems supported Windows 10 x64/Windows 11

Atsauksmes (0)

Šai precei atsauksmju nav.
