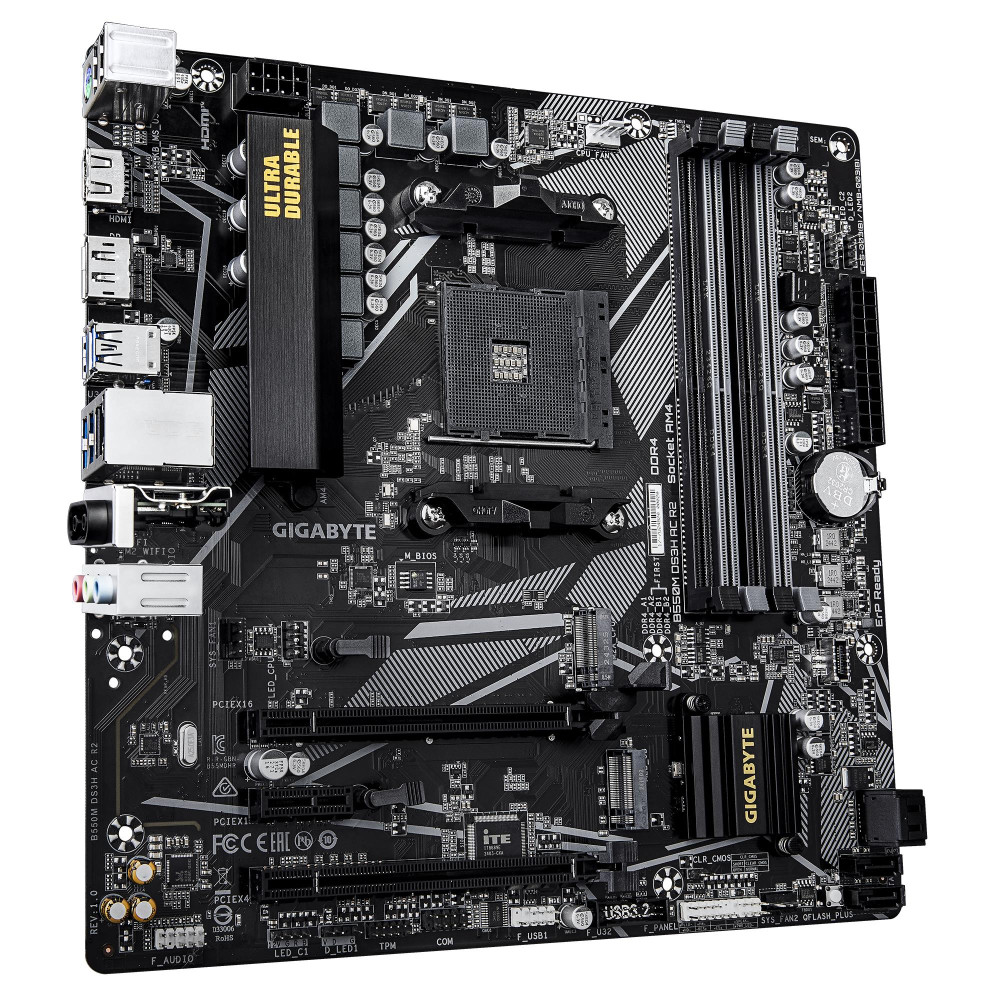

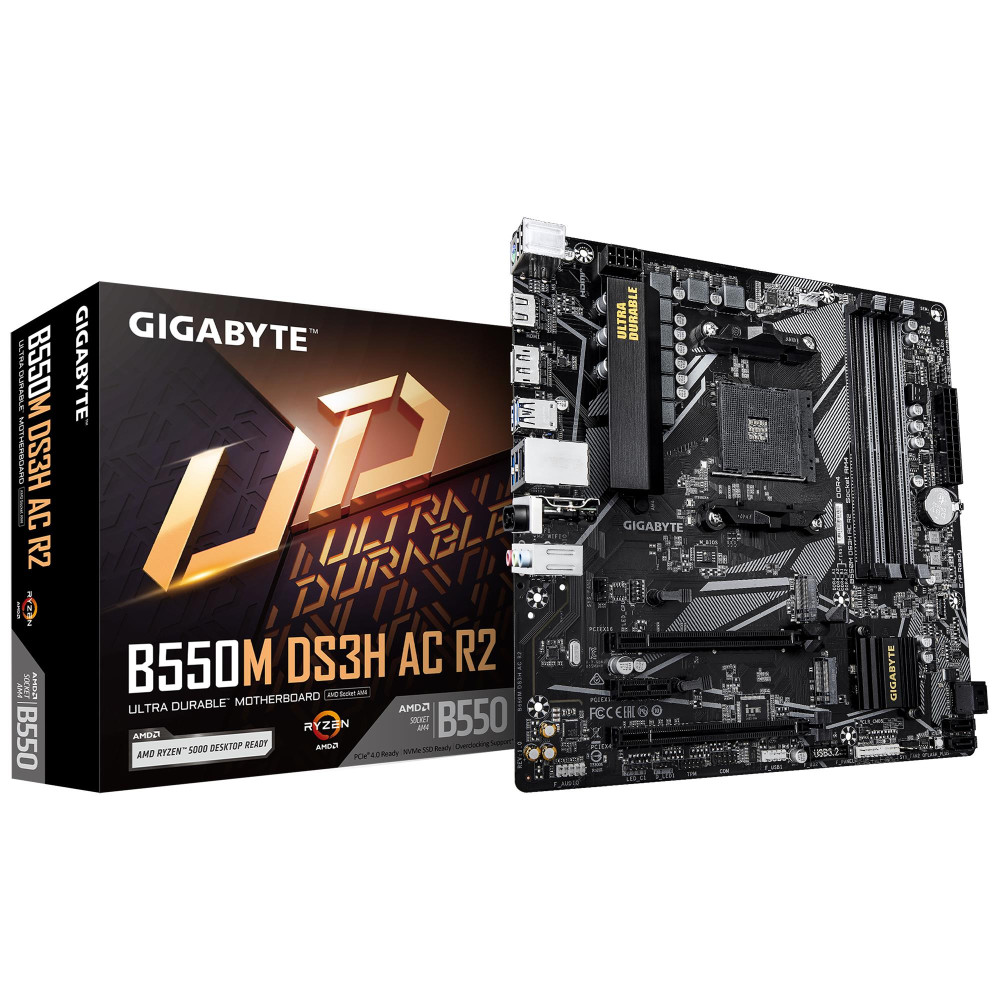

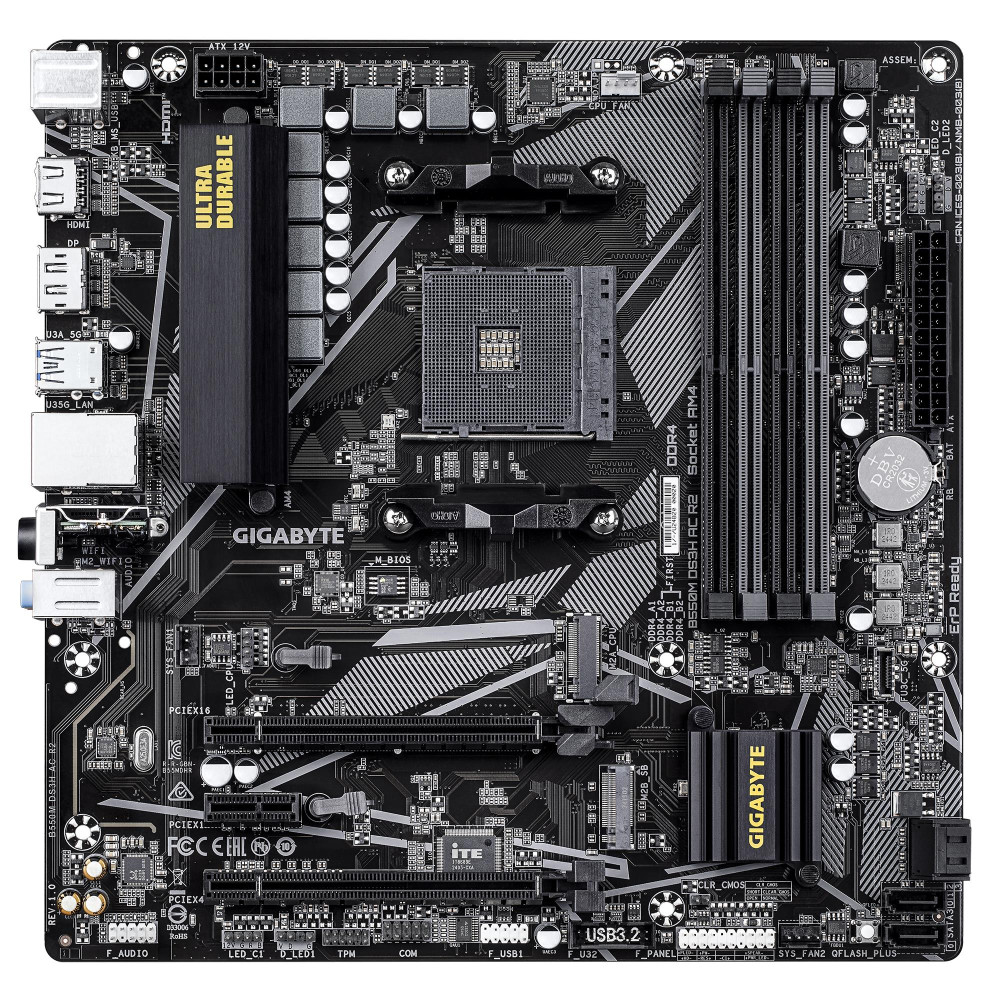

Mainboard, GIGABYTE, AMD B550, SAM4, Micro-ATX, Memory DDR4, Memory slots 4, B550MDS3HACR2
Populārs
- Ražotājs: Gigabyte
- Modelis: B550M DS3H AC R2
- EAN: 4719331869908
- Pieejamība: 10
Nosaukums:
Gigabyte B550M DS3H AC R2
102,92€
Bez PVN: 85,06€
- Produktu apskats
- Specifikācija
- Atsauksmes (0)
Specifikācijas
Specifikācija
1st M.2 highest PCI Express generation
4.0
1st M.2 largest key size
2280
2nd M.2 highest PCI Express generation
3.0
2nd M.2 largest key size
2280
ACPI version
5.0
Antenna included
Yes
Audio chip
Realtek ALC1220-VB
BIOS memory size
128
Clear CMOS jumper
Yes
CPU fan connector
Yes
Desktop Management Interface (DMI) version
2.7
ECC сompatibility
ECC & Non-ECC
Front panel audio connector
Yes
Front panel connector
Yes
Lithium weight per battery
0.07
Maximum internal memory per slot
32
Motherboard chipset family
AMD
Number of chassis fan connectors
2
Number of CPU fan connectors
1
Number of EPS power connectors (8-pin)
1
Number of HDDs supported
4
Number of M.2 (M) slots
2
Number of RGB LED pin headers
5
Number of SATA III connectors
4
On-board graphics card
No
Parallel processing technology support
Not supported
PC health monitoring
Fan/Temperature/Voltage
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Product colour
Dark brown
Products per shipping (inner) case
1
RGB LED pin header
Yes
Screws included
Yes
Serial port headers
1
Summary
GIGABYTE B550M DS3H AC R2 Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4 (O.C.), 1xPCIe 4.0 + 1xPCIe 3.0 M.2, Wi-Fi 5, 1GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H, Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Supported memory clock speed (max)
4733
System Management BIOS (SMBIOS) version
2.7
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
TPM connector
Yes
Unit Calculated Volume
0.006423
Unit Calculated Weight
1.06
Units per Shipping Box
10
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Warranty period
3
WiFi-AP antenna jack
2
WLAN controller model
Realtek RTL8821CE
Procesors
Compatible processor series
AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series
Procesoru ligzda
AM4
Processor manufacturer
AMD
Atmiņa
Atmiņas tips
DDR4
Maximum internal memory
128
Memory channels
Dual-channel
Memory slots type
DIMM
Supported memory clock speeds
2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733
Supported memory types
DDR4-SDRAM
Unbuffered memory
Yes
Atmiņas ierīce
Number of storage drives supported
6
RAID levels
0/1/10
RAID support
Yes
Supported storage drive interfaces
M.2,PCI Express 3.0,PCI Express 4.0,SATA III
Supported storage drive types
HDD & SSD

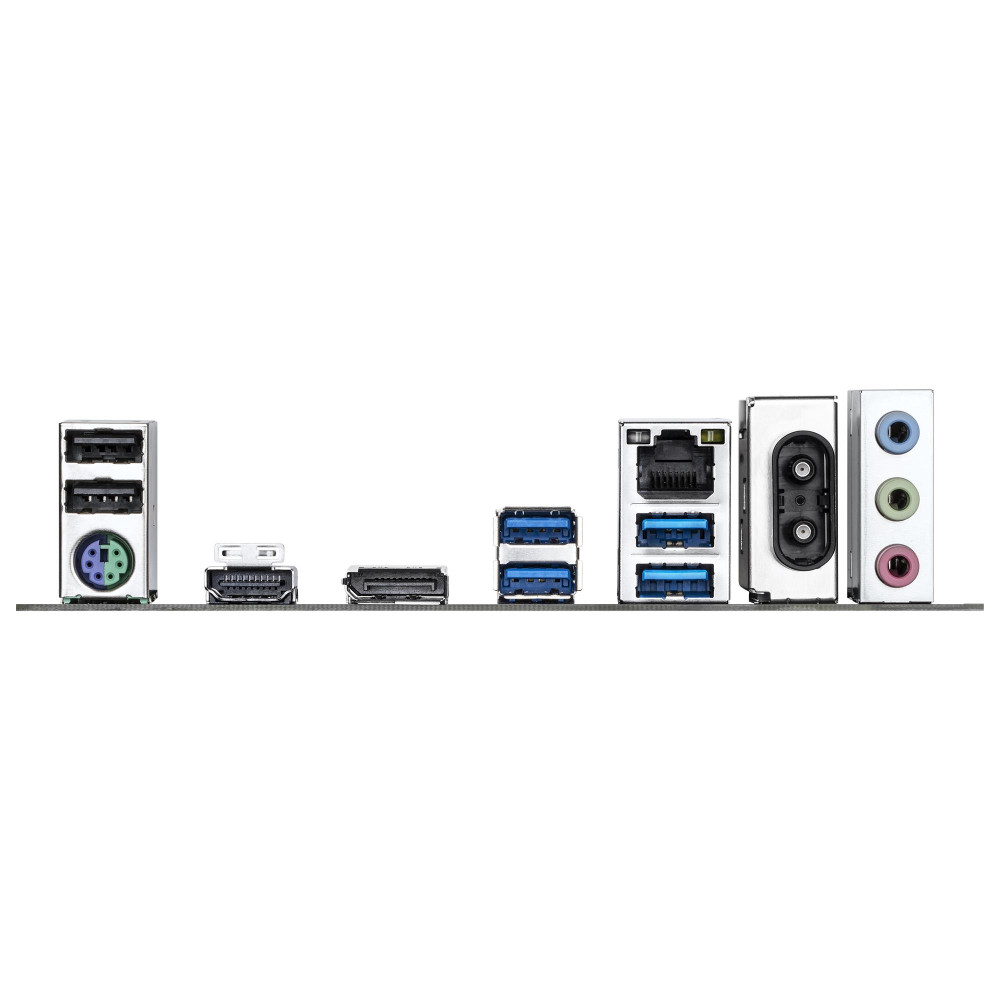

Porti
DisplayPort version
1.4
DisplayPorts quantity
1
HDMI portu daudzums
1
HDMI version
2.1
Headphone outputs
1
Microphone in
Yes
USB 2.0 connectors
1
USB 2.0 ports quantity
2
Pieslēgumi
Bluetooth
Yes
Bluetooth versija
5.0
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) porti
1
LAN controller
Realtek RTL8111H
Wi-Fi
Yes
Wi-Fi standards
802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)
Akumulators
Akumulatora elementu skaits
1
Baterijas tehnoloģija
Lithium-Manganese Dioxide (LiMnO2)
Batteries included
Yes
Battery type
CR2032
Battery weight
3
Specifikācijas
ATX Power connector (24-pin)
Yes
Audio output channels
7.1
Augstums
35
BIOS Type
UEFI AMI
Bundled software
Norton® Internet Security (OEM version)LAN bandwidth management software
Component for
PC
Cooling type
Passive
DirectX version
12.0
Dziļums
244
EPS power connector (8-pin)
Yes
Form factor
mATX
HDCP
Yes
Line-in
Yes
Maximum resolution
5120 x 2880
Mikroshēmu komplekts
B550
Model
B550M DS3H AC R2
Motherboard chipset
AMD B550
Motherboard form factor
micro ATX
Number of memory slots
4
Package depth
268
Package height
68
Package weight
1070
Package width
270
Platums
244
Power source type
ATX
PS/2 ports quantity
1
Supported processor sockets
Socket AM4
Weight
980
Windows operating systems supported
Windows 10 x64/Windows 11 x64
