    Nosaukums:

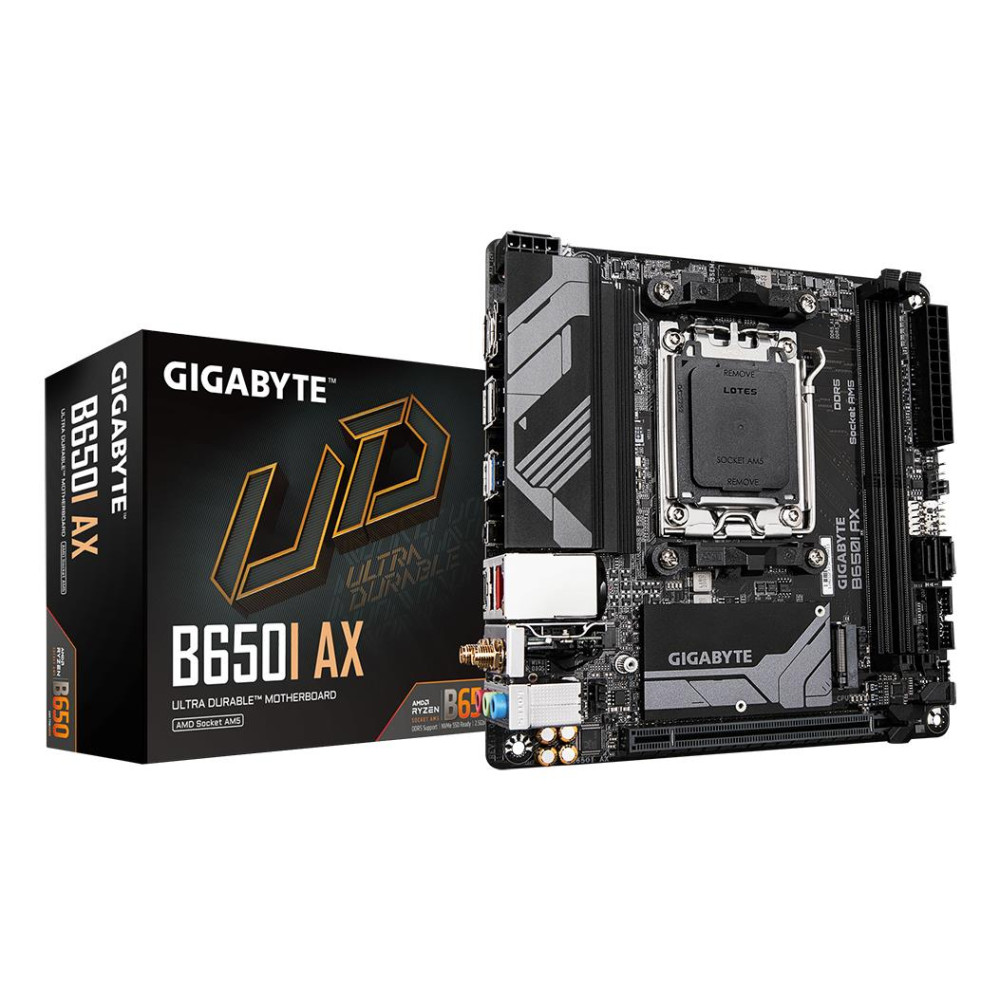

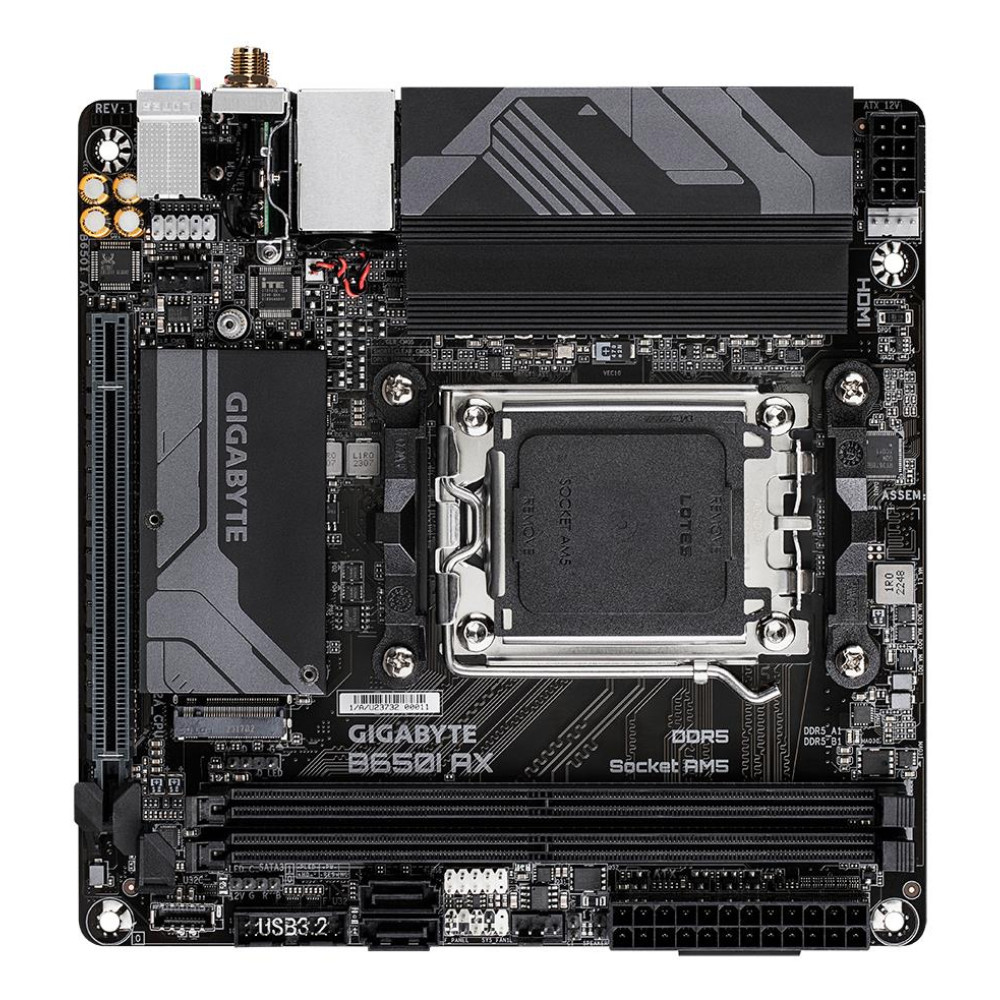

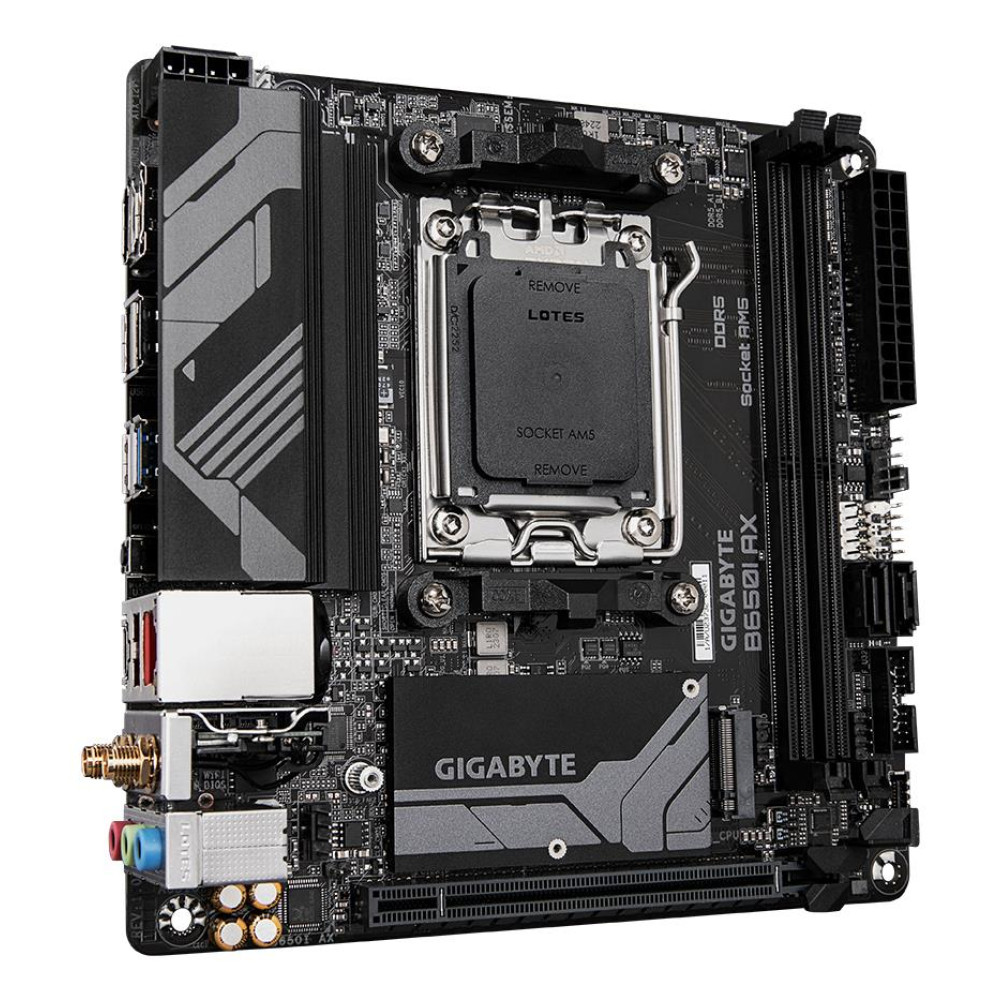

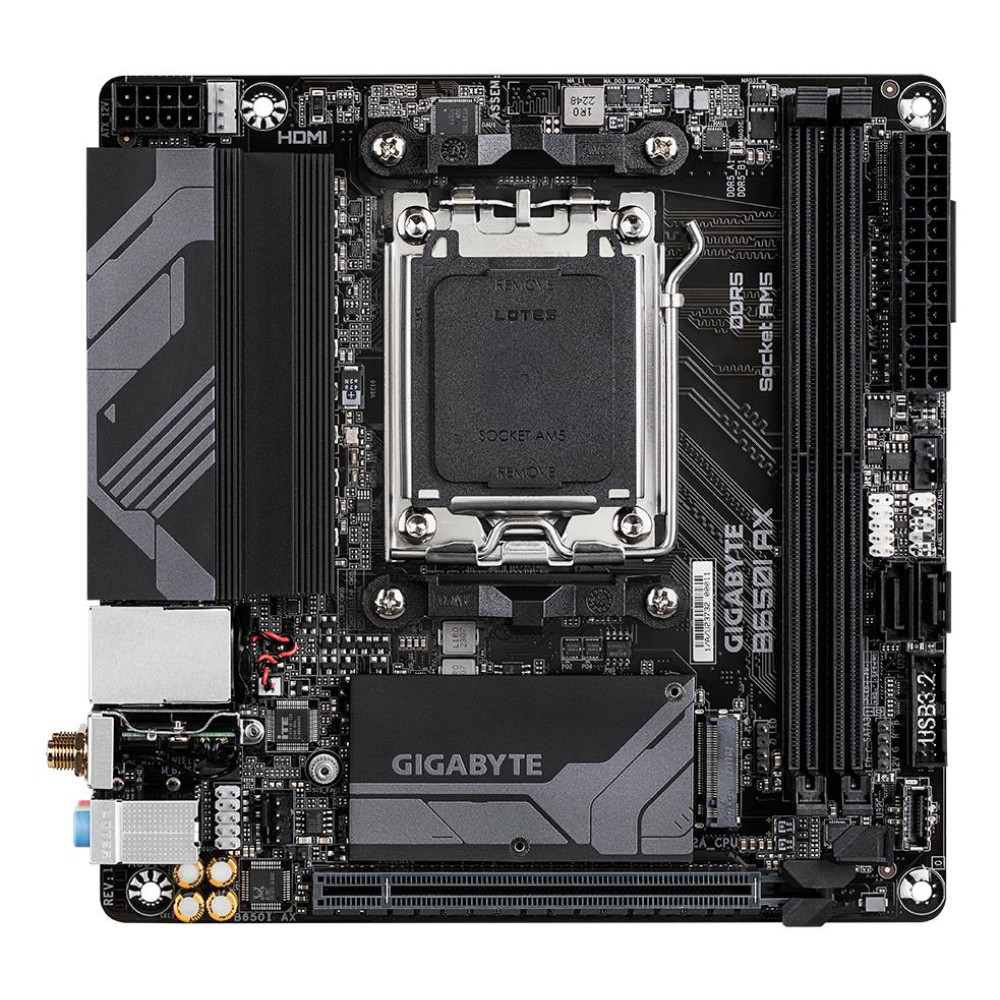

    Gigabyte B650I AX 1.2

  • Ražotājs: Gigabyte
  • Modelis: B650I AX 1.2
  • EAN: 4719331859190
  • Pieejamība: 7
147,41€
Bez PVN: 121,83€
  • Produktu apskats
  • Specifikācija
  • Atsauksmes (0)

Atslēgvārdi: Mainboards for AMD CPUs

Specifikācijas
Specifikācija
12V power connector Yes
1st M.2 highest PCI Express generation 4.0
1st M.2 largest key size 2280
ACPI version 5.0
Antenna included Yes
Audio chip Realtek ALC897
BIOS memory size 256
Chassis intrusion connector Yes
Clear CMOS jumper Yes
CPU fan connector Yes
Desktop Management Interface (DMI) version 2.7
Discrete graphics support Yes
ECC сompatibility Non-ECC
Front panel audio connector Yes
Front panel connector Yes
Lithium weight per battery 0.07
Maximum internal memory per slot 64
Motherboard chipset family AMD
Number of chassis fan connectors 2
Number of CPU fan connectors 1
Number of EATX power connectors 1
Number of HDDs supported 2
Number of M.2 (M) slots 1
Number of RGB LED pin headers 2
Number of SATA III connectors 2
Parallel processing technology support Not supported
PC health monitoring Fan/Temperature/Voltage
PCI Express x16 (Gen 4.x) slots 1
Product colour Brown
Products per shipping (inner) case 1
RGB LED pin header Yes
Screws included Yes
Summary GIGABYTE B650I AX Motherboard - AMD Ryzen 9000 Series CPUs, 5+2+1 Phases VRM, up to 6400MHz DDR5 (OC), 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Supported memory clock speed (max) 6400
System Management BIOS (SMBIOS) version 2.7
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Unit Calculated Volume 0.002632
Unit Calculated Weight 0.77
Units per Shipping Box 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
Warranty period 3
WiFi-AP antenna jack 2
WLAN controller model Realtek RTL8852CE
Procesors
Compatible processor series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Procesoru ligzda AM5
Processor manufacturer AMD
Atmiņa
Atmiņas tips DDR5
Maximum internal memory 128
Memory channels Dual-channel
Memory slots type DIMM
Supported memory clock speeds 4400/4800/5200/5600/6000/6200/6400
Supported memory types DDR5-SDRAM
Unbuffered memory Yes
Atmiņas ierīce
Number of storage drives supported 3
RAID levels 0/1
RAID support Yes
Supported storage drive interfaces M.2,SATA III
Supported storage drive types HDD & SSD

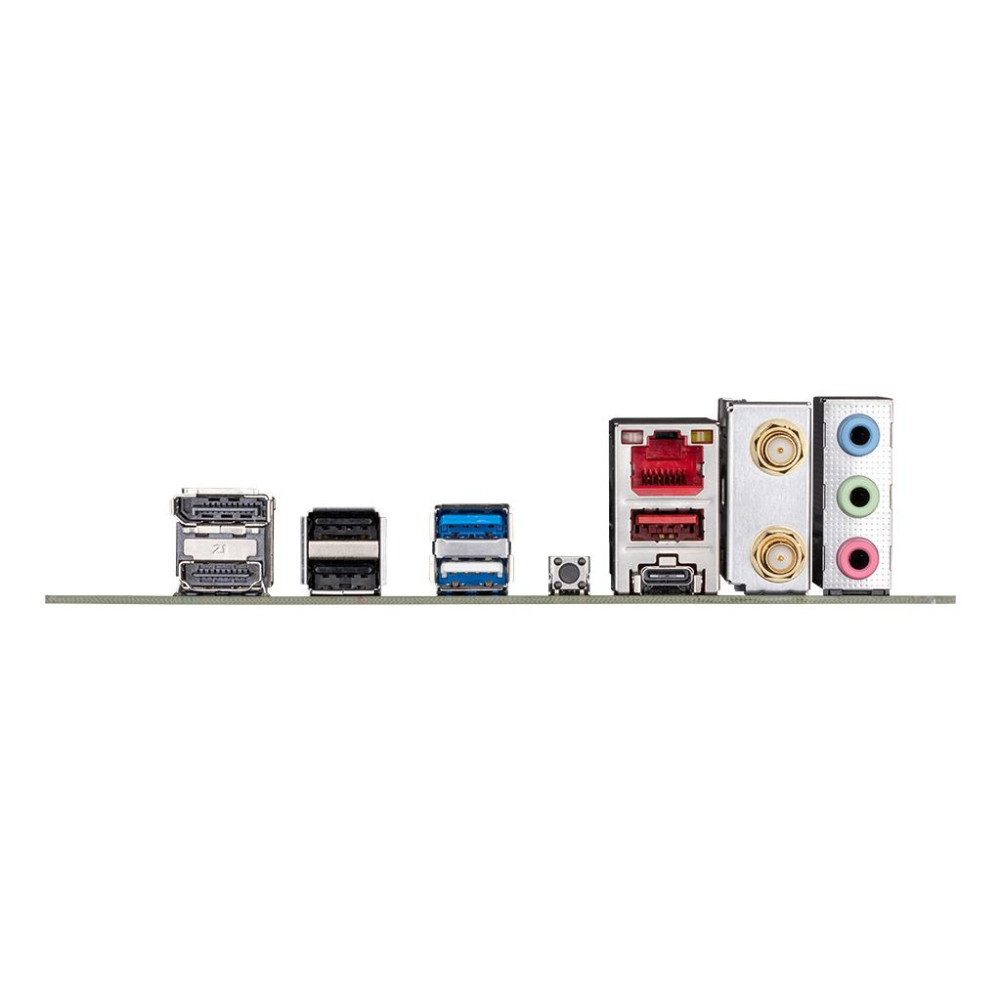

Porti
DisplayPort version 1.4
DisplayPorts quantity 1
HDMI portu daudzums 1
HDMI version 2.1
Headphone outputs 1
Microphone in Yes
USB 2.0 connectors 1
USB 2.0 ports quantity 3
Pieslēgumi
Bluetooth Yes
Bluetooth versija 5.3
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Ethernet LAN (RJ-45) porti 1
LAN controller Realtek RTL8125
Wi-Fi Yes
Wi-Fi standards 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
Akumulators
Akumulatora elementu skaits 1
Baterijas tehnoloģija Lithium-Manganese Dioxide (LiMnO2)
Batteries included Yes
Battery type CR2032
Battery weight 3
Specifikācijas
ATX Power connector (24-pin) Yes
Audio output channels 7.1
Augstums 35
BIOS Type UEFI AMI
Bundled software Norton® Internet Security (OEM version)LAN bandwidth management software
Component for PC
Country of origin China
DirectX version 12.0
Dziļums 170
EPS power connector (8-pin) Yes
HDCP Yes
Line-in Yes
Maximum resolution 4096 x 2160
Mikroshēmu komplekts B650
Motherboard chipset AMD B650
Motherboard form factor mini ITX
Number of memory slots 2
Package depth 180
Package height 65
Package weight 879
Package width 222
Platums 170
Power source type ATX
Supported processor sockets Socket AM5
Windows operating systems supported Windows 10 x64/Windows 11 x64
Atsauksmes (0)

Šai precei atsauksmju nav.
