Mainboard, GIGABYTE, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5, 1xPCI-Express 16x, 3xM.2, 1xHDMI, 1xDisplayPort, 4xUSB 2.0, 6xUSB 3.2, 1xUSB-C, 1xOptical S/PDIF, 1xRJ45, 2xAudio port, B860MAELTWF6EICE1.0
Populārs
Mainboard, GIGABYTE, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5, 1xPCI-Express 16x, 3xM.2, 1xHDMI, 1xDisplayPort, 4xUSB 2.0, 6xUSB 3.2, 1xUSB-C, 1xOptical S/PDIF, 1xRJ45, 2xAudio port, B860MAELTWF6EICE1.0
Mainboard, GIGABYTE, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5, 1xPCI-Express 16x, 3xM.2, 1xHDMI, 1xDisplayPort, 4xUSB 2.0, 6xUSB 3.2, 1xUSB-C, 1xOptical S/PDIF, 1xRJ45, 2xAudio port, B860MAELTWF6EICE1.0
Mainboard, GIGABYTE, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5, 1xPCI-Express 16x, 3xM.2, 1xHDMI, 1xDisplayPort, 4xUSB 2.0, 6xUSB 3.2, 1xUSB-C, 1xOptical S/PDIF, 1xRJ45, 2xAudio port, B860MAELTWF6EICE1.0
Mainboard, GIGABYTE, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5, 1xPCI-Express 16x, 3xM.2, 1xHDMI, 1xDisplayPort, 4xUSB 2.0, 6xUSB 3.2, 1xUSB-C, 1xOptical S/PDIF, 1xRJ45, 2xAudio port, B860MAELTWF6EICE1.0
Mainboard, GIGABYTE, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5, 1xPCI-Express 16x, 3xM.2, 1xHDMI, 1xDisplayPort, 4xUSB 2.0, 6xUSB 3.2, 1xUSB-C, 1xOptical S/PDIF, 1xRJ45, 2xAudio port, B860MAELTWF6EICE1.0
Atsauksmes:
(0)
    Nosaukums:

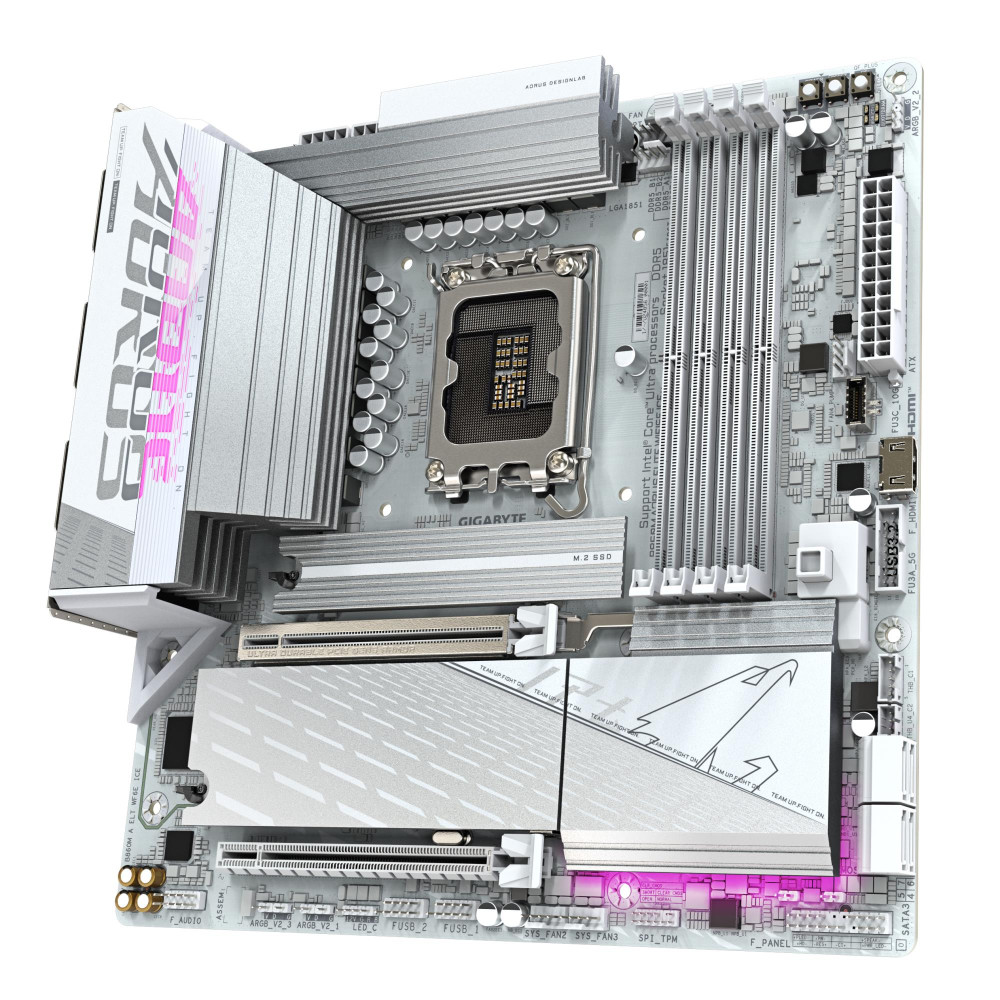

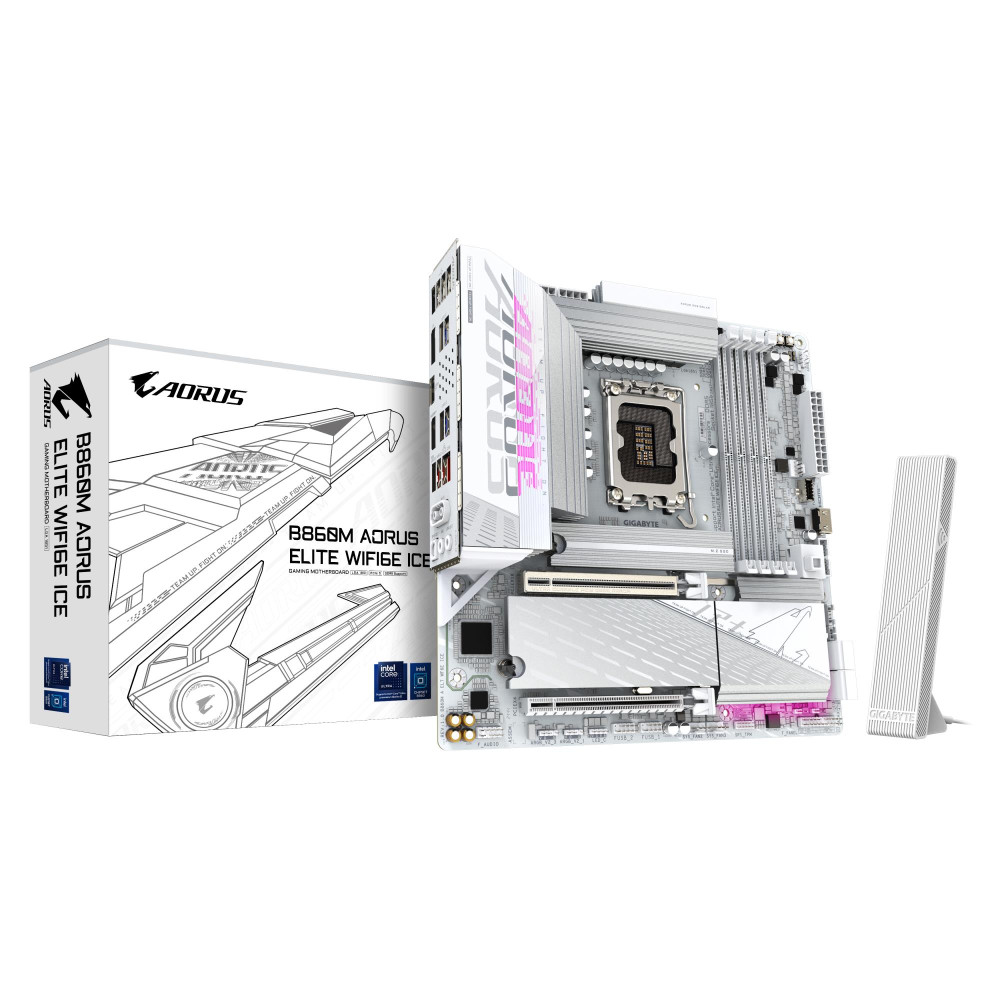

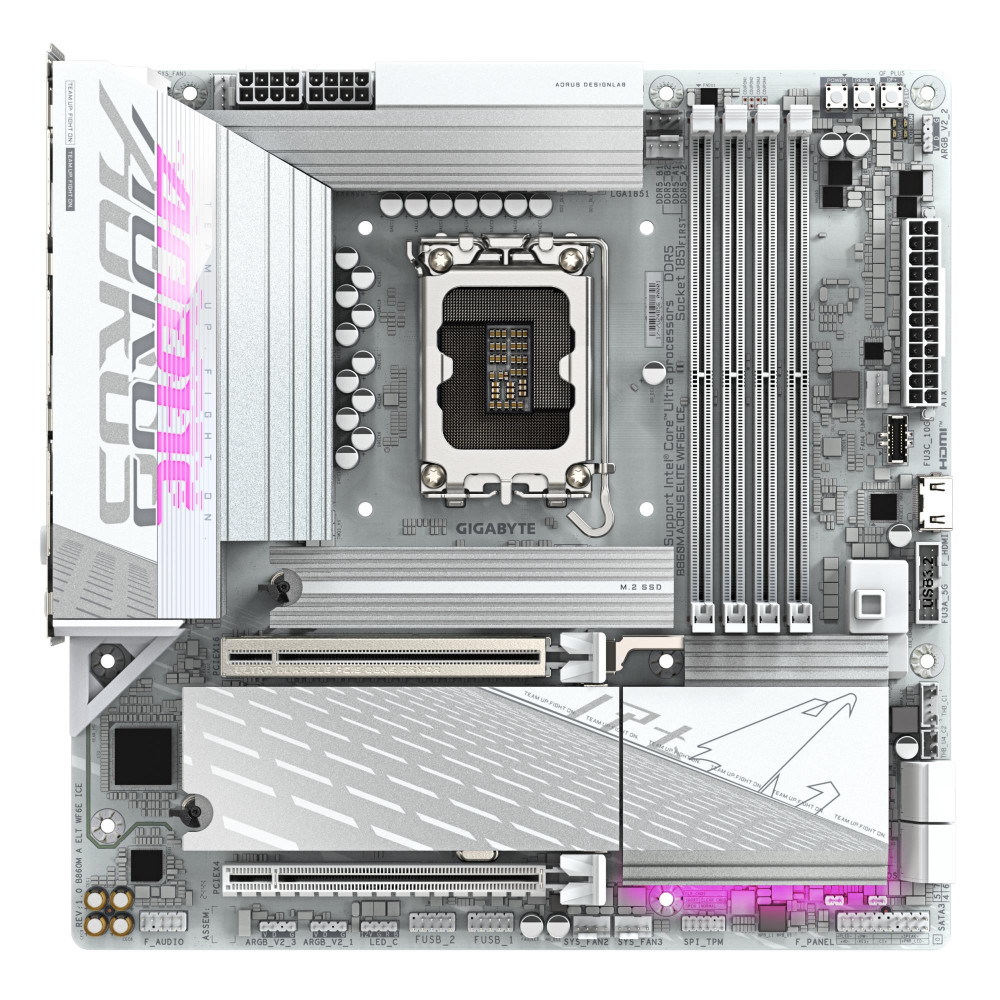

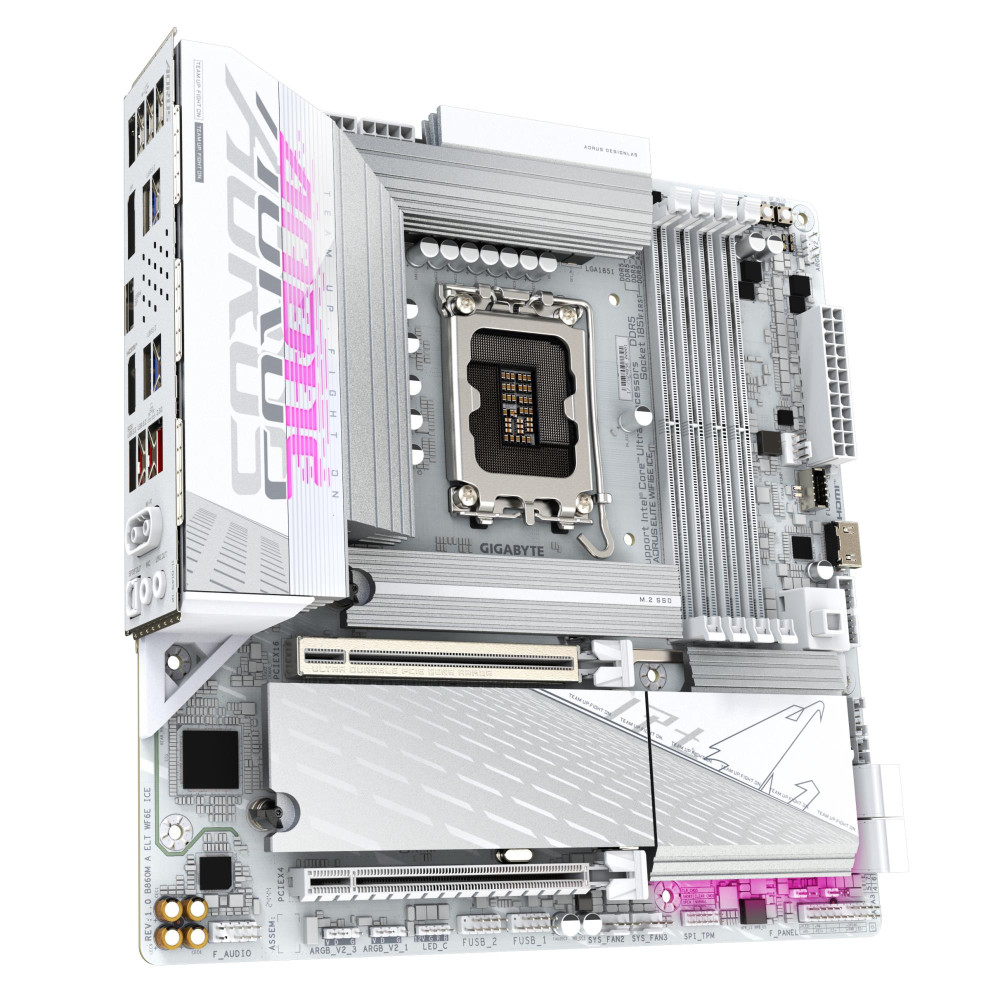

    Gigabyte B860M A ELT WF6E ICE 1.0

  • Ražotājs: Gigabyte
  • Modelis: B860M A ELT WF6E ICE 1.0
  • EAN: 889523046548
  • Pieejamība: 3
205,28€
Bez PVN: 169,65€
  • Produktu apskats
  • Specifikācija
  • Atsauksmes (0)

Atslēgvārdi: Mainboards for Intel CPUs

Specifikācijas
Specifikācija
1st M.2 highest PCI Express generation 5.0
1st M.2 largest key size 2280
2nd M.2 highest PCI Express generation 4.0
2nd M.2 largest key size 2580
3rd M.2 highest PCI Express generation 4.0
3rd M.2 largest key size 25110
ACPI version 5.0
Antenna included Yes
Audio chip Realtek ALC897
BIOS memory size 256
Clear CMOS jumper Yes
CPU fan connector Yes
Desktop Management Interface (DMI) version 2.7
Digital audio optical out 1
ECC сompatibility ECC & Non-ECC
Front panel audio connector Yes
Front panel connector Yes
Lithium weight per battery 0.07
Maximum internal memory per slot 64
Motherboard chipset family Intel
Number of chassis fan connectors 4
Number of CPU fan connectors 2
Number of EPS power connectors (8-pin) 2
Number of HDDs supported 4
Number of M.2 (M) slots 3
Number of RGB LED pin headers 4
Number of SATA III connectors 4
Number of water pump connectors 2
Parallel processing technology support Not supported
PC health monitoring Fan/Temperature/Voltage/Water cooling
PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
Product colour White
Products per shipping (inner) case 1
RGB LED pin header Yes
S/PDIF out port Yes
Screws included Yes
Summary GIGABYTE B860M AORUS ELITE WF6E ICE Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Supported memory clock speed (max) 9200
System Management BIOS (SMBIOS) version 2.7
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
TPM connector Yes
Unit Calculated Volume 0.004032
Unit Calculated Weight 1.9
Units per Shipping Box 8
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
USB4 Gen 2x2 ports quantity 1
Warranty period 3
WiFi-AP antenna jack 2
WLAN controller model Intel Wi-Fi 6E AX211
Procesors
Compatible processor series Intel Core Ultra (Series 2)/Intel® Core™ Ultra (Series 1)
Processor manufacturer Intel
Atmiņa
Atmiņas tips DDR5
Maximum internal memory 256
Memory channels Dual-channel
Memory slots type DIMM
Supported memory clock speeds 5600/6400/9200
Supported memory types DDR5-SDRAM
Unbuffered memory Yes
Atmiņas ierīce
Number of storage drives supported 7
RAID levels 0/1/10/5
RAID support Yes
Supported storage drive interfaces M.2,SATA III
Supported storage drive types HDD & SSD

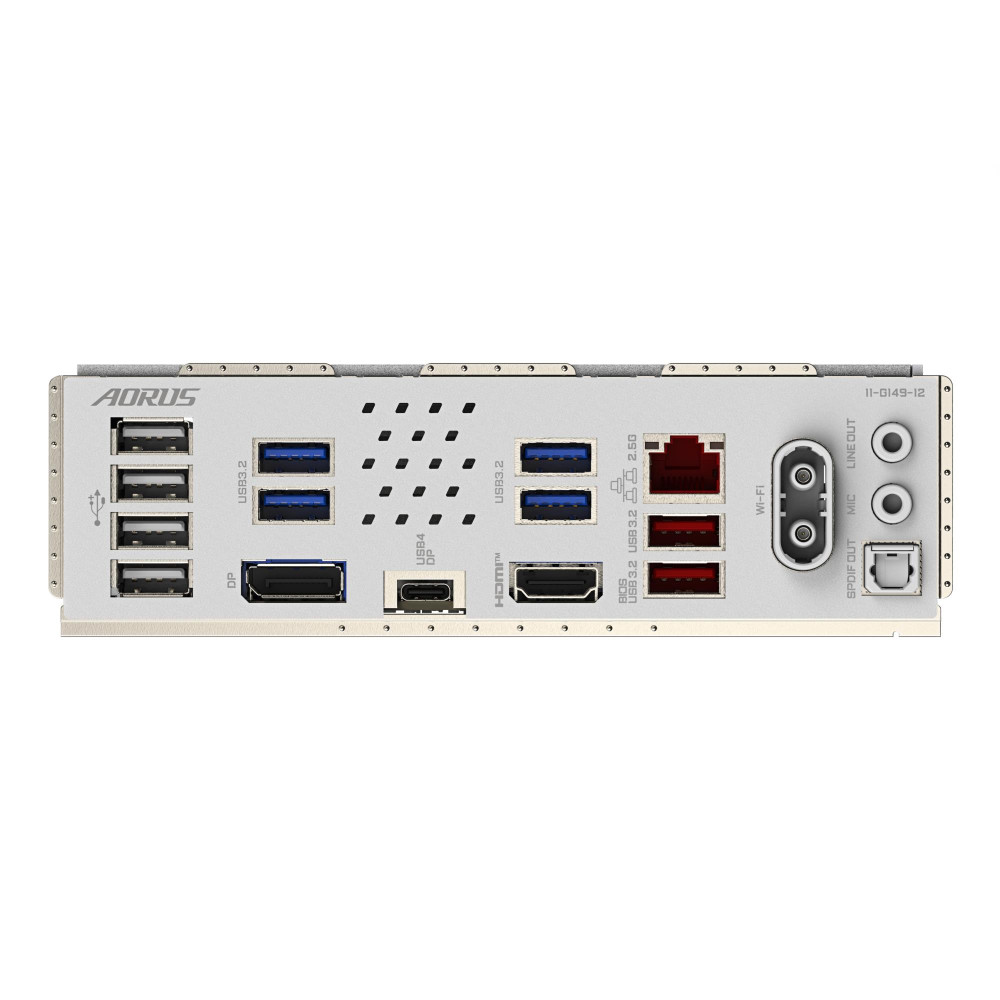

Porti
DisplayPort version 2.1
DisplayPorts quantity 1
HDMI portu daudzums 1
HDMI version 2.1
Headphone outputs 1
USB 2.0 connectors 2
USB 2.0 ports quantity 4
Pieslēgumi
Bluetooth Yes
Bluetooth versija 5.3
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Ethernet LAN (RJ-45) porti 1
LAN controller Realtek RTL8125
Wi-Fi Yes
Wi-Fi standards 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
Akumulators
Akumulatora elementu skaits 1
Baterijas tehnoloģija Lithium-Manganese Dioxide (LiMnO2)
Batteries included Yes
Battery type CR2032
Battery weight 3
Specifikācijas
ATX Power connector (24-pin) Yes
Audio output channels 7.1
Augstums 35
BIOS Type UEFI AMI
Bundled software Norton Internet Security (OEM version)LAN bandwidth management software
Component for PC
Cooling type Passive
Country of origin China
DirectX version 12.0
Dziļums 244
EPS power connector (8-pin) Yes
Form factor mATX
HDCP Yes
Line-in Yes
Maximum resolution 4096 x 2160
Mikroshēmu komplekts B860
Model B860M AORUS ELITE WIFI6E ICE
Motherboard chipset Intel B860
Motherboard form factor micro ATX
Number of memory slots 4
Package depth 268
Package height 68
Package weight 1902.5
Package width 270
Platums 244
Power source type ATX
Supported processor sockets LGA 1851
Weight 1700
Windows operating systems supported Windows 11 x64
