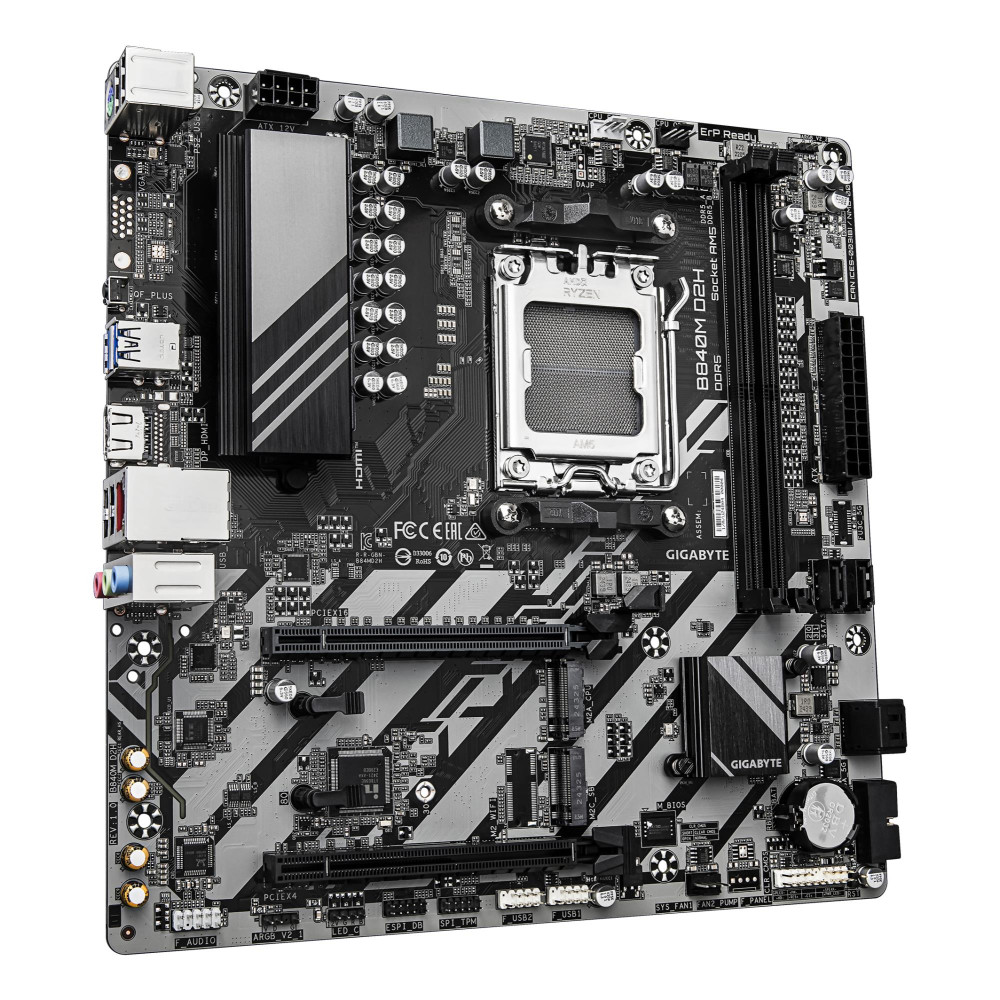

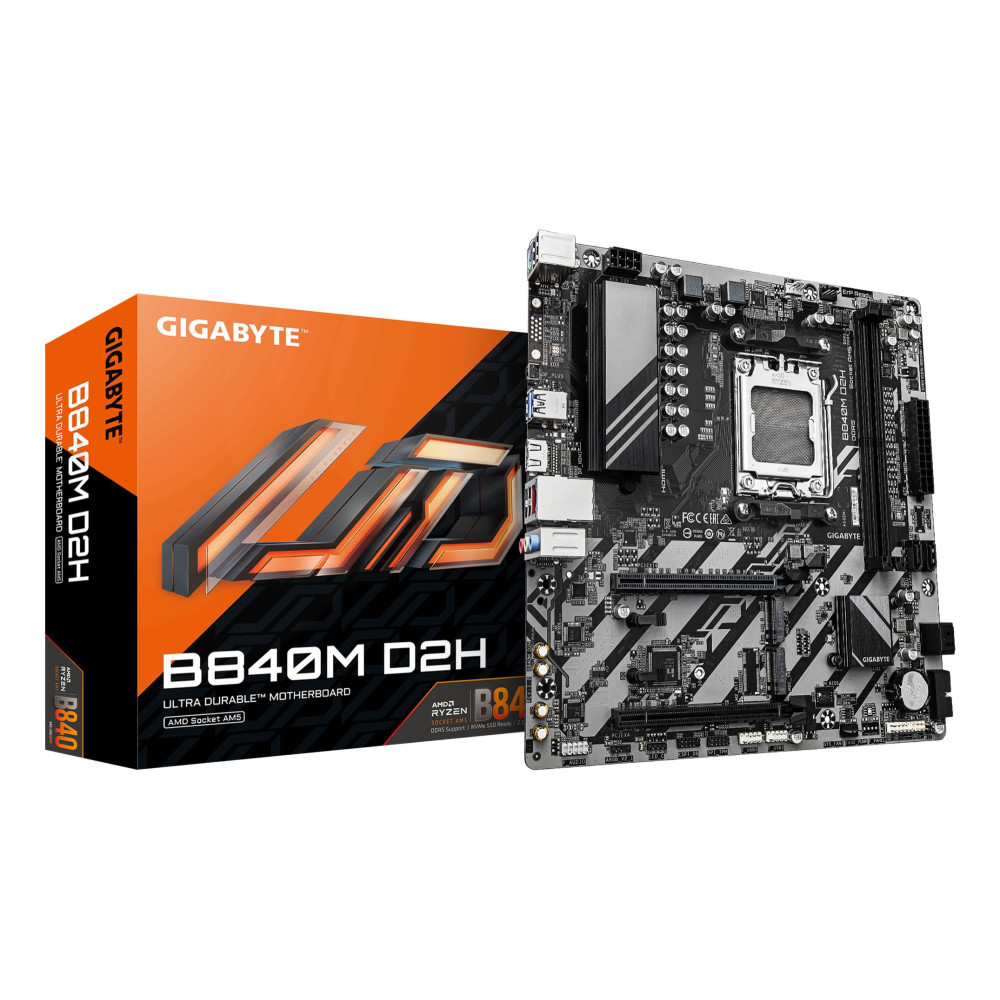

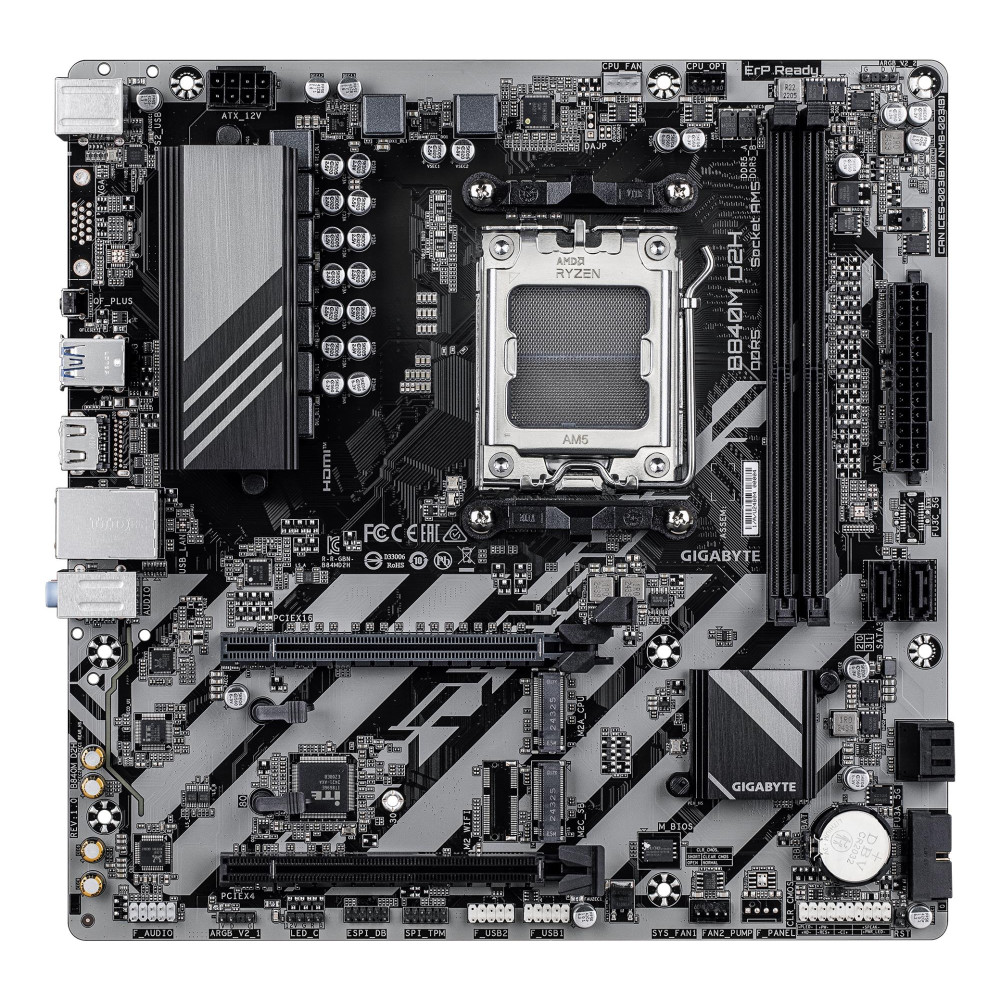

Mainboard, GIGABYTE, SAM5, Micro-ATX, Memory DDR5, Memory slots 2, 1xPCI-Express 3.0 4x, 1xPCI-Express 4.0 16x, 2xM.2, 1xHDMI, 4xUSB 2.0, 2xUSB 3.2, 1xPS/2, 1xRJ45, 3xAudio port, B840MD2H
Populārs
- Ražotājs: Gigabyte
- Modelis: B840M D2H
- EAN: 4719331868116
- Pieejamība: Nav pieejams
Nosaukums:
Gigabyte B840M D2H
105,78€
Bez PVN: 87,42€
- Produktu apskats
- Specifikācija
- Atsauksmes (0)
Specifikācijas
Specifikācija
1st M.2 highest PCI Express generation
4.0
1st M.2 largest key size
2580
2nd M.2 highest PCI Express generation
3.0
2nd M.2 largest key size
2280
ACPI version
5.0
Audio chip
Realtek ALC897
BIOS memory size
256
Clear CMOS jumper
Y
CPU fan connector
Y
Desktop Management Interface (DMI) version
2.7
ECC ?ompatibility
non-ECC
Front panel audio connector
Y
Front panel connector
Y
Lithium weight per battery
0.07
Maximum internal memory per slot
64
Motherboard chipset family
AMD
Number of chassis fan connectors
1
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
1
Number of HDDs supported
4
Number of M.2 (M) slots
2
Number of RGB LED pin headers
3
Number of SATA III connectors
4
Number of water pump connectors
1
Parallel processing technology support
Not supported
PC health monitoring
FAN/Temperature/Voltage/Water cooling
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Product colour
Dark brown
Products per shipping (inner) case
1
RGB LED pin header
Y
Screws included
Y
Summary
GIGABYTE B840M D2H Motherboard - AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 7600MHz DDR5, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125
Supported memory clock speed (max)
7600
System Management BIOS (SMBIOS) version
2.7
TPM connector
Y
Unit Calculated Volume
0.004769
Unit Calculated Weight
1.04
Units per Shipping Box
10
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Warranty period
3
Procesors
Compatible processor series
AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Procesoru ligzda
AM5
Processor manufacturer
AMD
Atmiņa
Atmiņas tips
DDR5
Maximum internal memory
128
Memory channels
Dual-channel
Memory slots type
DIMM
Supported memory clock speeds
4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600
Supported memory types
DDR5-SDRAM
Unbuffered memory
Y
Atmiņas ierīce
Number of storage drives supported
6
RAID levels
0/1/10
RAID support
Y
Supported storage drive interfaces
M.2,PCI Express 4.0,SATA III
Supported storage drive types
HDD & SSD

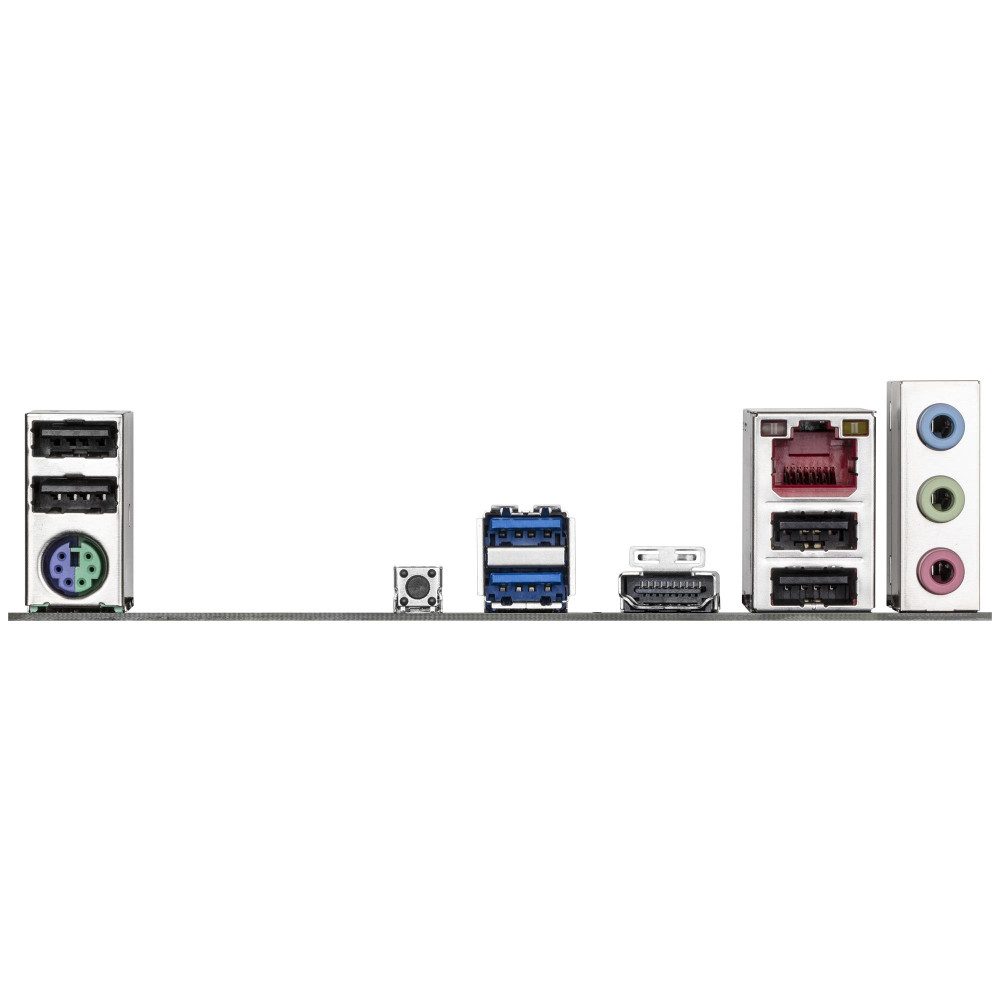

Porti
HDMI portu daudzums
1
HDMI version
2.1
Headphone outputs
1
Microphone in
Y
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Pieslēgumi
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Y
Ethernet LAN (RJ-45) porti
1
LAN controller
Realtek RTL8125
Wi-Fi
N
Akumulators
Akumulatora elementu skaits
1
Baterijas tehnoloģija
Lithium-Manganese Dioxide (LiMnO2)
Batteries included
Y
Battery type
CR2032
Battery weight
3
Specifikācijas
ATX Power connector (24-pin)
Y
Audio output channels
7.1
Augstums
35
BIOS Type
UEFI AMI
Bundled software
Norton® Internet Security (OEM version)LAN bandwidth management software
Component for
PC
Cooling type
Passive
DirectX version
12.0
Dziļums
244
EPS power connector (8-pin)
Y
Form factor
mATX
HDCP
Y
Line-in
Y
Maximum resolution
4096 x 2160
Model
B840M D2H
Motherboard chipset
AMD B840
Motherboard form factor
Micro ATX
Number of memory slots
2
Package depth
265
Package height
54
Package weight
1026.4
Package width
265
Platums
244
Power source type
ATX
PS/2 ports quantity
1
Supported processor sockets
Socket AM5
Weight
940
Windows operating systems supported
Windows 10 x64/Windows 11 x64
Atsauksmes (0)
Šai precei atsauksmju nav.
