Mainboard, MSI, AMD B550, SAM4, MicroATX, Memory DDR4, Memory slots 4, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 2xM.2, 1x15pin D-sub, 1xHDMI, 1xDisplayPort, 2xAudio-In, 1xAudio-Out, 2xUSB 2.0, 4xUSB 3.2, 1xPS/2, 1xRJ45, B550MPRO-VDH
Populārs
Mainboard, MSI, AMD B550, SAM4, MicroATX, Memory DDR4, Memory slots 4, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 2xM.2, 1x15pin D-sub, 1xHDMI, 1xDisplayPort, 2xAudio-In, 1xAudio-Out, 2xUSB 2.0, 4xUSB 3.2, 1xPS/2, 1xRJ45, B550MPRO-VDH
Mainboard, MSI, AMD B550, SAM4, MicroATX, Memory DDR4, Memory slots 4, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 2xM.2, 1x15pin D-sub, 1xHDMI, 1xDisplayPort, 2xAudio-In, 1xAudio-Out, 2xUSB 2.0, 4xUSB 3.2, 1xPS/2, 1xRJ45, B550MPRO-VDH
Mainboard, MSI, AMD B550, SAM4, MicroATX, Memory DDR4, Memory slots 4, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 2xM.2, 1x15pin D-sub, 1xHDMI, 1xDisplayPort, 2xAudio-In, 1xAudio-Out, 2xUSB 2.0, 4xUSB 3.2, 1xPS/2, 1xRJ45, B550MPRO-VDH
Mainboard, MSI, AMD B550, SAM4, MicroATX, Memory DDR4, Memory slots 4, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 2xM.2, 1x15pin D-sub, 1xHDMI, 1xDisplayPort, 2xAudio-In, 1xAudio-Out, 2xUSB 2.0, 4xUSB 3.2, 1xPS/2, 1xRJ45, B550MPRO-VDH
Mainboard, MSI, AMD B550, SAM4, MicroATX, Memory DDR4, Memory slots 4, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 2xM.2, 1x15pin D-sub, 1xHDMI, 1xDisplayPort, 2xAudio-In, 1xAudio-Out, 2xUSB 2.0, 4xUSB 3.2, 1xPS/2, 1xRJ45, B550MPRO-VDH
Atsauksmes:
(0)
    Nosaukums:

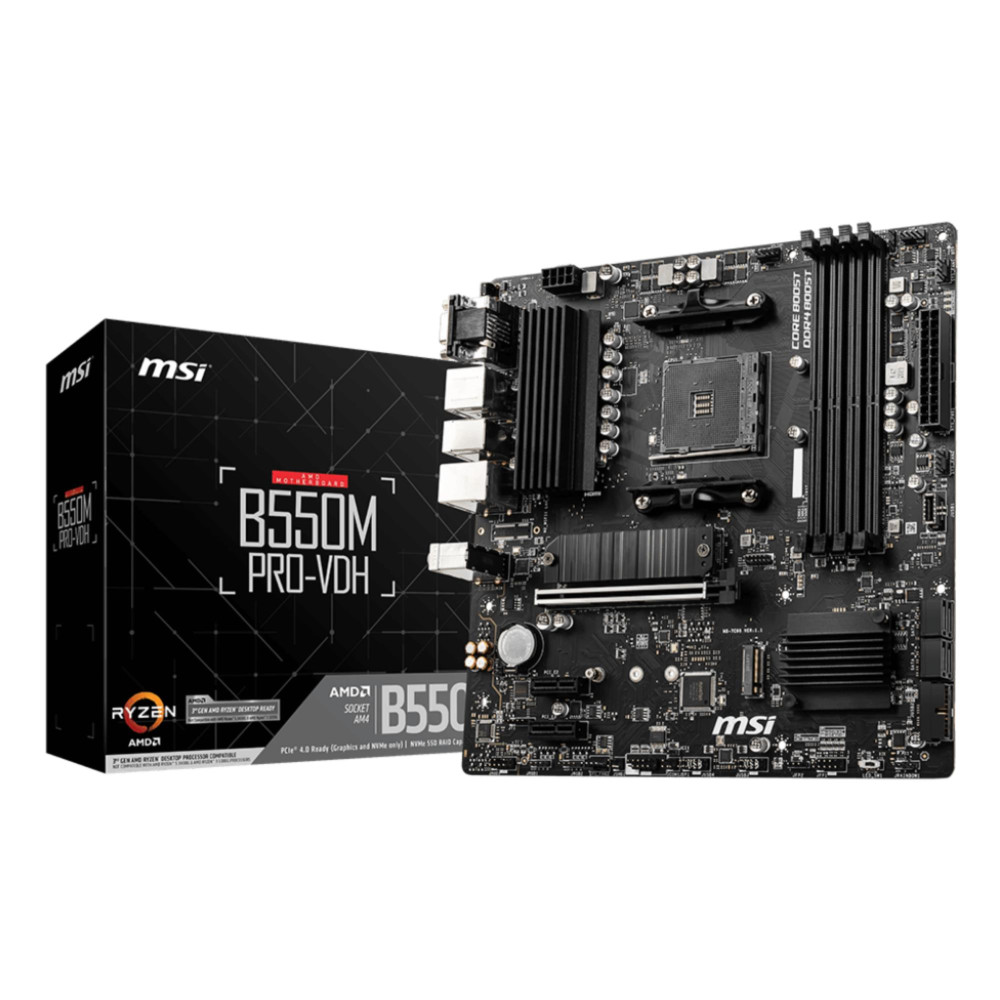

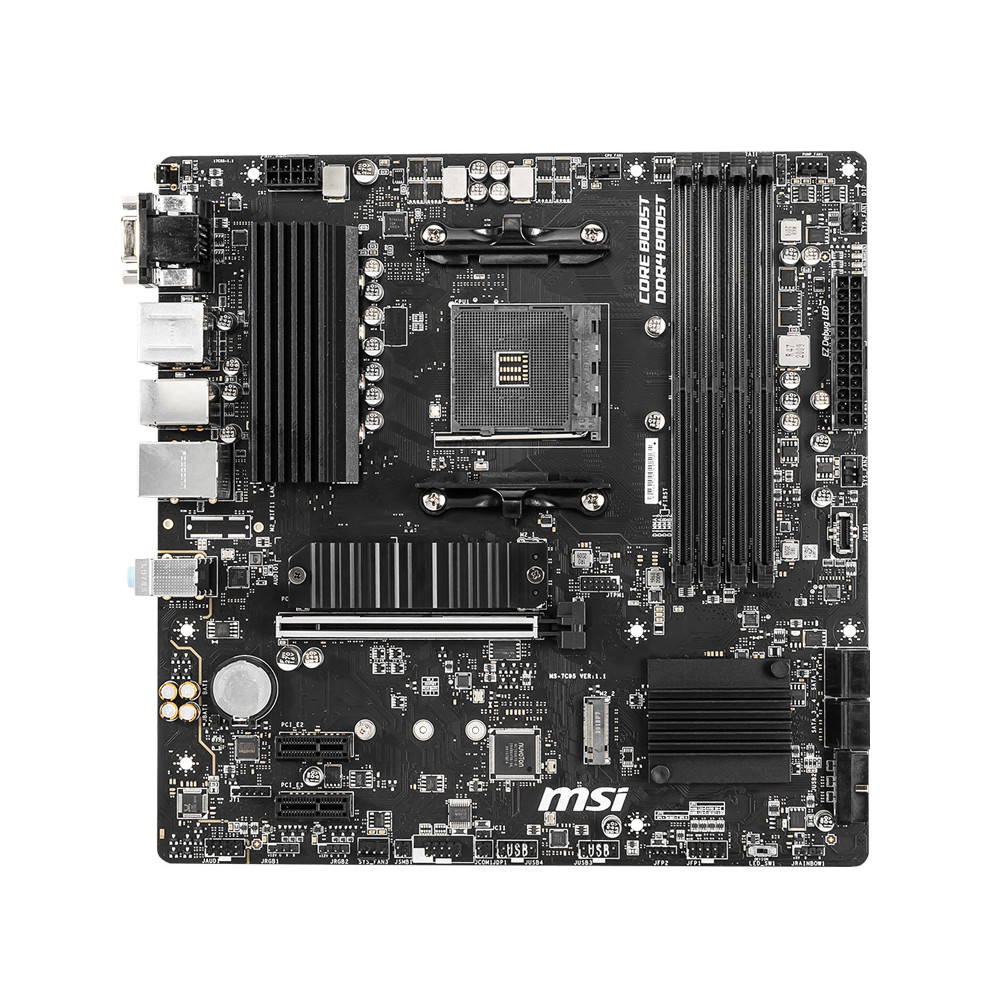

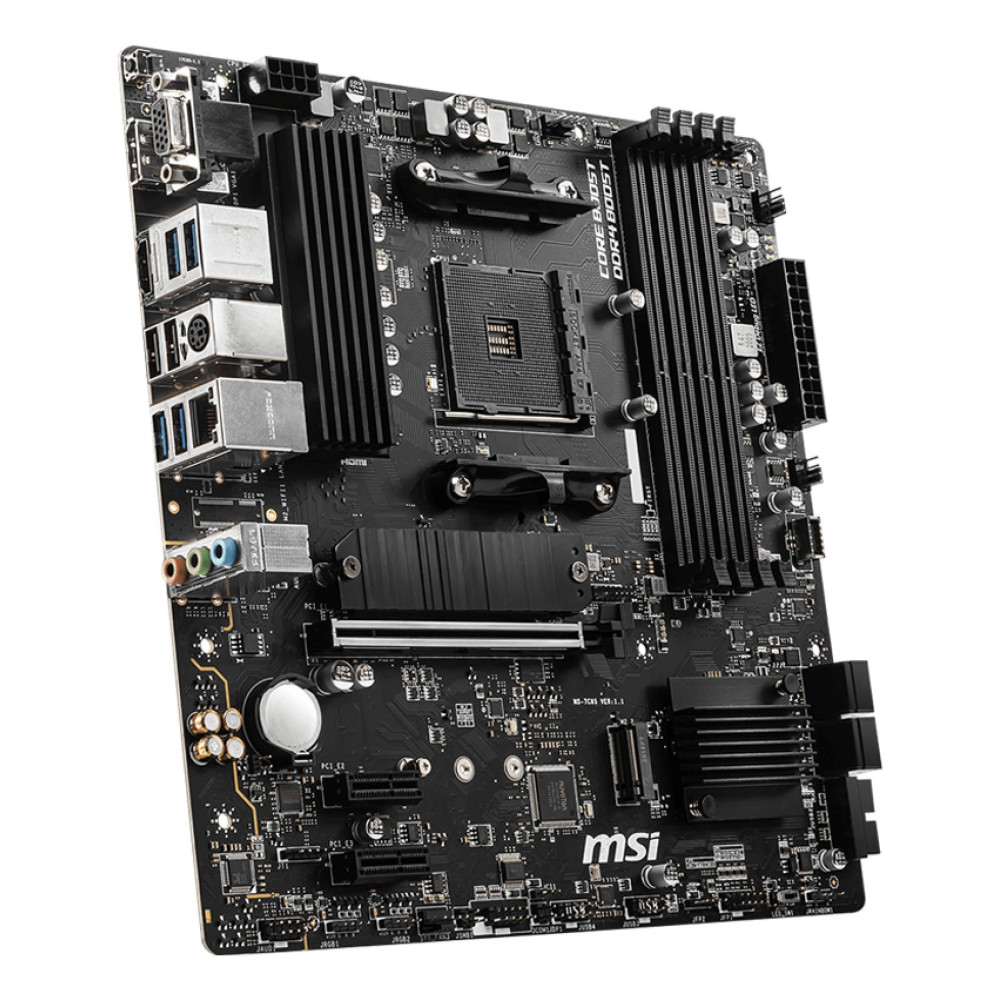

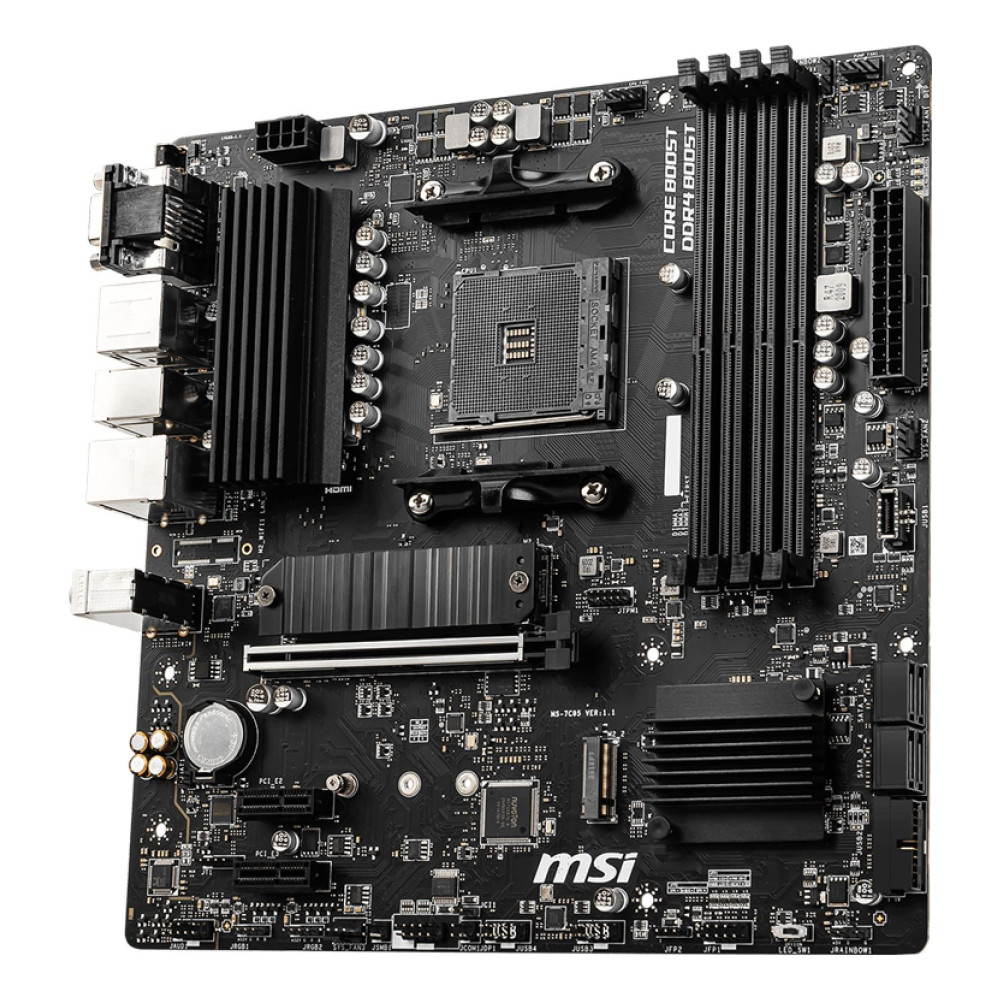

    MSI B550MPRO-VDH

  • Ražotājs: MSI
  • Modelis: B550MPRO-VDH
  • EAN: 4719072758417
  • Pieejamība: 50
93,87€
Bez PVN: 77,58€
  • Produktu apskats
  • Specifikācija
  • Atsauksmes (0)

Atslēgvārdi: Mainboards for AMD CPUs

Specifikācijas
Specifikācija
12V power connector Yes
Chassis intrusion connector Yes
Clear CMOS jumper Yes
CPU fan connector Yes
ECC сompatibility ECC & Non-ECC
Front panel audio connector Yes
Front panel connector Yes
Harmonized System (HS) code 84733020
Maximum number of SMP processors 1
Motherboard chipset family AMD
Number of chassis fan connectors 3
Number of M.2 (M) slots 2
Number of SATA III connectors 4
Parallel processing technology support Not supported
PCI Express x1 (Gen 3.x) slots 2
PCI Express x16 (Gen 4.x) slots 1
RGB LED pin header Yes
Serial port headers 1
Summary MSI B550M PRO-VDH. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek 8111HN
TPM connector Yes
Unit Calculated Volume 0.006393
Unit Calculated Weight 1.16
Units per Shipping Box 10
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Procesors
Compatible processor series AMD Ryzen 3000 Series
Procesoru ligzda AM4
Processor manufacturer AMD
Atmiņa
Atmiņas tips DDR4
Maximum internal memory 128
Memory channels Dual-channel
Memory slots type DIMM
Supported memory clock speeds 1866/2133/2400/2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400
Supported memory types DDR4-SDRAM
Unbuffered memory Yes
Atmiņas ierīce
RAID levels 0/1/10
Supported storage drive interfaces SATA III
Supported storage drive types HDD & SSD

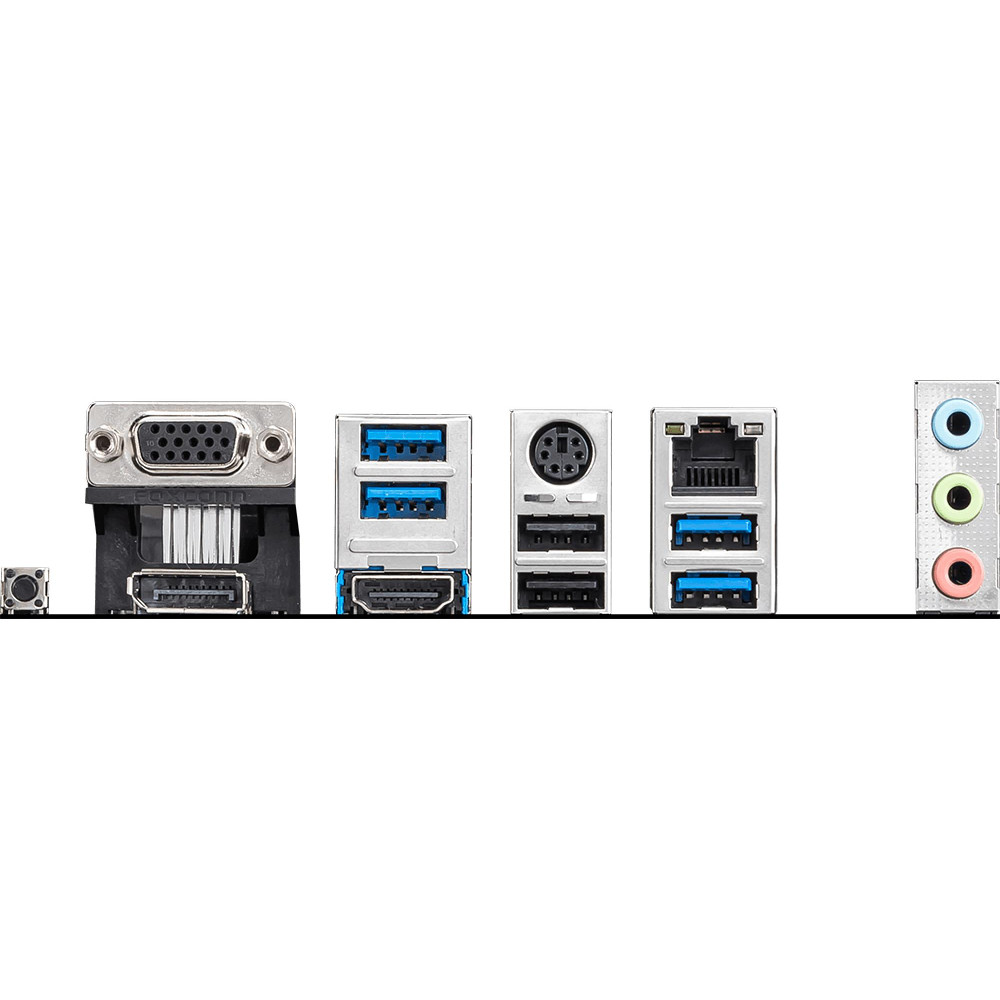

Porti
DisplayPorts quantity 1
HDMI portu daudzums 1
HDMI version 2.1
USB 2.0 connectors 2
USB 2.0 ports quantity 2
VGA (D-Sub) portu daudzums 1
Pieslēgumi
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes
Ethernet LAN (RJ-45) porti 1
LAN controller Realtek 8111HN
Wi-Fi No
Specifikācijas
ATX Power connector (24-pin) Yes
Audio output channels 7.1
Augstums 65
Component for PC
Drivers included Yes
Dziļums 244
Form factor mATX
Komplektā kabeļi SATA
Maximum resolution 4096 x 2160
Mikroshēmu komplekts B550
Motherboard chipset AMD B550
Motherboard form factor micro ATX
Number of memory slots 4
Platums 244
Weight 1000
