Mainboard, ASROCK, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 2, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 3xM.2, 2xHDMI, 2xUSB 2.0, 4xUSB 3.2, 1xRJ45, 3xAudio port, B760M-H2/M.2
Populārs
Mainboard, ASROCK, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 2, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 3xM.2, 2xHDMI, 2xUSB 2.0, 4xUSB 3.2, 1xRJ45, 3xAudio port, B760M-H2/M.2
Mainboard, ASROCK, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 2, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 3xM.2, 2xHDMI, 2xUSB 2.0, 4xUSB 3.2, 1xRJ45, 3xAudio port, B760M-H2/M.2
Mainboard, ASROCK, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 2, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 3xM.2, 2xHDMI, 2xUSB 2.0, 4xUSB 3.2, 1xRJ45, 3xAudio port, B760M-H2/M.2
Mainboard, ASROCK, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 2, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 3xM.2, 2xHDMI, 2xUSB 2.0, 4xUSB 3.2, 1xRJ45, 3xAudio port, B760M-H2/M.2
Mainboard, ASROCK, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 2, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 3xM.2, 2xHDMI, 2xUSB 2.0, 4xUSB 3.2, 1xRJ45, 3xAudio port, B760M-H2/M.2
Atsauksmes:
(0)
    Nosaukums:

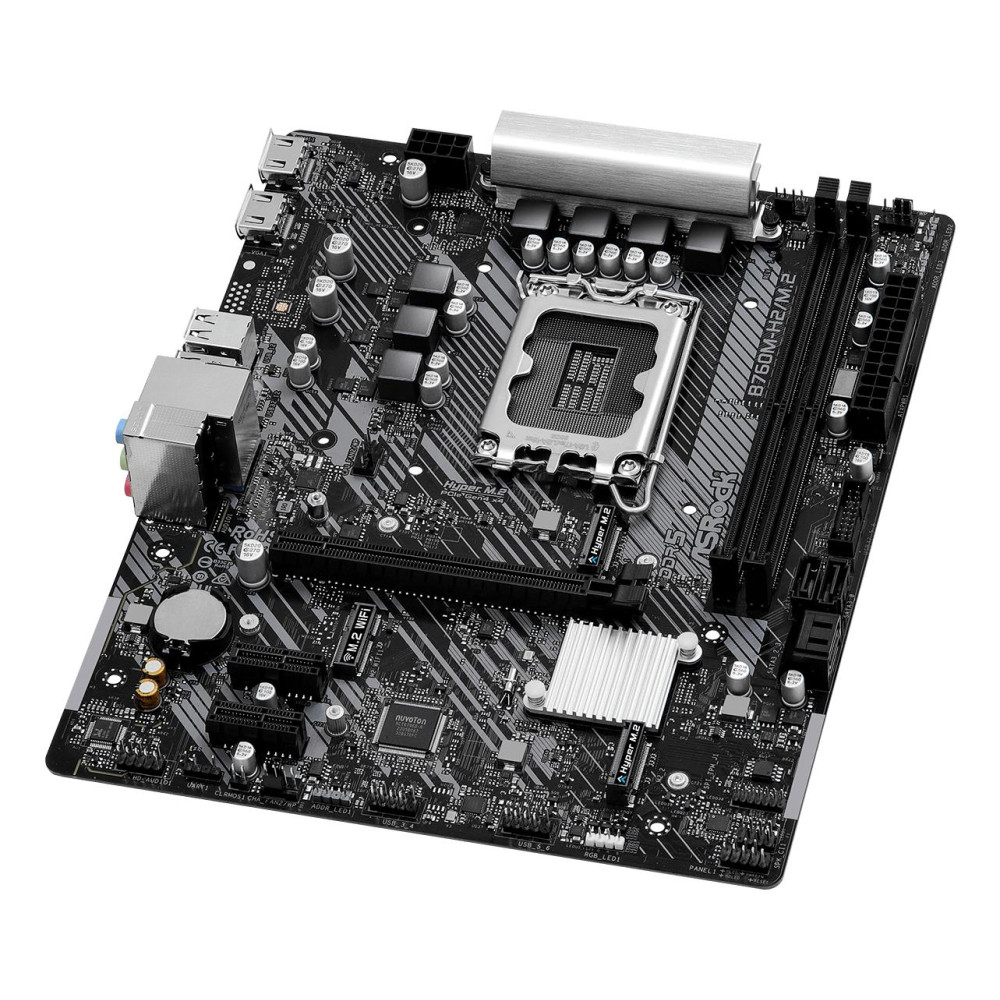

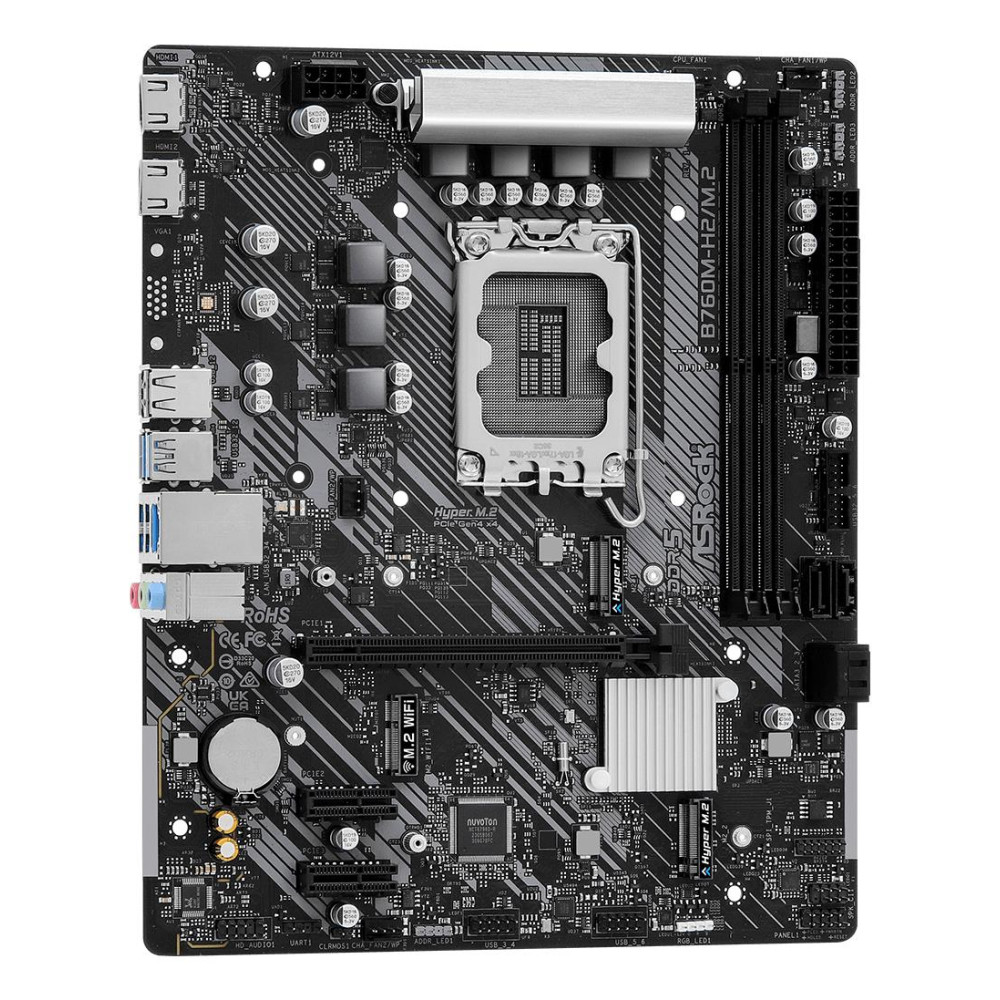

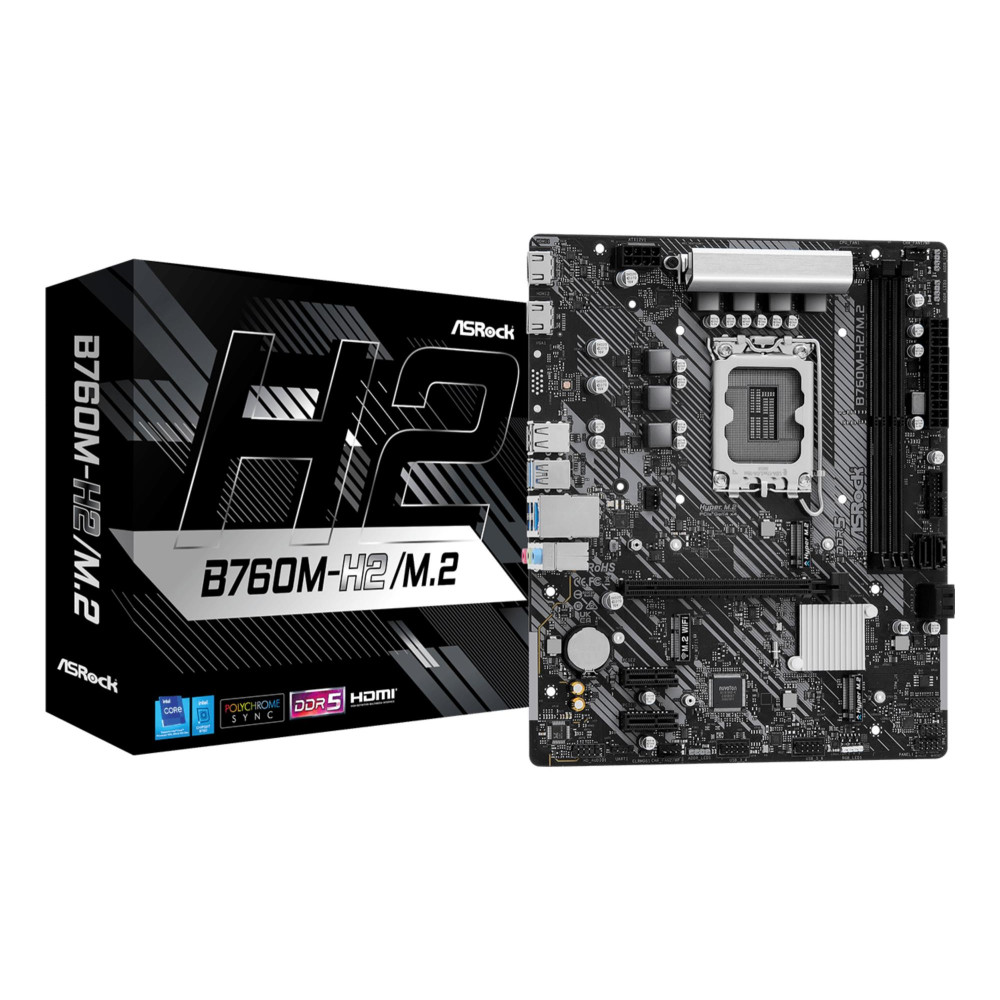

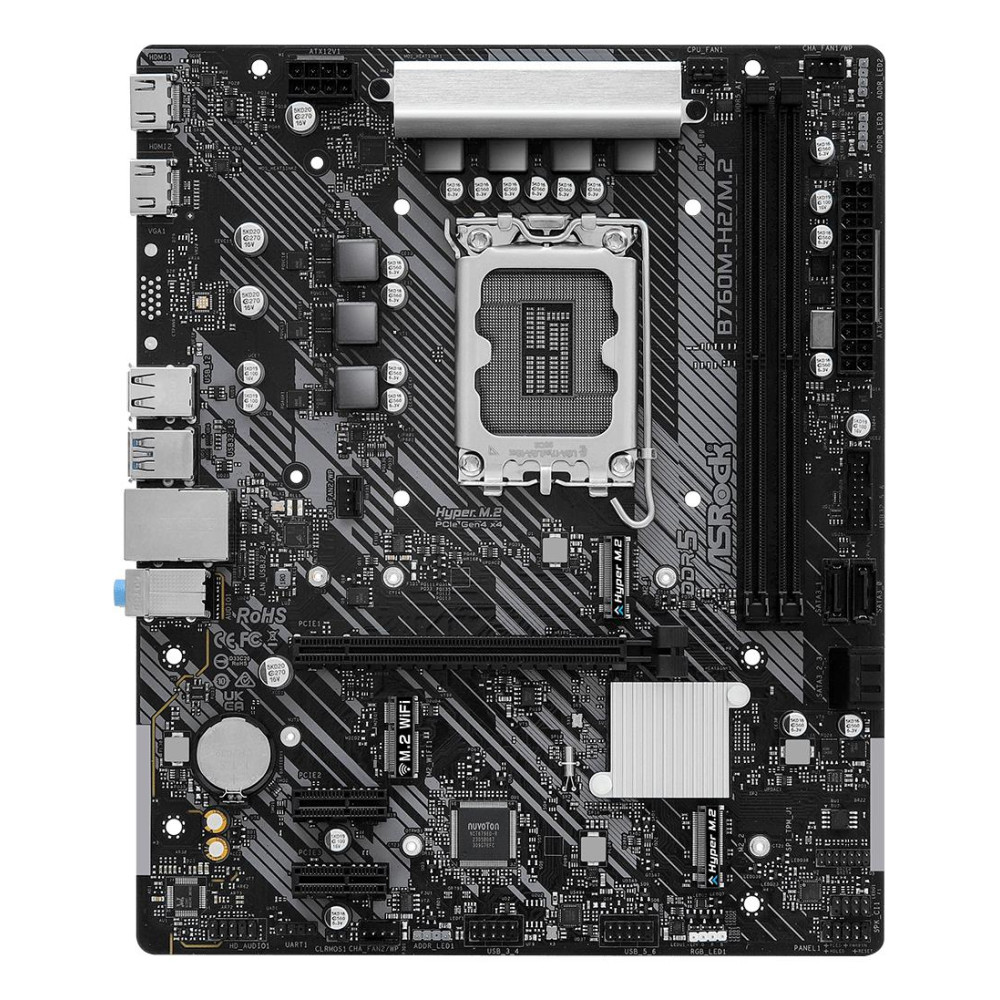

    ASROCK B760M-H2/M.2

  • Ražotājs: ASROCK
  • Modelis: B760M-H2/M.2
  • EAN: 4710483944215
  • Pieejamība: 15
90,28€
Bez PVN: 74,61€
  • Produktu apskats
  • Specifikācija
  • Atsauksmes (0)

Atslēgvārdi: Mainboards for Intel CPUs

Specifikācijas
Specifikācija
Audio chip Realtek ALC897
BIOS memory size 128
Chassis intrusion connector Yes
CPU fan connector Yes
ECC ?ompatibility Non-ECC
Front panel connector Yes
Maximum number of SMP processors 1
Motherboard chipset family Intel
Number of HDDs supported 6
Number of M.2 (M) slots 2
Number of SATA III connectors 4
Parallel processing technology support Not supported
PCI Express x1 (Gen 3.x) slots 2
PCI Express x16 (Gen 4.x) slots 1
Product Net Weight 0.5
Summary Asrock B760M-H2/M.2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Supported memory clock speed (max) 7200
Total number of SATA connectors 4
TPM connector Yes
Unit Calculated Volume 0.004299
Unit Calculated Weight 0.862
Units per Shipping Box 20
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
Procesors
Compatible processor series Intel Core i3/Intel Core i5/Intel Core i7/Intel Core i9
Processor manufacturer Intel
Atmiņa
Atmiņas tips DDR5
Maximum internal memory 128
Maximum internal memory supported by processor 128
Memory channels Dual-channel
Memory slots type DIMM
Supported memory clock speeds 5600/6800/7200
Supported memory types DDR5-SDRAM
Unbuffered memory Yes
Atmiņas ierīce
Number of storage drives supported 4
RAID levels 0/1/10/5
RAID support Yes
Supported storage drive interfaces M.2,SATA III
Porti
HDMI portu daudzums 2
HDMI version 2.1
Microphone in Yes
USB 2.0 connectors 4
USB 2.0 ports quantity 2
Pieslēgumi
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Ethernet LAN (RJ-45) porti 1
Wi-Fi No
Specifikācijas
ATX Power connector (24-pin) Yes
Audio output channels 7.1
BIOS Type UEFI AMI
Certification - FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)
Component for PC
Dziļums 201
EPS power connector (8-pin) Yes
Form factor mATX
HDCP Yes
Komplektā kabeļi SATA
Line-in Yes
Mikroshēmu komplekts B760
Model B760M-H2/M.2
Motherboard chipset Intel B760
Motherboard form factor micro ATX
Number of memory slots 2
Platums 244
PS/2 ports quantity 1
Supported processor sockets LGA 1700
Windows operating systems supported Windows 10 x64/Windows 11 x64
Atsauksmes (0)

Šai precei atsauksmju nav.
