Mainboard, GIGABYTE, 1xNumber of M.2 (M) slots, micro ATX, Intel H810, Bluetooth Yes, Wi-Fi Yes, 2xSlots, RAM DDR5-SDRAM, LGA 1851 (Socket V1), H810MGAMINGWIFI6
Mainboard, GIGABYTE, 1xNumber of M.2 (M) slots, micro ATX, Intel H810, Bluetooth Yes, Wi-Fi Yes, 2xSlots, RAM DDR5-SDRAM, LGA 1851 (Socket V1), H810MGAMINGWIFI6
Mainboard, GIGABYTE, 1xNumber of M.2 (M) slots, micro ATX, Intel H810, Bluetooth Yes, Wi-Fi Yes, 2xSlots, RAM DDR5-SDRAM, LGA 1851 (Socket V1), H810MGAMINGWIFI6
Mainboard, GIGABYTE, 1xNumber of M.2 (M) slots, micro ATX, Intel H810, Bluetooth Yes, Wi-Fi Yes, 2xSlots, RAM DDR5-SDRAM, LGA 1851 (Socket V1), H810MGAMINGWIFI6
Mainboard, GIGABYTE, 1xNumber of M.2 (M) slots, micro ATX, Intel H810, Bluetooth Yes, Wi-Fi Yes, 2xSlots, RAM DDR5-SDRAM, LGA 1851 (Socket V1), H810MGAMINGWIFI6
Atsauksmes:
(0)
    Nosaukums:

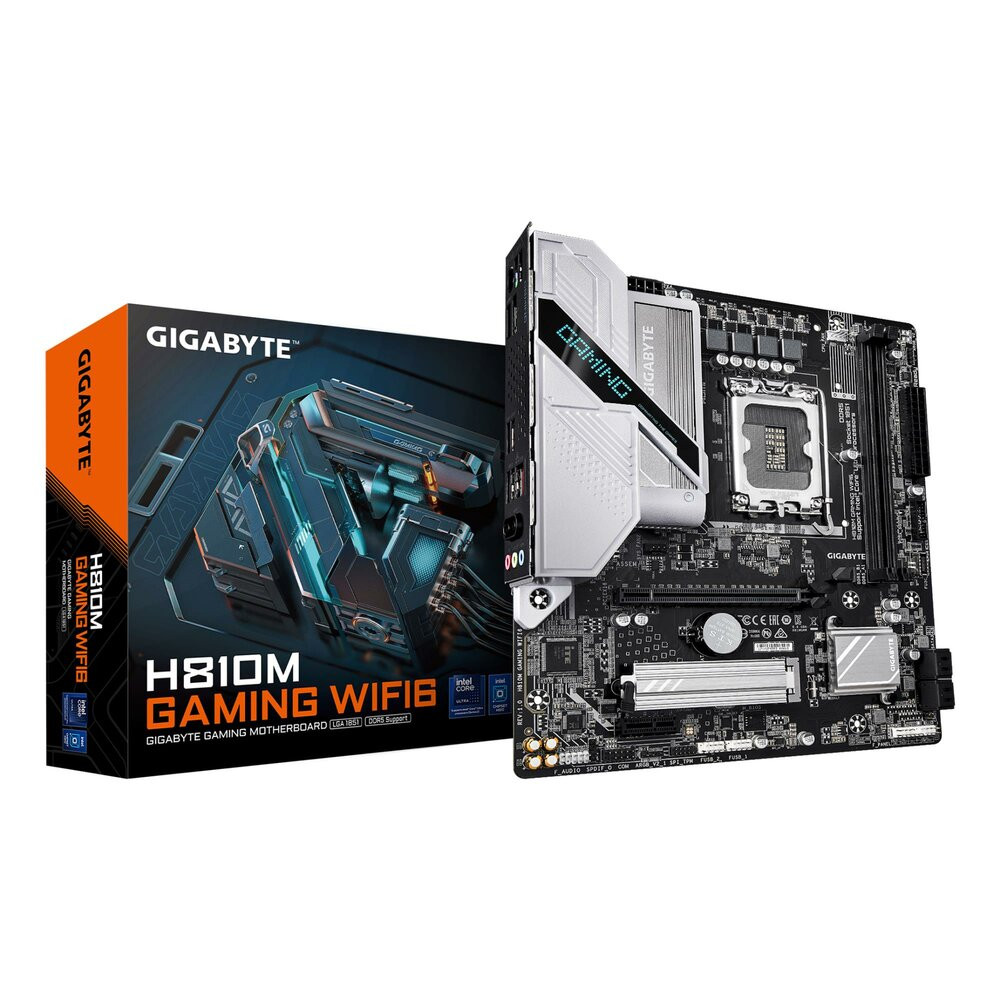

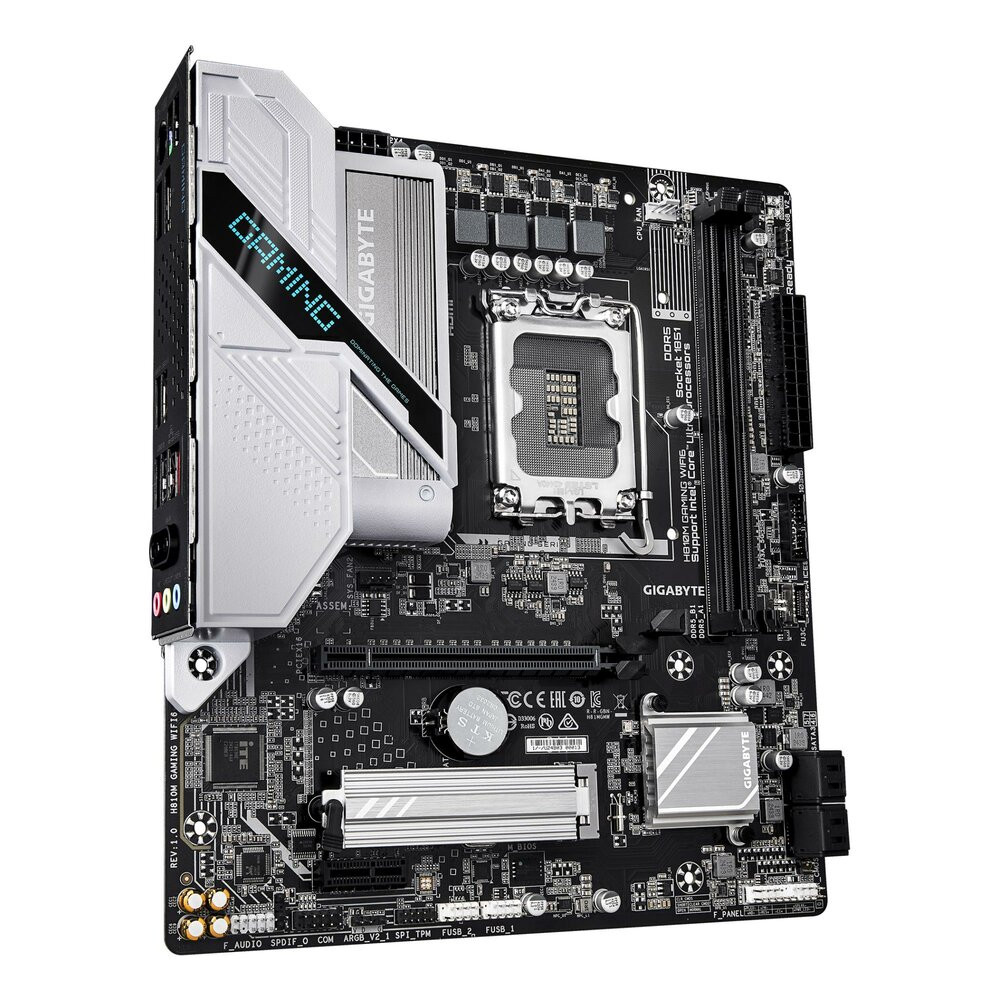

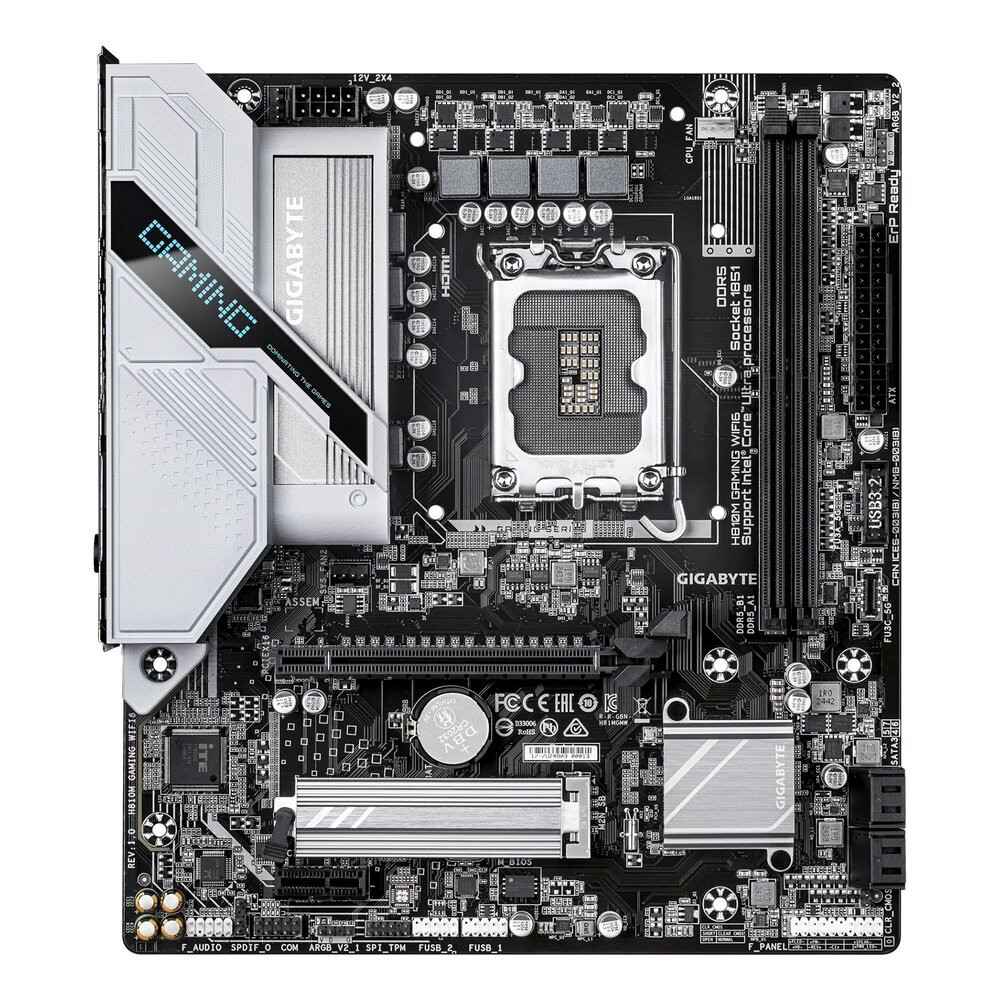

    Gigabyte H810M GAMING WIFI6

  • Ražotājs: Gigabyte
  • Modelis: H810M GAMING WIFI6
  • EAN: 4719331869090
  • Pieejamība: 8
121,99€
Bez PVN: 100,82€
  • Produktu apskats
  • Specifikācija
  • Atsauksmes (0)

Atslēgvārdi: Mainboards for Intel CPUs

Specifikācijas
Galvenie parametri
Formas faktors mATX
Procesora ražotājs Intel
Operatīvās atmiņas tips DDR5
Mikroshēmojums H810
Procesora ligzda LGA1851
Atmiņas sloti 2
Maksimālā atmiņa 128 GB
M.2 sloti 1
SATA porti 4
Wi-Fi modulis Jā
LAN ātrums 2.5 Gbit/s
Specification
Name MB H810 S1851 MATX/H810M GAMING WIFI6 GIGABYTE
Specifikācija
1st M.2 highest PCI Express generation 4.0
1st M.2 largest key size 2280
ACPI version 5.0
Antenna included Yes
Audio chip Realtek ALC897
BIOS memory size 256
Clear CMOS jumper Yes
CPU fan connector Yes
Desktop Management Interface (DMI) version 2.7
ECC сompatibility ECC & Non-ECC
Front panel audio connector Yes
Front panel connector Yes
Lithium weight per battery 0.07
Maximum internal memory per slot 64
Motherboard chipset family Intel
Number of chassis fan connectors 2
Number of CPU fan connectors 1
Number of EPS power connectors (8-pin) 1
Number of HDDs supported 4
Number of M.2 (M) slots 1
Number of RGB LED pin headers 2
Number of SATA III connectors 4
Parallel processing technology support Not supported
PC health monitoring Fan/Temperature/Voltage/Water cooling
PCI Express x1 (Gen 3.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
Product colour Dark brown
Products per shipping (inner) case 1
RGB LED pin header Yes
S/PDIF out connector Yes
Screws included Yes
Serial port headers 1
Summary GIGABYTE H810M GAMING WIFI6 Motherboard - Intel Core Ultra (Series 2) CPUs, 4+1+2 Phases VRM, up to 6400MHz DDR5, 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Supported memory clock speed (max) 6400
System Management BIOS (SMBIOS) version 2.7
Top Wi-Fi standard Wi-Fi 6 (802.11ax)
TPM connector Yes
Unit Calculated Volume 0.006165
Unit Depth 27
Unit Height 7
Unit Width 27
Units per Shipping Box 10
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
Warranty period 3
WiFi-AP antenna jack 2
WLAN controller model Realtek RTL8851BE
Procesors
Compatible processor series Intel Core Ultra (Series 2)
Procesoru ligzda LGA 1851 (Socket V1)
Processor manufacturer Intel
Atmiņa
Maximum internal memory 128
Memory channels Dual-channel
Memory slots type DIMM
Supported memory clock speeds 5600/6400
Supported memory types DDR5-SDRAM
Unbuffered memory Yes
Atmiņas ierīce
Number of storage drives supported 5
RAID levels 0/1/10/5
RAID support Yes
Supported storage drive interfaces M.2,PCI Express 4.0,SATA III
Supported storage drive types HDD & SSD

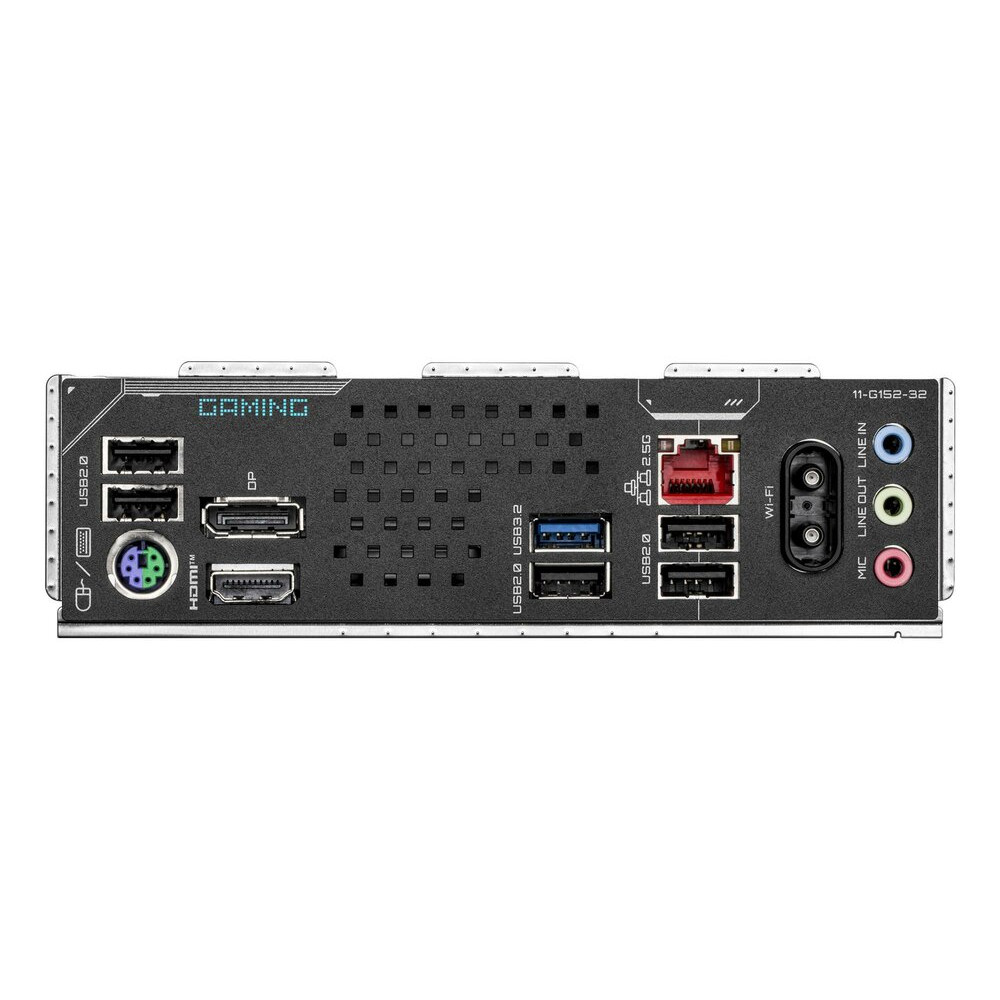

Porti
DisplayPort version 2.1
DisplayPorts quantity 1
HDMI portu daudzums 1
HDMI version 2.1
Headphone outputs 1
Microphone in Yes
USB 2.0 connectors 2
USB 2.0 ports quantity 5
Pieslēgumi
Bluetooth Yes
Bluetooth versija 5.3
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Ethernet LAN (RJ-45) porti 1
LAN controller Realtek RTL8125
Wi-Fi Yes
Wi-Fi standards 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)
Akumulators
Akumulatora elementu skaits 1
Baterijas tehnoloģija Lithium-Manganese Dioxide (LiMnO2)
Batteries included Yes
Battery type CR2032
Battery weight 3
Specifikācijas
ATX Power connector (24-pin) Yes
Audio output channels 7.1
Augstums 35
BIOS Type UEFI AMI
Bundled software Norton® Internet Security (OEM version)LAN bandwidth management software
Component for PC
Cooling type Passive
DirectX version 12.0
Dziļums 215
EPS power connector (8-pin) Yes
HDCP Yes
Line-in Yes
Maximum resolution 4096 x 2160
Motherboard chipset Intel H810
Motherboard form factor micro ATX
Number of memory slots 2
Package depth 268
Package height 68
Package weight 1193
Package width 270
Platums 244
Power source type ATX
PS/2 ports quantity 1
Supported processor sockets LGA 1851
Weight 1100
Windows operating systems supported Windows 10 x64/Windows 11 x64
