Mainboard, GIGABYTE, Intel B760 Express, LGA1700, ATX, Memory DDR5, Memory slots 4, B760GAMINGXGEN5
Populārs
Mainboard, GIGABYTE, Intel B760 Express, LGA1700, ATX, Memory DDR5, Memory slots 4, B760GAMINGXGEN5
Mainboard, GIGABYTE, Intel B760 Express, LGA1700, ATX, Memory DDR5, Memory slots 4, B760GAMINGXGEN5
Mainboard, GIGABYTE, Intel B760 Express, LGA1700, ATX, Memory DDR5, Memory slots 4, B760GAMINGXGEN5
Mainboard, GIGABYTE, Intel B760 Express, LGA1700, ATX, Memory DDR5, Memory slots 4, B760GAMINGXGEN5
Atsauksmes:
(0)
    Nosaukums:

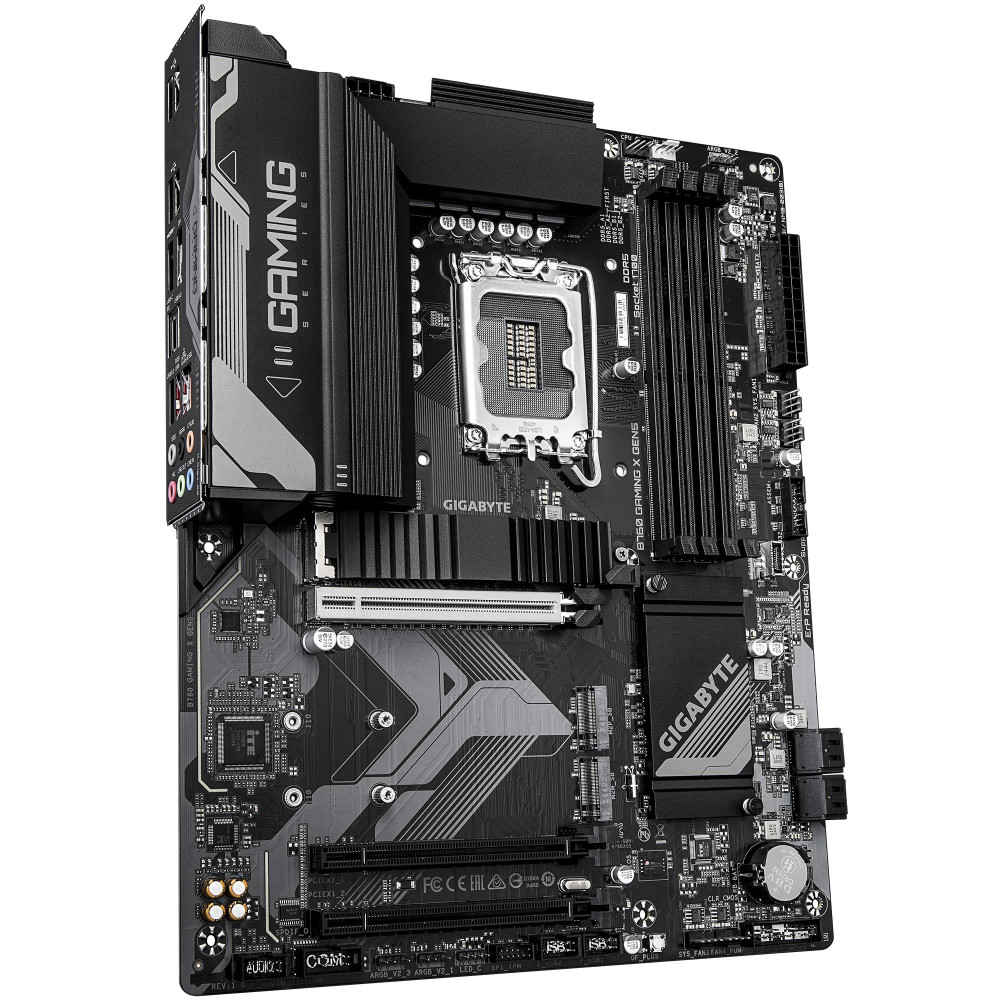

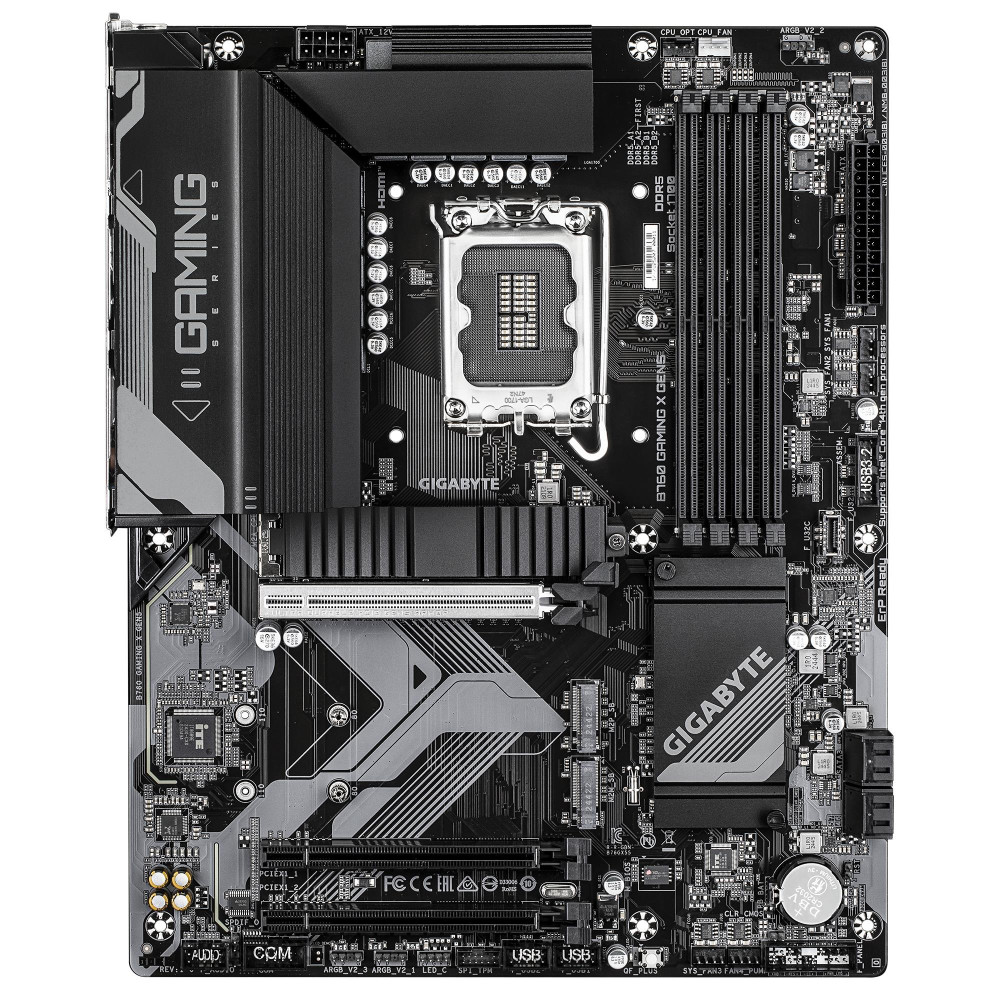

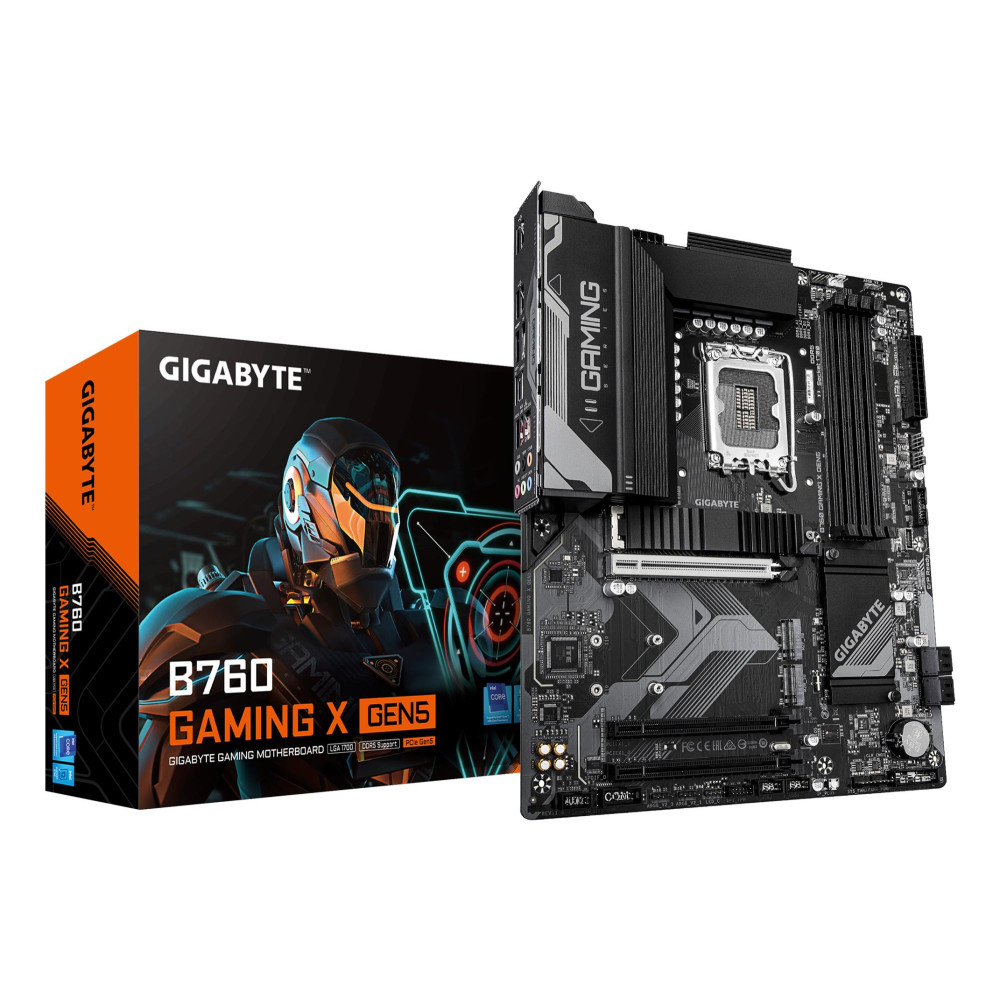

    Gigabyte B760 GAMING X GEN5

  • Ražotājs: Gigabyte
  • Modelis: B760 GAMING X GEN5
  • EAN: 4719331872120
  • Pieejamība: 8
142,57€
Bez PVN: 117,83€
  • Produktu apskats
  • Specifikācija
  • Atsauksmes (0)

Atslēgvārdi: Mainboards for Intel CPUs

Specifikācijas
Specifikācija
12V power connector Yes
1st M.2 highest PCI Express generation 4.0
1st M.2 largest key size 22110
2nd M.2 highest PCI Express generation 4.0
2nd M.2 largest key size 22110
3rd M.2 highest PCI Express generation 4.0
3rd M.2 largest key size 22110
ACPI version 5.0
Audio chip Realtek ALC897
BIOS memory size 256
Clear CMOS jumper Yes
CPU fan connector Yes
Desktop Management Interface (DMI) version 2.7
ECC ?ompatibility ECC & Non-ECC
Front panel audio connector Yes
Front panel connector Yes
Lithium weight per battery 0.07
Maximum internal memory per slot 64
Motherboard chipset family Intel
Number of chassis fan connectors 4
Number of CPU fan connectors 2
Number of EPS power connectors (8-pin) 1
Number of HDDs supported 4
Number of M.2 (M) slots 3
Number of RGB LED pin headers 4
Number of SATA III connectors 4
Number of water pump connectors 2
Parallel processing technology support Not supported
PC health monitoring Fan/Temperature/Voltage/Water cooling
PCI Express x16 (Gen 3.x) slots 2
PCI Express x16 (Gen 5.x) slots 1
Product colour Dark brown
Product Net Weight 1.2
Products per shipping (inner) case 1
RGB LED pin header Yes
S/PDIF out connector Yes
Screws included Yes
Serial port headers 1
Summary GIGABYTE B760 GAMING X GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5600MHz DDR5, 3xPCIe 4.0 M.2, 2.5 GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125
Supported memory clock speed (max) 5600
System Management BIOS (SMBIOS) version 2.7
TPM connector Yes
Unit Calculated Volume 0.007236
Unit Calculated Weight 1.55
Units per Shipping Box 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
Warranty period 3
Procesors
Compatible processor series Intel Celeron/Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen
Processor manufacturer Intel
Atmiņa
Atmiņas tips DDR5
Maximum internal memory 256
Memory channels Dual-channel
Memory slots type DIMM
Supported memory clock speeds 4400/4800/5200/5600
Supported memory types DDR5-SDRAM
Unbuffered memory Yes
Atmiņas ierīce
Number of storage drives supported 7
RAID levels 0/1/10/5
RAID support Yes
Supported storage drive interfaces M.2,PCI Express 4.0,SATA III
Supported storage drive types HDD & SSD

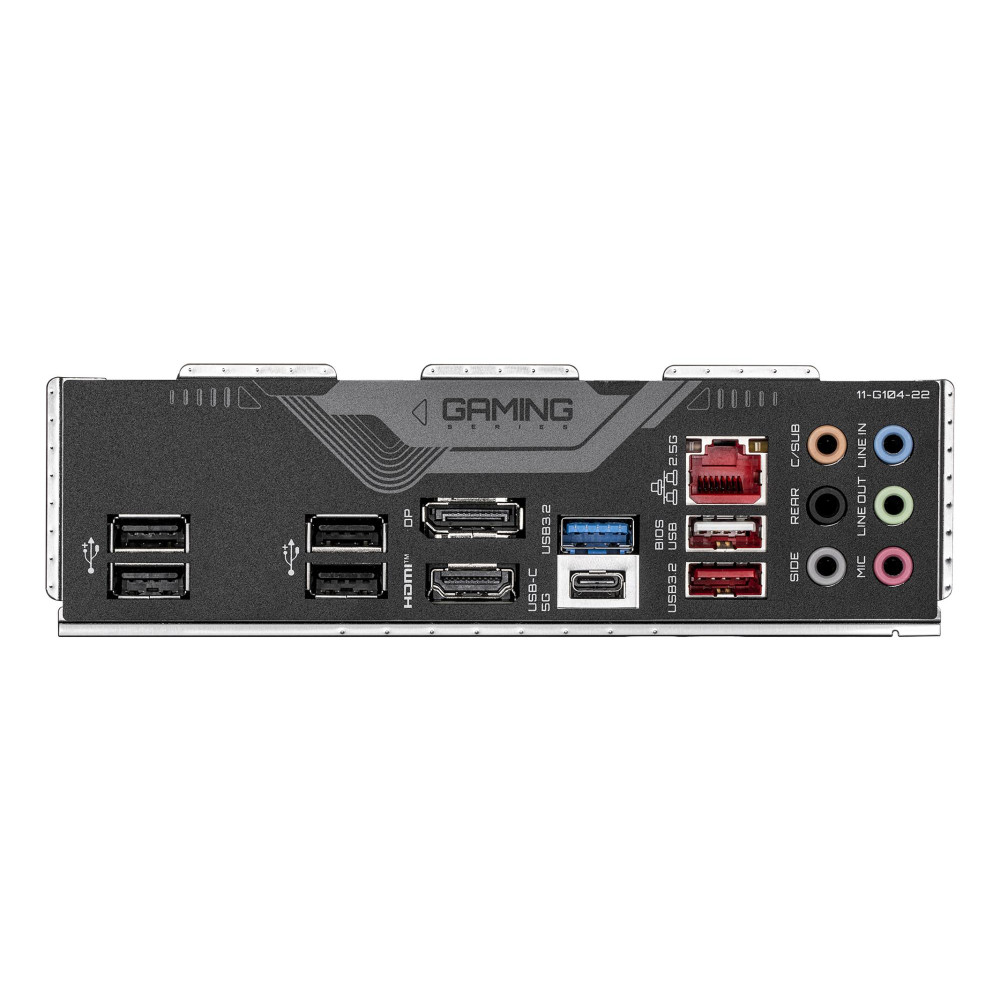

Porti
DisplayPort version 1.2
DisplayPorts quantity 1
HDMI portu daudzums 1
HDMI version 2.1
Headphone outputs 1
Microphone in Yes
USB 2.0 connectors 2
USB 2.0 ports quantity 5
Pieslēgumi
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Ethernet LAN (RJ-45) porti 1
LAN controller Realtek RTL8125
Wi-Fi No
Akumulators
Akumulatora elementu skaits 1
Baterijas tehnoloģija Lithium-Manganese Dioxide (LiMnO2)
Batteries included Yes
Battery type CR2032
Battery weight 3
Specifikācijas
ATX Power connector (24-pin) Yes
Audio output channels 7.1
Augstums 35
BIOS Type UEFI AMI
Bundled software Norton® Internet Security (OEM version)
Component for PC
Cooling type Passive
Country of origin China
DirectX version 12.0
Dziļums 244
EPS power connector (8-pin) Yes
Form factor ATX
HDCP Yes
Line-in Yes
Maximum resolution 4096 x 2304
Mikroshēmu komplekts B760
Model B760 GAMING X GEN5
Motherboard chipset Intel B760
Motherboard form factor ATX
Number of memory slots 4
Package depth 270
Package height 80
Package weight 1800
Package width 335
Platums 305
Power source type ATX
Supported processor sockets LGA 1700
Weight 1560
Windows operating systems supported Windows 10 x64/Windows 11 x64
Atsauksmes (0)

Šai precei atsauksmju nav.
