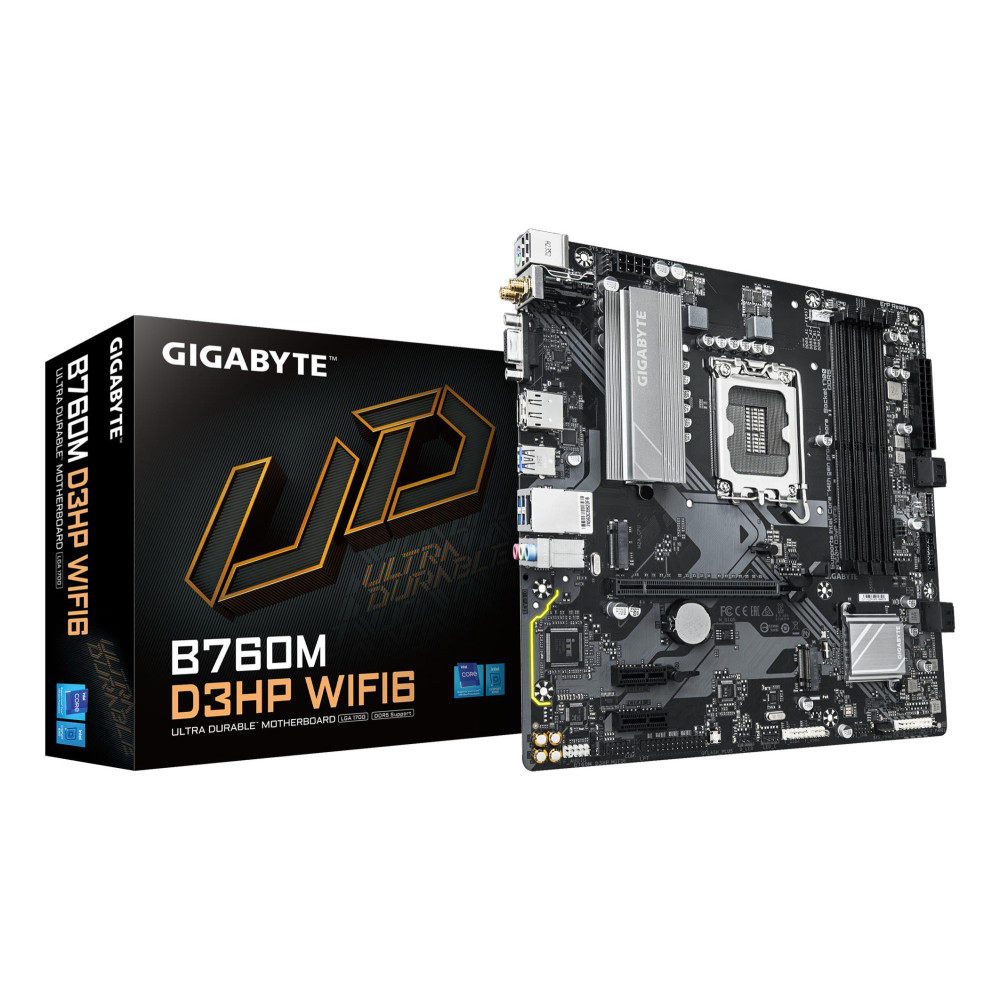

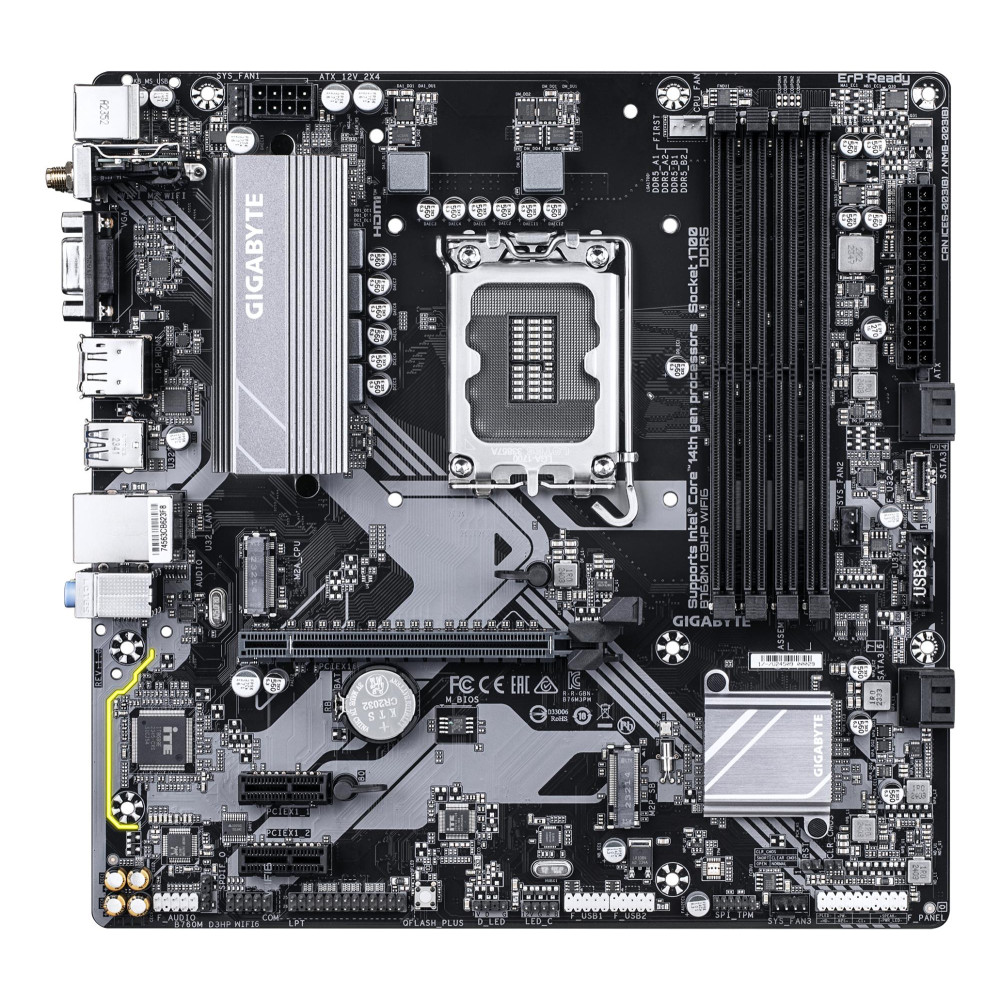

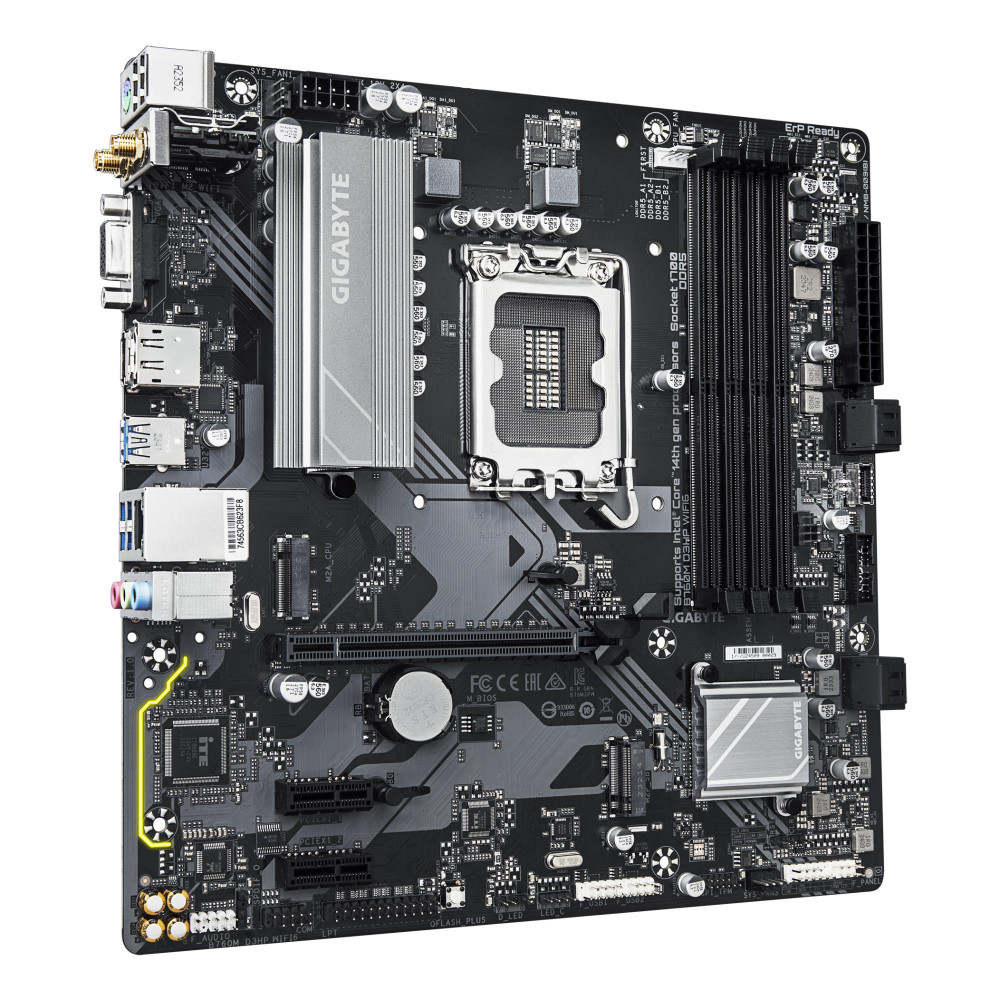

Mainboard, GIGABYTE, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 4, B760MD3HPWIFI61.0

Populārs

Atsauksmes:

(0)

Nosaukums:

Gigabyte B760M D3HP WIFI6 1.0

Ražotājs: Gigabyte
Modelis: B760M D3HP WIFI6 1.0
EAN: 4719331867638
Pieejamība: 50

119,11€

Bez PVN: 98,44€

Daudzums:

Produktu apskats
Specifikācija
Atsauksmes (0)

Manufacturer page

Atslēgvārdi: Mainboards for Intel CPUs

Specifikācijas

Specifikācija

12V power connector Yes

1st M.2 highest PCI Express generation 4.0

1st M.2 largest key size 2280

2nd M.2 highest PCI Express generation 4.0

2nd M.2 largest key size 2280

ACPI version 5.0

Antenna included Yes

Audio chip Realtek ALC897

BIOS memory size 128

Clear CMOS jumper Yes

CPU fan connector Yes

Desktop Management Interface (DMI) version 2.7

ECC ?ompatibility ECC & Non-ECC

Front panel audio connector Yes

Front panel connector Yes

Lithium weight per battery 0.07

Maximum internal memory per slot 48

Motherboard chipset family Intel

Number of chassis fan connectors 3

Number of CPU fan connectors 1

Number of EPS power connectors (8-pin) 1

Number of HDDs supported 4

Number of M.2 (M) slots 2

Number of RGB LED pin headers 2

Number of SATA III connectors 4

Parallel connector Yes

Parallel processing technology support Not supported

PC health monitoring Fan/Temperature/Voltage/Water cooling

PCI Express x1 (Gen 3.x) slots 2

PCI Express x16 (Gen 4.x) slots 1

Product colour Dark brown

Product Net Weight 0.5

Products per shipping (inner) case 1

RGB LED pin header Yes

S/PDIF out connector Yes

Screws included Yes

Serial port headers 1

Summary GIGABYTE B760M D3HP WIFI6 Motherboard - Supports Intel Core 14th Gen CPUs, 4+1+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6, GbE LAN, USB 3.2 Gen1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H, Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

Supported memory clock speed (max) 5600

System Management BIOS (SMBIOS) version 2.7

Top Wi-Fi standard Wi-Fi 6 (802.11ax)

TPM connector Yes

Unit Calculated Volume 0.006195

Unit Calculated Weight 1.2

Units per Shipping Box 10

USB 3.2 Gen 1 (3.1 Gen 1) connectors 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3

Warranty period 3

WiFi-AP antenna jack 2

WLAN controller model Realtek RTL8851BE

Procesors

Compatible processor series Intel Celeron/Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen

Processor manufacturer Intel

Atmiņa

Atmiņas tips DDR5

Maximum internal memory 192

Memory channels Dual-channel

Memory slots type DIMM

Supported memory clock speeds 4400/4800/5200/5600

Supported memory types DDR5-SDRAM

Unbuffered memory Yes

Atmiņas ierīce

Number of storage drives supported 6

RAID levels 0/1/10/5

RAID support Yes

Supported storage drive interfaces M.2,PCI Express 4.0,SATA III

Supported storage drive types HDD & SSD

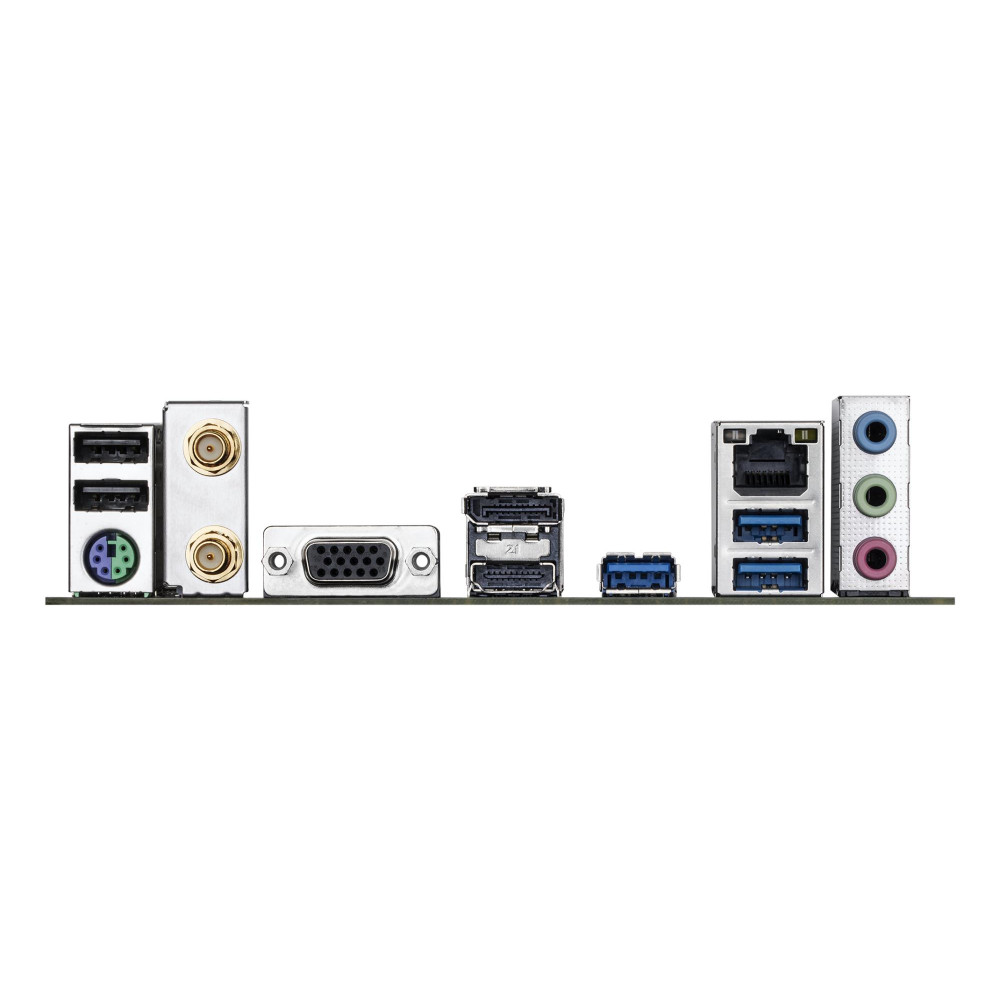

Porti

DisplayPort version 1.2

DisplayPorts quantity 1

HDMI portu daudzums 1

HDMI version 2.1

Headphone outputs 1

Microphone in Yes

USB 2.0 connectors 2

USB 2.0 ports quantity 2

VGA (D-Sub) portu daudzums 1

Pieslēgumi

Bluetooth Yes

Bluetooth versija 5.3

Ethernet interface type Gigabit Ethernet

Ethernet LAN Yes

Ethernet LAN (RJ-45) porti 1

LAN controller Realtek RTL8111H

Wi-Fi Yes

Wi-Fi standards Wi-Fi 6 (802.11ax)

Akumulators

Akumulatora elementu skaits 1

Baterijas tehnoloģija Lithium-Manganese Dioxide (LiMnO2)

Batteries included Yes

Battery type CR2032

Battery weight 3

Specifikācijas

ATX Power connector (24-pin) Yes

Audio output channels 7.1

Augstums 35

BIOS Type UEFI AMI

Bundled software Norton® Internet Security (OEM version)LAN bandwidth management software

Component for PC

Cooling type Passive

DirectX version 12.0

Dziļums 244

EPS power connector (8-pin) Yes

Form factor mATX

HDCP Yes

Line-in Yes

Maximum resolution 4096 x 2304

Mikroshēmu komplekts B760

Model B760M D3HP WIFI6

Motherboard chipset Intel B760 Express

Motherboard form factor micro ATX

Number of memory slots 4

Package depth 265

Package height 54

Package weight 1200

Package width 265

Platums 244

Power source type ATX

PS/2 ports quantity 1

Supported processor sockets LGA 1700

Weight 1110

Windows operating systems supported Windows 10 x64/Windows 11 x64
