Mainboard, GIGABYTE, Intel B860 Express, LGA1851, ATX, Memory DDR5, Memory slots 4, 3xPCI-Express 16x, 3xM.2, 1xHDMI, 1xDisplayPort, 1xAudio-In, 1xAudio-Out, 1xMicrophone, 4xUSB 2.0, 1xUSB 3.2, 1xUSB-C, 1xPS/2, 1xRJ45, B860EAGLEWIFI6E1.0
Populārs
Mainboard, GIGABYTE, Intel B860 Express, LGA1851, ATX, Memory DDR5, Memory slots 4, 3xPCI-Express 16x, 3xM.2, 1xHDMI, 1xDisplayPort, 1xAudio-In, 1xAudio-Out, 1xMicrophone, 4xUSB 2.0, 1xUSB 3.2, 1xUSB-C, 1xPS/2, 1xRJ45, B860EAGLEWIFI6E1.0
Mainboard, GIGABYTE, Intel B860 Express, LGA1851, ATX, Memory DDR5, Memory slots 4, 3xPCI-Express 16x, 3xM.2, 1xHDMI, 1xDisplayPort, 1xAudio-In, 1xAudio-Out, 1xMicrophone, 4xUSB 2.0, 1xUSB 3.2, 1xUSB-C, 1xPS/2, 1xRJ45, B860EAGLEWIFI6E1.0
Mainboard, GIGABYTE, Intel B860 Express, LGA1851, ATX, Memory DDR5, Memory slots 4, 3xPCI-Express 16x, 3xM.2, 1xHDMI, 1xDisplayPort, 1xAudio-In, 1xAudio-Out, 1xMicrophone, 4xUSB 2.0, 1xUSB 3.2, 1xUSB-C, 1xPS/2, 1xRJ45, B860EAGLEWIFI6E1.0
Mainboard, GIGABYTE, Intel B860 Express, LGA1851, ATX, Memory DDR5, Memory slots 4, 3xPCI-Express 16x, 3xM.2, 1xHDMI, 1xDisplayPort, 1xAudio-In, 1xAudio-Out, 1xMicrophone, 4xUSB 2.0, 1xUSB 3.2, 1xUSB-C, 1xPS/2, 1xRJ45, B860EAGLEWIFI6E1.0
Atsauksmes:
(0)
    Nosaukums:

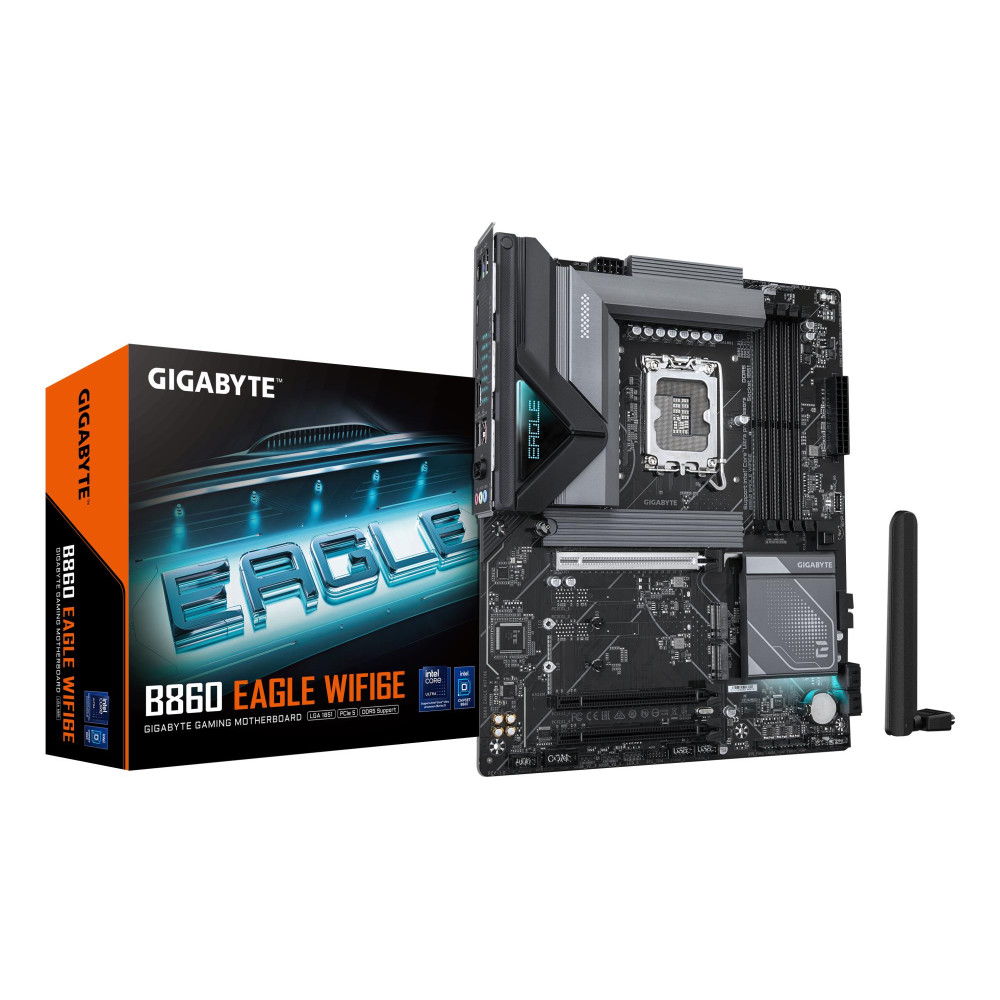

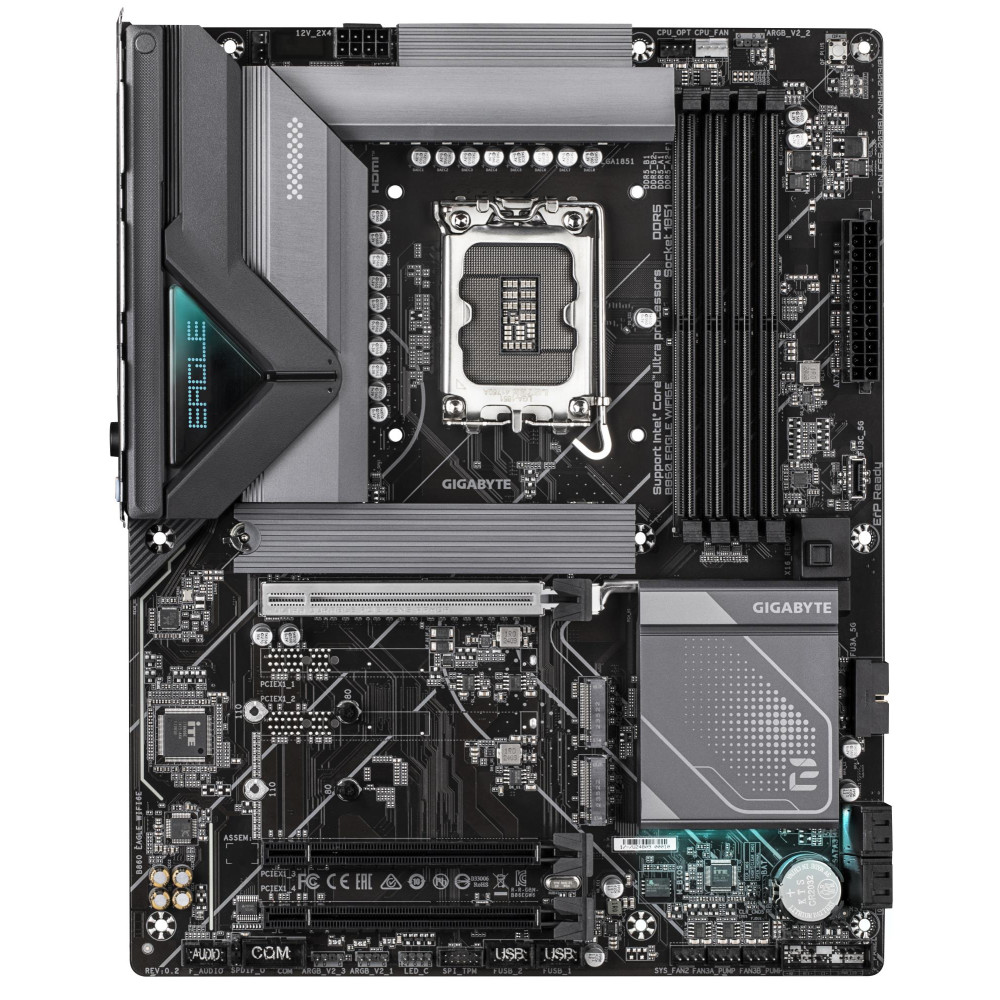

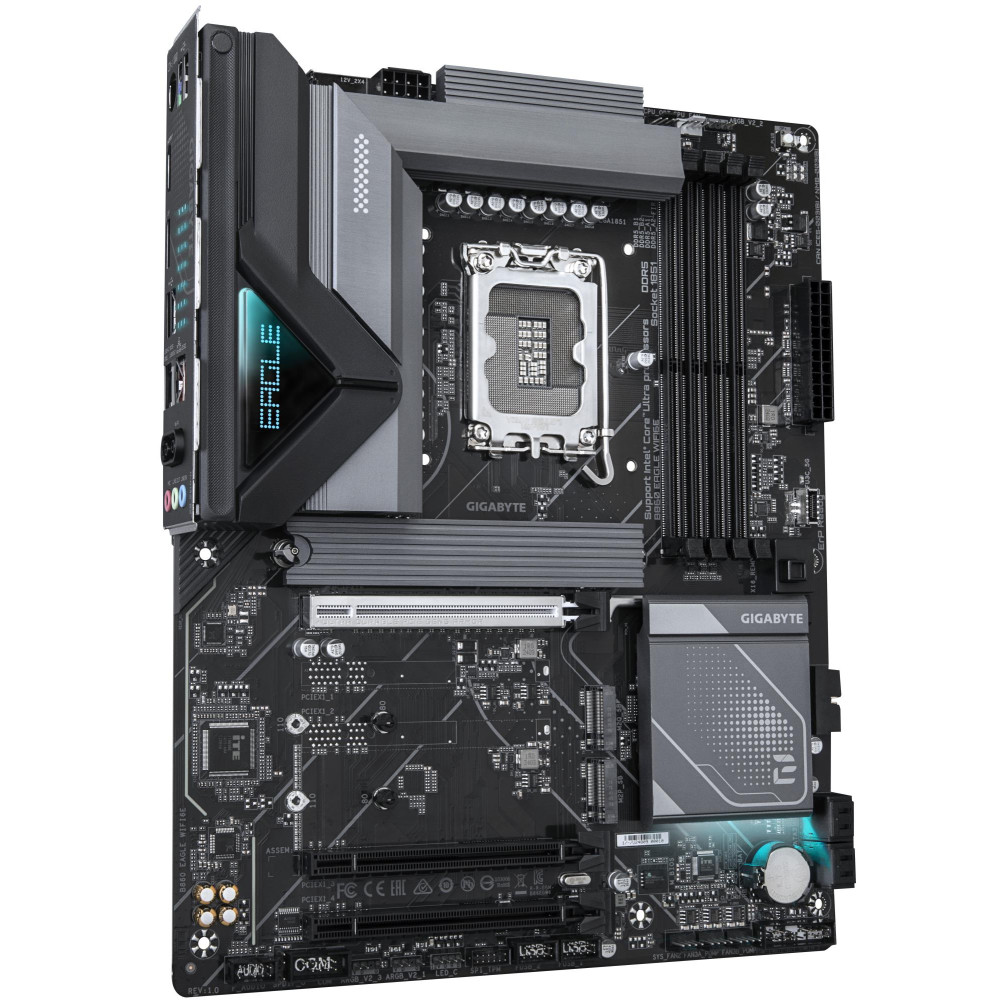

    Gigabyte B860 EAGLE WIFI6E 1.0

  • Ražotājs: Gigabyte
  • Modelis: B860 EAGLE WIFI6E 1.0
  • EAN: 4719331866822
  • Pieejamība: 4
185,28€
Bez PVN: 153,12€
  • Produktu apskats
  • Specifikācija
  • Atsauksmes (0)

Atslēgvārdi: Mainboards for Intel CPUs

Specifikācijas
Specifikācija
1st M.2 highest PCI Express generation 5.0
1st M.2 largest key size 25110
2nd M.2 highest PCI Express generation 4.0
2nd M.2 largest key size 25110
3rd M.2 highest PCI Express generation 4.0
3rd M.2 largest key size 25110
ACPI version 5.0
Antenna included Yes
Audio chip Realtek ALC897
BIOS memory size 256
Clear CMOS jumper Yes
CPU fan connector Yes
Desktop Management Interface (DMI) version 2.7
ECC ?ompatibility ECC & Non-ECC
Front panel audio connector Yes
Front panel connector Yes
Lithium weight per battery 0.07
Maximum internal memory per slot 64
Motherboard chipset family Intel
Number of chassis fan connectors 4
Number of CPU fan connectors 2
Number of EPS power connectors (8-pin) 1
Number of HDDs supported 4
Number of M.2 (M) slots 3
Number of RGB LED pin headers 4
Number of SATA III connectors 4
Number of water pump connectors 3
Parallel processing technology support Not supported
PC health monitoring Fan/Temperature/Voltage/Water cooling
PCI Express x16 (Gen 4.x) slots 2
PCI Express x16 (Gen 5.x) slots 1
Product colour Dark brown
Product Net Weight 1.5
Products per shipping (inner) case 1
RGB LED pin header Yes
S/PDIF out connector Yes
Screws included Yes
Serial port headers 1
Summary GIGABYTE B860 EAGLE WIFI6E Motherboard - Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2x2. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125D, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Supported memory clock speed (max) 9066
System Management BIOS (SMBIOS) version 2.7
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
TPM connector Yes
Unit Calculated Volume 0.01011
Unit Calculated Weight 1.93
Units per Shipping Box 8
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
USB 3.2 Gen 2x2 Type-C ports quantity 1
Warranty period 3
WiFi-AP antenna jack 2
WLAN controller model Intel Wi-Fi 6E AX211
Procesors
Compatible processor series Intel Core Ultra (Series 1)/Intel Core Ultra (Series 2)
Processor manufacturer Intel
Atmiņa
Atmiņas tips DDR5
Maximum internal memory 256
Memory channels Dual-channel
Memory slots type DIMM
Supported memory clock speeds 5600/6400/9066
Supported memory types DDR5-SDRAM
Unbuffered memory Yes
Atmiņas ierīce
Number of storage drives supported 7
RAID levels 0/1/10/5
RAID support Yes
Supported storage drive interfaces M.2,SATA III
Supported storage drive types HDD & SSD

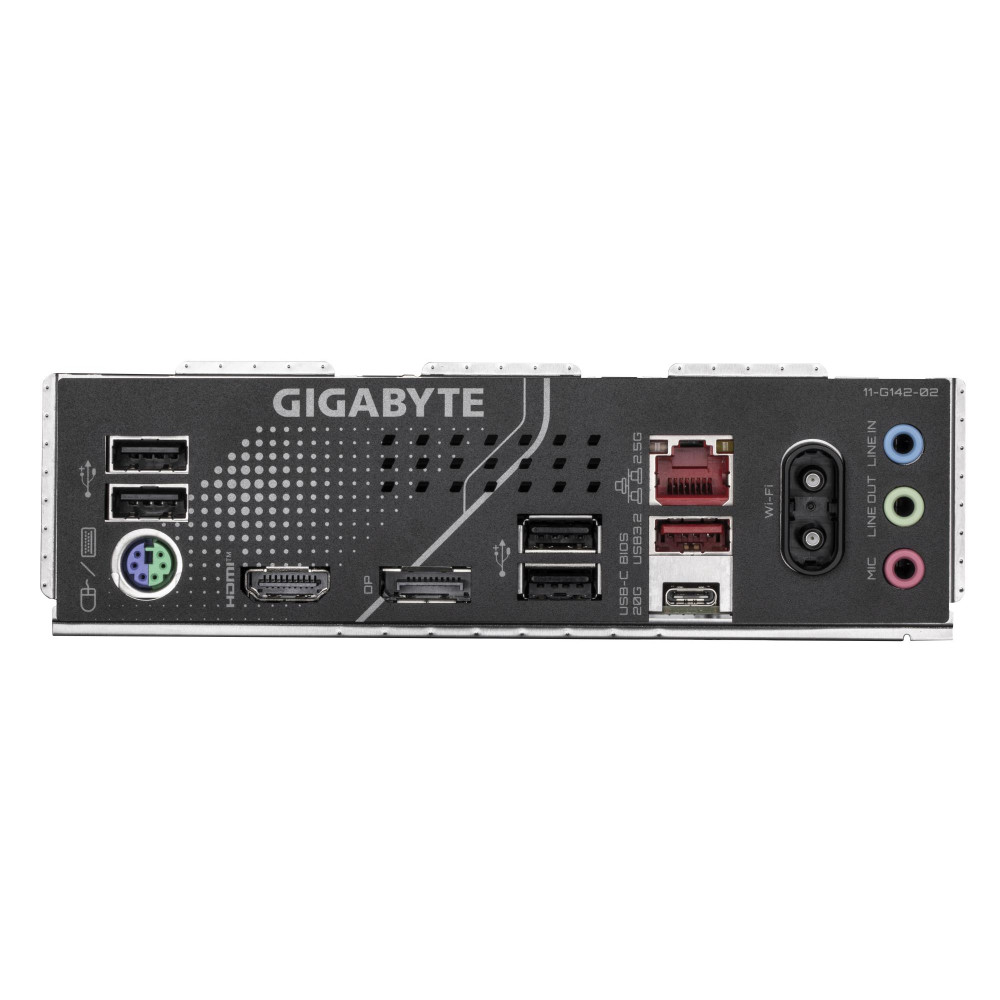

Porti
DisplayPort version 2.1
DisplayPorts quantity 1
HDMI portu daudzums 1
HDMI version 2.1
Headphone outputs 1
Microphone in Yes
USB 2.0 connectors 2
USB 2.0 ports quantity 4
Pieslēgumi
Bluetooth Yes
Bluetooth versija 5.3
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Ethernet LAN (RJ-45) porti 1
LAN controller Realtek RTL8125D
Wi-Fi Yes
Wi-Fi standards 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
Akumulators
Akumulatora elementu skaits 1
Baterijas tehnoloģija Lithium-Manganese Dioxide (LiMnO2)
Batteries included Yes
Battery type CR2032
Battery weight 3
Specifikācijas
ATX Power connector (24-pin) Yes
Audio output channels 7.1
Augstums 35
BIOS Type UEFI AMI
Bundled software Norton Internet Security (OEM version)LAN bandwidth management software
Component for PC
Cooling type Passive
Country of origin China
DirectX version 12.0
Dziļums 244
EPS power connector (8-pin) Yes
Form factor ATX
HDCP Yes
Line-in Yes
Maximum resolution 4096 x 2160
Mikroshēmu komplekts B860
Model B860 EAGLE WIFI6E
Motherboard chipset Intel B860
Motherboard form factor ATX
Number of memory slots 4
Package depth 270
Package height 80
Package weight 1922.5
Package width 335
Platums 305
Power source type ATX
PS/2 ports quantity 1
Supported processor sockets LGA 1851
Weight 1720
Windows operating systems supported Windows 10 x64/Windows 11 x64
