Mainboard, GIGABYTE, Intel B860, LGA 1851 (Socket V1), micro ATX, RAM DDR5-SDRAM, 2xSlots, 2xNumber of M.2 (M) slots, B860MEGEN5
Mainboard, GIGABYTE, Intel B860, LGA 1851 (Socket V1), micro ATX, RAM DDR5-SDRAM, 2xSlots, 2xNumber of M.2 (M) slots, B860MEGEN5
Mainboard, GIGABYTE, Intel B860, LGA 1851 (Socket V1), micro ATX, RAM DDR5-SDRAM, 2xSlots, 2xNumber of M.2 (M) slots, B860MEGEN5
Mainboard, GIGABYTE, Intel B860, LGA 1851 (Socket V1), micro ATX, RAM DDR5-SDRAM, 2xSlots, 2xNumber of M.2 (M) slots, B860MEGEN5
Mainboard, GIGABYTE, Intel B860, LGA 1851 (Socket V1), micro ATX, RAM DDR5-SDRAM, 2xSlots, 2xNumber of M.2 (M) slots, B860MEGEN5
Atsauksmes:
(0)
    Nosaukums:

    Gigabyte B860M E GEN5

  • Ražotājs: Gigabyte
  • Modelis: B860M E GEN5
  • EAN: 4719331879853
  • Pieejamība: 6
115,69€
Bez PVN: 95,61€
  • Produktu apskats
  • Specifikācija
  • Atsauksmes (0)

Atslēgvārdi: Mainboards for Intel CPUs

Specifikācijas
Galvenie parametri
Formas faktors mATX
Procesora ražotājs Intel
Operatīvās atmiņas tips DDR5
Mikroshēmojums B860
Procesora ligzda LGA1851
Atmiņas sloti 2
Maksimālā atmiņa 128 GB
M.2 sloti 2
SATA porti 4
Wi-Fi modulis Nē
LAN ātrums 1 Gbit/s
Specification
Name MB B860 S1851 MATX/B860M E GEN5 GIGABYTE
Specifikācija
1st M.2 highest PCI Express generation 4.0
1st M.2 largest key size 2280
2nd M.2 highest PCI Express generation 4.0
2nd M.2 largest key size 2280
ACPI version 5.0
Audio chip Realtek ALC897
BIOS memory size 256
Clear CMOS jumper Yes
CPU fan connector Yes
Desktop Management Interface (DMI) version 2.7
ECC сompatibility ECC & Non-ECC
Front panel audio connector Yes
Front panel connector Yes
HDCP version 2.3
Lithium weight per battery 0.07
Maximum internal memory per slot 64
Motherboard chipset family Intel
Number of chassis fan connectors 1
Number of CPU fan connectors 2
Number of EPS power connectors (8-pin) 1
Number of HDDs supported 4
Number of M.2 (M) slots 2
Number of RGB LED pin headers 2
Number of SATA III connectors 4
Number of water pump connectors 2
Parallel processing technology support Not supported
PC health monitoring Fan/Temperature/Voltage/Water cooling
PCI Express x1 (Gen 3.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
Product colour Dark brown
Products per shipping (inner) case 1
RGB LED pin header Yes
S/PDIF out connector Yes
Screws included Yes
Serial port headers 1
Summary GIGABYTE B860M E GEN5 Motherboard - Intel Core Ultra Series CPUs, 4+1+2 Phases VRM, up to 8800MHz DDR5 (O.C.), 2xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
Supported memory clock speed (max) 8800
System Management BIOS (SMBIOS) version 2.7
TPM connector Yes
Unit Calculated Volume 0.004794
Unit Depth 26.5
Unit Height 5.5
Unit Width 27
Units per Shipping Box 10
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Warranty period 3
Procesors
Compatible processor series Intel Core Ultra (Series 2)
Procesoru ligzda LGA 1851 (Socket V1)
Processor manufacturer Intel
Atmiņa
Maximum internal memory 128
Memory channels Dual-channel
Memory slots type DIMM
Supported memory clock speeds 5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800
Supported memory types DDR5-SDRAM
Unbuffered memory Yes
Atmiņas ierīce
Number of storage drives supported 6
RAID levels 0/1/10/5
RAID support Yes
Supported storage drive interfaces M.2,PCI Express 4.0,SATA III
Supported storage drive types HDD & SSD

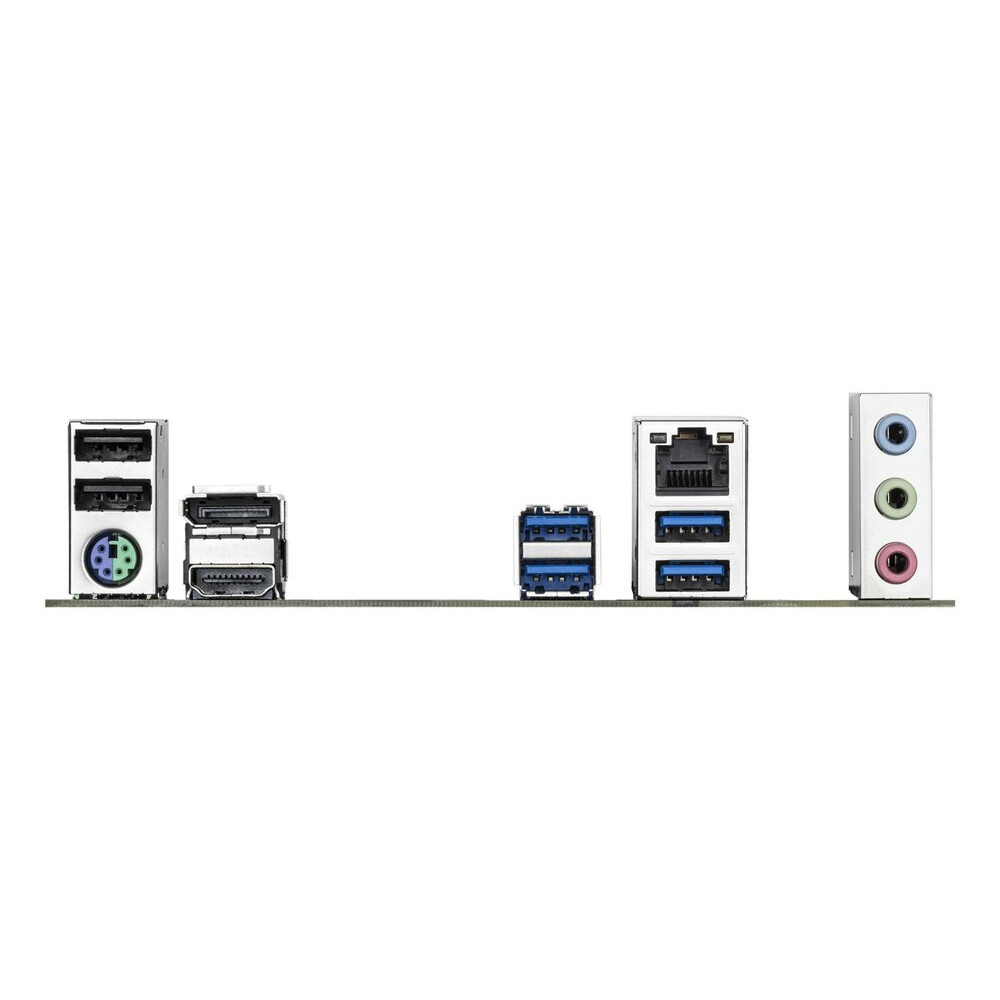

Porti
DisplayPort version 2.1
DisplayPorts quantity 1
HDMI portu daudzums 1
HDMI version 2.1
Headphone outputs 1
Microphone in Yes
USB 2.0 connectors 2
USB 2.0 ports quantity 2
Pieslēgumi
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes
Ethernet LAN (RJ-45) porti 1
LAN controller Realtek RTL8111H
Wi-Fi No
Akumulators
Akumulatora elementu skaits 1
Baterijas tehnoloģija Lithium-Manganese Dioxide (LiMnO2)
Batteries included Yes
Battery capacity 220
Battery type CR2032
Battery weight 3
Specifikācijas
ATX Power connector (24-pin) Yes
Audio output channels 7.1
Augstums 35
BIOS Type UEFI AMI
Bundled software Norton®Internet Security (OEM version)
Component for PC
Cooling type Passive
Country of origin China
DirectX version 12.0
Dziļums 215
EPS power connector (8-pin) Yes
HDCP Yes
Line-in Yes
Maximum resolution 4096 x 2160
Motherboard chipset Intel B860
Motherboard form factor micro ATX
Number of memory slots 2
Package depth 265
Package height 54
Package weight 988
Package width 265
Platums 244
Power source type ATX
PS/2 ports quantity 1
Supported processor sockets LGA 1851
Weight 910
Windows operating systems supported Windows 10 x64/Windows 11 x64
Atsauksmes (0)

Šai precei atsauksmju nav.
