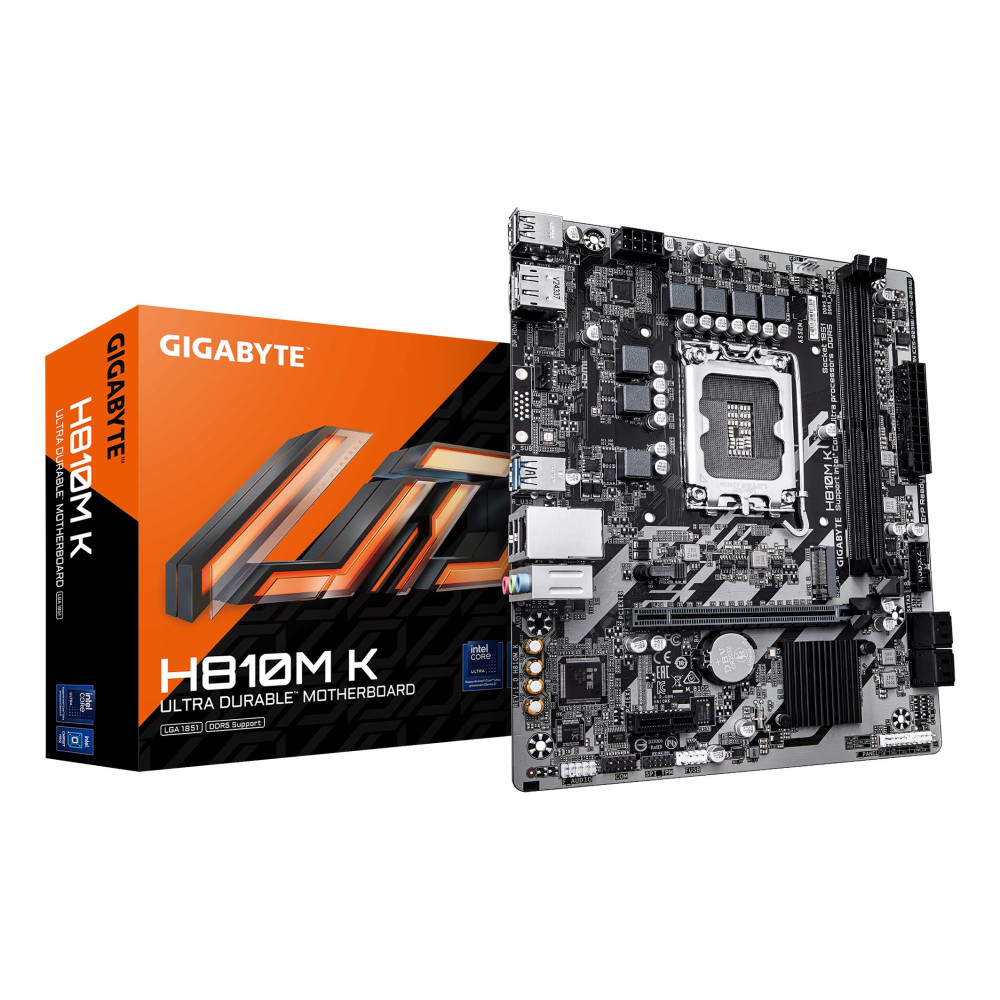

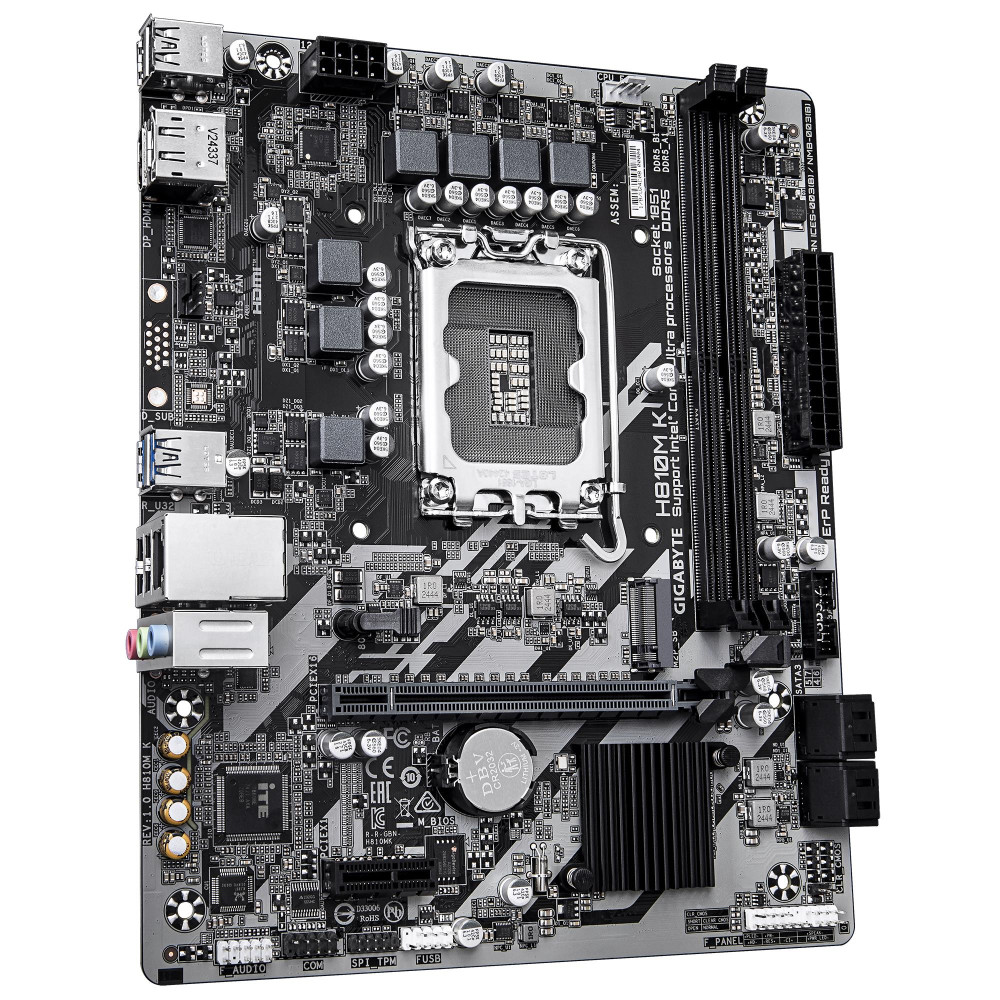

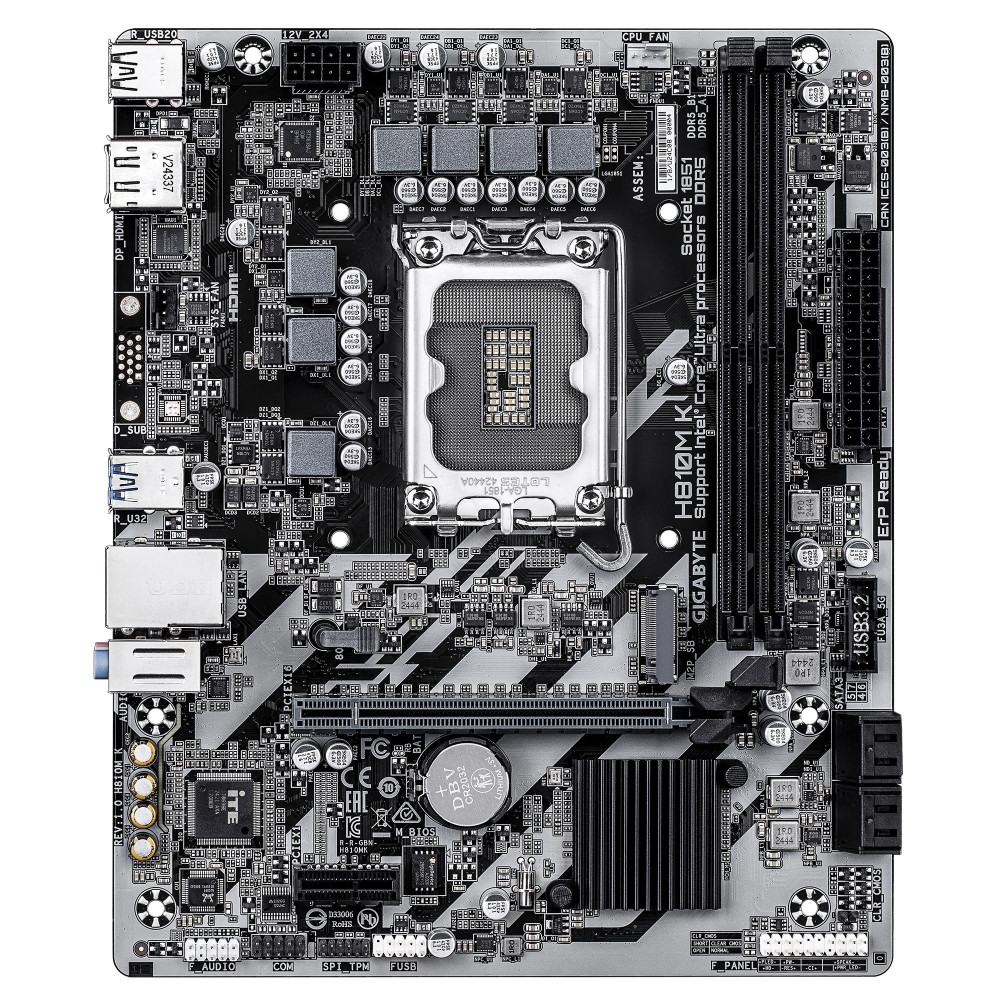

Mainboard, GIGABYTE, Intel H810, LGA1851, Micro-ATX, Memory DDR5, Memory slots 2, H810MK1.0
- Ražotājs: Gigabyte
- Modelis: H810M K 1.0
- EAN: 4719331868697
- Pieejamība: 15
Nosaukums:
Gigabyte H810M K 1.0
90,39€
Bez PVN: 74,70€
- Produktu apskats
- Specifikācija
- Atsauksmes (0)
Specifikācijas
Specifikācija
1st M.2 highest PCI Express generation
4.0
1st M.2 largest key size
2280
ACPI version
5.0
Audio chip
Realtek ALC897
BIOS memory size
256
Clear CMOS jumper
Yes
CPU fan connector
Yes
Desktop Management Interface (DMI) version
2.7
ECC сompatibility
ECC & Non-ECC
Front panel audio connector
Yes
Front panel connector
Yes
Lithium weight per battery
0.07
Maximum internal memory per slot
64
Motherboard chipset family
Intel
Number of chassis fan connectors
1
Number of CPU fan connectors
1
Number of EPS power connectors (8-pin)
1
Number of HDDs supported
4
Number of M.2 (M) slots
1
Number of SATA III connectors
4
Parallel processing technology support
Not supported
PC health monitoring
Fan/Temperature/Voltage/Water cooling
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Product colour
Dark brown
Products per shipping (inner) case
1
Screws included
Yes
Serial port headers
1
Summary
GIGABYTE H810M K Motherboard - Intel Core Ultra (Series 2) CPUs, 3+1+2 Phases VRM, up to 6400MHz DDR5, 1xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
Supported memory clock speed (max)
6400
System Management BIOS (SMBIOS) version
2.7
TPM connector
Yes
Unit Calculated Volume
0.003425
Unit Calculated Weight
0.687
Units per Shipping Box
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Warranty period
3
Procesors
Compatible processor series
Intel Core Ultra (Series 2)
Processor manufacturer
Intel
Atmiņa
Atmiņas tips
DDR5
Maximum internal memory
128
Memory channels
Dual-channel
Memory slots type
DIMM
Supported memory clock speeds
5600/6400
Supported memory types
DDR5-SDRAM
Unbuffered memory
Yes
Atmiņas ierīce
Number of storage drives supported
5
RAID levels
0/1/10/5
RAID support
Yes
Supported storage drive interfaces
M.2,PCI Express 4.0,SATA III
Supported storage drive types
HDD & SSD

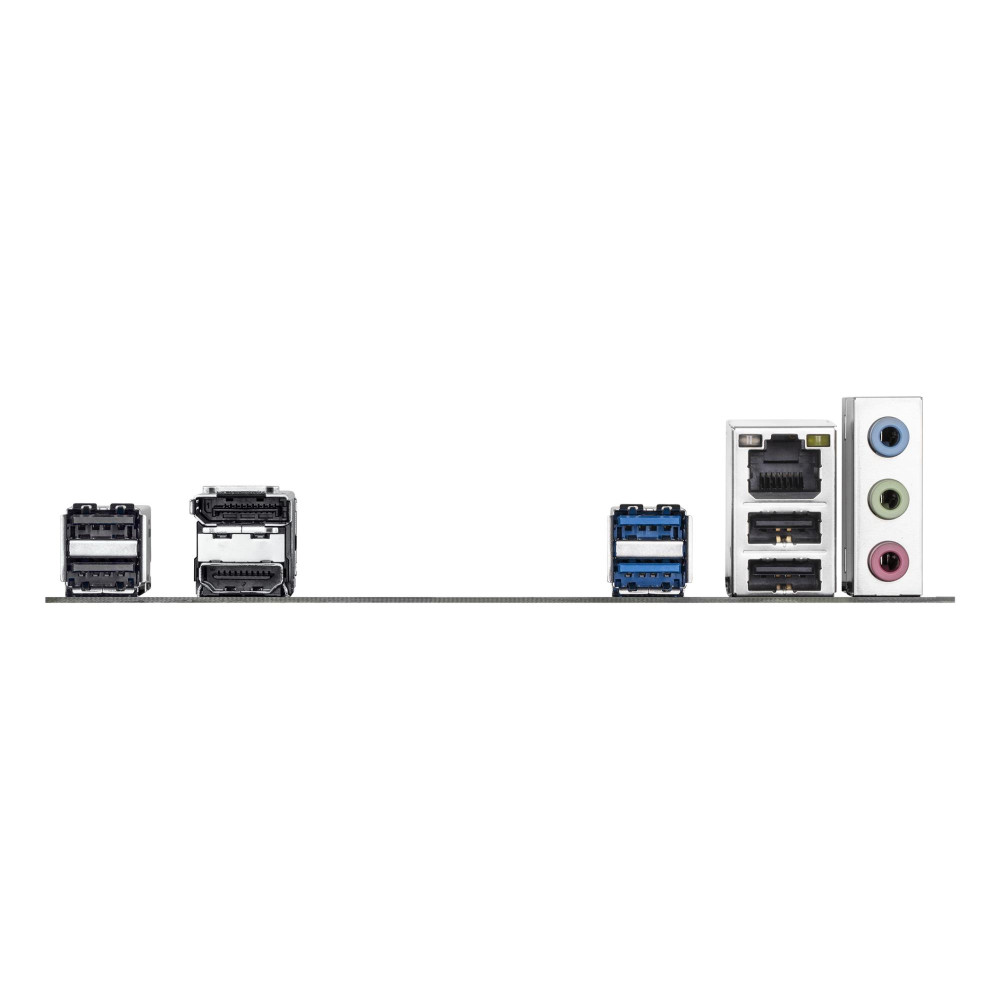

Porti
DisplayPort version
2.1
DisplayPorts quantity
1
HDMI portu daudzums
1
HDMI version
2.1
Headphone outputs
1
Microphone in
Yes
USB 2.0 connectors
1
USB 2.0 ports quantity
4
Pieslēgumi
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) porti
1
LAN controller
Realtek RTL8111H
Wi-Fi
No
Akumulators
Akumulatora elementu skaits
1
Baterijas tehnoloģija
Lithium-Manganese Dioxide (LiMnO2)
Batteries included
Yes
Battery type
CR2032
Battery weight
3
Specifikācijas
ATX Power connector (24-pin)
Yes
Audio output channels
7.1
Augstums
35
BIOS Type
UEFI AMI
Bundled software
Norton® Internet Security (OEM version)LAN bandwidth management software
Component for
PC
Cooling type
Passive
Country of origin
China
DirectX version
12.0
Dziļums
185
EPS power connector (8-pin)
Yes
Form factor
mATX
HDCP
Yes
Line-in
Yes
Maximum resolution
4096 x 2160
Mikroshēmu komplekts
H810
Model
H810M K
Motherboard chipset
Intel H810
Motherboard form factor
micro ATX
Number of memory slots
2
Package depth
265
Package height
54
Package weight
766.6
Package width
265
Platums
226
Power source type
ATX
Supported processor sockets
LGA 1851
Weight
688
Windows operating systems supported
Windows 10 x64/Windows 11 x64
