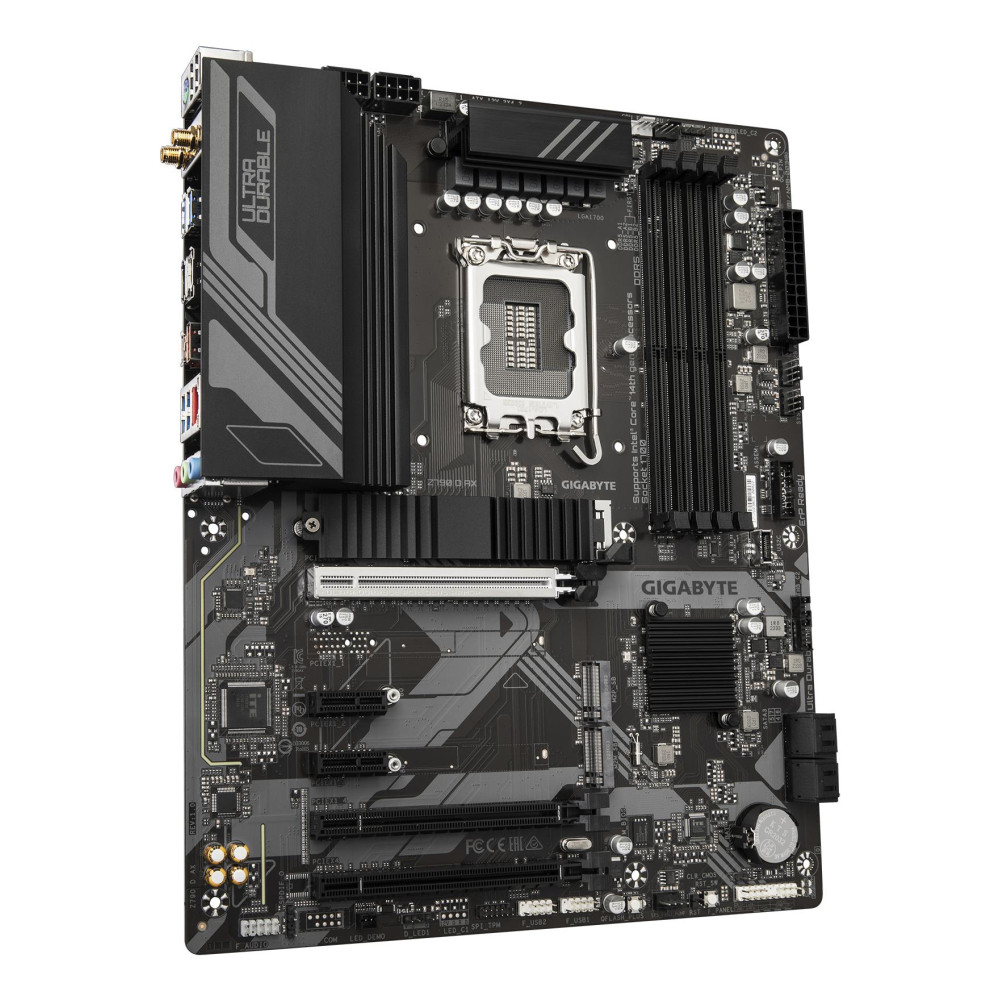

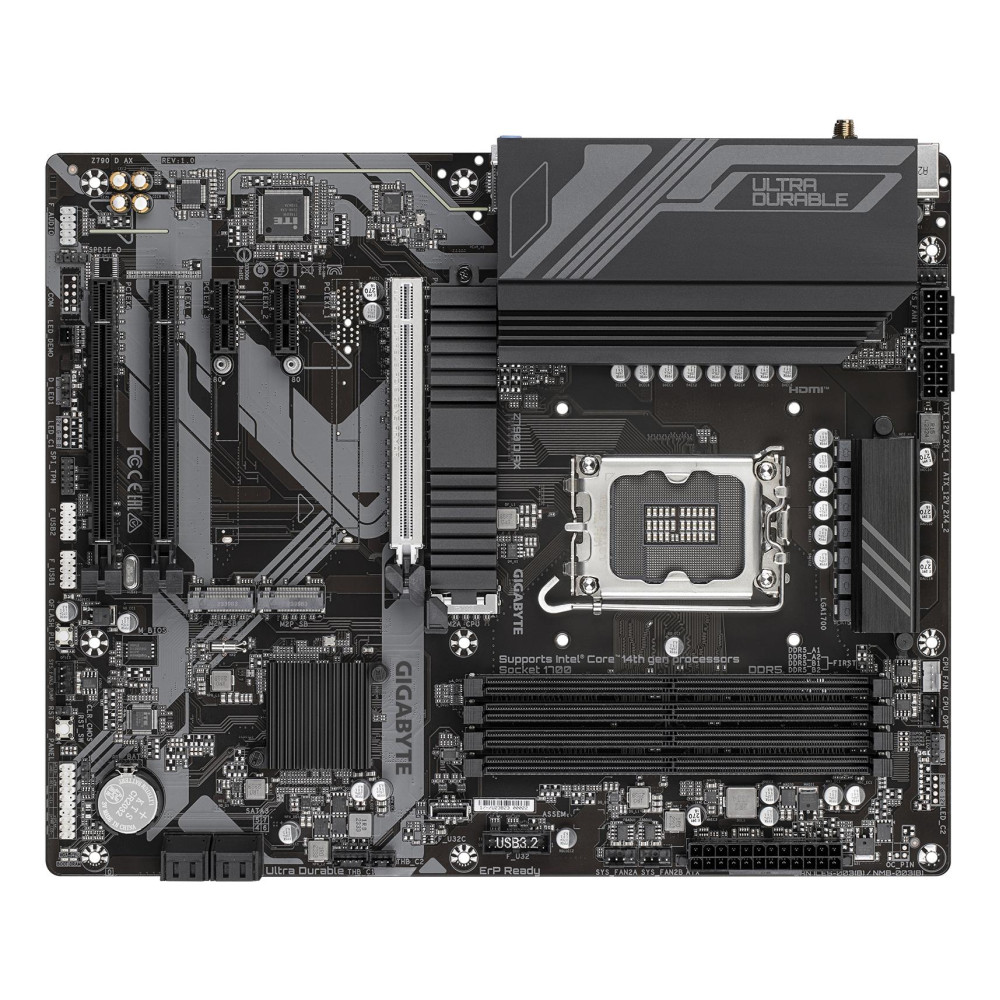

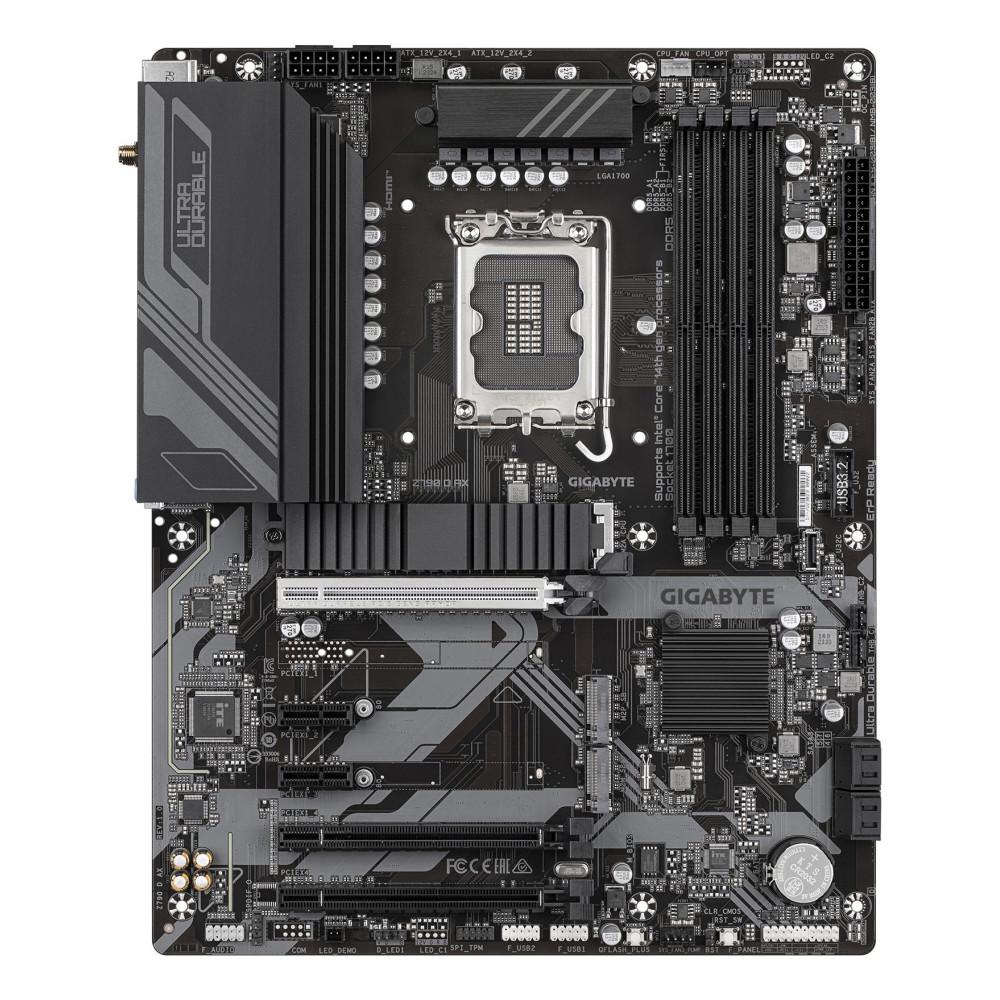

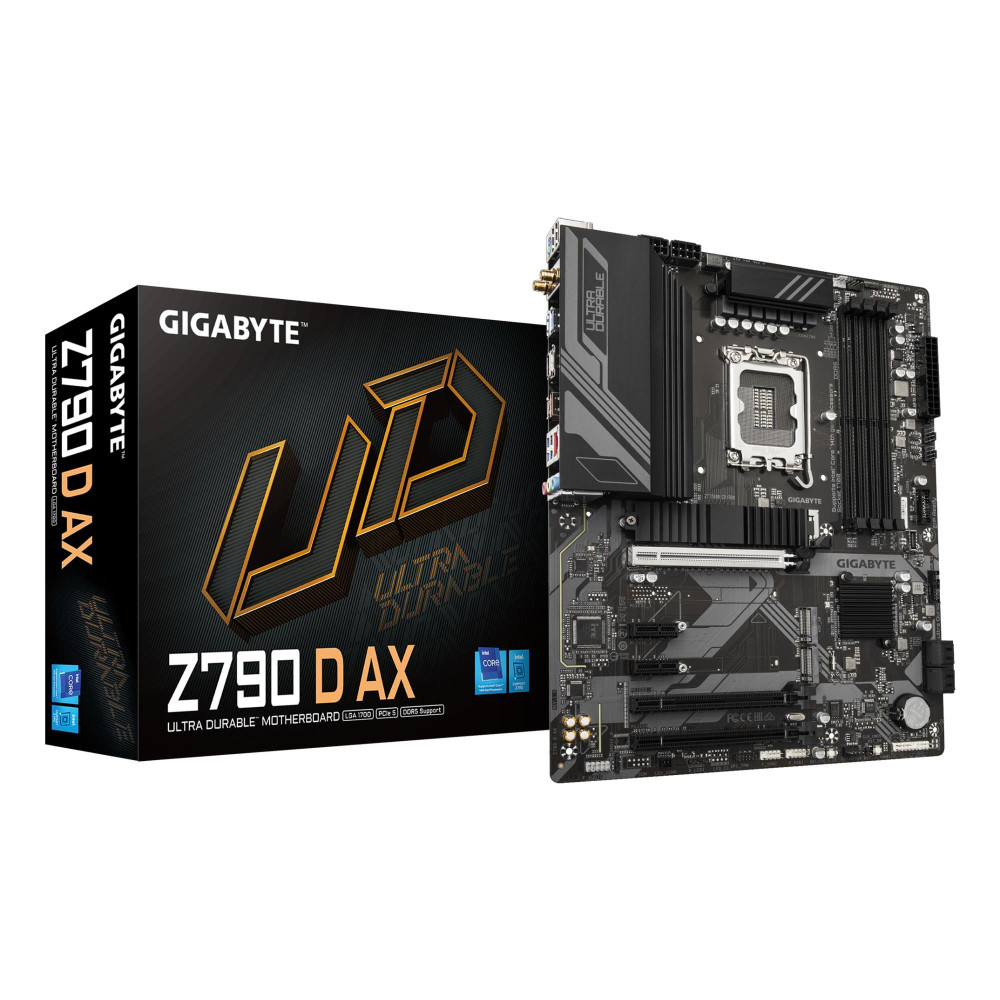

Mainboard, GIGABYTE, Intel Z790, LGA1700, ATX, Memory DDR5, Memory slots 4, Z790DAX1.1
Populārs
Mainboard, GIGABYTE, Intel Z790, LGA1700, ATX, Memory DDR5, Memory slots 4, Z790DAX1.1
Mainboard, GIGABYTE, Intel Z790, LGA1700, ATX, Memory DDR5, Memory slots 4, Z790DAX1.1
Mainboard, GIGABYTE, Intel Z790, LGA1700, ATX, Memory DDR5, Memory slots 4, Z790DAX1.1
Mainboard, GIGABYTE, Intel Z790, LGA1700, ATX, Memory DDR5, Memory slots 4, Z790DAX1.1
Mainboard, GIGABYTE, Intel Z790, LGA1700, ATX, Memory DDR5, Memory slots 4, Z790DAX1.1
Atsauksmes:
(0)
    Nosaukums:

    Gigabyte Z790 D AX 1.1

  • Ražotājs: Gigabyte
  • Modelis: Z790 D AX 1.1
  • EAN: 4719331860592
  • Pieejamība: 7
185,28€
Bez PVN: 153,12€
  • Produktu apskats
  • Specifikācija
  • Atsauksmes (0)

Atslēgvārdi: Mainboards for Intel CPUs

Specifikācijas
Specifikācija
12V power connector Yes
ACPI version 5.0
Antenna included Yes
Audio chip Realtek ALC897
BIOS memory size 256
Clear CMOS button Yes
Clear CMOS jumper Yes
CPU fan connector Yes
Desktop Management Interface (DMI) version 2.7
Discrete graphics support Yes
ECC ?ompatibility ECC & Non-ECC
Front panel audio connector Yes
Front panel connector Yes
Lithium weight per battery 0.07
Maximum number of SMP processors 1
Motherboard chipset family Intel
Number of EATX power connectors 2
Number of HDDs supported 4
Number of M.2 (M) slots 3
Number of SATA III connectors 4
Parallel processing technology support Not supported
PC health monitoring Fan/Temperature/Voltage/Water cooling
PCI Express x1 (Gen 3.x) slots 2
PCI Express x16 (Gen 3.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
Product colour Brown
Product Net Weight 1.4
Products per shipping (inner) case 1
RGB LED pin header Yes
S/PDIF out port Yes
Summary GIGABYTE Z790 D AX Motherboard - Supports Intel Core 14th Gen CPUs, 12+1+1 Phases Digital VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C
Supported memory clock speed (max) 7600
System Management BIOS (SMBIOS) version 2.7
Thunderbolt headers 2
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Total number of SATA connectors 4
TPM connector Yes
Unit Calculated Volume 0.0099253
Unit Calculated Weight 1.85625
Units per Shipping Box 8
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
USB 3.2 Gen 2x2 Type-C ports quantity 1
Warranty period 3
WiFi-AP antenna jack 2
WLAN controller model Intel Wi-Fi 6E AX211
Procesors
Compatible processor series Intel Celeron/Intel Core i3/Intel Core i5/Intel Core i7/Intel Core i9/Intel Pentium Gold
Processor manufacturer Intel
Atmiņa
Atmiņas tips DDR5
Maximum internal memory 192
Maximum internal memory supported by processor 192
Memory channels Dual-channel
Memory slots type DIMM
Supported memory clock speeds 4400/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600
Supported memory module capacities 12GB/16GB/1GB/2GB/32GB/48GB/4GB/8GB
Supported memory types DDR5-SDRAM
Unbuffered memory Yes
Atmiņas ierīce
Number of storage drives supported 7
RAID levels 0/1/10/5
RAID support Yes
Supported storage drive interfaces M.2,SATA III
Supported storage drive types HDD & SSD

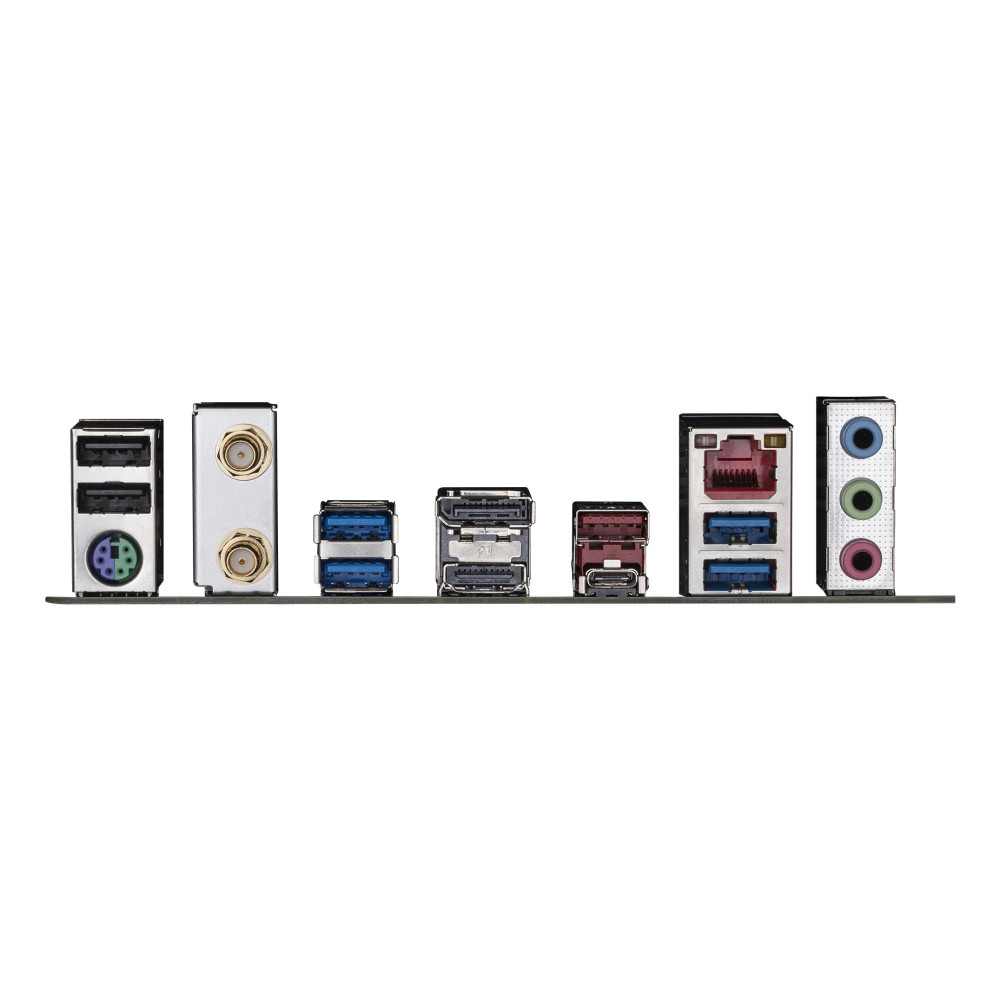

Porti
DisplayPort version 1.2
DisplayPorts quantity 1
HDMI portu daudzums 1
HDMI version 2.1
Headphone outputs 1
Microphone in Yes
USB 2.0 connectors 2
USB 2.0 ports quantity 2
USB connector type USB Type-A/USB Type-C
Pieslēgumi
Bluetooth Yes
Bluetooth versija 5.3
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Ethernet LAN (RJ-45) porti 1
LAN controller Realtek RTL8125
Wi-Fi Yes
Wi-Fi standards 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
Akumulators
Akumulatora elementu skaits 1
Baterijas tehnoloģija Lithium-Manganese Dioxide (LiMnO2)
Batteries included Yes
Battery type CR2032
Battery weight 3
Specifikācijas
ATX Power connector (24-pin) Yes
Audio output channels 7.1
Augstums 35
BIOS Type UEFI AMI
Bundled software Norton® Internet Security (OEM version)LAN bandwidth management software
Component for PC
Country of origin China
DirectX version 12.0
Dziļums 244
EPS power connector (8-pin) Yes
Form factor ATX
HDCP Yes
Komplektā kabeļi SATA
Maximum resolution 4096 x 2304
Mikroshēmu komplekts Z790
Model Z790 D AX (rev. 1.0)
Motherboard chipset Intel Z790 Express
Motherboard form factor ATX
Number of memory slots 4
Package depth 270
Package height 80
Package weight 1842.5
Package width 335
Platums 305
Power source type ATX
PS/2 ports quantity 1
Supported processor sockets LGA 1700
Windows operating systems supported Windows 10 x64/Windows 11 x64
Atsauksmes (0)

Šai precei atsauksmju nav.
