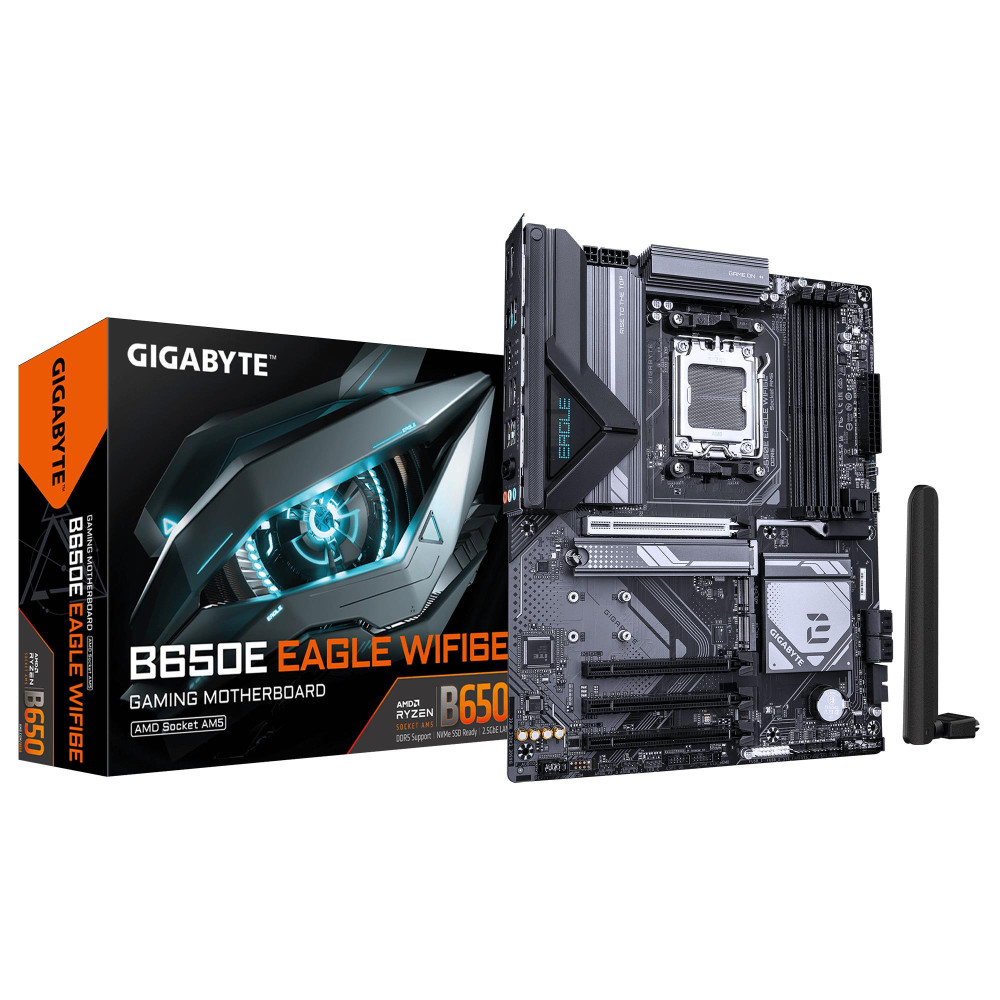

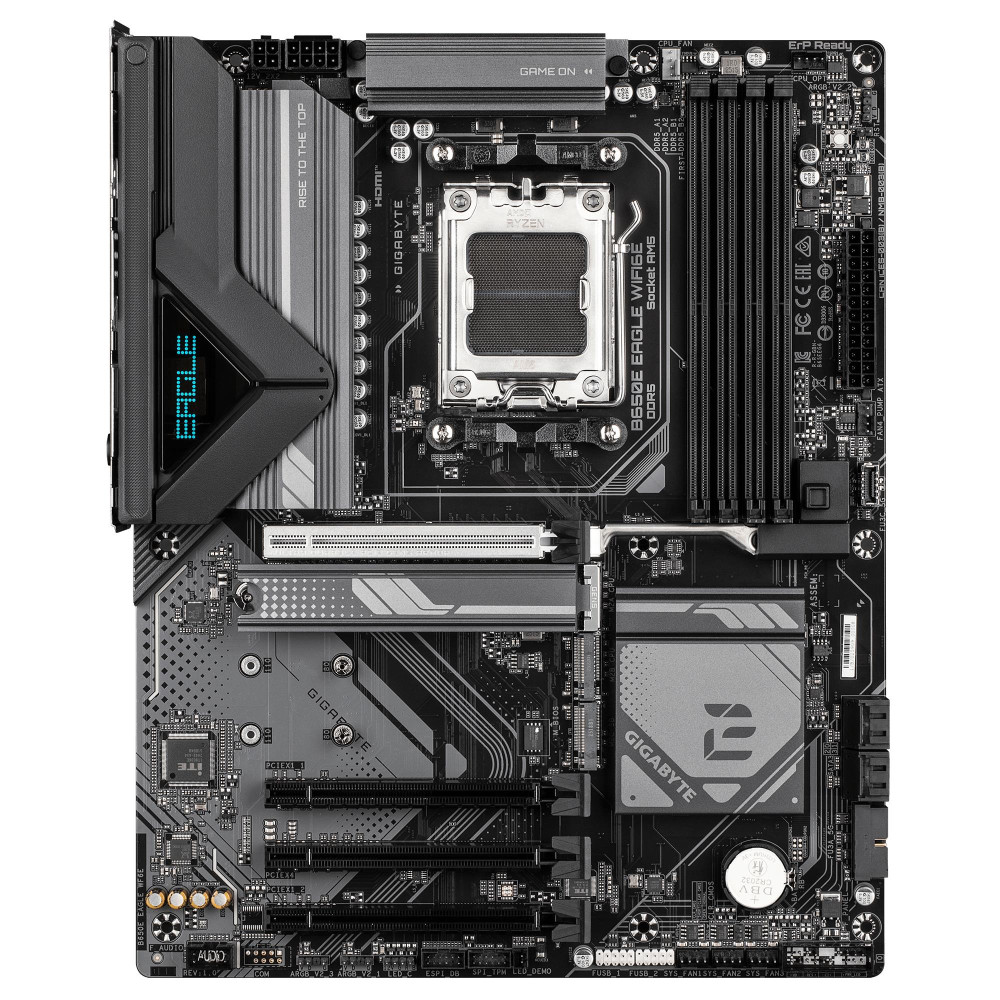

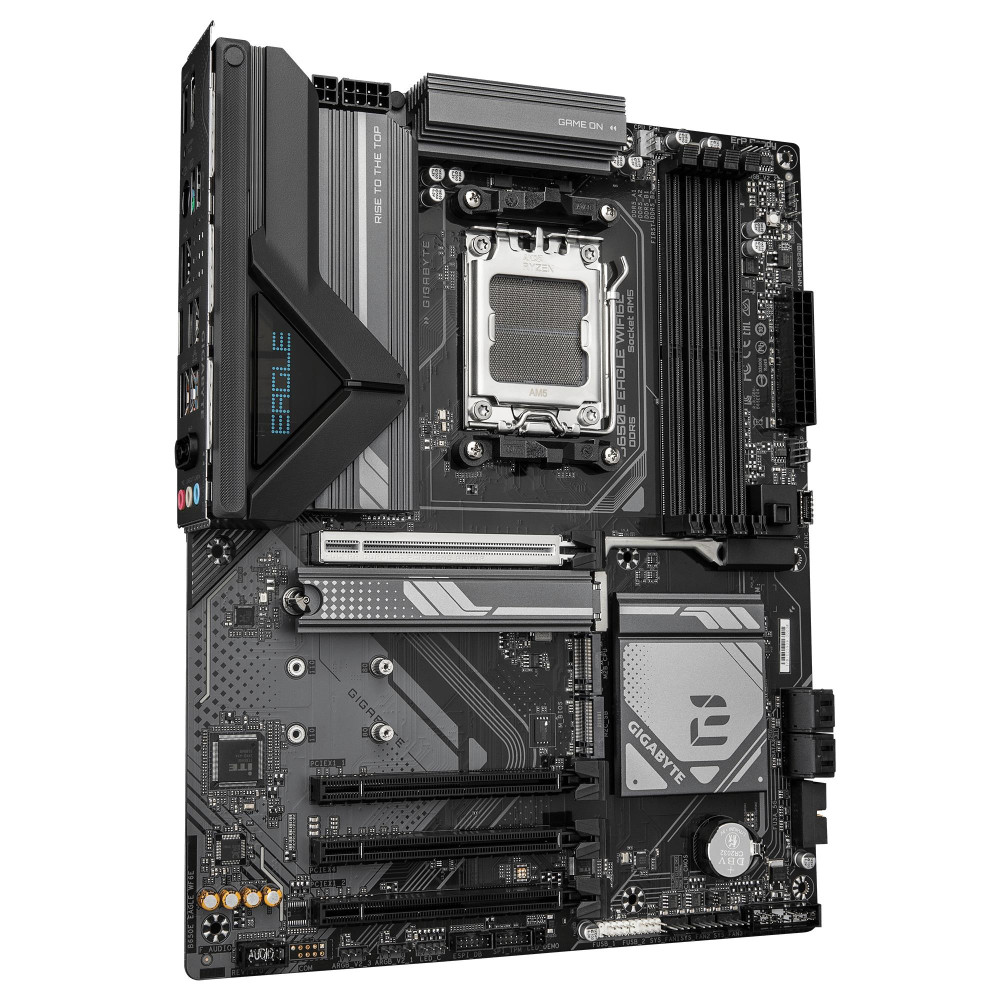

Mainboard, GIGABYTE, SAM5, ATX, Memory DDR5, Memory slots 4, B650EEAGLEWF6E1.0
- Ražotājs: Gigabyte
- Modelis: B650E EAGLE WF6E 1.0
- EAN: 4719331877798
- Pieejamība: 29
Nosaukums:
Gigabyte B650E EAGLE WF6E 1.0
184,02€
Bez PVN: 152,08€
- Produktu apskats
- Specifikācija
- Atsauksmes (0)
Specifikācijas
Specifikācija
12V power connector
Yes
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
ACPI version
5.0
Antenna included
Yes
Audio chip
Realtek ALC897
BIOS memory size
256
Clear CMOS jumper
Yes
CPU fan connector
Yes
Desktop Management Interface (DMI) version
2.7
ECC сompatibility
Non-ECC
Front panel audio connector
Yes
Front panel connector
Yes
HDCP version
2.3
Lithium weight per battery
0.07
Maximum internal memory per slot
64
Motherboard chipset family
AMD
Number of chassis fan connectors
4
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
1
Number of HDDs supported
4
Number of M.2 (M) slots
3
Number of RGB LED pin headers
4
Number of SATA III connectors
4
Number of water pump connectors
2
Parallel processing technology support
Not supported
PC health monitoring
Fan/Temperature/Voltage/Water cooling
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Product colour
Dark brown
Products per shipping (inner) case
1
RGB LED pin header
Yes
Screws included
Yes
Summary
GIGABYTE B650E EAGLE WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+2 Phases VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Supported memory clock speed (max)
8200
System Management BIOS (SMBIOS) version
2.7
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
TPM connector
Yes
Unit Calculated Volume
0.007344
Unit Calculated Weight
1.66
Units per Shipping Box
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Warranty period
3
WiFi-AP antenna jack
2
WLAN controller model
MediaTek MT7902
Procesors
Compatible processor series
AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Procesoru ligzda
AM5
Processor manufacturer
AMD
Atmiņa
Atmiņas tips
DDR5
Maximum internal memory
256
Memory channels
Dual-channel
Memory slots type
DIMM
Supported memory clock speeds
4800/5200/5600/6000/6200/6400/6600/6800/7200/7600/7800/7900/7950/8000/8200
Supported memory types
DDR5-SDRAM
Unbuffered memory
Yes
Atmiņas ierīce
Number of storage drives supported
7
RAID levels
0/1/10/5
RAID support
Yes
Supported storage drive interfaces
M.2,SATA III
Supported storage drive types
HDD & SSD

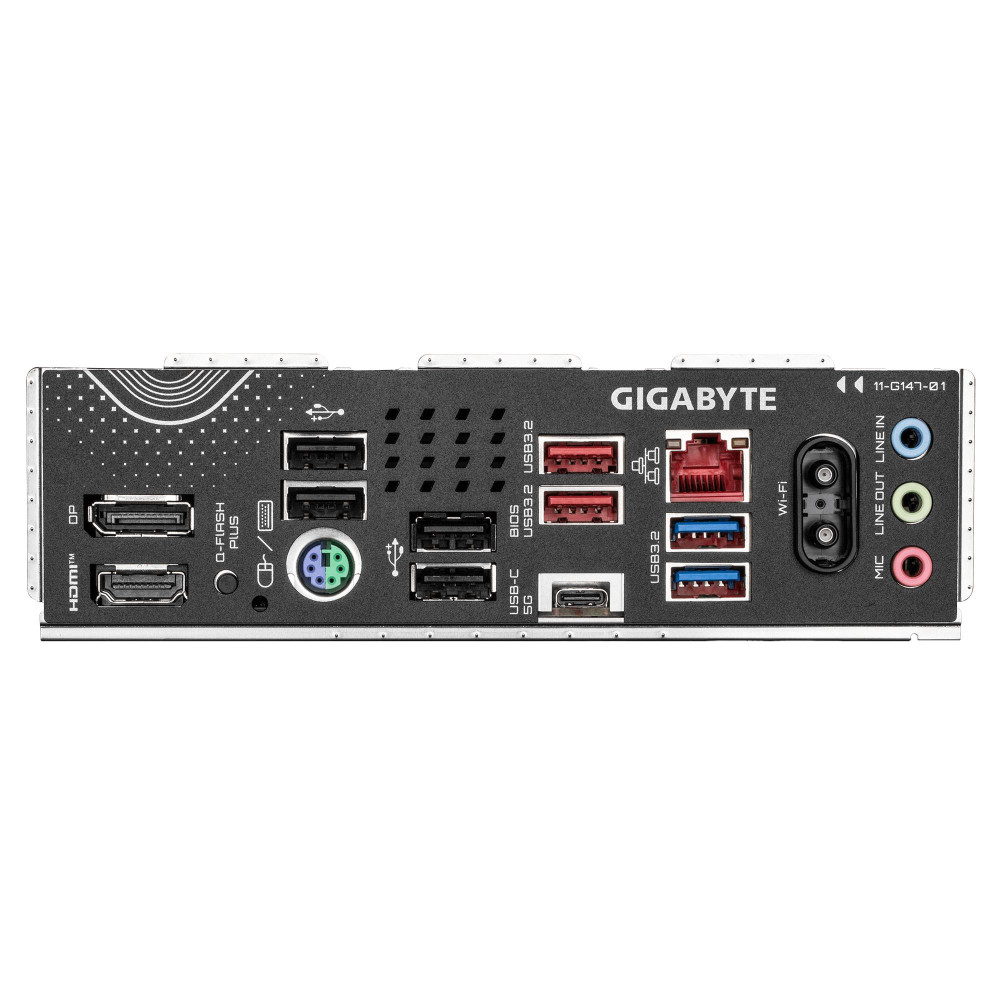

Porti
DisplayPort version
1.4
HDMI portu daudzums
1
HDMI version
2.1
Headphone outputs
1
Microphone in
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Pieslēgumi
Bluetooth
Yes
Bluetooth versija
5.3
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) porti
1
LAN controller
Realtek RTL8125
Wi-Fi
Yes
Wi-Fi standards
802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
Akumulators
Akumulatora elementu skaits
1
Baterijas tehnoloģija
Lithium-Manganese Dioxide (LiMnO2)
Batteries included
Yes
Battery type
CR2032
Battery weight
3
Specifikācijas
ATX Power connector (24-pin)
Yes
Audio output channels
7.1
Augstums
35
BIOS Type
UEFI AMI
Bundled software
Norton® Internet Security (OEM version)
Component for
PC
Cooling type
Passive
Country of origin
China
DirectX version
12.0
Dziļums
244
EPS power connector (8-pin)
Yes
Form factor
ATX
HDCP
Yes
Line-in
Yes
Maximum resolution
4096 x 2160
Mikroshēmu komplekts
B650
Model
B650E EAGLE WIFI6E
Motherboard chipset
AMD B650
Motherboard form factor
ATX
Number of memory slots
4
Package depth
270
Package height
80
Package weight
1890
Package width
335
Peripheral (Molex) power connectors (4-pin)
1
Platums
305
Power source type
ATX
PS/2 ports quantity
1
Supported processor sockets
Socket AM5
Weight
1680
Windows operating systems supported
Windows 10 x64/Windows 11 x64
