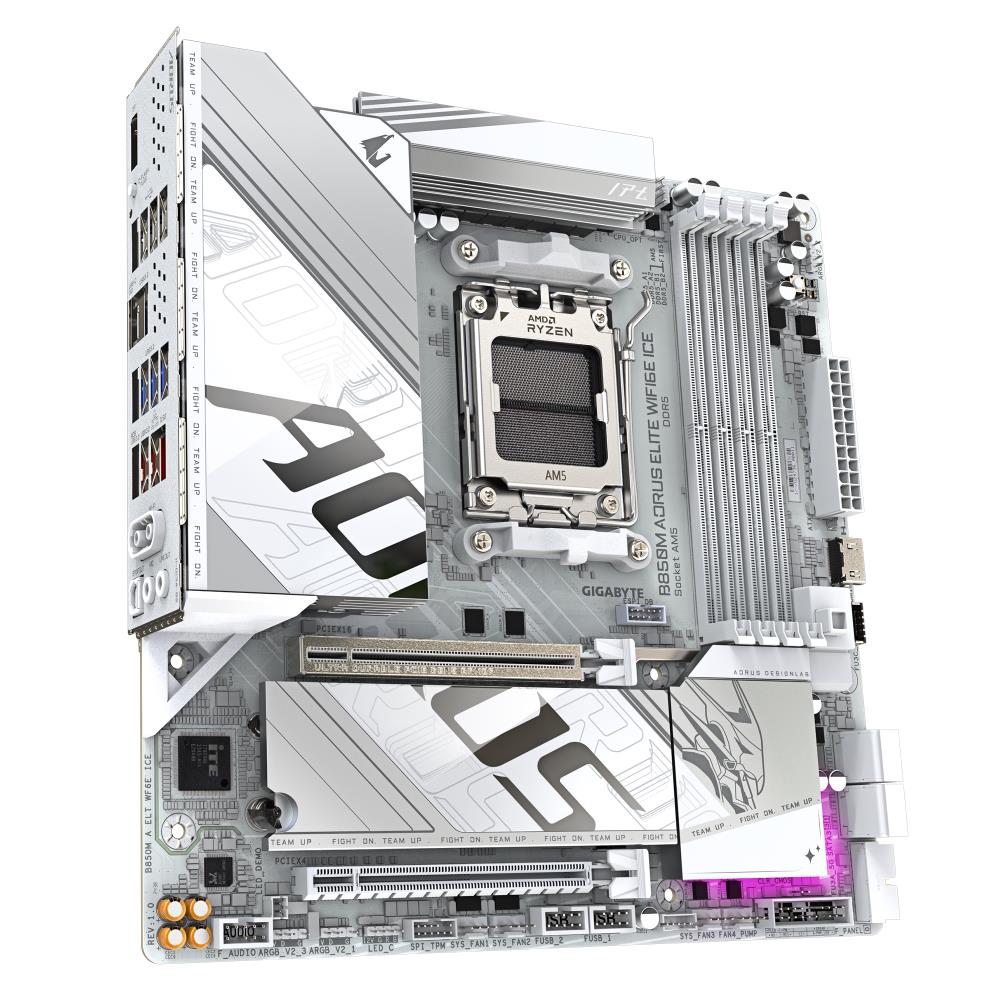

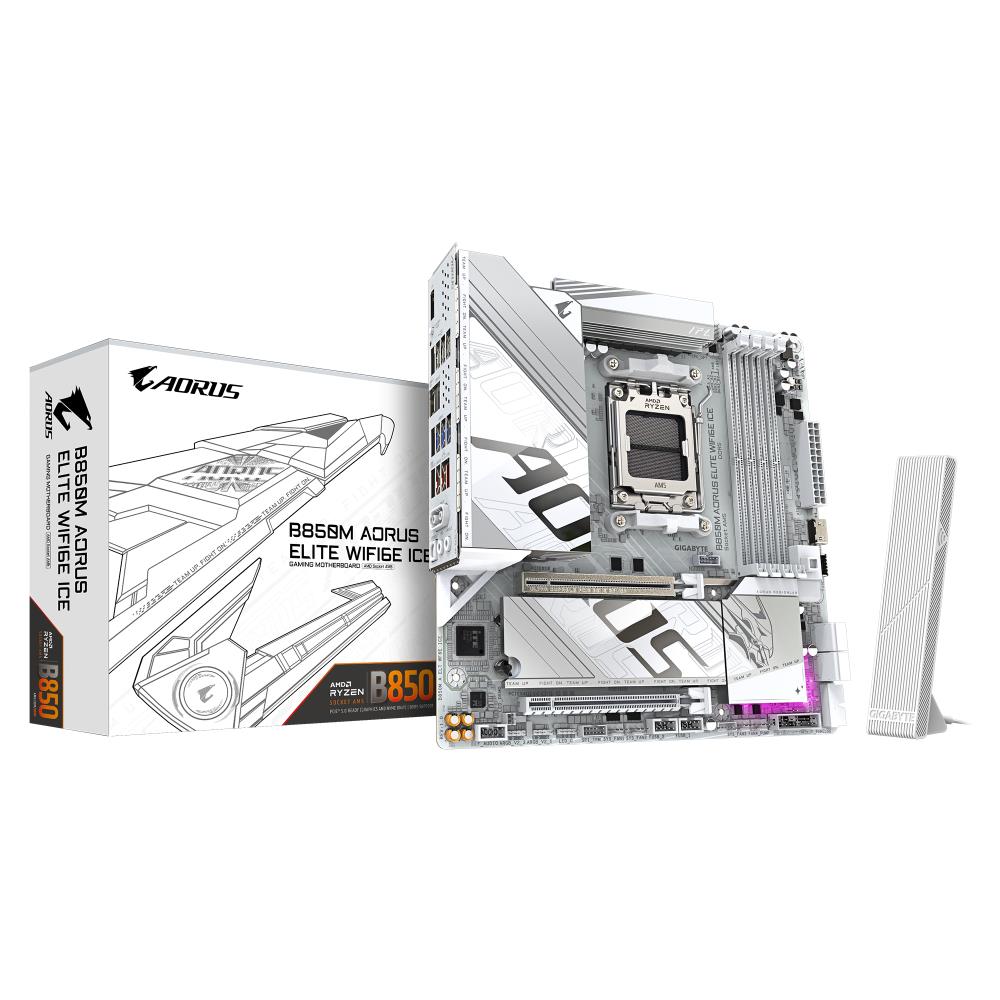

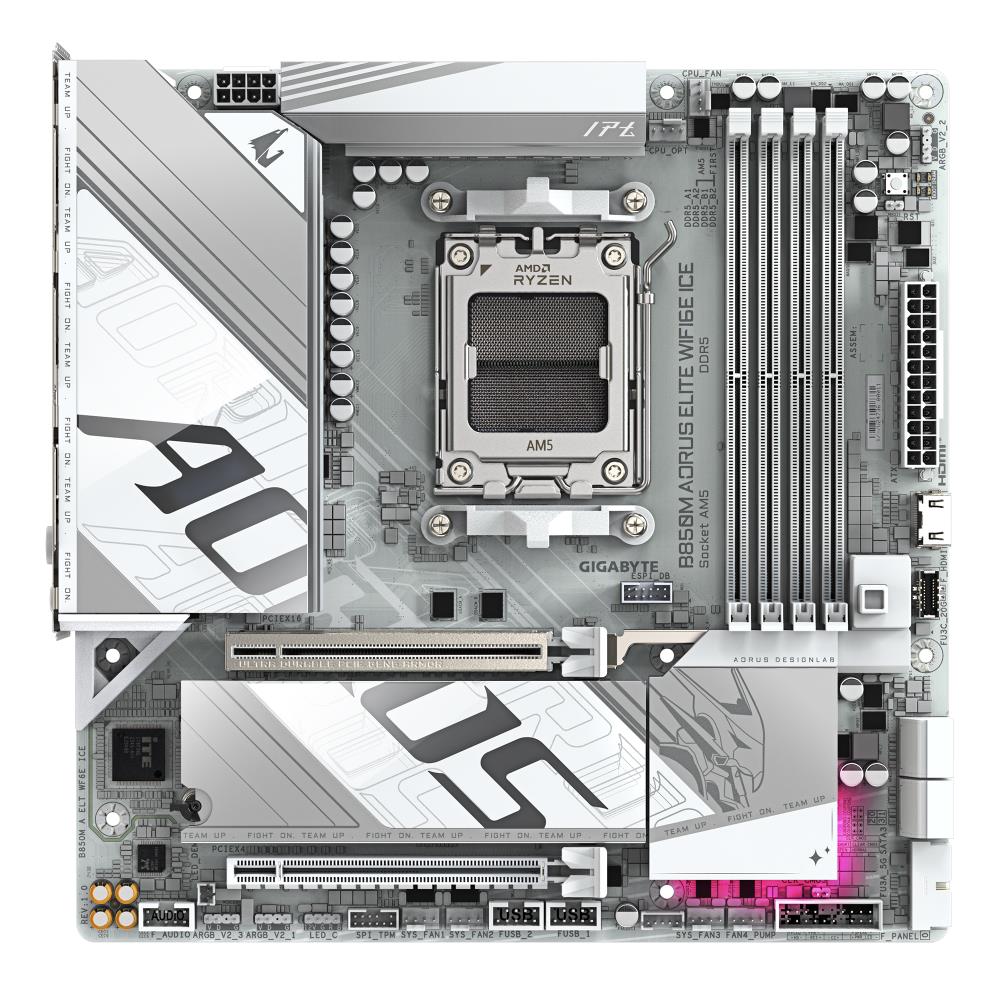

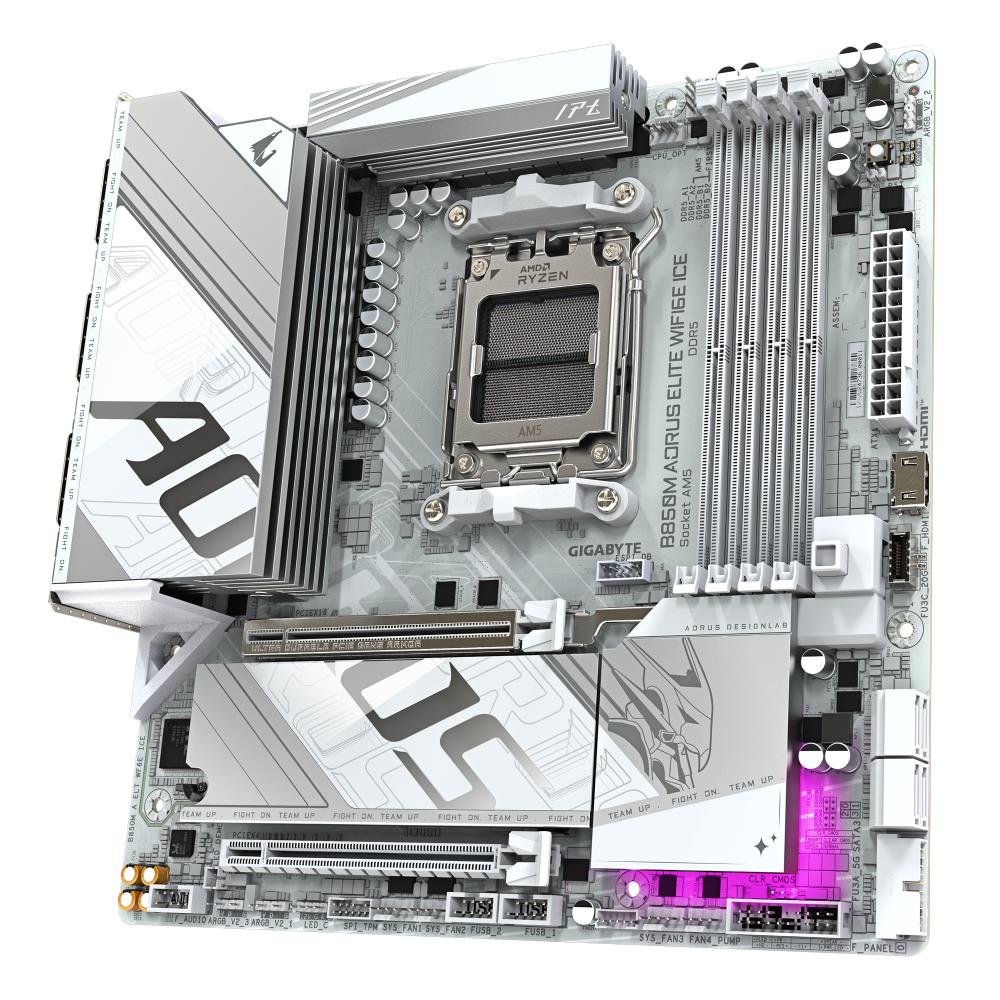

Mainboard, GIGABYTE, SAM5, Micro-ATX, Memory DDR5, Memory slots 4, 1xPCI-Express 3.0 16x, 1xPCI-Express 5.0 16x, 2xM.2, 1xHDMI, 1xDisplayPort, 4xUSB 2.0, 7xUSB 3.2, 2xUSB-C, 1xOptical S/PDIF, 1xRJ45, 2xAudio port, B850MAELTWF6EICE
Populārs
Pēdējais
- Ražotājs: Gigabyte
- Modelis: B850M A ELT WF6E ICE
- EAN: 4719331866082
- Pieejamība: 2
Nosaukums:
Gigabyte B850M A ELT WF6E ICE
207,14€
Bez PVN: 171,19€
- Produktu apskats
- Specifikācija
- Atsauksmes (0)
Specifikācijas
Specifikācija
12V power connector
Y
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
25110
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
22110
ACPI version
5.0
Antenna included
Y
Audio chip
Realtek ALC897
BIOS memory size
256
Clear CMOS button
Y
Clear CMOS jumper
Y
CPU fan connector
Y
Desktop Management Interface (DMI) version
2.7
ECC ?ompatibility
non-ECC
Front panel audio connector
Y
Front panel connector
Y
Lithium weight per battery
0.07
Maximum internal memory per slot
64
Motherboard chipset family
AMD
Number of chassis fan connectors
3
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
1
Number of HDDs supported
4
Number of M.2 (M) slots
2
Number of RGB LED pin headers
4
Number of SATA III connectors
4
Number of water pump connectors
2
On-board graphics card
N
Parallel processing technology support
Not supported
PC health monitoring
FAN/Temperature/Voltage/Water cooling
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Product colour
White
Products per shipping (inner) case
1
RGB LED pin header
Y
Screws included
Y
Serial port headers
1
Summary
GIGABYTE B850M AORUS ELITE WIFI6E ICE Motherboard- AMD Ryzen 9000 Series CPUs, 12+2+1 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5LAN, WIFI 7, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E...
Supported memory clock speed (max)
8200
System Management BIOS (SMBIOS) version
2.7
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
TPM connector
Y
Unit Calculated Volume
0.007302
Unit Calculated Weight
1.98
Units per Shipping Box
8
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 3.2 Gen 2x2 connectors
1
Warranty period
3
WiFi-AP antenna jack
2
WLAN controller model
Realtek RTL8852CE
Procesors
Compatible processor series
AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Procesoru ligzda
AM5
Processor manufacturer
AMD
Atmiņa
Atmiņas tips
DDR5
Maximum internal memory
256
Memory channels
Dual-channel
Memory slots type
DIMM
Supported memory clock speeds
4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200
Supported memory types
DDR5-SDRAM
Unbuffered memory
Y
Atmiņas ierīce
Number of storage drives supported
6
RAID levels
0/1/10
RAID support
Y
Supported storage drive interfaces
M.2,SATA III
Supported storage drive types
HDD & SSD
Porti
DisplayPort version
1.4
DisplayPorts quantity
1
HDMI portu daudzums
1
HDMI version
1.4
Headphone outputs
1
Microphone in
Y
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Pieslēgumi
Bluetooth
Y
Bluetooth versija
5.3
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Y
Ethernet LAN (RJ-45) porti
1
Wi-Fi
Y
Wi-Fi standards
802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
Akumulators
Akumulatora elementu skaits
1
Baterijas tehnoloģija
Lithium-Manganese Dioxide (LiMnO2)
Batteries included
Y
Battery type
CR2032
Battery weight
3
Specifikācijas
ATX Power connector (24-pin)
Y
Audio output channels
7.1
Augstums
35
BIOS Type
UEFI AMI
Bundled software
Norton Internet Security (OEM version)LAN bandwidth management software
Component for
PC
Country of origin
China
DirectX version
12.0
Dziļums
244
EPS power connector (8-pin)
Y
Form factor
mATX
HDCP
Y
Maximum resolution
4096 x 2160
Mikroshēmu komplekts
B850
Model
B850M A ELT WF6E ICE
Motherboard chipset
AMD B850
Motherboard form factor
Micro ATX
Number of memory slots
4
Package depth
268
Package height
68
Package weight
1972
Package width
270
Peripheral (Molex) power connectors (4-pin)
1
Platums
244
Power source type
ATX
Supported processor sockets
Socket AM5
Weight
1770
Windows operating systems supported
Windows 10 x64/Windows 11 x64
