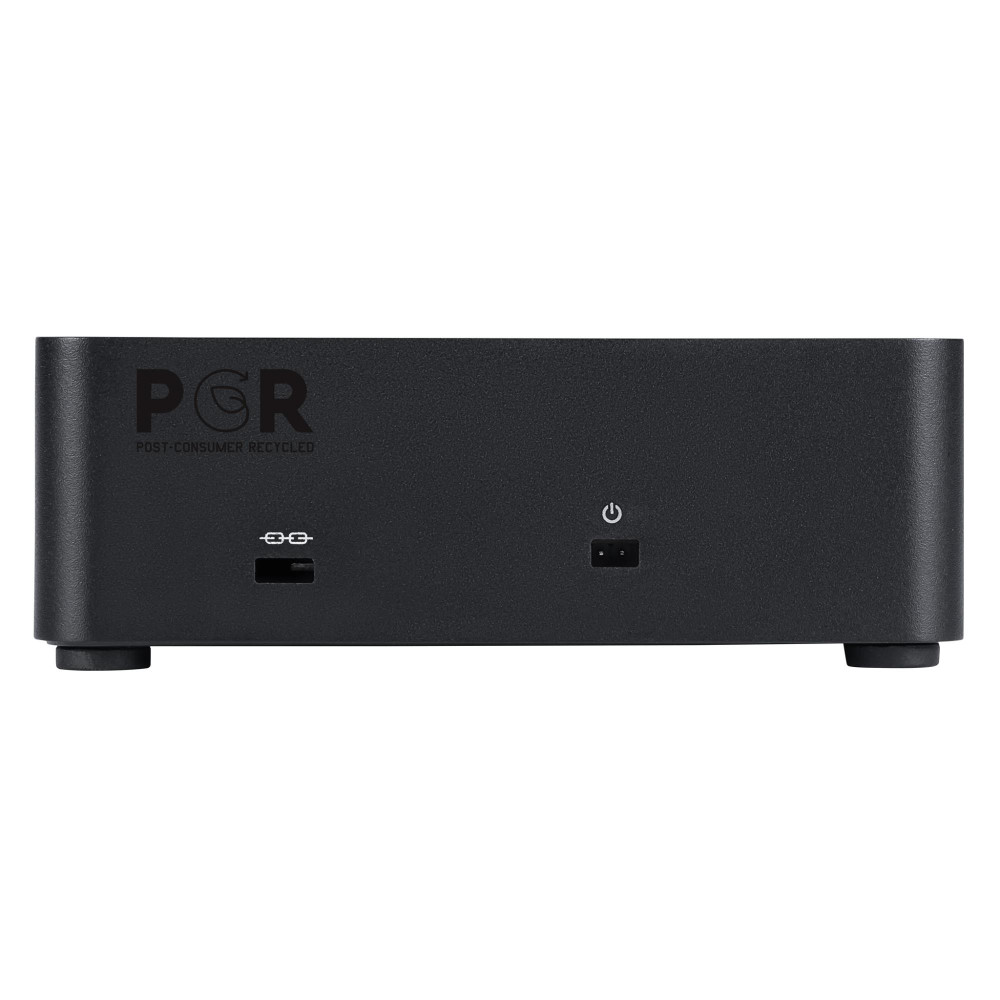

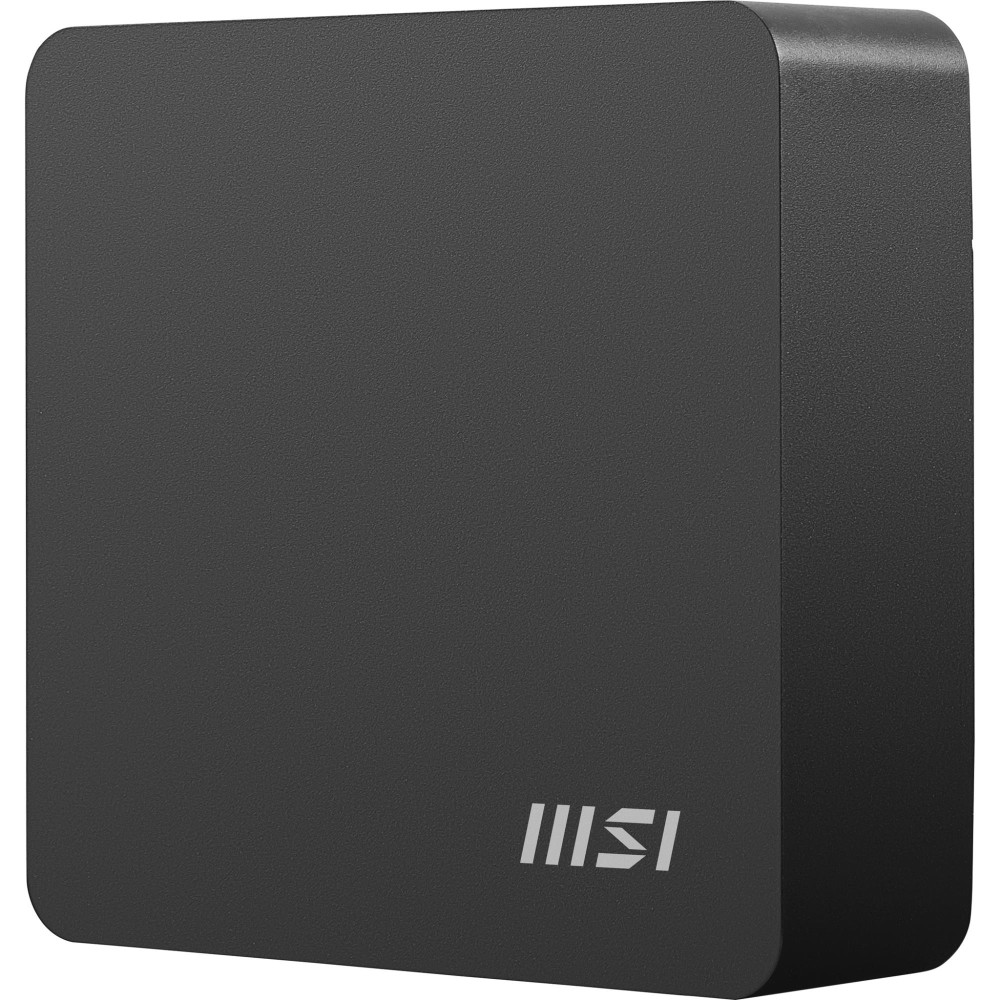

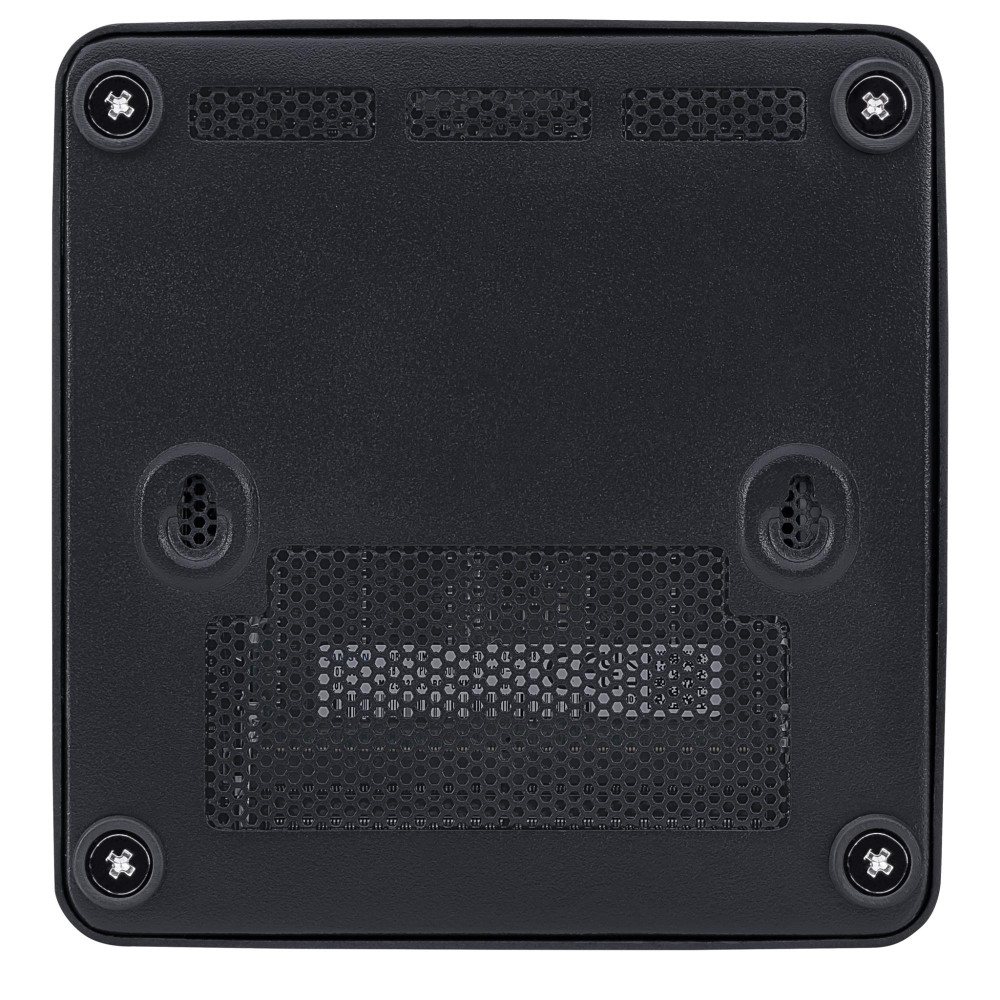

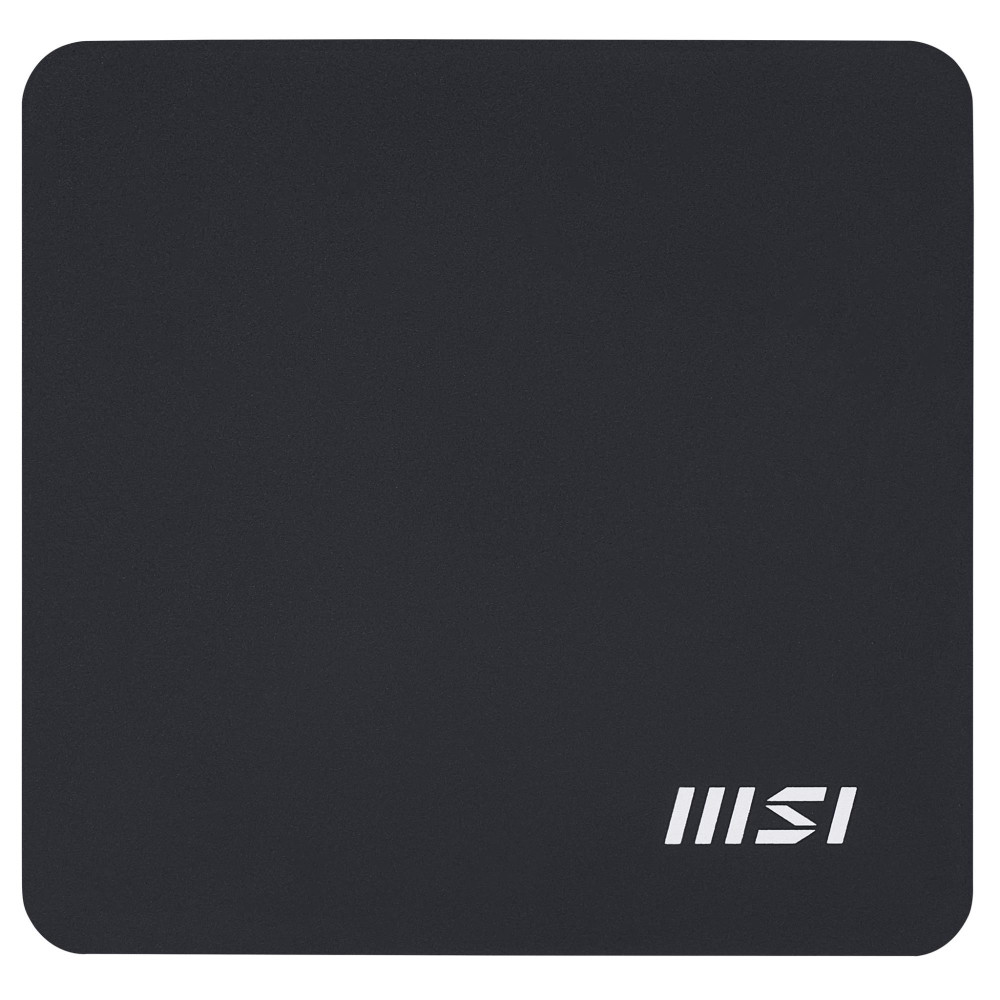

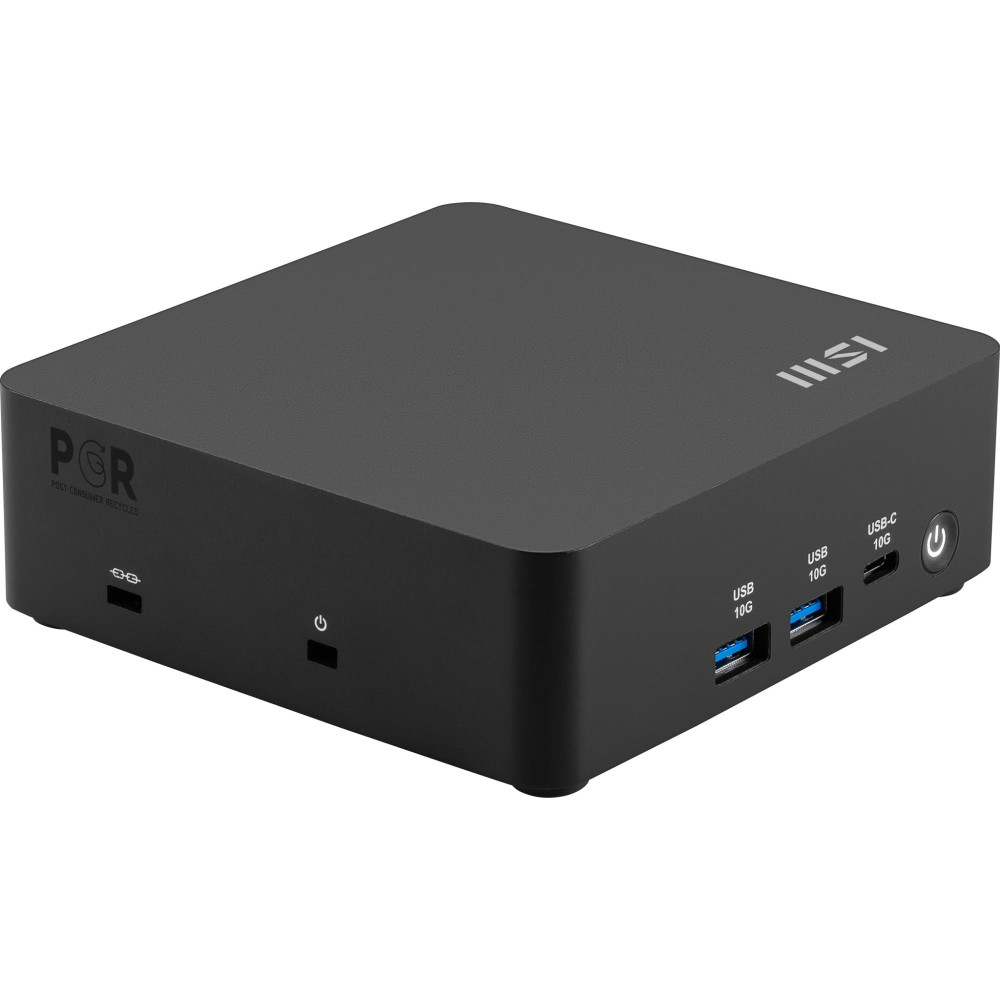

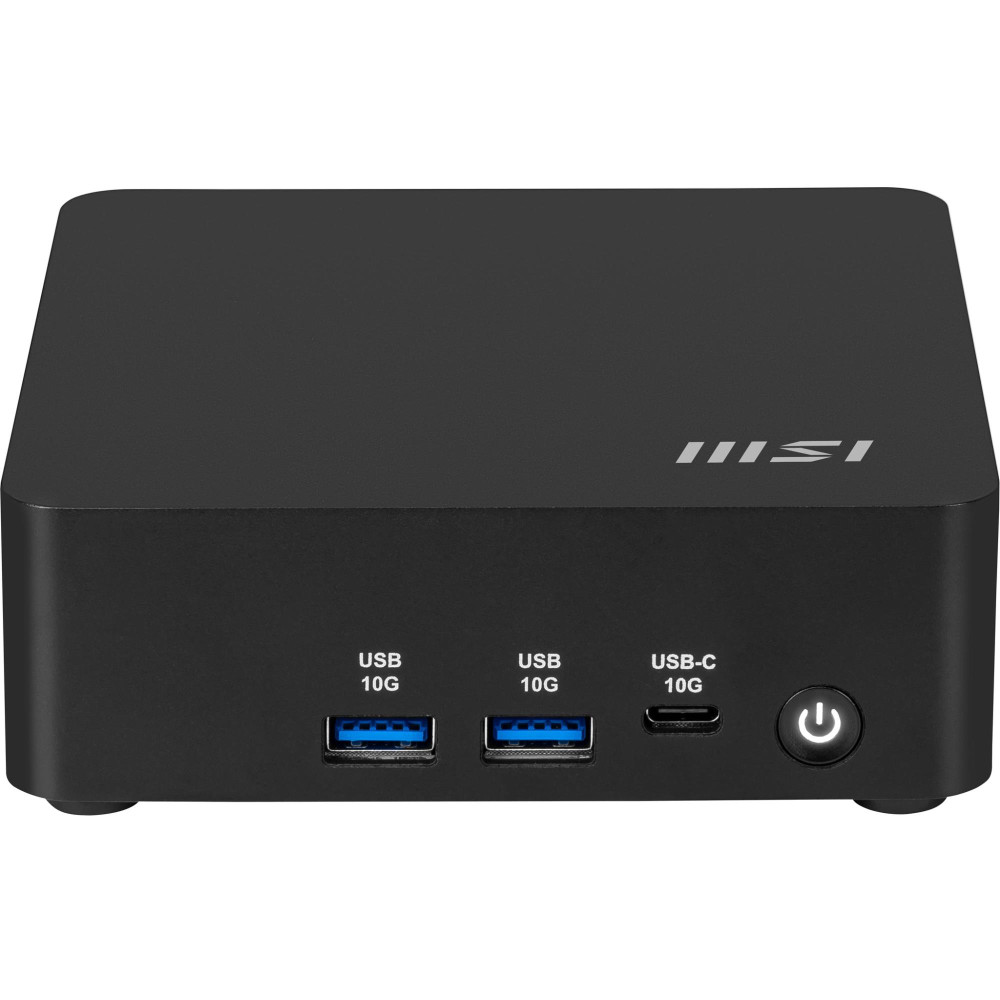

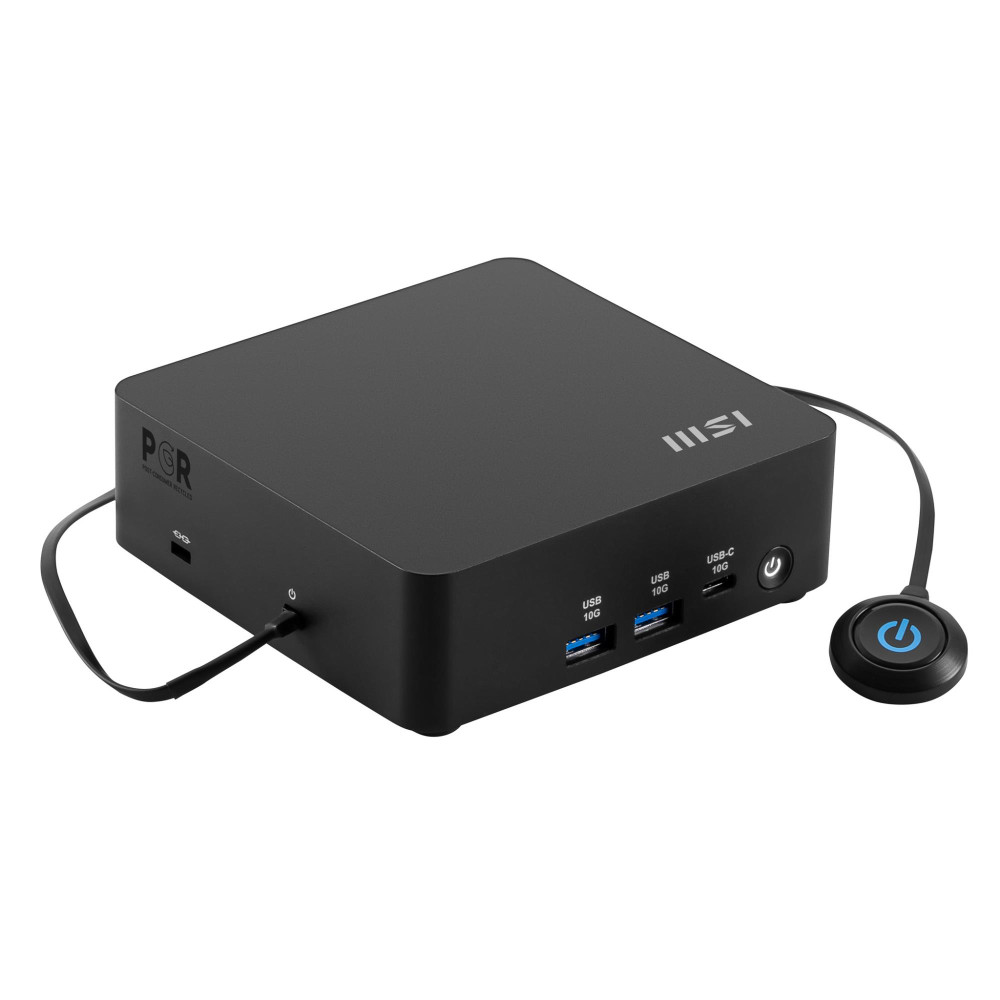

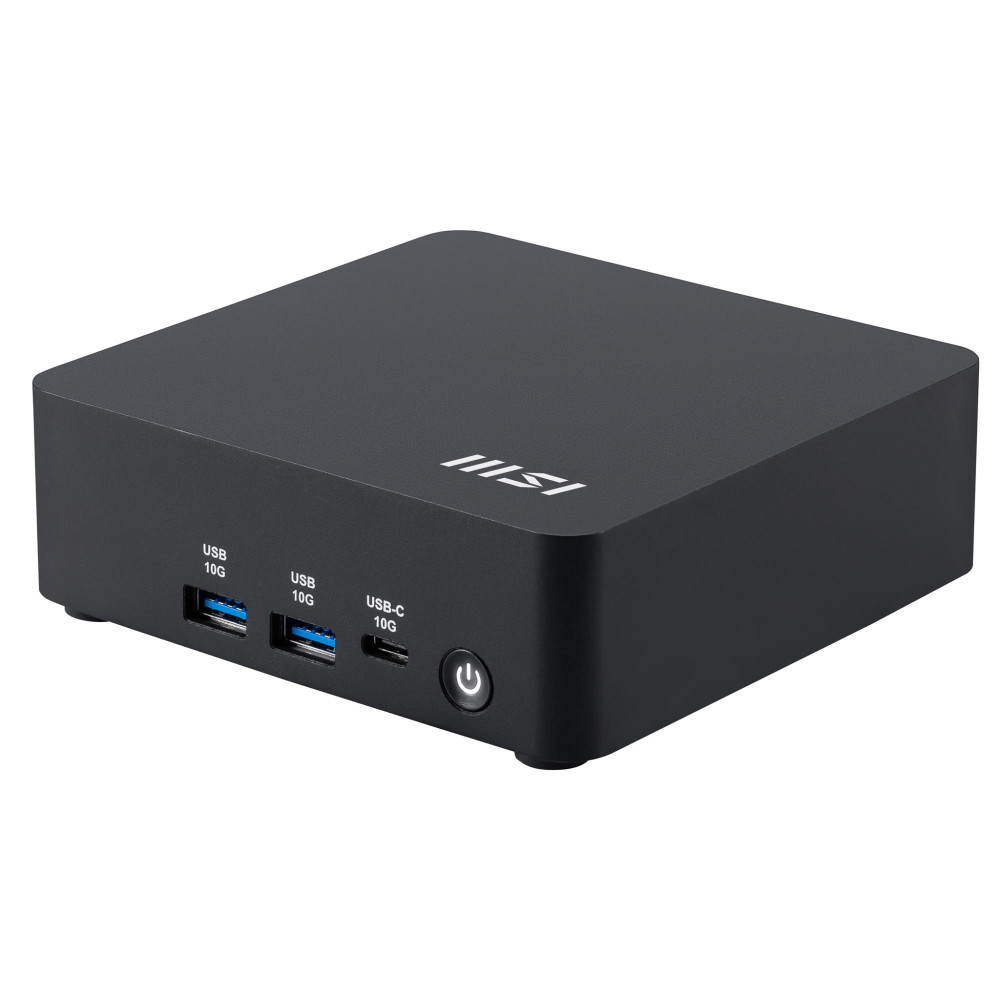

PC CUBI NUC AI CU7-155H 16GB/1TB CUBI NUC AI 1UMG-005EU MSI
- Ražotājs: MSI
- Modelis: CUBI NUC AI 1UMG-005EU
- EAN: 4711377327633
- Pieejamība: 10
Nosaukums:
MSI CUBI NUC AI 1UMG-005EU
948,70€
Bez PVN: 784,05€
- Produktu apskats
- Specifikācija
- Atsauksmes (0)
Specifikācijas
Specification
Total storage capacity
1000
Specifikācija
AI software frameworks supported by NPU
DirectML/ONNX RT/OpenVINO/Windows ML
Copilot key
Yes
CPU Family name
Intel Core Ultra
Discrete graphics card
No
Discrete graphics card model
Not available
Efficient cores
8
Efficient-core base frequency
0.9
Efficient-core Max Turbo Frequency
3.8
Graphics card family
Intel
Intel® Thunderbolt 4
Yes
Low Power Efficient-core Base Frequency
700
Low Power Efficient-core Max Turbo Frequency
2.5
Low Power Efficient-cores
2
M.2 SSD size
2280 (22 x 80 mm)
Maximum turbo power
115
Neural processor unit (NPU)
Intel AI Boost
Number of M.2 (M) slots
2
On-board GPU manufacturer
Intel
On-board graphics card
Yes
On-board graphics card family
Intel Arc Graphics
On-board graphics card model
Intel Arc Graphics

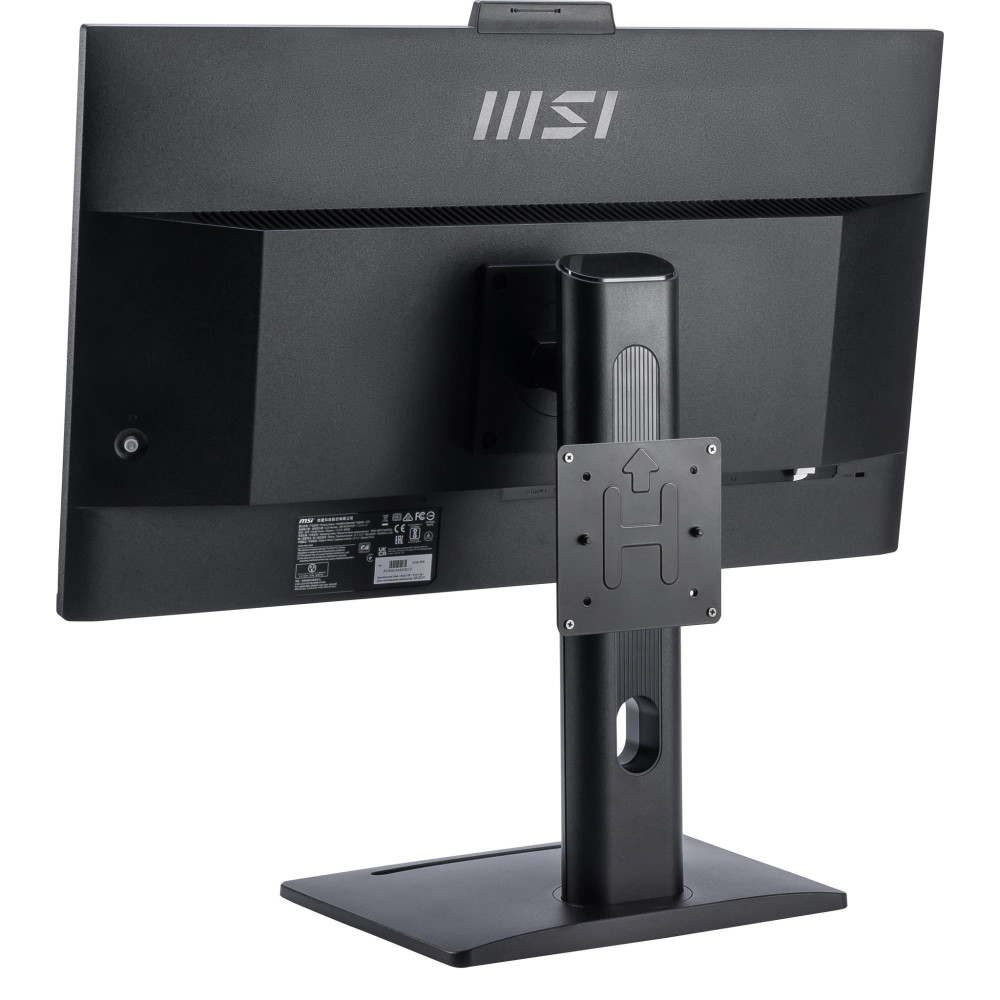

Panel mounting interface
100 x 100
Performance cores
6
Performance-core base frequency
1.4
Performance-core Max Turbo Frequency
4.8
Processor base power
28
Processor generation
Intel® Core™ Ultra (Series 1)
Product colour
Black
Sparsity support
Yes
SSD Capacity
1000
Summary
MSI CUBI NUC AI 1UMG-005EU. Processor family: Intel Core Ultra 7, Processor model: 155H. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 1 TB, Storage media: SSD, Card reader integrated. On-board graphics card model: Intel Arc Graphics. Operating system installed: Windows 11 Pro. Power supply: 120 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 630 g. Product colour: Black
Thunderbolt 4 ports quantity
2
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Total SSDs capacity
1000
Unit Calculated Volume
0.0051106
Unit Calculated Weight
1.615
Units per Shipping Box
10

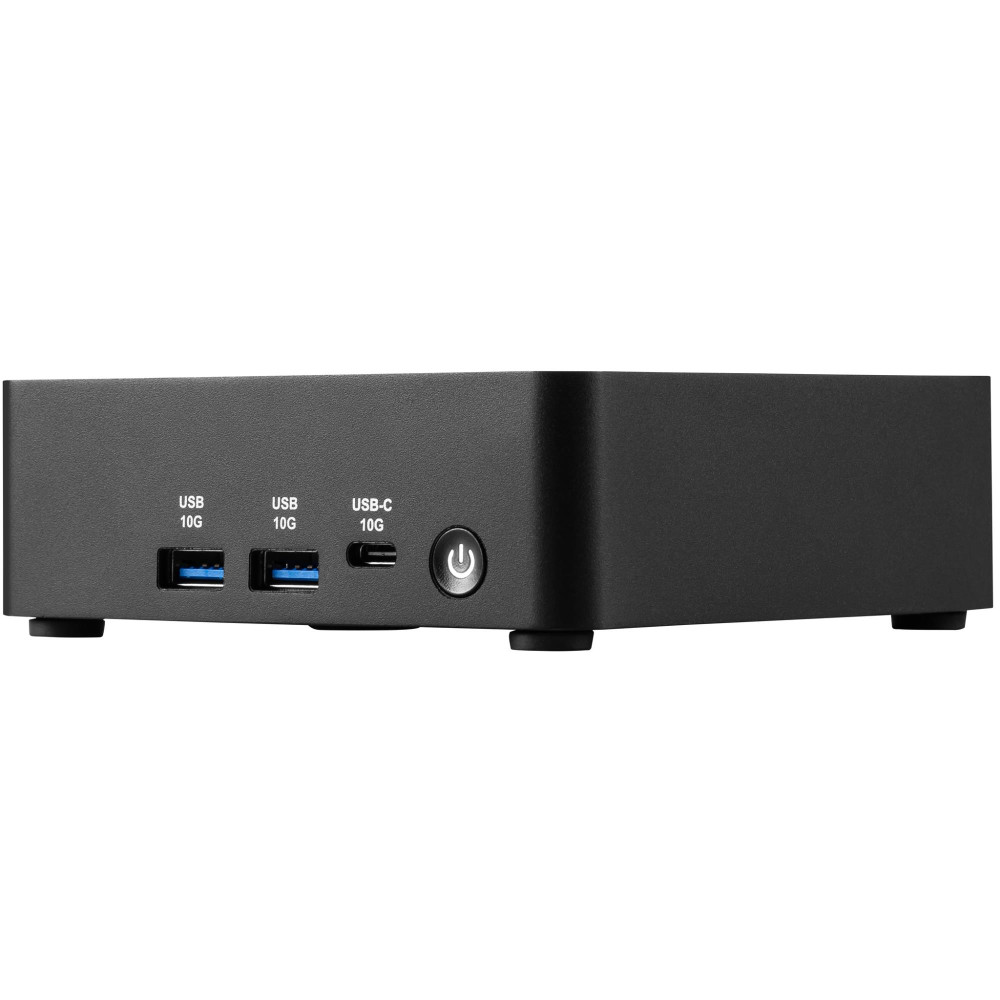

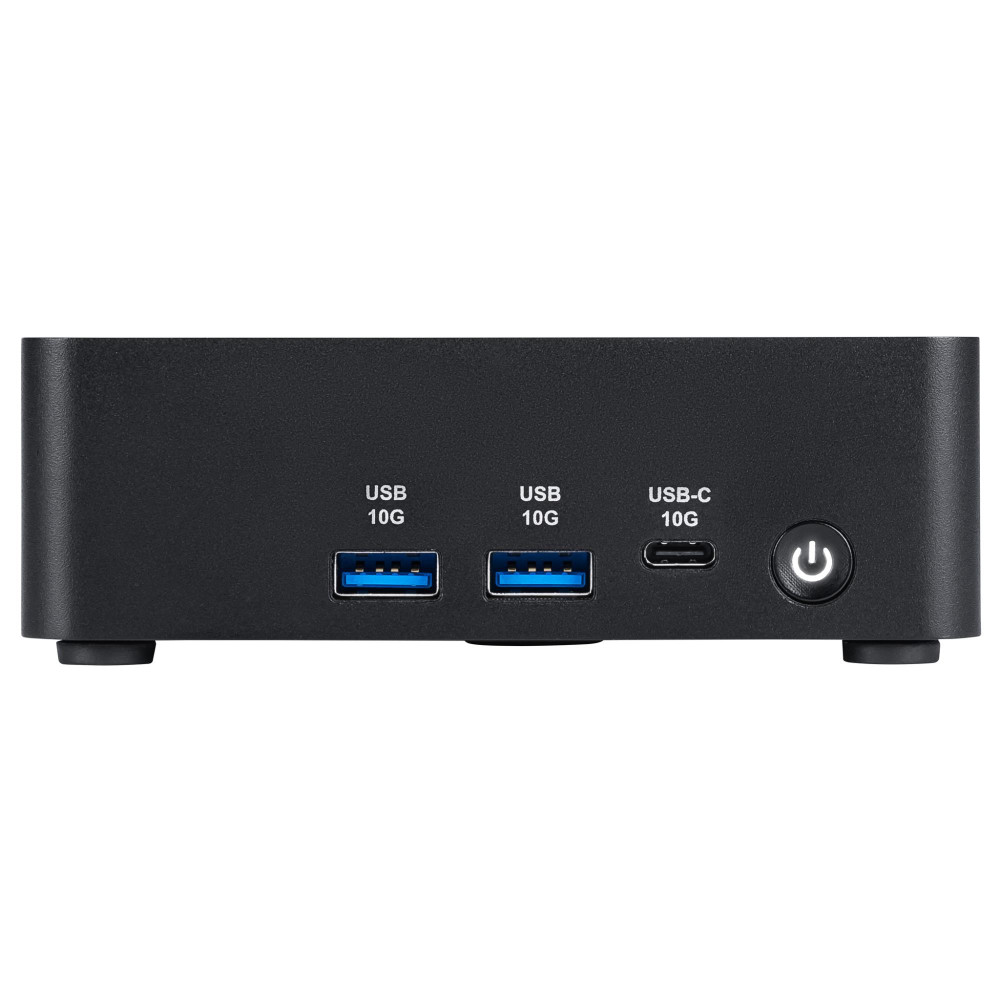

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Warranty period
3
Windows Studio effects support
Yes
WLAN controller model
Intel Wi-Fi 6E AX211
Ekrāns
Display included
No
Procesors
CPU modeļa numurs
u7-155H
Number of processors supported
1
Procesora kodoli
16
Procesora modelis
155H
Procesora pastiprināšanas frekvence
4.8
Processor cache
24
Processor cache type
Smart Cache
Processor manufacturer
Intel
Processor threads
22
Procesora saime
Intel Core Ultra 7
Atmiņa

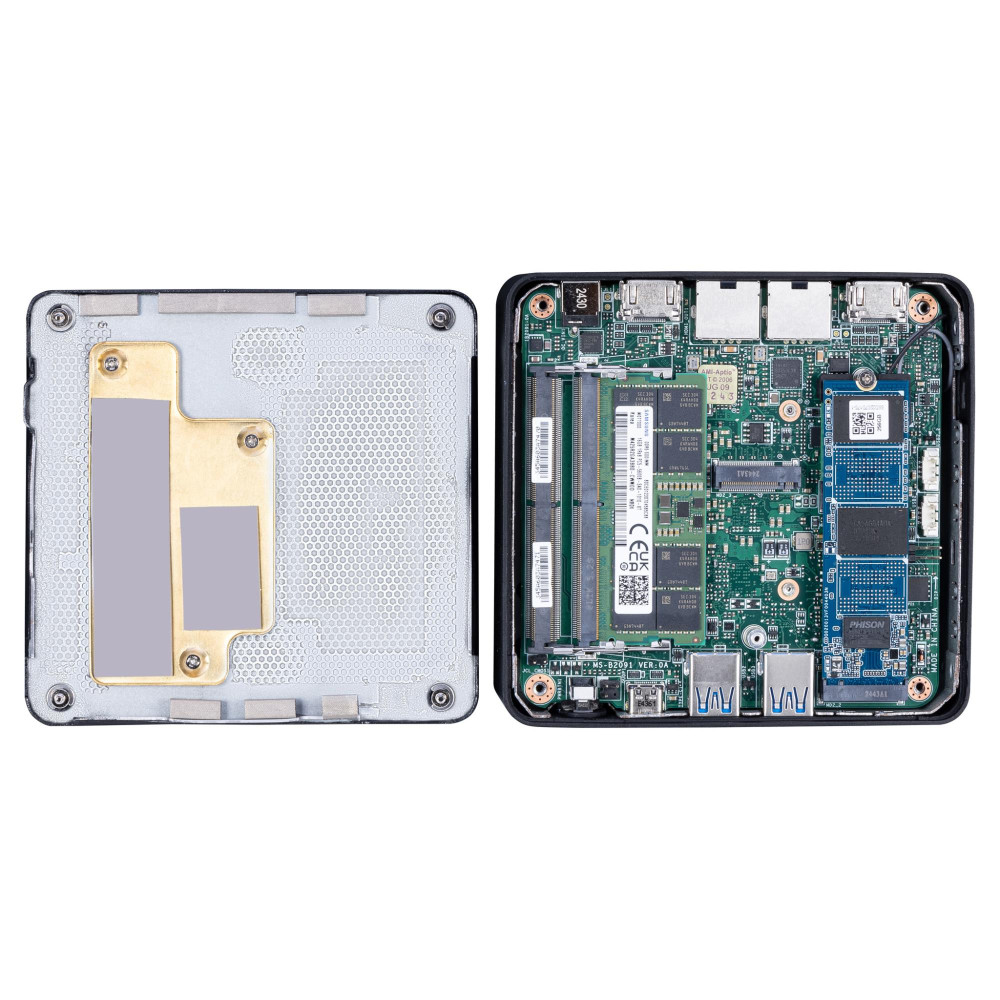

Atmiņas sloti
2x SO-DIMM
Iekšējā atmiņa
16
Iekšējās atmiņas tips
DDR5-SDRAM
Maximum internal memory
64
Memory clock speed
5600
Memory layout (slots x size)
2 x 8
Supported memory types
DDR5-SDRAM
Atmiņas ierīce
Compatible memory cards
MicroSD (TransFlash)
Datu nesēji
SSD
Integrēts karšu lasītājs
Yes
NVMe
Yes
Optiskā diskdziņa veids
No
SSD form factor
M.2
Porti
DVI port
No

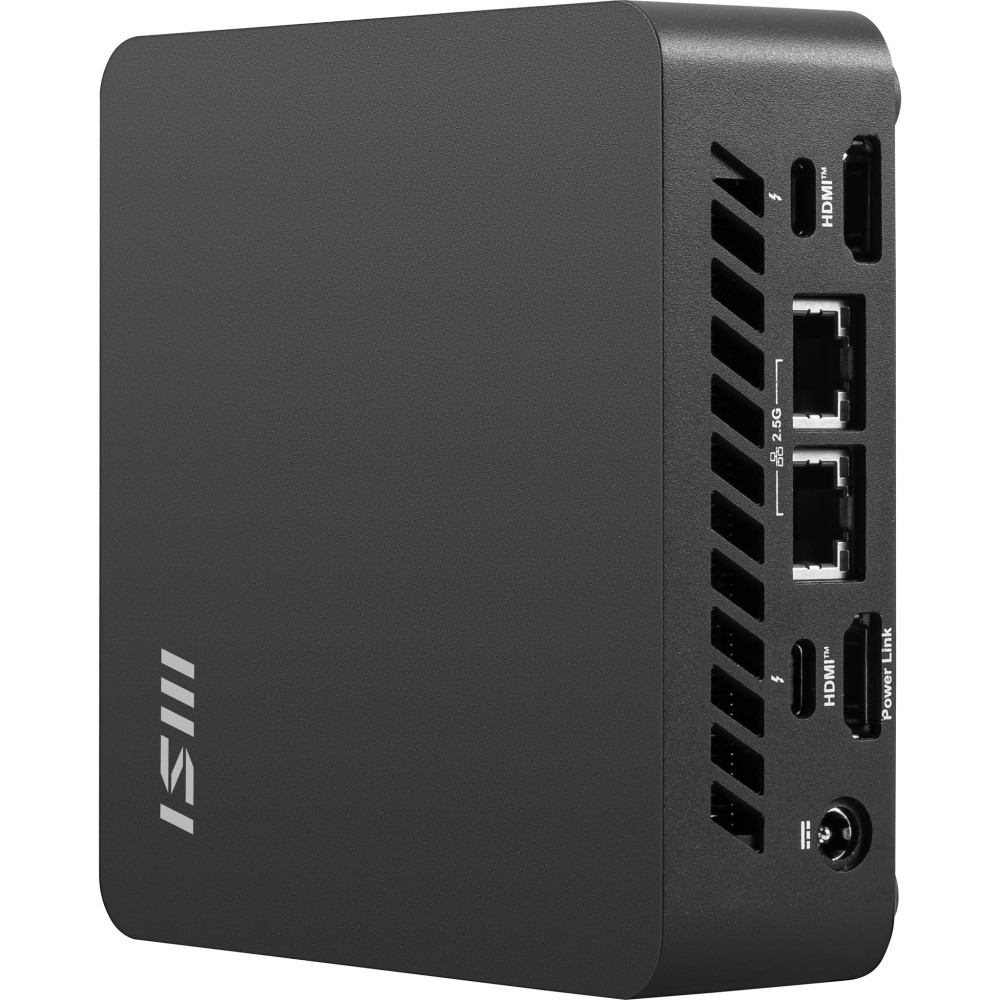

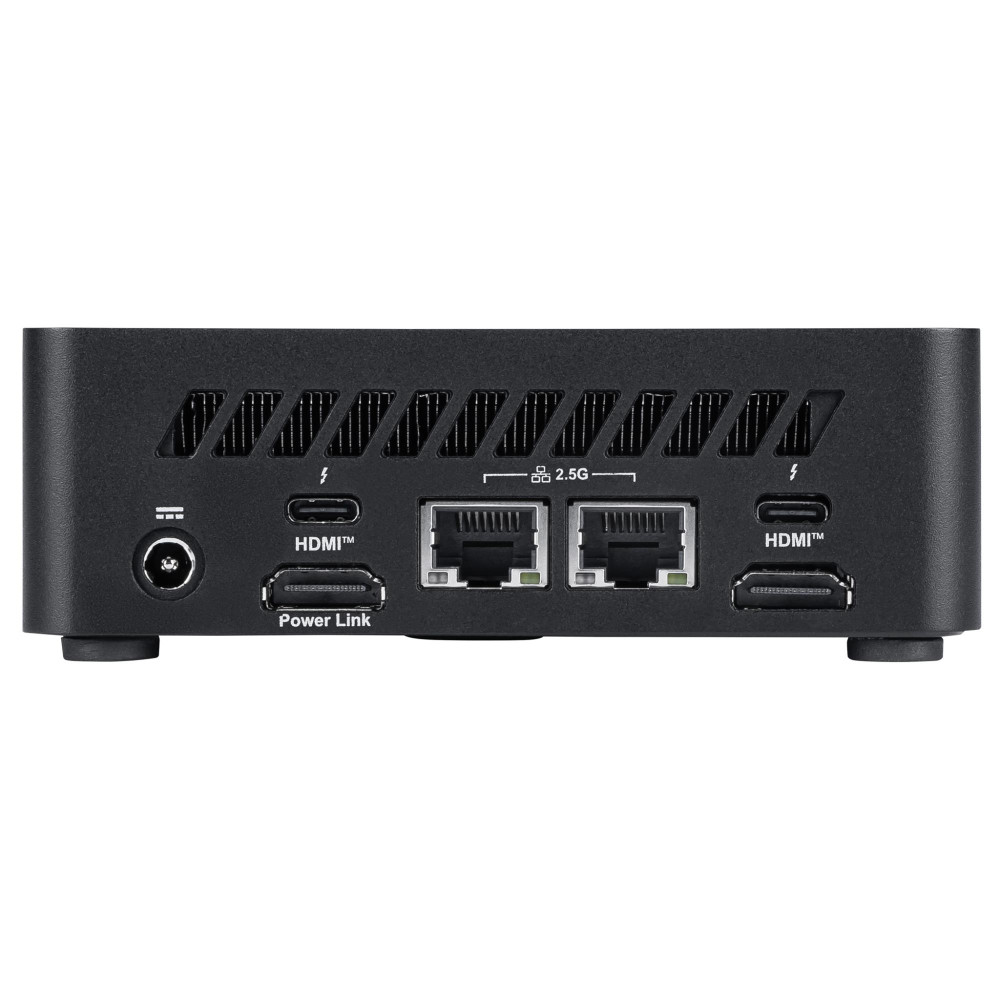

HDMI portu daudzums
2
HDMI version
2.1
Microphone in
No
Pieslēgumi
Bluetooth
Yes
Bluetooth versija
5.3
Ethernet LAN
Yes
Ethernet LAN (RJ-45) porti
2
LAN controller
Intel I226-V
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 6E (802.11ax)
Specifikācijas
AC adapter included
Yes
Augstums
37.5
Barošanas avota veids
External AC adapter
Barošanas avots
120
Cable lock slot
Yes
Cable lock slot type
Kensington
Certification
FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)
Chassis type
Mini PC
Combo headphone/mic port
Yes
Cooling type
Active
DC-in jack
Yes
Dziļums
115.2
Housing material
Plastic
Iebūvēts(-i) skaļrunis(-i)
No
Keyboard Included
No
Motherboard chipset
Intel SoC
Motherboard form factor
NUC
Mouse included
No
Number of displays supported
4
Number of SSDs installed
1
Operating relative humidity (H-H)
0 - 85
Operating system installed
Windows 11 Pro
Operating temperature (T-T)
0 - 35
Package depth
220
Package height
94
Package weight
1450
Package width
205
Platums
119.6
Power cord included
Yes
Product type
Mini PC
SSD interface
PCI Express 4.0
Storage relative humidity (H-H)
0 - 90
Storage temperature (T-T)
-20 - 60
Trusted Platform Module (TPM)
Yes
Trusted Platform Module (TPM) version
2.0

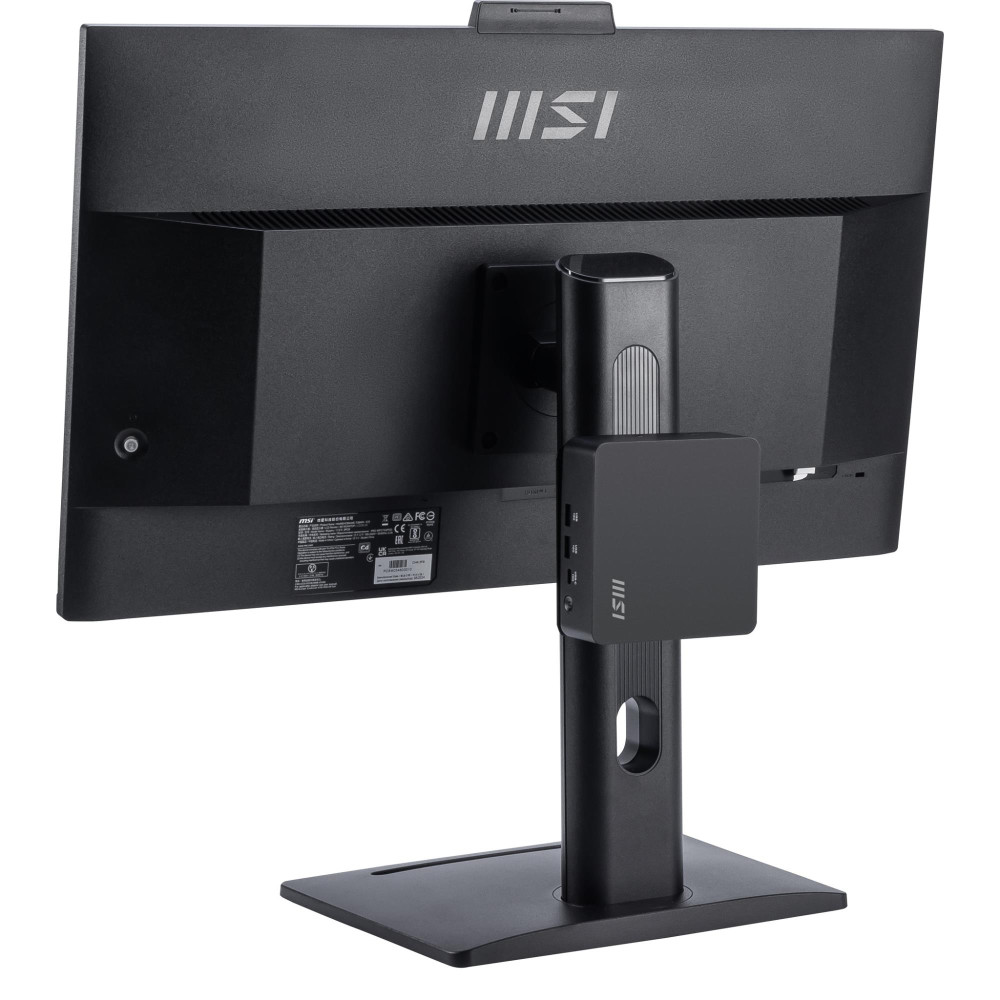

VESA montāža
Yes
Weight
630
