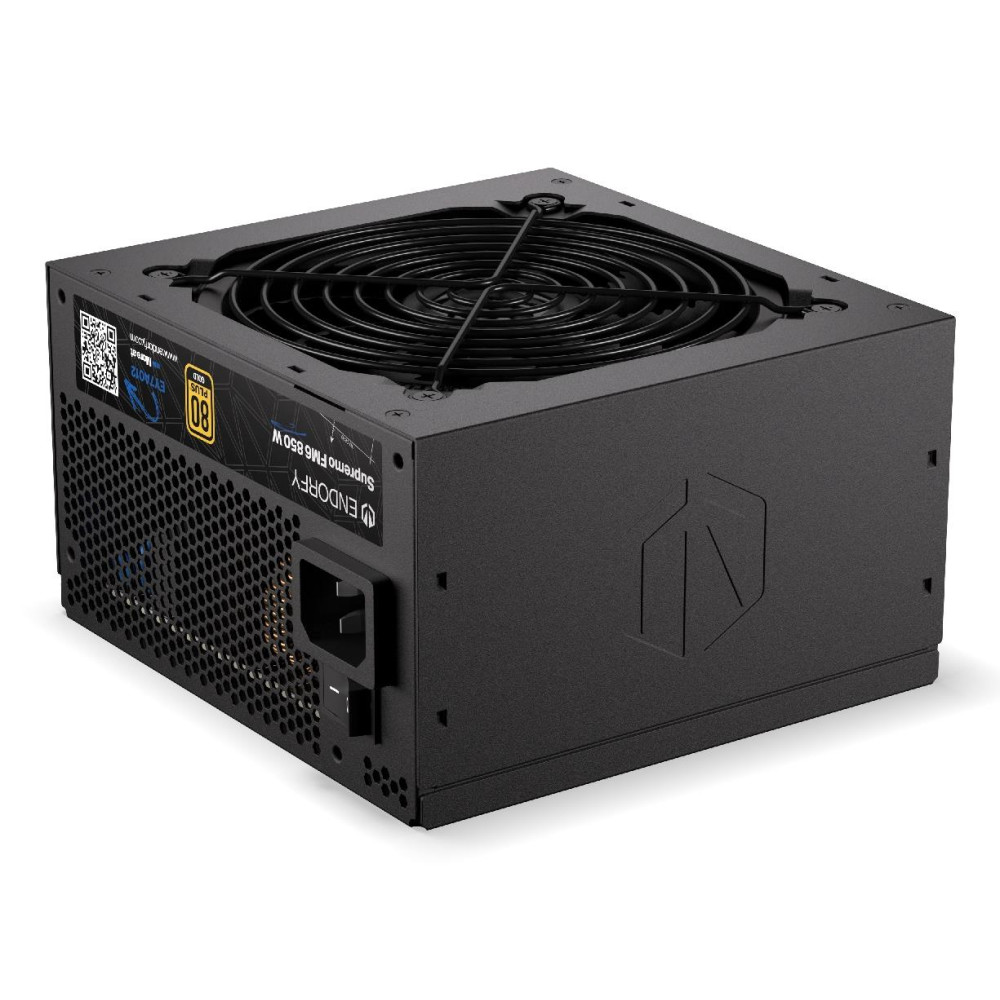

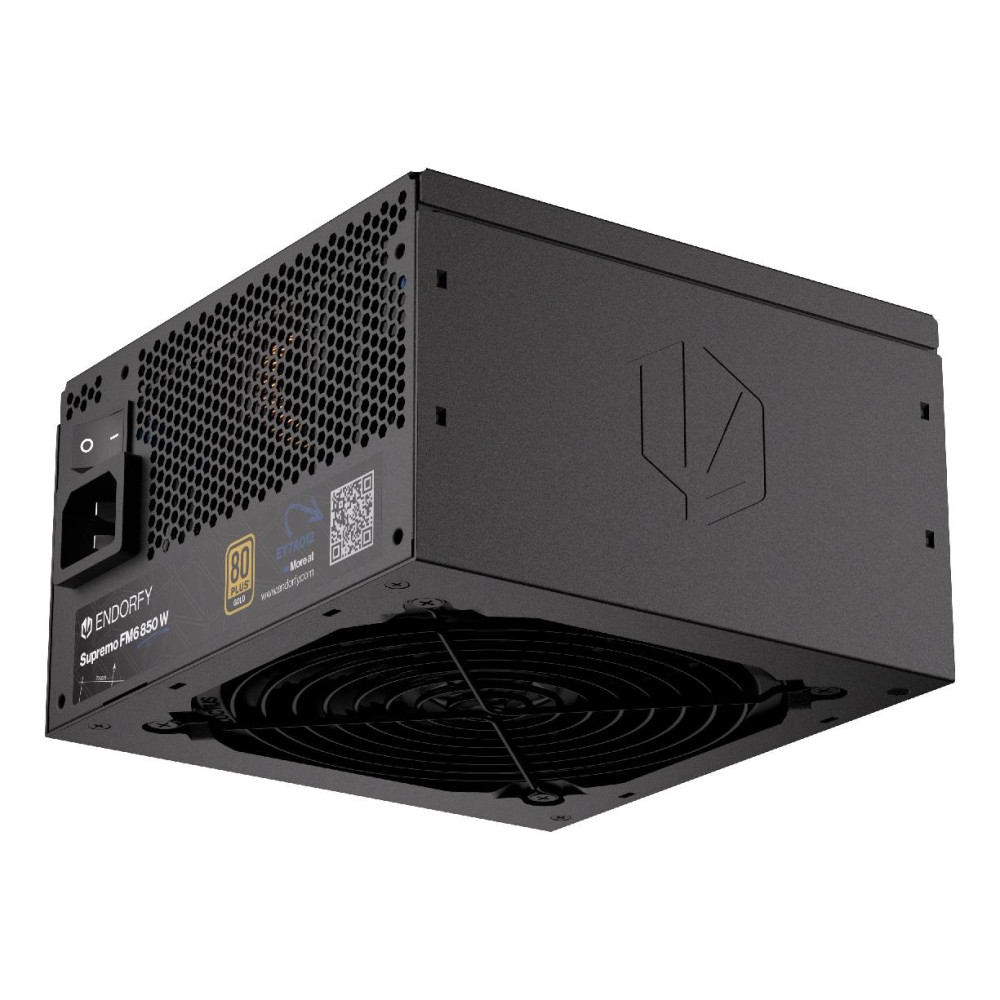

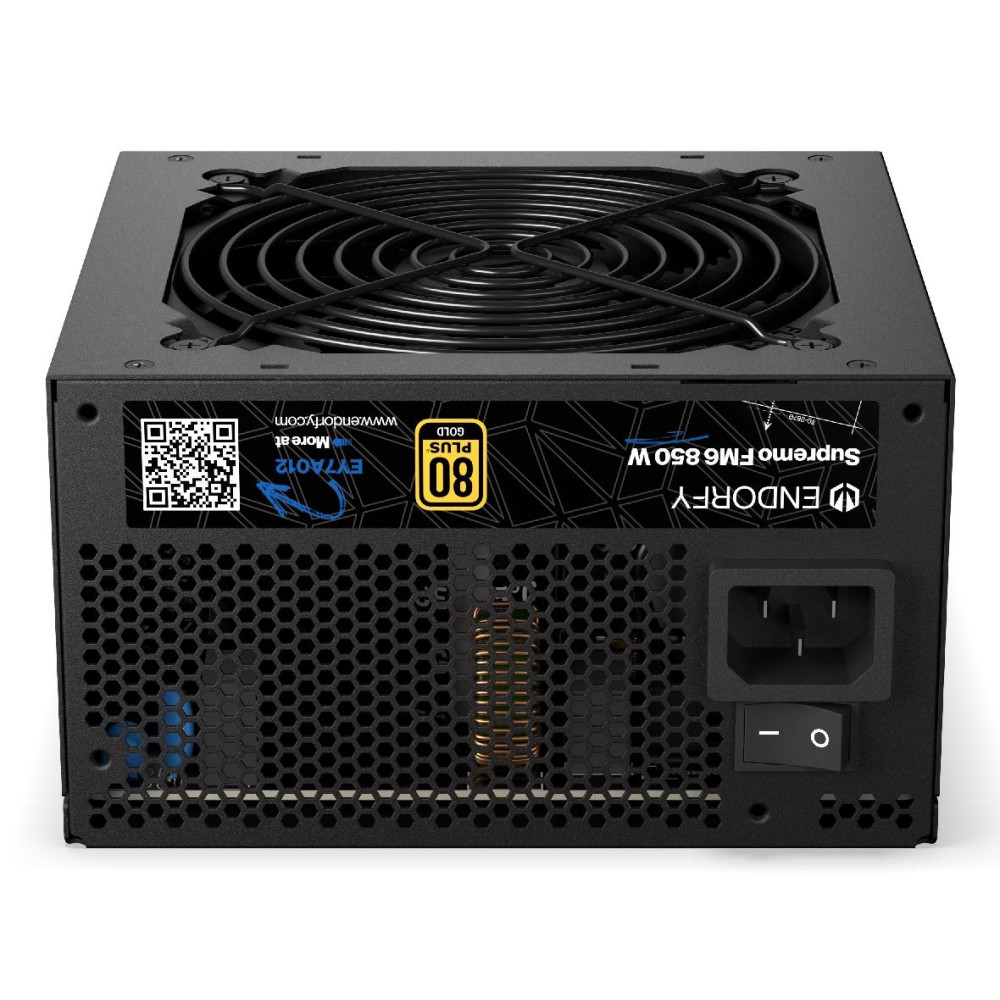

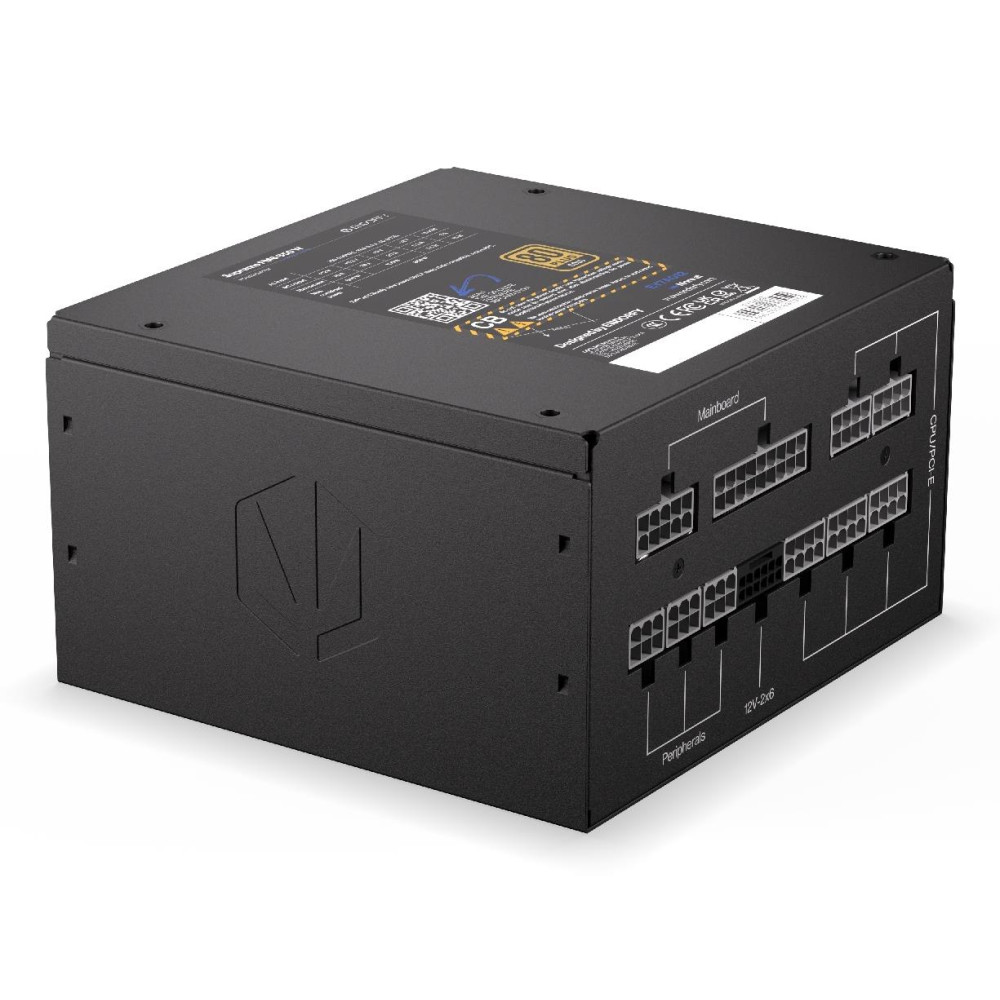

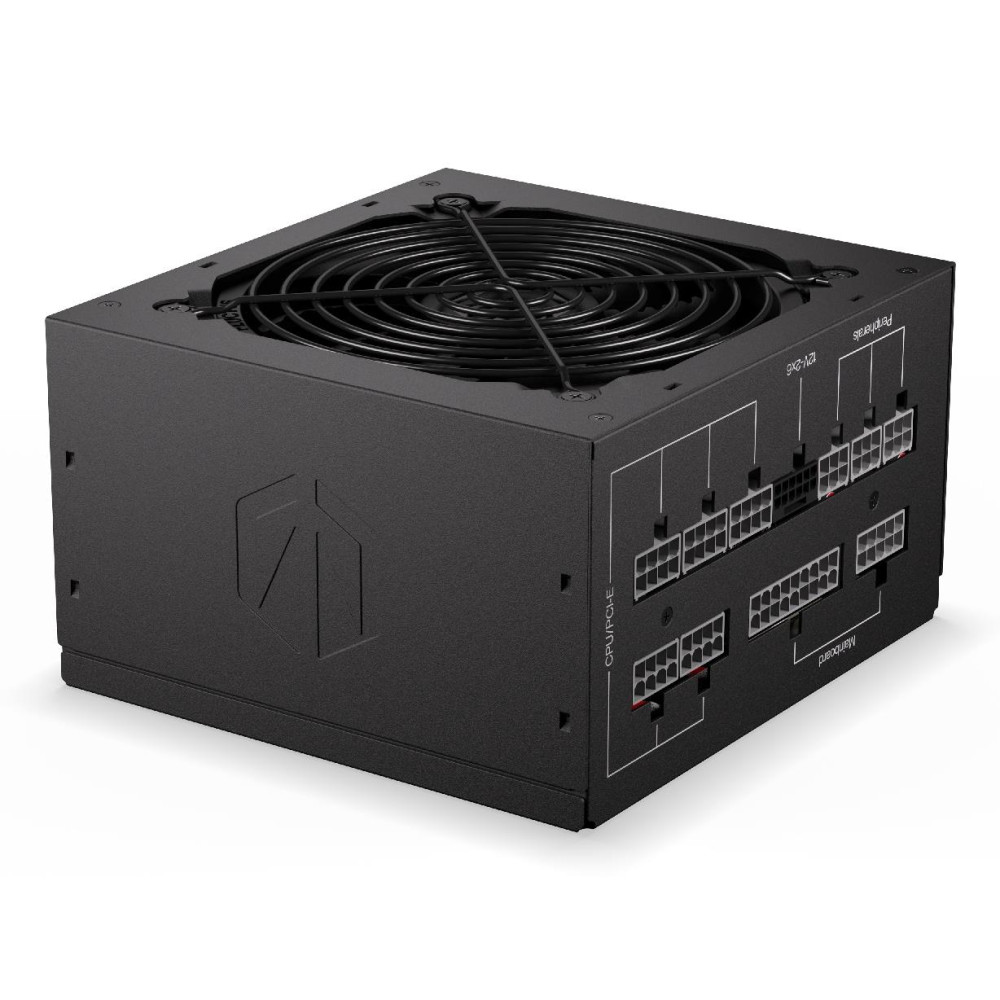

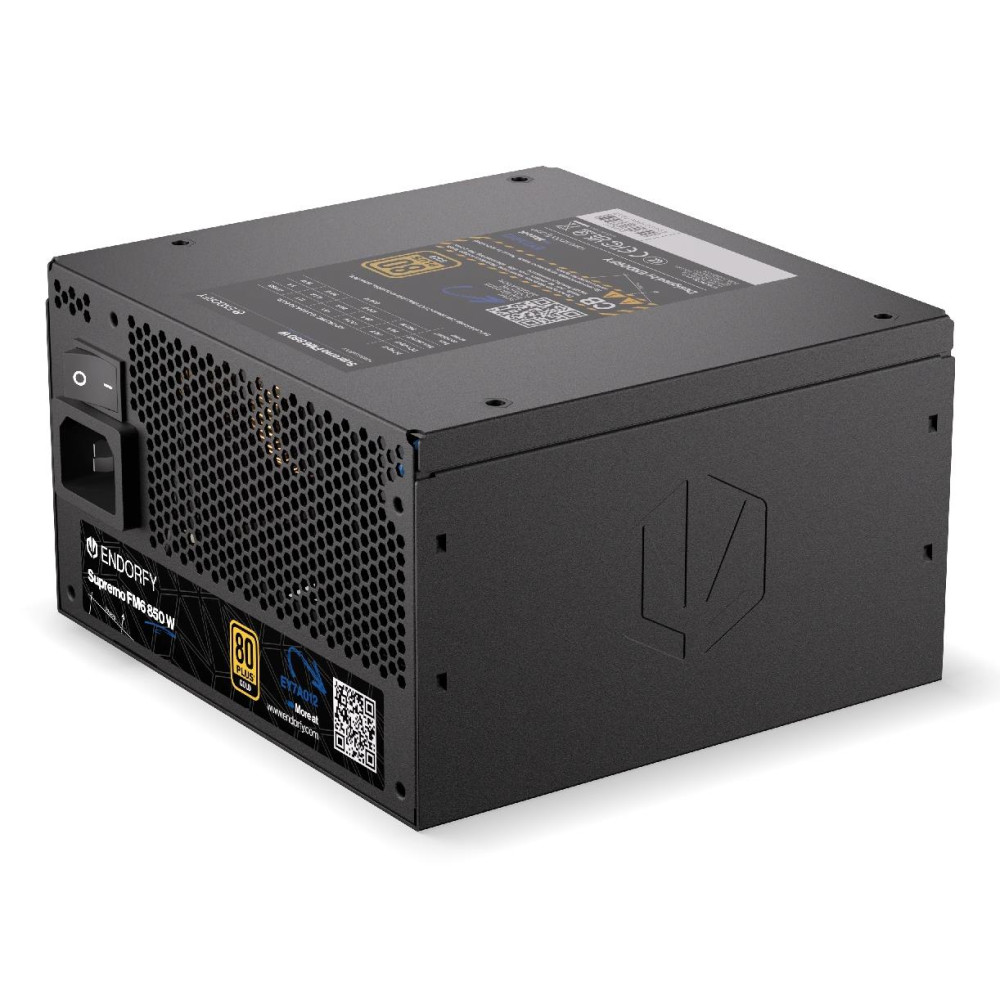

Power Supply, ENDORFY, SUPREMO FM6, 850 Watts, Efficiency 80 PLUS GOLD, MTBF 100000 hours, EY7A012
Populārs
- Ražotājs: Endorfy
- Modelis: EY7A012
- EAN: 5903018667959
- Pieejamība: 4
Nosaukums:
Endorfy EY7A012
119,00€
Bez PVN: 98,35€
- Produktu apskats
- Specifikācija
- Atsauksmes (0)
Specifikācijas
Specifikācija

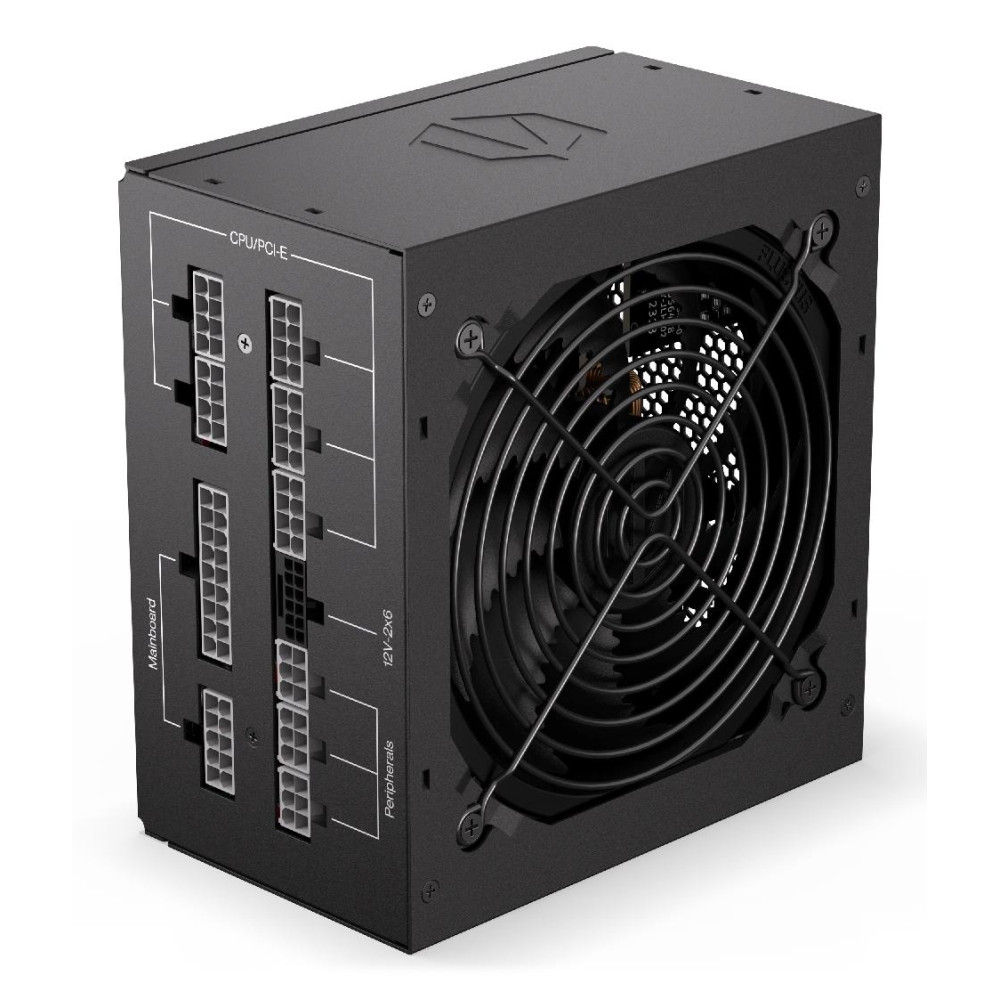

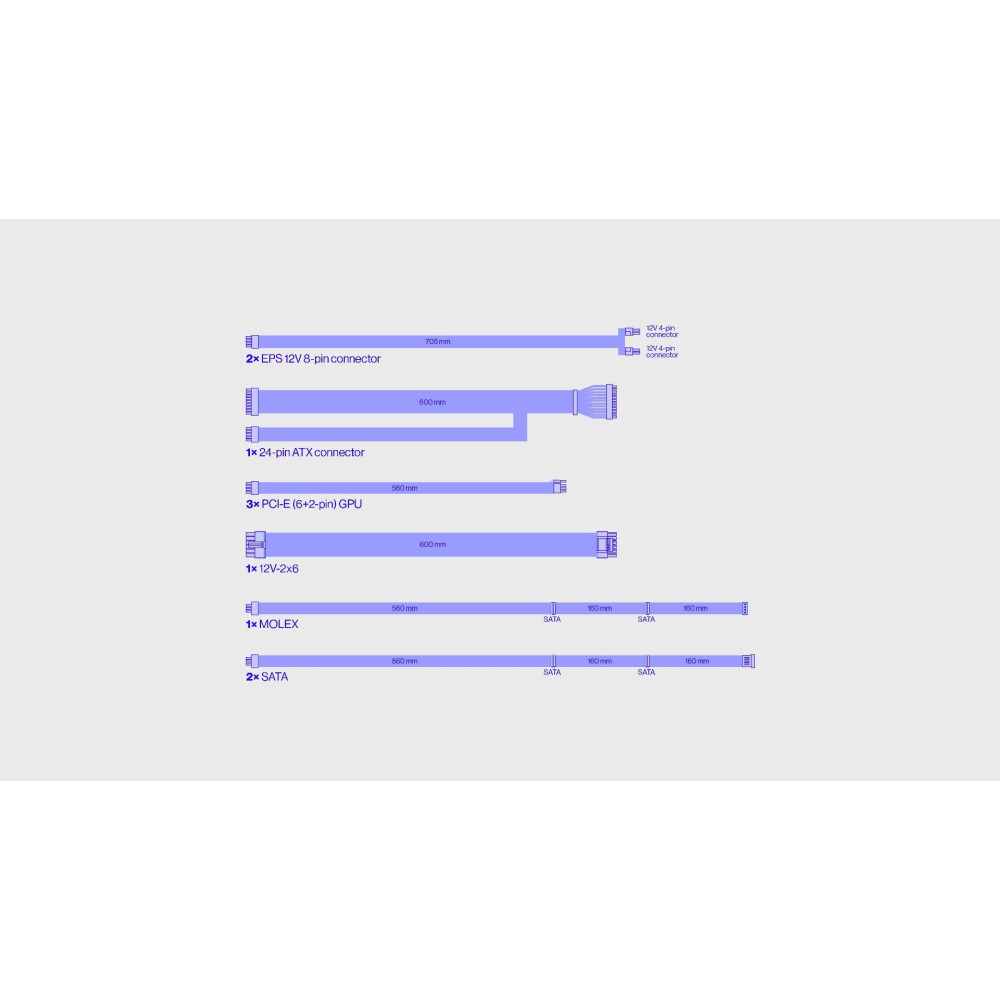

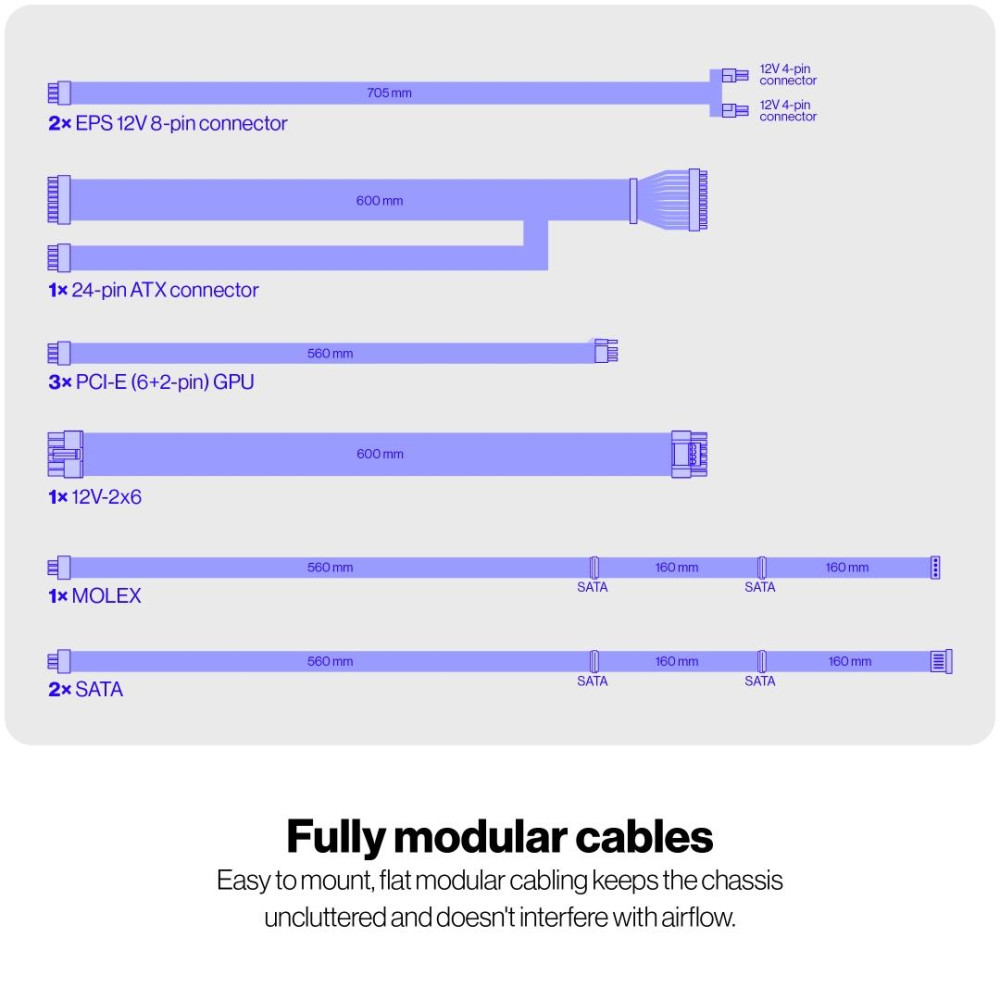

Cabling type
Fully-Modular
Case or master carton dimensions (W x D x H)
600 x 235 x 290
Case or master carton weight
17000
Compliance certificates
CB/CCC/CE/Federal Communications Commission (FCC)/RoHS/UKCA
Doesnt contain
Cadmium/Lead/Mercury
EPS power connector (4+4 pin)
Yes
On/off fan switch
No
PCI Express power connectors (12+4 pin)
1
Power supply unit (PSU) form factor
ATX
Product colour
Black
Purpose
PC
SATA power cable length
560
Summary
ENDORFY Supremo FM6 850 W. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, SATA power cable length: 560 mm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC
Unit Calculated Volume
0.00594
Unit Calculated Weight
2.72
Units per Shipping Box
1
Warranty period
10
Atmiņas ierīce
Number of SATA power connectors
8
Specifikācijas

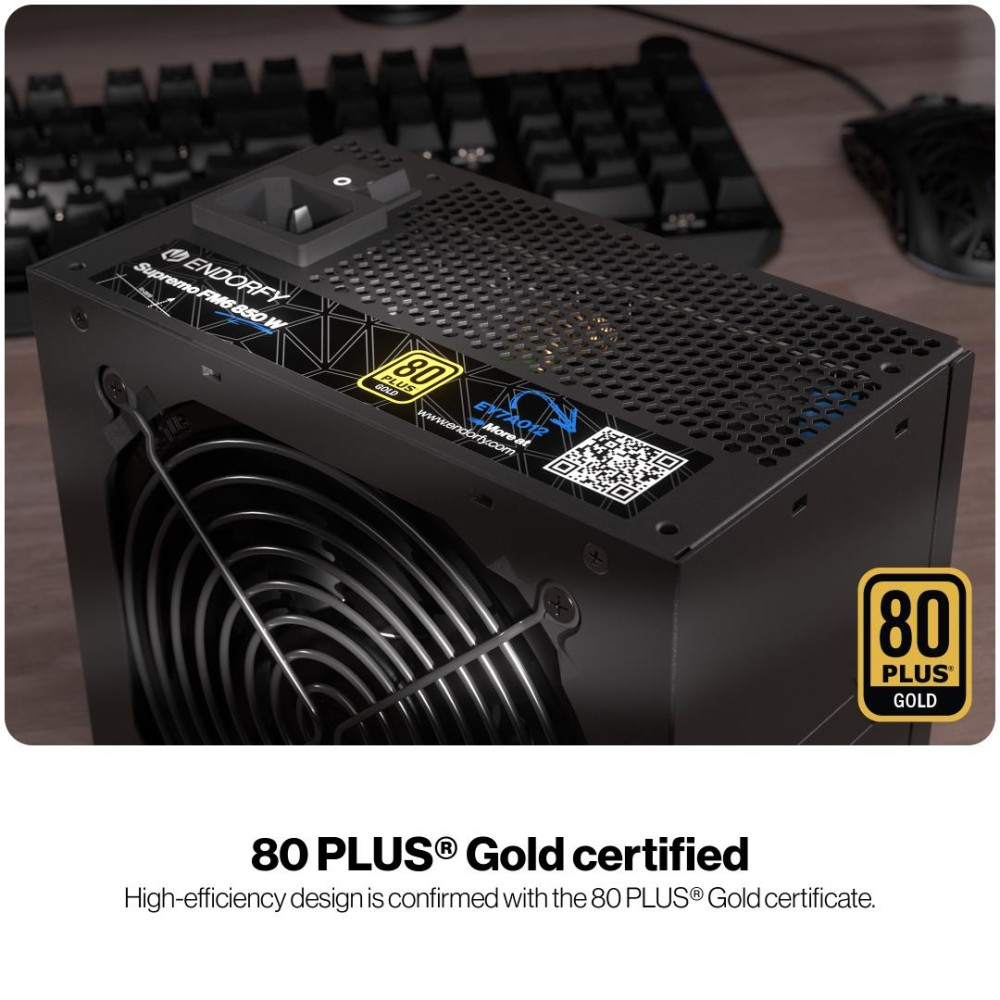

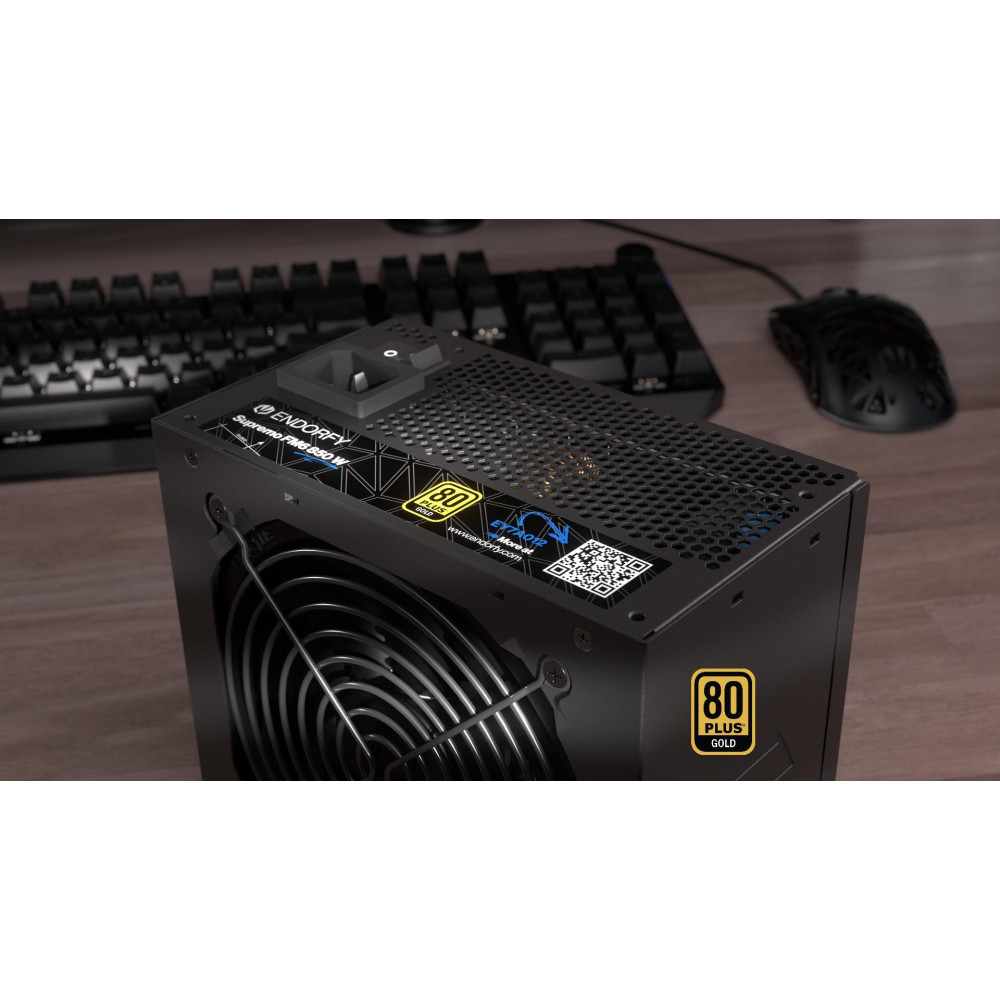

80 PLUS certification
80 PLUS Gold
AC input frequency
50/60
AC input voltage
100 - 240

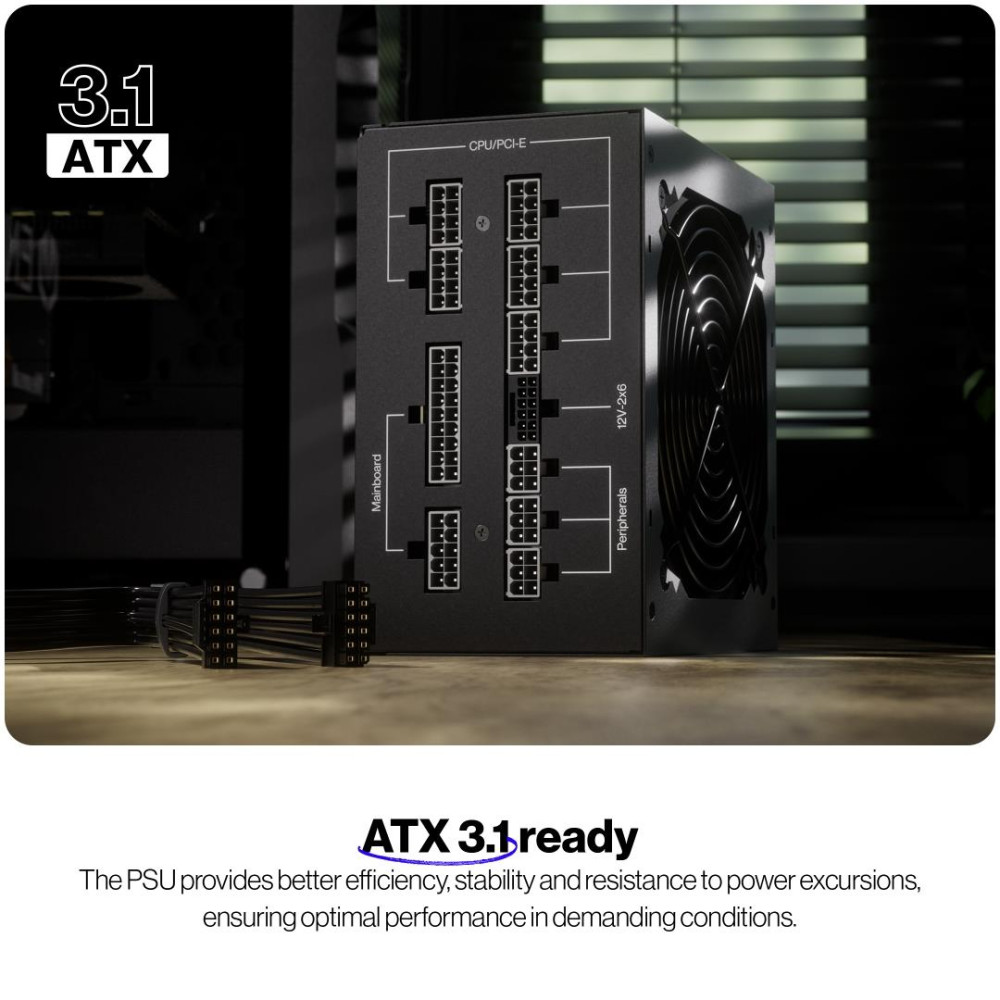

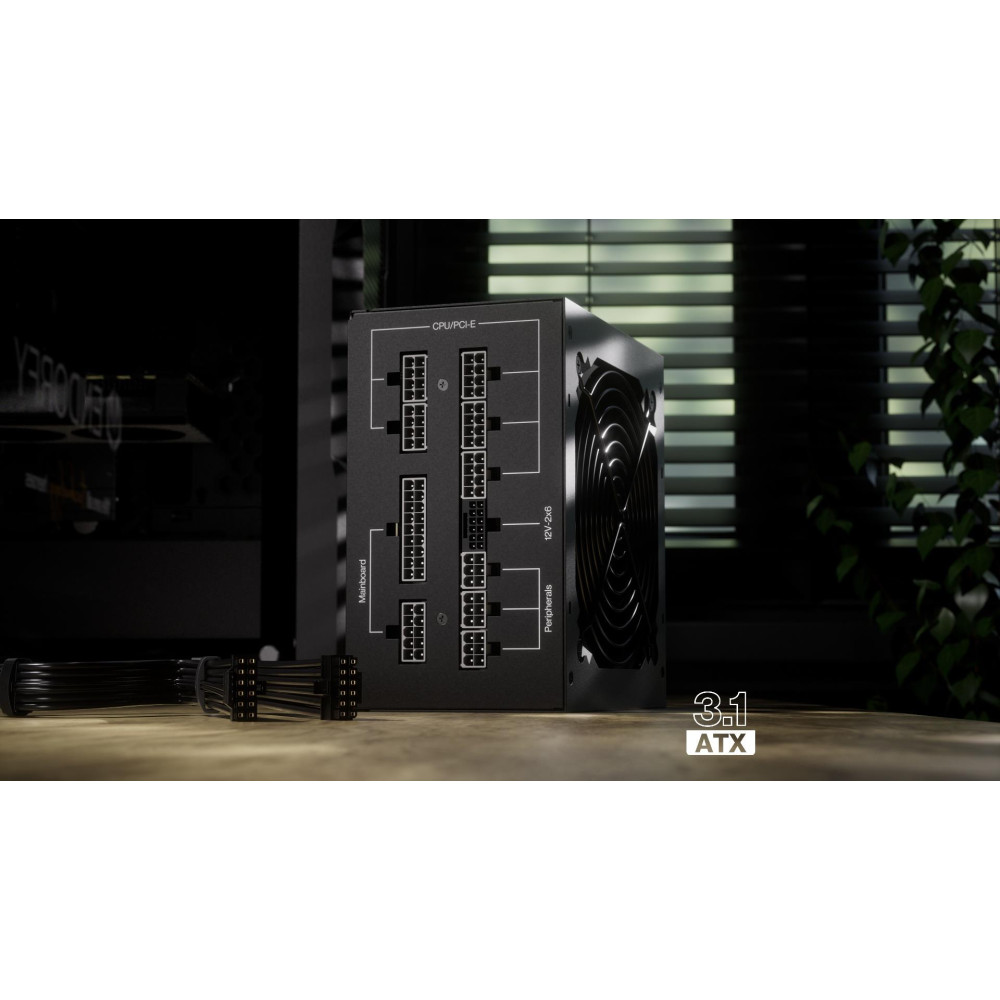

ATX version
3.1
Augstums
87
Bearing technology
FDB

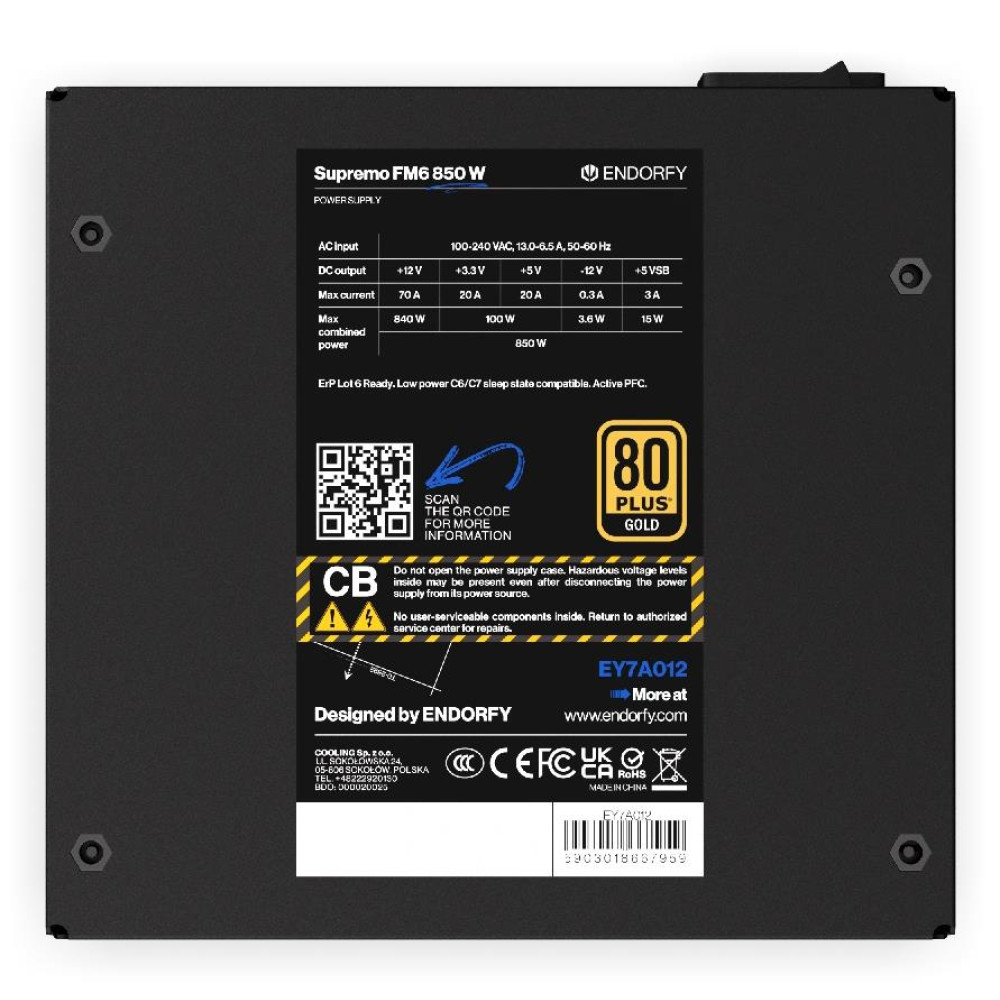

Combined power (+12V)
840
Combined power (+3.3V)
66
Combined power (+5V)
100
Combined power (+5Vsb)
15
Combined power (-12V)
3.6
Cooling type
Active
Country of origin
China
Dziļums
150

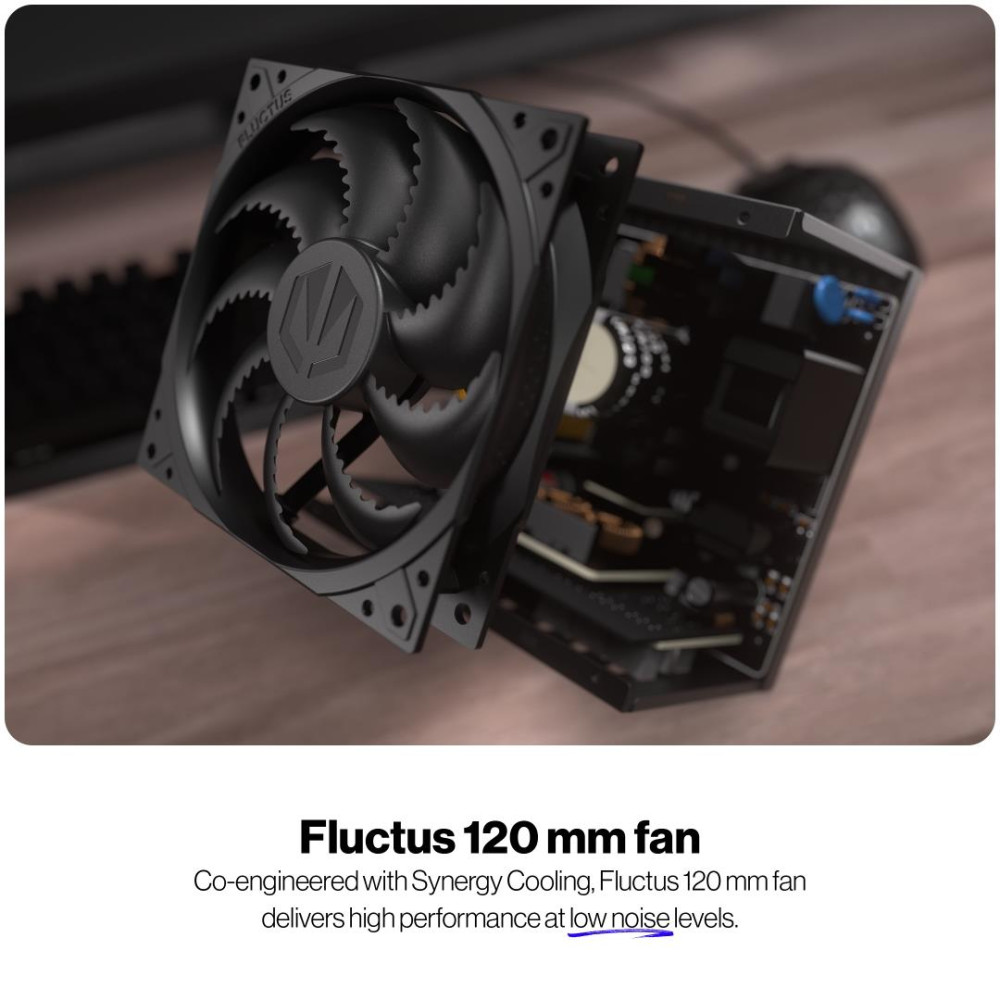

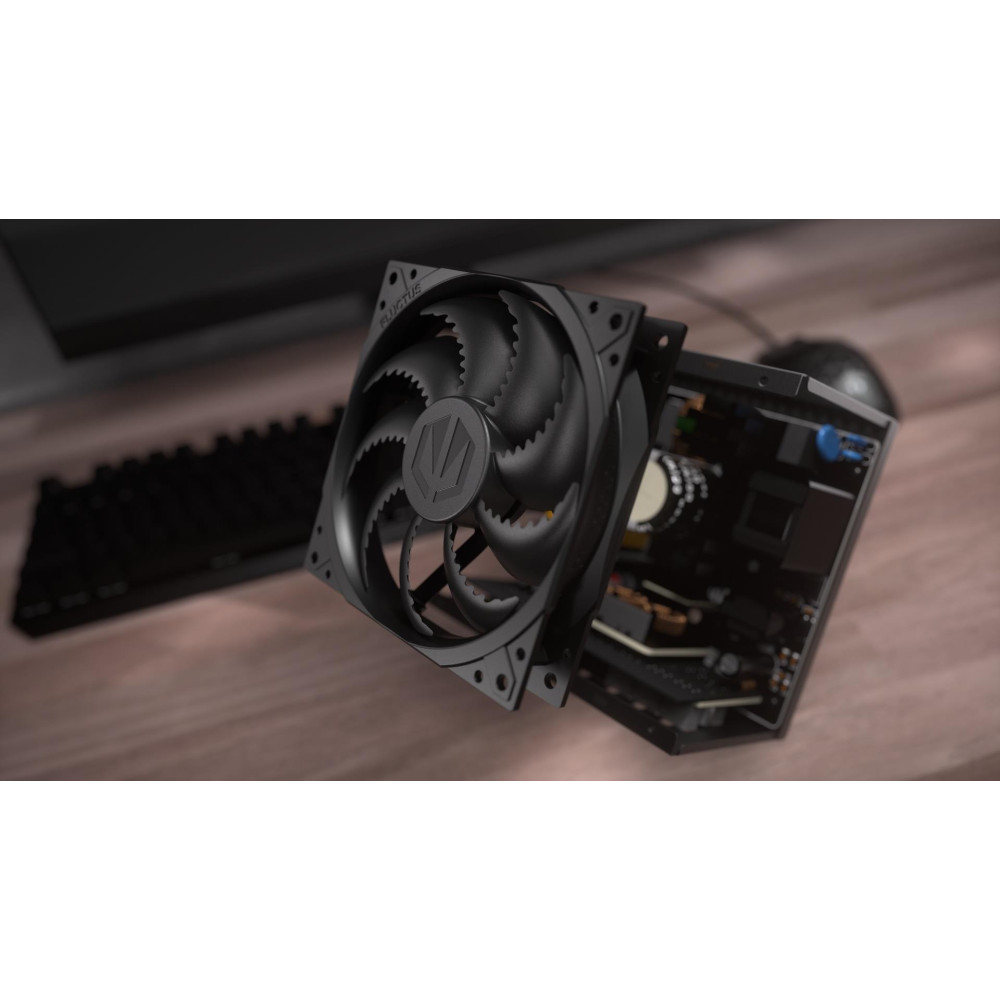

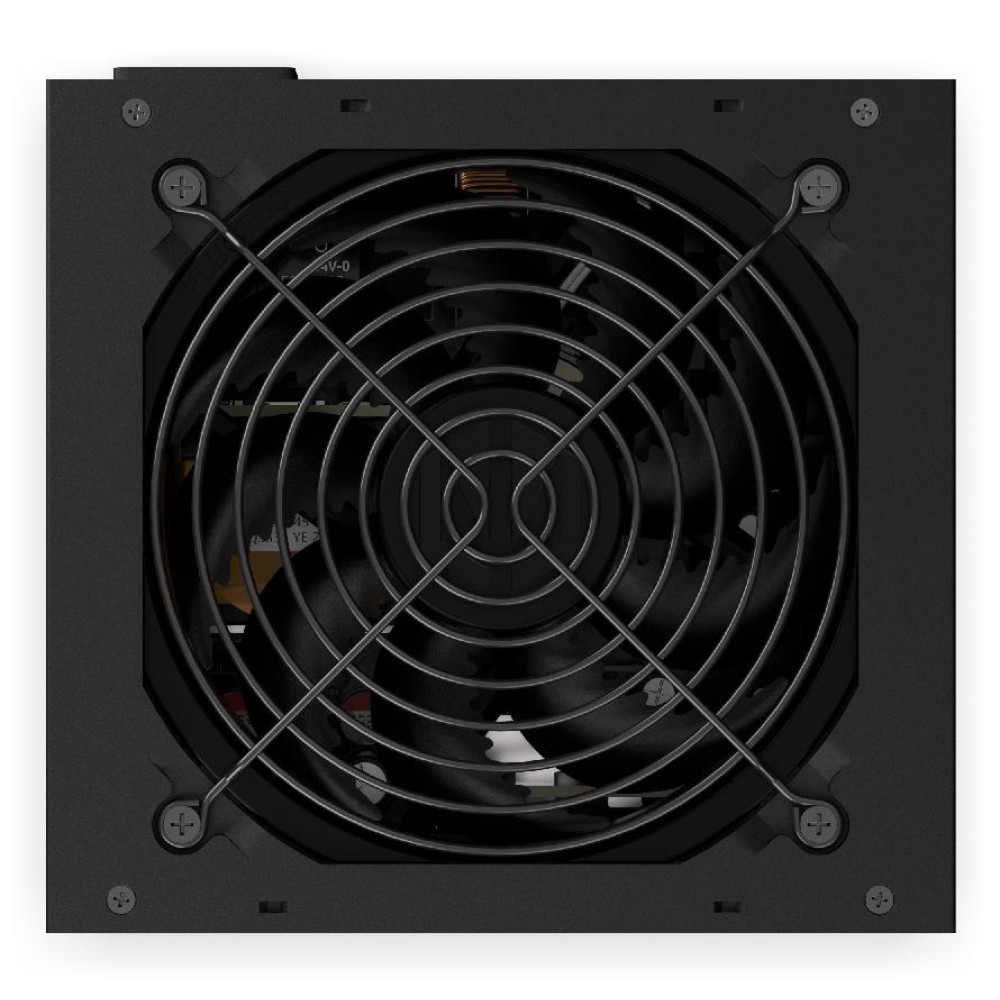

Fan diameter
120
Fan location
Top

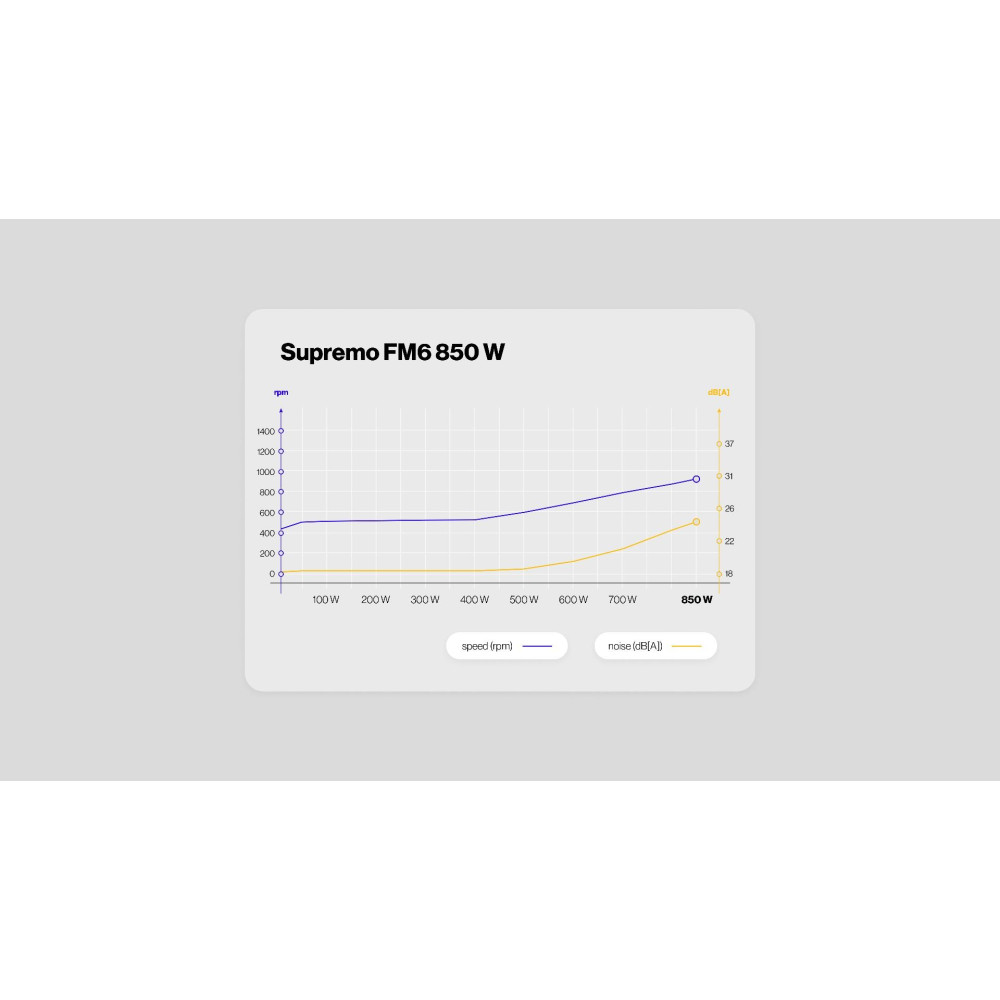

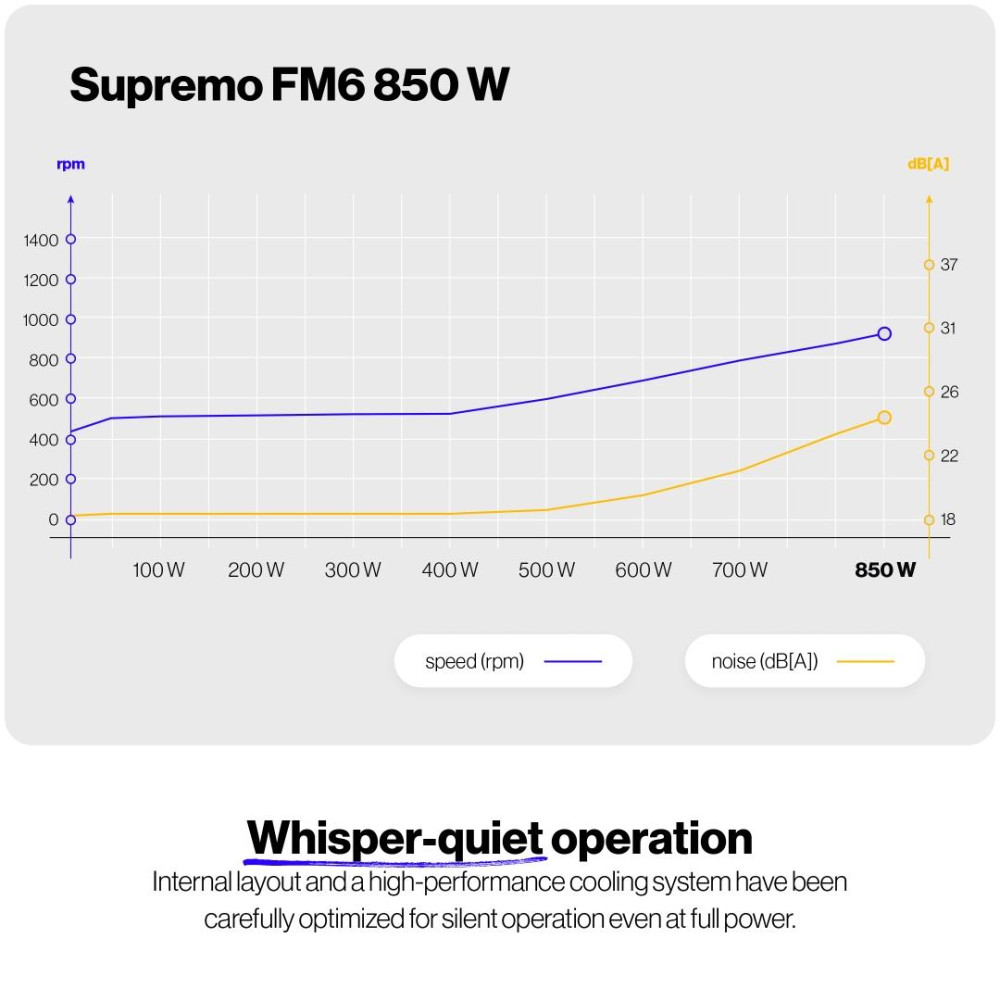

Fan speed
1260 - 1540
Illumination
No
Input current
13 - 6.5
Komplektā kabeļi
AC
LED indicators
No
Manual
Yes
Max output current (+12V)
70
Max output current (+3.3V)
20
Max output current (+5V)
20
Max output current (+5Vsb)
3
Max output current (-12V)
0.3
Mean time between failures (MTBF)
100000
Modeļa nosaukums
SUPREMO FM6

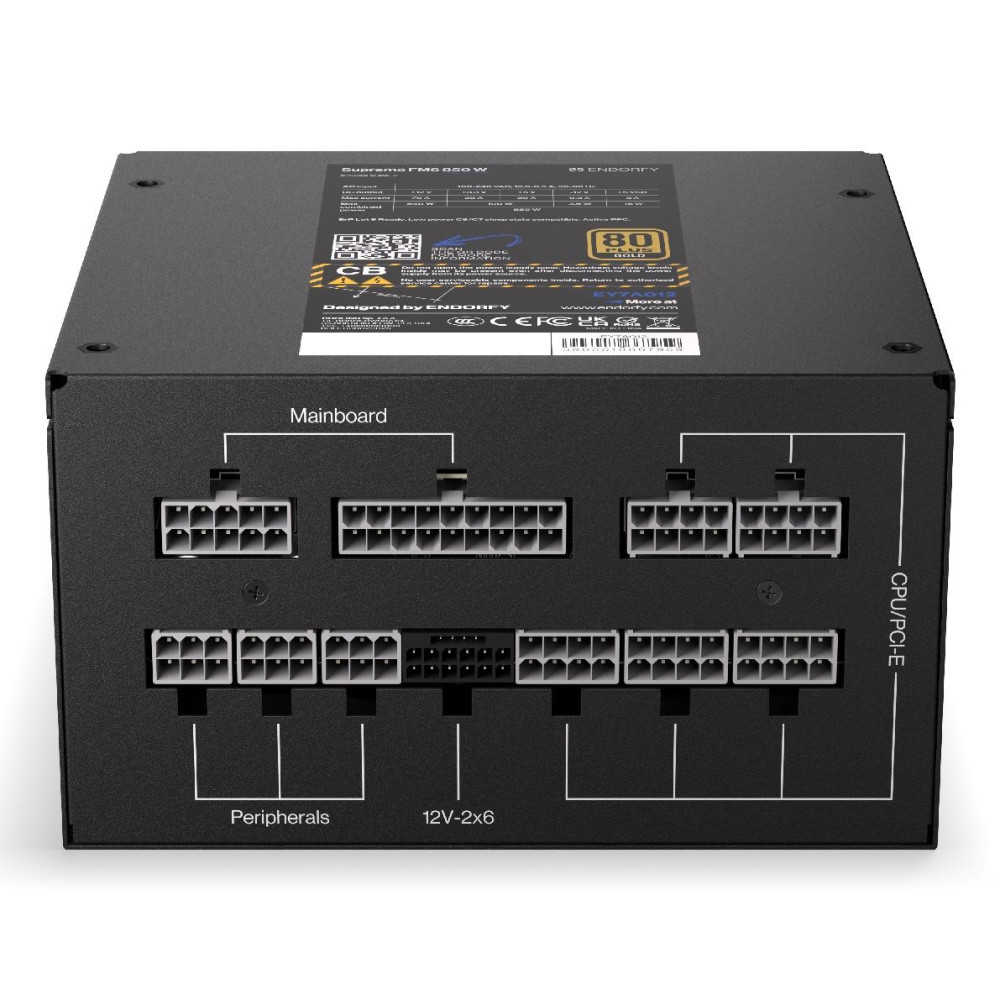

Motherboard power connector
24-pin ATX
Number of fans
1

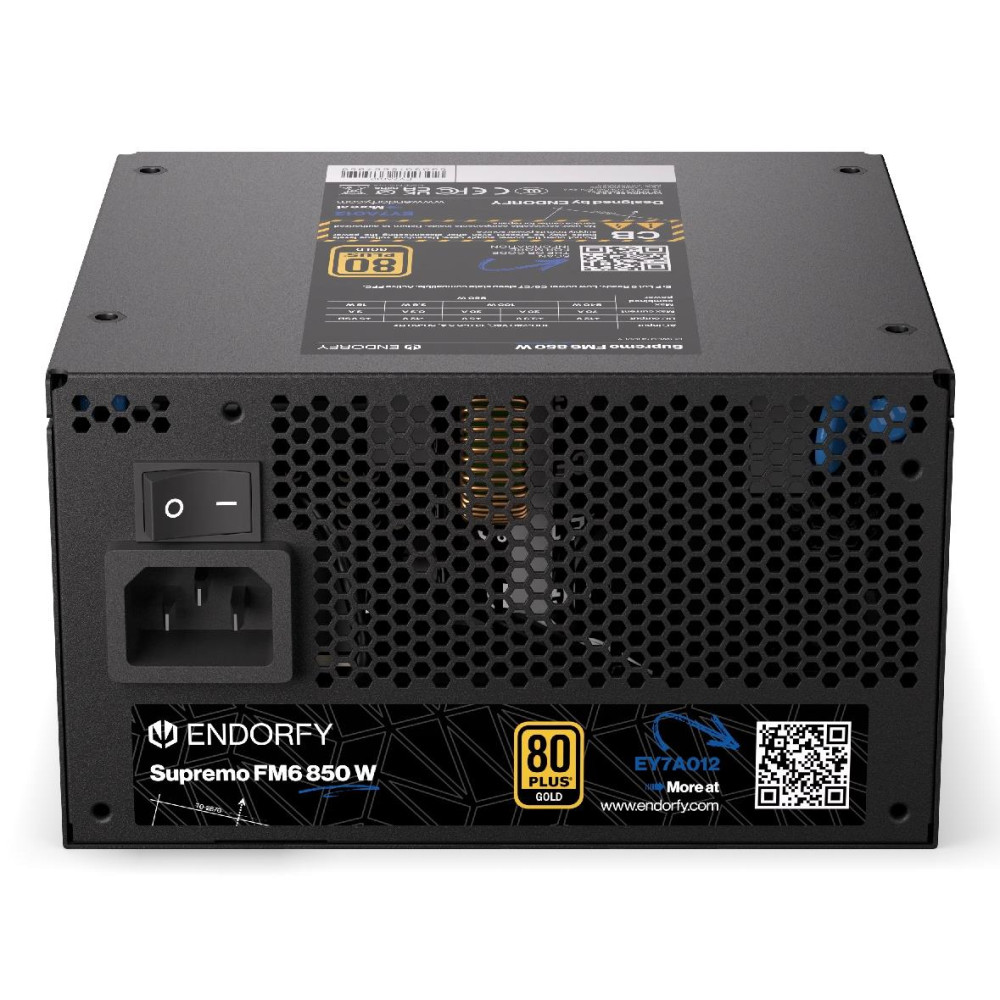

On/off switch
Yes
Package depth
270
Package height
95
Package type
Box
Package weight
2740
Package width
220
PCI Express power connectors (6+2 pin)
3
Peripheral (Molex) power connectors (4-pin)
1
Platums
140
Power Factor Correction (PFC) type
Active

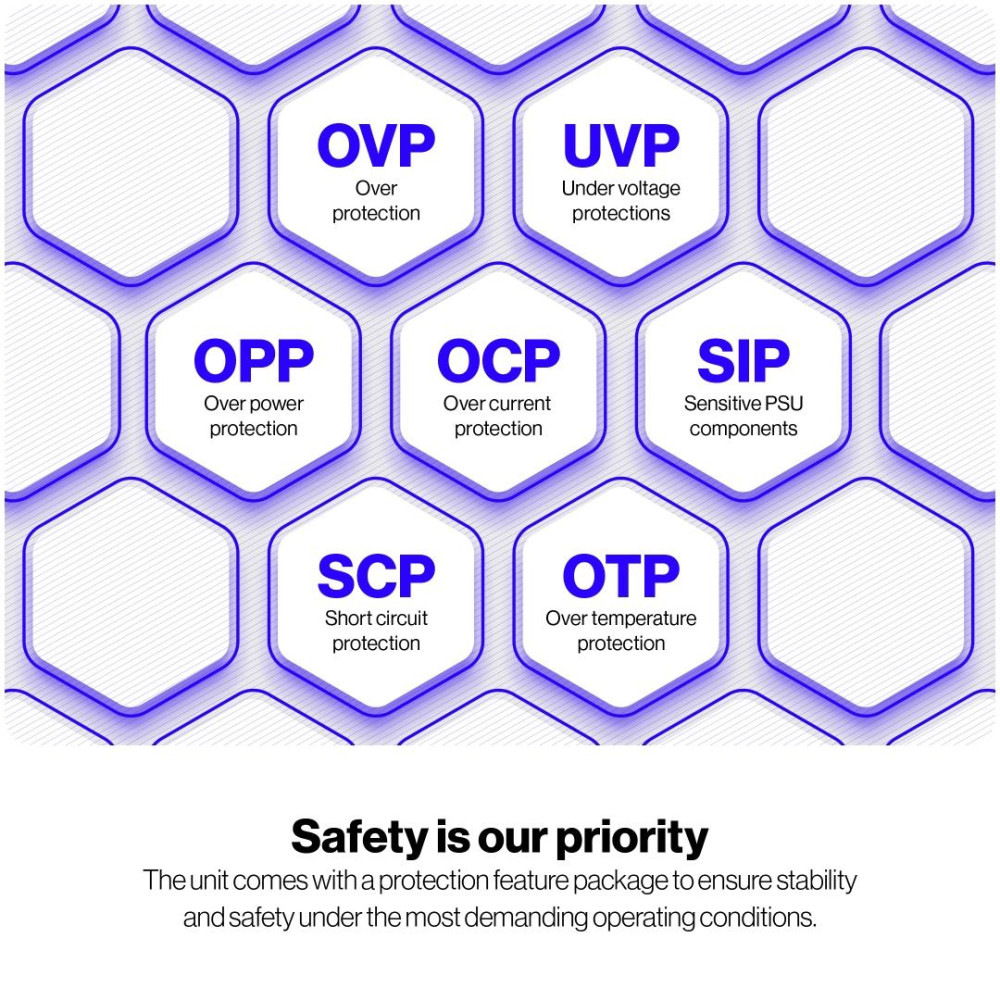

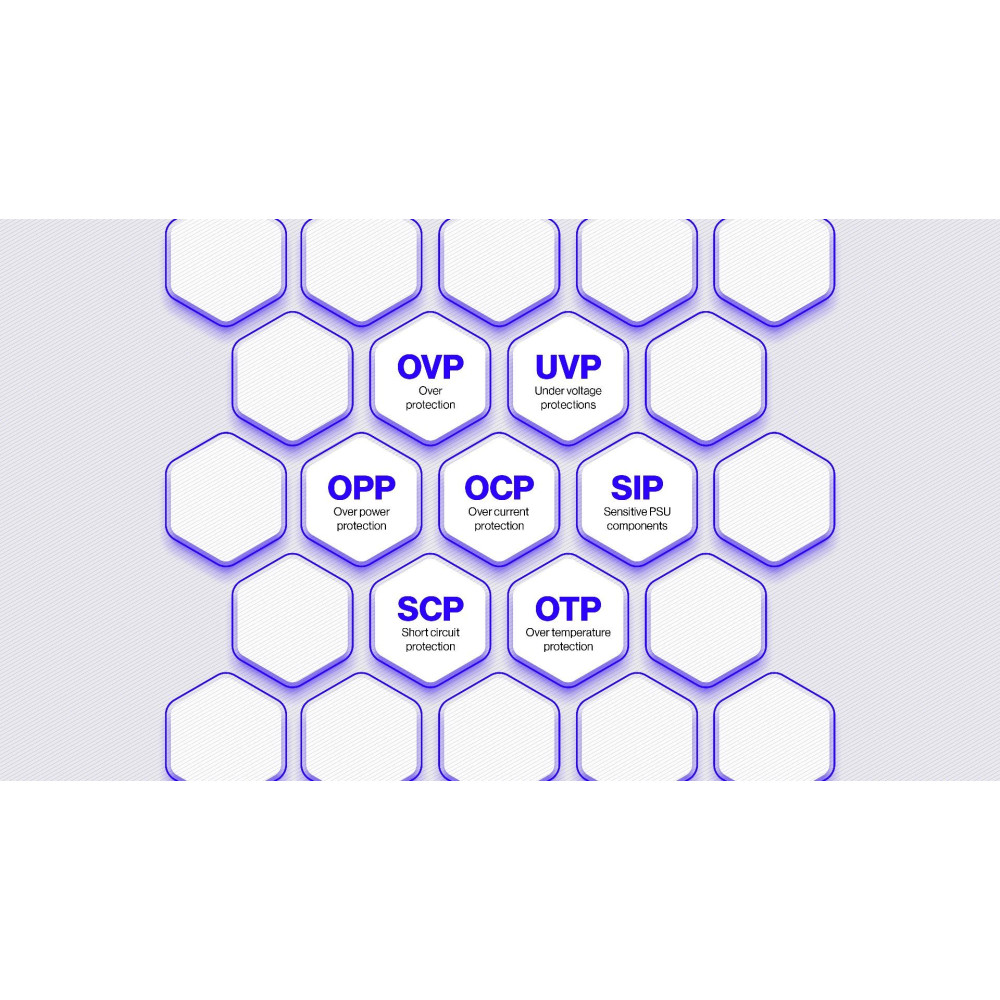

Power protection features
Over current/Over power/Over voltage/Short circuit/Surge & inrush protection (SIP)/Under temperature/Under voltage
Total power
850
Weight
1460
