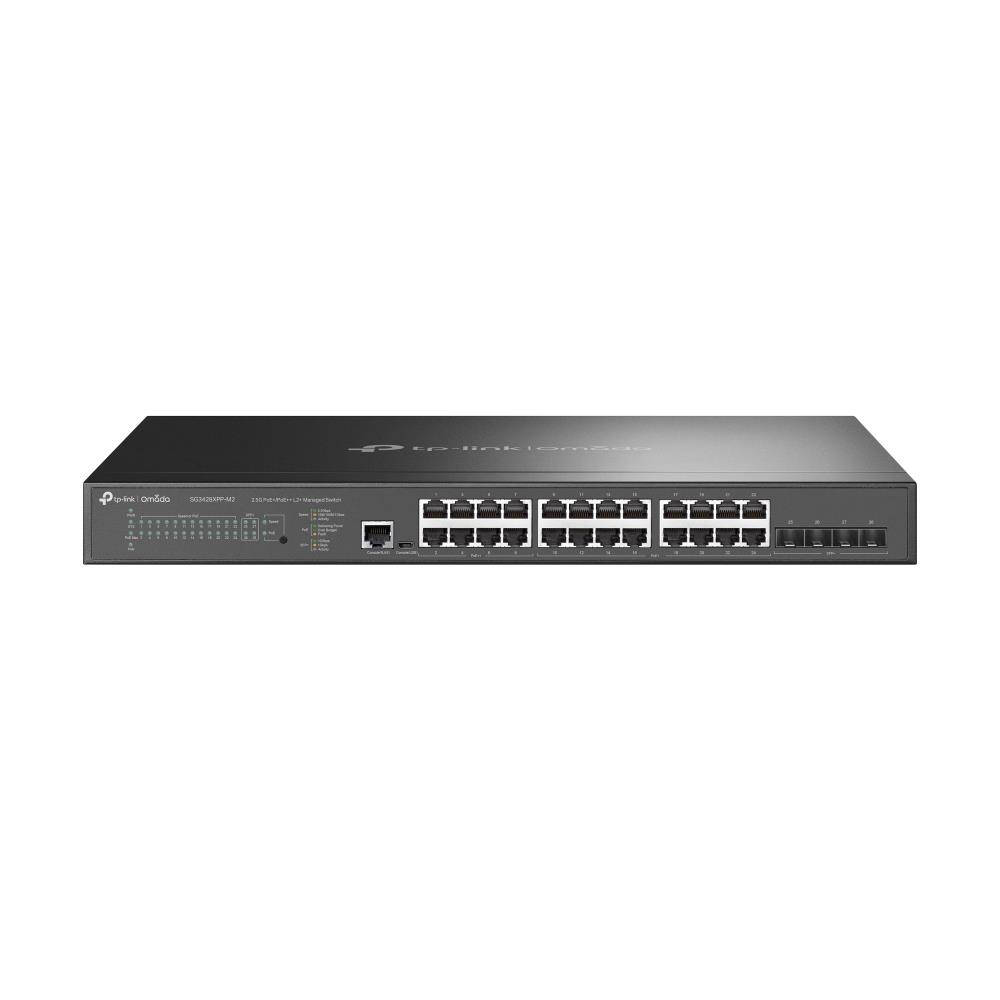

Switch, TP-LINK, Omada, SG3428XPP-M2, Desktop/pedestal, Rack, 24x2.5GbE, 4xSFP+, 1xConsole, 1, PoE+ ports 16, 500 Watts, SG3428XPP-M2

Populārs

Pēdējais

Switch, TP-LINK, Omada, SG3428XPP-M2, Desktop/pedestal, Rack, 24x2.5GbE, 4xSFP+, 1xConsole, 1, PoE+ ports 16, 500 Watts, SG3428XPP-M2

Atsauksmes:

(0)

Nosaukums:

TP-LINK SG3428XPP-M2

Ražotājs: TP-LINK
Modelis: SG3428XPP-M2
EAN: 4897098689738
Pieejamība: 1

959,69€

Bez PVN: 793,13€

Daudzums:

Produktu apskats
Specifikācija
Atsauksmes (0)

Manufacturer page

Atslēgvārdi: Switches

Specifikācijas

Specifikācija

2.5G Ethernet (copper) ports quantity 24

Authentication Guest VLAN,MAC-based authentication,Port-based authentication

Authentication type AAA,IEEE 802.1x,RADIUS,TACACS+

BPDU filtering/protection Yes

Cloud-managed Yes

Compliance certificates CE/Federal Communications Commission (FCC)/RoHS

Configuring Location Settings (CLI) Yes

DHCP features DHCP client/DHCP relay/DHCP server/DHCP snooping/DHCPv6 client/DHCPv6 snooping

GARP VLAN Registration Protocol (GVRP) Yes

Half duplex Yes

Head-of-line (HOL) blocking Yes

IP-MAC-Port binding Yes

IPv4 & IPv6 features IPv4/IPv6 access-control list (ACL)/IPv6 ping/IPv6 portal/IPv6 tracert

IPv4 routes 48

IPv6 routes 48

Loop protection Yes

Multicast Listener Discovery (MLD) snooping MLD v1/v2

Number of IP interfaces 32

Number of queues 8

Number of static routes 48

Power over Ethernet 4PPoE (PoE++) ports quantity 8

Product colour Black

Queue scheduling algorithms SP/Weighted Round Robin (WRR)/WRR+SP

Rack mount kit Yes

Rate limiting Yes

Redundant fans support Yes

Static route Yes

Store-and-forward Yes

Summary TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/Micro-USB. Full duplex. MAC address table: 32000 entries, Switching capacity: 200 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Sustainability compliance Yes

System event log Yes

Unit Calculated Volume 0.02355

Unit Calculated Weight 6.2

Units per Shipping Box 1

Virtual LAN features MAC address-based VLAN/Port-based VLAN/Protocol-based VLAN/Stacked VLAN/Tagged VLAN/Voice VLAN

Atmiņa

Atmiņas tips DRAM

Iekšējā atmiņa 256

Atmiņas ierīce

Flash memory 32

Pieslēgumi

10G support Yes

Basic switching RJ-45 Ethernet ports quantity 24

Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500)

Ethernet LAN data rates 10,100,1000,2500,10000

Specifikācijas

AC input frequency 50/60

AC input voltage 100 - 240

Access Control List (ACL) Yes

ARP inspection Yes

Augstums 44

Broadcast storm control Yes

Console port RJ-45/micro-USB

Dziļums 330

Flow control support Yes

Form factor 1U

Forwarding rate 148.8

Full duplex Yes

Heat dissipation 2153.45

IGMP snooping Yes

Jumbo frames 9000

Jumbo frames support Yes

Komplektā kabeļi AC

LED indicators Yes

Link aggregation Yes

MAC address table 32000

Management protocols SNMP v1/v2c/v3

MIB support RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925

Modeļa nosaukums SG3428XPP-M2

Multicast support Yes

Networking standards IEEE 802.1ab/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3ae/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3bz/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z

Number of fans 3

Operating relative humidity (H-H) 10 - 90

Operating temperature (T-T) 0 - 40

Packet buffer memory 16

Password protection Yes

Platums 440

Port mirroring Yes

Power consumption (max) 629.1

Power over Ethernet (PoE) Yes

Power over Ethernet plus (PoE+) ports quantity 16

Power source AC/PoE

Power supply included Yes

Quality of Service (QoS) support Yes

Quick start guide Yes

Rack mounting Yes

Redundant power supply (RPS) support Yes

Security algorithms HTTPS/SSH/SSH-2/SSL/TLS

Series Omada

SFP+ module slots quantity 4

Spanning tree protocol Yes

SSH/SSL support Yes

Static port security Yes

Storage relative humidity (H-H) 5 - 90

Storage temperature (T-T) -40 - 70

Switch layer L2+

Switch type Managed

Switching capacity 200

Total Power over Ethernet (PoE) budget 500

VLAN support Yes

Web-based management Yes
