Mainboard, GIGABYTE, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5, Memory slots 4, 2xPCI-Express 1x, 1xPCI-Express 16x, 2xM.2, 1xHDMI, 1xDisplayPort, 1xAudio-In, 1xAudio-Out, 1xMicrophone, 3xUSB 2.0, 3xUSB 3.2, 1xPS/2, 1xRJ45, B860MD3HP1.0
Popular
Mainboard, GIGABYTE, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5, Memory slots 4, 2xPCI-Express 1x, 1xPCI-Express 16x, 2xM.2, 1xHDMI, 1xDisplayPort, 1xAudio-In, 1xAudio-Out, 1xMicrophone, 3xUSB 2.0, 3xUSB 3.2, 1xPS/2, 1xRJ45, B860MD3HP1.0
Mainboard, GIGABYTE, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5, Memory slots 4, 2xPCI-Express 1x, 1xPCI-Express 16x, 2xM.2, 1xHDMI, 1xDisplayPort, 1xAudio-In, 1xAudio-Out, 1xMicrophone, 3xUSB 2.0, 3xUSB 3.2, 1xPS/2, 1xRJ45, B860MD3HP1.0
Mainboard, GIGABYTE, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5, Memory slots 4, 2xPCI-Express 1x, 1xPCI-Express 16x, 2xM.2, 1xHDMI, 1xDisplayPort, 1xAudio-In, 1xAudio-Out, 1xMicrophone, 3xUSB 2.0, 3xUSB 3.2, 1xPS/2, 1xRJ45, B860MD3HP1.0
Mainboard, GIGABYTE, Intel B860 Express, LGA1851, Micro-ATX, Memory DDR5, Memory slots 4, 2xPCI-Express 1x, 1xPCI-Express 16x, 2xM.2, 1xHDMI, 1xDisplayPort, 1xAudio-In, 1xAudio-Out, 1xMicrophone, 3xUSB 2.0, 3xUSB 3.2, 1xPS/2, 1xRJ45, B860MD3HP1.0
Reviews:
(0)
    Name:

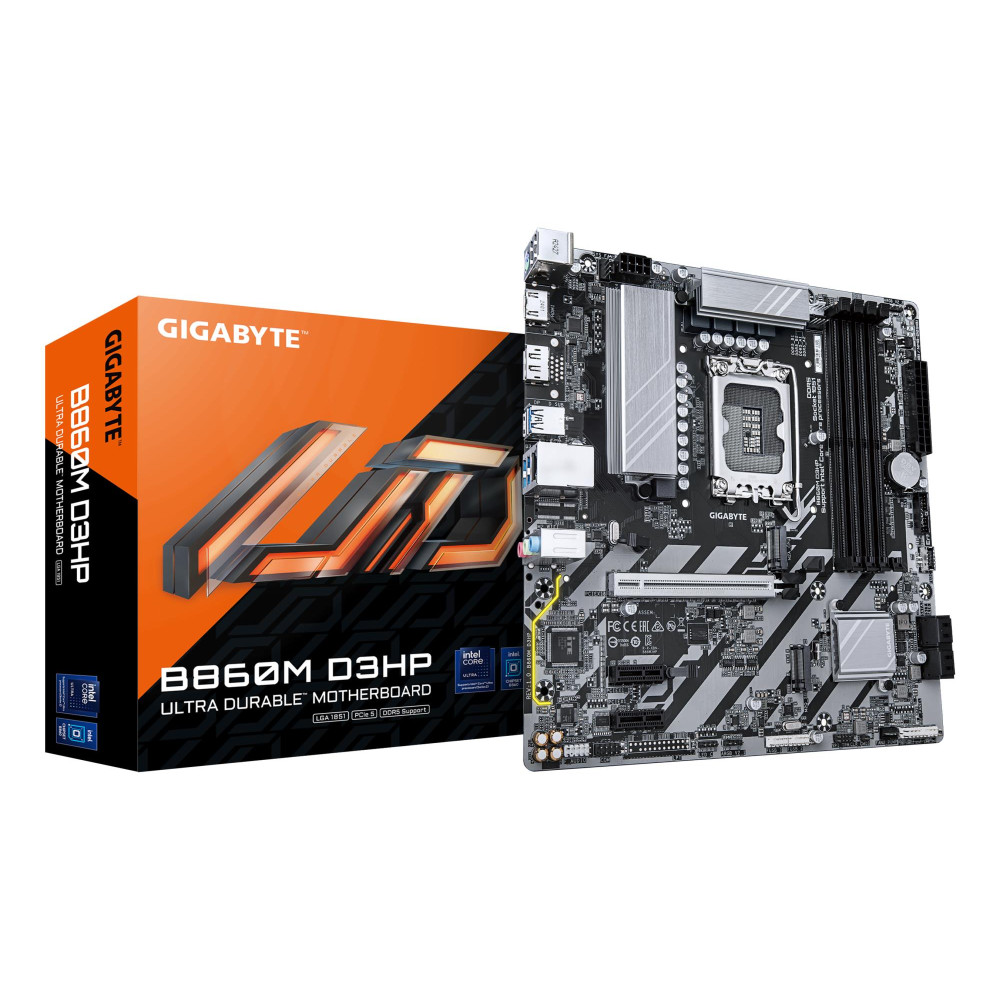

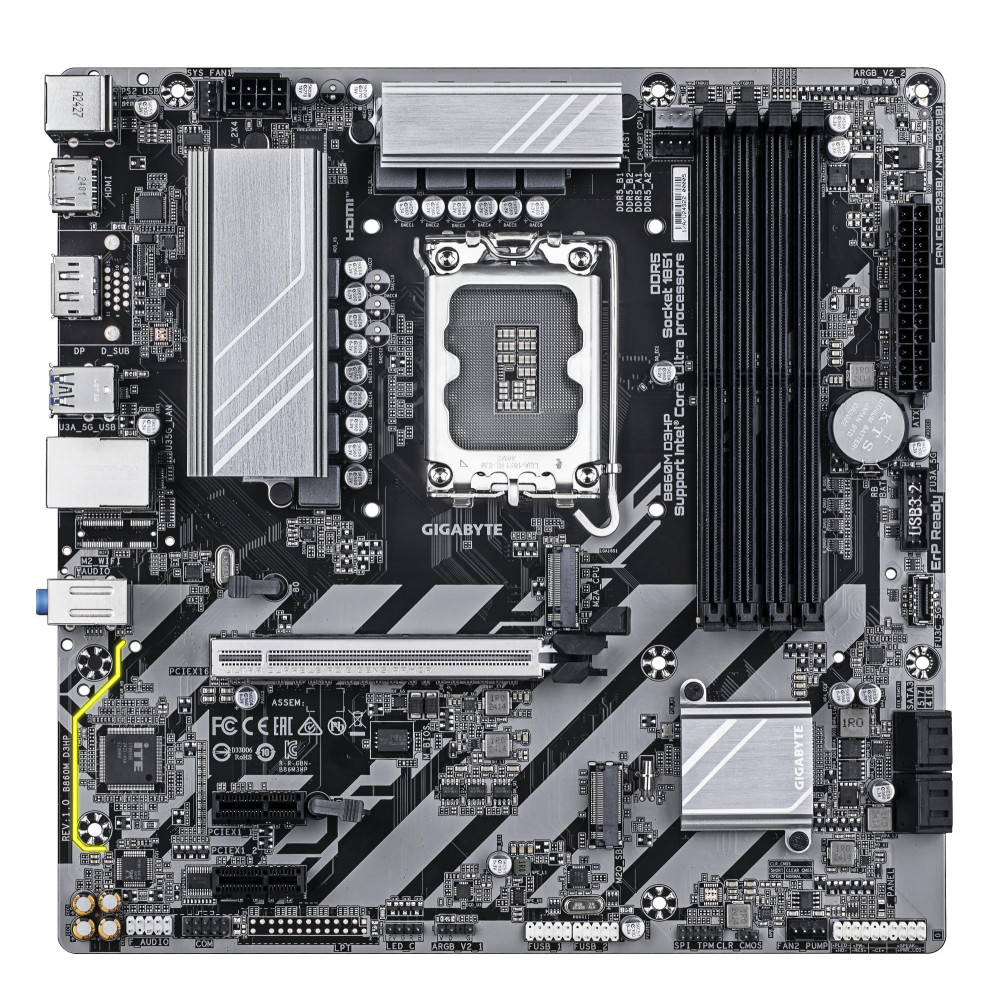

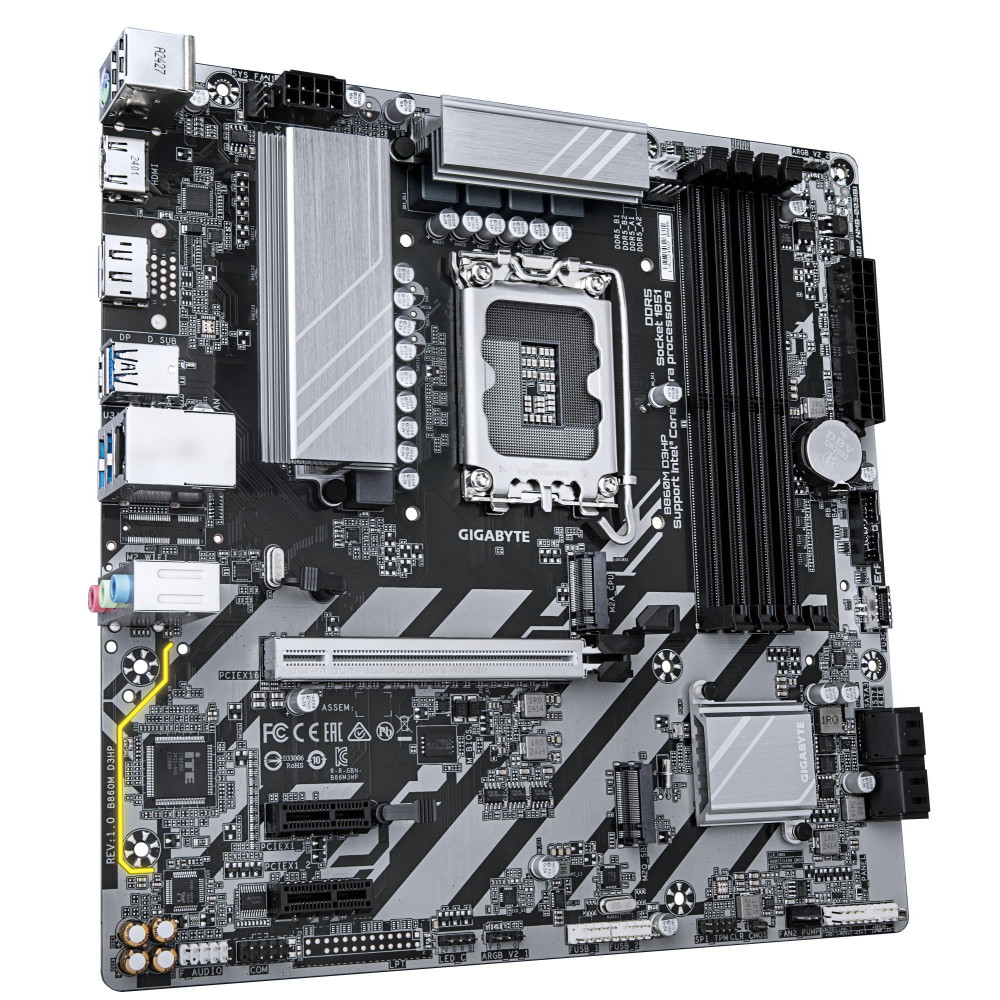

    Gigabyte B860M D3HP 1.0

  • Brand: Gigabyte
  • Product Code: B860M D3HP 1.0
  • EAN: 4719331866860
  • Availability: 5
140.32€
Ex Tax: 115.97€
  • Product overview
  • Specification
  • Reviews (0)

Tags: Mainboards for Intel CPUs

Specifications
Specifikācija
1st M.2 highest PCI Express generation 4.0
1st M.2 largest key size 2280
2nd M.2 highest PCI Express generation 4.0
2nd M.2 largest key size 2280
ACPI version 5.0
Audio chip Realtek ALC897
BIOS memory size 256
Clear CMOS jumper Yes
CPU fan connector Yes
Desktop Management Interface (DMI) version 2.7
ECC сompatibility ECC & Non-ECC
Front panel audio connector Yes
Front panel connector Yes
Lithium weight per battery 0.07
Maximum internal memory per slot 64
Motherboard chipset family Intel
Number of chassis fan connectors 2
Number of CPU fan connectors 2
Number of EPS power connectors (8-pin) 1
Number of HDDs supported 4
Number of M.2 (M) slots 2
Number of RGB LED pin headers 3
Number of SATA III connectors 4
Number of water pump connectors 2
Parallel processing technology support Not supported
PC health monitoring Fan/Temperature/Voltage/Water cooling
PCI Express x1 (Gen 3.x) slots 2
PCI Express x16 (Gen 5.x) slots 1
Product colour Dark brown
Products per shipping (inner) case 1
RGB LED pin header Yes
Screws included Yes
Serial port headers 1
Summary GIGABYTE B860M D3HP Motherboard - Intel Core Ultra Series CPUs, 4+1+2+1 Phases VRM, up to 9066MHz DDR5, 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
Supported memory clock speed (max) 9066
System Management BIOS (SMBIOS) version 2.7
TPM connector Yes
Unit Calculated Volume 0.004588
Unit Calculated Weight 1.05
Units per Shipping Box 10
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
Warranty period 3
Processor parameters
Compatible processor series Intel Core Ultra (Series 2)/Intel® Core™ Ultra (Series 1)
Processor manufacturer Intel
Memory parameters
Maximum internal memory 256
Memory channels Dual-channel
Memory slots type DIMM
Memory type DDR5
Supported memory clock speeds 5600/6400/9066
Supported memory types DDR5-SDRAM
Unbuffered memory Yes
Storage parameters
Number of storage drives supported 6
RAID levels 0/1/10/5
RAID support Yes
Supported storage drive interfaces M.2,SATA III
Supported storage drive types HDD & SSD
Ports types
DisplayPort version 2.1
DisplayPorts quantity 1
HDMI ports quantity 1
HDMI version 2.1
Headphone outputs 1
USB 2.0 connectors 2
USB 2.0 ports quantity 3
Connections types
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
LAN controller Realtek RTL8111H
Wi-Fi No
Battery parameters
Batteries included Yes
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery type CR2032
Battery weight 3
Number of battery cells 1
Specifications
ATX Power connector (24-pin) Yes
Audio output channels 7.1
BIOS Type UEFI AMI
Bundled software Norton® Internet Security (OEM version)LAN bandwidth management software
Chipset B860
Component for PC
Cooling type Passive
Country of origin China
Depth 244
DirectX version 12.0
EPS power connector (8-pin) Yes
Form factor mATX
HDCP Yes
Height 35
Line-in Yes
Maximum resolution 4096 x 2160
Model B860M D3HP
Motherboard chipset Intel B860
Motherboard form factor micro ATX
Number of memory slots 4
Package depth 265
Package height 54
Package width 265
Power source type ATX
PS/2 ports quantity 1
Supported processor sockets LGA 1851
Weight 1100
Width 244
Windows operating systems supported Windows 10 x64/Windows 11 x64
