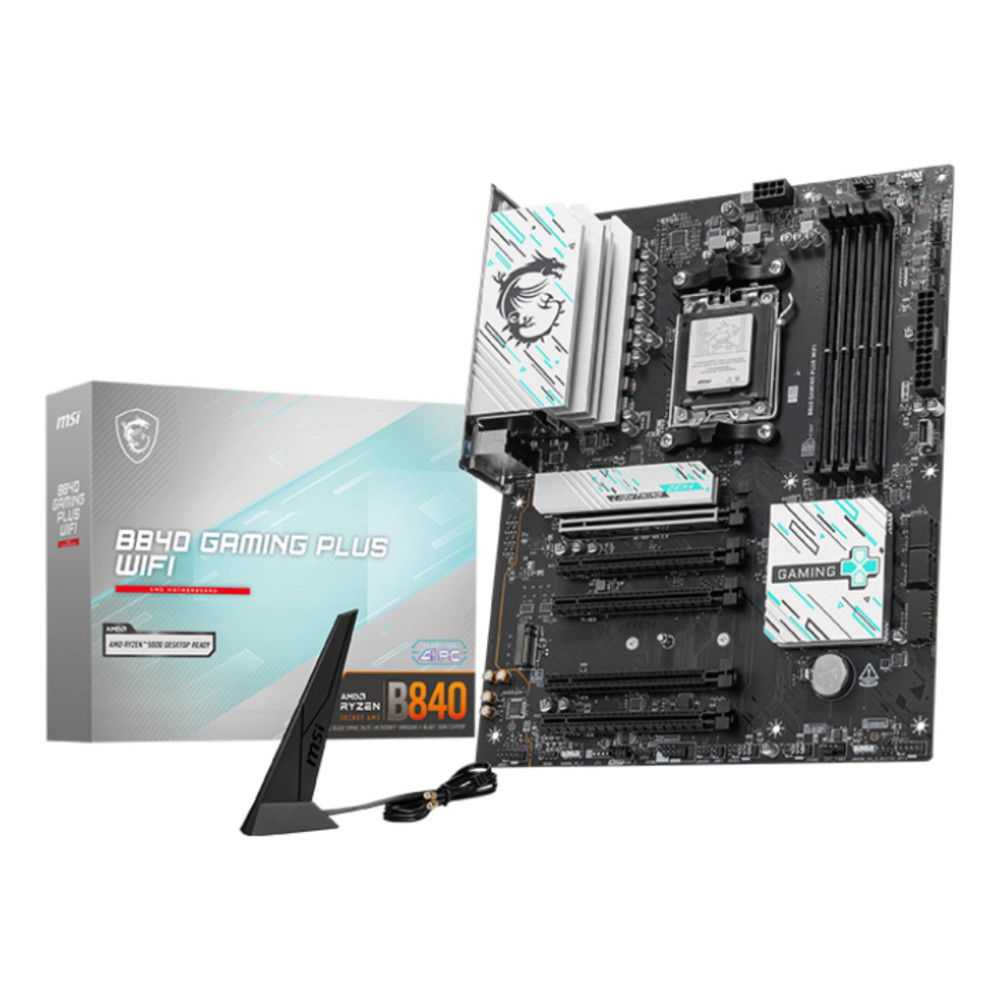

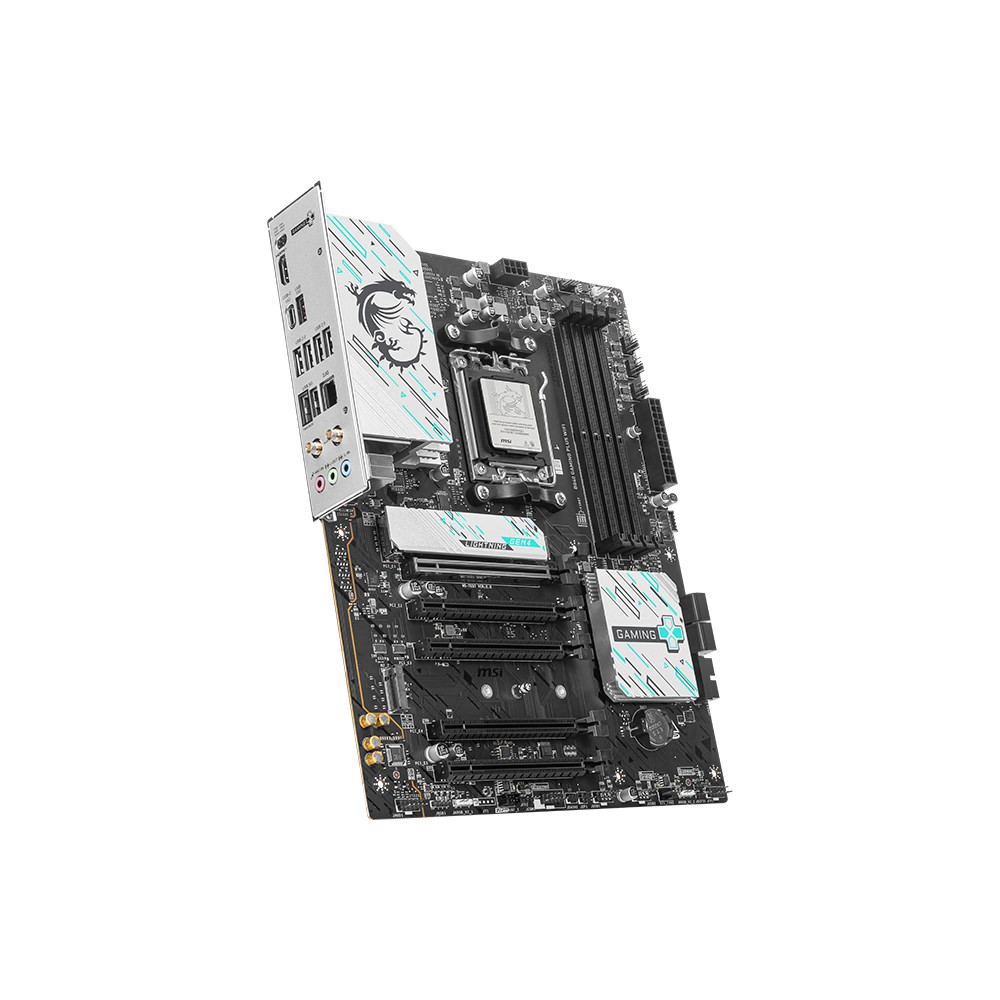

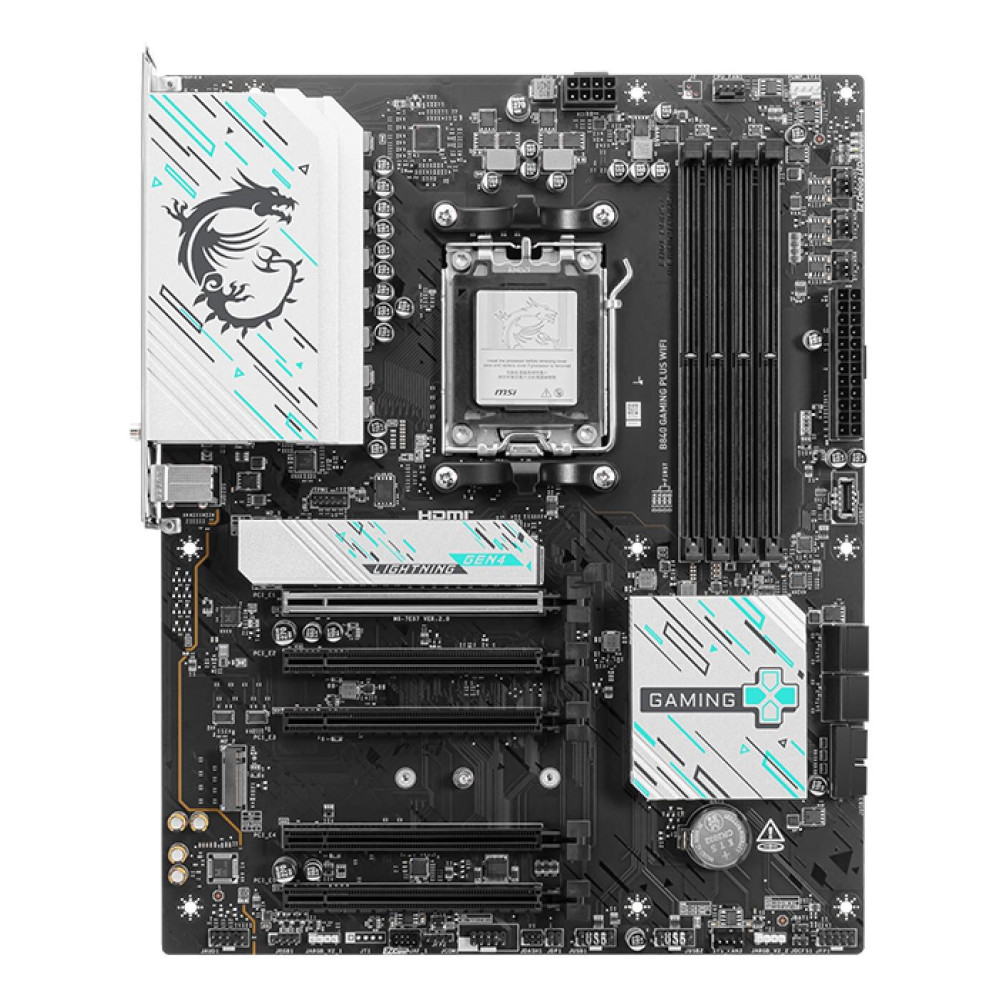

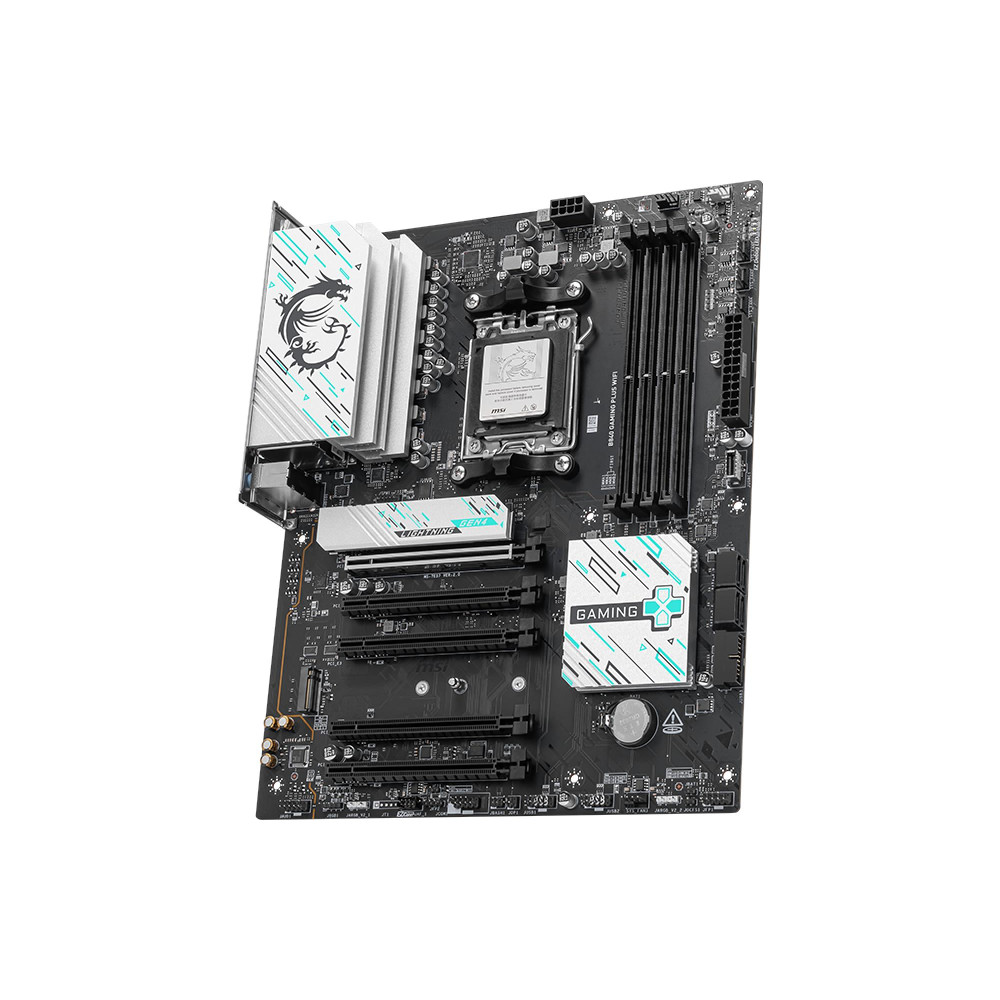

    MSI B840 GAMING PLUS WIFI

  • Brand: MSI
  • Product Code: B840 GAMING PLUS WIFI
  • EAN: 4711377286589
  • Availability: 14
171.58€
Ex Tax: 141.80€
  • Product overview
  • Specification
  • Reviews (0)

Tags: Mainboards for AMD CPUs

Specifications
Specifikācija
1st M.2 highest PCI Express generation 4.0
1st M.2 largest key size 2280
2nd M.2 highest PCI Express generation 4.0
2nd M.2 largest key size 22110
ACPI version 6.5
Audio chip Realtek ALC897
ECC ?ompatibility non-ECC
Motherboard chipset family AMD
Number of chassis fan connectors 5
Number of CPU fan connectors 1
Number of HDDs supported 4
Number of M.2 (M) slots 2
Number of RGB LED pin headers 3
Number of SATA III connectors 4
Number of water pump connectors 1
On-board graphics card N
PC health monitoring CPU/FAN/Temperature/Voltage
PCI Express x16 (Gen 3.x) slots 4
PCI Express x16 (Gen 4.x) slots 1
Product colour Black
RGB LED pin header Y
Summary MSI B840 GAMING PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Micro SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
Supported memory clock speed (max) 8000
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Total number of SATA connectors 4
Unit Calculated Volume 0.008299
Unit Calculated Weight 1.74
Units per Shipping Box 10
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
Processor parameters
Compatible processor series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer AMD
Processor socket AM5
Memory parameters
Maximum internal memory 256
Maximum internal memory supported by processor 256
Memory channels Dual-channel
Memory slots type DIMM
Memory type DDR5
Supported memory clock speeds 4800/5600/8000
Supported memory types DDR5-SDRAM
Storage parameters
Number of storage drives supported 6
RAID levels 0/1/10
RAID support Y
Supported storage drive interfaces M.2,Micro SATA III
Supported storage drive types HDD & SSD

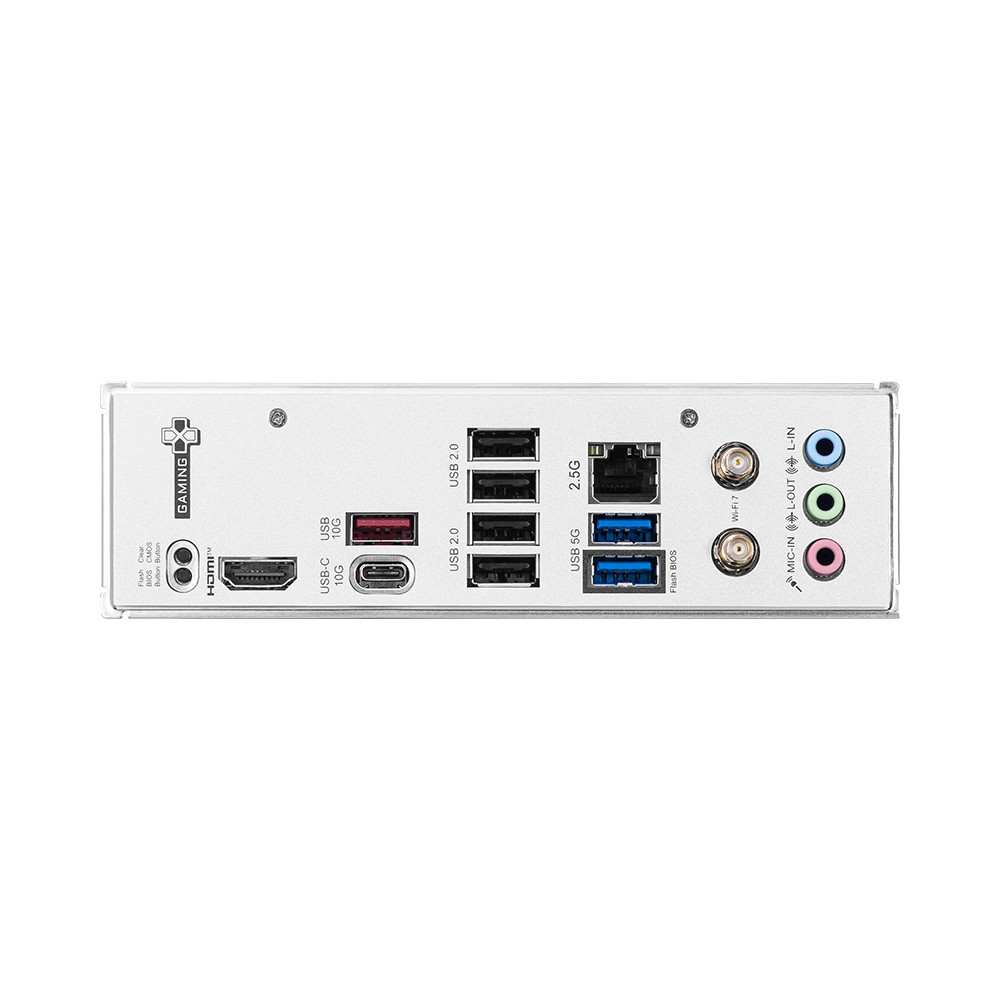

Ports types
HDMI ports quantity 1
HDMI version 2.1
USB 2.0 connectors 4
USB 2.0 ports quantity 4
Connections types
Bluetooth Y
Bluetooth version 5.4
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Y
Ethernet LAN (RJ-45) ports 1
Wi-Fi Y
Wi-Fi standards 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
Specifications
Audio output channels 7.1
BIOS Type UEFI AMI
Chipset B840
Component for PC
Depth 304.8
Form factor ATX
Model B840 GAMING PLUS WIFI
Motherboard chipset AMD B840
Motherboard form factor ATX
Number of memory slots 4
Supported processor sockets Socket AM5
Width 243.84
Windows operating systems supported Windows 11 x64
