Mainboard, MSI, AMD B840, SAM5, Micro-ATX, Memory DDR5, Memory slots 2, PROB840M-B
Popular
Mainboard, MSI, AMD B840, SAM5, Micro-ATX, Memory DDR5, Memory slots 2, PROB840M-B
Mainboard, MSI, AMD B840, SAM5, Micro-ATX, Memory DDR5, Memory slots 2, PROB840M-B
Mainboard, MSI, AMD B840, SAM5, Micro-ATX, Memory DDR5, Memory slots 2, PROB840M-B
Mainboard, MSI, AMD B840, SAM5, Micro-ATX, Memory DDR5, Memory slots 2, PROB840M-B
Mainboard, MSI, AMD B840, SAM5, Micro-ATX, Memory DDR5, Memory slots 2, PROB840M-B
Mainboard, MSI, AMD B840, SAM5, Micro-ATX, Memory DDR5, Memory slots 2, PROB840M-B
Reviews:
(0)
    Name:

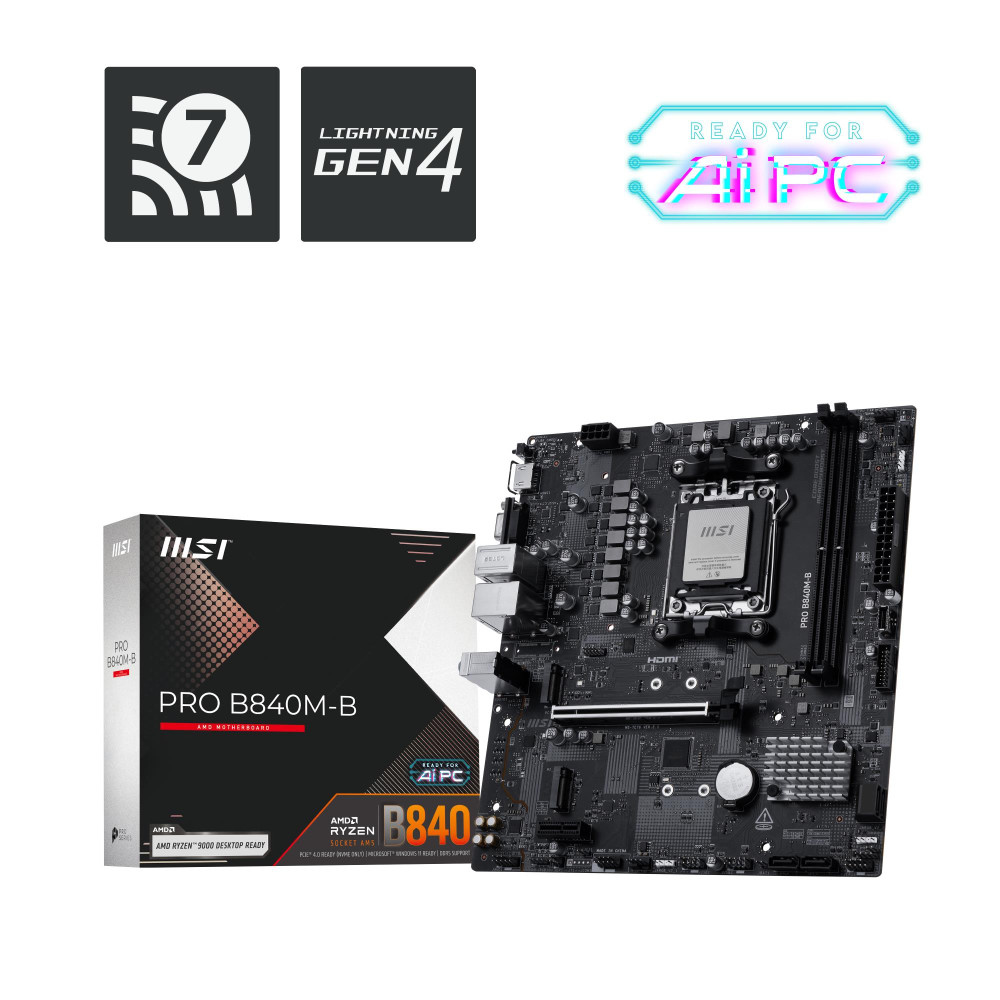

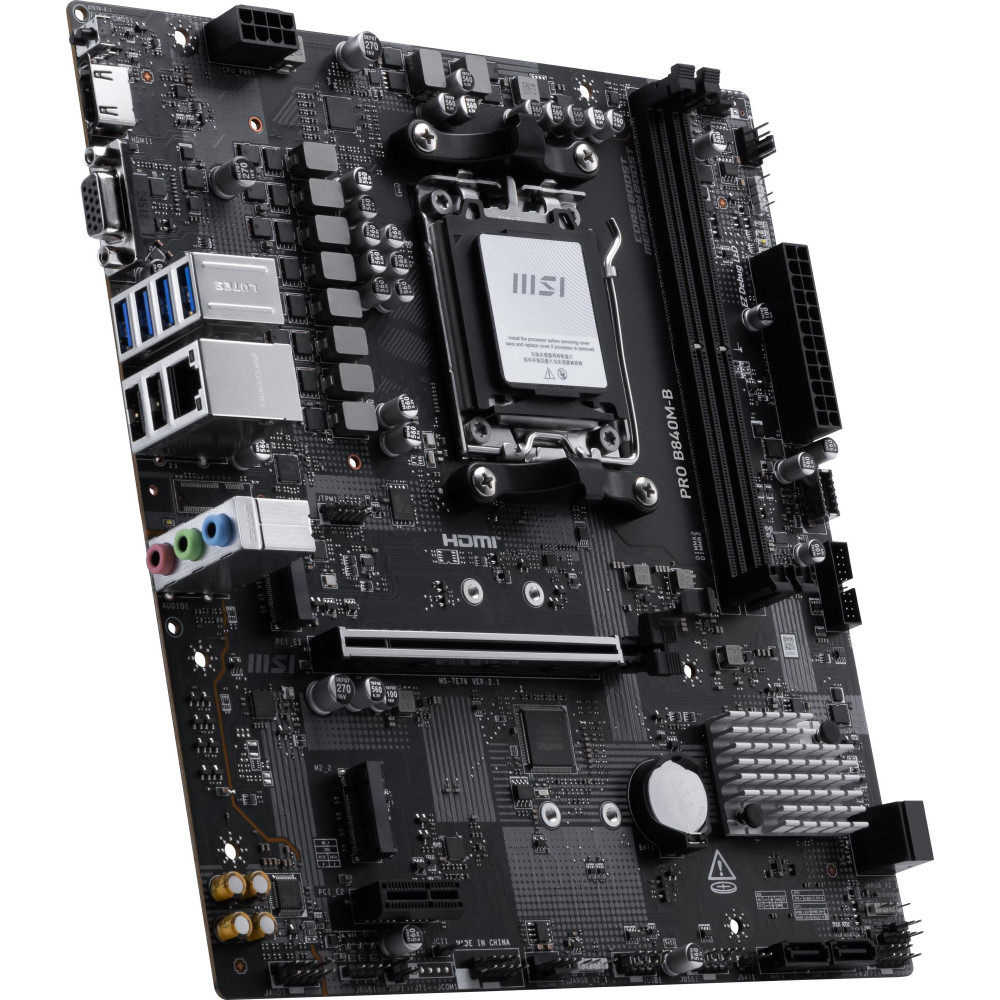

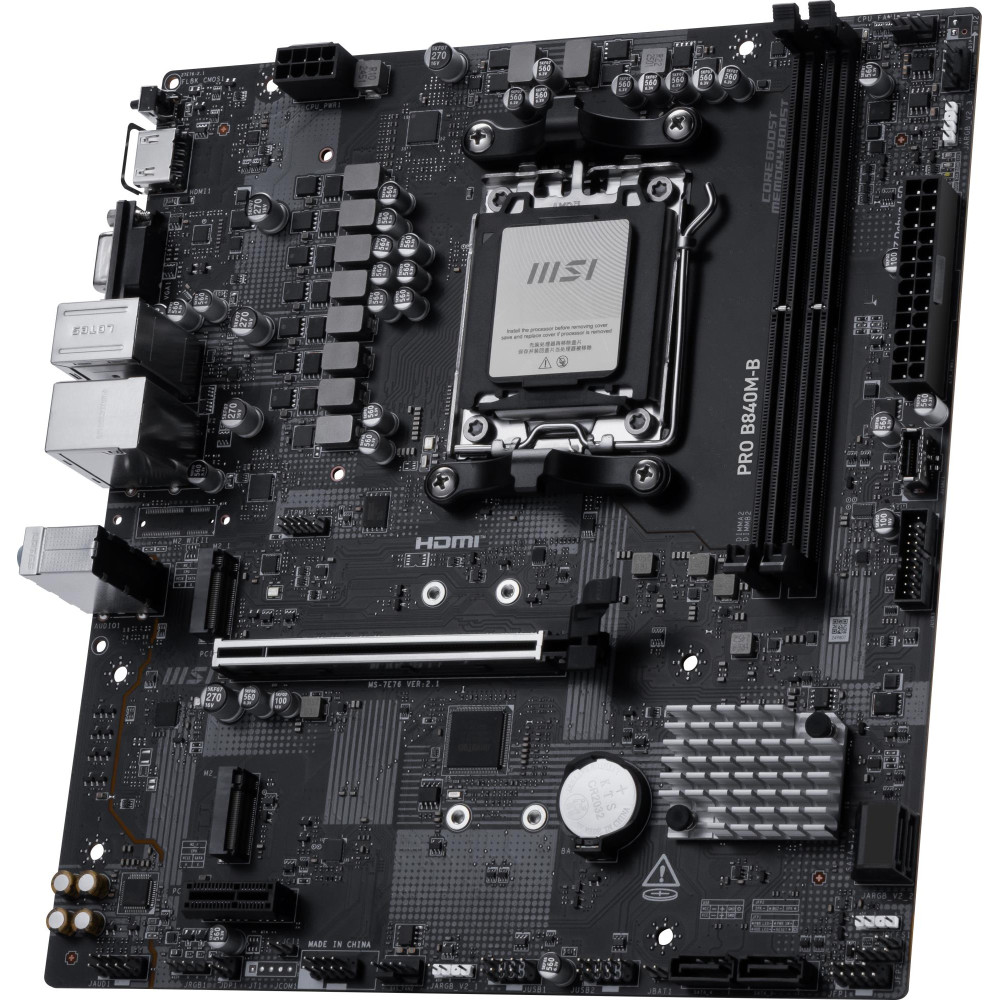

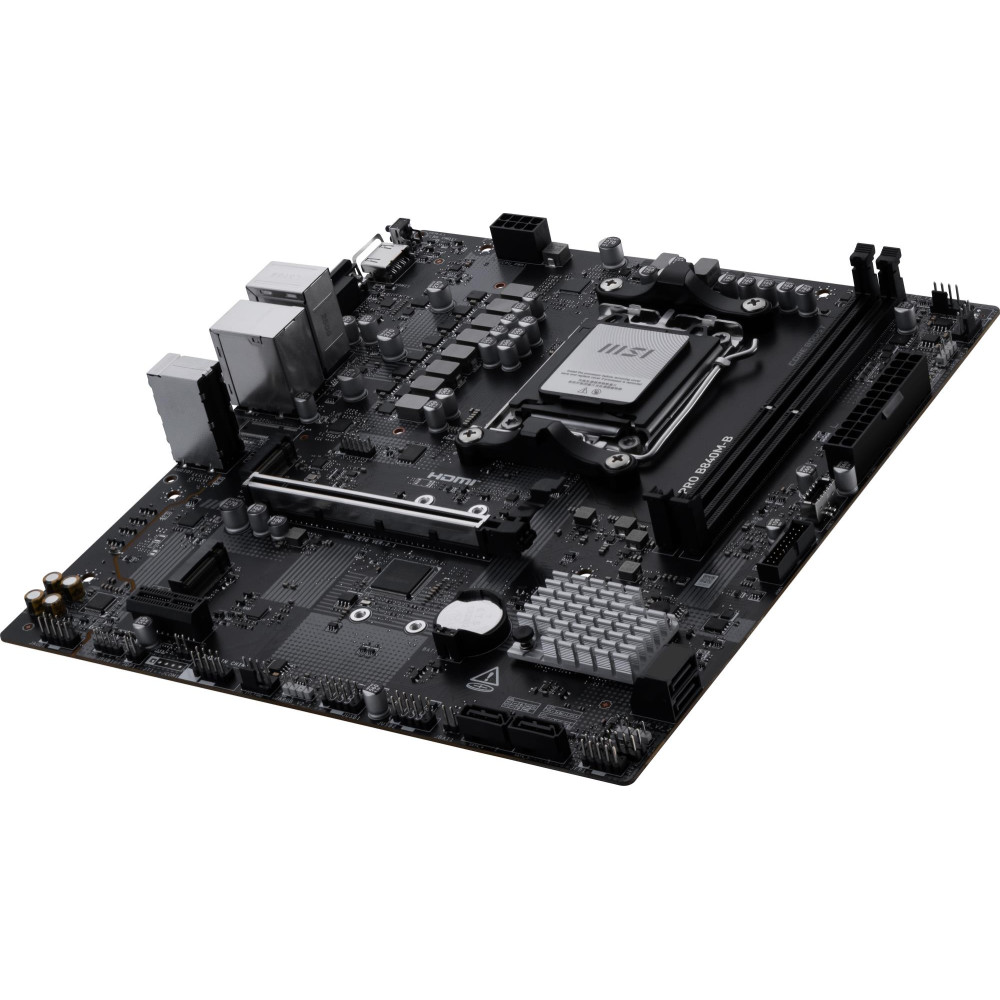

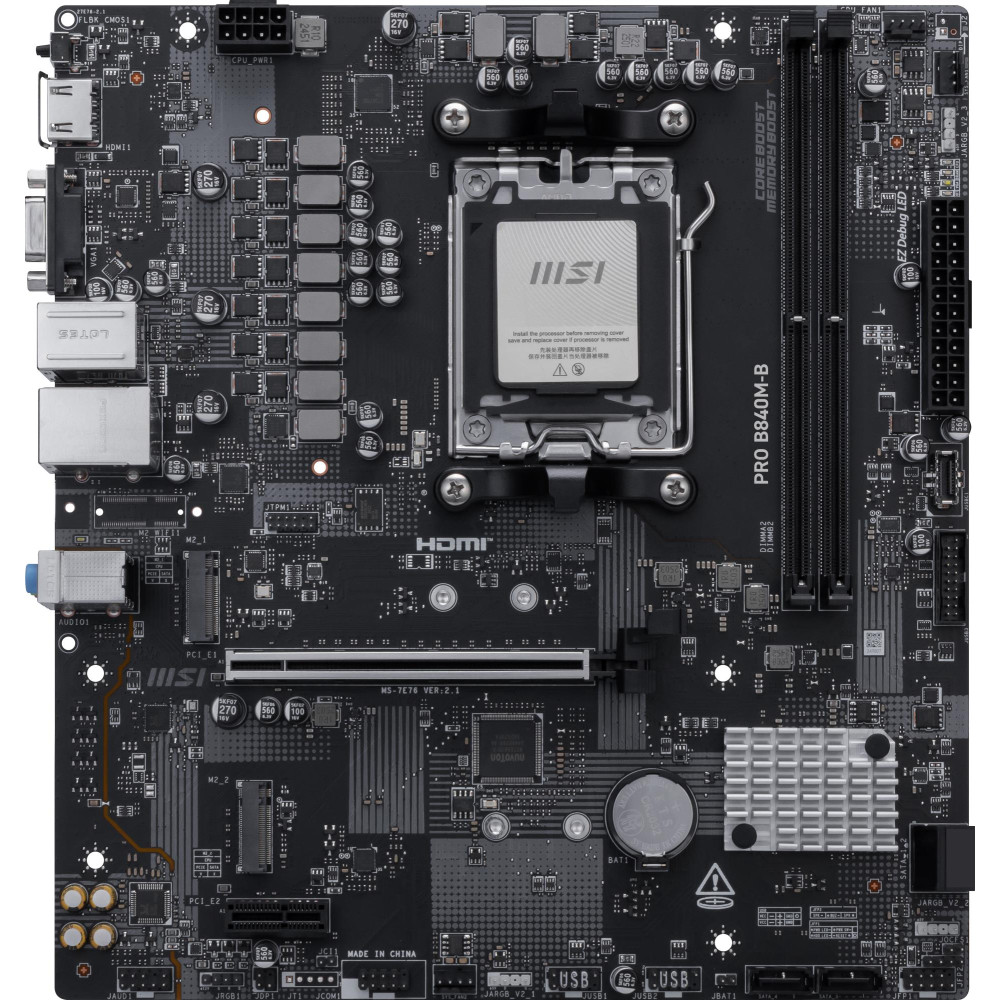

    MSI PRO B840M-B

  • Brand: MSI
  • Product Code: PRO B840M-B
  • EAN: 4711377360166
  • Availability: 3
97.28€
Ex Tax: 80.40€
  • Product overview
  • Specification
  • Reviews (0)

Tags: Mainboards for AMD CPUs

Specifications
Specifikācija
1st M.2 highest PCI Express generation 4.0
1st M.2 largest key size 2280
2nd M.2 highest PCI Express generation 4.0
2nd M.2 largest key size 2280
ACPI version 6.5
Audio chip Realtek ALC897
BIOS memory size 256
ECC сompatibility Non-ECC
Motherboard chipset family AMD
Number of chassis fan connectors 5
Number of CPU fan connectors 1
Number of HDDs supported 4
Number of M.2 (M) slots 2
Number of RGB LED pin headers 3
Number of SATA III connectors 4
Number of water pump connectors 1
On-board graphics card No
Product colour Black
RGB LED pin header Yes
Summary MSI PRO B840M-B. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Micro SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125D. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
Supported memory clock speed (max) 8000
System Management BIOS (SMBIOS) version 3.7
Total number of SATA connectors 4
Unit Calculated Volume 0.005751
Unit Calculated Weight 1.07
Units per Shipping Box 10
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Processor parameters
Compatible processor series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer AMD
Processor socket AM5
Memory parameters
Maximum internal memory 128
Memory channels Dual-channel
Memory slots type DIMM
Memory type DDR5
Supported memory clock speeds 4800/5600/8000
Supported memory types DDR5-SDRAM
Storage parameters
Number of storage drives supported 6
RAID levels 0/1/10
RAID support Yes
Supported storage drive interfaces M.2,Micro SATA III
Supported storage drive types HDD & SSD

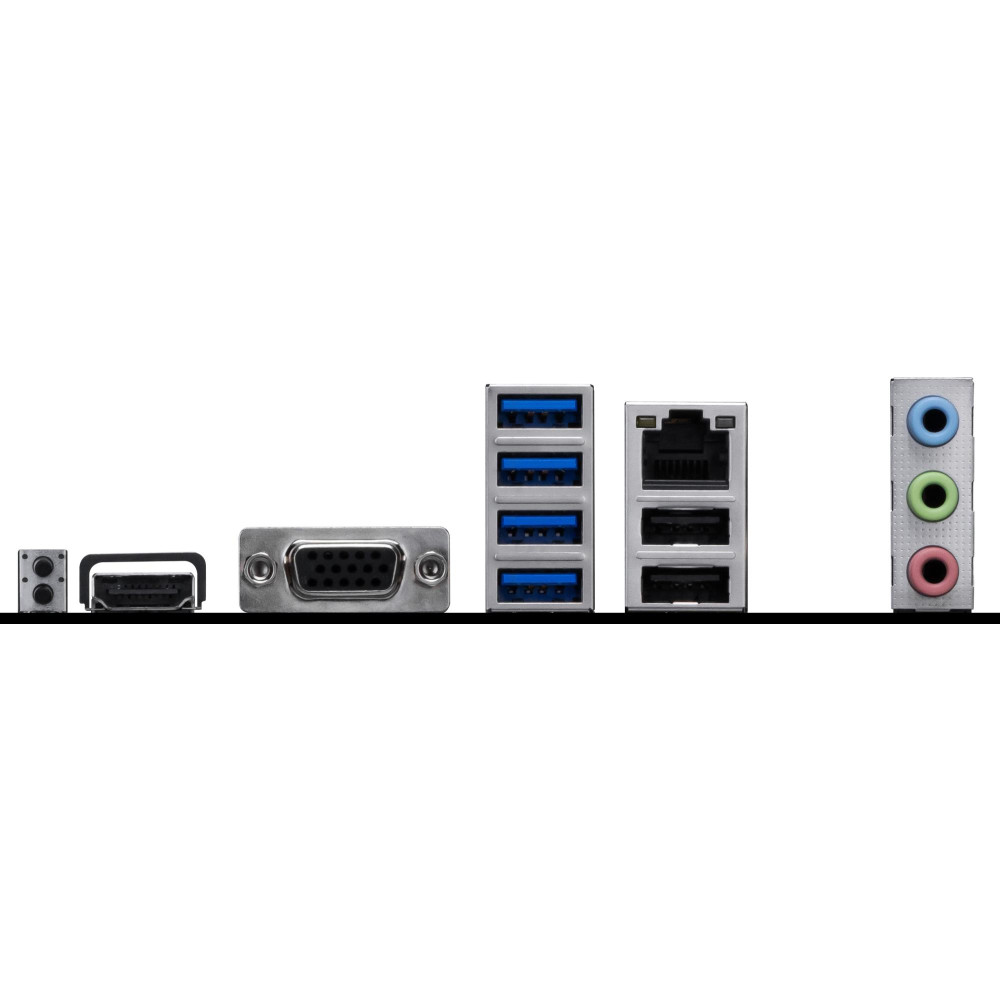

Ports types
HDMI ports quantity 1
HDMI version 2.1
USB 2.0 connectors 4
USB 2.0 ports quantity 2
Connections types
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
LAN controller Realtek RTL8125D
Wi-Fi No
Specifications
Audio output channels 7.1
BIOS Type UEFI AMI
Chipset B840
Component for PC
Depth 243.8
Form factor mATX
Model PRO B840M-B
Motherboard chipset AMD B840
Motherboard form factor micro ATX
Number of memory slots 2
PCI Express x16 slots 2
Supported processor sockets Socket AM5
Width 226
Windows operating systems supported Windows 11 x64
