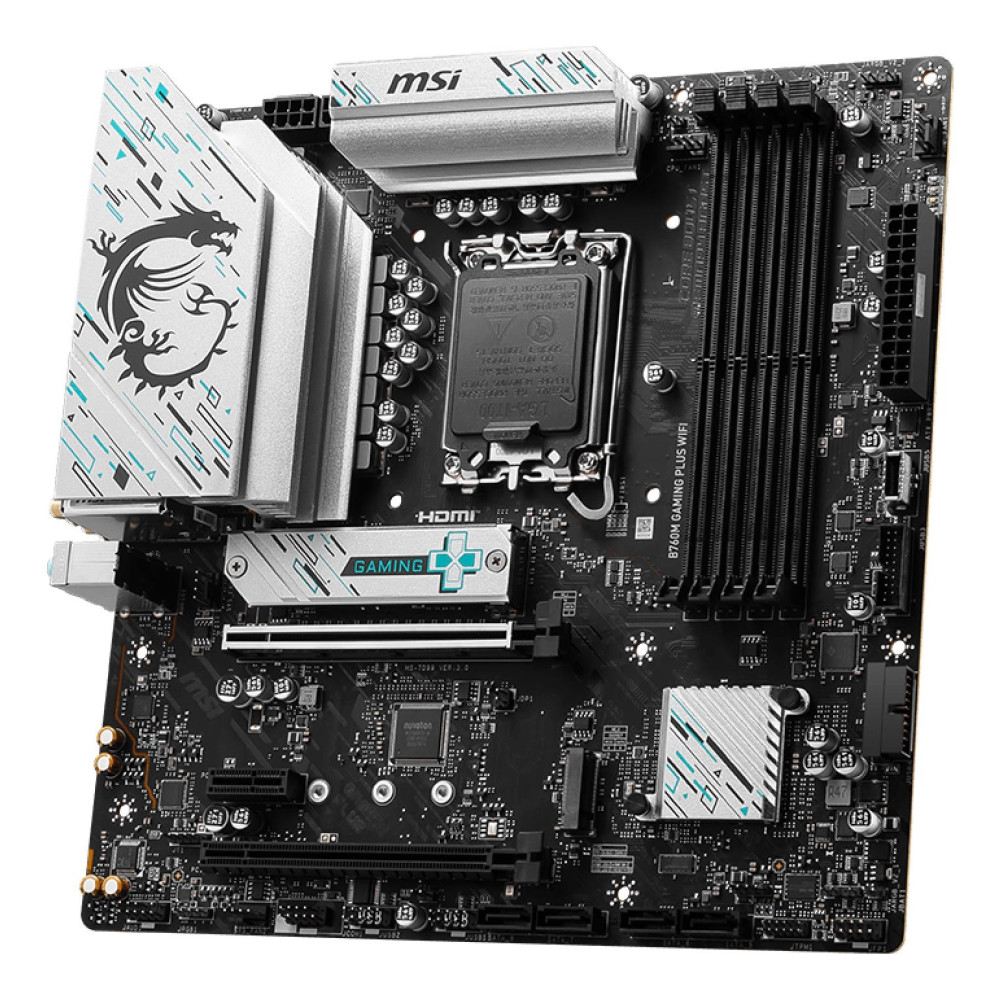

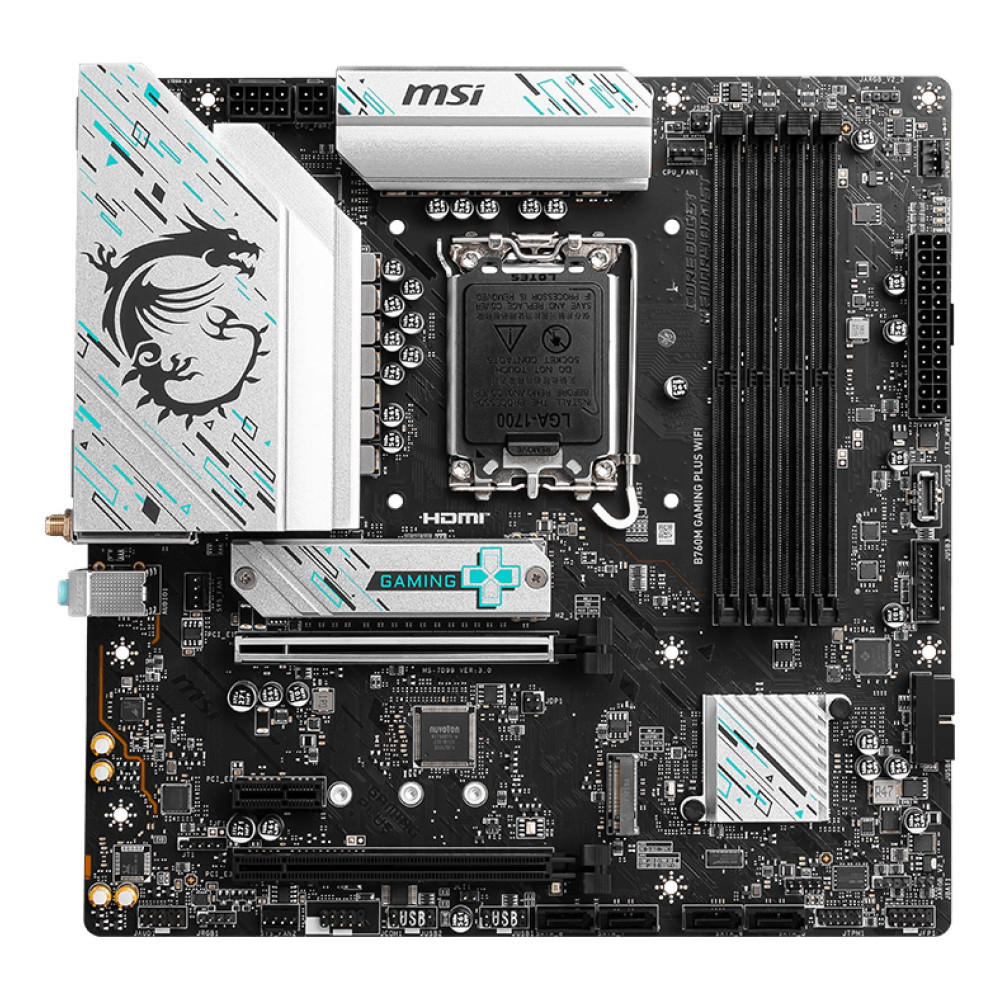

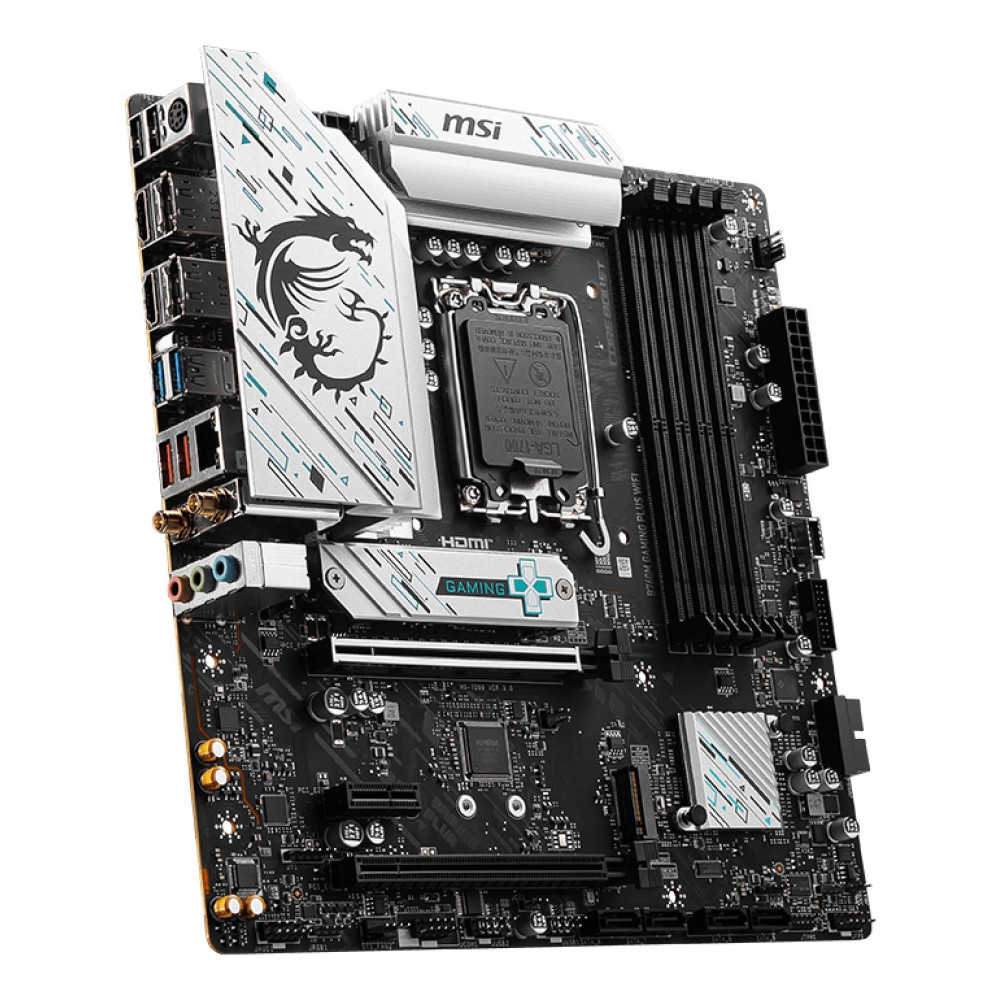

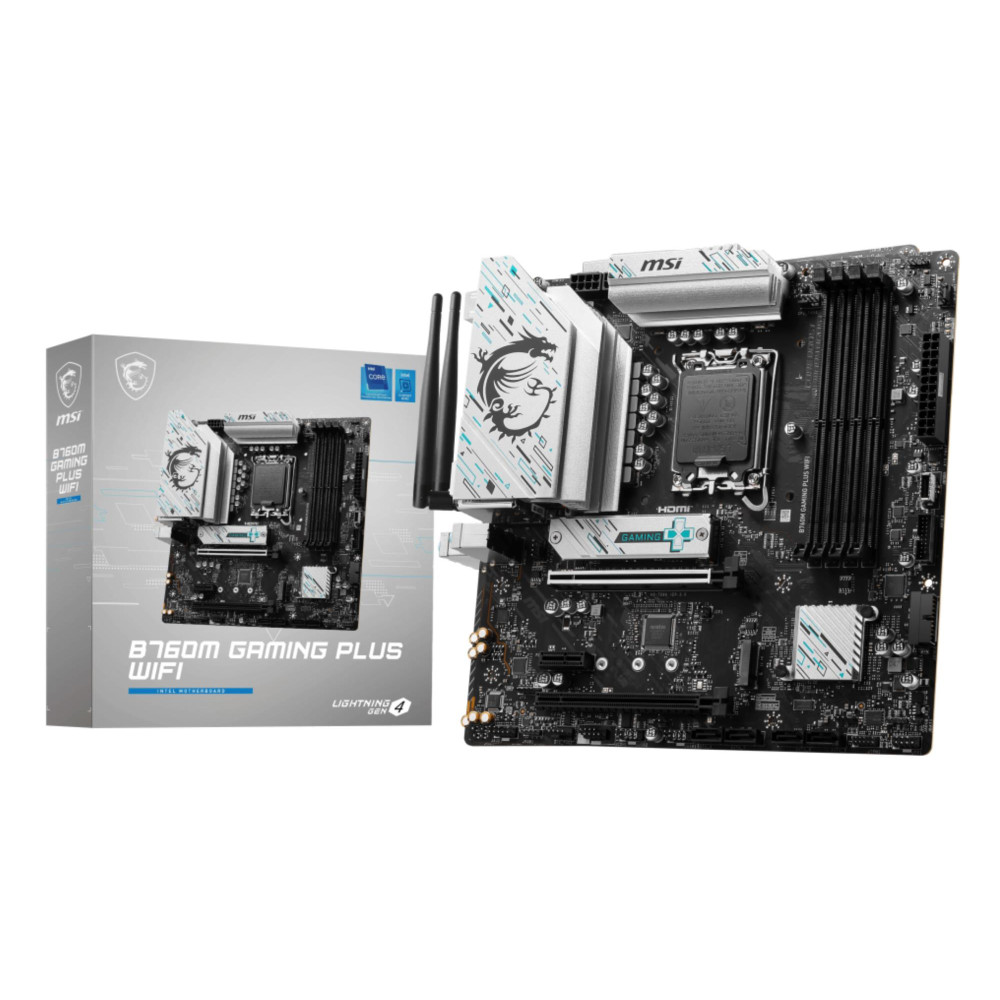

Mainboard, MSI, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 4, 1xPCI-Express 3.0 1x, 1xPCI-Express 4.0 4x , 1xPCI-Express 4.0 16x, 2xM.2, 2xHDMI, 2xDisplayPort, 2xUSB 2.0, 4xUSB 3.2, 1xPS/2, 1xRJ45, 3xAudio port, B760MGAMINGPLUSWIFI

Popular

Reviews:

(0)

Name:

MSI B760MGAMINGPLUSWIFI

Brand: MSI
Product Code: B760MGAMINGPLUSWIFI
EAN: 4711377154017
Availability: 50

148.14€

Ex Tax: 122.43€

Product overview
Specification
Reviews (0)

Manufacturer page

Specifications

Specifikācija

ACPI version 6.4

Audio chip Realtek ALC897

BIOS memory size 256

Clear CMOS jumper Yes

CPU fan connector Yes

ECC сompatibility Non-ECC

Front panel audio connector Yes

Front panel connector Yes

Maximum number of SMP processors 1

Motherboard chipset family Intel

Number of SATA III connectors 4

PCI Express x1 (Gen 3.x) slots 2

RGB LED pin header Yes

Summary MSI B760M GAMING PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11ad, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Supported memory clock speed (max) 6800

System Management BIOS (SMBIOS) version 3.5

Top Wi-Fi standard Wi-Fi 6E (802.11ax)

TPM connector Yes

Unit Calculated Volume 0.005495

Unit Calculated Weight 1.34

Units per Shipping Box 10

USB 3.2 Gen 1 (3.1 Gen 1) connectors 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2

USB 3.2 Gen 2 (3.1 Gen 2) connectors 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2

Processor parameters

Compatible processor series Intel® Celeron®/Intel® Pentium® Gold

Processor manufacturer Intel

Memory parameters

Maximum internal memory 192

Memory channels Dual-channel

Memory slots type DIMM

Memory type DDR5

Supported memory clock speeds 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800

Supported memory types DDR5-SDRAM

Storage parameters

RAID levels 0/1/10/5

RAID support Yes

Supported storage drive interfaces M.2,SATA III

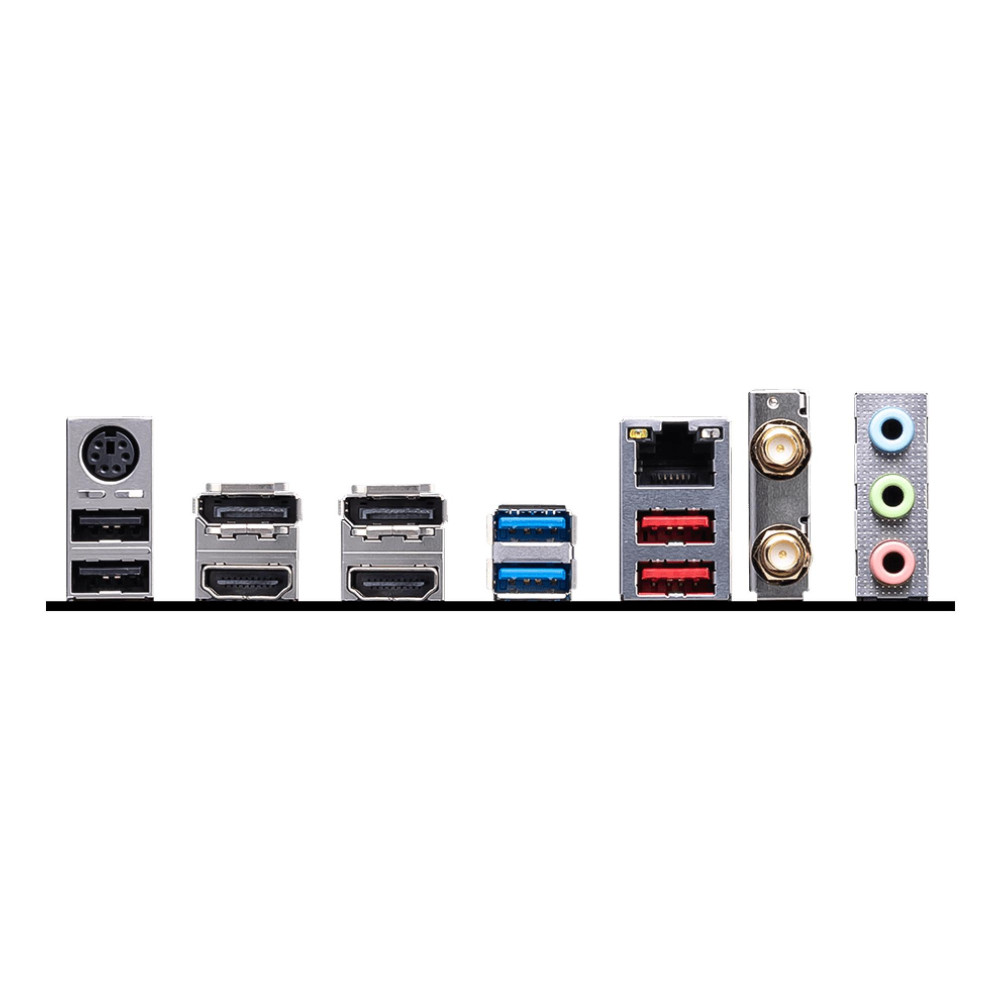

Ports types

DisplayPort version 1.4

DisplayPorts quantity 2

HDMI ports quantity 2

HDMI version 2.1

USB 2.0 connectors 4

USB 2.0 ports quantity 2

Connections types

Bluetooth Yes

Bluetooth version 5.3

Ethernet interface type 2.5 Gigabit Ethernet

Ethernet LAN Yes

Ethernet LAN (RJ-45) ports 1

Wi-Fi Yes

Wi-Fi standards 802.11a/802.11ad/802.11b/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)

Specifications

ATX Power connector (24-pin) Yes

Audio output channels 7.1

BIOS Type UEFI AMI

Chipset B760

Component for PC

Depth 243.84

Form factor mATX

Model B760M GAMING PLUS WIFI

Motherboard chipset Intel B760

Motherboard form factor micro ATX

Number of memory slots 4

Power source type ATX

Supported processor sockets LGA 1700

Width 243.84

Windows operating systems supported Windows 10/Windows 11
