Mainboard, MSI, Intel H610, LGA1700, Micro-ATX, Memory DDR5, Memory slots 2, 1xPCI-Express 1x, 1xPCI-Express 16x, 1xM.2, 1x15pin D-sub, 1xHDMI, 4xUSB 2.0, 2xUSB 3.2, 1xPS/2, 1xRJ45, 3xAudio port, PROH610M-E
Популярный
Mainboard, MSI, Intel H610, LGA1700, Micro-ATX, Memory DDR5, Memory slots 2, 1xPCI-Express 1x, 1xPCI-Express 16x, 1xM.2, 1x15pin D-sub, 1xHDMI, 4xUSB 2.0, 2xUSB 3.2, 1xPS/2, 1xRJ45, 3xAudio port, PROH610M-E
Mainboard, MSI, Intel H610, LGA1700, Micro-ATX, Memory DDR5, Memory slots 2, 1xPCI-Express 1x, 1xPCI-Express 16x, 1xM.2, 1x15pin D-sub, 1xHDMI, 4xUSB 2.0, 2xUSB 3.2, 1xPS/2, 1xRJ45, 3xAudio port, PROH610M-E
Mainboard, MSI, Intel H610, LGA1700, Micro-ATX, Memory DDR5, Memory slots 2, 1xPCI-Express 1x, 1xPCI-Express 16x, 1xM.2, 1x15pin D-sub, 1xHDMI, 4xUSB 2.0, 2xUSB 3.2, 1xPS/2, 1xRJ45, 3xAudio port, PROH610M-E
Mainboard, MSI, Intel H610, LGA1700, Micro-ATX, Memory DDR5, Memory slots 2, 1xPCI-Express 1x, 1xPCI-Express 16x, 1xM.2, 1x15pin D-sub, 1xHDMI, 4xUSB 2.0, 2xUSB 3.2, 1xPS/2, 1xRJ45, 3xAudio port, PROH610M-E
Mainboard, MSI, Intel H610, LGA1700, Micro-ATX, Memory DDR5, Memory slots 2, 1xPCI-Express 1x, 1xPCI-Express 16x, 1xM.2, 1x15pin D-sub, 1xHDMI, 4xUSB 2.0, 2xUSB 3.2, 1xPS/2, 1xRJ45, 3xAudio port, PROH610M-E
Отзывы:
(0)
    Наименование:

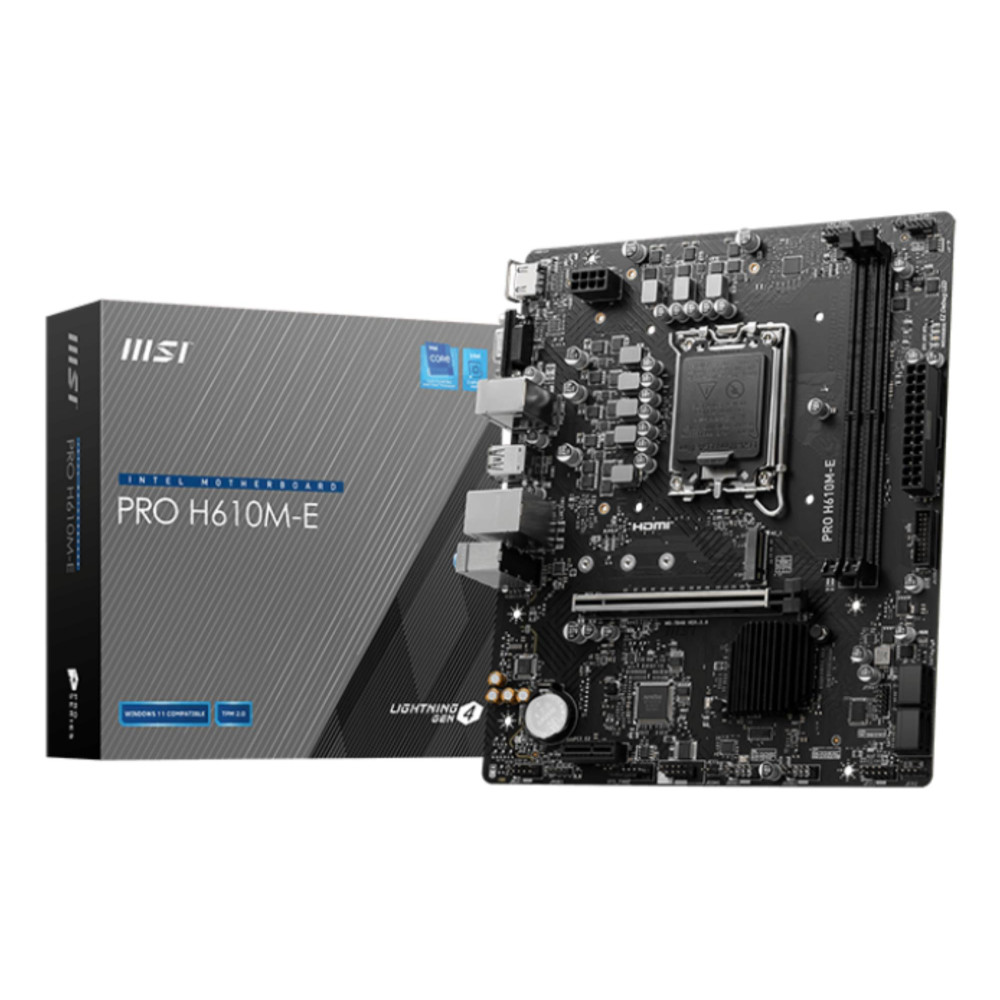

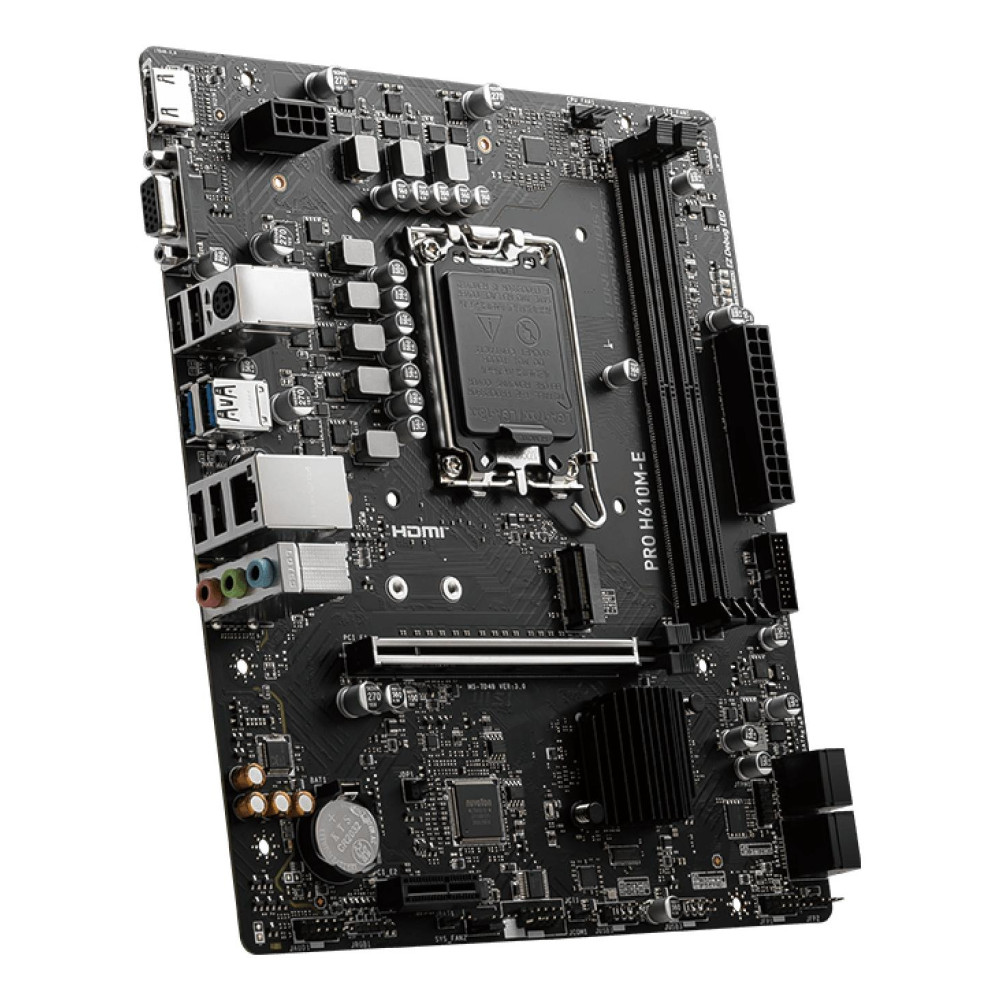

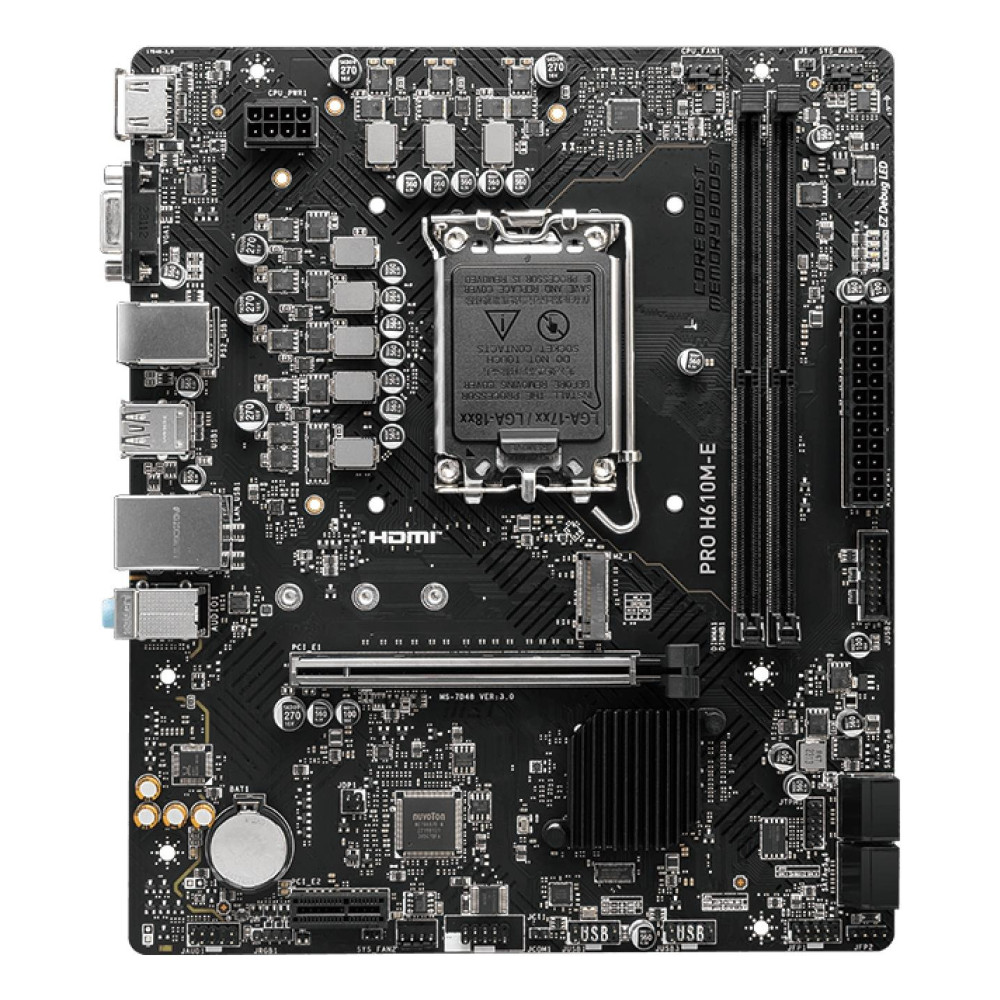

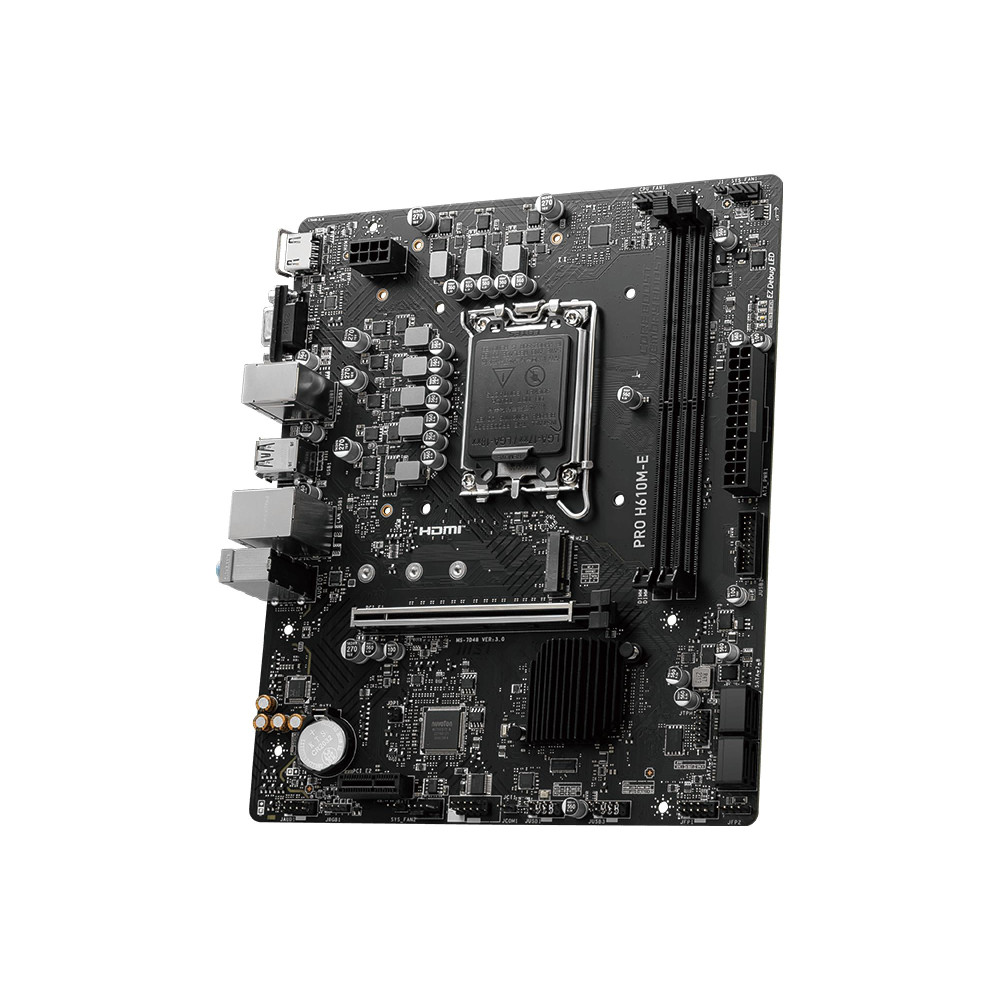

    MSI PROH610M-E

  • Бренд: MSI
  • Модель: PROH610M-E
  • EAN: 4711377125147
  • Наличие: 19
80.10€
Без PVN: 66.20€
  • Обзор товара
  • Характеристики
  • Отзывы (0)

Mainboards for Intel CPUs

Характеристики
Specifikācija
ACPI version 6.4
Audio connector Yes
BIOS memory size 256
CPU fan connector Yes
ECC ?ompatibility Non-ECC
Front panel audio connector Yes
Motherboard chipset family Intel
Number of chassis fan connectors 2
Number of COM connectors 2
Number of SATA III connectors 4
PCI Express x1 (Gen 3.x) slots 2
PCI Express x16 (Gen 4.x) slots 1
Product Net Weight 0.5
Summary MSI PRO H610M-E. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Thunderbolt headers 2
Unit Calculated Volume 0.004739
Unit Calculated Weight 0.8
Units per Shipping Box 20
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Процессор
Compatible processor series Intel Celeron/Intel Core i3/Intel Core i5/Intel Core i7/Intel Core i9/Intel Pentium G
Processor manufacturer Intel
Память
Maximum internal memory 96
Memory channels Dual-channel
Memory slots type DIMM
Supported memory clock speeds 5600
Supported memory module capacities 16GB/32GB/4GB/8GB
Supported memory types DDR5-SDRAM
Тип памяти DDR5
Запоминающее устройство
RAID levels 0/1/10/5
RAID support Yes
Supported storage drive interfaces M.2,SATA III
Supported storage drive types HDD & SSD

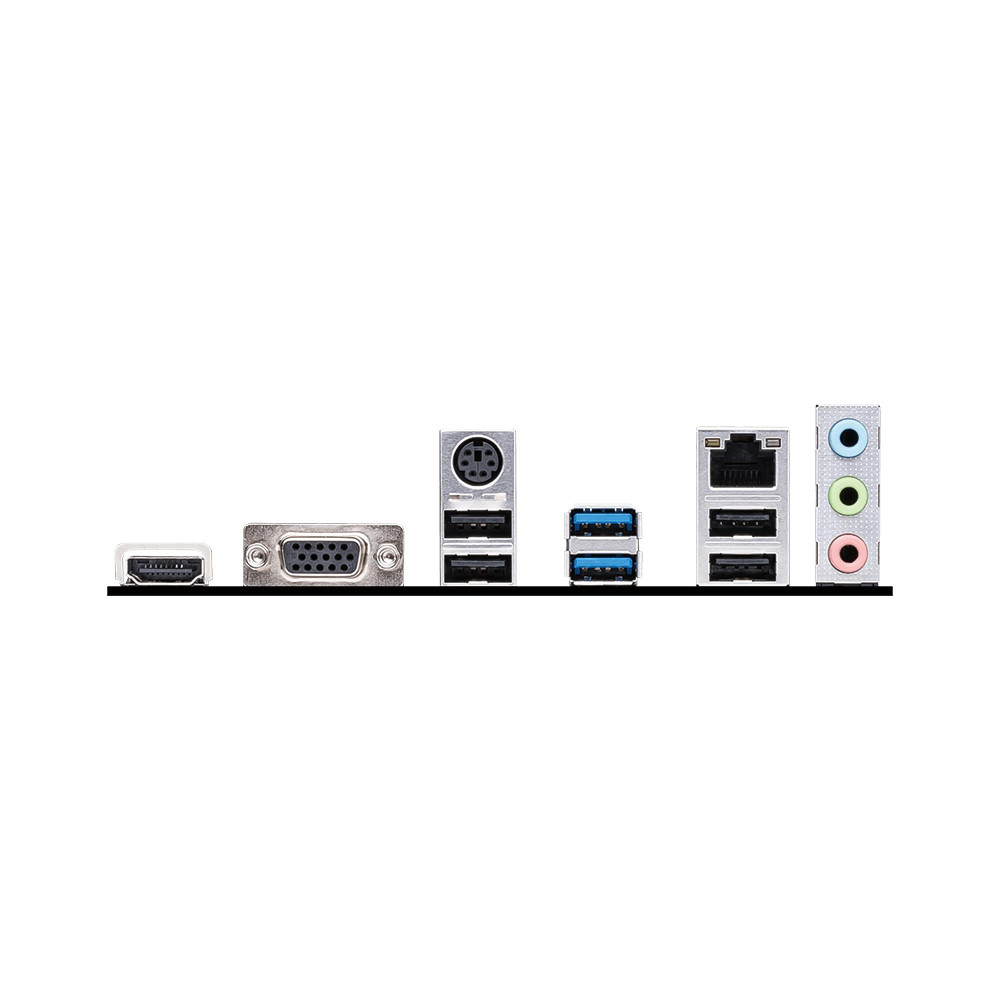

Порты
HDMI version 1.4
Headphone outputs 2
Microphone in Yes
USB 2.0 connectors 4
USB 2.0 ports quantity 4
Количество портов HDMI 1
Количество портов VGA (D-Sub) 1
Подключения
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Wi-Fi No
Порты локальной сети Ethernet (RJ-45) 1
Спецификация
ATX Power connector (24-pin) Yes
Audio output channels 7.1
BIOS Type UEFI AMI
Component for PC
Cooling type Active
Drivers included Yes
EPS power connector (8-pin) Yes
Form factor mATX
Model PRO H610M-E
Motherboard chipset Intel H610
Motherboard form factor micro ATX
Number of memory slots 4
Power source type ATX
PS/2 ports quantity 1
Supported processor sockets LGA 1700
Windows operating systems supported Windows 10/Windows 11
Глубина 236.16
Кабели в комплекте SATA
Чипсет H610
Ширина 200
