Mainboard, MSI, Intel Z790, LGA1700, ATX, Memory DDR5, Memory slots 4, 1xPCI-Express 3.0 1x, 2xPCI-Express 5.0 16x, 4xM.2, 1xHDMI, 1xDisplayPort, 8xUSB 3.2, 2xUSB-C, 1xOptical S/PDIF, 1xRJ45, 5xAudio port, MAGZ790TOMAHAWKWIFI

Popular

Reviews:

(0)

Name:

MSI MAGZ790TOMAHAWKWIFI

Brand: MSI
Product Code: MAGZ790TOMAHAWKWIFI
EAN: 4711377025492
Availability: 50

234.09€

Ex Tax: 193.46€

Product overview
Specification
Reviews (0)
Related products

Manufacturer page

Specifications

Main parameters

Form factor ATX

Processor manufacturer Intel

RAM type DDR5

Chipset Z790

CPU socket LGA1700

Memory slots 4

Maximum memory 192 GB

M.2 slots 4

SATA ports 7

Wi-Fi module Yes

LAN speed 2.5 Gbit/s

Specification

Name MB Z790 S1700 ATX/MAGZ790 TOMAHAWK WIFI MSI

Specifikācija

ACPI version 6.4

BIOS memory size 256

Chassis intrusion connector Yes

CPU fan connector Yes

ECC сompatibility Non-ECC

Front panel audio connector Yes

Front panel connector Yes

Motherboard chipset family Intel

Number of M.2 (M) slots 4

Number of SATA III connectors 7

Parallel processing technology support Not supported

PCI Express x1 (Gen 4.x) slots 1

PCI Express x16 (Gen 5.x) slots 2

Product colour Black

Product Net Weight 1.4

RGB LED pin header Yes

S/PDIF out port Yes

Summary MSI MAG Z790 TOMAHAWK WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory channels: Dual-channel. Supported storage drive interfaces: M.2, PCI Express, Supported storage drive types: HDD & SSD, RAID levels: 0, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

Supported memory clock speed (max) 7200

System Management BIOS (SMBIOS) version 3.5

Top Wi-Fi standard Wi-Fi 6 (802.11ax)

TPM connector Yes

Unit Calculated Volume 0.007874

Unit Depth 34.5

Unit Height 7.5

Unit Width 27.5

Units per Shipping Box 5

USB 3.2 Gen 1 (3.1 Gen 1) connectors 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4

USB 3.2 Gen 2 (3.1 Gen 2) connectors 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1

USB 3.2 Gen 2x2 Type-C ports quantity 1

Processor parameters

Compatible processor series Intel® Celeron®/Intel® Pentium® Gold

Processor manufacturer Intel

Processor socket LGA 1700

Memory parameters

Maximum internal memory 192

Maximum internal memory supported by processor 192

Memory channels Dual-channel

Supported memory clock speeds 4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200

Supported memory types DDR5-SDRAM

Unbuffered memory Yes

Storage parameters

RAID levels 0/10/5

RAID support Yes

Supported storage drive interfaces M.2,PCI Express

Supported storage drive types HDD & SSD

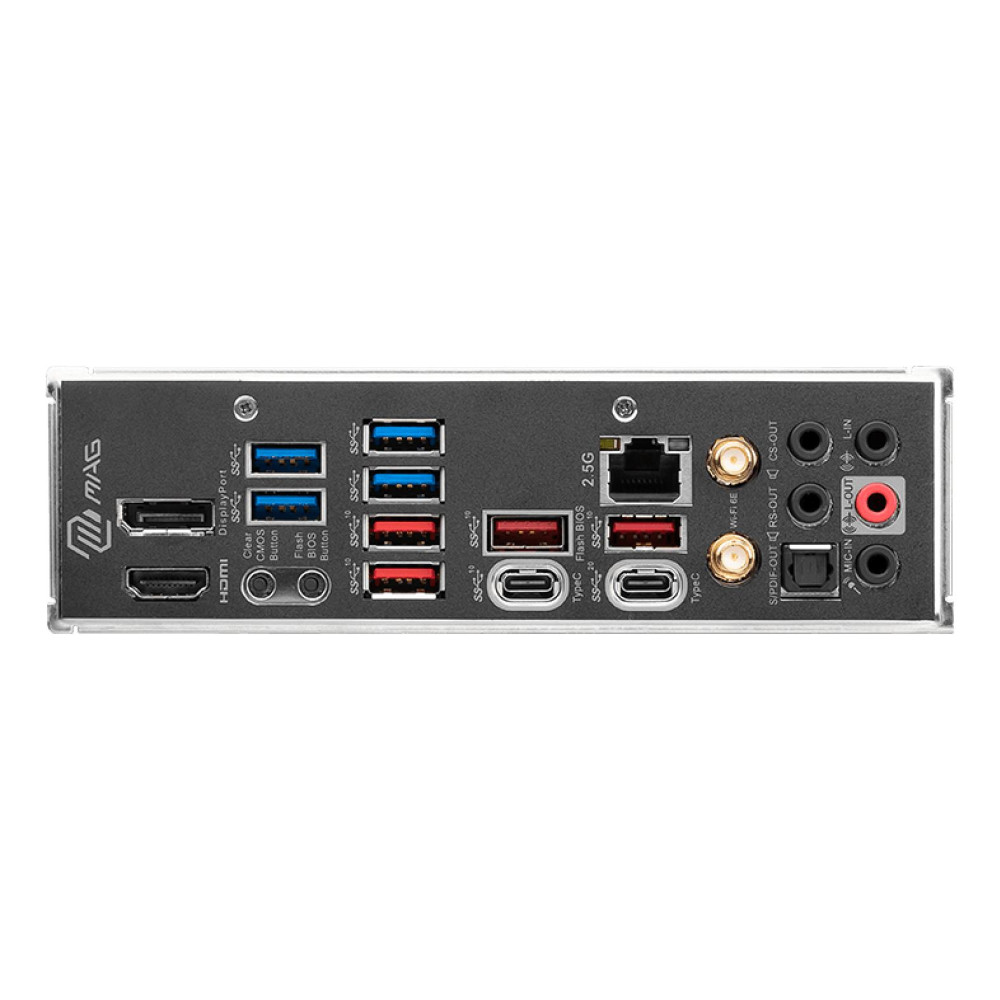

Ports types

DisplayPort version 1.4

DisplayPorts quantity 1

HDMI ports quantity 1

HDMI version 2.1

USB 2.0 connectors 2

Connections types

Bluetooth Yes

Bluetooth version 5.3

Ethernet interface type 2.5 Gigabit Ethernet

Ethernet LAN Yes

Ethernet LAN (RJ-45) ports 1

Wi-Fi Yes

Wi-Fi standards 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)

Specifications

Audio output channels 7.1

BIOS Type UEFI AMI

Cables included SATA

Component for PC

Depth 304.8

Model MAG Z790 TOMAHAWK WIFI

Motherboard chipset Intel Z790

Motherboard form factor ATX

Number of memory slots 4

Supported processor sockets LGA 1700

Width 243.84

Windows operating systems supported Windows 10 x64/Windows 11 x64
