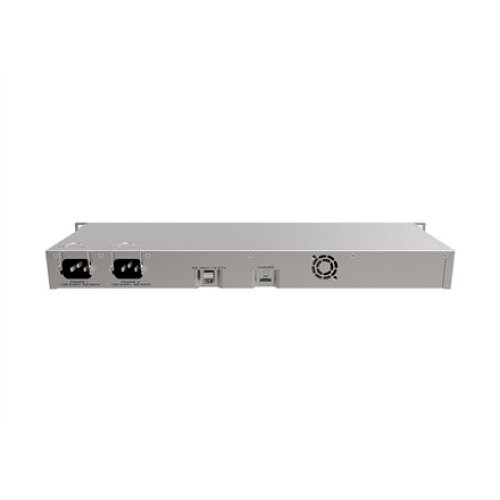

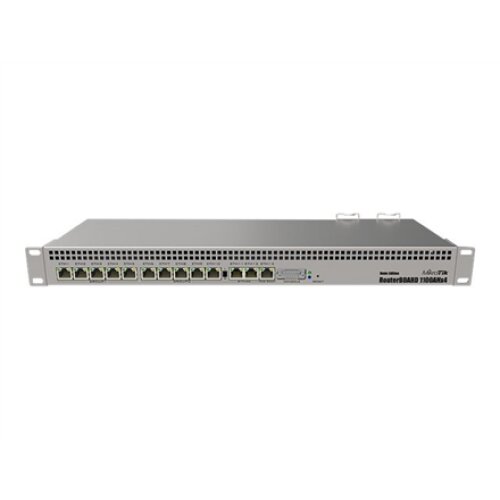

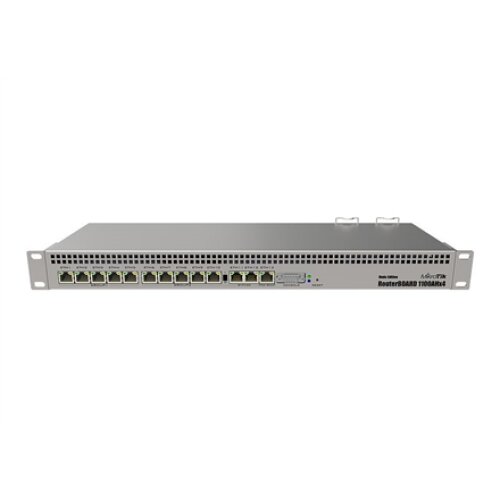

Mikrotik Wired Ethernet Router RB1100AHx4 Dude Edition, 1U Rackmount, Quad core 1.4GHz CPU, 1 GB RAM, 128 MB, 60GB M.2 SSD included, 13xGigabit LAN, 1xSerial console port RS232, 2x SATA3 ports, 2xM.2 slots, PCB Temperature and Voltage Monitor (CAPsMAN, Mo

    MikroTik RB1100Dx4

  • Brand: MikroTik
  • Product Code: RB1100Dx4
  • EAN: 4752224002648
  • Availability: 4
Ex Tax: 299.20€
Main specifications
All specifications
Certification: CE, EAC, ROHS
  • Product overview
  • Specification
  • Reviews (0)
  • Related products
  • New RB1100AHx4 Dude Edition has Annapurna Alpine AL21400 CPU with four Cortex A15 cores clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbps. The device supports IPsec hardware acceleration and is faster at it than any previous RouterBOARD device (up to 2.2Gbps with AES128). Unit comes with 1U rackmount case, 13x Gigabit Ethernet ports, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support). The RB1100AHx4 Dude edition features several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M.2 drive already installed.

  • Manufacturer page

Tags: Routers

Processor parameters
Processor cores 4
Processor frequency 1400MHz
Processor model AL21400
Memory parameters
Internal memory 1000MB
Memory type NAND
Storage parameters
Storage capacity 128MB
Connections types
Ethernet LAN (RJ-45) ports 13
Ethernet LAN data rates 10/100/1000Mbit/s
Mobile Broadband No mobile broadband
RS-232 ports 1
Wi-Fi No
Wi-Fi band No Wi-Fi
Certification CE, EAC, ROHS
Mesh Support No
Operating temperature (T-T) -40°C to 70°C °C
PoE in 802.3af/at
Power consumption (max) 33W
Producer MikroTik
Producer product family Wired Ethernet Router
Producer product name RB1100AHx4 Dude Edition
Software type RouterOS (level 6)
Voltage (PoE in input Voltage) 20-57V
Warranty 12month(s)
Reviews (0)

There are no reviews for this product.
