NB ACC DOCKING STATION/11IN1 HMC-4KX3 AXAGON

Popular

Reviews:

(0)

Name:

AXAGON HMC-4KX3

Brand: AXAGON
Product Code: HMC-4KX3
EAN: 8595247907608
Availability: 19

92.60€

Ex Tax: 76.53€

Product overview
Specification
Reviews (0)

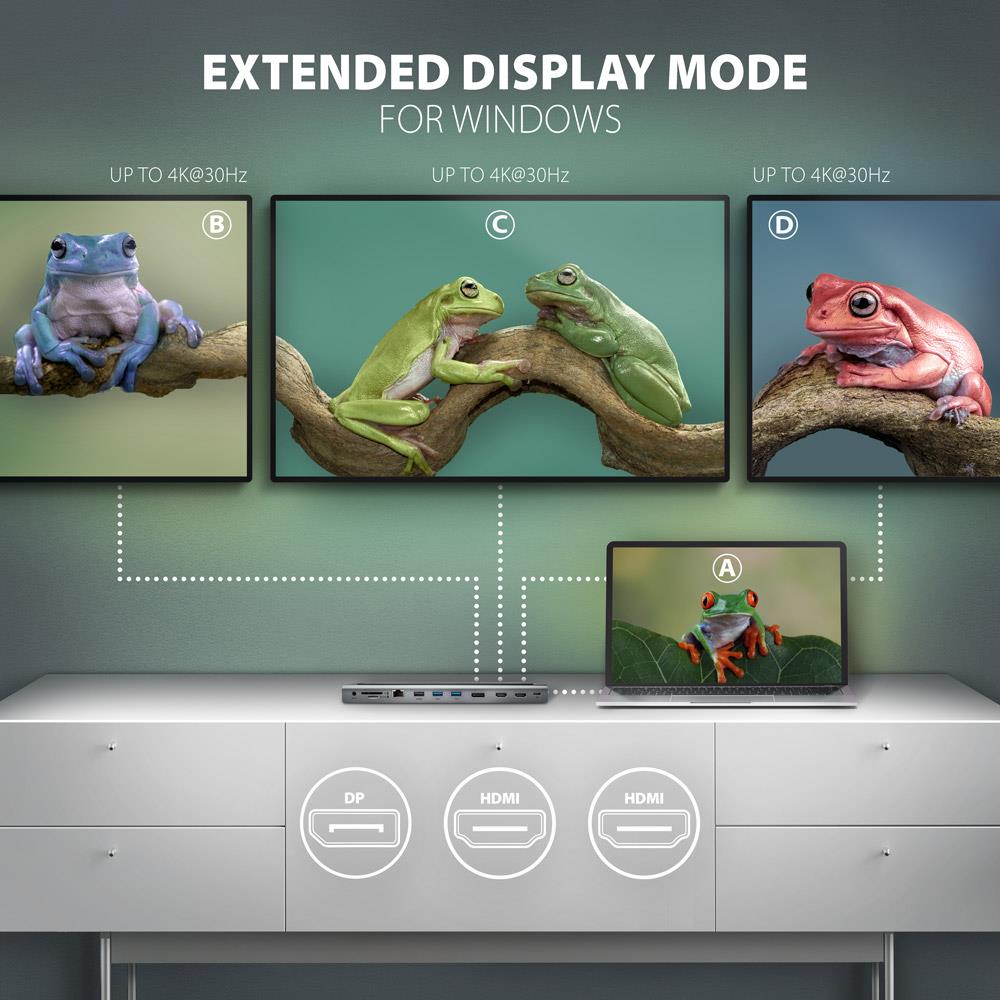

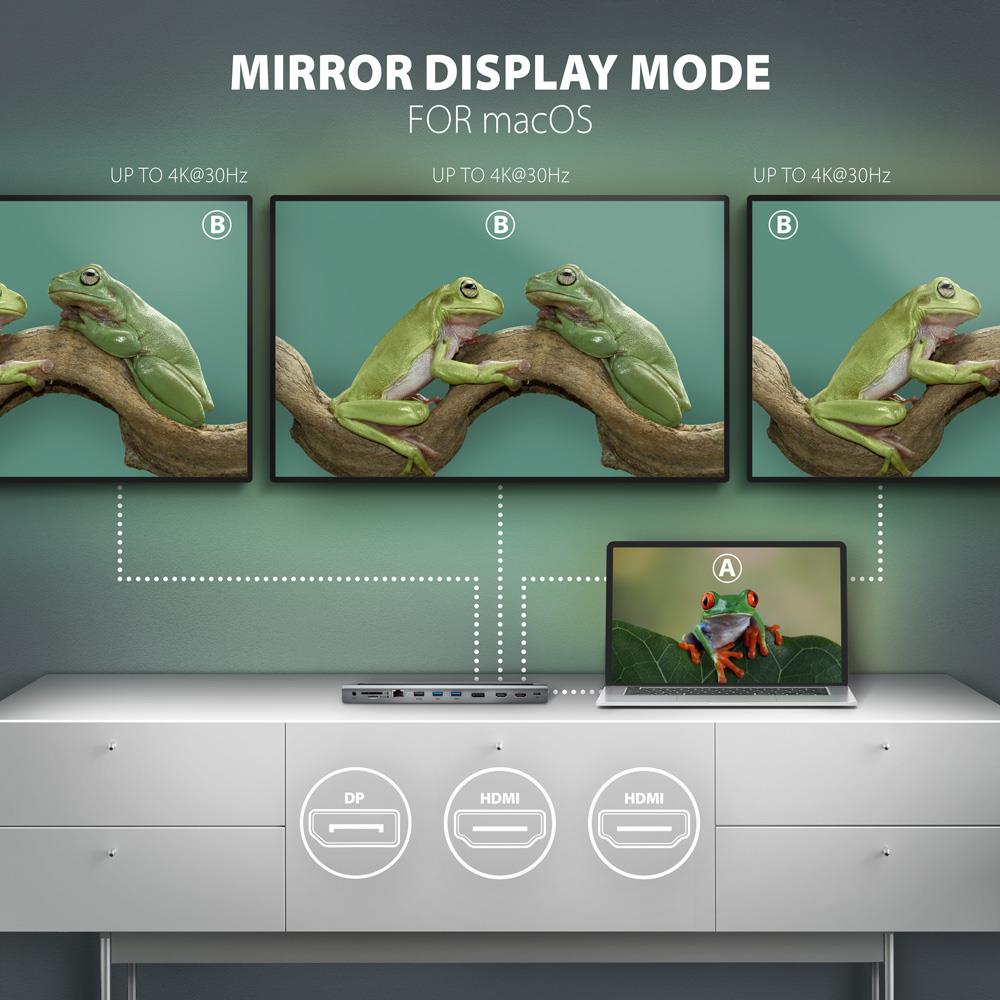

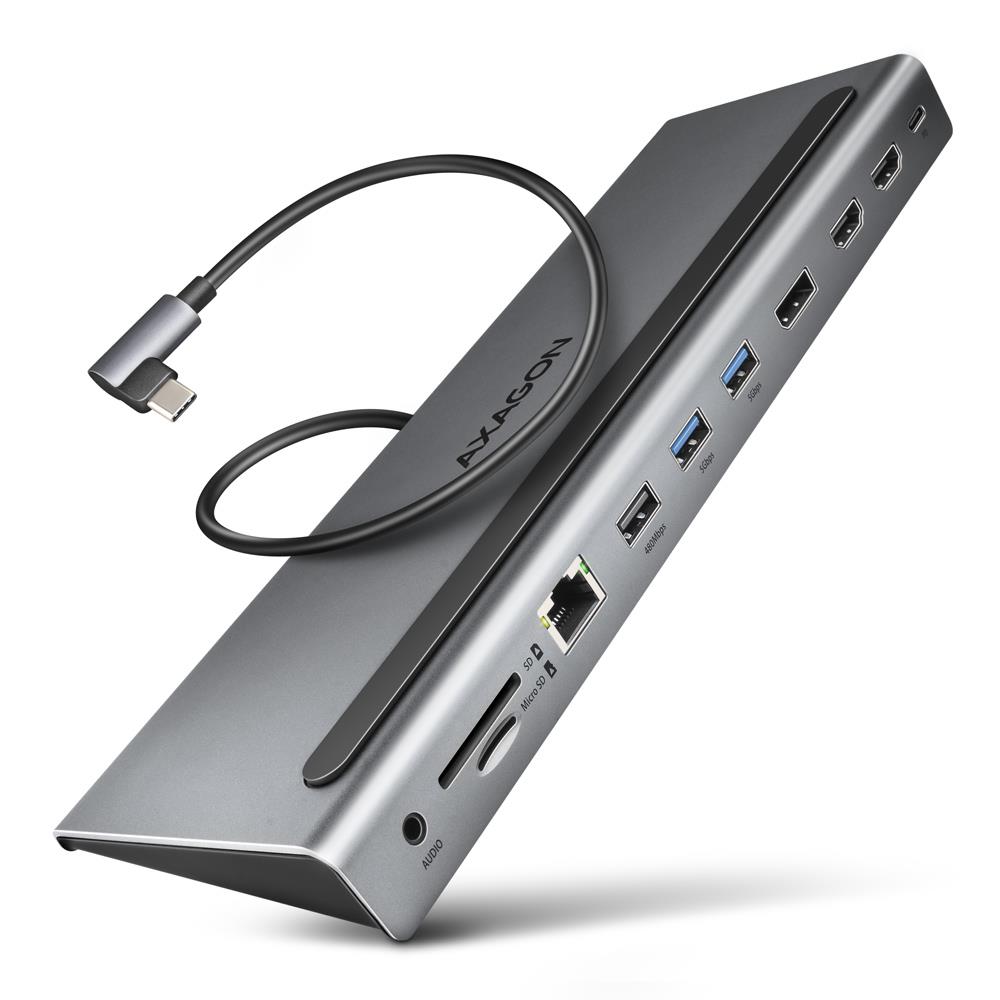

Multiport USB-C 5Gbps TRIPLE 4K DISPLAY hub AXAGON HMC-4KX3 expands your laptop with nine ports and memory card reader SD / microSD. You can easily and quickly connect up to three monitors, three USB devices, a Gigabit Ethernet network, headphones and card reader to your computer at the same time via the double-sided USB-C connector. You also get the possibility to supply laptop using Power Delivery technology at the same time. The USB-C hub will provide you with a universal and powerful 11in1 docking station for modern laptops.

Tags: Notebook Docks

Specifications

Specifikācija

Built-in fan No

Compliance certificates RoHS

HDCP version 1.4/2.3

Long Description Axagon HMC-4KX3 USB 5Gbps hub, 3x USB-A, 2x HDMI, DP, RJ-45, SD/microSD, audio, PD 100W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Product colour: Grey, Compatible memory cards: MMC, MMC Mobile, MicroSD (TransFlash), MicroSDHC, MicroSDXC, MiniSD, MiniSDHC, RS-MMC, SD, SDHC,..., Data transfer rate: 5 Gbit/s. Power source type: USB, Power connector: USB Type-C, USB cable length: 0.4 m. Width: 256 mm, Depth: 90 mm, Height: 24 mm

Product colour Grey

Unit Calculated Volume 0.00108

Unit Calculated Weight 0.5

Units per Shipping Box 1

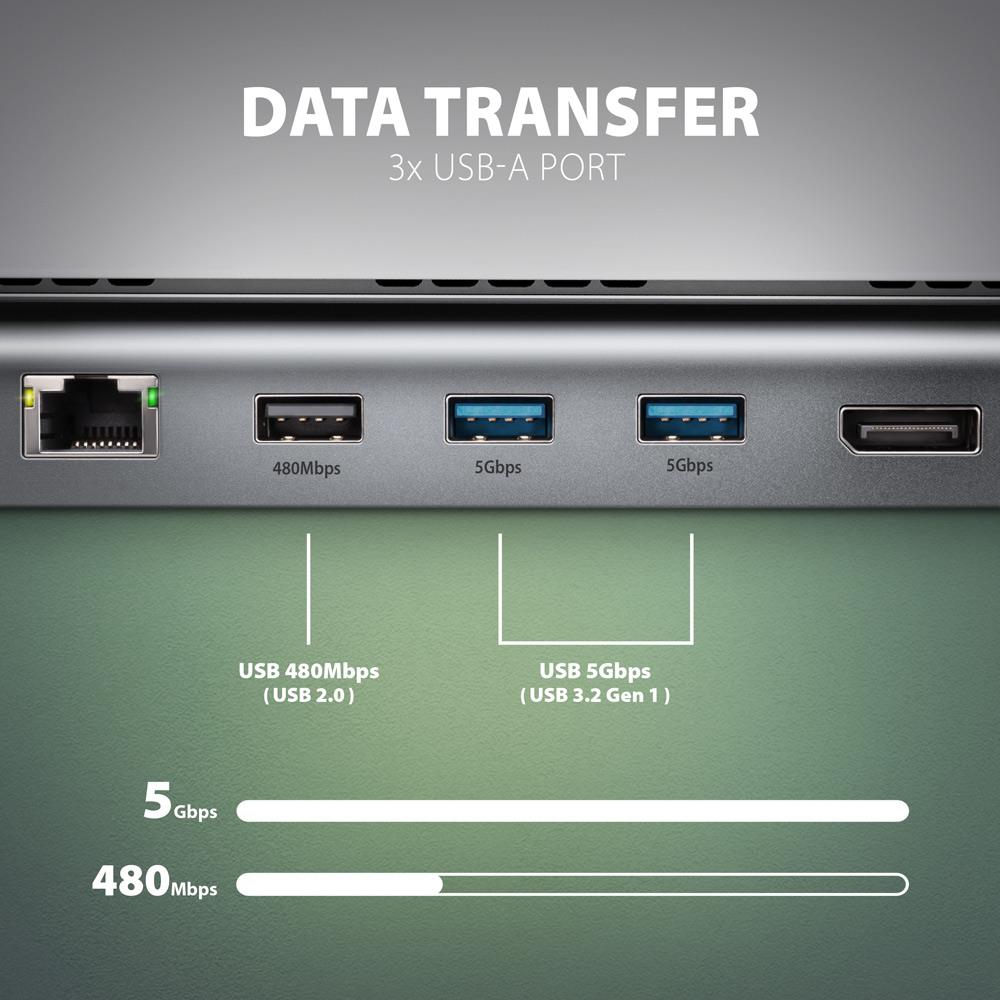

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2

USB cable length 0.4

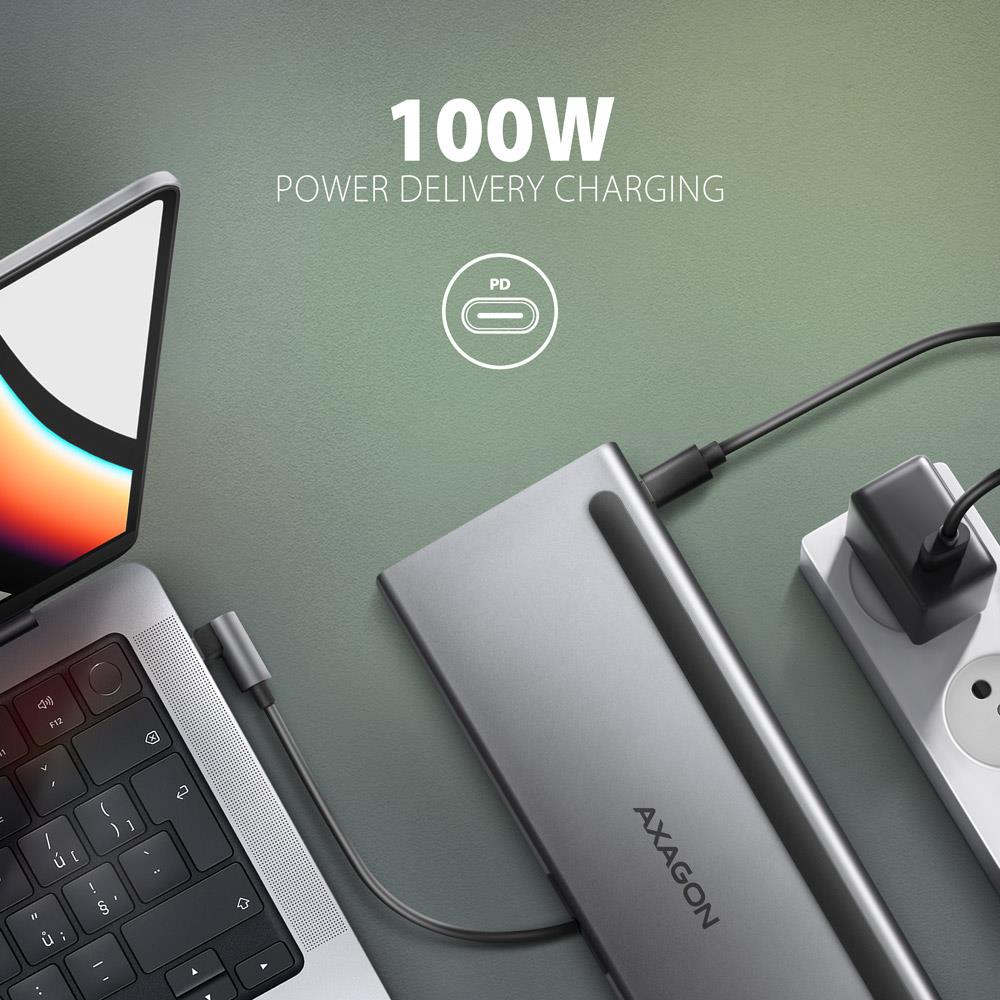

USB Power Delivery (USB PD) Yes

USB Power Delivery revision 3.0

USB Power Delivery up to 100

USB Type-C DisplayPort Alternate Mode Yes

Warranty period 2

Display parameters

HD type 4K Ultra HD

Storage parameters

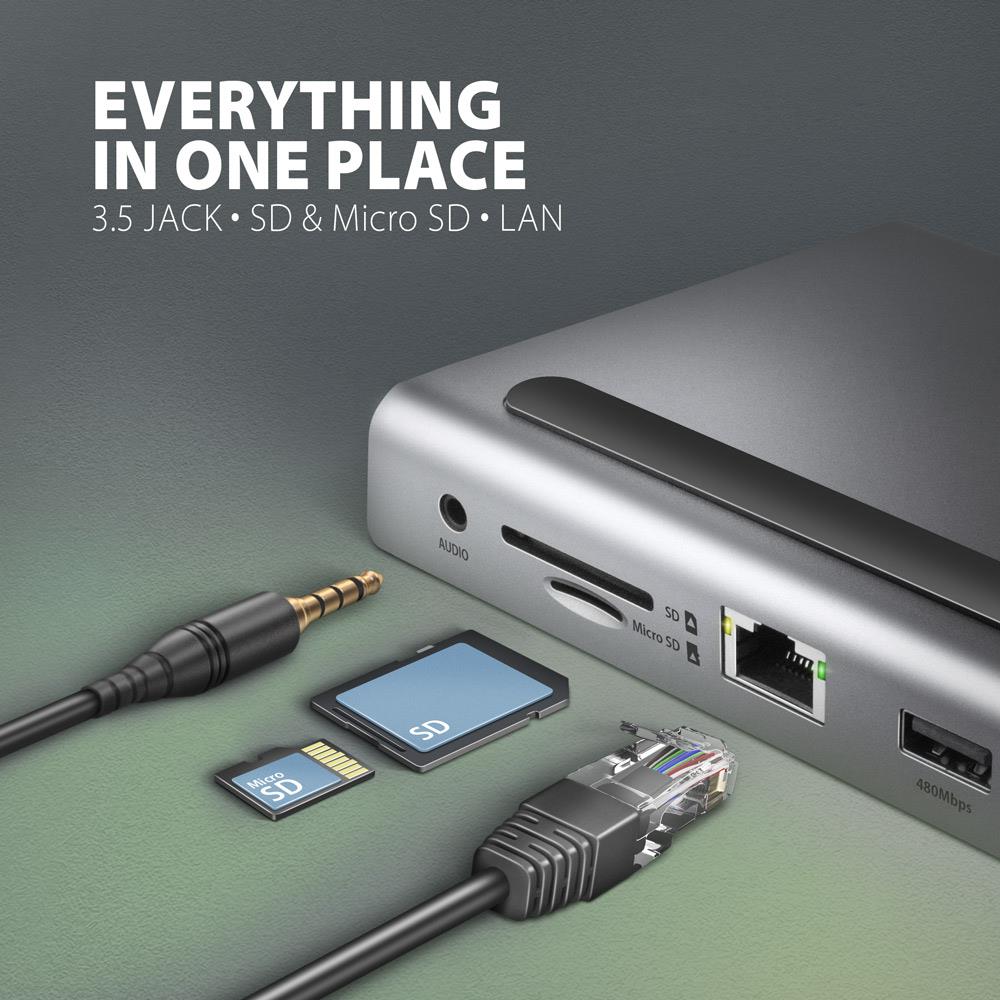

Card reader integrated Yes

Compatible memory cards MicroSD (TransFlash)/MicroSDHC/MicroSDXC/MiniSD/MiniSDHC/MMC/MMC Mobile/RS-MMC/SD/SDHC/SDXC

Ports types

DisplayPort version 1.4

DisplayPorts quantity 1

HDMI ports quantity 2

HDMI version 2.3

Headphone connectivity 3.5 mm

Headphone outputs 1

USB 2.0 ports quantity 1

Connections types

Connectivity technology Wired

Ethernet LAN Yes

Ethernet LAN (RJ-45) ports 1

Ethernet LAN data rates 10/100/1000

Specifications

Auto MDI/MDI-X Yes

Brand compatibility Universal

Built-in microphone No

Built-in speaker(s) No

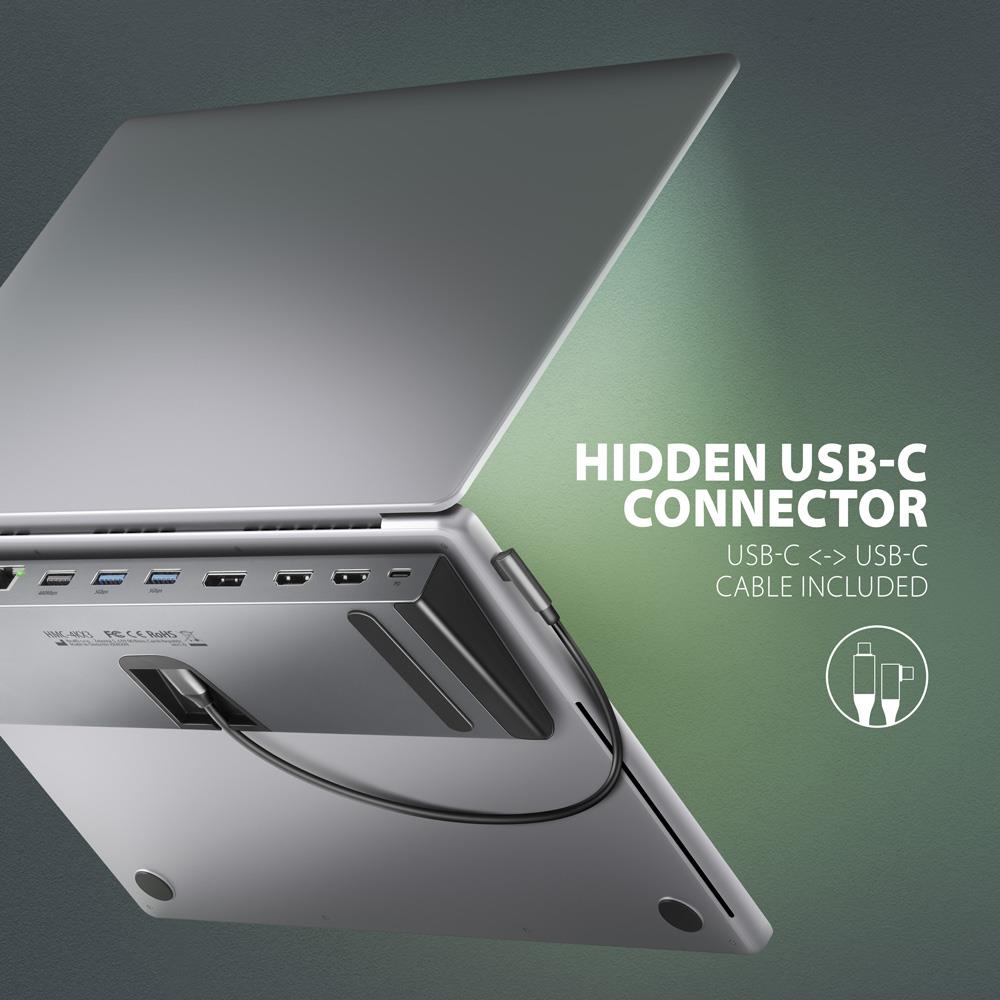

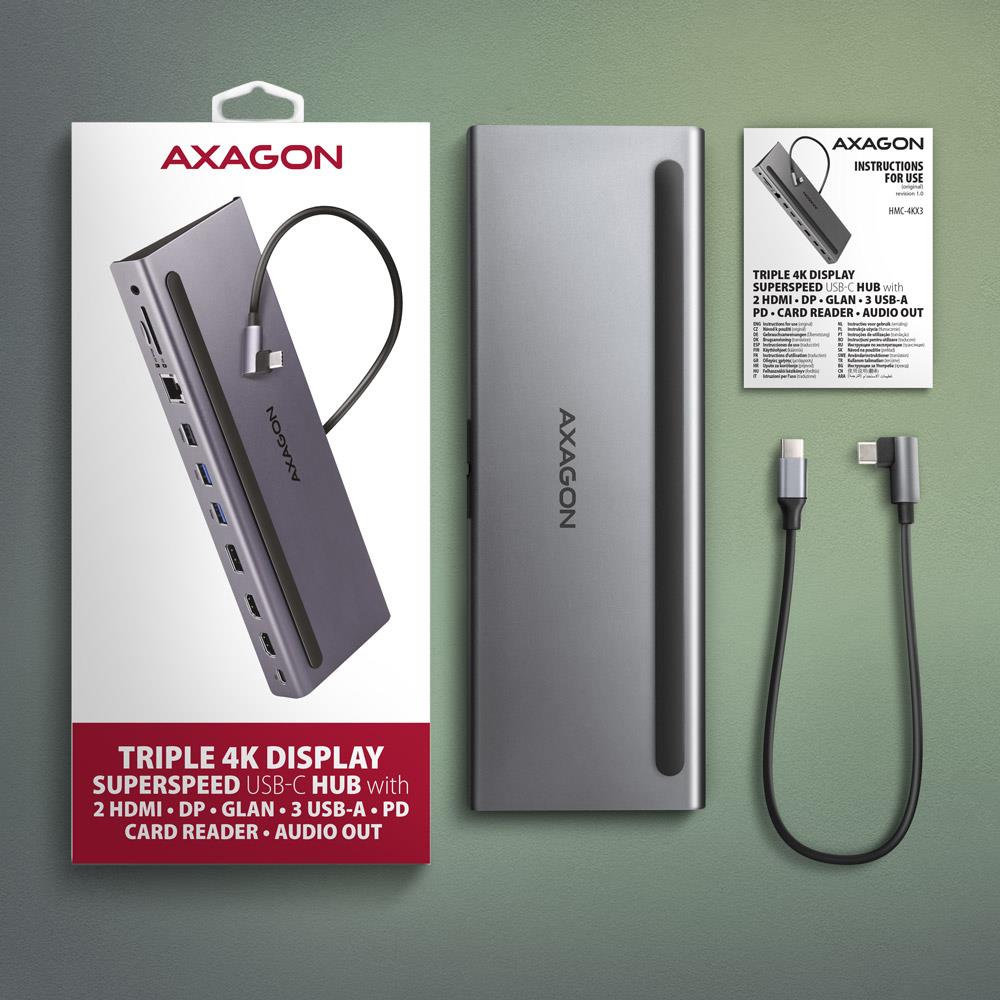

Cables included USB Type-C to USB Type-C

Certification CE, RoHS

Charging function Yes

Combo headphone/mic port Yes

Country of origin China

Data transfer rate 5

Depth 90

Full duplex Yes

HDCP Yes

Height 24

Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-C

Hot-Plug support Yes

Housing material Aluminium

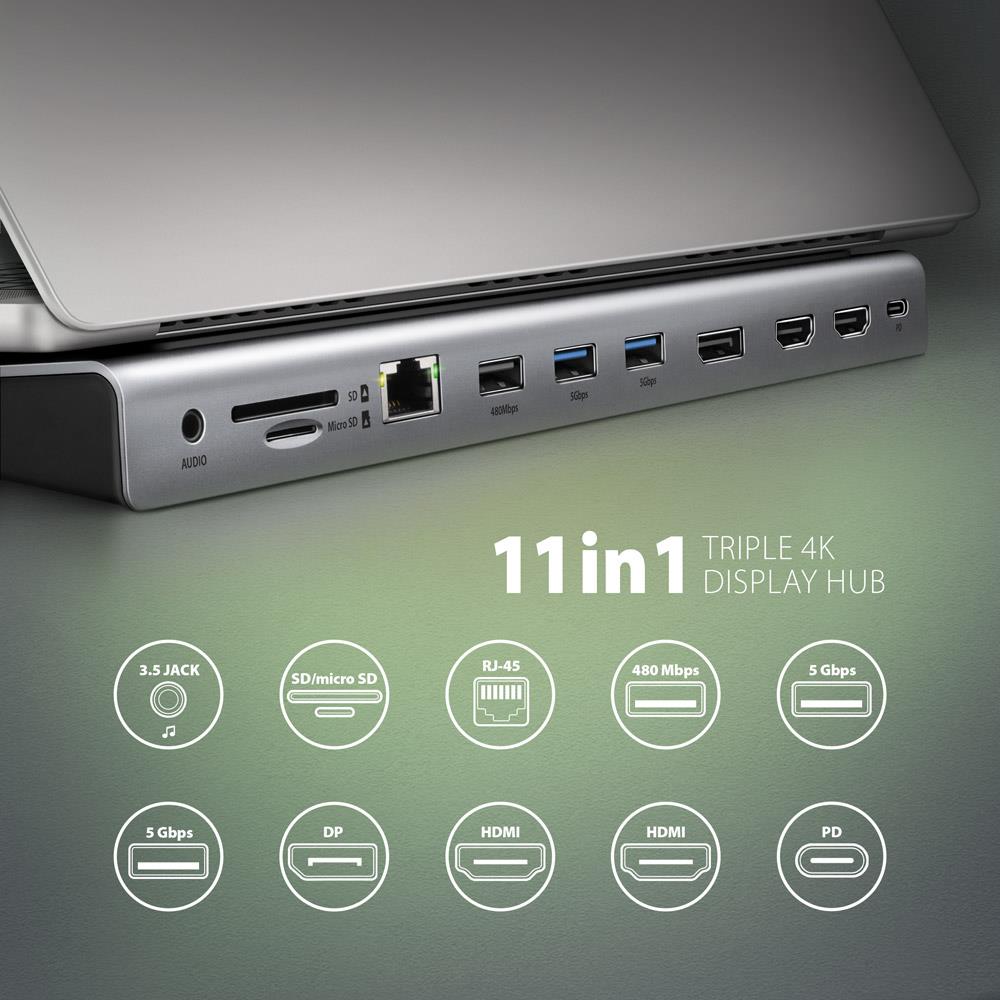

Hub interfaces 3.5mm/DisplayPort/HDMI/RJ-45/USB 2.0/USB 3.2 Gen 1 (3.1 Gen 1) Type-A/USB 3.2 Gen 1 (3.1 Gen 1) Type-C

Jumbo frames support Yes

LED indicators Yes

Linux operating systems supported Yes

Mac operating systems supported Yes

Manual Yes

Maximum digital resolution 4096 x 2160

Maximum refresh rate 240

Mobile operating systems supported Yes

Model HMC-4KX3

Networking standards IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x

Other operating systems supported Yes

Package depth 135

Package height 35

Package weight 420

Package width 270

Plug and Play Yes

Power connector USB Type-C

Power source type USB

Quantity per pack 1

Server operating systems supported Yes

Wake-on-LAN ready Yes

Weight 317

Width 256

Windows operating systems supported Yes
