Power Supply, GIGABYTE, P450B, 450 Watts, Efficiency 80 PLUS BRONZE, GP-P450B
Popular
Power Supply, GIGABYTE, P450B, 450 Watts, Efficiency 80 PLUS BRONZE, GP-P450B
Power Supply, GIGABYTE, P450B, 450 Watts, Efficiency 80 PLUS BRONZE, GP-P450B
Power Supply, GIGABYTE, P450B, 450 Watts, Efficiency 80 PLUS BRONZE, GP-P450B
Power Supply, GIGABYTE, P450B, 450 Watts, Efficiency 80 PLUS BRONZE, GP-P450B
Power Supply, GIGABYTE, P450B, 450 Watts, Efficiency 80 PLUS BRONZE, GP-P450B
Reviews:
(0)
    Name:

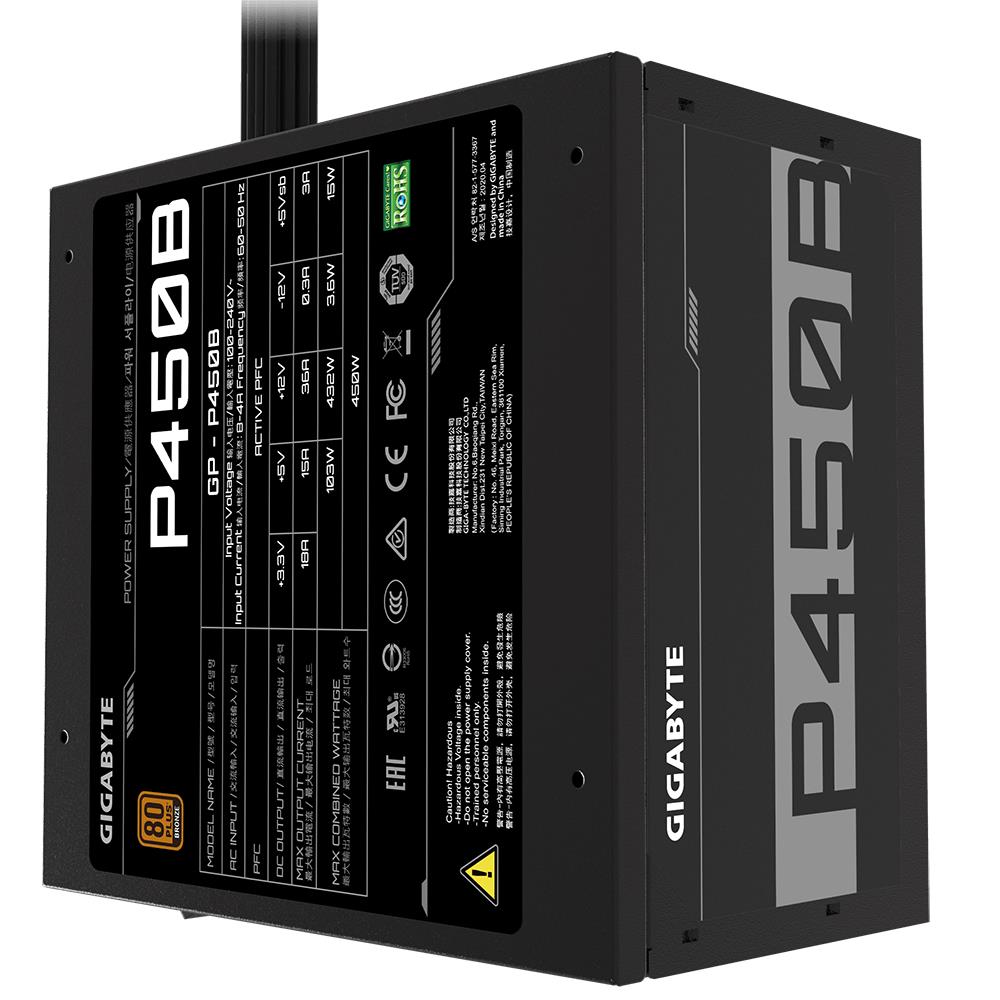

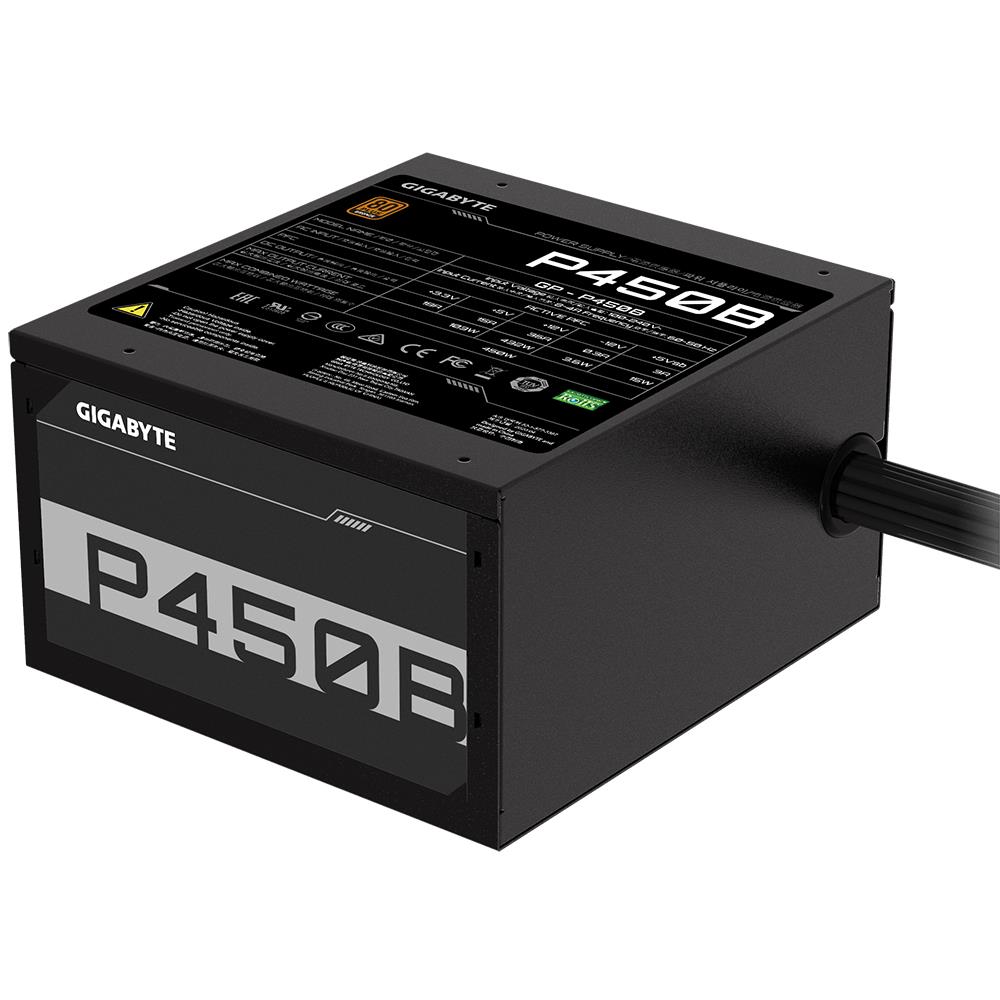

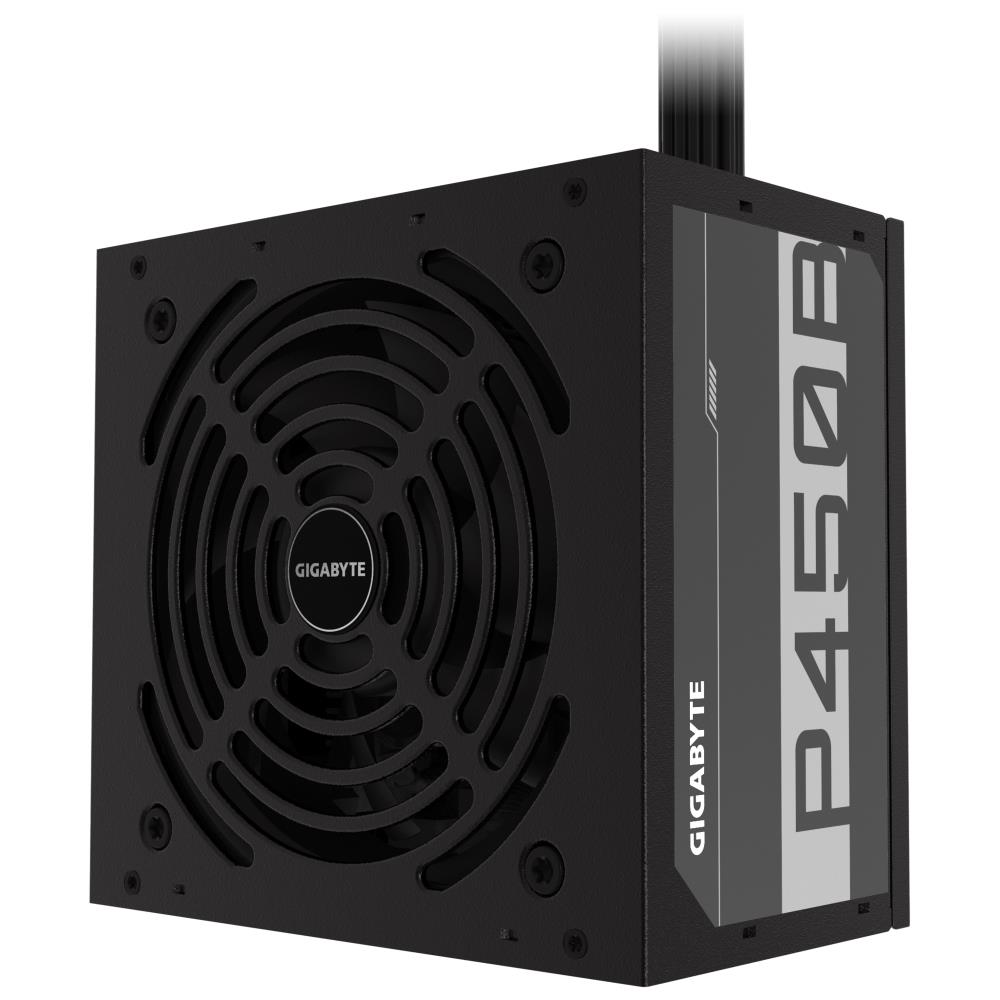

    Gigabyte GP-P450B

  • Brand: Gigabyte
  • Product Code: GP-P450B
  • EAN: 4719331551612
  • Availability: 20
37.41€
Ex Tax: 30.92€
  • Product overview
  • Specification
  • Reviews (0)

Tags: Desktop Computer PSU

Specifications
Specifikācija
Cabling type Non-Modular
CPU power cable length 600
Harmonized System (HS) code 84733020
Hold time 16
Motherboard power cable length 550
PCI Express power cable length 550
Peripheral (Molex) power cable length 500
Power supply unit (PSU) form factor ATX
Product colour Black
Purpose PC
SATA power cable length 500
Summary GIGABYTE P450B. Total power: 450 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Unit Calculated Volume 0.008395
Unit Calculated Weight 2.09
Units per Shipping Box 10
Processor parameters
CPU power connector (4+4 pin) Yes
Storage parameters
Number of SATA power connectors 6
Specifications
80 PLUS certification 80 PLUS Bronze
AC input frequency 50 - 60
AC input voltage 100 - 240
ATX power connector (20+4 pin) Yes
ATX version 2.31
Bearing technology HDB
Combined power (+12V) 432
Combined power (+3.3V) 103
Combined power (+5V) 103
Combined power (+5Vsb) 15
Combined power (-12V) 3.6
Cooling type Active
Depth 140
Efficiency 85
Fan diameter 120
Fan location Top
Floppy disk drive connector Yes
Floppy drive power connector 1
Height 86
Input current 8 - 4
Max output current (+12V) 36
Max output current (+3.3V) 18
Max output current (+5V) 15
Max output current (+5Vsb) 3
Max output current (-12V) 0.3
Mean time between failures (MTBF) 100000
Model name P450B
Motherboard power connector 20+4 pin ATX
Number of fans 1
On/off switch Yes
PCI Express connector Yes
PCI Express power connectors (6+2 pin) 2
Peripheral (Molex) power connectors (4-pin) 3
Power factor 0.9
Power Factor Correction (PFC) type Active
Power protection features Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Total power 450
Width 150
Reviews (0)

There are no reviews for this product.
