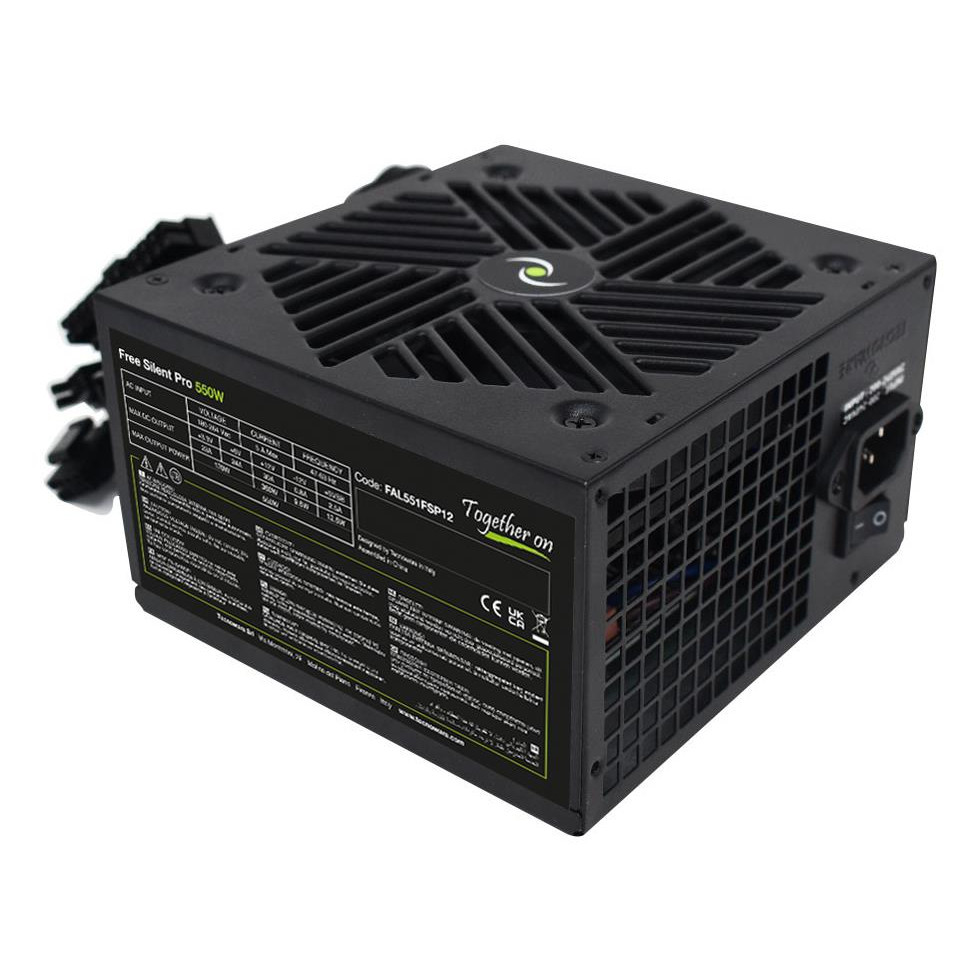

Power Supply, TECNOWARE, FAL551FSP12, ATX, 550 W, FAL551FSP12
Popular
- Brand: TECNOWARE
- Product Code: FAL551FSP12
- EAN: 8026475183408
- Availability: 100
Name:
TECNOWARE FAL551FSP12
24.73€
Ex Tax: 20.44€
- Product overview
- Specification
- Reviews (0)
Specifications
Specifikācija
Cabling type
Non-Modular
Compliance certificates
CE/RoHS
CPU power cable length
550
Motherboard power cable length
500
PCI Express power cable length
500
Power supply unit (PSU) form factor
ATX
Product colour
Black
Purpose
PC
Summary
Tecnoware Free Silent PRO 550. Total power: 550 W, AC input voltage: 180 - 264 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, PCI Express power cable length: 50 cm. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Compliance certificates: CE, RoHS
Unit Calculated Volume
0.0032
Unit Calculated Weight
1
Units per Shipping Box
1
Processor parameters
CPU power connector (4+4 pin)
Yes
Storage parameters
Number of SATA power connectors
4
Specifications
80 PLUS certification
No
AC input frequency
47 - 63
AC input voltage
180 - 264
ATX power connector (20+4 pin)
Yes
ATX version
2.31
Combined power (+12V)
360
Combined power (+3.3V)
170
Combined power (+5V)
170
Combined power (+5Vsb)
12.5
Combined power (-12V)
9.6
Depth
150
Efficiency
85
Fan diameter
120
Height
86
Input current
5
Max output current (+12V)
30
Max output current (+3.3V)
23
Max output current (+5V)
24
Max output current (+5Vsb)
2.5
Max output current (-12V)
0.8
Model name
FAL551FSP12
Motherboard power connector
20+4 pin ATX
Number of fans
1
On/off switch
Yes
Operating temperature (T-T)
0 - 40
Package type
Box
PCI Express power connectors (6+2 pin)
1
Peripheral (Molex) power connectors (4-pin)
2
Power factor
0.9
Power Factor Correction (PFC) type
Active
Power protection features
Overload/Short circuit/Surge protection
Storage temperature (T-T)
-15 - 40
Total power
550
Weight
1000
Width
140
Reviews (0)
There are no reviews for this product.
