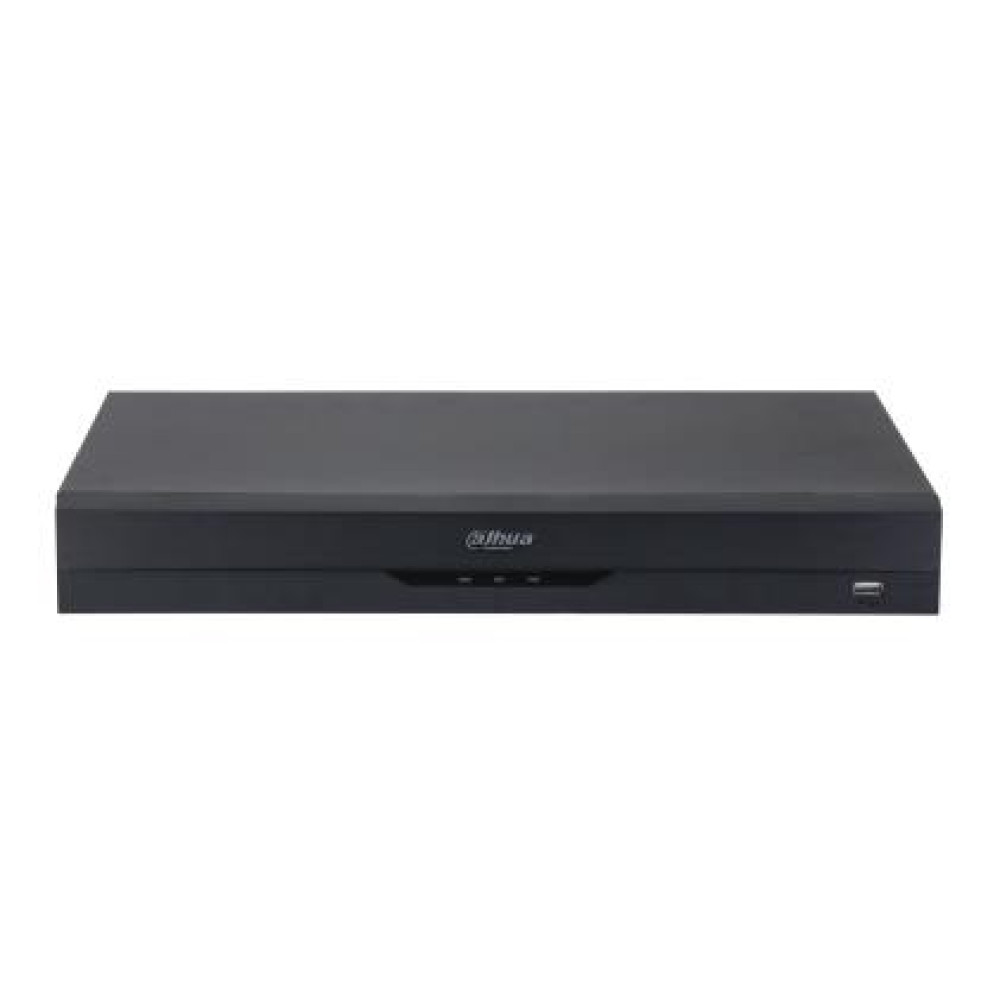

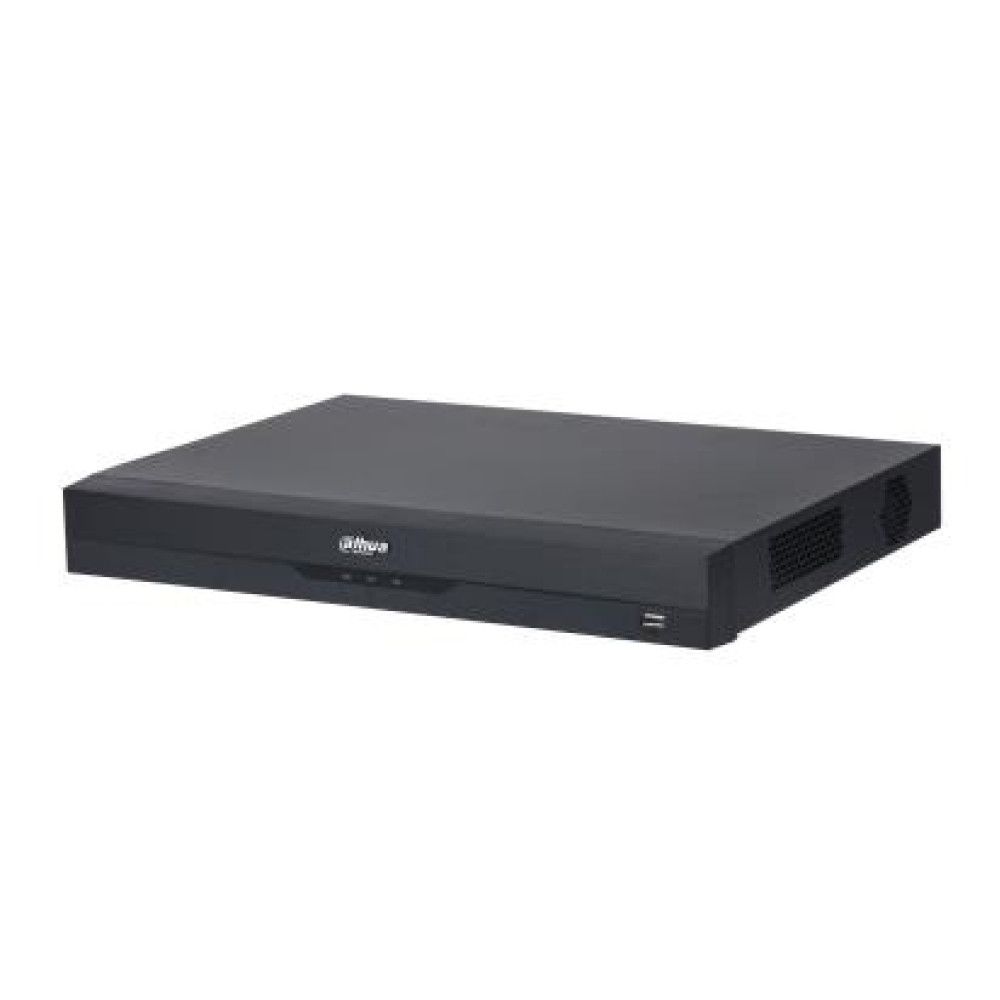

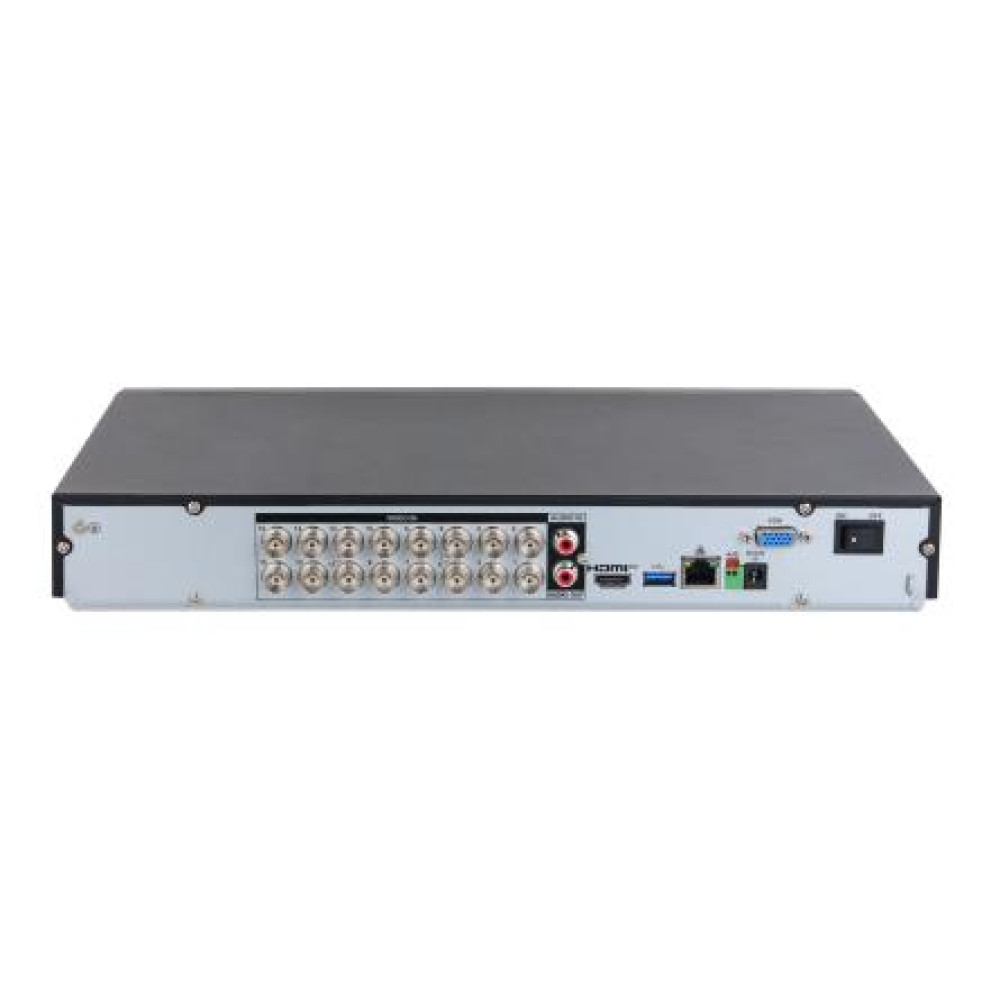

DVR 16CH HDCVI PENTABRID AI/XVR5216AN-I3/T DAHUA
Популярный
Последнее
- Бренд: DAHUA
- Модель: XVR5216AN-I3/T
- EAN: 6937552415041
- Наличие: 2
Наименование:
DAHUA XVR5216AN-I3/T
316.25€
Без PVN: 261.36€
- Обзор товара
- Характеристики
- Отзывы (0)
Характеристики
Specification
Name
DVR 16CH HDCVI PENTABRID AI/XVR5216AN-I3/T DAHUA
Specifikācija
Audio bitrate
64
Audio input channels
16
Backup function
Yes
BNC input ports
16
Compliance certificates
CE
DC voltage
12
Dual stream support
Yes
Graphical user interface (GUI)
Yes
HDD interface
SATA
Maximum HDD capacity
16000
Multi-display modes
1/16/25/4/8/9
Multi-display supported
Yes
Number of HDDs supported
2
Number of simultaneously playbacked channels
16
Product colour
Black
Product Net Weight
1.8
Rack capacity
1U
RS-485 ports
1
Summary
Dahua Technology XVR5216AN-I3/T. Product colour: Black, Maximum video resolution: 3840 x 2160 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Video resolutions: 3840 x 2160,1920 x 1080,1280 x 720,1280 x 1024. Video input channels: 24 channels. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP;, Ethernet LAN data rates: 10,100,1000 Mbit/s. HDD interface: SATA, Maximum HDD capacity: 16 TB
Unit Calculated Volume
0.0231
Units per Shipping Box
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
Video loss detection
Yes
Video motion detection
Yes
Video RCA outputs
1
Порты
USB 2.0 ports quantity
1
USB connectivity
Yes
VGA (D-Sub) output ports
1
Количество портов HDMI
1
Подключения
Ethernet interface type
Fast Ethernet/Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN data rates
10/100/1000
Порты локальной сети Ethernet (RJ-45)
1
Камера
Video resolutions
1280 x 1024/1280 x 720/1920 x 1080/3840 x 2160
Спецификация
Audio formats supported
G.711/G.711u/PCM
Audio output channels
1.0
Certification
CE-LVD: IEC 62368-1:2014CE-EMC: EN IEC 61000-3-2:2019, EN61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
Maximum video resolution
3840 x 2160
Operating relative humidity (H-H)
10 - 90
Operating system installed
Embedded LINUX
Operating temperature (T-T)
-10 - 55
Package depth
137
Package height
356
Package weight
2950
Package width
427
Playback modes
Event/General/Instant/Smart/Tag
Power consumption (typical)
12
Quick start guide
Yes
Storage temperature (T-T)
-20 - 60
Supported network protocols
HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP;
Video compression formats
H.264/H.264+/H.265/H.265+
Video input channels
24
Weight
1800
Высота
53
Глубина
289.6
Тип источника питания
DC
Ширина
375
Отзывы (0)
Нет отзывов об этом товаре.
