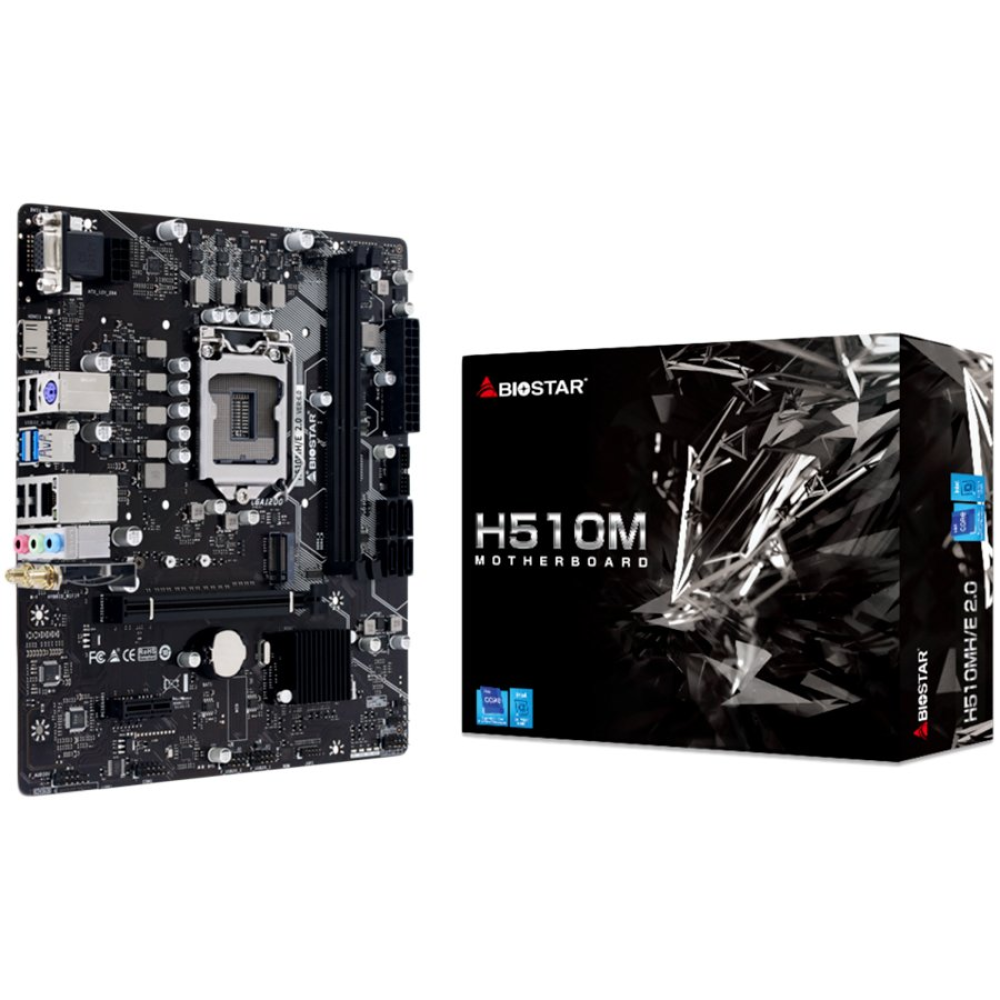

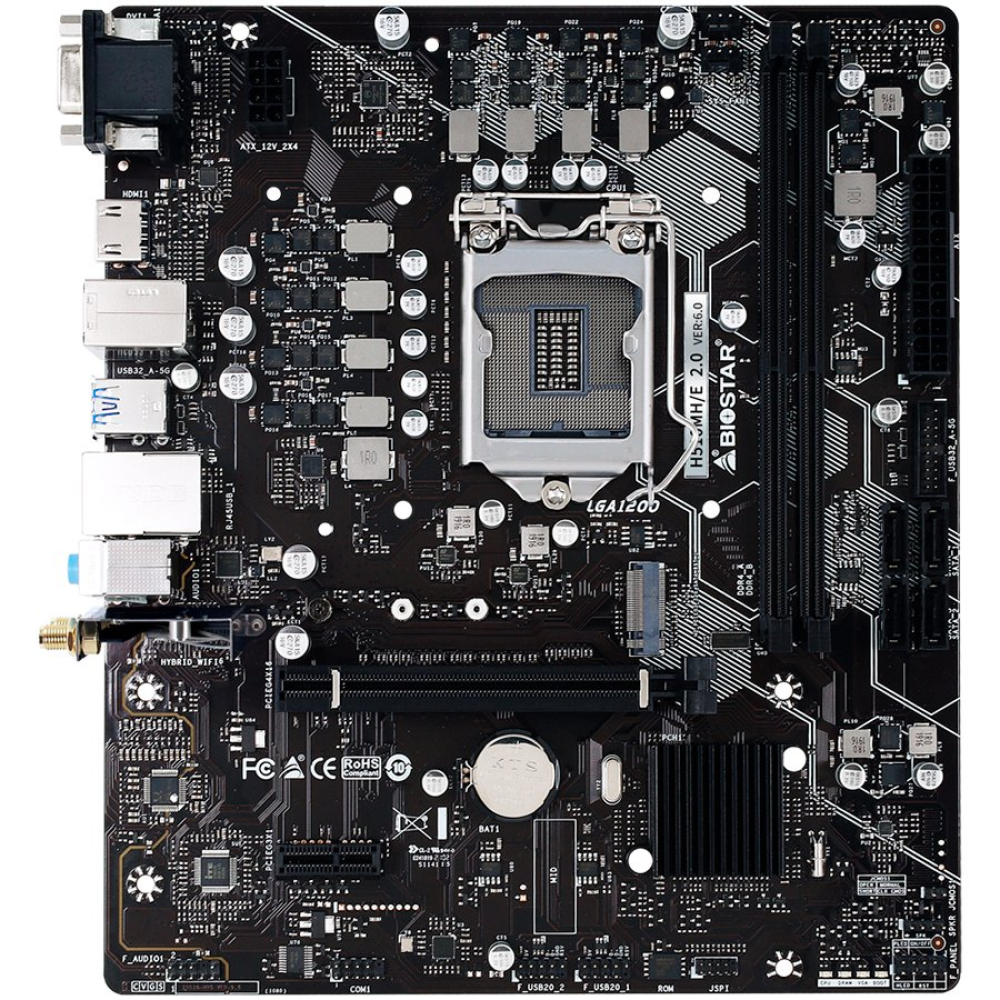

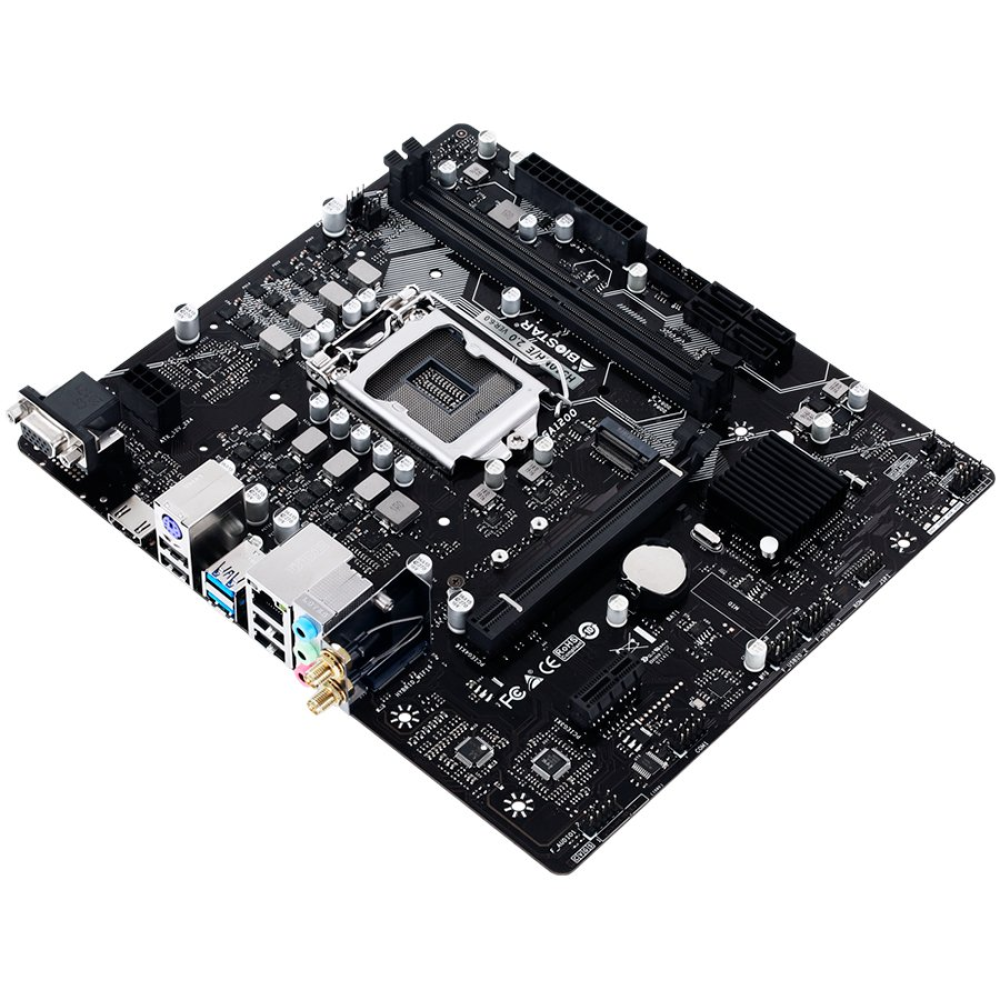

BIOSTAR MB H510 LGA1200 2 x DDR4 DIMM 4 x SATA III 1 x M.2 1 x HDMI Port 1 x VGA Port Micro ATX
Популярный
- Бренд: BIOSTAR
- Модель: H510MH 2.0
- Наличие: Нет в наличии
Наименование:
BIOSTAR H510MH 2.0
72.75€
Без PVN: 60.12€
- Обзор товара
- Характеристики
- Отзывы (0)
BIOSTAR MB H510 LGA1200 2 x DDR4 DIMM 4 x SATA III 1 x M.2 1 x HDMI Port 1 x VGA Port Micro ATX
Характеристики
Specification
PCI Express 4.0 x16 / PCI Express 3.0 x16
1
Процессор
CPU Maximum Quantity Supports
1
CPU Socket Standard
Socket 1200
Supports Central Processor Unit
Intel 10th Gen Processors , Intel 11th Gen Processors
Память
Maximum Installable System Memory Storage Capacity
64 GB
Memory features
Two DDR Channels
Memory form factor
DIMM 288-pin
Memory Slot Total Quantity
2
Memory Speed
1866MHz(PC4-14900) , 2133MHz(PC4-17000) , 2400MHz(PC4-19200) , 2666MHz(PC4-21300) , 2933MHz(PC4-23400) , 3200MHz(PC4-25600)
Provides Error Checking Method
non-ECC
Тип памяти
DDR4 SDRAM
Порты
HDMI
1 (HDMI (Type A))
PCI Express 3.0 x1
1
USB 2.0
4 (USB 2.0 (type A))
USB 3.2 Gen 1
2 (USB 3.2 (type A))
VGA
1 (15-pin D-sub)
Подключения
Data Link Protocol Supports
Gigabit Ethernet/Fast Ethernet/Ethernet
LAN
1 (RJ-45)
LAN Chipset
Intel i219V
LAN Integrated
yes
WLAN
Integrated
Спецификация
Audio Chipset
Realtek ALC897
Audio Integrated
yes
Audio Interface
3 (3.5-mm minijack)
Audio Output Mode
7.1 Channel Surround
Box Weight Brutto (kg)
10 kg
Cable Included
2 x SATA cables
Compliant Audio Standards
High Definition Audio
Device Location
Integrated
Form factor
Micro ATX
Hardware Monitoring
CPU Fan Tachometer , CPU Temperature , System Temperature , System Voltage
Height (mm)
236 mm
Included Accessories
I/O Shield , Īsa lietotāja rokasgrāmata , DVD
Integrated
<b>Storage Controller:</b>, SATA III-600 (4), <b>Storage Controller:</b>, PCIe 3.0 x4/SATA (1 x M.2),
Pack Weight Brutto (kg)
1 kg
Pack Weight Netto (kg)
1 kg
Package type
OEM
Packs in Box
10
Pieces in pack
1
Power Connectors Type
24+8 pin
PS/2
1
Retail Packaging Net Weight Carton
0.01 kg
Retail Packaging Net Weight Plastic
0.01 kg
Supported Operating System
Microsoft Windows 10 64-bit , Microsoft Windows 11 64-bit
Warranty Products Returnable
Yes
Warranty Term (month)
24 mēneši
Warranty validation Criteria
Serial Number
Width (mm)
208 mm
Чипсет
Intel H510
