GENWAY RG59-2X05-50M

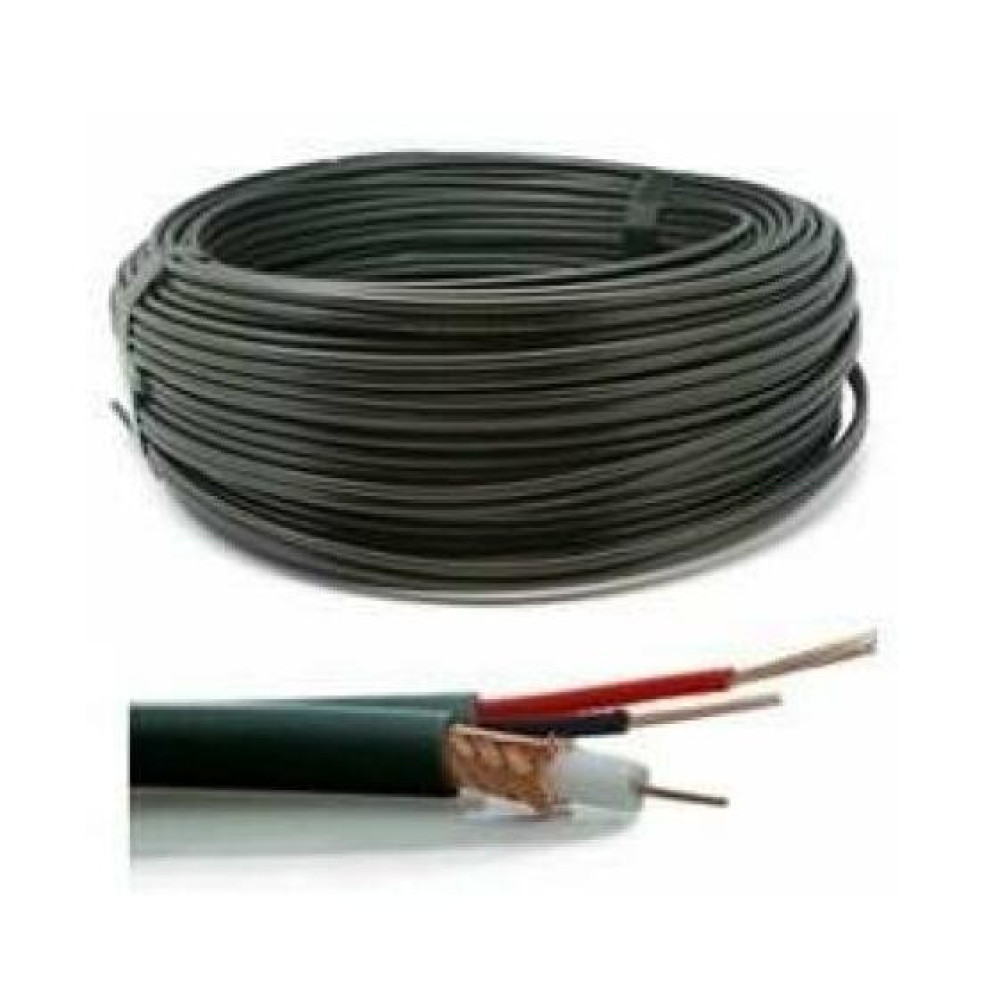

• High quality copper core cable for CCTV installation. RG59 coaxial + 2x 0.5MM power cable combination.Sold in 50 m roll. On average, it is assumed the video signal can be transmitted over CCTV cable for distances up to 400 m without the use of an amplifier.Impedance: 75 OhmConductor: CU wire 0.59Insulation: PE full 3.7Screen: Al foil (PET)Braid: CCU wireScreening efficiency: 75 dBOuter sheath: PVC 5.5 mm2x0.5 power wireList of attenuation (dB) 100 meter section of cable for selected frequencies (MHz):100 MHz - 10.6 dB200 MHz - 15.2 dB500 MHz - 25.4 dB1000 MHz - 38.9 dB
• Colour Black,Unit Brutto Volume 0.01024 cubm
