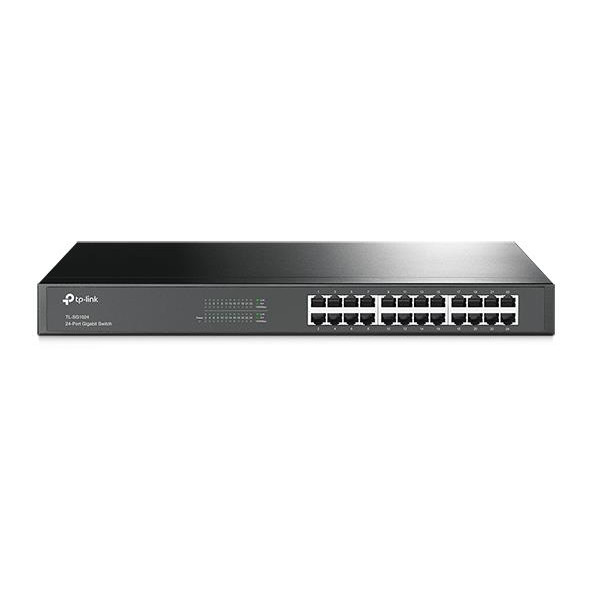

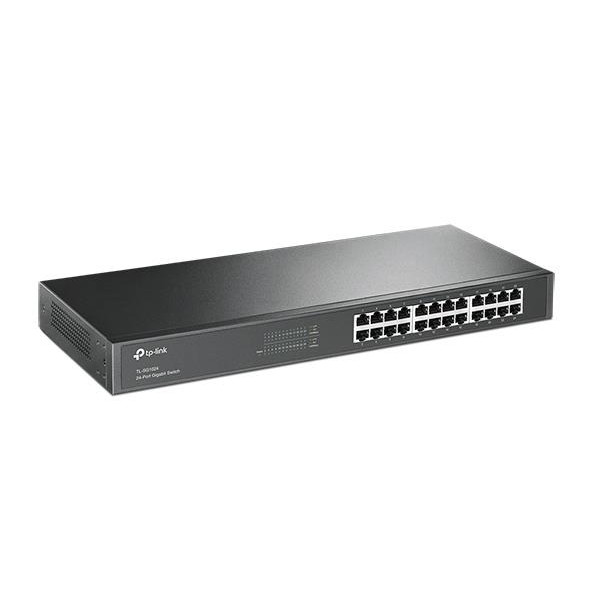

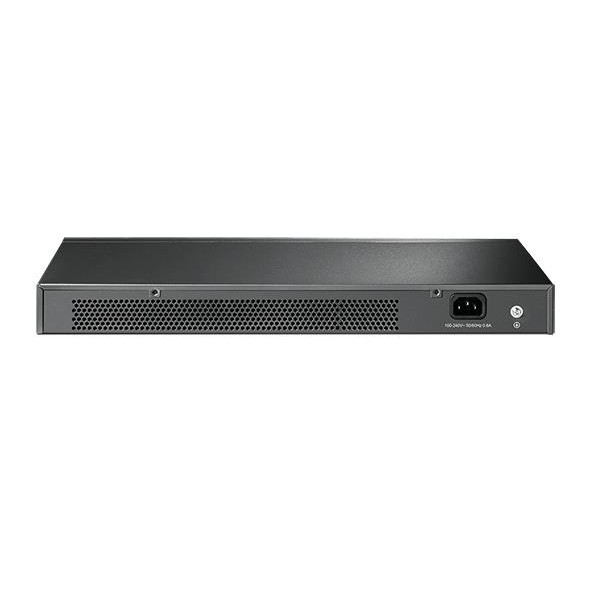

Switch, TP-LINK, 24xRJ45, TL-SG1024

Популярный

Отзывы:

(0)

Наименование:

TP-LINK TL-SG1024

Бренд: TP-LINK
Модель: TL-SG1024
EAN: 6935364020101
Наличие: 4

85.00€

Без PVN: 70.25€

Кол-во:

Обзор товара
Характеристики
Отзывы (0)

Manufacturer page

Характеристики

Specifikācija

Dimensions (W x D x H) (imperial) 17.3 x 7.1 x 1.7

Half duplex Yes

Product colour Black

Rack mount kit Yes

Store-and-forward Yes

Summary TP-Link 24-Port Gigabit Rackmount Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Rack mounting, Form factor: 1U

Unit Calculated Volume 0.0106

Unit Calculated Weight 2.52

Units per Shipping Box 1

Подключения

10G support No

Basic switching RJ-45 Ethernet ports quantity 24

Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)

Connectivity technology Wired

Спецификация

AC input frequency 50 - 60

AC input voltage 100 - 240

Auto MDI/MDI-X Yes

Auto-negotiation Yes

Bandwidth 48

Certification FCC, CE, RoHS

Connectivity LEDs Y

Copper ethernet cabling technology 1000BASE-T/100BASE-TX/10BASE-T

Flow control support Yes

Form factor 1U

Forwarding rate 35.7

Full duplex Yes

Gigabit Ethernet (copper) ports quantity 24

Heat dissipation 46.44

Jumbo frames 10000

Jumbo frames support Yes

LED indicators Yes

MAC address table 8000

Maximum data transfer rate 1

Networking standards IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x

Operating relative humidity (H-H) 10 - 90

Operating temperature (T-T) 0 - 40, 32 - 104

Package depth 528

Package height 80

Package weight 2130

Package width 250

Power consumption (max) 13.62

Power source AC

Power supply included Yes

Quality of Service (QoS) support Yes

Rack mounting Yes

Storage relative humidity (H-H) 5 - 90

Storage temperature (T-T) -40 - 70

Supported data transfer rates 10/100/1000 Mbps

Supported network protocols CSMA/CD, TCP/IP

Switch type Unmanaged

Switching capacity 48

User guide Yes

Высота 44

Глубина 180

Кабели в комплекте AC

Ширина 440

Отзывы (0)

Нет отзывов об этом товаре.
