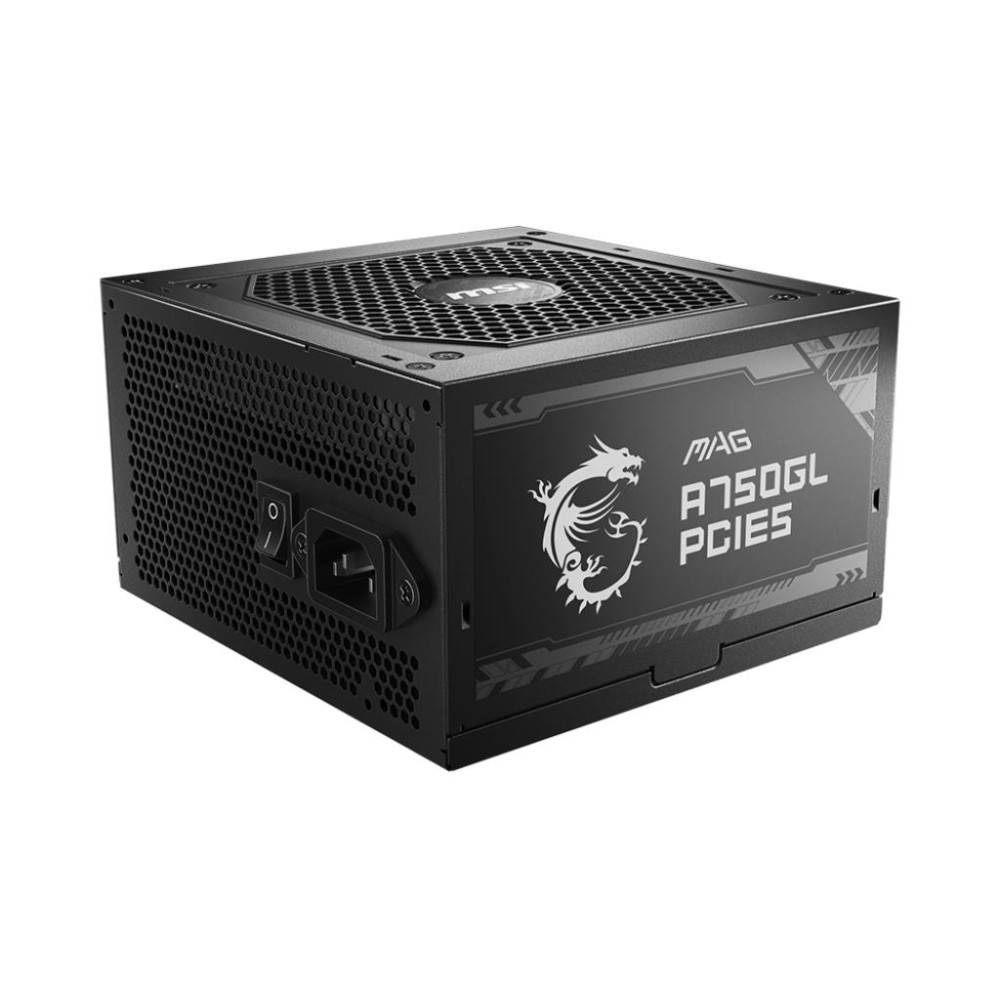

Power Supply, MSI, 750 Watts, Efficiency 80 PLUS GOLD, PFC Active, MAGA750GLPCIE5

Популярный

Отзывы:

(0)

Наименование:

MSI MAGA750GLPCIE5

Бренд: MSI
Модель: MAGA750GLPCIE5
EAN: 4711377084284
Наличие: 25

108.17€

Без PVN: 89.40€

Кол-во:

Обзор товара
Характеристики
Отзывы (0)

Manufacturer page

Характеристики

Specifikācija

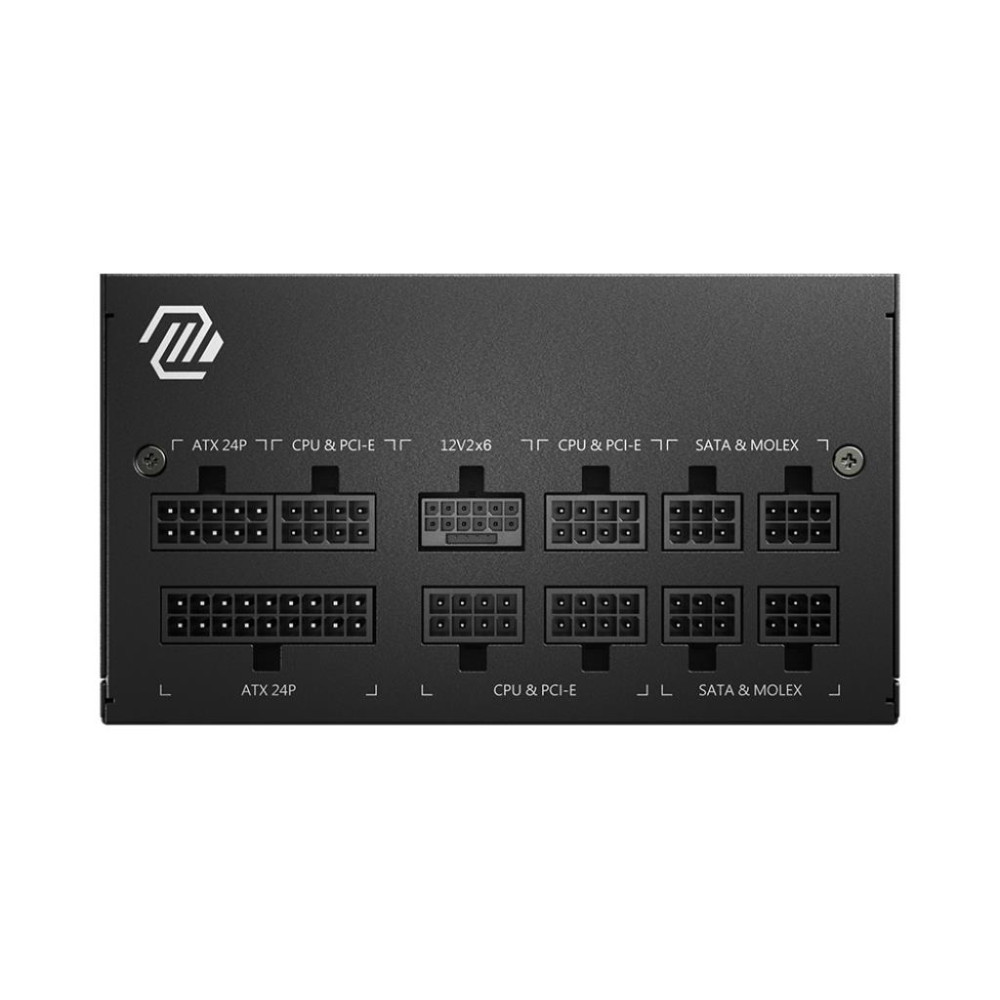

Cabling type Fully-Modular

EPS power connector (4+4 pin) Yes

Harmonized System (HS) code 84733020

Maximum input current (@220V) 4

Motherboard power cable length 450

Power supply unit (PSU) form factor ATX

Product colour Black

Purpose PC

Summary MSI MAG A750GL PCIE5. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 45 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm

Unit Calculated Volume 0.008775

Unit Calculated Weight 2.81

Units per Shipping Box 1

Процессор

CPU power connector (4+4 pin) Yes

Запоминающее устройство

Number of SATA power connectors 8

Спецификация

80 PLUS certification 80 PLUS Gold

AC input frequency 47 - 63

AC input voltage 100 - 240

ATX power connector (20+4 pin) No

ATX Power connector (24-pin) No

Combined power (+12V) 744

Combined power (+3.3V) 110

Combined power (+5V) 110

Combined power (+5Vsb) 12.5

Combined power (-12V) 3.6

Cooling type Active

Efficiency 90

EPS power connector (8-pin) No

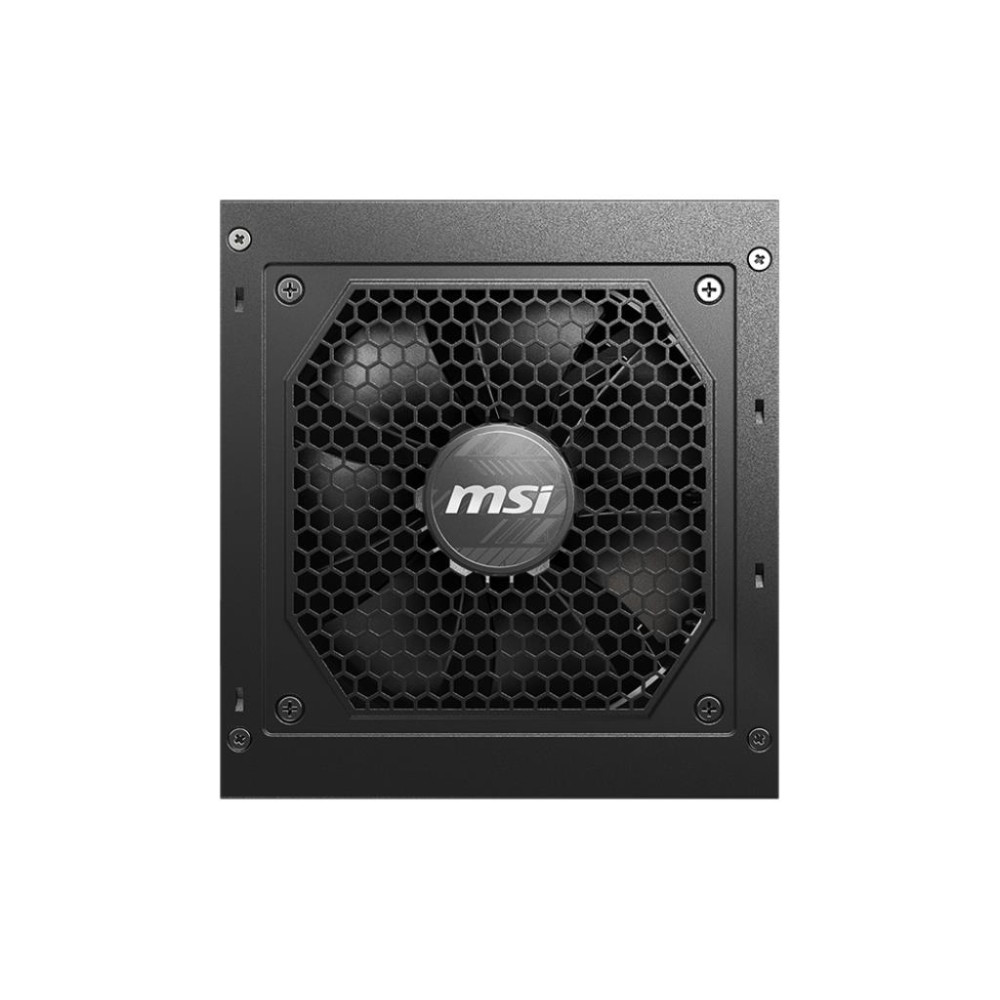

Fan diameter 120

Illumination No

Max output current (+12V) 62

Max output current (+3.3V) 20

Max output current (+5V) 20

Max output current (+5Vsb) 2.5

Max output current (-12V) 0.3

Maximum input current (@110V) 8

Motherboard power connector 20+4 pin ATX

Number of fans 1

On/off switch Yes

Package type Box

PCI Express power connectors (6+2 pin) 3

Peripheral (Molex) power connectors (4-pin) 4

Power Factor Correction (PFC) type Active

Power protection features Over current/Over power/Over voltage/Overheating/Short circuit

Total power 750

Высота 86

Глубина 140

Название модели MAG A750GL PCIE5

Ширина 150
