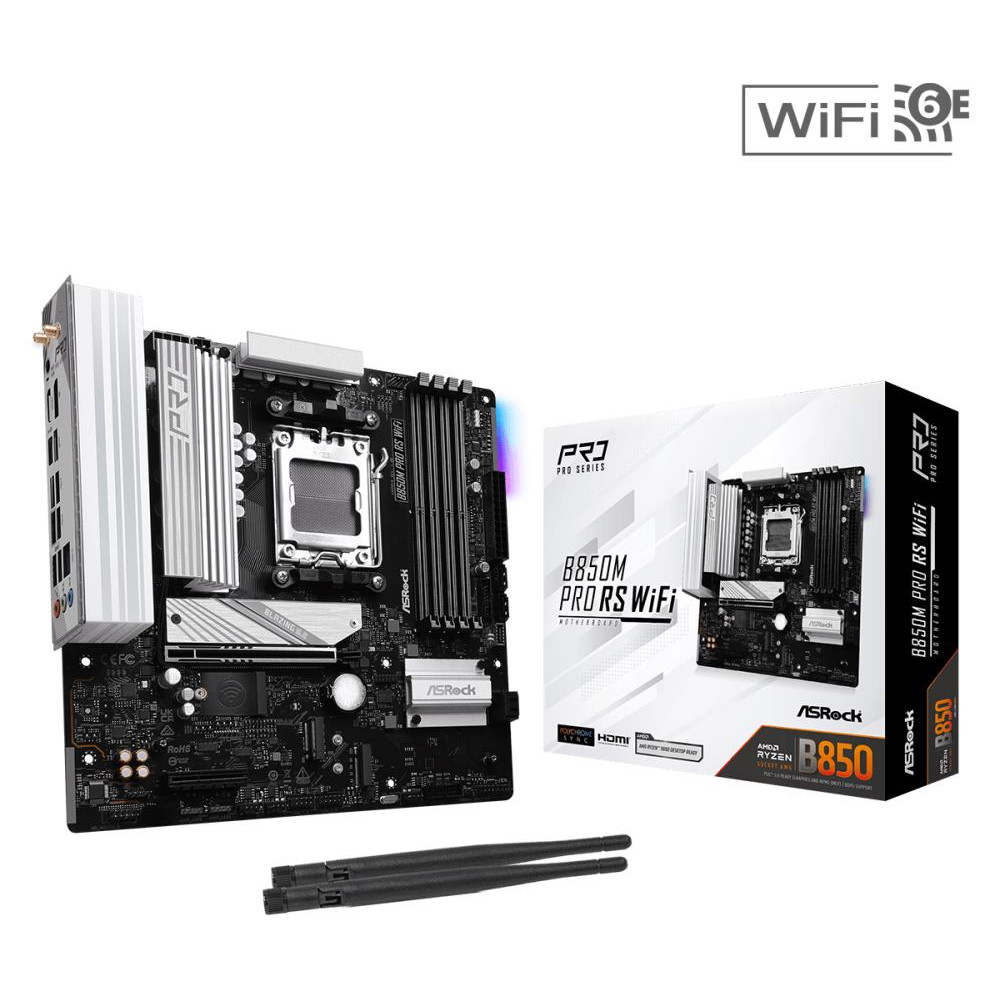

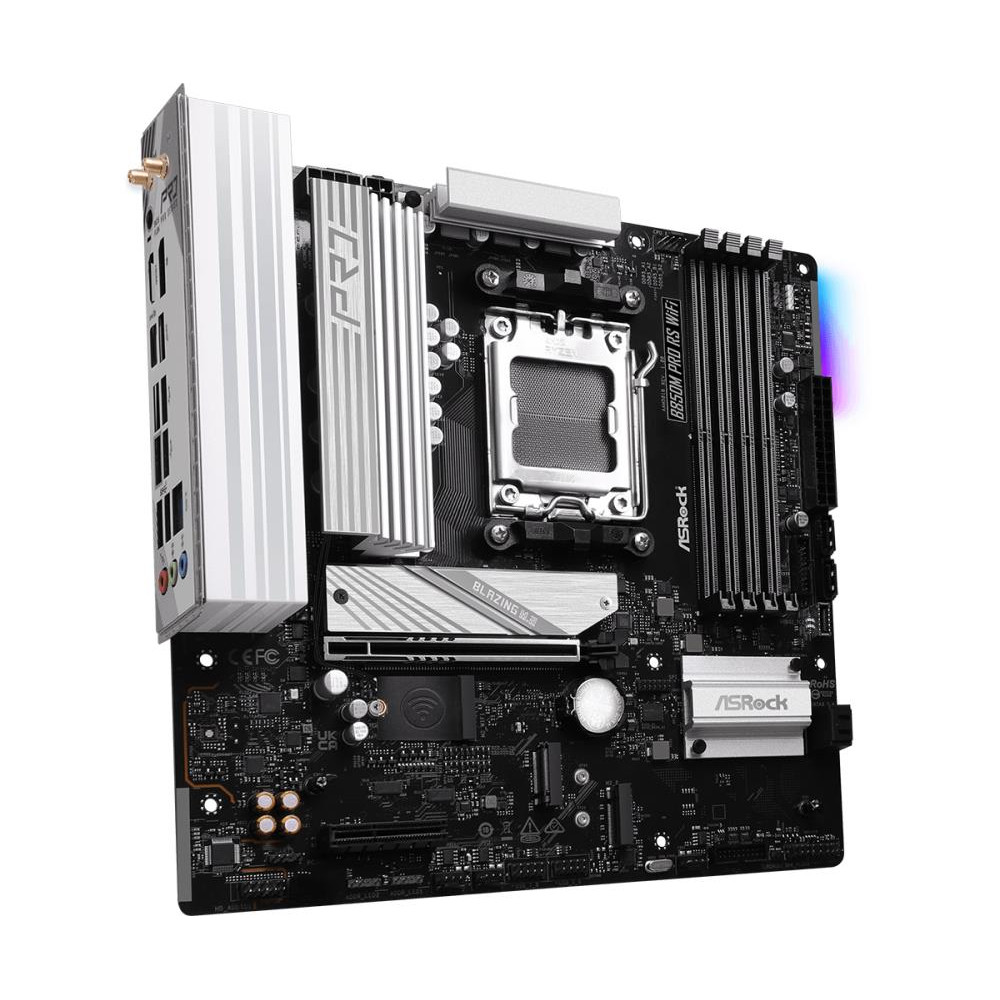

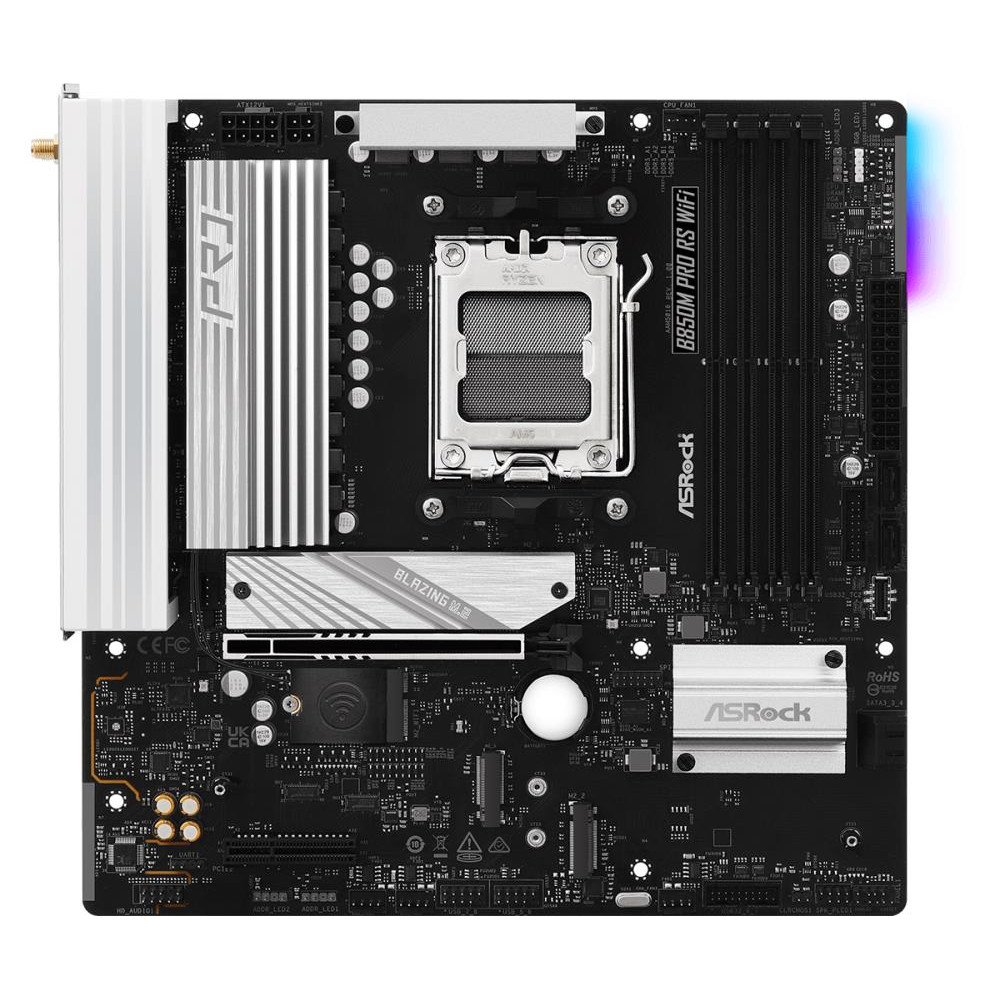

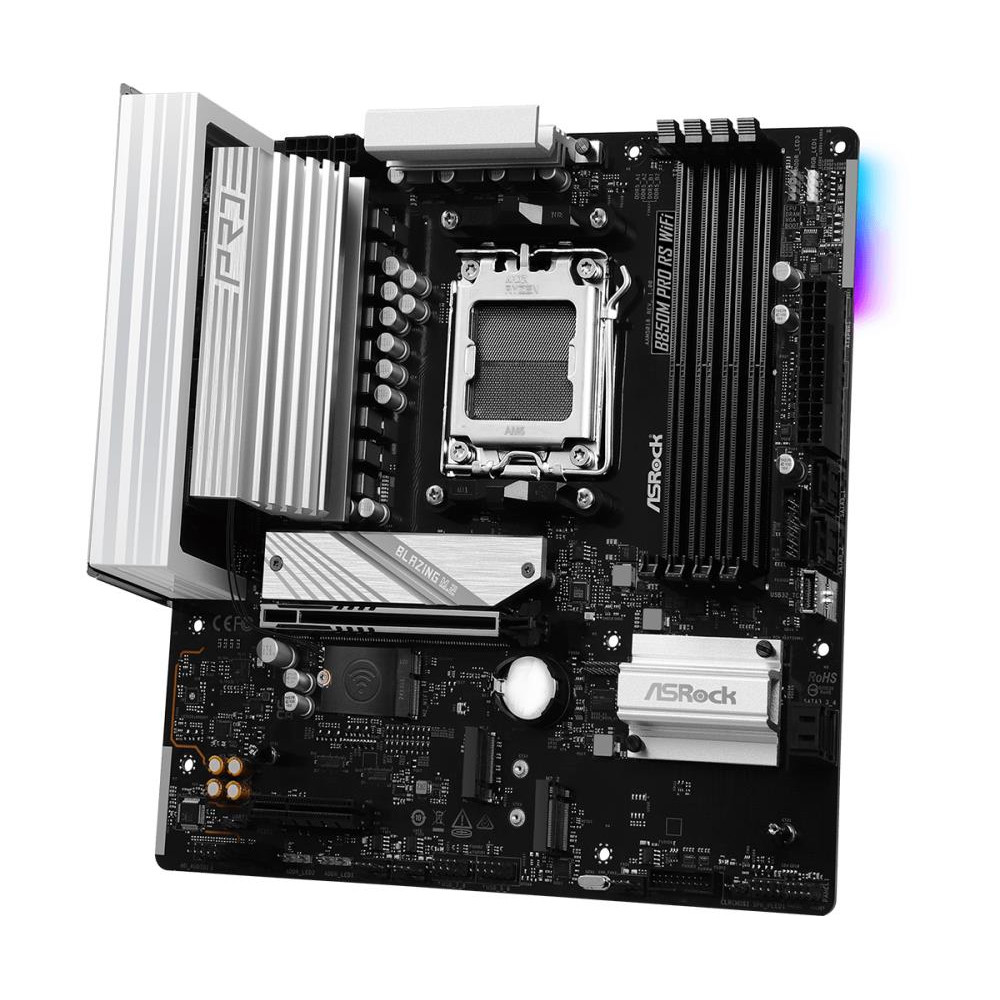

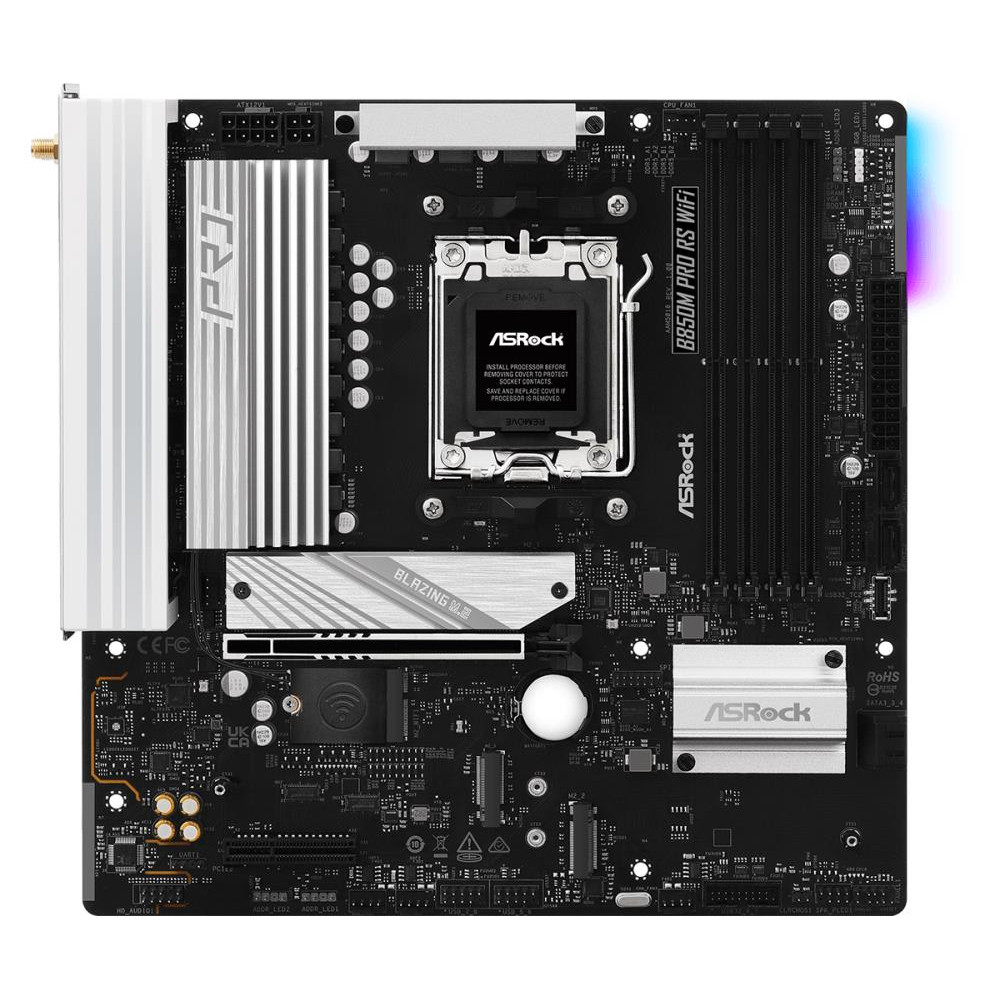

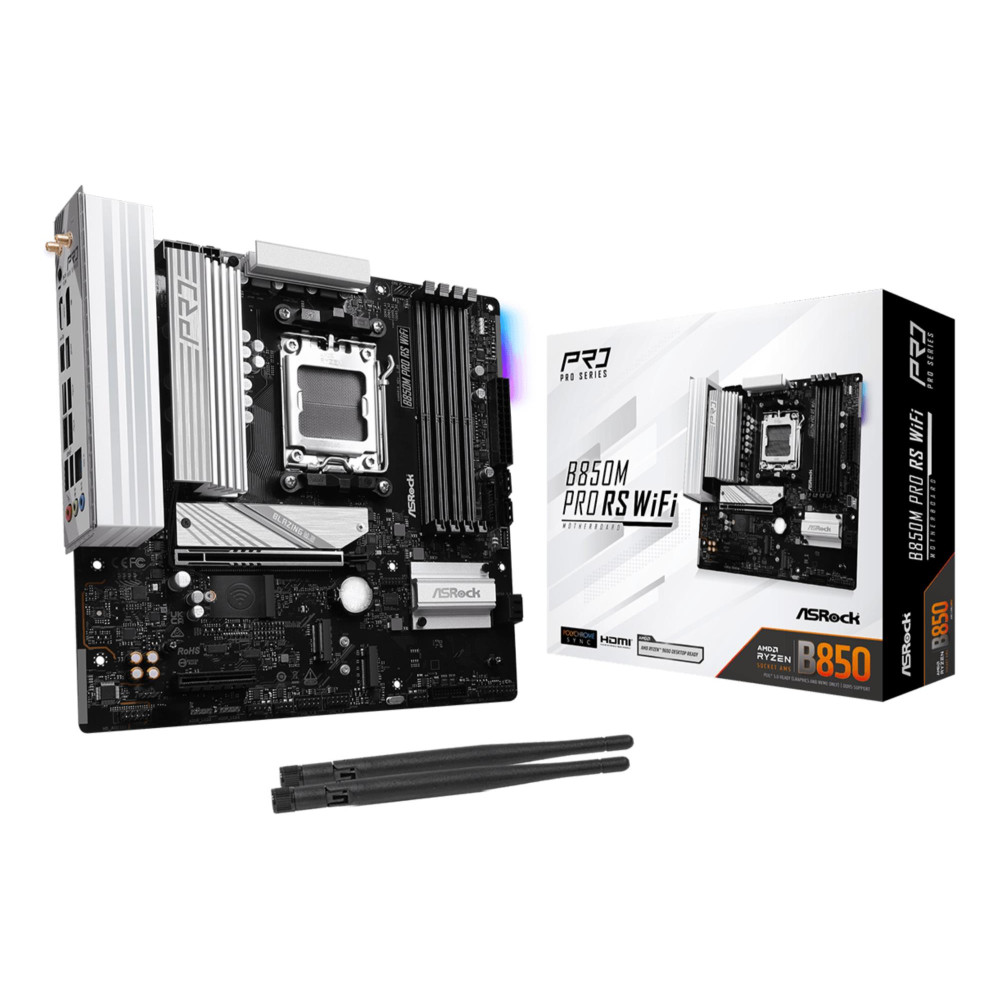

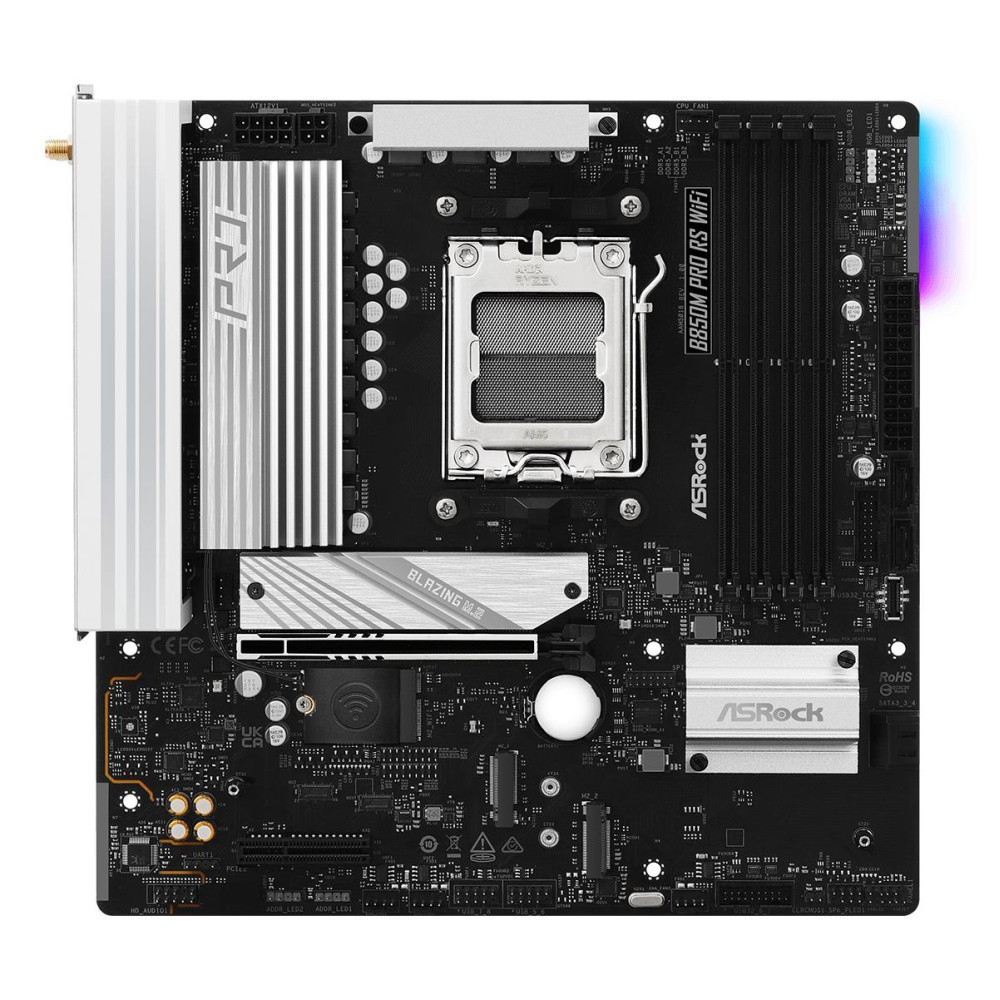

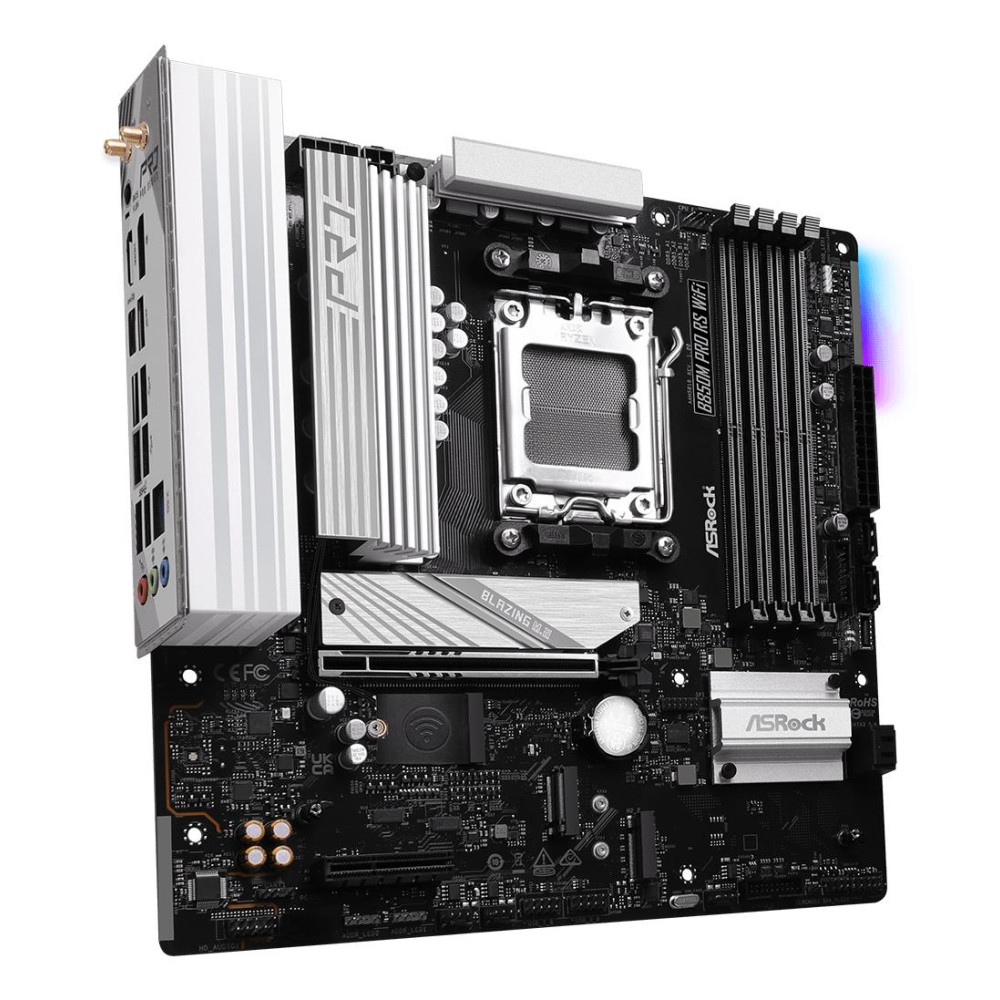

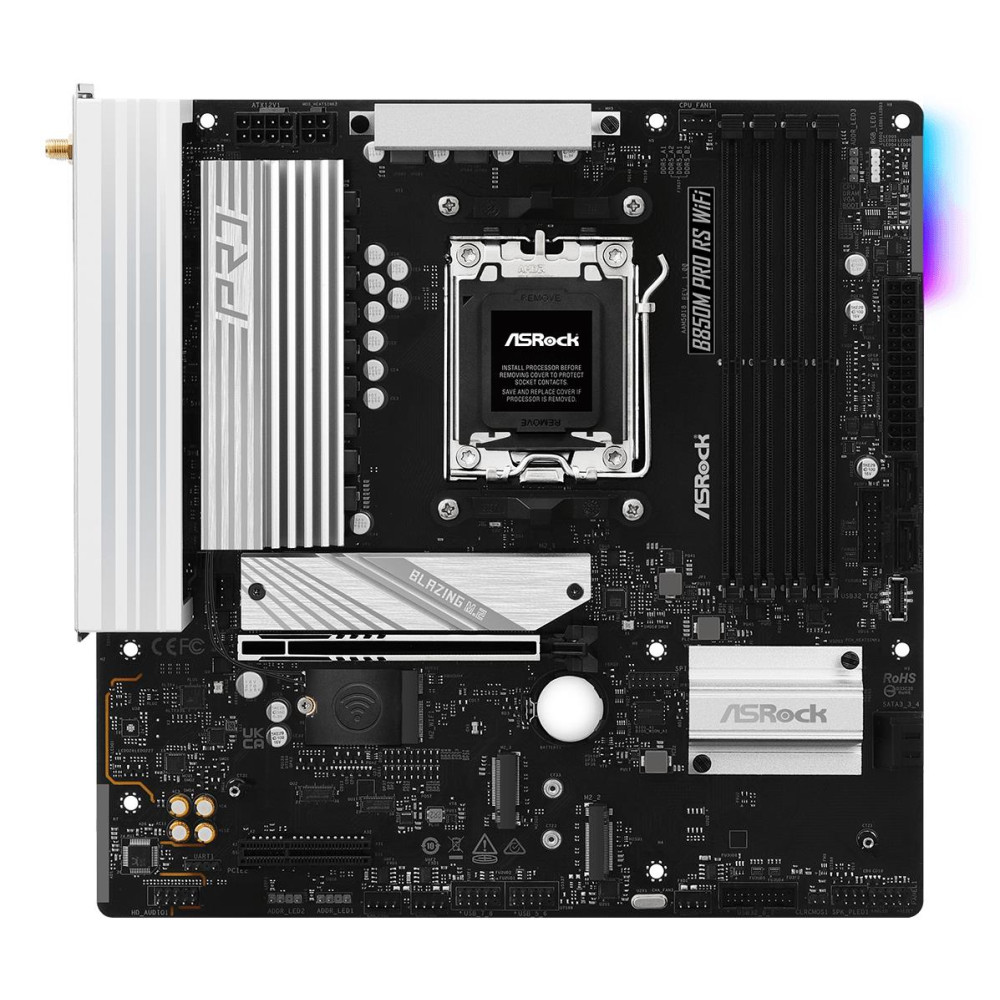

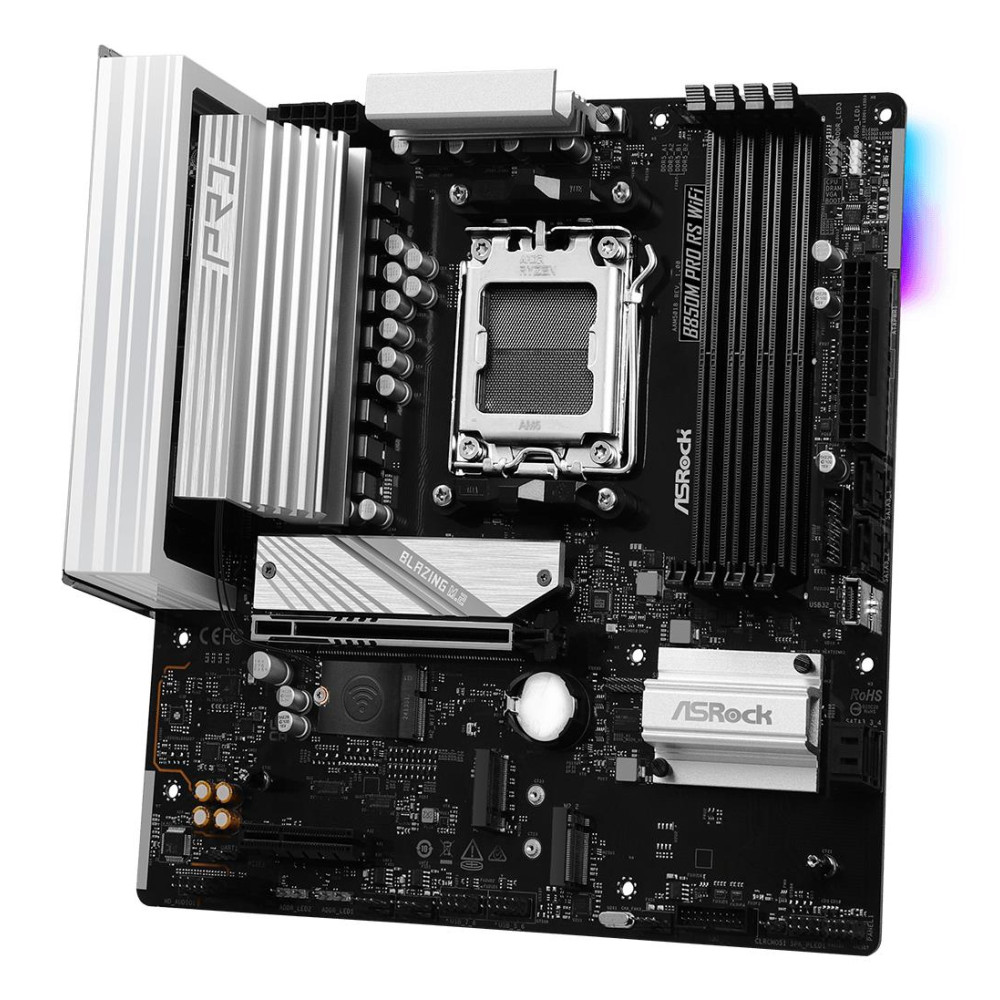

Mainboard, ASROCK, AMD B850, SAM5, Micro-ATX, Memory DDR5, Memory slots 4, 1xPCI-Express 4.0 4x , 1xPCI-Express 5.0 16x, 1xM.2, 1xHDMI, 1xDisplayPort, 1xAudio-In, 1xAudio-Out, 1xMicrophone, 4xUSB 2.0, 3xUSB 3.2, 1xUSB-C, 1xRJ45, B850MPRORSWIFI
Популярный
- Бренд: ASROCK
- Модель: B850M PRO RS WIFI
- EAN: 4711581490352
- Наличие: 30
Наименование:
ASROCK B850M PRO RS WIFI
158.23€
Без PVN: 130.77€
- Обзор товара
- Характеристики
- Отзывы (0)
Характеристики
Specifikācija
12V power connector
Y
1st M.2 highest PCI Express generation
5.0
1st M.2 largest key size
2280
2nd M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
2280
3rd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
2280
Antenna included
Y
Audio chip
Realtek ALC897
BIOS memory size
256
CPU fan connector
Y
ECC ?ompatibility
ECC & non-ECC
Front panel audio connector
Y
Motherboard chipset family
AMD
Number of chassis fan connectors
3
Number of CPU fan connectors
2
Number of EPS power connectors (8-pin)
1
Number of M.2 (M) slots
3
Number of RGB LED pin headers
1
Number of SATA III connectors
4
Parallel processing technology support
Not supported
PCI Express x16 (Gen 5.x) slots
1
PCI Express x4 (Gen 4.x) slots
1
Product colour
Black
RGB LED pin header
Y
Summary
Asrock B850M Pro RS WiFi. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 3840 x 2160 pixels. USB connector type: USB Type-A, USB Type-C
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
TPM connector
Y
Unit Calculated Volume
0.005896
Unit Calculated Weight
1.395
Units per Shipping Box
10
USB 3.2 Gen 1 (3.1 Gen 1) connectors
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
WiFi-AP antenna jack
2
Процессор
Compatible processor series
AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer
AMD
Сокет процессора
AM5
Память
Maximum internal memory
256
Memory channels
Dual-channel
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Unbuffered memory
Y
Тип памяти
DDR5
Запоминающее устройство
Number of storage drives supported
7
RAID levels
0/1/10
RAID support
Y
Supported storage drive interfaces
PCI Express 4.0,PCI Express 5.0,SATA III
Supported storage drive types
HDD & SSD

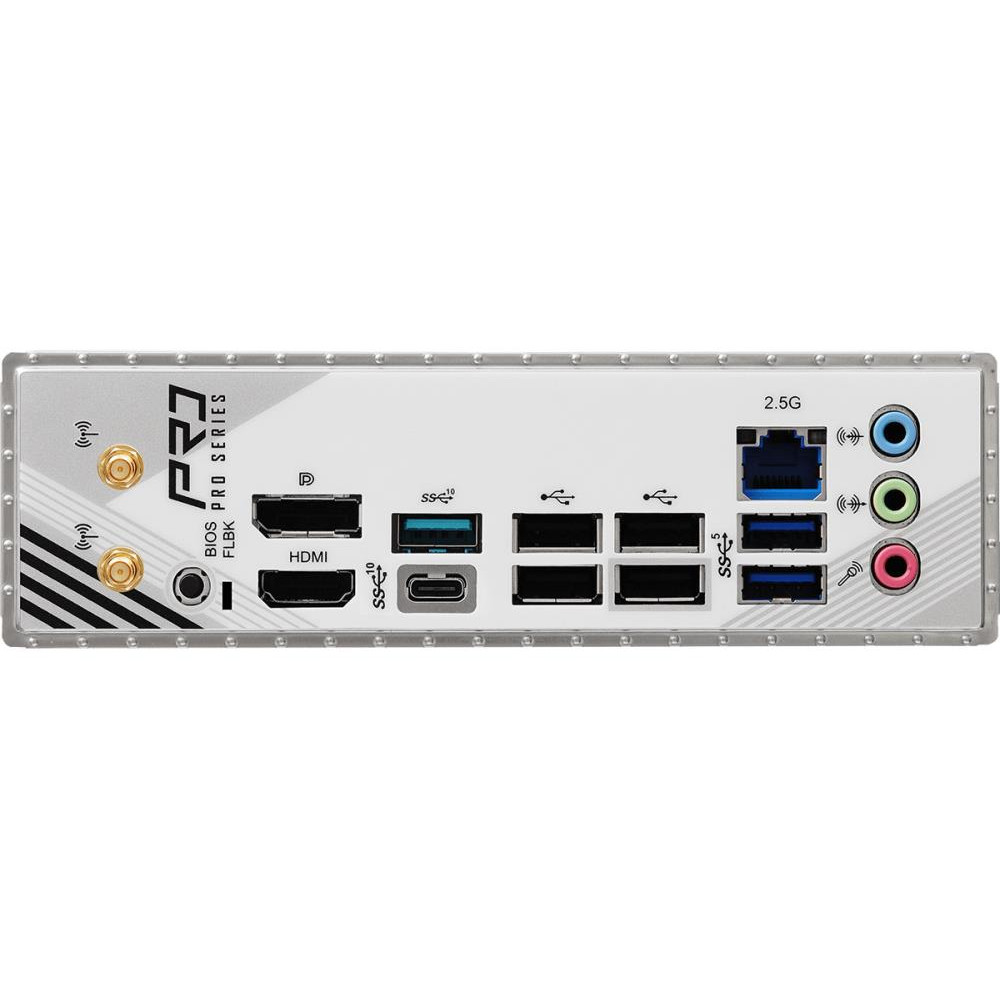

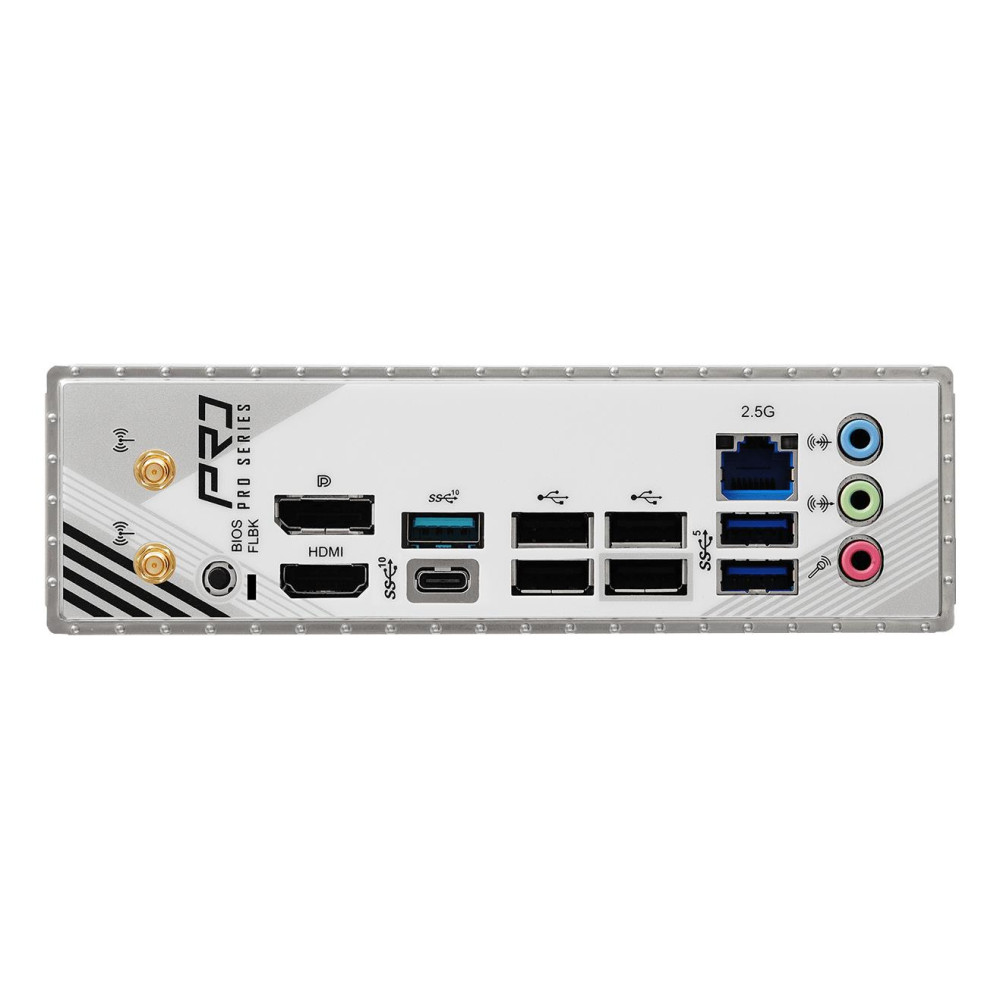

Порты
DisplayPort version
1.4
DisplayPorts quantity
1
HDMI version
2.1
Headphone outputs
3
Microphone in
Y
USB 2.0 connectors
2
USB 2.0 ports quantity
4
USB connector type
USB Type-A/USB Type-C
Количество портов HDMI
1
Подключения
Bluetooth
Y
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Y
LAN controller
Dragon RTL8125BG
Wi-Fi
Y
Wi-Fi standards
802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
Версия Bluetooth
5.2
Порты локальной сети Ethernet (RJ-45)
1
Спецификация
ATX Power connector (24-pin)
Y
Audio output channels
7.1
BIOS Type
UEFI AMI
Certification
FCC, CE, ErP/EuP ready
Component for
PC
EPS power connector (8-pin)
Y
Form factor
mATX
HDCP
Y
Line-in
Y
Maximum resolution
3840 x 2160
Model
B850M Pro RS WiFi
Motherboard chipset
AMD B850
Motherboard form factor
Micro ATX
Number of memory slots
4
Supported processor sockets
Socket AM5
Windows operating systems supported
Windows 10 x64/Windows 11 x64
Глубина
244
Кабели в комплекте
SATA
Чипсет
B850
Ширина
244
