    Наименование:

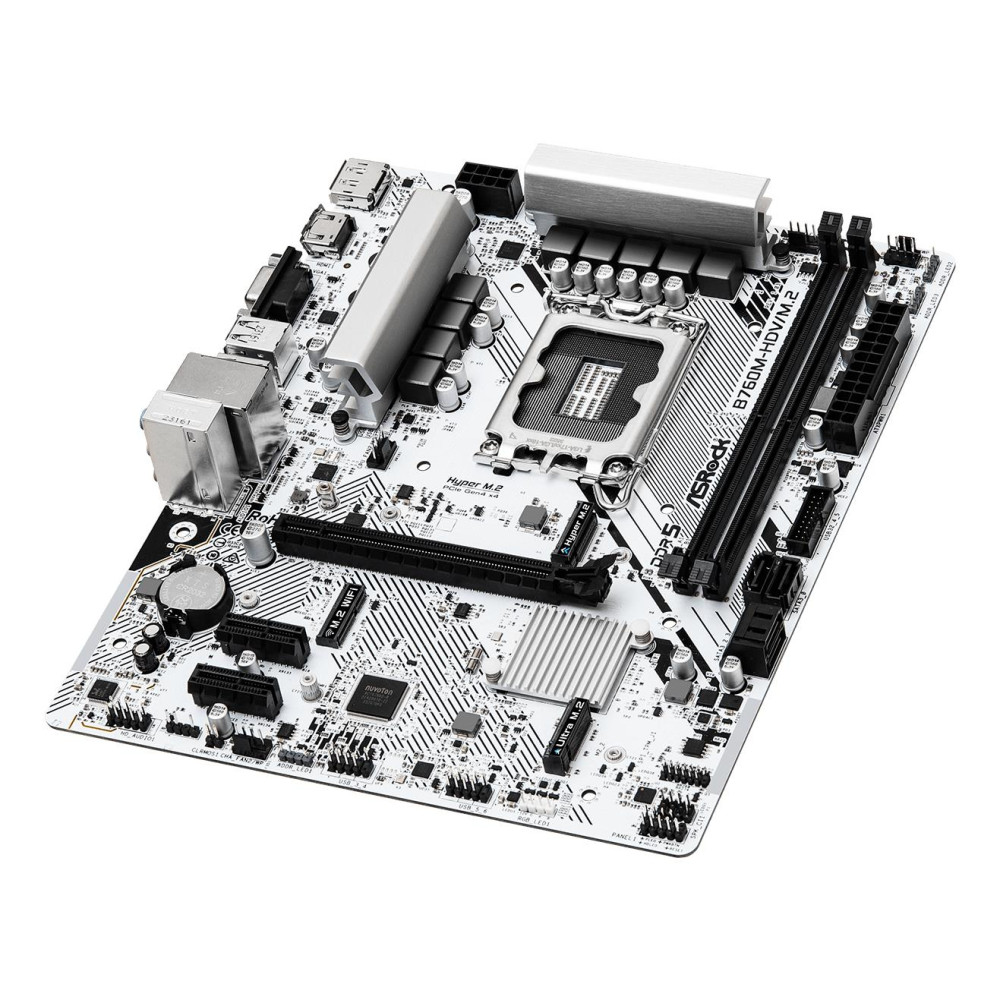

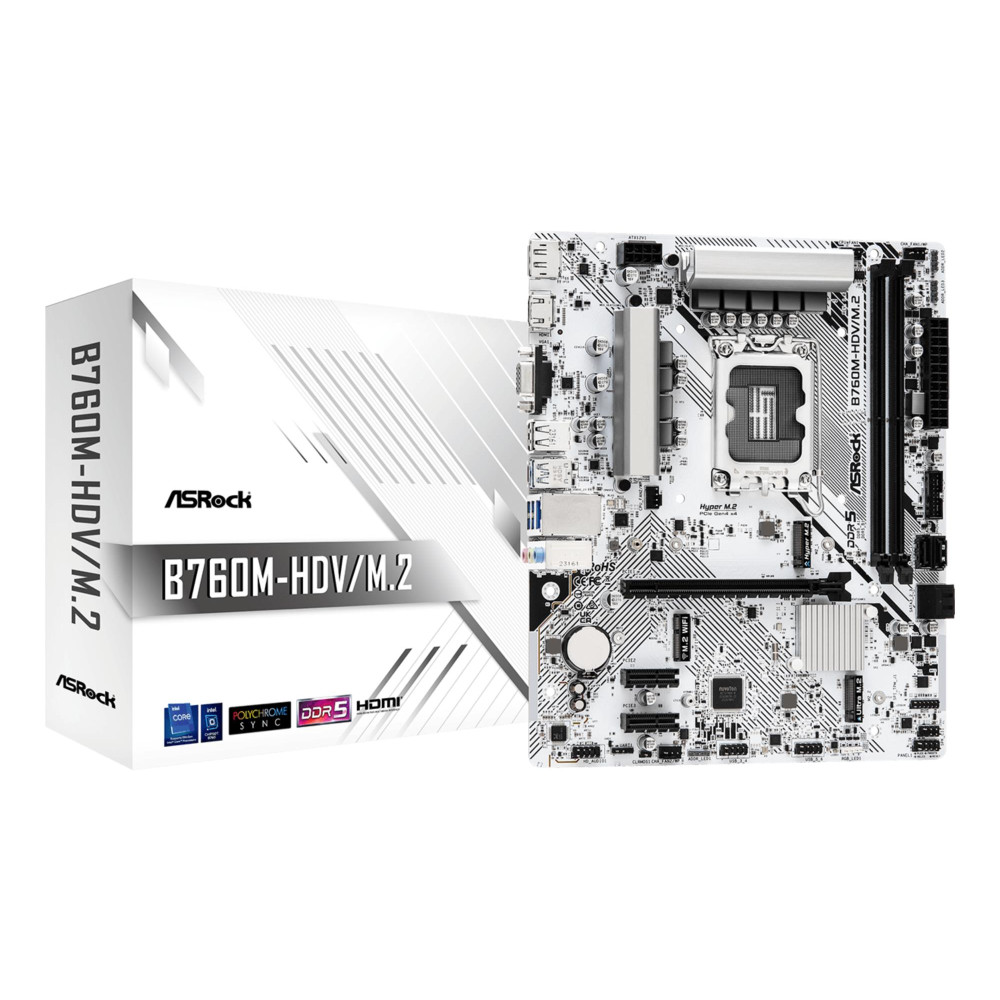

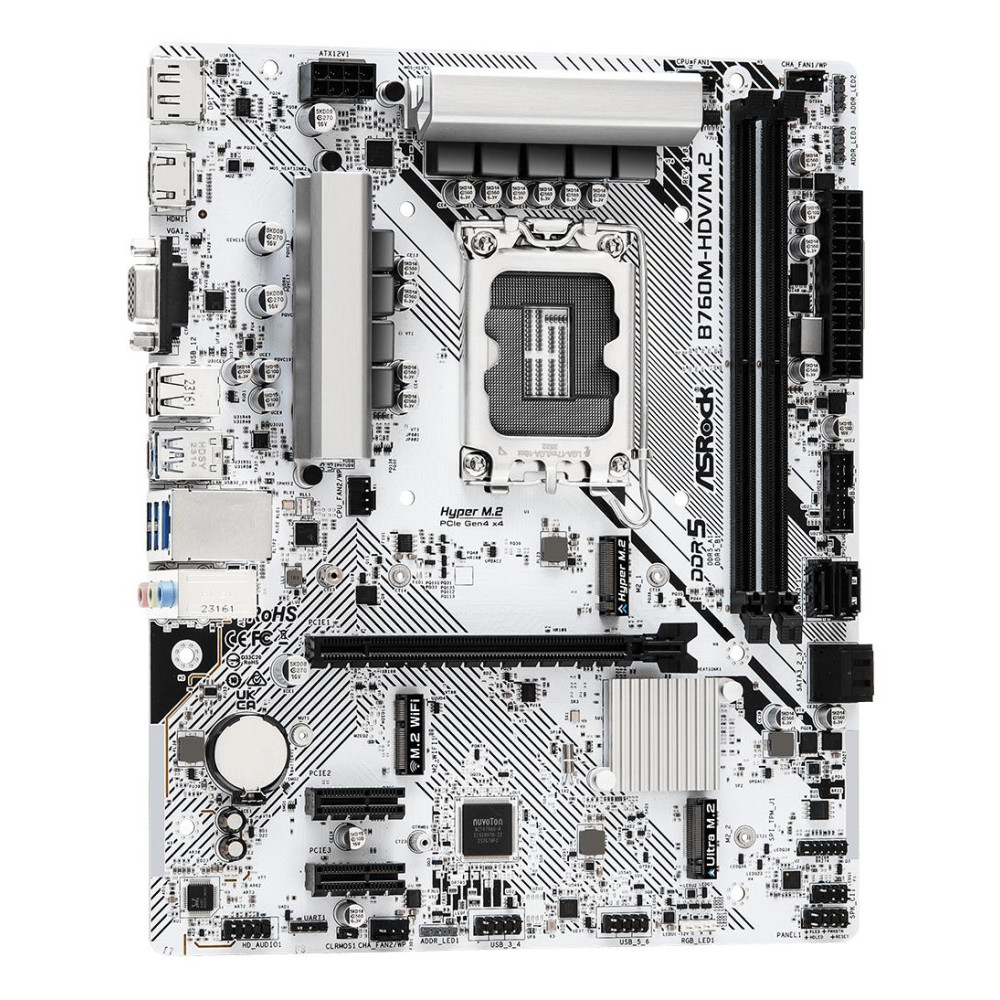

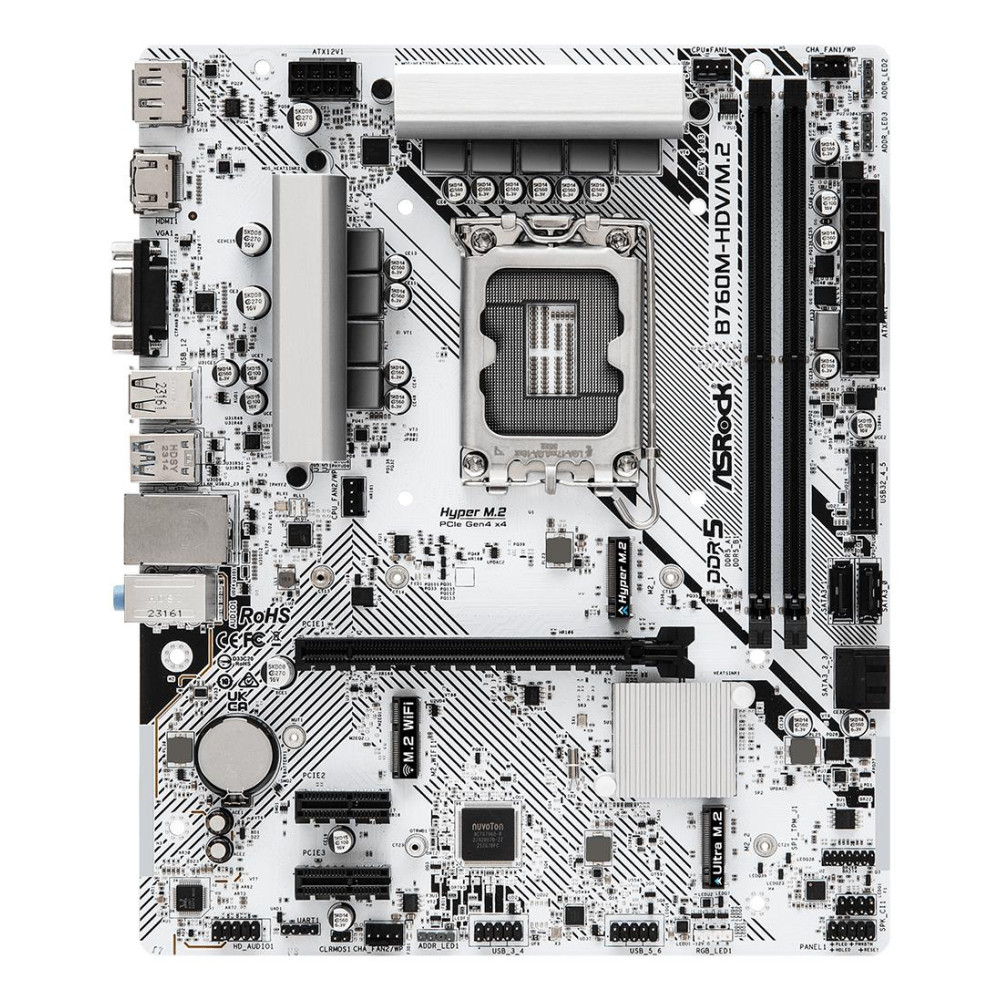

    ASROCK B760M-HDV/M.2

  • Бренд: ASROCK
  • Модель: B760M-HDV/M.2
  • EAN: 4710483943485
  • Наличие: 20
94.39€
Без PVN: 78.01€
  • Обзор товара
  • Характеристики
  • Отзывы (0)

Mainboards for Intel CPUs

Характеристики
Specifikācija
Audio chip Realtek ALC897
BIOS memory size 128
CPU fan connector Yes
ECC ?ompatibility Non-ECC
Front panel audio connector Yes
Motherboard chipset family Intel
Number of M.2 (M) slots 1
Number of SATA III connectors 4
Parallel processing technology support Not supported
PCI Express x1 (Gen 3.x) slots 2
PCI Express x16 (Gen 4.x) slots 1
Product Net Weight 0.5
RGB LED pin header Yes
Screws included Yes
Summary Asrock B760M-HDV/M.2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
TPM connector Yes
Unit Calculated Volume 0.004511
Unit Calculated Weight 0.927
Units per Shipping Box 20
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
Процессор
Compatible processor series Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i9 12th Gen/Intel Core i9 13th Gen/Intel Core i9 14th Gen
Processor manufacturer Intel
Память
Maximum internal memory 96
Memory channels Dual-channel
Memory slots type DIMM
Supported memory types DDR5-SDRAM
Unbuffered memory Yes
Тип памяти DDR5
Запоминающее устройство
RAID levels 0/1/10/5
RAID support Yes
Supported storage drive interfaces M.2,SATA III

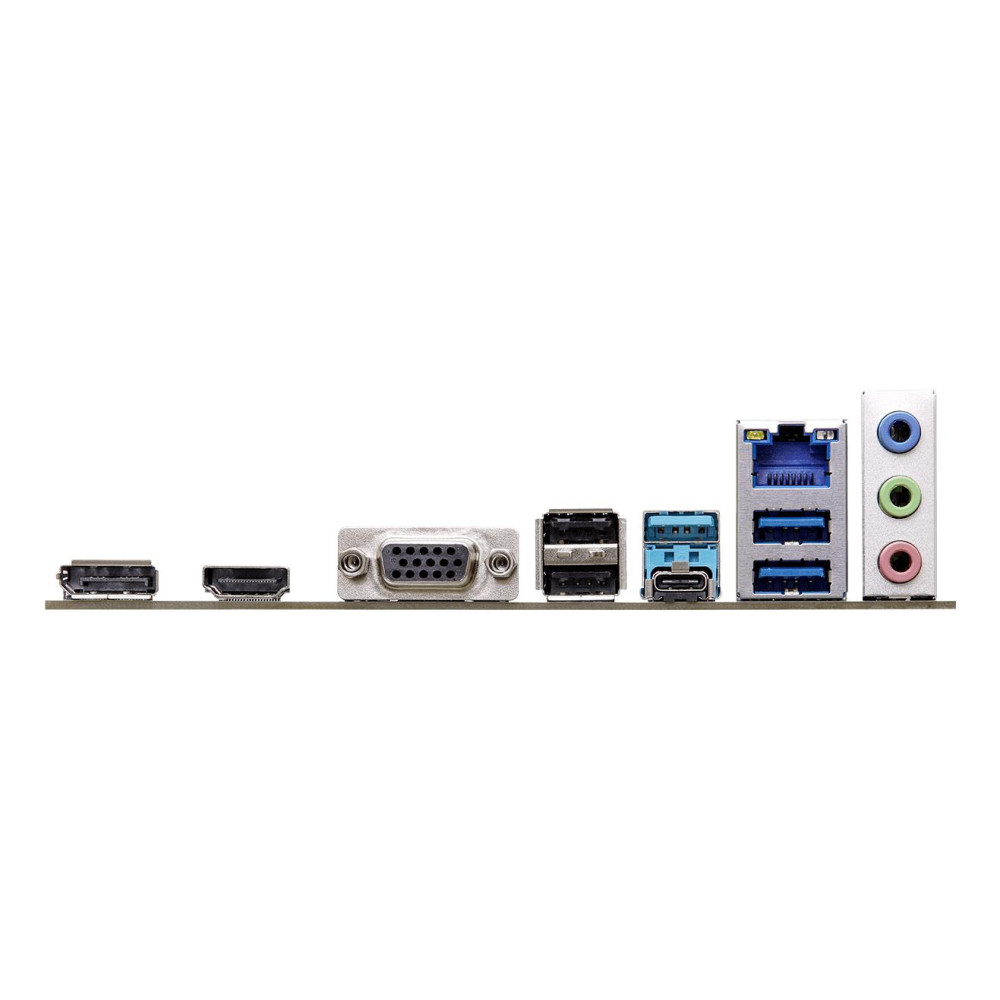

Порты
DisplayPort version 1.4
DisplayPorts quantity 1
Microphone in Yes
USB 2.0 connectors 2
USB 2.0 ports quantity 2
Количество портов HDMI 1
Количество портов VGA (D-Sub) 1
Подключения
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
LAN controller Dragon RTL8125BG
Wi-Fi No
Порты локальной сети Ethernet (RJ-45) 1
Спецификация
ATX Power connector (24-pin) Yes
Audio output channels 7.1
BIOS Type EFI AMI
Component for PC
Form factor mATX
Line-in Yes
Model B760M-HDV/M.2
Motherboard chipset Intel B760
Motherboard form factor micro ATX
Number of memory slots 2
Windows operating systems supported Windows 10 x64/Windows 11 x64
Глубина 201
Кабели в комплекте SATA
Чипсет B760
Ширина 244
